REV. 0
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties that
may result from its use. No license is granted by implication or otherwise
under any patent or patent rights of Analog Devices.
a
AD1896*
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781/329-4700
www.analog.com
Fax: 781/326-8703
Analog Devices, Inc., 2001
192 kHz Stereo Asynchronous
Sample Rate Converter
FUNCTIONAL BLOCK DIAGRAM
GRPDLYS
VDD_IO VDD_CORE
SERIAL
INPUT
FIFO
FS
OUT
FS
IN
SERIAL
OUTPUT
DIGITAL
PLL
FIR
FILTER
CLOCK DIVIDER
ROM
AD1896
BYPASS
MUTE_O
MUTE_I
SDATA_I
SCLK_I
LRCLK_I
SMODE_IN_0
SMODE_IN_1
SMODE_IN_2
MCLK_I
MCLK_O
MSMODE_0
MSMODE_2
MSMODE_1
WLNGTH_O_0
WLNGTH_O_1
SMODE_O_0
SMODE_O_1
TDM_IN
SDATA_O
SCLK_O
LRCLK_O
RESET
PRODUCT OVERVIEW
The AD1896 is a 24-bit, high-performance, single-chip, second-
generation asynchronous sample rate converter. Based upon
Analog Devices Inc. experience with its first asynchronous
sample rate converter, the AD1890, the AD1896 offers improved
performance and additional features. This improved performance
includes a THD + N range of 117 dB to 133 dB depending
on sample rate and input frequency, 142 dB (A-Weighted)
dynamic range, 192 kHz sampling frequencies for both input and
output sample rates, improved jitter rejection, and 1:8 upsampling
and 7.75:1 downsampling ratios. Additional features include
more serial formats, a bypass mode, better interfacing to digital
signal processors, and a matched phase mode.
The AD1896 has a 3-wire interface for the serial input and
output ports that supports left-justified, I
2
S, and right-justified
(16-, 18-, 20-, 24-bit) modes. Additionally, the serial output
port supports TDM mode for daisy chaining multiple AD1896's to
a digital signal processor. The serial output data is dithered down
to 20, 18 or 16 bits when 20-, 18- or 16-bit output data is selected.
The AD1896 sample rate converts the data from the serial input
port to the sample rate of the serial output port. The sample rate
at the serial input port can be asynchronous with respect to the
output sample rate of the output serial port. The master clock to
the AD1896, MCLK, can be asynchronous to both the serial
input and output ports.
MCLK can either be generated off-chip or on-chip by the AD1896
master clock oscillator. Since MCLK can be asynchronous to the
input or output serial ports, a crystal can be used to generate
MCLK internally to reduce noise and EMI emissions on the
board. When MCLK is synchronous to either the output or input
serial port, the AD1896 can be configured in a master mode where
MCLK is divided down and used to generate the left/right
and bit clocks for the serial port that is synchronous to MCLK.
The AD1896 supports master modes of 256
f
S
, 512
f
S
and
768
f
S
for both input and output serial ports.

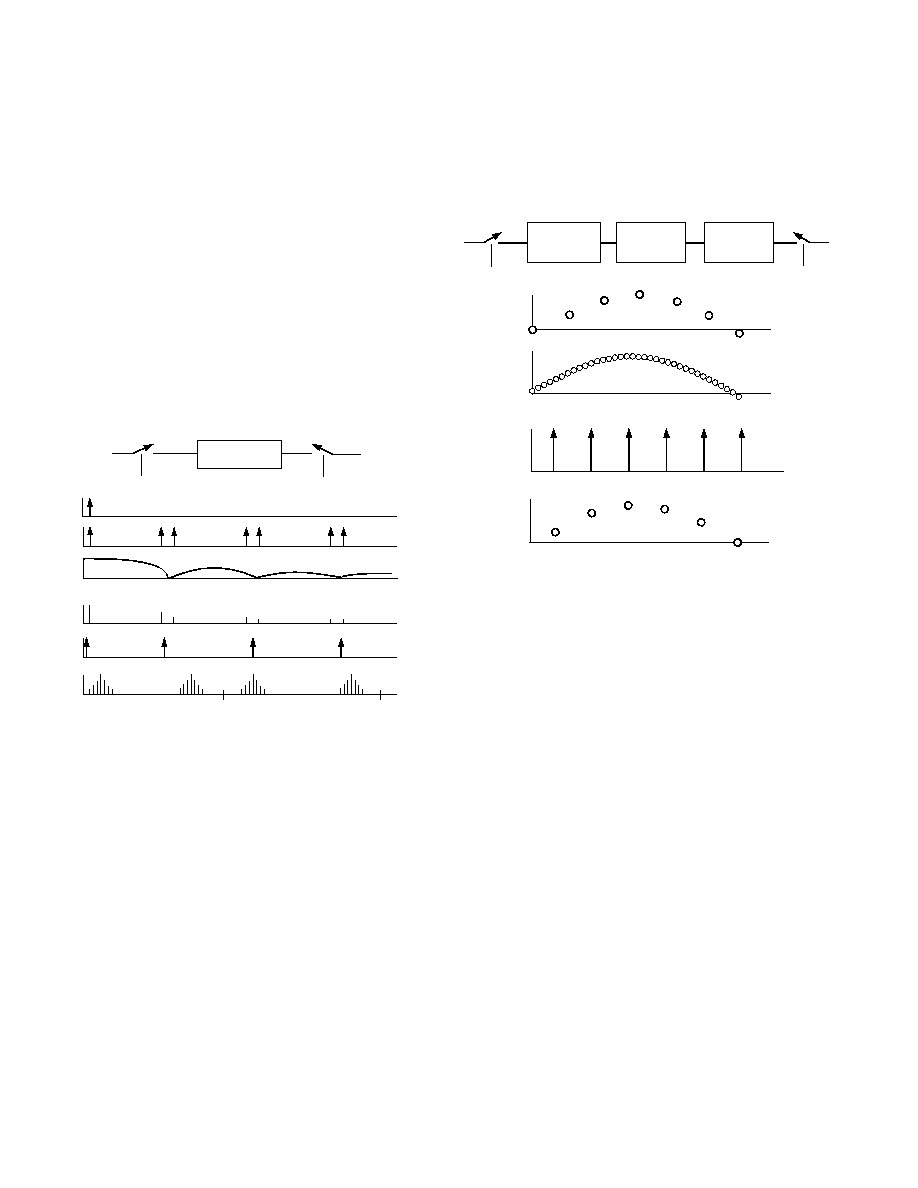

Conceptually, the AD1896 interpolates the serial input data by
a rate of 2
20
and samples the interpolated data stream by the
output sample rate. In practice, a 64-tap FIR filter with 2
20
polyphases, a FIFO, a digital servo loop that measures the time
difference between input and output samples within 5 ps, and a
digital circuit to track the sample rate ratio are used to perform
the interpolation and output sampling. Refer to the Theory of
Operation section. The digital servo loop and sample rate ratio
circuit automatically track the input and output sample rates.
(Continued on page 15)
FEATURES
Automatically Senses Sample Frequencies
No Programming Required
Attenuates Sample Clock Jitter
3.3 V5 V Input and 3.3 V Core Supply Voltages
Accepts 16-/18-/20-/24-Bit Data
Up to 192 kHz Sample Rate
Input/Output Sample Ratios from 7.75:1 to 1:8
Bypass Mode
Multiple AD1896 TDM Daisy-Chain Mode
Multiple AD1896 Matched-Phase Mode
142 dB Signal-to-Noise and Dynamic Range
(A-Weighted, 20 Hz20 kHz BW)
Up to 133 dB THD + N
Linear Phase FIR Filter
Hardware Controllable Soft Mute
Supports 256 f
S
, 512 f
S
or 768 f
S
Master Mode
Clock
Flexible Three-Wire Serial Data Port with Left-Justified,
I
2
S, Right-Justified (16-,18-, 20-, 24-Bits), and TDM
Serial Port Modes
Master/Slave Input and Output Modes
28-Lead SSOP Plastic Package
APPLICATIONS
Home Theater Systems, Studio Digital Mixers, Auto-
motive Audio Systems, DVD, Set-Top Boxes, Digital
Audio Effects Processors, Studio-to-Transmitter
Links, Digital Audio Broadcast Equipment, Digital
Tape Varispeed Applications
*Patents pending.
REV. 0
2
AD1896SPECIFICATIONS
TEST CONDITIONS UNLESS OTHERWISE NOTED
Supply Voltages
VDD_CORE
3.3 V
VDD_IO
5.0 V or 3.3 V
Ambient Temperature
25
C
Input Clock
30.0 MHz
Input Signal
1.000 kHz, 0 dBFS
Measurement Bandwidth
20 to f
S_OUT
/2 Hz
Word Width
24 Bits
Load Capacitance
50 pF
Input Voltage HI
2.4 V
Input Voltage LO
0.8 V
Specifications subject to change without notice.
DIGITAL PERFORMANCE (VDD_CORE = 3.3 V 5%, VDD_IO = 5.0 V 10%)
Parameter
Min
Typ
Max
Unit
Resolution
24
Bits
Sample Rate @ MCLK_I = 30 MHz
6
215
kHz
Sample Rate (@ Other Master Clocks)
1
MCLK_I/5000
f
S_OUT
MCLK_I/138
kHz
Sample Rate Ratios
Upsampling
1:8
Downsampling (Short GRPDLYS)
7.75:1
Downsampling (Long GRPDLYS)
7.0:1
Dynamic Range
2
(20 Hz to f
S_OUT
/2, 1 kHz, 60 dBFS Input) A-Weighted
Worst-Case (192 kHz:48 kHz)
132
dB
44.1 kHz:48 kHz
142
dB
48 kHz:44.1 kHz
141
dB
48 kHz:96 kHz
142
dB
44.1 kHz:192 kHz
141.5
dB
96 kHz:48 kHz
140
dB
192 kHz:32 kHz
140
dB
(20 Hz to f
S_OUT
/2, 1 kHz, 60 dBFS Input) No Filter
Worst-Case (192 kHz:48 kHz)
132
dB
44.1 kHz:48 kHz
139
dB
48 kHz:44.1 kHz
139
dB
48 kHz:96 kHz
139
dB
44.1 kHz:192 kHz
137
dB
96 kHz:48 kHz
137
dB
192 kHz:32 kHz
138
dB
Total Harmonic Distortion + Noise
2
(20 Hz to f
S_OUT
/2, 1 kHz, 0 dBFS Input) No Filter
Worst-Case (32 kHz:48 kHz)
3
117
dB
44.1 kHz:48 kHz
123
dB
48 kHz:44.1 kHz
124
dB
48 kHz:96 kHz
120
dB
44.1 kHz:192 kHz
123
dB
96 kHz:48 kHz
132
dB
192 kHz:32 kHz
133
dB
Interchannel Gain Mismatch
0.0
dB
Interchannel Phase Deviation
0.0
Degrees
Mute Attenuation (24 Bits Word Width)
144
dB
NOTES
1
Lower sampling rates than given by this formula are possible, but the jitter rejection will decrease.
2

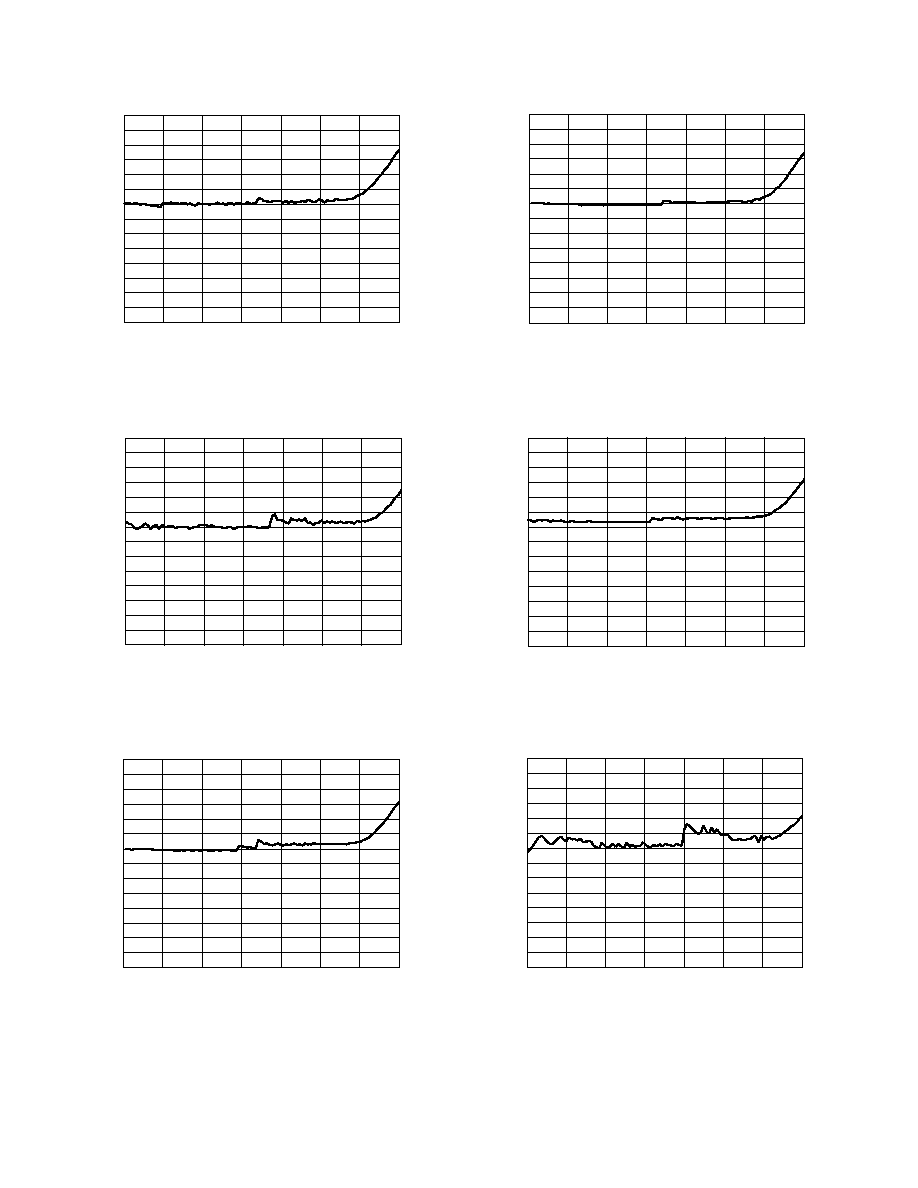

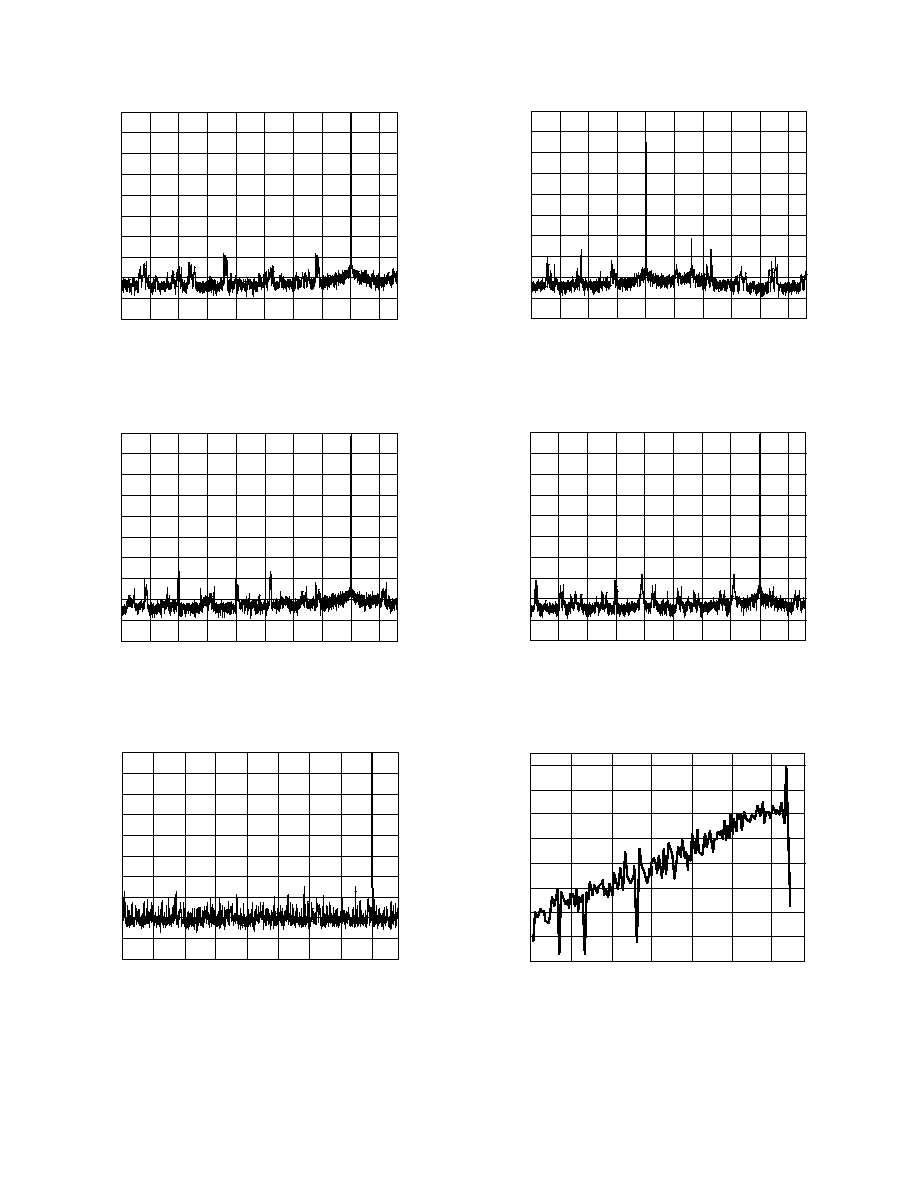

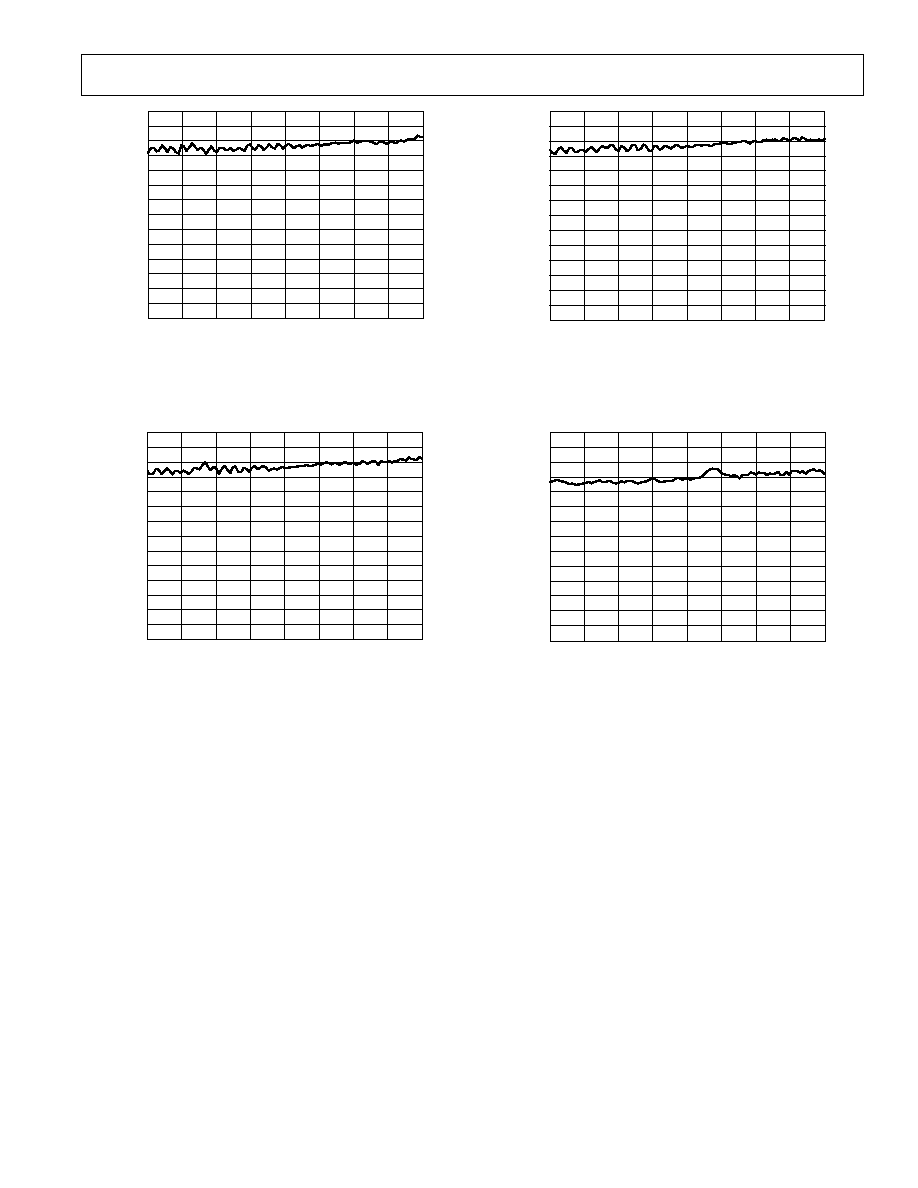

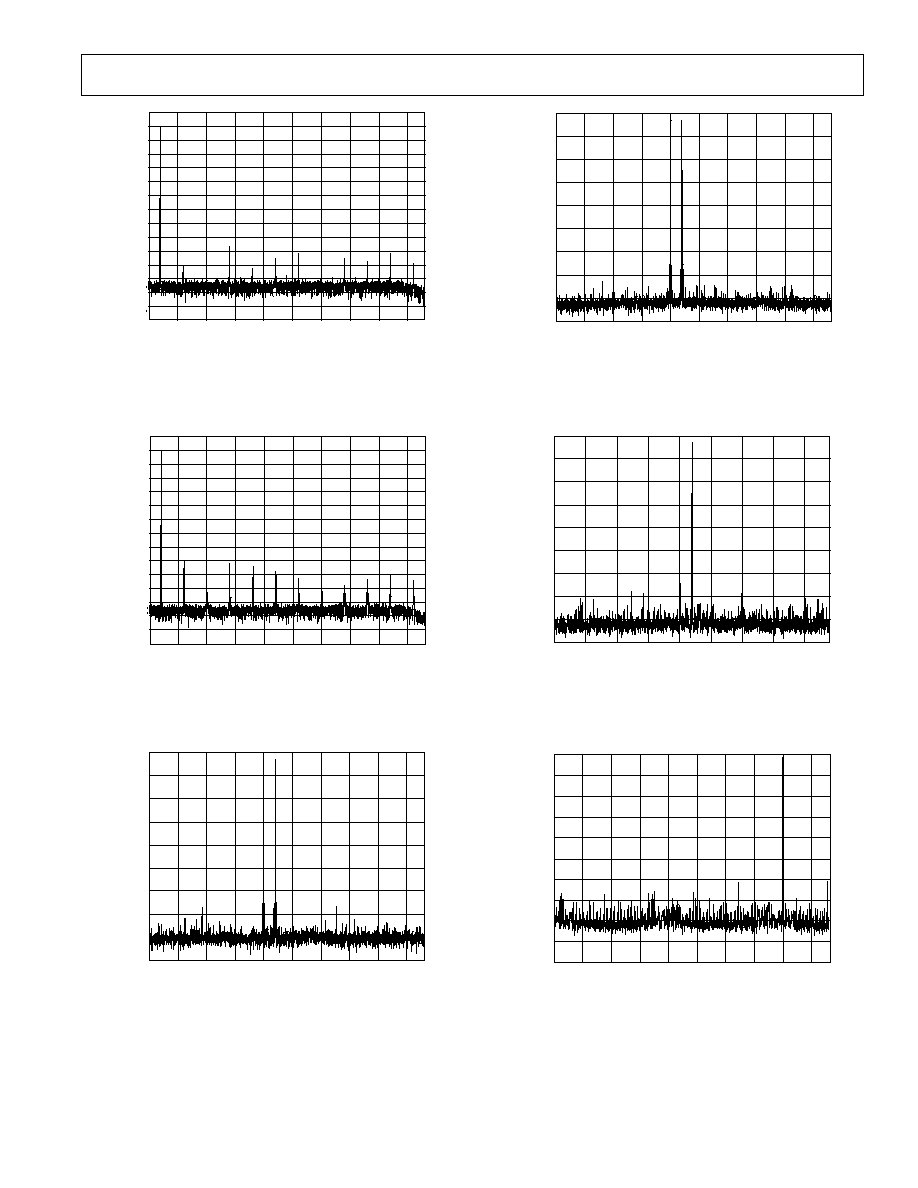

Refer to the Typical Performance Characteristics section for DNR and THD + N numbers over wide range of Input and Output Sample Rates.
3
For any other sample rate ratio, the minimum THD + N will be better than 117 dB. Please refer to detailed performance plots.
Specifications subject to change without notice.
REV. 0
3
AD1896
DIGITAL TIMING (40 C < T
A
< +105 C, VDD_CORE = 3.3 V 5%, VDD_IO = 5.0 V 10%)
Parameter
1
Min
Max
Unit
t
MCLKI
MCLK_I Period
33.3
ns
f
MCLK
MCLK_I Frequency
30.0
2, 3
MHz
t
MPWH
MCLK_I Pulsewidth High
8
ns
t
MPWL
MCLK_I Pulsewidth Low
12
ns
Input Serial Port Timing
t
LRIS
LRCLK_I Setup to SCLK_I
8
ns
t
SIH
SCLK_I Pulsewidth High
8
ns
t
SIL
SCLK_I Pulsewidth Low
8
ns
t
DIS
SDATA_I Setup to SCLK_I Rising Edge
8
ns
t
DIH
SDATA_I Hold from SCLK_I Rising Edge
3
ns
Output Serial Port Timing
t
TDMS
TDM_IN Setup to SCLK_O Falling Edge
3
ns
t
TDMH
TDM_IN Hold from SCLK_O Falling Edge
3
ns
t
DOPD
SDATA_O Propagation Delay from SCLK_O, LRCLK_O
20
ns
t
DOH
SDATA_O Hold from SCLK_O
3
ns
t
LROS
LRCLK_O Setup to SCLK_O (TDM Mode Only)
5
ns
t
LROH
LRCLK_O Hold from SCLK_O (TDM Mode Only)
3
ns
t
SOH
SCLK_O Pulsewidth High
10
ns
t
SOL
SCLK_O Pulsewidth Low
5
ns
t
RSTL
RESET Pulsewidth LO
200
ns
NOTES
1
Refer to Timing Diagram Section.
2
The maximum possible sample rate is: FS
MAX
= f
MCLK
/138.
3
f
MCLK
of up to 34 MHz is possible under the following conditions: 0
C < T
A
< 70
C, 45/55 or better MCLK_I duty cycle.
Specifications subject to change without notice.
TIMING DIAGRAMS
t
LRIS
t
SIH
t
DIS
t
SIL
t
DIH
t
LROS
t
SOH
t
DOPD
t
SOL
t
DOH
t
LROH
t
TDMS
t
TDMH
LRCLK_I
SCLK I
SDATA I
LRCLK O
SCLK O
SDATA O
LRCLK O
SCLK O
TDM IN
Figure 1. Input and Output Serial Port Timing (SCLK I/O,
LRCLK I/O, SDATA I/O, TDM_IN)
t
RSTL
MCLK I
RESET
Figure 2.
RESET Timing
t
MPWH
t
MPWL
Figure 3. MCLK_I Timing
REV. 0
4
AD1896SPECIFICATIONS
DIGITAL FILTERS (VDD_CORE = 3.3 V 5%, VDD_IO = 5.0 V 10%)
Parameter
Min
Typ
Max
Unit
Passband
0.4535 f
S_OUT
Hz
Passband Ripple
0.016
dB
Transition Band
0.4535 f
S_OUT
0.5465 f
S_OUT
Hz
Stop Band
0.5465 f
S_OUT
Hz
Stop Band Attenuation
125
dB
Group Delay
Refer to the Group Delay Equations Section
Specifications subject to change without notice.
DIGITAL I/O CHARACTERISTICS (VDD_CORE = 3.3 V 5%, VDD_IO = 5.0 V 10%)
Parameter
Min
Typ
Max
Unit
Input Voltage HI (V
IH
)
2.4
Input Voltage LO (V
IL
)
0.8
V
Input Leakage (I
IH
@ V
IH
= 5 V)
1
+2
A
Input Leakage (I
IL
@ V
IL
= 0 V)
1
2
A
Input Leakage (I
IH
@ V
IH
= 5 V)
2
+150
A
Input Leakage (I
IL
@ V
IL
= 0 V)
2
150
A
Input Capacitance
5
10
pF
Output Voltage HI (V
OH
@ I
OH
= 4 mA)
VDD_CORE 0.5
VDD_CORE 0.4
V
Output Voltage LO (V
OL
@ I
OL
= +4 mA)
0.2
0.5
V
Output Source Current HI (I
OH
)
4
mA
Output Sink Current LO (I
OL
)
+4
mA
NOTES
1
All input pins except GRPDLYS.
2
GRPDLYS pin only.
Specifications subject to change without notice.
POWER SUPPLIES
Parameter
Min
Typ
Max
Unit
Supply Voltage
VDD_CORE
3.135
3.3
3.465
V
VDD_IO
*
VDD_CORE
3.3/5.0
5.5
V
Active Supply Current
I_CORE_ACTIVE
48 kHz:48 kHz
20
mA
96 kHz:96 kHz
26
mA
192 kHz:192 kHz
43
mA
I_IO_ACTIVE
2
mA
Power-Down Supply Current: (All Clocks Stopped)
I_CORE_PWRDN
0.5
mA
I_IO_PWRDN
10
A
*For 3.3 V tolerant Inputs, VDD_IO supply should be set to 3.3 V; however, VDD_CORE supply voltage should not exceed VDD_IO.
Specifications subject to change without notice.
REV. 0
AD1896
5
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection. Although
the AD1896 features proprietary ESD protection circuitry, permanent damage may occur on
devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are
recommended to avoid performance degradation or loss of functionality.
WARNING!
ESD SENSITIVE DEVICE
ABSOLUTE MAXIMUM RATINGS
*
Parameter
Min
Max
Unit
Power Supplies
VDD_CORE
0.3
+3.6
V
VDD_IO
0.3
+6.0
V
Digital Inputs
Input Current
10
mA
Input Voltage
DGND 0.3
VDD_IO + 0.3
V
Ambient Temperature (Operating)
40
+105
C
*Stresses greater than those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the
device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions
for extended periods may affect device reliability.
ORDERING GUIDE
Model
Temperature Range
Package Description
Package Option
AD1896YRS
40
C to +105C
28-Lead SSOP
RS-28
AD1896YRSRL
40
C to +105C
28-Lead SSOP
RS-28 on 13" Reel
POWER SUPPLIES (VDD_CORE = 3.3 V 5%, VDD_IO = 5.0 V 10%)
Parameter
Min
Typ
Max
Unit
Total Active Power Dissipation
48 kHz:48 kHz
65
mW
96 kHz:96 kHz
85
mW
192 kHz:192 kHz
132
mW
Total Power Down Dissipation: (RESET LO)
2
mW
Specifications subject to change without notice.
TEMPERATURE RANGE
Parameter
Min
Typ
Max
Unit
Specifications Guaranteed
25
C
Functionality Guaranteed
40
+105
C
Storage
55
+150
C
Thermal Resistance,
JA
(Junction-to-Ambient)
109
C/W
Specifications subject to change without notice.
REV. 0
AD1896
6

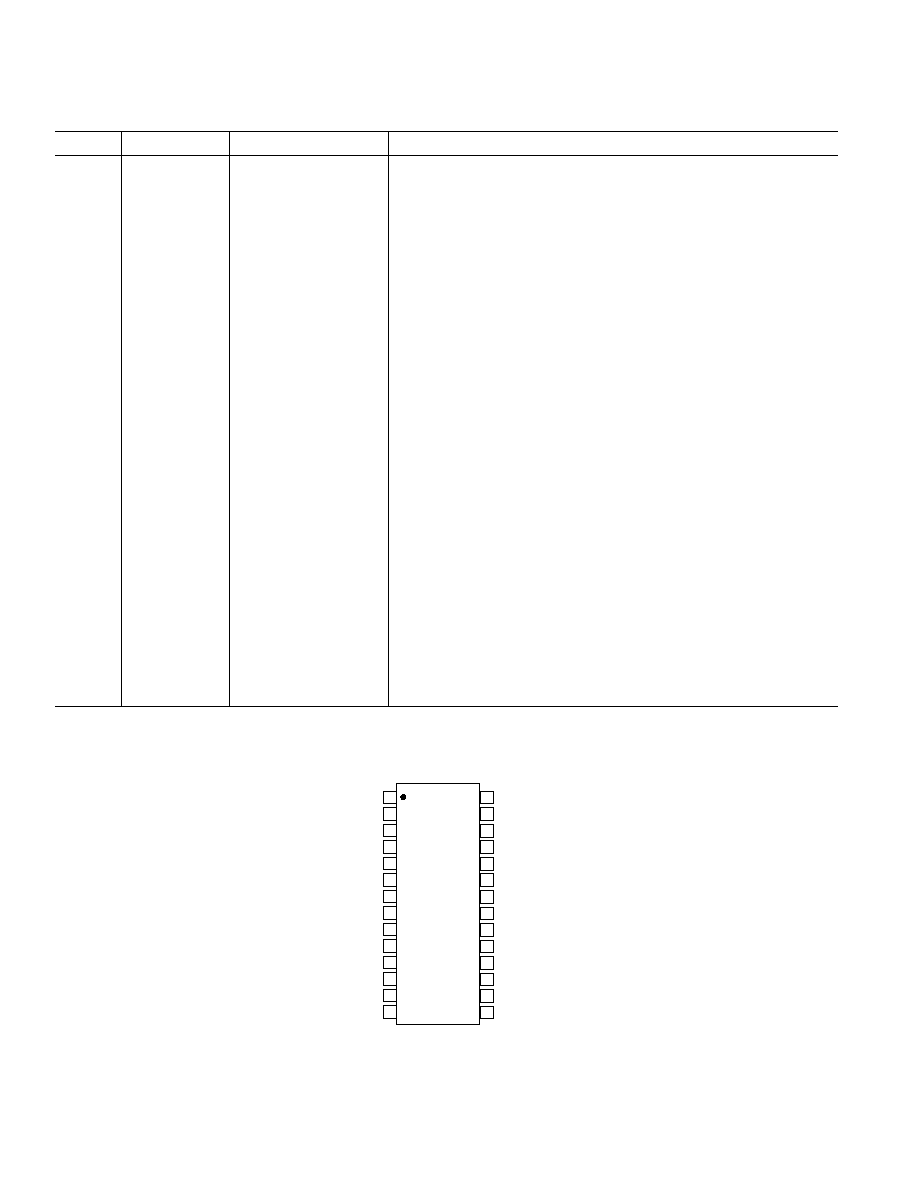

PIN FUNCTION DESCRIPTIONS
Pin No.
IN/OUT
Mnemonic
Description
1
IN
GRPDLYS
Group Delay HI = Short, LO = Long
2
IN
MCLK_IN
Master Clock or Crystal Input
3
OUT
MCLK_OUT
Master Clock Output or Crystal Output
4
IN
SDATA_I
Input Serial Data (at Input Sample Rate)
5
IN/OUT
SCLK_I
Master/Slave Input Serial Bit Clock
6
IN/OUT
LRCLK_I
Master/Slave Input Left/Right Clock
7
IN
VDD_IO
3.3 V/5 V Input/Output Digital Supply Pin
8
IN
DGND
Digital Ground Pin
9
IN
BYPASS
ASRC Bypass Mode, Active High
10
IN
SMODE_IN_0
Input Port Serial Interface Mode Select Pin 0
11
IN
SMODE_IN_1
Input Port Serial Interface Mode Select Pin 1
12
IN
SMODE_IN_2
Input Port Serial Interface Mode Select Pin 2
13
IN
RESET
Reset Pin, Active Low
14
IN
MUTE_IN
Mute Input Pin-- Active HI Normally Connected to MUTE_OUT
15
OUT
MUTE_OUT
Output Mute Control Active HI
16
IN
WLNGTH_OUT_1
Hardware Selectable Output Wordlength--Select Pin 1
17
IN
WLNGTH_OUT_0
Hardware Selectable Output Wordlength--Select Pin 0
18
IN
SMODE_OUT_1
Output Port Serial Interface Mode Select Pin 1
19
IN
SMODE_OUT_0
Output Port Serial Interface Mode Select Pin 0
20
IN
TDM_IN
Serial Data Input
* (only for Daisy Chain Mode). Ground when not used.
21
IN
DGND
Digital Ground Pin
22
IN
VDD_CORE
3.3 V Digital Supply Pin
23
OUT
SDATA_O
Output Serial Data (at Output Sample Rate)
24
IN/OUT
LRCLK_O
Master/Slave Output Left/Right Clock
25
IN/OUT
SCLK_O
Master/Slave Output Serial Bit Clock
26
IN
MMODE_0
Master/Slave Clock Ratio Mode Select Pin 0
27
IN
MMODE_1
Master/Slave Clock Ratio Mode Select Pin 1
28
IN
MMODE_2
Master/Slave Clock Ratio Mode Select Pin 2
*Also used to input matched-phase mode data.
PIN CONFIGURATION
28
27
26
25
24
23
22
21
20
19
18
17
16
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
AD1896
TOP VIEW
(NOT TO SCALE
)
MUTE_IN
RESET
SMODE_IN_2
SMODE_IN_1
SMODE_IN_0
BYPASS
DGND
GRPDLYS
MCLK_IN
MCLK_OUT
SDATA_I
VDD_IO
LRCLK_I
SCLK_I
MUTE_OUT
WLNGTH_OUT_1
WLNGTH_OUT_0
SMODE_OUT_1
SMODE_OUT_0
TDM_IN
DGND
MMODE_2
MMODE_1
MMODE_0
SCLK_O
VDD_CORE
SDATA_O
LRCLK_O
REV. 0
Typical Performance CharacteristicsAD1896
200
0
180
160
140
120
100
80
60
40
20
10
90
20
30
40
50
60
70
80
FREQUENCY kHz
dBFS
TPC 4. Wideband FFT Plot (16k Points) 44.1 kHz:192 kHz,
0 dBFS 1 kHz Tone
200
0
180
160
140
120
100
80
60
40
20
2.5
5.0
7.5
10.0
12.5
15.0
17.5
20.0
FREQUENCY kHz
dBFS
TPC 5. Wideband FFT Plot (16k Points) 48 kHz:44.1 kHz,
0 dBFS 1 kHz Tone
22.5
200
0
180
160
140
120
100
80
60
40
20
2.5
5.0
7.5
10.0
12.5
15.0
17.5
20.0
FREQUENCY kHz
dBFS
TPC 6. Wideband FFT Plot (16k Points) 96 kHz:48 kHz,
0 dBFS 1 kHz Tone
200
0
180
160
140
120
100
80
60
40
20
2.5
22.5
5.0
7.5
10.0
12.5
15.0
17.5
20.0
FREQUENCY kHz
dBFS
TPC 1. Wideband FFT Plot (16k Points) 0 dBFS 1 kHz Tone,
48 kHz:48 kHz (Asynchronous)
2.5
22.5
5.0
7.5
10.0
12.5
15.0
17.5
20.0
FREQUENCY kHz
200
0
180
160
140
120
100
80
60
40
20
dBFS
TPC 2. Wideband FFT Plot (16k Points) 0 dBFS 1 kHz Tone,
44.1 kHz:48 kHz (Asynchronous)
200
0
180
160
140
120
100
80
60
40
20
5
45
10
15
20
25
30
35
40
FREQUENCY kHz
dBFS
TPC 3. Wideband FFT Plot (16k Points) 48 kHz:96 kHz,
0 dBFS 1 kHz Tone
7
REV. 0
AD1896
8
22.5
200
0
180
160
140
120
100
80
60
40
20
2.5
5.0
7.5
10.0
12.5
15.0
17.5
20.0
FREQUENCY kHz
dBFS
TPC 7. Wideband FFT Plot (16k Points) 192 kHz:48 kHz,
0 dBFS 1 kHz Tone
200
50
190
180
170
160
150
140
130
120
110
100
90
80
70
60
2.5
22.5
5.0
7.5
10.0
12.5
15.0
17.5
20.0
FREQUENCY kHz
dBFS
TPC 8. Wideband FFT Plot (16k Points) 60 dBFS 1 kHz
Tone, 48 kHz:48 kHz (Asynchronous)
200
50
190
180
170
160
150
140
130
120
110
100
90
80
70
60
2.5
22.5
5.0
7.5
10.0
12.5
15.0
17.5
20.0
FREQUENCY kHz
dBFS
TPC 9. Wideband FFT Plot (16k Points) 44.1 kHz:48 kHz,
60 dBFS 1 kHz Tone
200
50
190
180
170
160
150
140
130
120
110
100
90
80
70
60
5
45
10
15
20
25
30
35
40
FREQUENCY kHz
dBFS
TPC 10. Wideband FFT Plot (16k Points) 48 kHz:96 kHz,
60 dBFS 1 kHz Tone
200
50
190
180
170
160
150
140
130
120
110
100
90
80
70
60
10
90
20
30
40
50
60
70
80
FREQUENCY kHz
dBFS
TPC 11. Wideband FFT Plot (16k Points) 44.1 kHz:192 kHz,
60 dBFS 1 kHz Tone
200
50
190
180
170
160
150
140
130
120
110
100
90
80
70
60
2.5
7.5
12.5
17.5
FREQUENCY kHz
dBFS
5.0
10.0
15.0
20.0
TPC 12. Wideband FFT Plot (16k Points) 48 kHz:44.1 kHz,
60 dBFS 1 kHz Tone
REV. 0
AD1896
9
200
50
190
180
170
160
150
140
130
120
110
100
90
80
70
60
2.5
22.5
7.5
12.5
17.5
FREQUENCY kHz
dBFS
5.0
10.0
15.0
20.0
TPC 13. Wideband FFT Plot (16k Points) 96 kHz:48 kHz,
60 dBFS 1 kHz Tone
200
50
190
180
170
160
150
140
130
120
110
100
90
80
70
60
2.5
22.5
7.5
12.5
17.5
FREQUENCY kHz
dBFS
5.0
10.0
15.0
20.0
TPC 14. Wideband FFT Plot (16k Points) 192 kHz:48 kHz,
60 dBFS 1 kHz Tone
180
0
160
140
120
100
80
60
40
20
FREQUENCY kHz
dBFS
2.5
20.0
5.0
7.5
10.0
12.5
15.0
17.5
22.5
TPC 15. IMD, 10 kHz and 11 kHz 0 dBFS Tone
44:1 kHz:48 kHz
180
0
160
140
120
100
80
60
40
20
FREQUENCY kHz
dBFS
2.5
20.0
5.0
7.5
10.0
12.5
15.0
17.5
22.5
TPC 16. IMD, 10 kHz and 11 kHz 0 dBFS Tone
96 kHz:48 kHz
180
0
160
140
120
100
80
60
40
20
FREQUENCY kHz
dBFS
2.5
20.0
5.0
7.5
10.0
12.5
15.0
17.5
TPC 17. IMD, 10 kHz and 11 kHz 0 dBFS Tone
48 kHz:44.1 kHz
FREQUENCY kHz
200
0
180
160
140
120
100
80
60
40
20
dBFS
2.5
20.0
5.0
7.5
10.0
12.5
15.0
17.5
22.5
TPC 18. Wideband FFT Plot (16k Points) 44.1 kHz:48 kHz,
0 dBFS 20 kHz Tone
REV. 0
AD1896
10
10
90
20
30
40
50
60
70
80
FREQUENCY kHz
200
0
180
160
140
120
100
80
60
40
20
dBFS
TPC 19. Wideband FFT Plot (16k Points) 192 kHz:192 kHz,
0 dBFS 80 kHz Tone
200
0
180
160
140
120
100
80
60
40
20
2.5
22.5
5.0
7.5
10.0
12.5
15.0
17.5
20.0
FREQUENCY kHz
dBFS
TPC 20. Wideband FFT Plot (16k Points) 48 kHz:48 kHz,
0 dBFS 20 kHz Tone
FREQUENCY kHz
200
0
180
160
140
120
100
80
60
40
20
dBFS
2.5
20.0
5.0
7.5
10.0
12.5
15.0
17.5
TPC 21. Wideband FFT Plot (16k Points) 48 kHz:44:1 kHz,
0 dBFS 20 kHz Tone
5
45
10
15
20
25
30
35
40
FREQUENCY kHz
200
0
180
160
140
120
100
80
60
40
20
dBFS
TPC 22. Wideband FFT Plot (16k Points) 48 kHz:96 kHz,
0 dBFS 20 kHz Tone
FREQUENCY kHz
200
0
180
160
140
120
100
80
60
40
20
dBFS
2.5
20.0
5.0
7.5
10.0
12.5
15.0
17.5
22.5
TPC 23. Wideband FFT Plot (16k Points) 96 kHz:48 kHz,
0 dBFS 20 kHz Tone
119
121
123
125
127
129
131
133
135
30 55 80 105 130 155 180
THD+N
dBFS
OUTPUT SAMPLE RATE kHz
TPC 24. THD + N vs. Output Sample Rate, f
S_IN
= 192 kHz,
0 dBFS 1 kHz Tone
REV. 0
AD1896
11
119
121
123
125
127
129
131
133
135
30 55 80 105 130 155 180
THD+N
dBFS
OUTPUT SAMPLE RATE kHz
TPC 25. THD + N vs. Output Sample Rate, f
S_IN
= 48 kHz,
0 dBFS 1 kHz Tone
119
121
123
125
127
129
131
133
135
30 55 80 105 130 155 180
THD+N
dBFS
OUTPUT SAMPLE RATE kHz
TPC 26. THD + N vs. Output Sample Rate, f
S_IN
= 44.1 kHz,
0 dBFS 1 kHz Tone
119
121
123
125
127
129
131
133
135
30 55 80 105 130 155 180
THD+N
dBFS
OUTPUT SAMPLE RATE kHz
TPC 27. THD + N vs. Output Sample Rate, f
S_IN
= 32 kHz,
0 dBFS 1 kHz Tone
119
121
123
125
127
129
131
133
135
30 55 80 105 130 155 180
THD+N
dBFS
OUTPUT SAMPLE RATE kHz
TPC 28. THD + N vs. Output Sample Rate, f
S_IN
= 96 kHz,
0 dBFS 1 kHz Tone
130
131
132
133
134
135
136
137
138
139
140
30 55 80 105 130 155 180
DNR
dBFS
OUTPUT SAMPLE RATE kHz

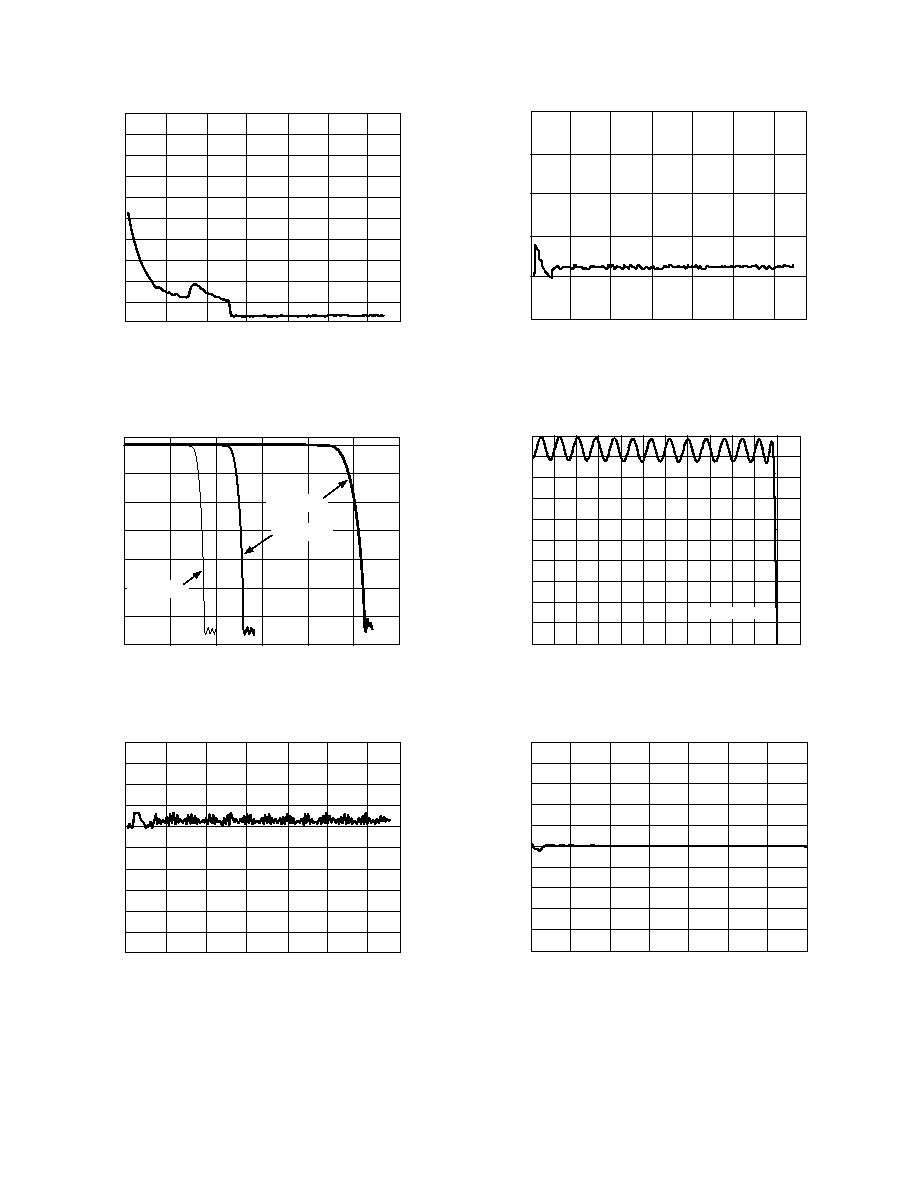

TPC 29. DNR vs. Output Sample Rate, f
S_IN
= 192 kHz,
60 dBFS 1 kHz Tone
135
136
137
138
139
140
141
142
143
144
145
30 55 80 105 130 155 180
DNR
dBFS
OUTPUT SAMPLE RATE kHz
TPC 30. DNR vs. Output Sample Rate, f
S_IN
= 32 kHz,
60 dBFS 1 kHz Tone
REV. 0
AD1896
12
130
131
132
133
134
135
136
137
138
139
140
30 55 80 105 130 155 180
DNR
dBFS
OUTPUT SAMPLE RATE kHz
TPC 31. DNR vs. Output Sample Rate, f
S_IN
= 96 kHz,
60 dBFS 1 kHz Tone
0
20
40
60
80
100
120
140
0 10 20 30 40 50 60
dBFS
FREQUENCY kHz
192kHz:96kHz
192kHz:48kHz
192kHz:32kHz
TPC 32. Digital Filter Frequency Response
135
136
137
138
139
140
141
142
143
144
145
30 55 80 105 130 155 180
DNR
dBFS
OUTPUT SAMPLE RATE kHz
TPC 33. DNR vs. Output Sample Rate, f
S_IN
= 48 kHz,
60 dBFS 1 kHz Tone
135
136
137
138
139
140
30 55 80 105 130 155 180
OUTPUT SAMPLE RATE kHz
DNR
dBFS
TPC 34. DNR vs. Output Sample Rate, f
S_IN
= 44.1 kHz,
60 dBFS 1 kHz Tone
0.00
0.01
0.02
0.03
0.04
0.05
0.06
0.07
0.08
0.09
0.10
dBFS
0 2 4 6 8
10 12 14 16 18 20 22 24
FREQUENCY kHz
192kHz:48kHz
TPC 35. Passband Ripple, 192 kHz:48 kHz
5
5
4
3
2
1
0
1
2
3
4
140
0
120
100
80
60
40
20
INPUT LEVEL dBFS
LINEARITY ERR
OR
dBr
TPC 36. Linearity Error, 48 kHz:48 kHz, 0 dBFS to
140 dBFS Input, 200 Hz Tone
REV. 0
AD1896
13
5
5
4
3
2
1
0
1
2
3
4
140
0
120
100
80
60
40
20
INPUT LEVEL dBFS
LINEARITY ERR
OR
dBr
TPC 37. Linearity Error, 48 kHz:44.1 kHz, 0 dBFS to
140 dBFS Input, 200 Hz Tone
5
5
4
3
2
1
0
1
2
3
4
140
0
120
100
80
60
40
20
INPUT LEVEL dBFS
LINEARITY ERR
OR
dBr
TPC 38. Linearity Error, 96 kHz:48 kHz, 0 dBFS to
140 dBFS Input, 200 Hz Tone
5
5
4
3
2
1
0
1
2
3
4
140
0
120
100
80
60
40
20
INPUT LEVEL dBFS
LINEARITY ERR
OR
dBr
TPC 39. Linearity Error, 44.1 kHz:48 kHz, 0 dBFS to
140 dBFS Input, 200 Hz Tone
5
5
4
3
2
1
0
1
2
3
4
140
0
120
100
80
60
40
20
INPUT LEVEL dBFS
LINEARITY ERR
OR
dBr
TPC 40. Linearity Error, 48 kHz:96 kHz, 0 dBFS to
140 dBFS Input, 200 Hz Tone
5
5
4
3
2
1
0
1
2
3
4
140
0
120
100
80
60
40
20
INPUT LEVEL dBFS
LINEARITY ERR
OR
dBr
TPC 41. Linearity Error, 44.1 kHz:192 kHz, 0 dBFS to
140 dBFS Input, 200 Hz Tone
5
5
4
3
2
1
0
1
2
3
4
140
0
120
100
80
60
40
20
INPUT LEVEL dBFS
LINEARITY ERR
OR
dBr
TPC 42. Linearity Error, 192 kHz:44:1 kHz, 0 dBFS to
140 dBFS Input, 200 Hz Tone
REV. 0
AD1896
14
180
110
175
170
165
160
155
150
145
140
135
130
125
120
115
140
0
120
100
80
60
40
20
INPUT LEVEL dBFS
dBr
TPC 43. THD + N vs. Input Amplitude, 48 kHz:44.1 kHz,
1 kHz Tone
180
110
175
170
165
160
155
150
145
140
135
130
125
120
115
140
0
120
100
80
60
40
20
INPUT LEVEL dBFS
dBr
TPC 44. THD + N vs. Input Amplitude, 96 kHz:48 kHz,
1 kHz Tone
180
110
175
170
165
160
155
150
145
140
135
130
125
120
115
140
0
120
100
80
60
40
20
INPUT LEVEL dBFS
dBr
TPC 45. THD + N vs. Input Amplitude, 44.1 kHz:48 kHz,
1 kHz Tone
180
110
175
170
165
160
155
150
145
140
135
130
125
120
115
140
0
120
100
80
60
40
20
INPUT LEVEL dBFS
dBr
TPC 46. THD + N vs. Input Amplitude, 48 kHz:96 kHz,
1 kHz Tone
180
110
175
170
165
160
155
150
145
140
135
130
125
120
115
140
0
120
100
80
60
40
20
INPUT LEVEL dBFS
dBr
TPC 47. THD + N vs. Input Amplitude, 44.1 kHz:192 kHz,
1 kHz Tone
180
110
175
170
165
160
155
150
145
140
135
130
125
120
115
140
0
120
100
80
60
40
20
INPUT LEVEL dBFS
dBr
TPC 48. THD + N vs. Input Amplitude, 192 kHz:48 kHz,
1 kHz Tone
REV. 0
AD1896
15
(Continued from page 1)
The digital servo loop measures the time difference between
input and output sample rates within 5 ps. This is necessary in
order to select the correct polyphase filter coefficient The digital
servo loop has excellent jitter rejection for both input and out-
put sample rates as well as the master clock. The jitter rejection
begins at less than 1 Hz. This requires a long settling time
whenever
RESET is deasserted or when the input or output
sample rate changes. To reduce the settling time, upon deasser-
tion of
RESET or a change in a sample rate, the digital servo loop
enters the fast settling mode. When the digital servo loop has
adequately settled in the fast mode, it switches into the normal
or slow settling mode and continues to settle until the time
difference measurement between input and output sample
rates is within 5 ps. During fast mode, the MUTE_OUT signal
is asserted high. Normally, the MUTE_OUT is connected to the
MUTE_IN pin. The MUTE_IN signal is used to softly mute
the AD1896 upon assertion and softly unmute the AD1896
when it is deasserted.
The sample rate ratio circuit is used to scale the filter length of
the FIR filter for decimation. Hysteresis in measuring the
sample rate ratio is used to avoid oscillations in the scaling of
the filter length, which would cause distortion on the output.
However, when multiple AD1896s are used with the same serial
input port clock and the same serial output port clock, the hys-
teresis causes different group delays between multiple AD1896s.
A phase-matching mode feature was added to the AD1896 to
address this problem. In phase-matching mode one AD1896,
the master, transmits its sample rate ratio to the other AD1896s,
the slaves, so that the group delay between the multiple AD1896s
remains the same.
The group delay of the AD1896 can be adjusted for short or
long delay. An address offset is added to the write pointer of the
FIFO in the sample rate converter. This offset is set to 16 for
short delay and 64 for long delay. In long delay, the group delay
is effectively increased by 48 input sample clocks.
The sample rate converter of the AD1896 can be bypassed
altogether using the bypass mode. In bypass mode, the AD1896's
serial input data is directly passed to the serial output port with-
out any dithering. This is useful for passing through nonaudio
data or when the input and output sample rates are synchronous
to one another and the sample rate ratio is exactly 1 to 1.
The AD1896 is a 3.3 V, 5 V input tolerant part and is available
in a 28-lead SSOP SMD package. The AD1896 is 5 V input-
tolerant only when the VDD_IO supply pin is supplied with 5 V.
180
110
175
170
165
160
155
150
145
140
135
130
125
120
115
2.5
20.0
5.0
7.5
10.0
12.5
15.0
17.5
FREQUENCY kHz
dBr
TPC 49. THD + N vs. Frequency Input, 48 kHz:44.1 kHz,
0 dBFS
180
110
175
170
165
160
155
150
145
140
135
130
125
120
115
2.5
20.0
5.0
7.5
10.0
12.5
15.0
17.5
FREQUENCY kHz
dBr
TPC 50. THD + N vs. Frequency Input, 44.1 kHz:48 kHz,
0 dBFS
180
110
175
170
165
160
155
150
145
140
135
130
125
120
115
FREQUENCY kHz
dBr
2.5
20.0
5.0
7.5
10.0
12.5
15.0
17.5
TPC 51. THD + N vs. Frequency Input, 48 kHz:96 kHz,
0 dBFS
180
110
175
170
165
160
155
150
145
140
135
130
125
120
115
FREQUENCY kHz
dBr
2.5
20.0
5.0
7.5
10.0
12.5
15.0
17.5
TPC 52. THD + N vs. Frequency Input, 96 kHz:48 kHz,
0 dBFS
REV. 0
AD1896
16
ASRC FUNCTIONAL OVERVIEW
THEORY OF OPERATION
Asynchronous sample rate conversion is converting data from
one clock source at some sample rate to another clock source at
the same or different sample rate. The simplest approach to
asynchronous sample rate conversion is the use of a zero-order
hold between two samplers shown in Figure 4. In an asynchro-
nous system T2 is never equal to T1 nor is the ratio between T2
and T1 rational. As a result, samples at f
S_OUT
will be repeated or
dropped producing an error in the resampling process. The
frequency domain shows the wide side lobes that result from
this error when the sampling of f
S_OUT
is convolved with the
attenuated images from the sin(x)/x nature of the zero-order
hold. The images at f
S_IN
, dc signal images, of the zero-order hold
are infinitely attenuated. Since the ratio of T2 to T1 is an irra-
tional number, the error resulting from the resampling at f
S_OUT
can never be eliminated. However, the error can be signifi-
cantly reduced through interpolation of the input data at f
S_IN
.
The AD1896 is conceptually interpolated by a factor of 2
20
.
ZERO-ORDER
HOLD
IN
OUT
f
S_IN
= 1/T1
f
S_OUT
= 1/T2
ORIGINAL SIGNAL
SAMPLED AT f
S_IN
SIN(X)/X OF ZERO-ORDER HOLD
SPECTRUM OF ZERO-ORDER HOLD OUTPUT
SPECTRUM OF f
S_OUT
SAMPLING
f
S_OUT
2
f
S_OUT
FREQUENCY RESPONSE OF f
S_OUT
CONVOLVED WITH ZERO-ORDER
HOLD SPECTRUM
Figure 4. Zero-Order Hold Being Used by f
S_OUT
to
Resample Data from f
S_IN
THE CONCEPTUAL HIGH INTERPOLATION MODEL
Interpolation of the input data by a factor of 2
20
involves placing
(2
20
1) samples between each f
S_IN
sample. Figure 5 shows
both the time domain and the frequency domain of interpolation
by a factor of 2
20
. Conceptually, interpolation by 2
20
would
involve the steps of zero-stuffing (2
20
1) number of samples
between each f
S_IN
sample and convolving this interpolated
signal with a digital low-pass filter to suppress the images. In the
time domain it can be seen that f
S_OUT
selects the closest f
S_IN
2
20
sample from the zero-order hold as opposed to the nearest f
S_IN
sample in the case of no interpolation. This significantly reduces
the resampling error.
IN
OUT
f
S_IN
f
S_OUT
TIME DOMAIN OF f
S_IN
SAMPLES
TIME DOMAIN OUTPUT OF THE LOW-PASS FILTER
TIME DOMAIN OF f
S_OUT
RESAMPLING
TIME DOMAIN OF THE ZERO-ORDER HOLD OUTPUT
INTERPOLATE
BY N
LOW-PASS
FILTER
ZERO-ORDER
HOLD
Figure 5. Time Domain of the Interpolation and
Resampling
In the frequency domain shown in Figure 6 the interpolation
expands the frequency axis of the zero-order hold. The images
from the interpolation can be sufficiently attenuated by a good
low-pass filter. The images from the zero-order hold are now
pushed by a factor of 2
20
closer to the infinite attenuation point
of the zero-order hold, which is f
S_IN
2
20
. The images at the
zero-order hold are the determining factor for the fidelity of the
output at f
S_OUT
. The worst-case images can be computed from
the zero-order hold frequency response, maximum image =
sin (
F/f
S_INTERP
)/(
F/f
S_INTERP
). F is the frequency of the
worst-case image which would be 2
20
f
S_IN
f
S_IN
/2 , and
f
S_INTERP
is f
S_IN
2
20
.
The following worst-case images would appear for f
S_IN
=
192 kHz:
Image at f
S_INTERP
96 kHz = 125.1 dB
Image at f
S_INTERP
+ 96 kHz = 125.1 dB
REV. 0
AD1896
17
FREQUENCY DOMAIN OF SAMPLES AT f
S_IN
FREQUENCY DOMAIN OF THE INTERPOLATION
FREQUENCY DOMAIN OF f
S_OUT
RESAMPLING
FREQUENCY DOMAIN AFTER
RESAMPLING
IN
OUT
f
S_IN
f
S_OUT
INTERPOLATE
BY N
LOW-PASS
FILTER
ZERO-ORDER
HOLD
f
S_IN
2
20
f
S_IN
2
20
f
S_IN
2
20
f
S_IN
SIN(X)/X OF ZERO-ORDER HOLD
Figure 6. Frequency Domain of the Interpolation and
Resampling
HARDWARE MODEL
The output rate of the low-pass filter of Figure 5 would be the
interpolation
rate, 2
20
192000 kHz = 201.3 GHz. Sampling at
a rate of 201.3 GHz is clearly impractical, not to mention the
number of taps required to calculate each interpolated sample.
However, since interpolation by 2
20
involves zero-stuffing 2
20
1
samples between each f
S_IN
sample, most of the multiplies in
the low-pass FIR filter are by zero. A further reduction can be
realized by the fact that since only one interpolated sample is
taken at the output at the f
S_OUT
rate, only one convolution
needs to be performed per f
S_OUT
period instead of 2
20
convo-
lutions. A 64-tap FIR filter for each f
S_OUT
sample is sufficient
to suppress the images caused by the interpolation.
The difficulty with the above approach is that the correct inter-
polated sample needs to be selected upon the arrival of f
S_OUT
.
Since there are 2
20
possible convolutions per f
S_OUT
period, the
arrival of the f
S_OUT
clock must be measured with an accuracy
of 1/201.3 GHz = 4.96 ps. Measuring the f
S_OUT
period with a
clock of 201.3 GHz frequency is clearly impossible; instead,
several coarse measurements of the f
S_OUT
clock period are made
and averaged over time.
Another difficulty with the above approach is the number of
coefficients required. Since there are 2
20
possible convolutions
with a 64-tap FIR filter, there needs to be 2
20
polyphase coeffi-
cients for each tap, which requires a total of 2
26
coefficients. To
reduce the amount of coefficients in ROM, the AD1896 stores a
small subset of coefficients and performs a high-order interpola-
tion between the stored coefficients. So far the above approach
works for the case of f
S_OUT
> f
S_IN
. However, in the case when
the output sample rate, f
S_OUT
, is less than the input sample
rate, f
S_IN
, the ROM starting address, input data and the length
of the convolution must be scaled. As the input sample rate
rises over the output sample rate, the antialiasing filter's cutoff
frequency has to be lowered because the Nyquist frequency of
the output samples is less than the Nyquist frequency of the
input samples. To move the cutoff frequency of the antialiasing
filter, the coefficients are dynamically altered and the length
of the convolution is increased by a factor of (f
S_IN
/f
S_OUT
).
This technique is supported by the Fourier transform property
that if f(t) is F(
), then f(k t) is F(/k). Thus, the range of
decimation is simply limited by the size of the RAM.
THE SAMPLE RATE CONVERTER ARCHITECTURE
The architecture of the sample rate converter is shown in Figure
7. The sample rate converter's FIFO block adjusts the left and
right input samples and stores them for the FIR filter's convolu-
tion cycle. The f
S_IN
counter provides the write address to the
FIFO block and the ramp input to the digital servo loop. The
ROM stores the coefficients for the FIR filter convolution and
performs a high-order interpolation between the stored coeffi-
cients. The sample rate ratio block measures the sample rate for
dynamically altering the ROM coefficients and scaling of the
FIR filter length as well as the input data. The digital servo loop
automatically tracks the f
S_IN
and f
S_OUT
sample rates and pro-
vides the RAM and ROM start addresses for the start of the FIR
filter convolution.
RIGHT DATA IN
LEFT DATA IN
FIFO
ROM A
ROM B
ROM C
ROM D
HIGH
ORDER
INTERP
DIGITAL
SERVO LOOP
FIR FILTER
SAMPLE RATE
RATIO
f
S_IN
COUNTER
SAMPLE RATE RATIO
EXTERNAL
RATIO
f
S_IN
f
S_OUT
L/R DATA OUT
Figure 7. Architecture of the Sample Rate Converter
The FIFO receives the left and right input data and adjusts the
amplitude of the data for both the soft muting of the sample rate
converter and the scaling of the input data by the sample rate
ratio before storing the samples in the RAM. The input data is
scaled by the sample rate ratio because as the FIR filter length
of the convolution increases, so does the amplitude of the
convolution output. To keep the output of the FIR filter from
saturating, the input data is scaled down by multiplying it by
(f
S_OUT
/f
S_IN
) when f
S_OUT
< f
S_IN
. The FIFO also scales the
input data for muting and unmuting of the AD1896.
The RAM in the FIFO is 512 words deep for both left and right
channels. An offset to the write address provided by the f
S_IN
counter is added to prevent the RAM read pointer from ever
overlapping the write address. The offset is selectable by the
GRPDLYS, group delay select, signal. A small offset, 16, is
added to the write address pointer when GRPDLYS is high,
and a large offset, 64, is added to the write address pointer when
GRPDLYS is low. Increasing the offset of the write address pointer
is useful for applications when small changes in the sample rate
ratio between f
S_IN
and f
S_OUT
are expected. The maximum deci-
mation rate can be calculated from the RAM word depth and
GRPDLYS as (51216)/64 taps = 7.75 for short group delay and
(512-64)/64 taps = 7 for long group delay.
REV. 0
AD1896
18
The digital servo loop is essentially a ramp filter that provides
the initial pointer to the address in RAM and ROM for the start
of the FIR convolution. The RAM pointer is the integer output
of the ramp filter while the ROM is the fractional part. The
digital servo loop must be able to provide excellent rejection of
jitter on the f
S_IN
and f
S_OUT
clocks as well as measure the arrival
of the f
S_OUT
clock within 4.97 ps. The digital servo loop will
also divide the fractional part of the ramp output by the ratio of
f
S_IN
/f
S_OUT
for the case when f
S_IN
> f
S_OUT
, to dynamically alter
the ROM coefficients.
The digital servo loop is implemented with a multirate filter. To
settle the digital servo loop filter quicker upon start-up or a change
in the sample rate, a "fast mode" was added to the filter. When
the digital servo loop starts up or the sample rate is changed, the
digital servo loop kicks into "fast mode" to adjust and settle
on the new sample rate. Upon sensing the digital servo loop
settling down to some reasonable value, the digital servo loop
will kick into "normal" or "slow mode." During "fast mode"
the MUTE_OUT signal of the sample rate converter is asserted
to let the user know that they should mute the sample rate
converter to avoid any clicks or pops. The frequency response of
the digital servo loop for "fast mode" and "slow mode" are
shown in Figure 8.
The FIR filter is a 64-tap filter in the case of f
S_OUT
f
S_IN
and is
(f
S_IN
/f
S_OUT
)
64 taps for the case when f
S_IN
> f
S_OUT
. The FIR
filter performs its convolution by loading in the starting address
of the RAM address pointer and the ROM address pointer
from the digital servo loop at the start of the f
S_OUT
period.
The FIR filter then steps through the RAM by decrementing its
address by 1 for each tap, and the ROM pointer increments its
address by the (f
S_OUT
/f
S_IN
)
2
20
ratio for f
S_IN
> f
S_OUT
or 2
20
for f
S_OUT
f
S_IN
. Once the ROM address rolls over, the con-
volution is completed. The convolution is performed for both
the left and right channels, and the multiply accumulate circuit
used for the convolution is shared between the channels.
The f
S_IN
/f
S_OUT
sample rate ratio circuit is used to dynamically
alter the coefficients in the ROM for the case when f
S_IN
>
f
S_OUT
. The ratio is calculated by comparing the output of an
f
S_OUT
counter to the output of an f
S_IN
counter. If f
S_OUT
>
f
S_IN
, the ratio is held at one. If f
S_IN
> f
S_OUT
, the sample rate
ratio is updated if it is different by more than two f
S_OUT
periods
from the previous f
S_OUT
to f
S_IN
comparison. This is done to
provide some hysteresis to prevent the filter length from oscillat-
ing and causing distortion.
10
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
0.01 0.1
1
10
100
1e3
1e4
1e5
FREQUENCY Hz
SLOW MODE
FAST MODE
Figure 8. Frequency Response of the Digital Servo Loop. f
S_IN
is the X-Axis, f
S_OUT
= 192 kHz, Master Clock
Frequency Is 30 MHz
REV. 0
AD1896
19
However, the hysteresis of the f
S_OUT
/f
S_IN
ratio circuit can cause
phase mismatching between two AD1896s operating with the
same input clock and the same output clock. Since the hyster-
esis requires a difference of more than two f
S_OUT
periods for the
f
S_OUT
/f
S_IN
ratio to be updated, two AD1896s may have dif-
ferences in their ratios from 0 to 4 f
S_OUT
period counts. The
f
S_OUT
/f
S_IN
ratio adjusts the filter length of the AD1896, which
corresponds directly with the group delay. Thus, the magnitude
in the phase difference will depend upon the resolution of the
f
S_OUT
and f
S_IN
counters. The greater the resolution of the
counters, the smaller the phase difference error will be.
The f
S_IN
and f
S_OUT
counters of the AD1896 have three bits of
extra resolution over the AD1890, which reduces the phase
mismatch error by a factor of 8. However, an additional feature
was added to the AD1896 to eliminate the phase mismatching
completely. One AD1896 can set the f
S_OUT
/f
S_IN
ratio of other
AD1896s by transmitting its f
S_OUT
/f
S_IN
ratio through the
serial output port.
OPERATING FEATURES
RESET and Power Down
When
RESET is asserted low, the AD1896 will turn off the
master clock input to the AD1896, MCLK_I, initialize all of its
internal registers to their default values, and three-state all of the
I/O pins. While
RESET is active low, the AD1896 is consuming
minimum power. For the lowest possible power consumption
while
RESET is active low, all of the input pins to the AD1896
should be static.
When
RESET is deasserted, the AD1896 begins its initialization
routine where all locations in the FIFO are initialized to zero,
MUTE_OUT is asserted high, and any I/O pins configured as
outputs are enabled. The mute control counter, which controls
the soft mute attenuation of the input samples, is initialized to
maximum attenuation, 144 dB (see Mute Control section).
When asserting
RESET and deasserting RESET, the RESET
should be held low for a minimum of 5 MCLK_I cycles. During
power-up the
RESET should be held low until the power sup-
plies have stabilized.
Power Supply and Voltage Reference
The AD1896 is designed for three-volt operation with five-volt
input tolerance on the input pins. VDD_CORE is the three-volt
supply that is used to power the core logic of the AD1896 and
to drive the output pins. VDD_IO is used to set the input volt-
age tolerance of the input pins. In order for the input pins to be
five-volt input tolerant, VDD_IO must be connected to a five-
volt supply. If the input pins do not have to be five-volt input
tolerant, then VDD_IO can be connected to VDD_CORE.
VDD_IO should never be less than VDD_CORE. VDD_CORE
and VDD_IO should be bypassed with 100 nF ceramic chip
capacitors, as close to the pins as possible, to minimize power
supply and ground bounce caused by inductance in the traces. A
bulk aluminium electrolytic capacitor of 47
F should also be
provided on the same PC board as the AD1896.
Digital Filter Group Delay
The group delay of the digital filter may be selected by the logic
pin GRPDLYS. As mentioned in the Theory of Operation section
this pin is particularly useful in varispeed applications. The
GRPDLYS pin has an internal pull-up resistor of approximately
33 k
to VDD_CORE. When GRPDLYS is high, the filter group
delay will be short and is given by the equation,
GDS
f
f
for f
f
GDS
f
f
f
f
for f
f
S
IN
S
IN
S
OUT
S
IN
S
IN
S
IN
S
IN
S
OUT
S
OUT
S
IN
=
+
>
=
+
<
16
32
16
32
_
_
_
_
_
_
_
_
_
_
seconds
seconds
For short filter group delay, the GRPDLYS pin can be left open.
When GRPDLYS is low, the group delay of the filter will be
long and is given by the equation,
GDL
f
f
for f
f
GDL
f
f
f
f
for f
f
S
IN
S
IN
S
OUT
S
IN
S
IN
S
IN
S
IN
S
OUT
S
OUT
S
IN
=
+
>
=
+
<
64
32
64
32
_
_
_
_
_
_
_
_
_
_
seconds
seconds
NOTE: For the long group delay mode, the decimation ratio is
limited to less than 7:1.
Mute Control
When the MUTE_IN pin is asserted high, the MUTE_IN control
will perform a soft mute by linearly decreasing the input data to
the AD1896 FIFO to zero, 144 dB attenuation. When MUTE_IN
is deasserted low, the MUTE_IN control will linearly decrease
the attenuation of the input data to 0 dB. A 12-bit counter,
clocked by LRCLK_I is used to control the mute attenuation.
Therefore, the time it will take from the assertion of MUTE_IN
to 144 dB full mute attenuation is 4096/LRCLK_I seconds.
Likewise, the time it will take to reach 0 dB mute attenuation from
the deassertion of MUTE_IN is 4096/LRCLK_I seconds.
Upon RESET, or a change in the sample rate between LRCLK_I
and LRCLK_O, the MUTE_OUT pin will be asserted high. The
MUTE_OUT pin will remain asserted high until the digital
servo loop's internal fast settling mode has completed. When
the digital servo loop has switched to slow settling mode, the
MUTE_OUT pin will deassert. While MUTE_OUT is asserted,
the MUTE_IN pin should be asserted as well to prevent any
major distortion in the audio output samples.
Master Clock
A digital clock connected to the MCLK_I pin or a fundamental
or third overtone crystal connected between MCLK_I and
MCLK_O can be used to generate the master clock, MCLK_I.
The MCLK_I pin can be five-volt input-tolerant just like any of
the other AD1896 input pins. A fundamental mode crystal
can be inserted between MCLK_I and MCLK_O for master
clock frequency generation up to 27 MHz. For master clock
frequency generation with a crystal beyond 27 MHz it is recom-
mended that the user use a third overtone crystal and to add an
LC filter at the output of MCLK_O to filter out the fundamen-
tal, do not notch filter the fundamental. Please refer to your
quartz crystal supplier for values for external capacitors and
inductor components.
REV. 0
AD1896
20
AD1896
MCLK_I
MCLK_O
C1
C2
R = 45
Figure 9a. Fundamental-Mode Circuit Configuration
AD1896
MCLK_I
MCLK_O
C1
C2
R = 45
1nF
L1
Figure 9b. Third-Overtone Circuit Configuration
There are, of course, maximum and minimum operating fre-
quencies for the AD1896 master clock. The maximum master
clock frequency at which the AD1896 is guaranteed to operate is
30 MHz. 30 MHz is more than sufficient to sample rate convert
sampling frequencies of 192 kHz + 12%. The minimum required
frequency for the master clock generation for the AD1896 depends
upon the input and output sample rates. The master clock has
to be at least 138 times greater than the maximum input or
output sample rate.
Serial Data Ports--Data Format
The serial data input port mode is set by the logic levels on the
SMODE_IN_0/1/2 pins. The serial data input port modes avail-
able are Left Justified, I
2
S and Right Justified (RJ), 16, 18, 20,
or 24 bits as defined in Table I.
Table I. Serial Data Input Port Mode
SMODE_IN_[0:2]
Interface Format
2
1
0
0
0
0
Left Justified
0
0
1
I
2
S
0
1
0
Undefined
0
1
1
Undefined
1
0
0
Right Justified, 16 Bits
1
0
1
Right Justified, 18 Bits
1
1
0
Right Justified, 20 Bits
1
1
1
Right Justified, 24 Bits
The serial data output port mode is set by the logic levels on the
SMODE_OUT_0/1 and WLNGTH_OUT_0/1 pins. The serial
mode can be changed to Left Justified, I
2
S, Right Justified or
TDM as defined in the following table. The output word width
can be set by using the WLNGTH_OUT_0/1 pins as shown in
the Word Width table. When the output word width is less than
24 bits, dither is added to the truncated bits. The Right Justified
serial data out mode assumes 64 SCLK_O cycles per frame,
divided evenly for left and right. Please note that 8 bits of each
32-bit subframe are used for transmitting Matched Phase mode
data. Please refer to Figure 14.
Table II. Serial Data Output Port Mode
SMODE_OUT_[0:2]
Interface Format
1
0
0
0
Left Justified (LJ)
0
1
I
2
S
1
0
TDM Mode
1
1
Right Justified (RJ)
Table III. Word Width
WLNGTH_OUT_[0:1]
Word Width
1
0
0
0
24 Bits
0
1
20 Bits
1
0
18 Bits
1
1
16 Bits
The following timing diagrams show the serial mode formats.
REV. 0
AD1896
21
TDM MODE APPLICATION
In TDM mode, several AD1896s can be daisy-chained together
and connected to the serial input port of a SHARC
DSP. The
AD1896 contains a 64-bit parallel load shift register. When the
LRCLK_O pulse arrives, each AD1896 parallel loads its left and
right data into the 64-bit shift register. The input to the shift
register is connected to TDM_IN while the output is connected
to SDATA_O. By connecting the SDATA_O to the TDM_IN
of the next AD1896, a large shift register is created which is
clocked by SCLK_O.
The number of AD1896s that can be daisy-chained together is
limited by the maximum frequency of SCLK_O, which is about
25 MHz. For example, if the output sample rate, f
S
, is 48 kHz,
up to eight AD1896s could be connected since 512
f
S
is less
than 25 MHz. In Master/TDM Mode, the number of AD1896s
that can be daisy-chained is fixed to four.
MSB
1/f
s
TDM MODE 16 TO 24 BITS PER CHANNEL
LEFT CHANNEL
RIGHT CHANNEL
LEFT CHANNEL
LEFT CHANNEL
RIGHT CHANNEL
RIGHT CHANNEL
MSB
LSB
LSB
LSB
LSB
LSB
LSB
MSB
LSB
MSB
LSB
LRCLK
SCLK
SDATA
LRCLK
SCLK
SDATA
LRCLK
SCLK
SDATA
LRCLK
SCLK
SDATA
NOTES:
1. LRCLK NORMALLY OPERATES AT ASSOCIATIVE INPUT OR OUTPUT SAMPLE FREQUENCY (f
s
)
2. SCLK FREQUENCY IS NORMALLY 64 LRCLK EXCEPT FOR TDM MODE WHICH IS N
64 f
s
,
WHERE N = NUMBER OF STEREO CHANNELS IN THE TDM CHAIN, IN MASTER MODE N = 4
3. PLEASE NOTE THAT 8 BITS OF EACH 32-BIT SUBFRAME ARE USED FOR TRANSMITTING
MATCHED-PHASE MODE DATA. PLEASE REFER TO FIGURE 14.
MSB
MSB
MSB
MSB
MSB
MSB
MSB
I
2
S MODE 16 TO 24 BITS PER CHANNEL
RIGHT JUSTIFIED MODE SELECT NUMBER OF BITS PER CHANNEL
LEFT JUSTIFIED MODE 16 TO 24 BITS PER CHANNEL
Figure 10. Input/Output Serial Data Formats
SHARC is a registered trademark of Analog Devices, Inc.
AD1896
TDM_IN
SDATA_O
LRCLK_O
PHASE-MASTER
M1
M2 M0
0
0 0
SCLK_O
SHARC
DSP
DR0
RFS0
RCLK0
SLAVE-1 SLAVE-n
STANDARD MODE
MATCHED-PHASE MODE
AD1896
TDM_IN
SDATA_O
LRCLK_O
M1
M2 M0
0
0 0
0
1 0
SCLK_O
AD1896
TDM_IN
SDATA_O
LRCLK_O
M1
M2 M0
SCLK_O
0
0 0
0
1 0
SCLK
LRCLK
Figure 11. Daisy-Chain Configuration for TDM Mode (All AD1896s Being Clock-Slaves)
REV. 0
AD1896
22
Serial Data Port Master Clock Modes
Either of the AD1896 serial ports can be configured as a master
serial data port. However, only one serial port can be a master
while the other has to be a slave. In master mode, the AD1896
requires a 256
f
S
, 512 f
S
or 768
f
S
master clock (MCLK_I).
For a maximum master clock frequency of 30 MHz, the maxi-
mum sample rate is limited to 96 kHz. In slave mode, sample
rates up to 192 kHz can be handled.
When either of the serial ports is operated in master mode, the
master clock is divided down to derive the associated left/
right subframe clock (LRCLK) and serial bit clock (SCLK).
The master clock frequency can be selected for 256, 512, or 768
times the input or output sample rate. Both the input and out-
put serial ports will support master mode LRCLK and SCLK
generation for all serial modes, Left Justified, I
2
S, Right Justified,
and TDM for the output serial port.
Table IV. Serial Data Port Clock Modes
MMODE_0/1/2
Interface Format
2
1
0
0
0
0
Both Serial Ports are in Slave Mode
0
0
1
Output Serial Port is Master with 768
f
S_OUT
0
1
0
Output Serial Port is Master with 512
f
S_OUT
0
1
1
Output Serial Port is Master with 256
f
S_OUT
1
0
0
Matched Phase Mode
1
0
1
Input Serial Port is Master with 768
f
S_IN
1
1
0
Input Serial Port is Master with 512
f
S_IN
1
1
1
Input Serial Port is Master with 256
f
S_IN
AD1896
TDM_IN
SDATA_O
LRCLK_O
CLOCK-MASTER
AND
PHASE-MASTER
M1
M2 M0
1
0 1
SCLK_O
SHARC
DSP
DR0
RFS0
RCLK0
SLAVE-1
SLAVE-n
STANDARD MODE
MATCHED-PHASE MODE
AD1896
TDM_IN
SDATA_O
LRCLK_O
M1
M2 M0
0
0 0
0
1 0
SCLK_O
AD1896
TDM_IN
SDATA_O
LRCLK_O
M1
M2 M0
SCLK_O
0
0 0
0
1 0
Figure 12. Daisy-Chain Configuration for TDM Mode (First AD1896 Being Clock-Master)
MATCHED PHASE MODE (NON-TDM MODE) APPLICATION
AD1896
SLAVE1
M2 M1 M0
AD1896
TDM_IN
SDATA_I
LRCLK_I
SCLK_I
MCLK
RESET
SDATA_O
LRCLK_O
SCLK_O
PHASE-MASTER
M2 M1 M0
AD1896
SLAVE2
M2 M1 M0
AD1896
SLAVEn
M2 M1 M0
0 0 0
1 0 0
1 0 0
1 0 0
LRCLK
I
(f
S_IN
)
SCLK
I
LRCLK
O
(f
S_OUT
)
SCLK
O
(64f
S_OUT
)
MCLK
RESET
SDOm
SDO1
SDO2
SDOn
TDM_IN
SDATA_I
LRCLK_I
SCLK_I
MCLK
RESET
SDATA_O
LRCLK_O
SCLK_O
TDM_IN
SDATA_I
LRCLK_I
SCLK_I
MCLK
RESET
SDATA_O
LRCLK_O
SCLK_O
TDM_IN
SDATA_I
LRCLK_I
SCLK_I
MCLK
RESET
SDATA_O
LRCLK_O
SCLK_O
Figure 13. Typical Configuration for Matched Phase Mode Operation
REV. 0
AD1896
23
Matched-Phase Mode
The matched-phase mode is the mode discussed in the Theory of
Operation section that eliminates the phase mismatch between
multiple AD1896s. The master AD1896 device transmits
its f
S_OUT
/f
S_IN
ratio through the SDATA_O pin to the slave
AD1896's TDM_IN pins. The slave AD1896s receive the
transmitted f
S_OUT
/f
S_IN
ratio and use the transmitted f
S_OUT
/
f
S_IN
ratio instead of their own internally derived f
S_OUT
/f
S_IN
ratio. The master device can have both its serial ports in slave
mode as depicted or either one in master mode. The slave
AD1896s must have their MMODE_2, MMODE_1, and
MMODE_0 pins set to 100 respectively. LRCLK_I and
LRCLK_O may be asynchronous with respect to each other in
this mode. Another requirement of the matched-phase mode is
that there must be 32 SCLK_O cycles per subframe. The
AD1896 will support the matched-phase mode for all serial
output data formats, Left-Justified, I
2
S, Right-Justified, and
TDM. In the case of TDM, the AD1896 shown in the TDM
mode operation figure with its TDM_IN tied to ground would be
configured as the master while the rest of the AD1896s in the
chain would be configured as slaves with their MMODE_2,
MMODE_1, and MMODE_0 pins set to 100 respectively.
Please note that in the left-justified, I
2
S, and TDM mode, the
lower eight bits of each channel subframe are used to transmit
the matched-phase data. In right-justified mode, the upper eight
bits are used to transmit the matched-phase data. This is shown
in Figures 14a and 14b.
Bypass Mode
When the BYPASS pin is asserted high, the input data bypasses
the sample rate converter and is sent directly to the serial output
port. Dithering of the output data when the word length is set
to less than 24 bits is disabled. This mode is ideal when the
input and output sample rates are the same and LRCLK_I and
LRCLK_O are synchronous with respect to each other. This
mode can also be used for passing through non-AUDIO data
since no processing is performed on the input data in this mode.
AUDIO DATA LEFT CHANNEL, 24 BITS
MATCHED-PHASE
DATA, 8 BITS
AUDIO DATA RIGHT CHANNEL, 24 BITS
MATCHED-PHASE
DATA, 8 BITS
Figure 14a. Matched-Phase Data Transmission (Left-Justified, I
2
S and TDM Mode)
AUDIO DATA LEFT CHANNEL,
16 24 BITS
AUDIO DATA RIGHT CHANNEL,
16 24 BITS
MATCHED-PHASE
DATA, 8 BITS
MATCHED-PHASE
DATA, 8 BITS
Figure 14b. Matched-Phase Data Transmission (Right-Justified Mode)
REV. 0
24
C024032.54/01(0)
PRINTED IN U.S.A.
AD1896
OUTLINE DIMENSIONS
Dimensions shown in inches and (mm).
28-Lead Shrink Small Outline Package (SSOP)
(RS-28)
0.015 (0.38)
0.009 (0.22)
SEATING
PLANE
0.026
(0.65)
BSC
0.079
(2.00)
MAX
0.002 (0.05)
MIN
0.073 (1.85)
0.069 (1.75)
0.065 (1.65)
28
15
14
1
0.413 (10.50)
0.402 (10.20)
0.390 (9.90)
PIN 1
0.220 (5.60)
0.209 (5.30)
0.197 (5.00)
0.323 (8.20)
0.307 (7.80)
0.291 (7.40)
0.010 (0.25)
0.004 (0.09)
8
4
0
0.037 (0.95)
0.030 (0.75)
0.022 (0.55)
PDF
ZIP
