Agilent HDSP-S5xE, HDSP-S5xG,
HDSP-B5xZ Series 91.44 mm (3.6 inch)
General Purpose 5 x 7 Dot Matrix
Alphanumeric Displays
Data Sheet
Description
These displays have a 91.44 mm
(3.6 inch) character height. The
devices are available in either
common row anode or common row
cathode configurations. The
displays come in only black face
paint and are available in a choice
of GaP Red or GaP Green colors.
Features
5 x 7 Dot matrix font
Stackable horizontally
Pin-out
76.2 mm (3.0 in.) Dual-In-Line
(DIP) leads on 5.08 mm (0.2 in.)
centers
Choice of colors
Single color: red or green
Bi-color: red and green
Face paint color: black
Design flexibility
Common row anode or
Common row cathode
Categorized:
Single color: luminous intensity
Bi-Color: luminance
Green categorized for color
Applications
Suitable for indoor use
Not recommended for industrial
applications, i.e. operating
temperature requirements
exceeding 85
C or below 35
C
Extreme temperature cycling not
recommended
[1]
The Bi-color display consists of
GaP Red and GaP Green colors.
These parts are subjected to Out-
going Quality Assurance (OQA)
inspection with an AQL of
0.065% for functional and visual/
cosmetic defects.
Devices
GaP Red GaP Green
HDSP-
HDSP-
Description
S53E
S53G
91.44 mm Black Surface Common Row Anode
S58E
S58G
91.44 mm Black Surface Common Row Cathode
B53Z
91.44 mm Black Surface Bi-Color Common Row Anode
B58Z
91.44 mm Black Surface Bi-Color Common Row Cathode
Note:
1. For details, please contact your local Agilent components sales office or an authorized distributor.
2

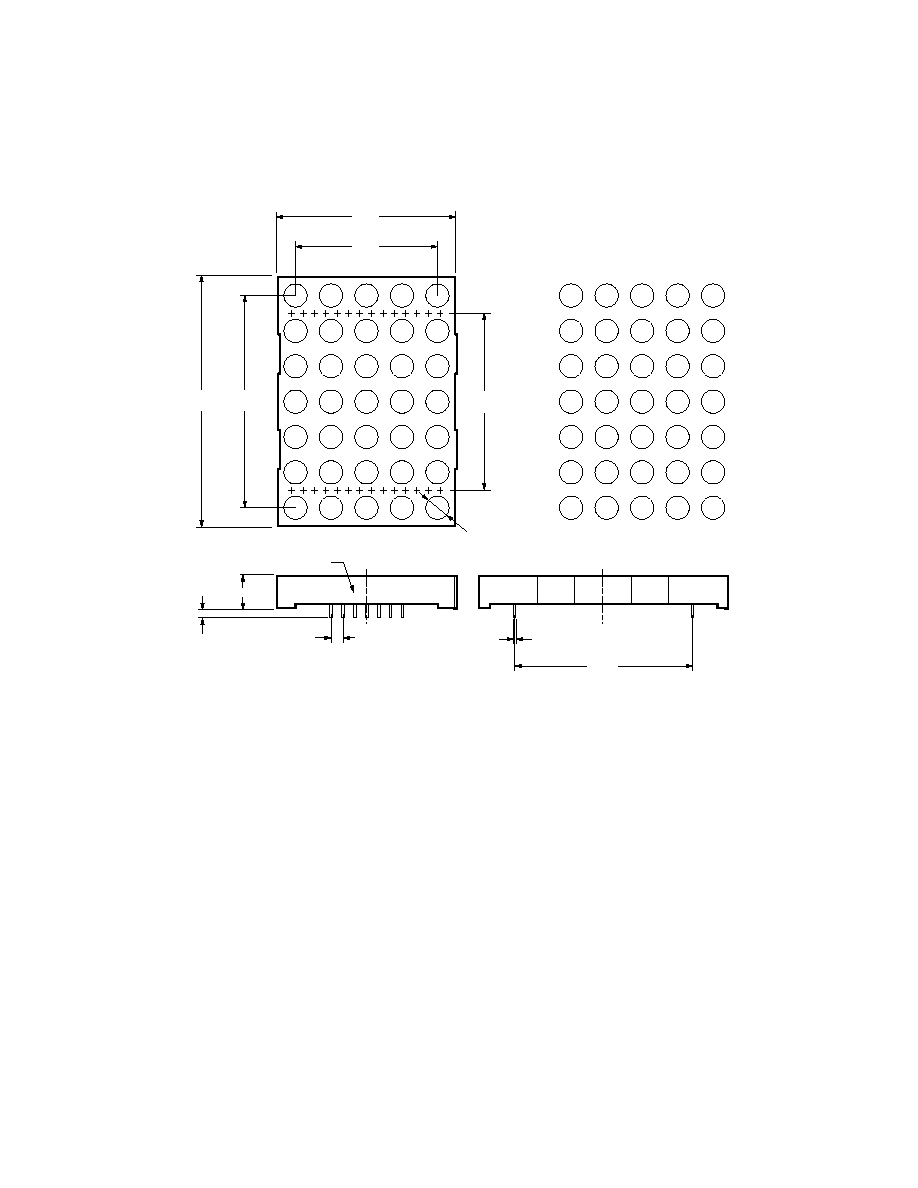

Package Dimensions
Single Color
60.96
(2.400)
91.44
(3.600)
ROW
COL
1
2
3
4
5
6
7
1
2
3
4
5
PIN 1
10.16 (0.40)
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS (INCHES).
2. UNLESS OTHERWISE STATED, TOLERANCES ARE 0.25 mm.
5.08
(0.200)
PART NO.
76.20
(3.000)
4.80 0.50
(0.189)
106.55
(4.195)
76.20
(3.000)
76.00
(2.992)
13.00 (0.512)
0.80
(0.031)
3

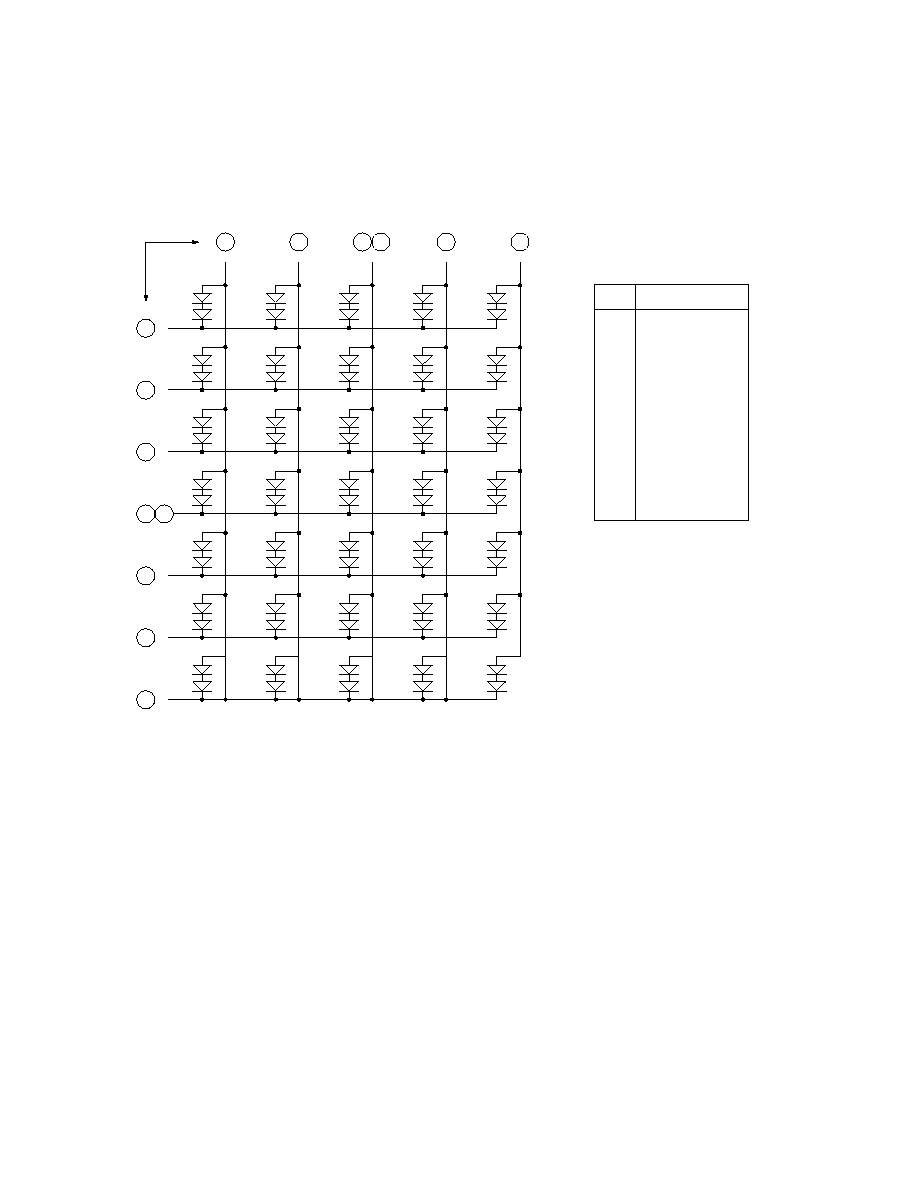

Internal Circuit Diagram
Common Row Anode Single Color
4
9
10
6
3
4
5
3
2
13
1
14
8
5
1
7
2
1
2
3
4
5
6
7
11
PIN
COLUMN
ROW
12
PIN NO.
CONNECTION
1
ANODE ROW 5
2
ANODE ROW 7
3
CATHODE COLUMN 2
4
CATHODE COLUMN 3
5
ANODE ROW 4
6
CATHODE COLUMN 5
7
ANODE ROW 6
8
ANODE ROW 3
9
ANODE ROW 1
10
CATHODE COLUMN 4
11
CATHODE COLUMN 3
12
ANODE ROW 4
13
CATHODE COLUMN 1
14
ANODE ROW 2
4

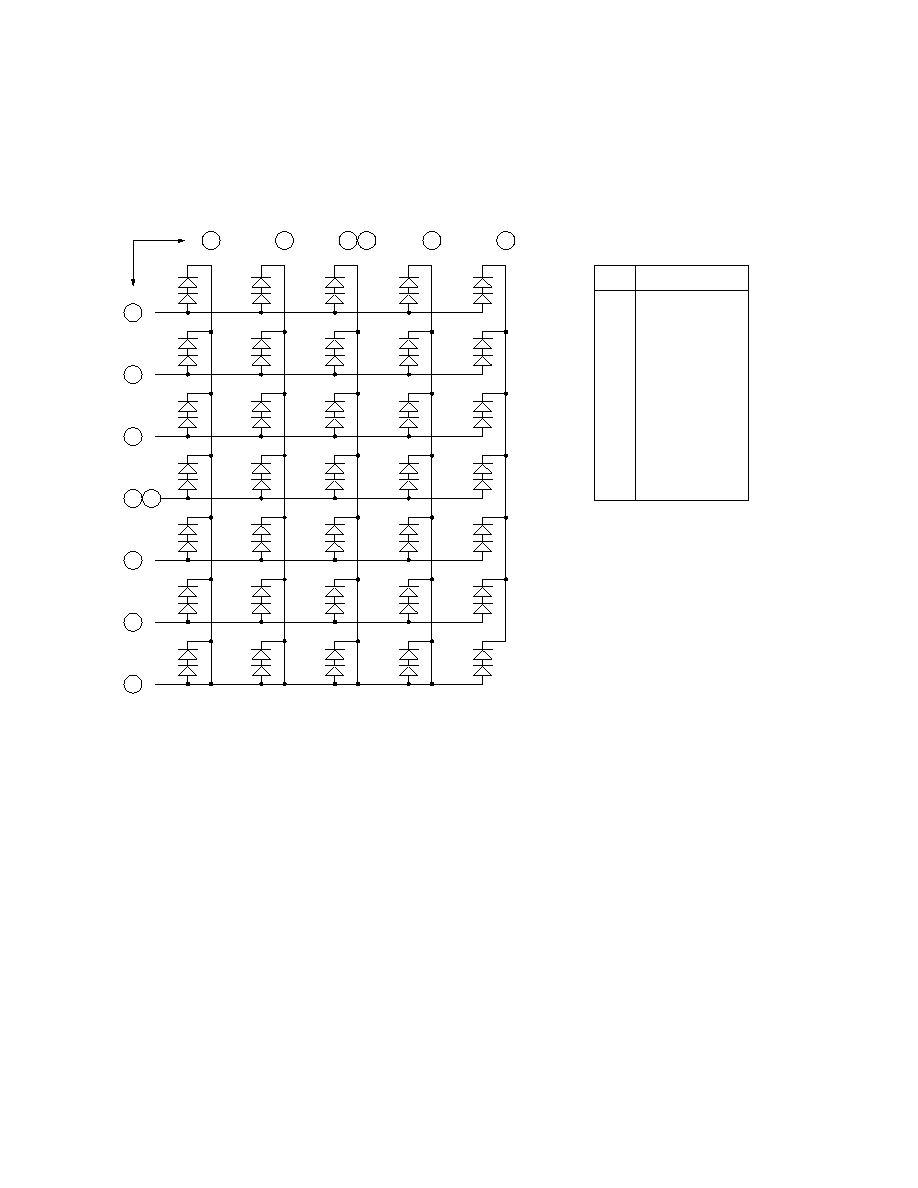

Internal Circuit Diagram
Common Row Cathode Single Color
4
9
10
6
3
4
5
3
2
13
1
14
8
5
1
7
2
1
2
3
4
5
6
7
11
PIN
COLUMN
ROW
12
PIN NO.
CONNECTION
1
CATHODE ROW 5
2
CATHODE ROW 7
3
ANODE COLUMN 2
4
ANODE COLUMN 3
5
CATHODE ROW 4
6
ANODE COLUMN 5
7
CATHODE ROW 6
8
CATHODE ROW 3
9
CATHODE ROW 1
10
ANODE COLUMN 4
11
ANODE COLUMN 3
12
CATHODE ROW 4
13
ANODE COLUMN 1
14
CATHODE ROW 2
5

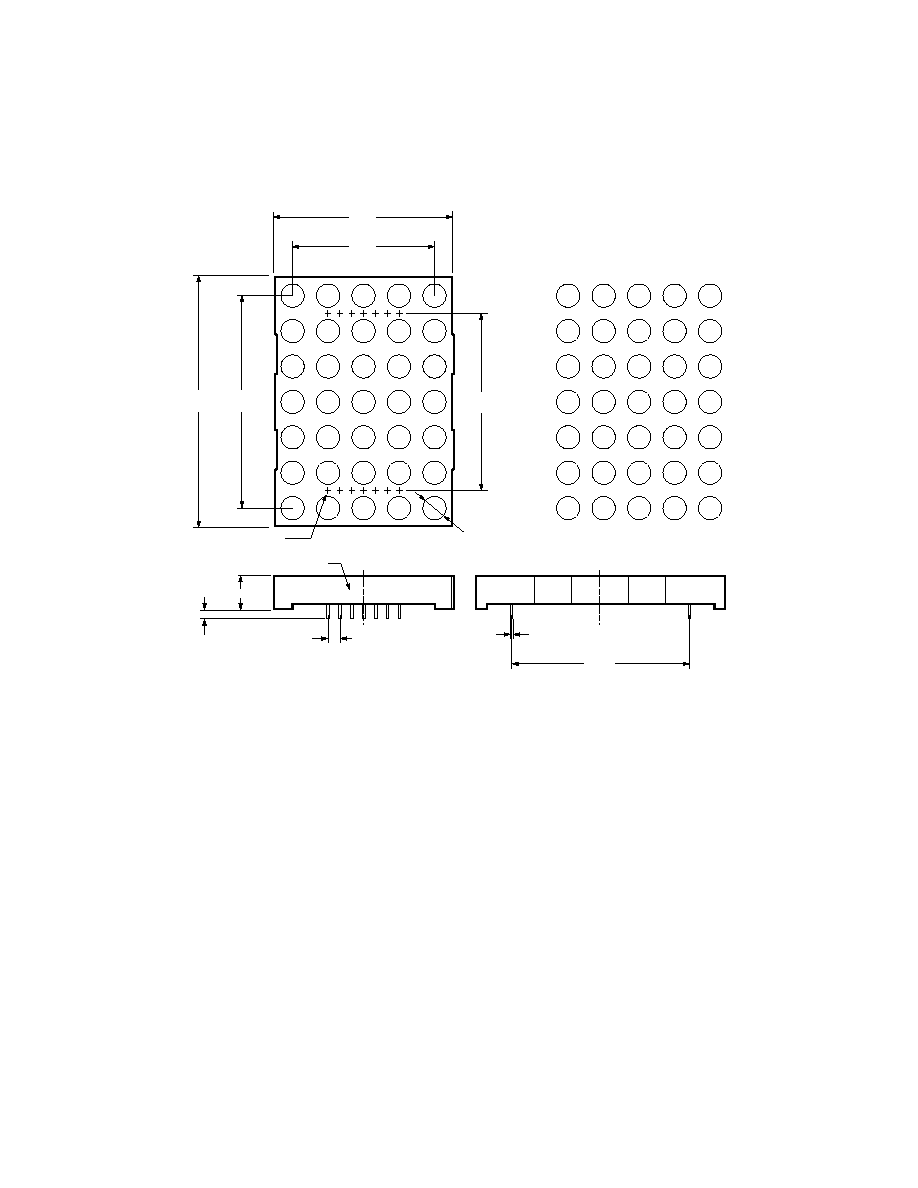

Package Dimensions
Bi-Color
60.96
(2.400)
91.44
(3.600)
ROW
COL
1
2
3
4
5
6
7
1
2
3
4
5
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS (INCHES).
2. UNLESS OTHERWISE STATED, TOLERANCES ARE 0.25 mm.
5.08
(0.200)
PART NO.
76.20
(3.000)
4.80 (0.189)
106.55
(4.195)
76.20
(3.000)
76.00
(2.992)
13.00 (0.512)
0.80
(0.031)
10.16 (0.40)
