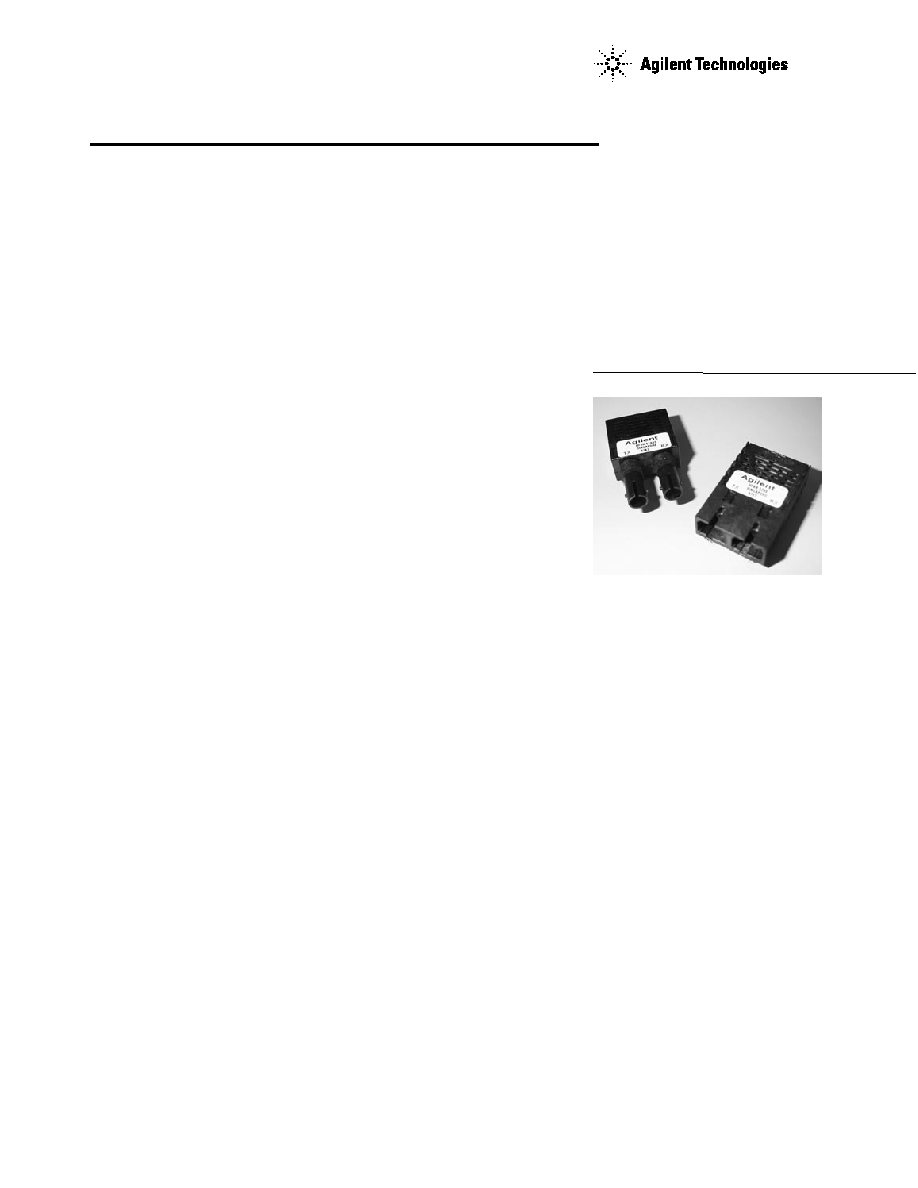

FDDI, 100 Mbps ATM, and
Fast Ethernet Transceivers
in Low Cost 1x9 Package Style
Data Sheet
Description
The HFBR-5100 family of trans-
ceivers from Agilent
Technologies provide the system
designer with products to
implement a range of FDDI and
ATM (Asynchronous Transfer
Mode) designs at the 100 Mbps/
125 MBd rate.
The transceivers are all supplied
in the new industry standard 1x9
SIP package style with either a
duplex SC or a duplex ST*
connector interface.
FDDI PMD, ATM and Fast
Ethernet 2000 m Backbone
Links
The HFBR-5103/-5103T are
1300 nm products with optical
performance compliant with the
FDDI PMD standard. The FDDI
PMD standard is ISO/IEC 9314-3:
1990 and ANSI X3.166 - 1990.
These transceivers for 2000 meter
multimode fiber backbones are
supplied in the small 1x9 duplex
SC or ST package style for those
designers who want to avoid the
larger MIC/R (Media Interface
Connector/Receptacle) defined in
the FDDI PMD standard.
Agilent Technologies also
provides several other FDDI
products compliant with the PMD
Features
Full Compliance with the
Optical Performance
Requirements of the FDDI
PMD Standard
Full Compliance with the
FDDI LCF-PMD Standard
Full Compliance with the
Optical Performance
Requirements of the ATM
100 Mbps Physical Layer
Full Compliance with the
Optical Performance
Requirements of
100 Base-FX Version of
IEEE 802.3u
Multisourced 1x9 Package
Style with Choice of Duplex
SC or Duplex ST*
Receptacle
Wave Solder and Aqueous
Wash Process Compatible
Manufactured in an ISO
9002 Certified Facility
Applications
Multimode Fiber Backbone
Links
Multimode Fiber Wiring
Closet to Desktop Links
Multimode Fiber Media
Converter
*ST is a registered trademark of AT&T Lightguide Cable Connectors.
HFBR-5103/-5103T
1300 nm 2000 m
HFBR-5103A/-5103AT/
-5103P/-5103PE
and SM-PMD standards. These
products are available with MIC/
R, ST
and FC connector styles.
They are available in the 1x13
and 2x11 transceiver and 16 pin
transmitter/receiver package
styles for those designs that
require these alternate
configurations.
The HFBR-5103/-5103T is also
useful for both ATM 100 Mbps
interfaces and Fast Ethernet 100
Base-FX interfaces. The ATM
Forum User-Network Interface
(UNI) Standard, Version 3.0,
defines the Physical Layer for
100 Mbps Multimode Fiber
Interface for ATM in Section 2.3
to be the FDDI PMD Standard.
Likewise, the Fast Ethernet
Alliance defines the Physical
Layer for 100 Base-FX for Fast
Ethernet to be the FDDI PMD
Standard.
Note: The "T" in the product numbers
indicates a transceiver with a duplex ST
connector receptacle.
Product numbers without a "T" indicate
transceivers with a duplex SC connector
receptacle.
2
Transmitter Sections
The transmitter sections of the
HFBR-5103 series utilize
1300 nm Surface Emitting
InGaAsP LEDs. These LEDs are
packaged in the optical
subassembly portion of the
transmitter section. They are
driven by a custom silicon IC
which converts differential PECL
logic signals, ECL referenced
(shifted) to a +5 Volt supply, into
an analog LED drive current.
Receiver Sections
The receiver sections of the
HFBR-5103 series utilize InGaAs
PIN photodiodes coupled to a
custom silicon transimpedance
preamplifier IC. These are
packaged in the optical sub-
assembly portion of the receiver.
These PIN/preamplifier combi-
nations are coupled to a custom
quantizer IC which provides the
final pulse shaping for the logic
output and the Signal Detect
function. The data output is dif-
ferential. The signal detect output
is single-ended. Both data and
signal detect outputs are PECL
compatible, ECL referenced
(shifted) to a +5 Volt power
supply.
Package
The overall package concept for
the Agilent transceivers consists
of the following basic elements;
two optical subassemblies, an
electrical subassembly and the
housing as illustrated in Figure 1
and Figure 1a.
Figure 2b shows the outline
drawing for options that include
mezzanine height with extended
shield.
The package outline drawing and
pin out are shown in Figures 2,
2a and 3. The details of this
package outline and pin out are
compliant with the multisource
definition of the 1x9 SIP. The low
profile of the Agilent transceiver
design complies with the
maximum height allowed for the
duplex SC connector over the
entire length of the package.
The optical subassemblies utilize
a high volume assembly process
together with low cost lens
elements which result in a cost
effective building block.
The electrical subassembly con-
sists of a high volume multilayer
printed circuit board on which
the IC chips and various surface-
mounted passive circuit elements
are attached.
The package includes internal
shields for the electrical and
optical subassemblies to ensure
low EMI emissions and high
immunity to external EMI fields.
The outer housing including the
duplex SC connector receptacle
or the duplex ST ports is molded
of filled non-conductive plastic to
provide mechanical strength and
electrical isolation. The solder
posts of the Agilent design are
isolated from the circuit design of
the transceiver and do not require
connection to a ground plane on
the circuit board.
The transceiver is attached to a
printed circuit board with the
nine signal pins and the two
solder posts which exit the
bottom of the housing. The two
solder posts provide the primary
mechanical strength to withstand
the loads imposed on the trans-
ceiver by mating with duplex or
simplex SC or ST connectored
fiber cables.

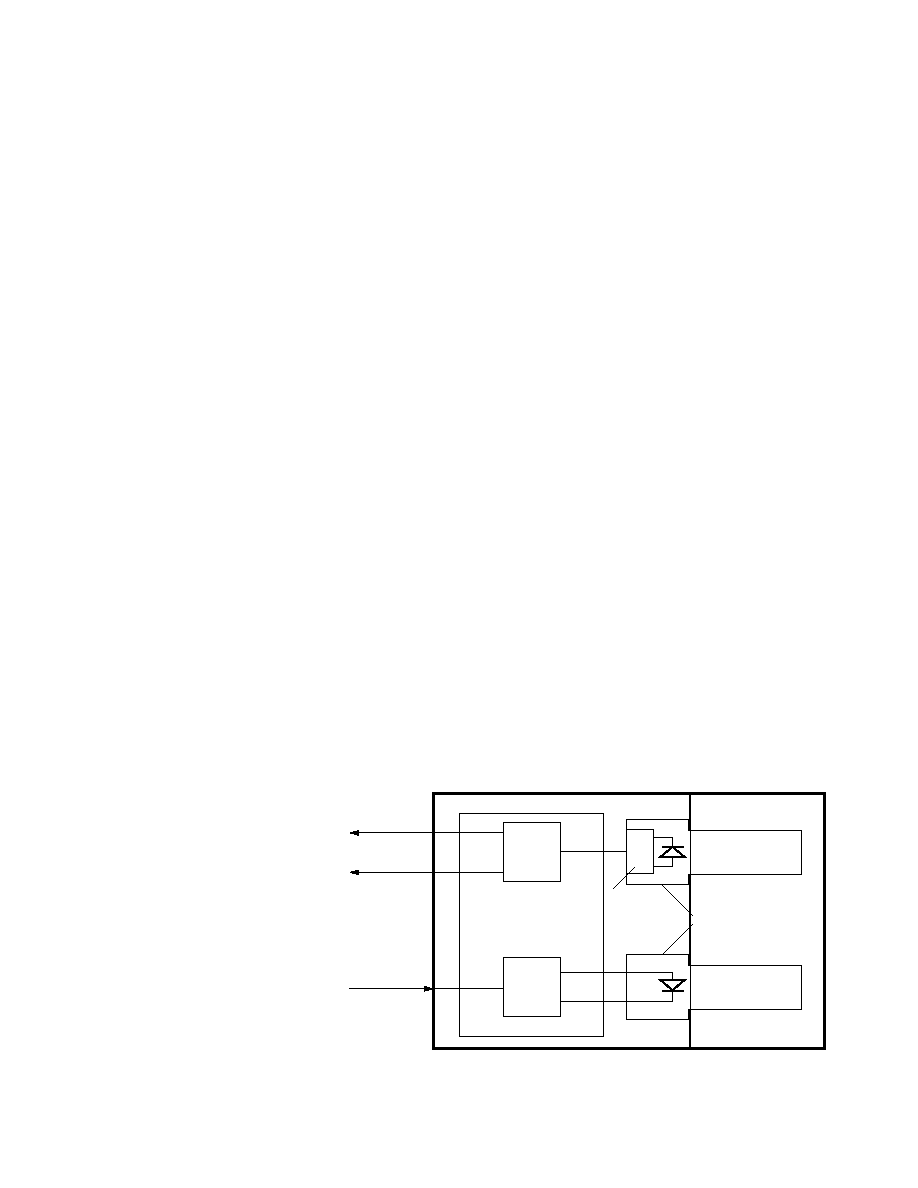

Figure 1. SC Block Diagram.
DATA OUT
SIGNAL
DETECT OUT
DATA IN
ELECTRICAL SUBASSEMBLY
QUANTIZER IC
DRIVER IC
TOP VIEW
PIN PHOTODIODE
DUPLEX SC
RECEPTACLE
OPTICAL
SUBASSEMBLIES
LED
PREAMP IC
DIFFERENTIAL
SINGLE-ENDED
DIFFERENTIAL
ATM applications for physical
layers other than 100 Mbps
Multimode Fiber Interface are
supported by Agilent. Products are
available for both the single mode
and the multimode fiber SONET-
OC-3C (STS-3C) ATM interface
and the 155 Mbps ATM 94 MBd
multimode fiber ATM interface as
specified in the ATM Forum UNI.
3
DATA OUT
SIGNAL
DETECT OUT
DATA IN
ELECTRICAL SUBASSEMBLY
QUANTIZER IC
DRIVER IC
TOP VIEW
PIN PHOTODIODE
DUPLEX ST
RECEPTACLE
OPTICAL
SUBASSEMBLIES
LED
PREAMP IC
DIFFERENTIAL
SINGLE-ENDED
DIFFERENTIAL
Figure 1a. ST Block Diagram.

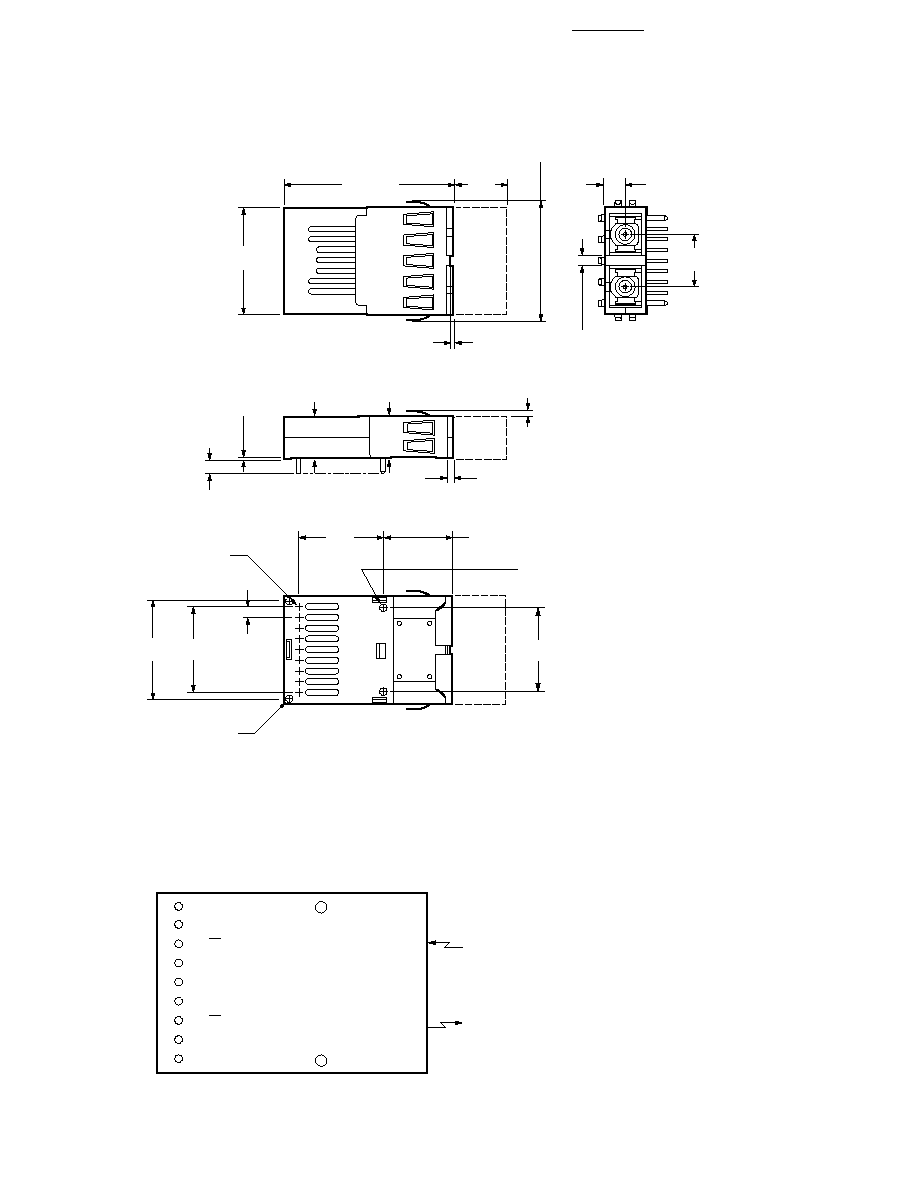

Figure 2. Package Outline Drawing with Standard Height.
39.12
(1.540)
MAX.
AREA
RESERVED
FOR
PROCESS
PLUG
12.70
(0.500)
25.40
(1.000)
MAX.
12.70
(0.500)
10.35
(0.407)
MAX.
+ 0.25
- 0.05
+ 0.010
- 0.002
3.30 0.38
(0.130 0.015)
HFBR-5XXX
DATE CODE (YYWW)
SINGAPORE
2.92
(0.115)
18.52
(0.729)
4.14
(0.163)
20.32
(0.800)
[8x(2.54/.100)]
23.55
(0.927)
16.70
(0.657)
17.32
(0.682)
20.32
(0.800)
23.32
(0.918)
0.46
(0.018)
NOTE 1
(9x)
NOTE 1
0.87
(0.034)
23.24
(0.915)
15.88
(0.625)
NOTE 1: THE SOLDER POSTS AND ELECTRICAL PINS ARE PHOSPHOR BRONZE WITH TIN LEAD OVER NICKEL PLATING.
DIMENSIONS ARE IN MILLIMETERS (INCHES).
1.27
(0.050
+ 0.08
- 0.05
+ 0.003
- 0.002
0.75
(0.030
)
)
A
6.35
(0.250)
5.93 0.1
(0.233 0.004)
4

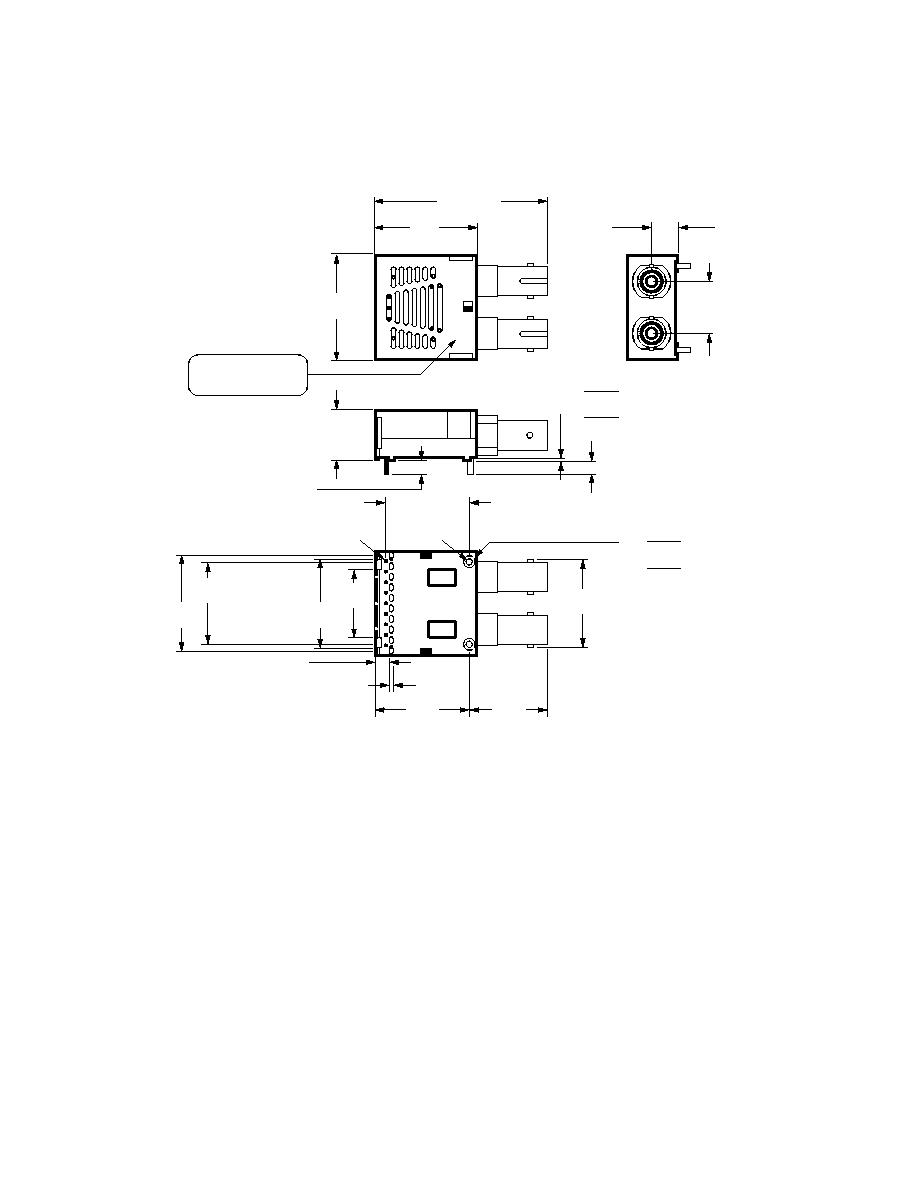

Figure 2a. ST Package Outline Drawing with Standard Height.
25.4
(1.000)
MAX.
24.8
(0.976)
42
(1.654)
MAX.
5.99
(0.236)
12.7
(0.500)
12.0
(0.471)
MAX.
0.5
(0.020)
3.3 0.38
(0.130) ( 0.015)
+ 0.08
- 0.05
+ 0.003
- 0.002
+ 0.25
- 0.05
+ 0.010
- 0.002
20.32 0.38
( 0.015)
HFBR-5103T
DATE CODE (YYWW)
SINGAPORE
3.2
(0.126)
2.6
(0.102)
22.86
(0.900)
20.32
(0.800)
[(8x (2.54/0.100)]
17.4
(0.685)
21.4
(0.843)
20.32
(0.800)
3.6
(0.142)
1.3
(0.051)
23.38
(0.921)
18.62
(0.733)
NOTE 1: PHOSPHOR BRONZE IS THE BASE MATERIAL FOR THE POSTS & PINS
WITH TIN LEAD OVER NICKEL PLATING.
DIMENSIONS IN MILLIMETERS (INCHES).
(
(
(
(
0.46
(0.018)
NOTE 1
1.27
0.050
5
Figure 2b. Package Outline Drawing Mezzanine Height with Extended Shield.
39.6
(1.56)
MAX.
AREA
RESERVED
FOR
PROCESS
PLUG
12.70
(0.50)
25.4
(1.00)
MAX.
12.7
(0.50)
20.32
(0.800)
20.32
(0.800)
DIMENSIONS ARE IN MILLIMETERS (INCHES).
ALL DIMENSIONS ARE 0.025 mm UNLESS OTHERWISE SPECIFIED.
+0.1
-0.05
0.25
+0.004
-0.002
(
0.010
3.3 0.38
(0.130 0.015)
)
20.32
(0.80)
0.51
(0.02)
SLOT DEPTH
SLOT WIDTH
4.7
(0.185)
23.8
(0.937)
+0.25
-0.05
0.46
+0.010
-0.002
(
0.018
)
9X
1.3
(0.051)
2X
15.8 0.15
(0.622 0.006)
+0.25
-0.05
1.27
+0.010
-0.002
(
0.050
)
2X
2.0 0.1
(0.079 0.004)
29.6
(1.16)
8X 2.54
(0.100)
10.2
(0.40)
1.3
(0.05)
MAX.
2.09
(0.08)
UNCOMPRESSED
UNCOMPRESSED
9.8
(0.386)
MAX.
A
Figure 3. Pin Out Diagram.
1 = V
EE
2 = RD
3 = RD
4 = SD
5 = V
CC
6 = V
CC
7 = TD
8 = TD
9 = V
EE
TOP VIEW
N/C
N/C
Rx
Tx
PDF
