Features
Good Phase and
Amplitude Balance
Low Conversion Loss
Octave RF Bandwidths
Small Size
Connectors Per MIL-C-39012
Applications
PSK Demodulators
Quadrature Phase
Detectors
Doppler Systems/Radar
Altimeters
Image Rejection Mixers
Error Sensors in Adaptive
Systems
Mixers
Image Rejection

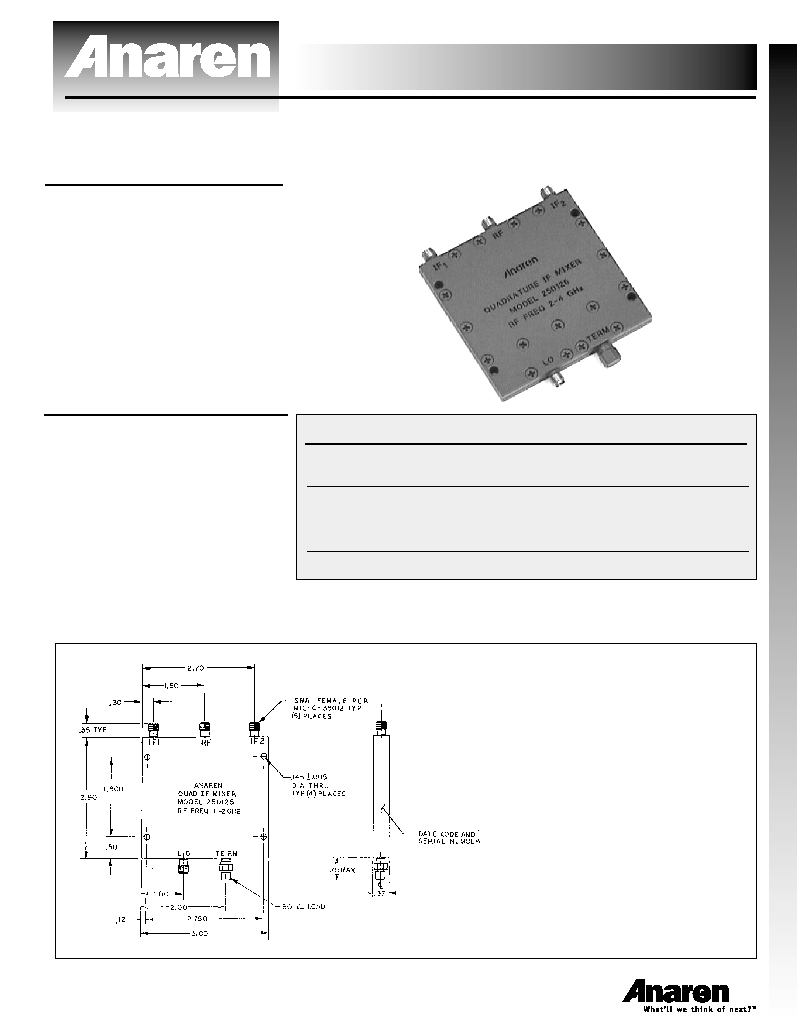

Outline Drawing
Electrical Specifications
Notes: Impedance: 50 ohms nominal. Meets MIL-E-5400 Class 3 requirements. Additional screening available
for military and space applications.
Electrical and Mechanical Specifications subject to change
without notice.
1
Specifications are for 60 MHz IF center frequency. Other IF center frequencies are avialable
from 30 to 240 MHz. LO Power: +7 dBm typical. Biased versions also available.
Aluminum Cased Connectorized Components
6.6.41
Model 250125
Frequency
Isolation
LO-RF
Convers. Loss
RF
VSWR
GHz
dB Min/Typ
dB Max/Typ
Max/Typ : 1
1.0-2.0
19/25
12/10
1.67/1.40
LO
VSWR
IF Freq.*
IF Amp. Bal.
IF
Bal.
Max/Typ : 1
MHz
dB
degrees
1.50/1.20
DC-250
1.0
10
NOTES:
1
Marking:
Marking shall be in accordance with MIL-STD-130
2
Dimensions:
Inches
3
Finish:
Primer (A160-16123-G001)
Paint Blue (A160-16123-G001)
