Features
Extremely Wide IF Bandwidth
Good LO/RF Isolation
Multi-Octave Performance
Good Intercept Point
Miniature Size
Connectors Per MIL-C-39012
Applications
Wideband Down Converters
Wideband Up Converters
Balanced Modulators
Bi-Phase Modulators
Phase Detectors
Mixers
Double Balanced

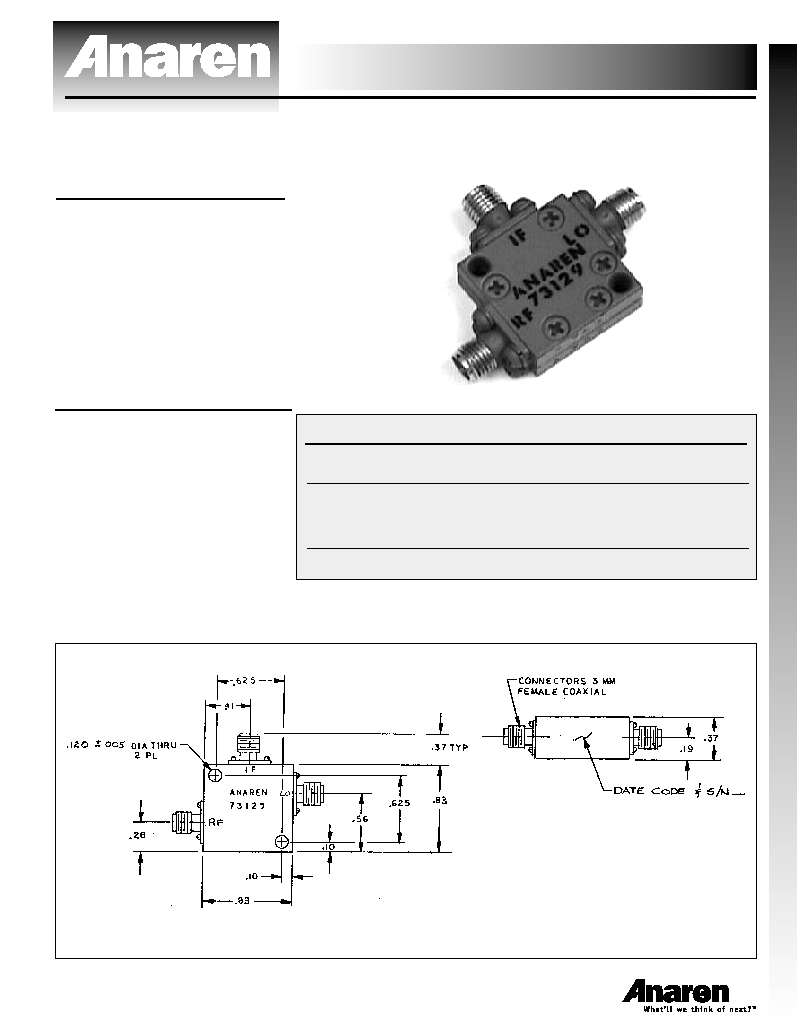

Outline Drawing
Electrical Specifications
6.6.39
Model 73129
Notes: Impedance: 50 ohms nominal. Meets MIL-E-5400 Class 3 requirements. Additional screening available
for military and space applications. 1) Upper IF frequency is the -3 dB response point. 2) At 1dB Compression
point
Electrical and Mechanical Specifications subject to change without notice.
Aluminum Cased Connectorized Components
Frequency
Isolation
LO-RF
Convers. Loss
VSWR,
RF
GHz
dB Min/Typ
dB Max/Typ
Typ : 1
8.0 - 18.0
15/23
10.0/9.0
4.5
IF Freq.
1
RF Power
2
LO Power
MHz
Input dBm
dBm Nominal
DC-4000
+4
+12
NOTES:
1
Power (Bias terminal grounded)
2
Conversion loss measured at 60 MHz
DC blocking capacitor (470 pF) built into I.F. output
3
External bias current limitation must be employed when using bias option.
Use any positive supply voltage (up to +15V) by selecting required valve
of current limiting resistor to optimize bias current.
4
Finish:
Epoxy Primer (A160-16123-G001)
Blue Epoxy Paint (A160-16221-G001)
5
Marking:
Marking shall be in accordance with MIL-STD-130
6
Dimensions:
Inches
7
Weight 40 grams
