DC/DC CONVERTERS 36-100W High Efficiency DC/DC Converters
1
2 YEAR WARRANTY

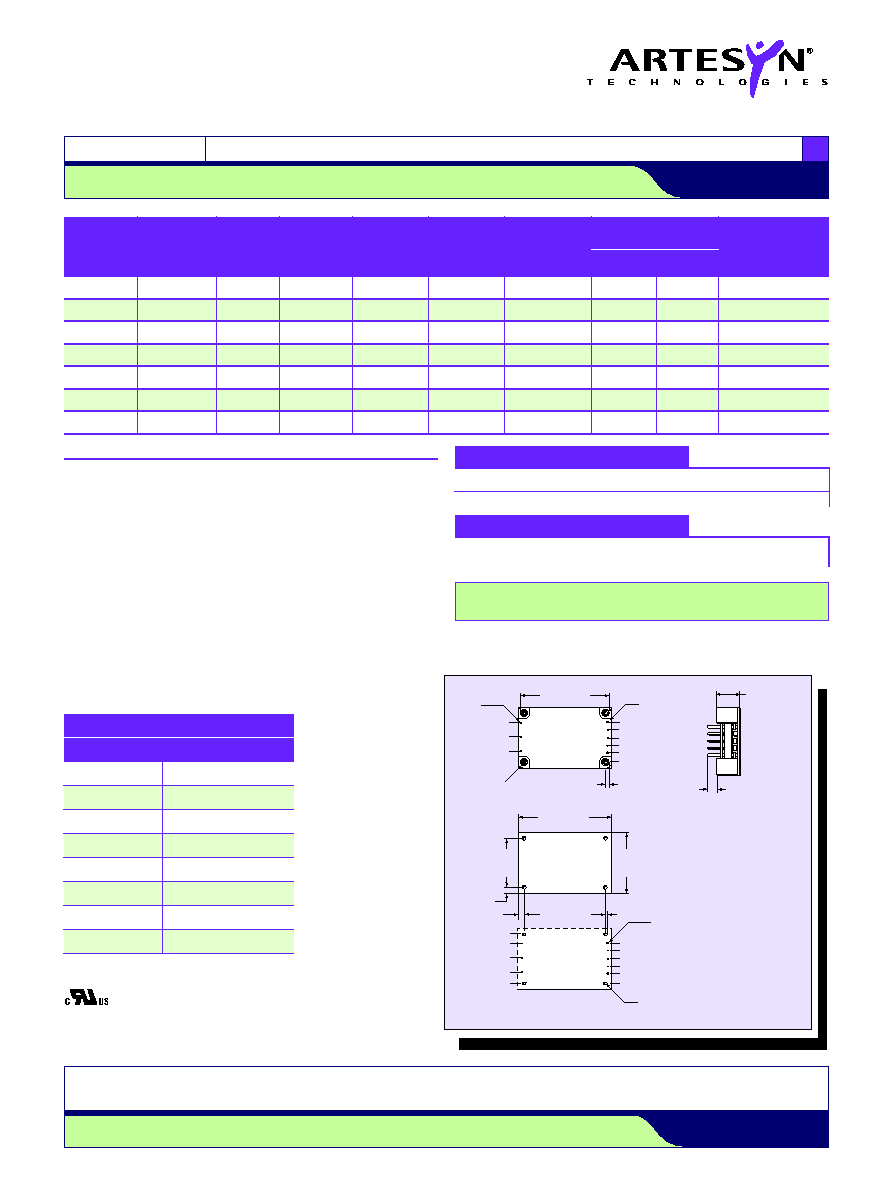

EXQ125 Series
S i n g l e o u t p u t
Ultra-high efficiency topology, 91% at 3.3V,
88% typical at 1.8V
Industry standard footprint
Wide baseplate temperature, -40C to +100C
90% to 110% output trim
No minimum load
Overvoltage protection
Remote on/off
The EXQ125 is a new ultra-high efficiency, open frame, isolated converter series in
an industry standard quarter-brick footprint that provides up to 100 watts of output
power. The EXQ125 delivers very high output current at low voltages, and excellent
useable power density for today's high end applications. The seven models in the
series feature an input voltage range of 33 to 75VDC and are available in output
voltages of 12V, 5V, 3.3V, 2.5V, 1.8V, 1.5V and 1.2V. The output voltage on each
model is adjustable from 90% to 110% of the nominal value. The EXQ125 series
also has a remote on/off capability. Overcurrent and overvoltage protection features
are included as standard. With full international safety approval including EN60950
(TV Rheinland) and UL/cUL1950, the EXQ125 reduces compliance costs and time
to market.
All specifications are typical at nominal input, full load at 25C unless otherwise stated
EMC CHARACTERISTICS
Conducted emissions
EN55022 (See Note 2)
Level A
EN55022 (See Note 2)
Level B
Radiated emissions
EN55022
Level B
Immunity:
ESD air
EN61000-4-2 8kV (NP), 15kV (NP)
ESD contact
EN61000-4-2 6kV (NP), 8kV (NP)
Radiated field enclosure
EN61000-4-3 10V/m (NP)
Conducted (DC power)
EN61000-4-6 10V (NP)
Conducted (signal)
EN61000-4-6 10V (NP)
Input transients
ETS 300 132-2, ETR 283
GENERAL SPECIFICATIONS
Efficiency
See table
Operational
Input/output
1500VDC
Input/baseplate
1500VDC
Switching frequency
Fixed
400kHz typ.
Approvals and
EN60950 (TV Rheinland)
standards (See Note 4)
UL/cUL1950
Material flammability
UL94V-0
Weight
45g (1.6oz)
MTBF
MIL-HDBK-217F
>300,000 hours
@ 25C, 100% load
ground benign
ENVIRONMENTAL SPECIFICATIONS
Thermal performance
Operating baseplate
-40C to +100C
temperature
Non-operating
-40C to +125C
OUTPUT SPECIFICATIONS
Voltage adjustability
90% to 110%
Set point accuracy
1.5% max.
Line regulation
Low line to high line
0.1% max.
Load regulation
Full load to min. load
0.2% max.
Minimum load
0A
Overshoot
At turn-on and turn-off
None
Undershoot
1.2V, 1.5V, 1.8V, 2.5V
None
and 3.3V models
Ripple and noise
5Hz to 20MHz
60mV pk-pk
20mV rms
Transient response
2% typ. deviation
(See Note 1)
100s recovery to
within 1% of setpoint
INPUT SPECIFICATIONS
Input voltage range
48Vin nominal
33 to 75VDC
Input current
No load
85mA
Remote OFF
20mA
Input current (max.)
3.5A max. @ Io max.
(See Note 3)
and Vin = 33 to 75V
Input reflected ripple
(See Note 5)
300mA (pk-pk) typ.
Active high remote ON/OFF
(See Note 7)
Logic compatibility
Open collector ref to -input
ON
Open circuit or >4.0VDC
OFF
<1.2VDC
Undervoltage lockout
Power up
32.5V (typ)
Power down
30.5V (typ)
Start-up time
Power up
6ms (typ)
(See Note 6)
Remote ON/OFF
2ms (typ)
SPECIFICATIONS
File Name: EXQ125S.PDF Rev: 18 June 2002
TV
Data Sheet Artesyn Technologies 2002
The information and specifications contained in this data sheet are believed to be correct at time of publication. However, Artesyn Technologies accepts no responsibility for consequences arising
from printing errors or inaccuracies. Specifications are subject to change without notice. No rights under any patent accompany the sale of any such product(s) or information contained herein.
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
Notes
1
di/dt = 0.1A/s, Vin = 48VDC, Tc = 25C, load change = 0.5 lo max. to 0.75
lo max. and 0.75 lo max. to 0.5 lo max. Deviation varies by model, see
Long Form Data Sheet.
2
The EXQ125 meets level A and level B conducted emissions only with
external components connected before the input pins to the converter.
See Application Note 118.
3
Recommended input fusing is a 5A HRC 200V rated fuse.
4
This product is only for inclusion by professional installers within other
equipment and must not be operated as a stand alone product.
5
Measured with no external Pi filter. Significant reduction possible with
external filter. See Application Note 118.
6
Start-up into resistive load.
7
Active low remote On/Off is available. Standard product is active high.
When ordering active low parts, designate with the Suffix `-R',
e.g EXQ125-48S3V3-R.
8
When ordering 0.145" pin lengths designate with the Suffix `-N', if the
product is already a `-R' suffix product then the suffix will be `-RN'
9
When ordering 0.110" pin lengths designate with the Suffix `-K', if the
product is already a `-R' suffix product then the suffix will be `-RK'
CAUTION: Hazardous internal voltages and high temperatures.
Ensure that unit is not user accessible.
PROTECTION
Short circuit protection
Continuous
Overvoltage protection
Non-latching clamp
TELECOM SPECIFICATION
Central office interface A
ETS300-132-2, input voltage
and current requirements
PIN CONNECTIONS
PIN NUMBER
FUNCTION
1
+Vin
2
On/Off
3
-Vin
4
-Vout
5
-Sense
6
Trim
7
+Sense
8
+Vout
EXQ125 Series
S i n g l e o u t p u t
DC/DC CONVERTERS 36-100W High Efficiency DC/DC Converters
2
Please consult our website for the following items:
Application Note
Longform Data Sheet
www.artesyn.com
File Name: EXQ125S.PDF Rev: 18 June 2002
ALL DIMENSIONS IN INCHES [mm]
Recommended
Hole Pattern
M3 x 0.5 Threaded
Through (4 PLS)
0.128 [3.25]
(4 PLS)
0.073 [1.85]
(2 PLS)
0.000 [0.00]
0.215 [5.46]
0.070 [1.78]
0.070
[1.78]
0.365 [9.27]
0.515 [13.08]
0.665 [16.89]
0.815 [20.70]
0.50 [12.70]
0.215 [5.4 ]
0.515 [13.08 ]
0.815 [20.70 ]
*
0.20 [5.08]
1
2
3
4
5
6
7
8
0.000 [0.00]
0.215 [5.46]
0.365 [9.27]
0.515 [13.08]
0.665 [16.89]
0.815 [20.70]
0.215 [5.36 ]
0.515 [13.8 ]
0.815 [20.70]
1.030 [26.16]
0.000 [0.00]
3
2
1
8
7
6
5
4
0.040 [1.09]
(6 PLS)
0.060 [1.52]
(2 PLS)
2.000 [50.80]
2.280 [57.91]
1.860 [47.24]
0.210 [5.33]
0.210 [5.33]
1.450
[36.83]
1.030
[26.16]
Bottom View
Top View
*Standard available pin length.
0.145 (3.68) and 0.110 (2.79)
options also available. (See
Notes 8 and 9 for ordering details)
OUTPUT
INPUT
OVP
OUTPUT
OUTPUT
OUTPUT
EFFICIENCY
REGULATION
MODEL
POWER
VOLTAGE
VOLTAGE
CURRENT
CURRENT
(TYP.)
LINE
LOAD
NUMBER
(7,8,9)
(MAX.)
(MIN.)
(MAX.)
36W
33-75VDC
1.45VDC
1.2V
0A
30A
86.5%
0.1%
0.2%
EXQ125-48S1V2
45W
33-75VDC
1.8VDC
1.5V
0A
30A
87.5%
0.1%
0.2%
EXQ125-48S1V5
54W
33-75VDC
2.3VDC
1.8V
0A
30A
88.0%
0.1%
0.2%
EXQ125-48S1V8
75W
33-75VDC
3VDC
2.5V
0A
30A
90.0%
0.1%
0.2%
EXQ125-48S2V5
82.5W
33-75VDC
3.9VDC
3.3V
0A
25A
91.0%
0.1%
0.2%
EXQ125-48S3V3
100W
33-75VDC
6VDC
5V
0A
20A
92.0%
0.1%
0.2%
EXQ125-48S05
100W
33-75VDC
14.4VDC
12V
0A
8.3A
93.0%
0.1%
0.2%
EXQ125-48S12
International Safety Standard Approvals
UL/cUL : UL1950 File No. E135734
TV
TV Rheinland Certificate No. R2172600
CB Scheme No. US-TUVR-0982
