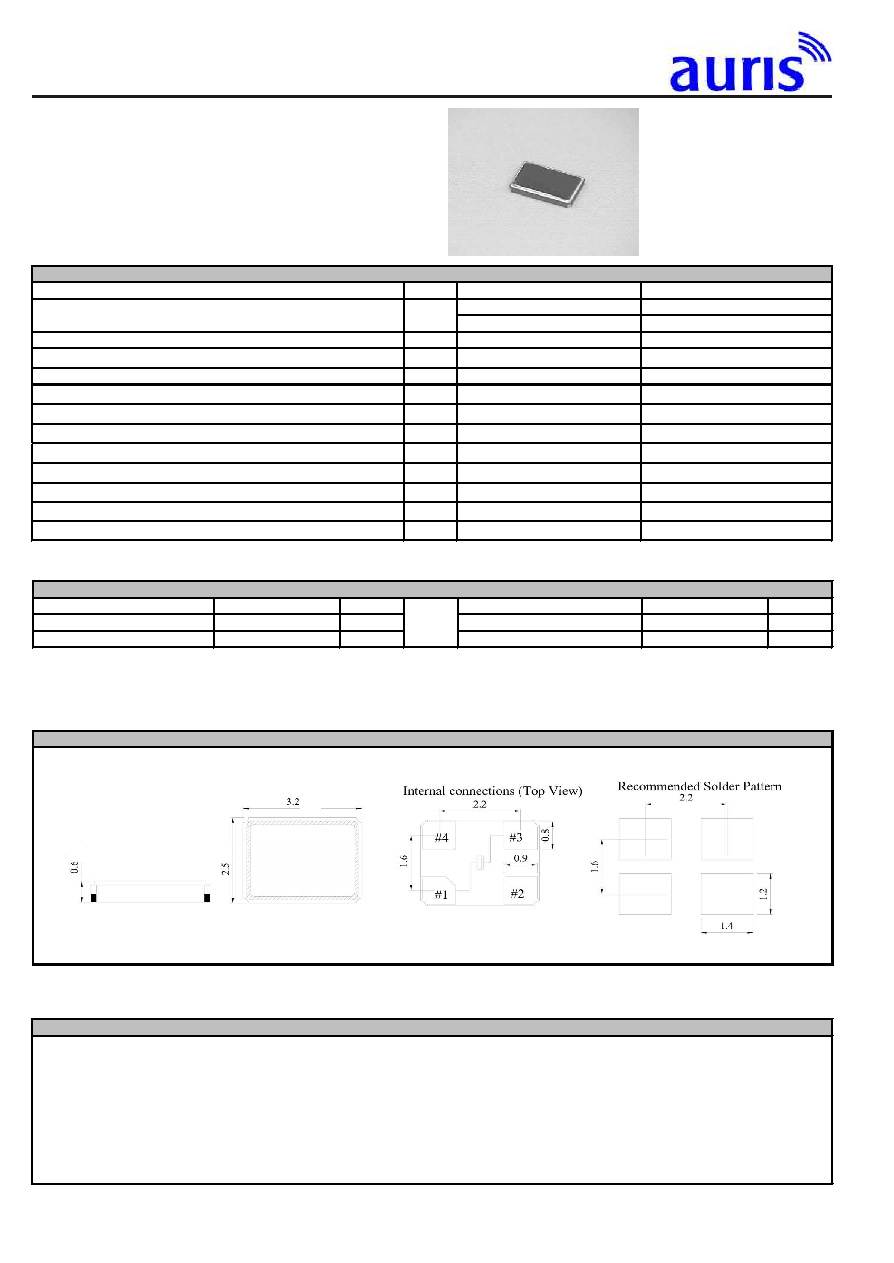

HC3225
Features:
- Application: Bluetooth, wireless LAN
- Ultra-thin and small leadress type
- Automatic mounting is enabled by emboss taping
Remarks: All specifications subject to change without notice!
Quartz SMD, Ceramic
Drawing
HC3225
Dimensions in mm
0.1
0
.
1
0
.
1
Resistance of series resonance (ESR)
Frequency (MHz)
Mode
Ohm
Frequency (MHz)
Mode
Ohm
16
Fundamental
100
27
Fundamental
80
24
Fundamental
80
32
Fundamental
60
Order key
Q
- 40.000000M - HC3225
- F
- 30
- 30
- D
- 16
- TR
Part
Frequency
Package
Mode of
Frequency
Temperature
Temperature
Load
Option
oscillation
tolerance
tolerance
range
capacitance
Q=Quartz
M=MHz
HC3225
F=fund.
+/-ppm
+/-ppm
A= 0C ~ 70C
pF
TR=Tape and reel
(25C)
(Temp. range)
B=-10C ~ 60C
SR=series
X=Special options
C=-10C ~ 70C
D=-20C ~ 70C
I=-10C ~ +50C
Specifications
Symbol
HC3225
Frequency range
f
16.000MHz ~ 40.000MHz
-
Frequency tolerance,Ta=25C
Df/f
10ppm ~ 30ppm
Load capacitance
C
L
Series, 10pf, 12pF, 16pF
Temperature tolerance
Df/f
10ppm ~ 30ppm
Storage temperature range
T
STG
-40C ~ +85C
Operating temperature range
T
OPR
-10C ~ +60C; -20C ~ 70C
Maximum drive level
M
DL
100mW
Recommended drive level
R
DL
10mW
Series resistance
R
1
As per table
Shunt capacitance
C
0
3pF
Insulation resistance
I
R
500M Ohm
Aging
Df
A
1 ~ 3ppm/Year
Remarks
Fundamental mode
Please specify
Please specify
Please specify
Others are offered
25C
100Vdc
