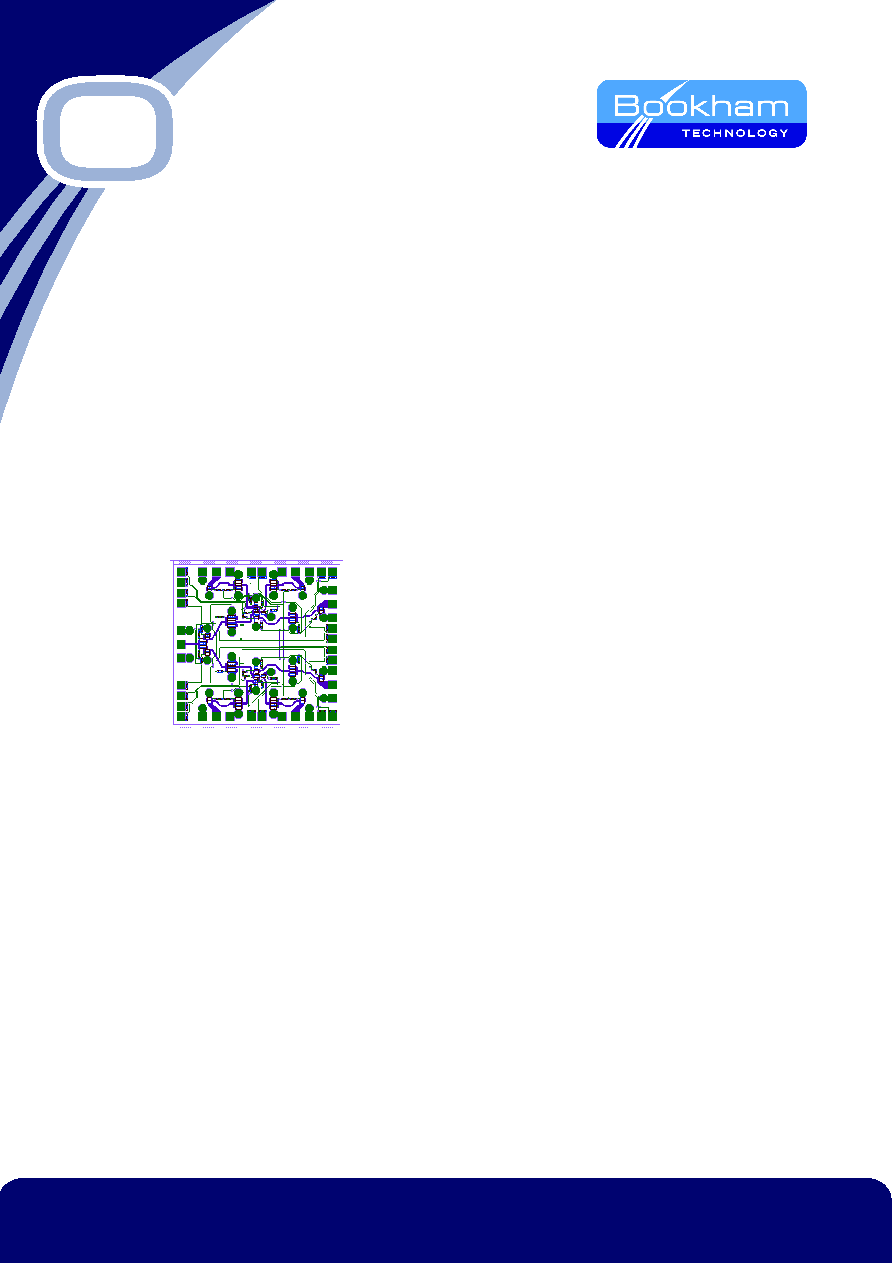

MMIC SP6T Reflective
Switch, DC - 22GHz
This P35-4236-000-200 engineering datasheet describes
a high performance broadband Gallium Arsenide monolithic
single pole six throw RF switch. It is suitable for use in
broadband communications, instrumentation and electronic
warfare applications. Control is effected by the application of
complimentary 0V and -5V levels to the control lines in
accordance with the truth table below.
The die is fabricated using Bookham Technology's 0.5m
gate length MESFET process (S20) and is fully protected
using Silicon Nitride passivation for excellent performance
and reliability.
Features
Ultra Broadband
Low insertion loss <3dB typ
at 20GHz
Fast switching speed
High isolation 40dB at 20GHz
Through GaAs Vias for improved
performance
www.bookham.com
Engineering Datasheet
www.bookham.com
Thinking RF solutions
www.bookham.com
Parameter
Conditions
Target Min
Typ
Target Max
Units
Insertion Loss
DC - 10GHz
-
2.2
2.6
dB
10GHz - 22GHz
-
3.0
3.6
dB
Isolation
DC - 10GHz
36
45
-
dB
10GHz - 22GHz
30
40
-
dB
Input Return Loss
1
DC - 22GHz
10
15
-
dB
Output Return Loss
1
DC - 22GHz
10
15
-
dB
Input Power at 1dB compression
0.5 22 GHz
17
20
-
dBm
Control Voltage
-
0V/-5V
0V/-8V
Volts
Switching Speed
50% control to 10/90% RF
-
5
10
ns
Electrical Performance
Ambient temperature = 22 3 C , Zo = 50
, Control Voltage = 0V/-5V
Isolation
-120
-100
-80
-60
-40
-20
0
0.00
5.00
10.00
15.00
20.00
25.00
Freq (GHz)
S31,32,51,65 (dB)
P35-4236-000-200
Notes
1. Low Loss State
Typical Performance at 22 C (Simulated)
Return Loss
-30
-25
-20
-15
-10
-5
0
0.00
5.00
10.00
15.00
20.00
25.00
Freq (GHz)
S11,22 (dB)
Insertion Loss
-5
-4
-3
-2
-1
0
0.00
5.00
10.00
15.00
20.00
25.00
Freq (GHz)
S21 (dB)
Absolute Maximum Ratings
Max control voltage
-8.5V
Max I/P power
+25 dBm
Operating temperature
-55C to +125C
Storage temperature
-55C to +150C
Thinking RF solutions
www.bookham.com
P35-4236-000-200
Electric Schematic
RF IN
RF 1A
RF 2A
RF 3A
RF 1B
RF 2B
RF 3B
Enable 1
Enable 2
Enable 3
Disable 1
Disable 2
Disable 3
Enable A
Enable B
Thinking RF solutions
www.bookham.com
Truth Table

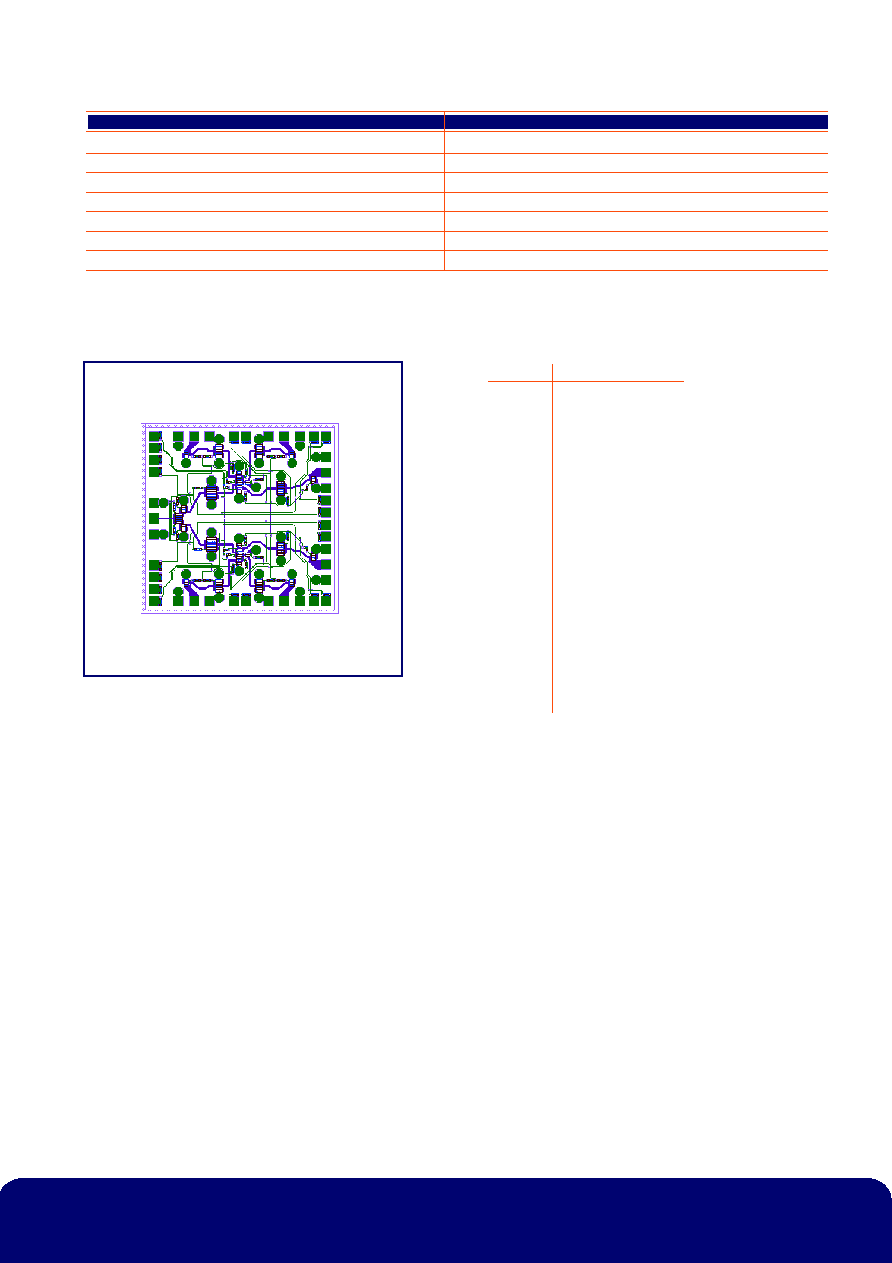

Chip Outline
Pad Details
P35-4236-000-200
Chip size:
2.52 x 2.43mm
Bond pad size:
120m square
Chip thickness:
200m
Pad
Function
RF0
RF Input
RF1
RF Output 3A
RF2
RF Output 2A
RF3
RF Output 1A
RF4
RF Output 1B
RF5
RF Output 2B
RF6
RF Output 3B
EnA
Enable Bank A
EnB
Enable Bank B
En1
Enable Outputs 1
En2
Enable Outputs 2
En3
Enable Outputs 3
Dis1
Disable Outputs 1
Dis2
Disable Outputs 2
Dis3
Disable Outputs 3
Control Lines
State
En_A
En_1
En_2
En_3
En_B
Dis_1
Dis_2
Dis_3
RF IN - RF1A RF IN - RF2A
RF IN - RF3A
RF IN - RF1B
RF IN - RF2B RF IN - RF3B
0V
0V
-5V
-5V
-5V
-5V
0V
0V
Low Loss
Isolated
Isolated
Isolated
Isolated
Isolated
0V
-5V
0V
-5V
-5V
0V
-5V
0V
Isolated
Low Loss
Isolated
Isolated
Isolated
Isolated
0V
-5V
-5V
0V
-5V
0V
0V
-5V
Isolated
Isolated
Low Loss
Isolated
Isolated
Isolated
-5V
0V
-5V
-5V
0V
-5V
0V
0V
Isolated
Isolated
Isolated
Low Loss
Isolated
Isolated
-5V
-5V
0V
-5V
0V
0V
-5V
0V
Isolated
Isolated
Isolated
Isolated
Low Loss
Isolated
-5V
-5V
-5V
0V
0V
0V
0V
-5V
Isolated
Isolated
Isolated
Isolated
Isolated
Low Loss
Ordering Information
P35-4236-000-200
www.bookham.com
462/SM/XXXXX/200 Issue Draft
