Specifications are subject to change without notice (09.01.00)
1
Interval
Time range 0.1 s to 10 h
Automatic start
Knob-adjustable time setting
Knob selection of time range
Oscillator-controlled time circuit
Repeatability deviation:
0.2%
Output: 5A SPDT
For mounting on DIN-rail in accordance with
DIN/EN 50 022
22.5 mm Euronorm housing
LED-indication for relay and power supply ON
Combined AC and DC power supply
Product Description
Ordering Key
Housing
Function
Type
Output
Power supply
Time range
Mono-function timer with se-
lectable time ranges within
0,1 s to 1 m or 1 m to 10 h. For
mounting on DIN-rail. Often
used e.g. to empty a convey-
or belt of items.
Type Selection
Mounting
Output
Time range
Supply: 24 VAC/DC & 115-230 VAC
For DIN-rail
SPDT
0.1 s - 1 m
EBA C T23 1M
SPDT
1 m - 10 h
EBA C T23 10H
Time Specifications
Time ranges
Type 1 M
Selectable by rotary switch
0.1 s - 1 s
1 s - 10 s
0,1 m - 1 m
Type 10 H
Selectable by rotary switch
1 m - 10 m
0.1 h - 1 h
1 h - 10 h
Time range accuracy
10% on max.
min. actual time
min. set time
(range 0,1s - 1
0,15s)
Repeatability deviation
0.2%
Time variation
Within rated power supply
0.05%/V
and ambient temperature
0.2%/C
Reset
Time and relay
Power supply interruption
200 ms
Output Specifications
Output
SPDT relay
Rated insulation voltage
250 VAC (contact/elect.)
Contact ratings (AgCdO)
(micro gap)
Resistive loads
AC 1
5 A, 250 VAC
DC 1
5 A, 24 VDC
Small inductive loads
AC 15
2 A, 250 VAC
DC 13
3 A, 24 VDC
Mechanical life
40 x 10
6
operations
Electrical life
10
5
operations
(at max. load)
Operating frequency
7200 operations/h
Dielectric strength
Dielectric voltage
2 kVAC (rms)
Rated impulse withstand volt.
4 kV (1.2/50 s)
Type EBA
Timers
EBA C T23 1M
2
Specifications are subject to change without notice (09.01.00)
Supply Specifications
General Specifications
EMC
Electromagnetic
Compatibility
Immunity
Acc. to IEC 60801-4
Acc. to IEC 60801-5
Power ON delay
200 ms
Power OFF delay
200 ms
Indication for
Power supply ON
LED, green
Output ON
LED, yellow
Environment
Degree of protection
IP 20
Pollution degree
3
Operating temperature
-20 to +50C (-4 to +122F)
Storage temperature
-50 to +85C (-58 to +185F)
Weight
125 g
Screw terminals
Tightening torque
Max. 0.5 Nm acc. to IEC 947
Approvals
UL, CSA
CE-marking
Yes
EBA
Power supply
Overvoltage cat. III (IEC 60664)
Rated operational voltage
(IEC 60038)
through term. A1 & A2
T23
115-230 VAC, -10/+15%
frequency
50/60 Hz, -5/+5 Hz
through term. A2 & A3
T23
24 VAC/DC, -10/+15%
frequency
50/60 Hz, -5/+5 Hz
Voltage interruption
40 ms
Dielectric voltage
None
Rated impulse withstand
voltage
4 kV (1.2/50 s)
Rated operational current
20 mA @ 24 VDC
40 mA @ 24 VAC
20 mA @115 VAC
40 mA @ 230 VAC
Mode of Operation
The relay operates and the
time period starts when power
supply is applied.
At the end of the set time
period, the relay releases and
will not operate again until
power supply is interrupted
for at least 200 ms.
If power supply is interrupted
for at least 200 ms before the
time period has expired, the
relay releases and the time cir-
cuit is reset to zero. The relay is
ready for a new time period.

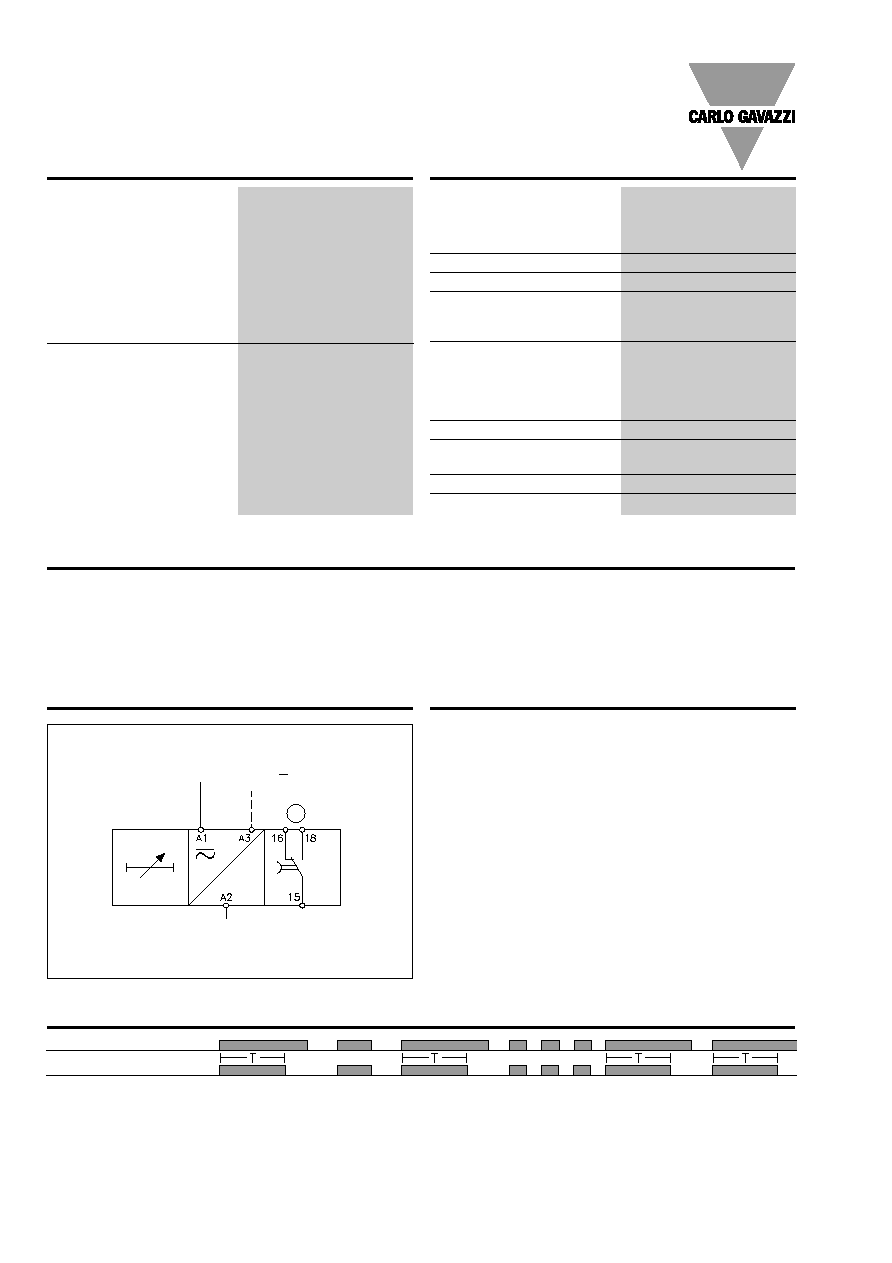

Operation Diagram
Power supply
Relay ON
Wiring Diagram
N
L
24 V
~
115-230 V
~
Time Setting
Selection of time ranges
Upper knob:
3-position rotary switch.
Time setting
Lower knob:
Knob-adjustable on relative
scale 1-10.
