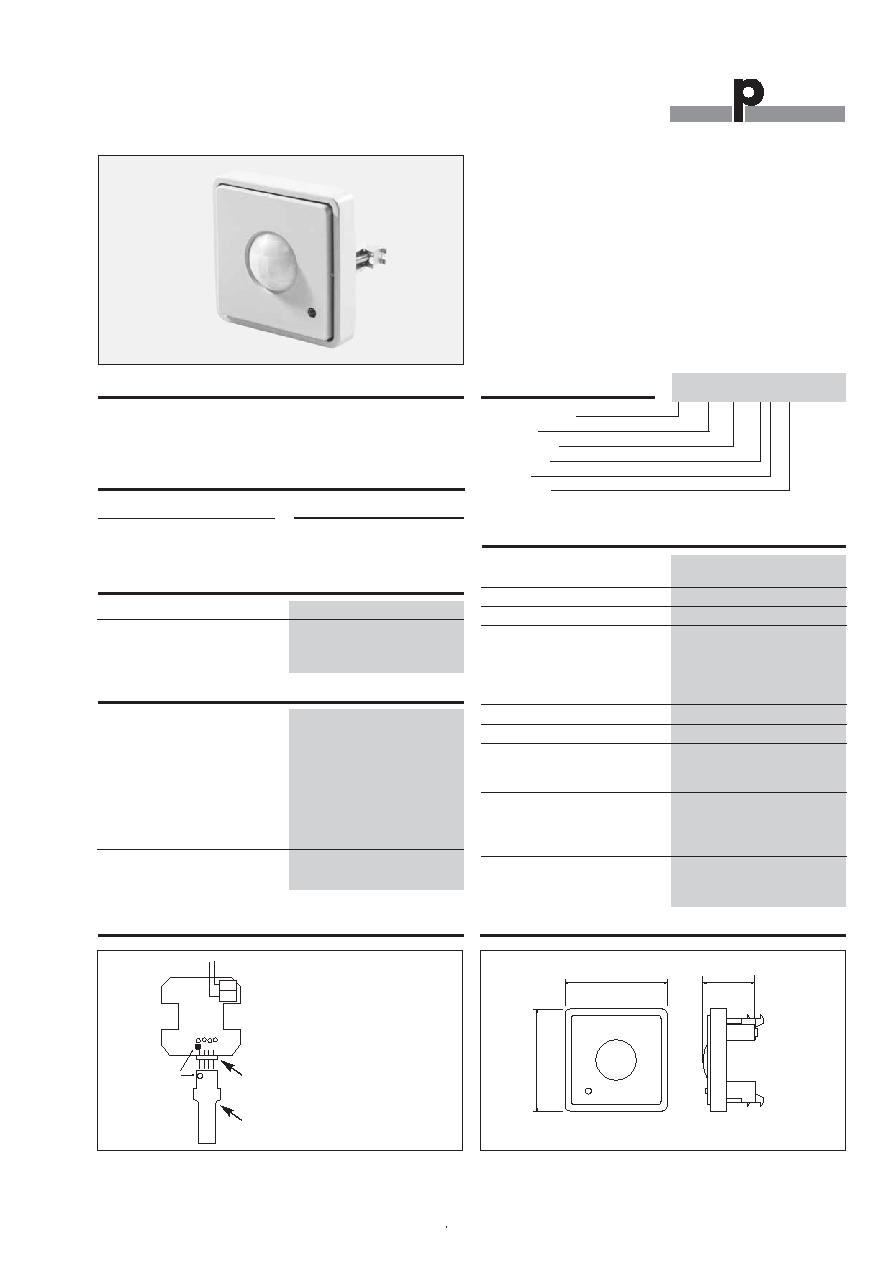

Type: Dupline
Housing
Transmitter
1 channel
1 input
Input type
Du line
Fieldbus
Installationbus
Specifications are subject to change without notice (24.01.06)
1
Dupline
is a registered trademark. A product of the CARLO GAVAZZI Group
Ordering Key
Product Description
Passive infrared detector (PIR)
Detects movement by e.g. a person
Indoor applications
Operating distance: Max. 6 m
Operating angle: 90
Walk test: LED indication
Channel coding by GAP 1605
Supplied by Dupline
Type Selection
Supply Specifications
Power supply
Supplied by Dupline
Consumption
Activated
< 2.6 mA
Activated (LED ON)
< 3.5 mA
PIR Sensor
Type G 8110 1127
G 8110 1127
General Specifications
Channel coding
By GAP 1605 and special
cable: GAP-TPH-CAB
No. of channels
1
Enclosure
LKNES FUGA Mechanics
Environment
Degree of protection
IP 20
Pollution degree
3 (IEC 60664)
Operating temperature
0 - 50 C (32 - 122F)
Storage temperature
-20 - 70C (-4 - 158F)
Humidity (non condensing)
20 - 80%
Weight
50 g
Dimensions
Fuga
50 x 50 x 30 mm
(including frame)
Connection
Screw terminals
Max. wire in terminals
4 x 0.75 mm
2
Terminal D+
Signal
Terminal D-
GND
Power-on delay
Typ. 10 s
Supply
Ordering no.
By Dupline
Fuga: G 8110 1127
Non-powered Dupline
pas-
sive infrared detector with
built-in transmitter. For de-
tection of movement by e.g.
a person. Used for light con-
trol etc.
Input/Output Specifications
Inputs
PIR on I/O 1
Lens
Dual detecting zones
Segments
9
Levels
3
Angle
90
Operating distance
6 m
(see radiation diagram)
Wave length
7 to 14 m
Input detection speed
0.5 to 5 pulses/s
Outputs
LED output
Red LED on I/O 2
Wiring Diagram
D-
D+
Dupline
Dot
Prik
Programming cable
GAP-TPH-CAB
Programming Adaptor plug
to GAP 1605
Fuga
Dimensions
50
50
30*
Fuga
* + mounting clips
Du line
Fieldbus
Installationbus
2
Specifications are subject to change without notice (24.01.06)
Dupline
is a registered trademark. A product of the CARLO GAVAZZI Group
G 8110 1127
Mode of Operation
G 8110 1127 is a 1-channel
monostable transmitter with
a PIR detector, which oper-
ates by means of a dual-ele-
ment detector.
The transmitter is activated if
the temperature suddenly
changes (most often it will
be heat radiation from a per-
son) in relation to the back-
ground radiation. Conse-
quently, the transmitter can
be used for ON/OFF switch-
ing of lighting, air condition-
ing etc. If a person moves
within a detection zone,
G 8110 1127 is activated.
The PIR detector is designed
for mounting at a standard
switch height.
Slow movements between
zones resulting in a detec-
tion speed of less than 0.5
pulses/sec will not be
detected. Nor will rapid
movements resulting in a
detection speed of more
than 5 pulses/sec be detect-
ed. As G 8110 1127 is a
passive device, several de-
tectors can be placed in the
same room without interfer-
ing with each other.
Walk test: The LED responds
to any channel coded on I/O 2.
If the LED is coded to the
same channel as the PIR
input on I/O 1, the transmis-
sion follows the LED. The
LED turns ON when the PIR
is activated.
The module should not be
installed as follows:
a) Outdoors.
b) In places exposed either
to sunlight or to motor
vehicle headlights point-
ing directly at the sensor.
c) In places exposed to di-
rect air flow from a heater
or air conditioner.
d) In places where rapid
temperature changes
occur.
e) In places exposed to
severe vibration.
f) Close to glass or other
objects which might
reflect the infrared
radiation.
g) For burglar detection.

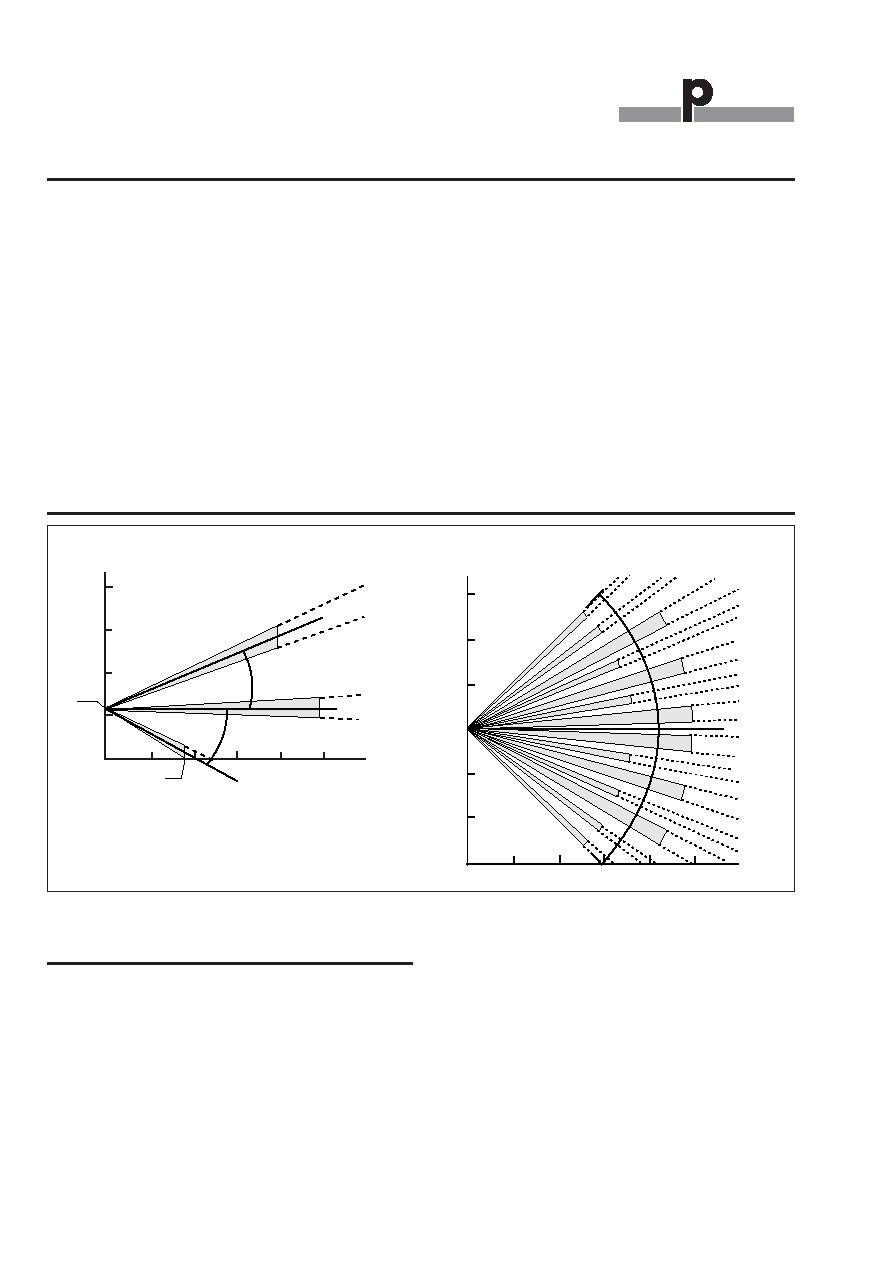

Radiation Diagrams
Programming cable
to GAP 1605
GAP-TPH-CAB
Accessories
Coverage and placing
Lens characteristic
4.0
3,0
2,0
2,0
22,5
30
3,0
4,0
5,0
1,1
1,0
1,0
1,7
0.0
meter
meter
2,0
2,0
2,0
90
3,0
3,0
4,0
5,0
1,0
1,0
1,0
0,0
meter
meter
