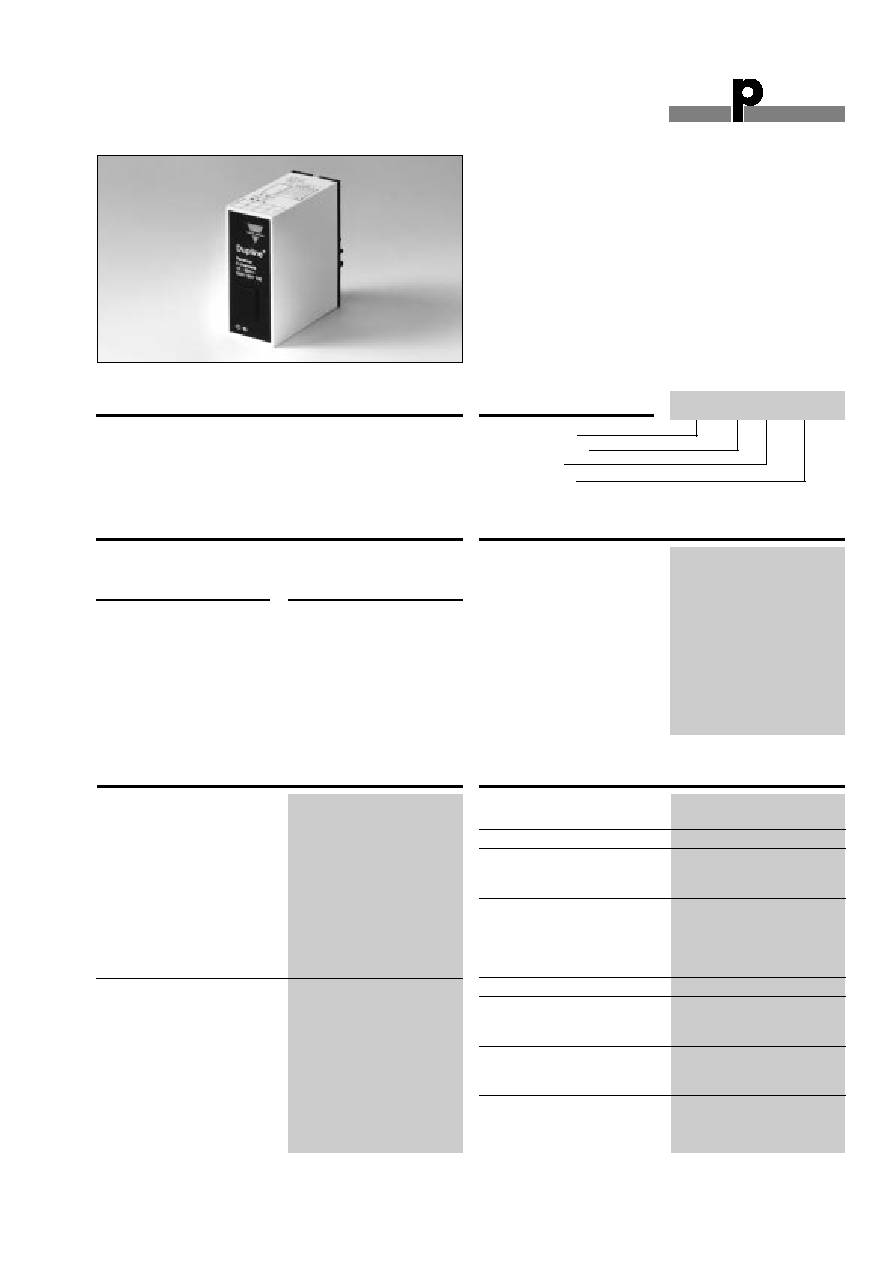

Du line
Fieldbus
Installationbus
Specifications are subject to change without notice (28.09.99)
1
Dupline
is a registered trademark. A product of the CARLO GAVAZZI Group
Power supply
Overvoltage cat. III (IEC 60664)
Rated operational voltage
(V
DD
in )
through pins 3 & 9 700
10 to 30 VDC (ripple included)
Ripple
3 V
Reverse polarity protection Yes
Rated operational current
29 mA
Inrush current
1 A
Rated impulse withstand
voltage
800 V
Dielectric voltage
Supply - Dupline
None
Supply - Outputs
None
Product Description
Ordering Key
Type: Dupline
No. of channels
Output type
Power supply
Receiver for Digital Signals
Type GAD 1501
8-channel receiver
PNP transistor outputs (source)
Load: 8 x 100 mA/30 VDC
D-housing
Plug-in type module
LED-indications for supply and Dupline
carrier
DC power supply
Channel coding by GAP 1605
Dupline
receiver. Open colle-
ctor PNP transistor outputs
for control of 8 DC loads or
Type Selection
devices with PNP inputs, e.g.
PLC.
Supply
Ordering no.
8 channels
100 mA/10 to 30 VDC
10 to 30 VDC
GAD 1501 700
General Specifications
Output OFF delay
upon loss of Dupline
carrier
20 ms
Power ON delay
Typ. 2 s
Indication for
Supply ON
LED, green
Dupline
carrier
LED, yellow
Environment
Degree of protection
IP 20
Pollution degree
3 (IEC 60664)
Operating temperature
-20 to +50C (-4 to +122F)
Storage temperature
-50 to +85C (-58 to +185F)
Humidity (non-condensing) 20 to 80%
Mechanical resistance
Shock
15 G (11 ms)
Vibration
2 G (6 to 55 Hz)
Dimensions
Material
(see Technical information)
D-housing
Weight
125 g
Output Specifications
Outputs
8, PNP transistors
Isolated in groups of
1 x 8
Output voltage range
10 to 30 VDC
Reverse-polarity protection
None
Current per output
100 mA
Total load capability
100%
Short-circuit protection
None
Built-in protective diodes
Yes
Off-state leakage current
200 A
Output voltage drop
2.0 V
Dielectric voltage
Outputs - Dupline
None
Response time
1 pulse train
Supply Specifications
GAD 1501 700
Du line
Fieldbus
Installationbus
2
Specifications are subject to change without notice (28.09.99)
Dupline
is a registered trademark. A product of the CARLO GAVAZZI Group
GAD 1501

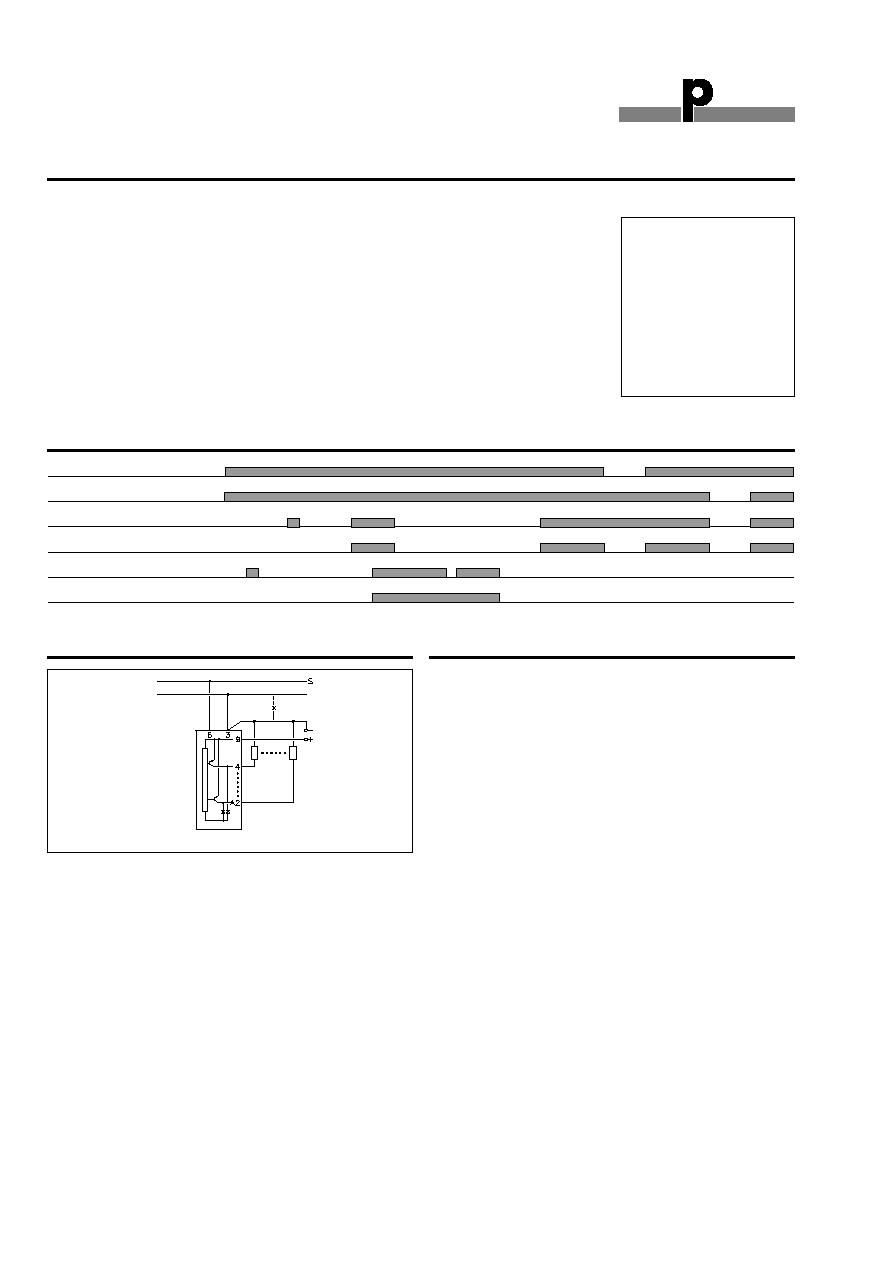

Mode of Operation
8-channel receiver with 8 PNP
transistor outputs with open
collector.
Each output may be coded
individually by means of the
code programmer GAP 1605.
For details, please refer to the
respective data sheet.
The outputs are normally off.
Output 1 (pin 4) turns on when a
transmitter coded to the channel
for output 1 is activated.
Output 2 (pin 1) turns on when
the channel allocated to out-
put 2 is activated.
The outputs do not change
their status before having re-
ceived an activated/non-ac-
tivated channel for two con-
secutive pulse trains.
The default setting of the
module is such that upon loss
of Dupline
carrier all outputs
turn off.
Notes:
- The length of the DC sup-
ply-bus must not exceed 3
m in order to avoid distur-
bances unbalancing the
Dupline
.
- The common (pin 3) must
never be connected to pro-
tective ground or earth.
Pin allocation:
Operation Diagram
Dupline
carrier
Transmission on channel for output 7
Output 7 (pin 8)
Transm. on chan. for output 8
Power supply
Output 8 (pin A2)
Wiring Diagram
S: signal wire
Accessories
Socket
D 411
Socket cover
BB 5
Hold down spring
HF
Front mounting bezel
FRS 2
DIN-rail for D 411
FMD 411
For further information, see "Accessories".
No conn.
V
DD
in
R
min
= |V
DD
| x 10
Output 1:
pins 3 & 4
Output 2:
pins 3 & 1
Output 3:
pins 3 & 5
Output 4:
pins 3 & 2
Output 5:
pins 3 & 7
Output 6:
pins 3 & A1
Output 7:
pins 3 & 8
Output 8:
pins 3 & A2
Output connections
