Specifications are subjected to change without notice (30.08.06)
1
Power supply
18 VAC 10% 50-60Hz /
24 VDC 10%
Power consumption
2 VA / 2 W
Safety outputs
3 NO delayed
Auxiliary outputs
1 NC delayed
Contact ratings
Resistive loads
AC1
6 A @ 230 VAC
Small inductive loads AC15
3 A @ 230 VAC
DC13
3 A @ 24 VDC (50000 cycles)
Safety output
contact fuse protection
4 A fast or 4 A delayed
Insulation voltage
Supply to input
none
Supply to output
4 kV 1.2/50s
Input to output
4 kV 1.2/50s
Pollution degree 2
Overvoltage category III
Electrical Specifications
Emergency Stop and Safety Gate Modules
NA13CT
Safety Category 3 according to EN 954-1
Category 1 Emergency Stop
3 NO delayed safety outputs
1 NC auxiliary delayed output
24 VDC or 18 VAC power supply
Single channel operation
Automatic or manual reset
Failure diagnosis by LEDs
Ordering Key
Emergency Stop and Safety
Gate modules for category 1
emergency STOP according to
Product Description
EN 60204-1, EN 292-1 /-2, EN
418, EN 1088 and EN 954-1.
Housing
Application
Controlled Devices
Safety Outputs
Safety Category
Delayed Outputs
Delay on energisation
100 ms
Delay on de-energisation
1.2 sec 0.5 sec @ 24 VDC
Channel simultaneity
Infinite
Operating temperature
-25C ... + 65C
Storage temperature
-25C ... + 65C
Time Specifications
Environmental Specifications
Protection degree terminals
IP 20
Protection degree housing
IP 40
Housing material
Polyamid PA 6.6
Housing type
22.5 mm housing models
Mounting
DIN rail
Max cross section
of external conductors
2.5 mm
2
flexible wire
2.5 mm
2
rigid wire
Dimensions
22.5 x 99 x 114 mm
Weight
200 g
Mechanical Specifications
NA13 C T
2
Specifications are subjected to change without notice (30.08.06)

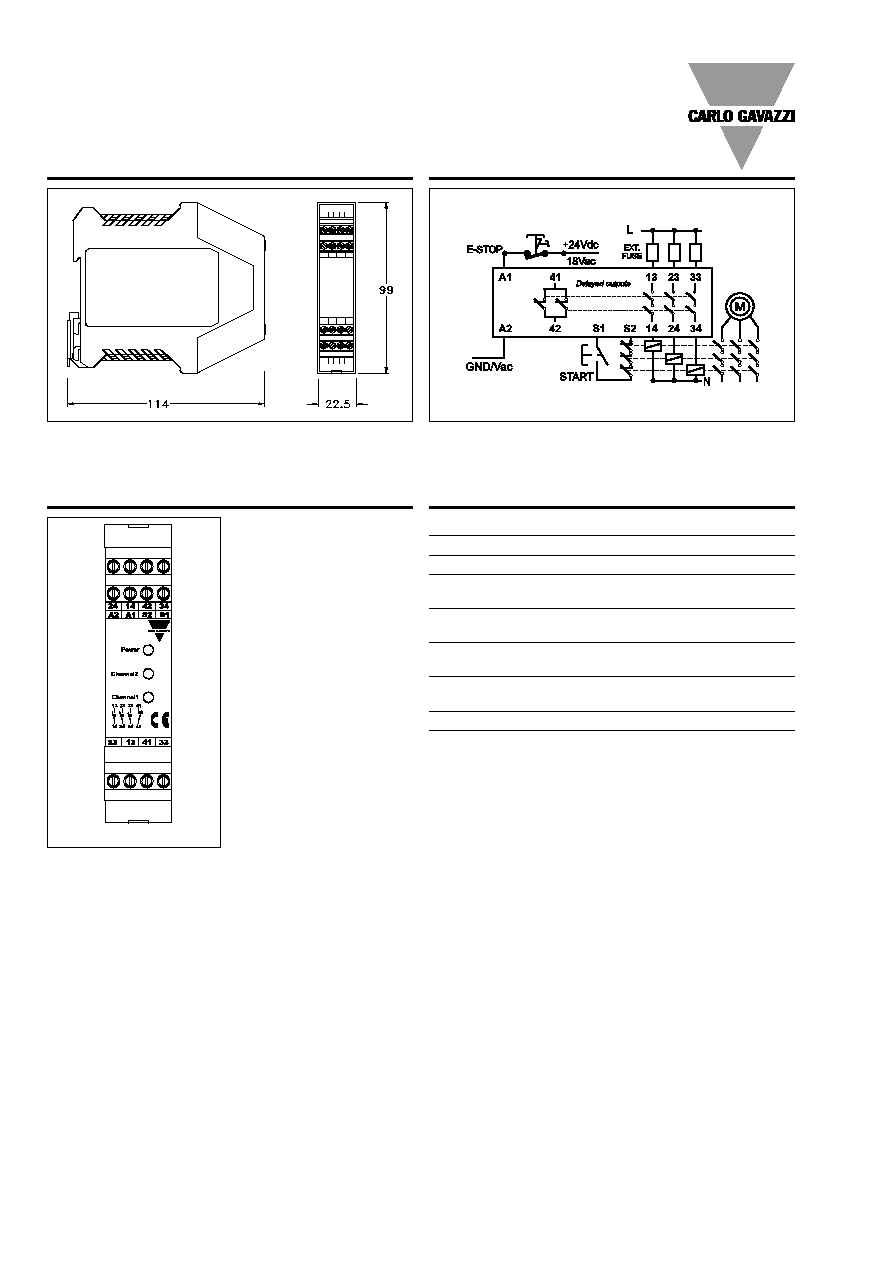

Dimensions
NA13CT
Wiring Diagrams
Connection Sample
Terminal
Function/Connection
A1
+24 VDC or 18 VAC
A2
GND or 18 VAC
S1-S2
START and Feedback
control loop input
13-14
First safety delayed
output (NO)
23-24
Second safety delayed
output (NO)
33-34
Third safety delayed
output (NO)
41-42
Auxiliary delayed output (NC)
Connections
Front NA13CT
NA13CT
