DESCRIPTION:
The CENTRAL SEMICONDUCTOR
CMPT5087E, and CMPT5088E, are Silicon
transistors in an epoxy molded surface mount
package with enhanced specifications designed
for applications requiring high gain and low
noise.
MAXIMUM RATINGS: (TA=25
o
C)
SYMBOL
UNITS
Collector-Base Voltage
VCBO
50
V
Collector-Emitter Voltage
VCEO
50
V
Emitter-Base Voltage
VEBO
5.0
V
Collector Current
IC
100
mA
Power Dissipation
PD
350
mW
Operating and Storage
Junction Temperature
TJ,Tstg
-65 to +150
o
C
Thermal Resistance
JA
357
o
C/W
ELECTRICAL CHARACTERISTICS: (TA=25
o
C unless otherwise noted)
TYP
SYMBOL
TEST CONDITIONS
MIN
NPN
PNP
MAX
UNITS
ICBO
VCB=20V
50
nA
IEBO
VEB=3.0V
50
nA
BVCBO
IC=100A
50
135
150
V
BVCEO
IC=1.0mA
50
65
105
V
BVEBO
IE=100A
5.0
8.7
7.5
V
VCE(SAT)
IC=10mA, IB=1.0mA
45
50
100
mV
VCE(SAT)
IC=100mA, IB=10mA
110
225
400
mV
VBE(SAT)
IC=10mA, IB=1.0mA
700
700
800
mV
hFE
VCE=5.0V, IC=0.1mA
300
430
390
900
hFE
VCE=5.0V, IC=1.0mA
300
435
380
hFE
VCE=5.0V, IC=10mA
300
430
350
hFE
VCE=5.0V, IC=100mA
50
125
75
fT
VCE=5.0V, IC=500A, f=20MHz
100
MHz
Cob
VCB=5.0V, IE=0, f=1.0MHz
4.0
pF
Cib
VBE=0.5V, IC=0, f=1.0MHz
15
pF
hfe
VCE=5.0V, IC=1.0mA, f=1.0kHz
350
1400
NF
VCE=5.0V, IC=100A, RS=10k f=10Hz to 15.7kHz
3.0
dB
CMPT5087E PNP
CMPT5088E NPN
ENHANCED SPECIFICATION
SURFACE MOUNT ULTRAminiTM
COMPLEMENTARY
SILICON TRANSISTORS
SOT-23 CASE
Central
Semiconductor Corp.
TM
R0 (28-October 2004)
MARKING CODES:
CMPT5087E PNP MARKING CODE: C2QE
CMPT5088E NPN MARKING CODE: C1QE
Enhanced specification.
Additional Enhanced specification.
Central
Semiconductor Corp.
TM

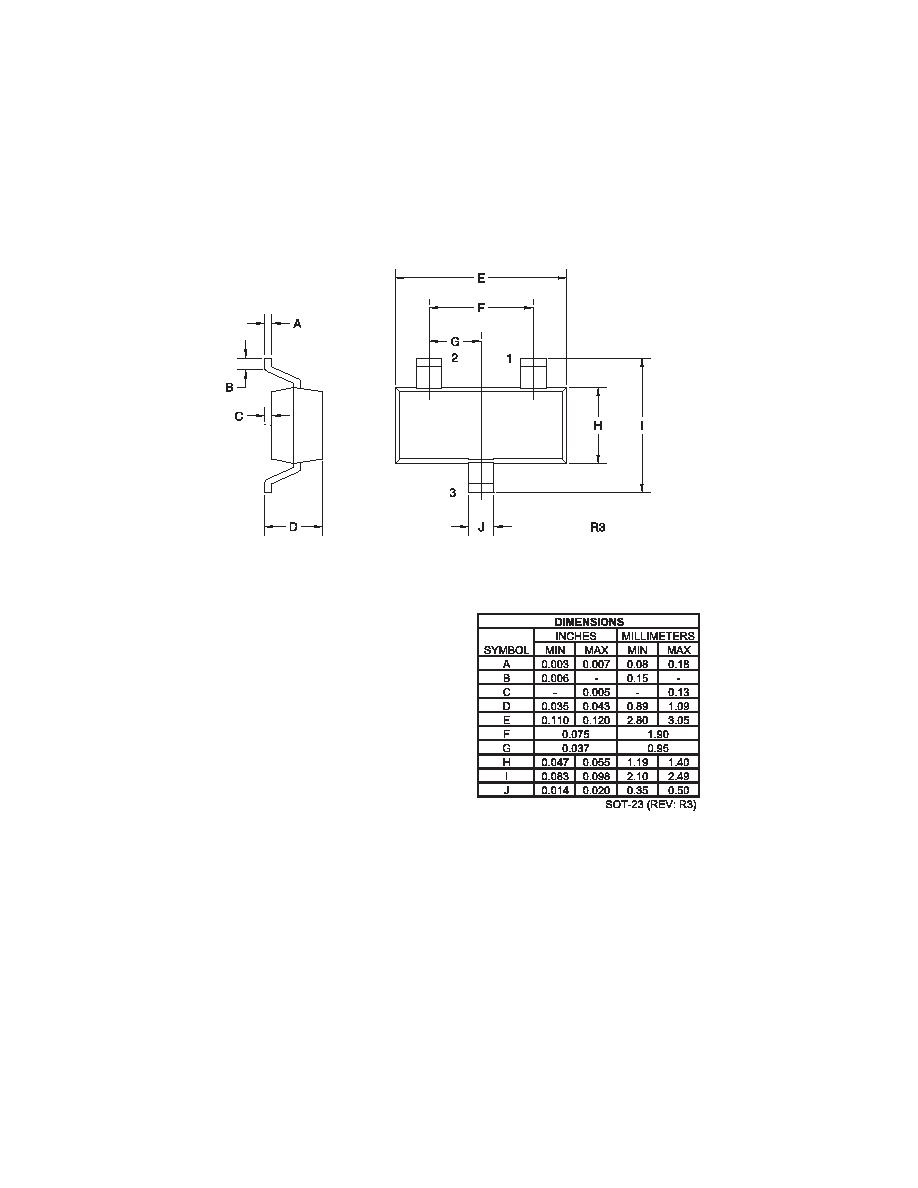

SOT-23 CASE - MECHANICAL OUTLINE
CMPT5087E PNP
CMPT5088E NPN
ENHANCED SPECIFICATION
SURFACE MOUNT ULTRAminiTM
COMPLEMENTARY
SILICON TRANSISTORS
R0 (28-October 2004)
LEAD CODE:
1) BASE
2) EMITTER
3) COLLECTOR
MARKING CODES:
CMPT5087E: C2QE
CMPT5088E: C1QE
