DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMUT3410,
and CMUT7410, are low VCE(SAT) silicon
transistors in an ULTRAminiTM surface mount
package designed for small signal general
purpose amplifier and switching applications,
requiring low collector emitter saturation voltage.
MAXIMUM RATINGS: (TA=25
o
C)
SYMBOL
UNITS
Collector-Base Voltage
VCBO
40
V
Collector-Emitter Voltage
VCEO
25
V
Emitter-Base Voltage
VEBO
6.0
V
Collector Current
IC
1.0
A
Collector Current (Peak)
ICM
1.5
A
Power Dissipation
PD
250
mW
Operating and Storage
Junction Temperature
TJ,Tstg
-65 to +150
o
C
Thermal Resistance
JA
500
o
C/W
ELECTRICAL CHARACTERISTICS: (TA=25
o
C unless otherwise noted)
TYP
SYMBOL
TEST CONDITIONS
MIN
NPN
PNP
MAX
UNITS
ICBO
VCB=40V
100
nA
IEBO
VEB=6.0V
100
nA
BVCBO
IC=100A
40
V
BVCEO
IC=10mA
25
V
BVEBO
IE=100A
6.0
V
VCE(SAT)
IC=50mA, IB=5.0mA
20
25
50
mV
VCE(SAT)
IC=100mA, IB=10mA
35
40
75
mV
VCE(SAT)
IC=200mA, IB=20mA
75
80
150
mV
VCE(SAT)
IC=500mA, IB=50mA
130
150
250
mV
VCE(SAT)
IC=800mA, IB=80mA
200
220
400
mV
VCE(SAT)
IC=1.0A, IB=100mA
250
275
450
mV
VBE(SAT)
IC=800mA, IB=80mA
1.1
V
VBE(ON)
VCE=1.0V, IC=10mA
0.9
V
hFE
VCE=1.0V, IC=10mA
100
hFE
VCE=1.0V, IC=100mA
100
300
hFE
VCE=1.0V, IC=500mA
100
hFE
VCE=1.0V, IC=1.0A
50
125
75
fT
VCE=10V, IC=50mA, f=100MHz
100
MHz
Cob
VCB=10V, IE=0, f=1.0MHz (CMUT3410)
10
pF
Cob
VCB=10V, IE=0, f=1.0MHz (CMUT7410)
15
pF
CMUT3410 NPN
CMUT7410 PNP
SURFACE MOUNT ULTRAminiTM
COMPLEMENTARY LOW VCE(SAT)
SILICON TRANSISTORS
SOT-523 CASE
Central
Semiconductor Corp.
TM
R0 (28-March 2005)
MARKING CODES:
CMUT3410
NPN
MARKING CODE: C43
CMUT7410
PNP
MARKING CODE: C47
Central
Semiconductor Corp.
TM

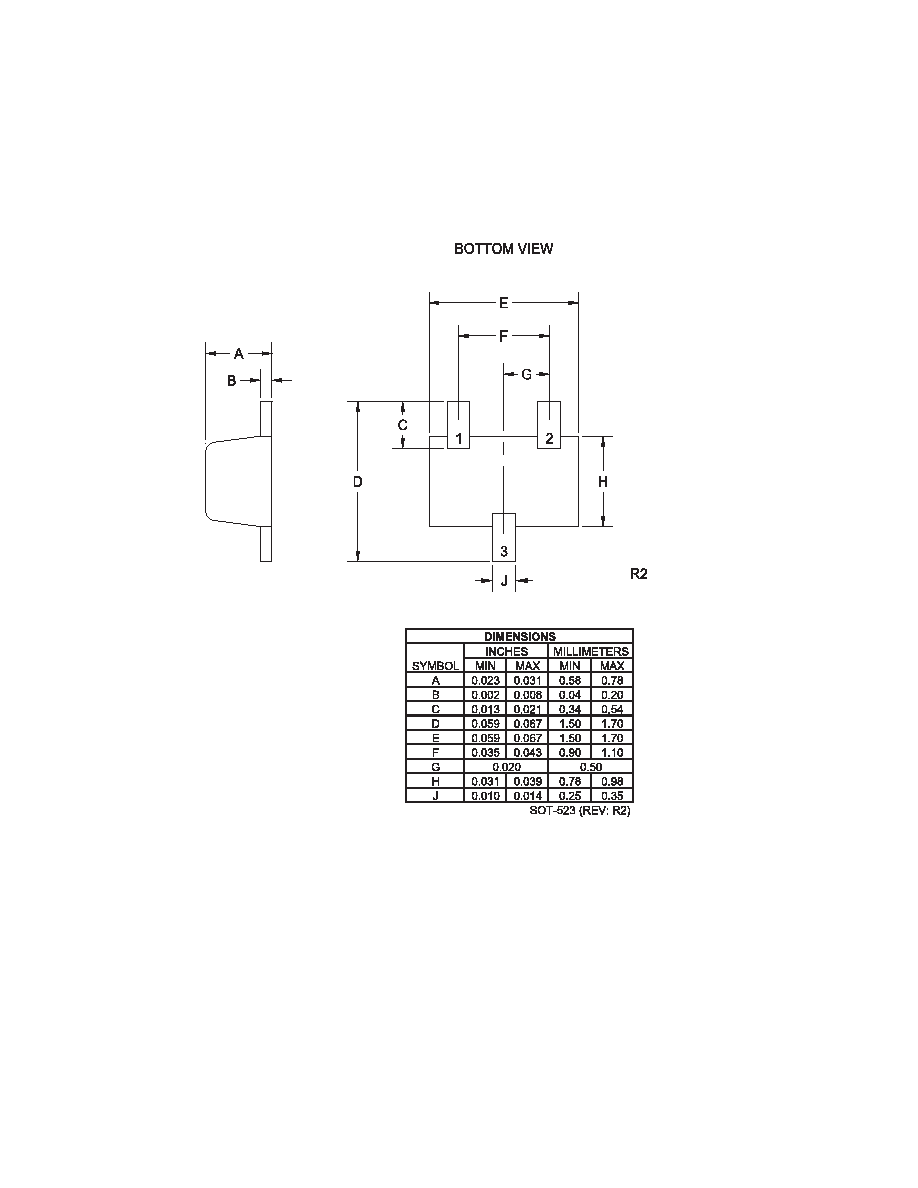

SOT-523 CASE - MECHANICAL OUTLINE
CMUT3410 NPN
CMUT7410 PNP
SURFACE MOUNT ULTRAminiTM
COMPLEMENTARY LOW VCE(SAT)
SILICON TRANSISTORS
R0 (28-March 2005)
LEAD CODE:
1) BASE
2) EMITTER
3) COLLECTOR
MARKING CODES:
CMUT3410: C43
CMUT7410: C47
