PRINCIPAL DEVICE TYPES
2N4391
2N4392
2N4393
CMPF4391
CMPF4392
CMPF4393
Process
EPITAXIAL PLANAR
Die Size
21 x 18 MILS
Die Thickness
8.0 MILS
Drain Bonding Pad Area
3.8 X 3.8 MILS
Source Bonding Pad Area
3.8 X 3.8 MILS
Gate Bonding Pad Area
3.8 X 3.8 MILS
Top Side Metalization
Al - 30,000
Back Side Metalization
Au - 6,000
PROCESS DETAILS
GEOMETRY
BACKSIDE GATE
145 Adams Avenue
Hauppauge, NY 11788 USA
Tel: (631) 435-1110
Fax: (631) 435-1824
www.centralsemi.com
R3 (9 -September 2003)
GROSS DIE PER 4 INCH WAFER
30,950
Central
Semiconductor Corp.
TM
PROCESS
CP206
Small Signal Transistors
N - Channel Switch/Chopper J FET Chip
PROCESS
CP206

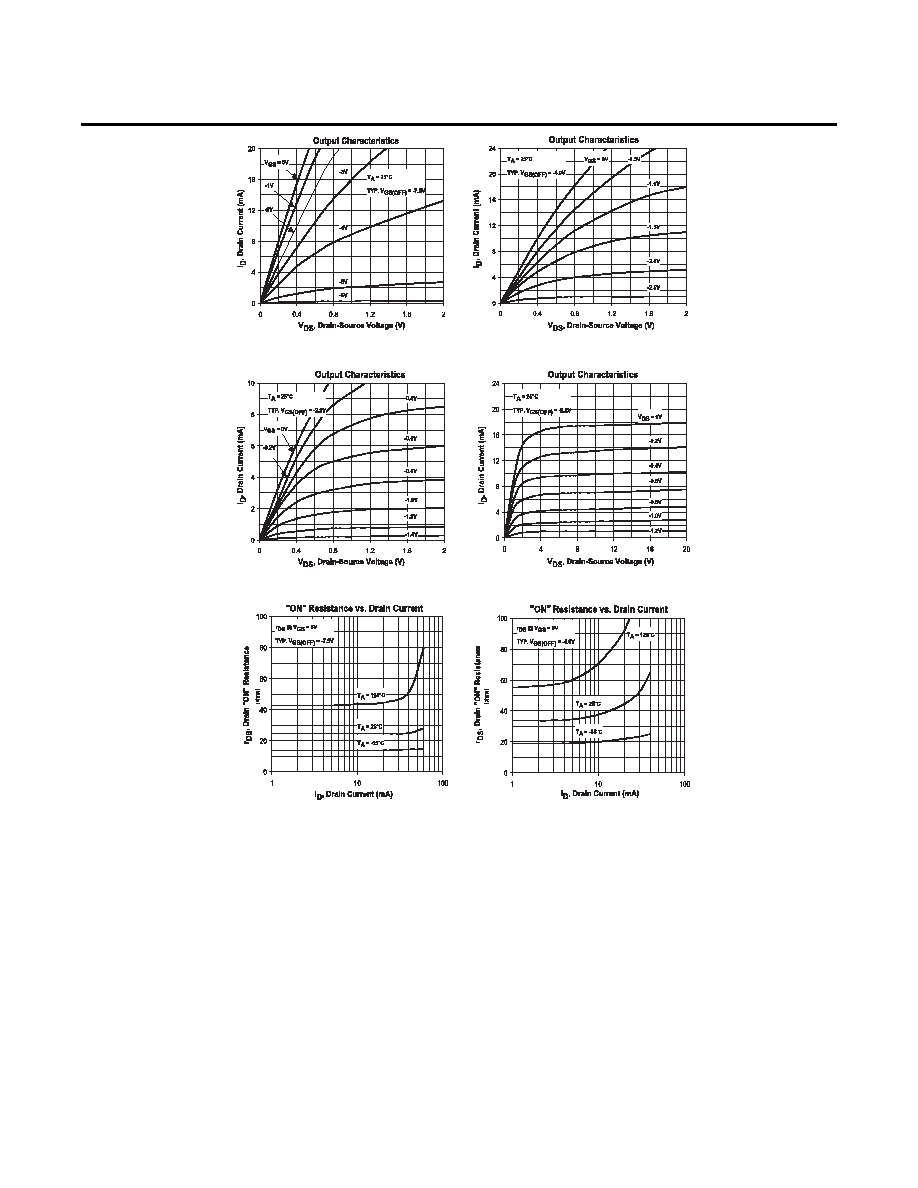

Typical Electrical Characteristics
145 Adams Avenue
Hauppauge, NY 11788 USA
Tel: (631) 435-1110
Fax: (631) 435-1824
www.centralsemi.com
R3 (9 -September 2003)
Central
Semiconductor Corp.
TM
PROCESS
CP206
Typical Electrical Characteristics
145 Adams Avenue
Hauppauge, NY 11788 USA
Tel: (631) 435-1110
Fax: (631) 435-1824
www.centralsemi.com
R3 (9 -September 2003)
Central
