Central
Semiconductor Corp.
TM
PROCESS
CP323
Small Signal Transistor
NPN - Darlington Transistor Chip
PRINCIPAL DEVICE TYPES
BSS52
BST52

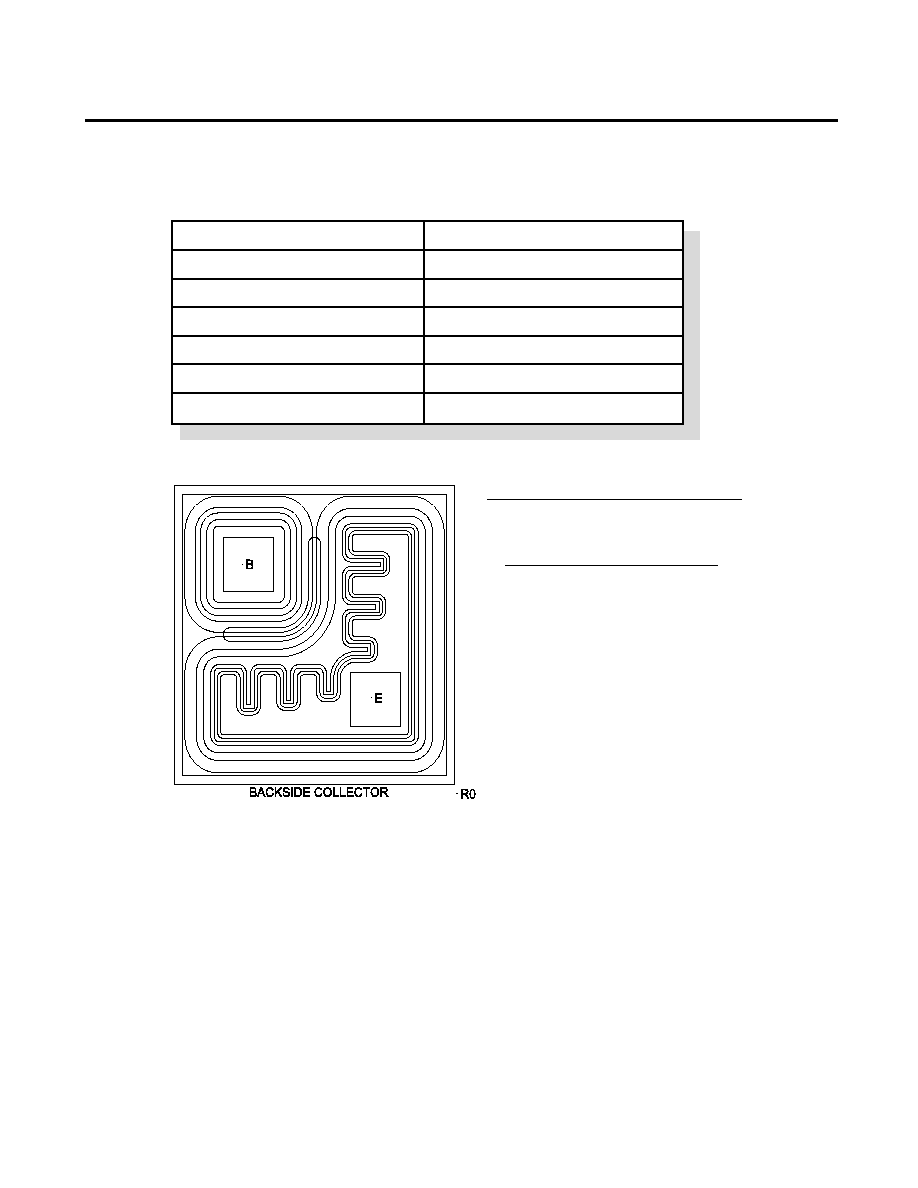

GEOMETRY
PROCESS DETAILS
R1 (1-August 2002)
Process
EPITAXIAL PLANAR
Die Size
26.8 x 26.8 MILS
Die Thickness
9.0 MILS
Base Bonding Pad Area
4.2 x 4.2 MILS
Emitter Bonding Pad Area
4.3 x 4.3 MILS
Top Side Metalization
Al -
Back Side Metalization
Au - 18,000
145 Adams Avenue
Hauppauge, NY 11788 USA
Tel: (631) 435-1110
Fax: (631) 435-1824
www.centralsemi.com
GROSS DIE PER 4 INCH WAFER
15,900
Central
Semiconductor Corp.
TM
PROCESS
CP323
Typical Electrical Characteristics
145 Adams Avenue
Hauppauge, NY 11788 USA
Tel: (631) 435-1110
Fax: (631) 435-1824
www.centralsemi.com
R1 (1-August 2002)
