PRINCIPAL DEVICE TYPES
2N6028
GEOMETRY
PROCESS DETAILS
R3 (4- February 2004)
Process
PLANAR PASSIVATED
Die Size
27.5 x 27.5 MILS
Die Thickness
11 MILS
Anode Bonding Pad Area
7.1 x 5.1 MILS
Cathode Bonding Pad Area
7.1 x 5.1 MILS
Top Side Metalization
Al - 30,000
Back Side Metalization
Au - 13,000
GROSS DIE PER 4 INCH WAFER
14,930
Central
Semiconductor Corp.
TM
PROCESS
CP624
Programmable
Unijunction Transistor
BACKSIDE GATE
Central
Semiconductor Corp.
TM
PROCESS
CP624

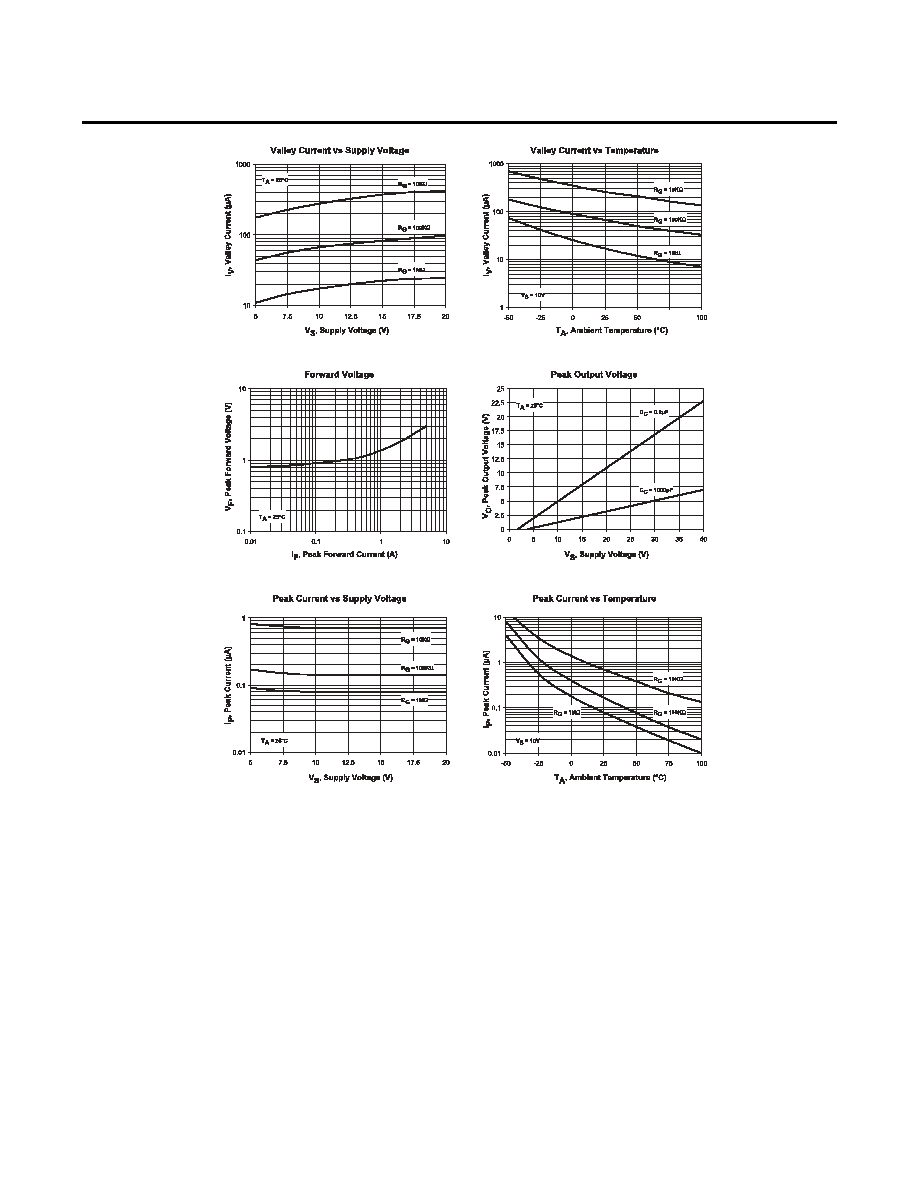

Typical Electrical Characteristics
