Central
Semiconductor Corp.
TM
PROCESS
CP705
Small Signal Transistor
PNP - High Current Transistor Chip
PRINCIPAL DEVICE TYPES
2N4033
CMPT4033
CXT4033
CZT4033
Process
EPITAXIAL PLANAR
Die Size
31 x 31 MILS
Die Thickness
9.0 MILS
Base Bonding Pad Area
5.9 x 11.8 MILS
Emitter Bonding Pad Area
6.5 x 13.8 MILS
Top Side Metalization
Al - 30,000
Back Side Metalization
Au - 18,000
PROCESS DETAILS
145 Adams Avenue
Hauppauge, NY 11788 USA
Tel: (631) 435-1110
Fax: (631) 435-1824
www.centralsemi.com
GEOMETRY
BACKSIDE COLLECTOR
R2 (1-August 2002)
GROSS DIE PER 4 INCH WAFER
11,300
Central
Semiconductor Corp.
TM
PROCESS
CP705

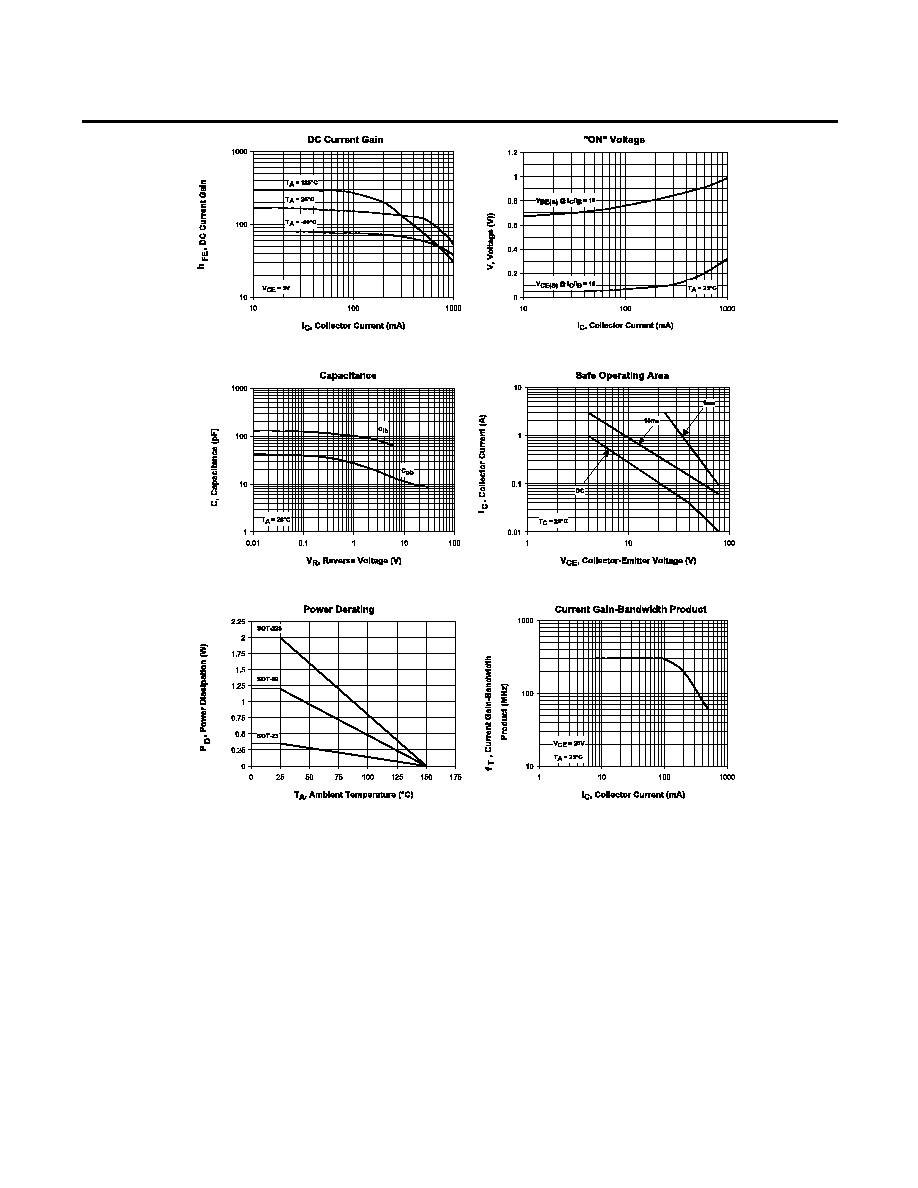

Typical Electrical Characteristics
