PROCESS
CPS130
Silicon Controlled Rectifier
16 Amp Sensitive Gate SCR Chip
PRINCIPAL DEVICE TYPES
CS220-16M Series
CSDD-16M Series
Process
Glass Passivated Mesa
Die Size
130 x 130 MILS
Die Thickness
8.7 MILS
Cathode Bonding Pad Area
99 x 49 MILS
Gate Bonding Pad Area
42 x 42 MILS
Top Side Metalization
Al - 45,000
Back Side Metalization
Al/Mo/Ni/Ag - 32,000
PROCESS DETAILS
145 Adams Avenue
Hauppauge, NY 11788 USA
Tel:
(631) 435-1110
Fax: (631) 435-1824
www.centralsemi.com

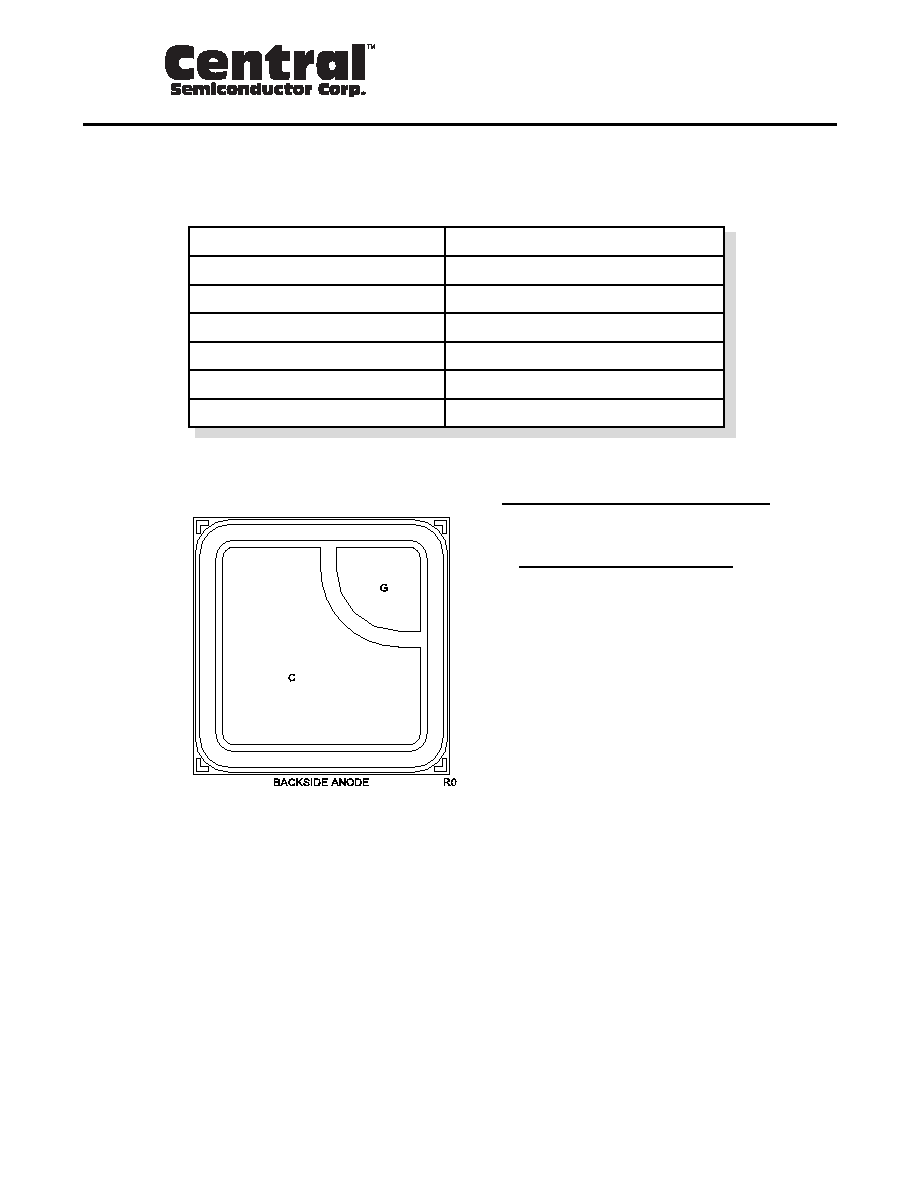

GEOMETRY
R0 (4- January 2006)
GROSS DIER PER 4 INCH WAFER
624
