CTLSMS05-M622
CTLSMS12-M622
CTLSMS15-M622
CTLSMS24-M622
SURFACE MOUNT TLM
TM
SILICON QUAD TVS / ZENER ARRAY
5.0 THRU 24 VOLTS
TLM622 CASE
Central
Semiconductor Corp.
TM
R1 (10-April 2006)
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CTLSMS05 Series
is a 4 line TVS/Zener Array packaged in a space saving
TLM
TM
(Tiny Leadless Module
TM
) TLM622 case. These
devices are designed to protect sensitive equipment
against ESD and to prevent latch-up events in CMOS
circuitry operating at 5V, 12V, 15V and 24V.
MARKING CODES:
CTLSMS05-M622: CBC
CTLSMS12-M622: CBD
CTLSMS15-M622: CBF
CTLSMS24-M622: CBH
Type No.
Reverse
Stand-Off
Voltage
Reverse
Breakdown
Voltage
Reverse
Leakage
Current
Clamping
Voltage
8x20sec
Clamping
Voltage
8x20sec
Off State
Junction
Capacitance
VR=0V
f=1.0MHz
Marking
Code
VWRM
MAX
(V)
VBR
MIN
(V)
IBR
(mA)
IR
MAX
(A)
VR
(V)
Vcl
MAX
(V)
Ipp
(A)
Vcl
MAX
(V)
Ipp
(A)
Cj
MAX
(pF)
CTLSMS05-M622
5
6
1.0
5.0
5.0
9.5
5.0
13
24
200
CBC
CTLSMS12-M622
12
13.3
1.0
5.0
12
17
5.0
21
15
90
CBD
CTLSMS15-M622
15
16.7
1.0
5.0
15
22
5.0
27
12
70
CBF
CTLSMS24-M622
24
26.7
1.0
5.0
24
35
5.0
40
8
50
CBH
MAXIMUM RATINGS: (TA=25C)
SYMBOL
UNITS
Peak Pulse Power (8x20sec waveform)
Ppp
350
W
ESD Voltage (HBM)
VESD
>25
kV
Operating Temperature Range
TJ
-50 to +125
C
Storage Temperature Range
Tstg
-50 to +150
C
ELECTRICAL CHARACTERISTICS PER DIODE: (TA=25C unless otherwise noted)
FEATURES:
Very low clamping voltage
Low leakage current
350W power dissipation
IEC61000-4-2 ESD 20kV air, 15kV contact compliance
New Tiny Leadless Module (TLM) package with a
footprint compatible with the SOT-363 footprint.
APPLICATIONS:
PDA's
Memory Card Ports
Mobile Phones
Instrumentation
Bottom View
Top View
Central
Semiconductor Corp.
TM

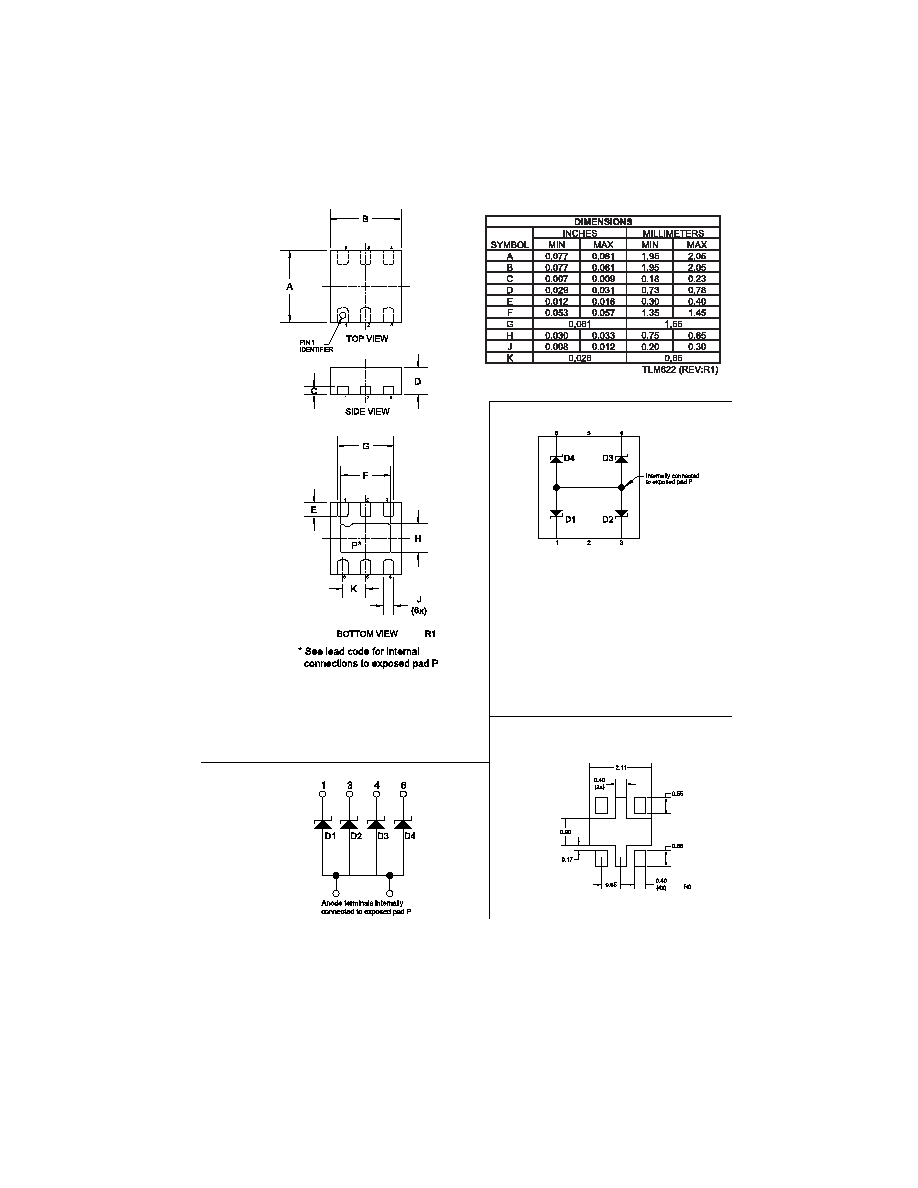

TLM622 CASE - MECHANICAL OUTLINE
CTLSMS05-M622
CTLSMS12-M622
CTLSMS15-M622
CTLSMS24-M622
SURFACE MOUNT TLM
TM
SILICON QUAD TVS / ZENER ARRAY
5.0 THRU 24 VOLTS
R1 (10-April 2006)
Lead Code:
1) Cathode D1
2) No Connection
3) Cathode D2
4) Cathode D3
5) No Connection
6) Cathode D4
P) Anode D1, D2, D3, D4
Marking Codes:
CTLSMS05-M622: CBC
CTLSMS12-M622: CBD
CTLSMS15-M622: CBF
CTLSMS24-M622: CBH
Pinout
Schematic
Suggested mounting pad layout
for maximum power dissipation
(Dimensions in mm)
For standard mounting refer to TLM622 Package Details
