FEATURES:
HIGH RELIABILITY
HIGH CURRENT CAPABILITY
UL FLAMMABILITY CLASSIFICATION 94V-O
ULTRA FAST RECOVERY TIME
LOW FORWARD VOLTAGE
HIGH SURGE CAPACITY
SUPERIOR LOT TO LOT CONSISTENCY
HIGH VOLTAGE
MAXIMUM RATINGS: (TC=25C unless otherwise noted)
SYMBOL
CUDD16
CUDD16
CUDD16
-02A
-04A
-08A
UNITS
Peak Repetitive Reverse Voltage
VRRM
200
400
800
V
DC Blocking Voltage
VR
200
400
800
V
RMS Reverse Voltage
VR(RMS)
140
280
560
V
Average Forward Current (TC=100C) IO
16
A
Peak Forward Surge Current (8.3ms)
IFSM
125
A
Operating and Storage
Junction Temperature
TJ,Tstg
-50 to +150
C
Typical Thermal Resistance
JC
3.0
C/W
Typical Thermal Resistance
JA
50
C/W
ELECTRICAL CHARACTERISTICS PER DIODE: (TC=25C unless otherwise noted)
CUDD16-02A CUDD16-04A CUDD16-08A
SYMBOL TEST CONDITIONS
TYP MAX
TYP MAX
TYP MAX
UNITS
IR
VR=Rated VRRM
5.0
10
10
A
IR
VR=Rated VRRM, TC= 150C
250
500
500
A
VF
IF=8.0A
0.975
1.3
1.7
V
VF
IF=8.0A, TC= 150C
0.895
1.1
1.4
V
trr
IF=0.5A, IR=1.0A, IRR=0.25A
30
30
90
ns
CJ
VR=4.0V, f=1.0MHz 80
80
50
pF
CUDD16-02A
CUDD16-04A
CUDD16-08A
SURFACE MOUNT
ULTRA FAST RECOVERY RECTIFIERS
DUAL, COMMON ANODE
16 AMP, 200 THRU 800 VOLTS
D
2
PAK CASE
Central
Semiconductor Corp.
TM
R0 ( 31-August 2001)
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CUDD16-02A Series types are a Silicon Ultra-Fast Recovery
Rectifier designed for surface mount ultra fast switching applications requiring a low forward voltage
drop. To order devices on 24mm Tape and Reel ( 800/13" Reel ), add TR13 suffix to part number.
LEAD CODE:
1) CATHODE 1
2) ANODE 1,2
3) CATHODE 2
4) ANODE 1,2
Central
Semiconductor Corp.
TM
D
2

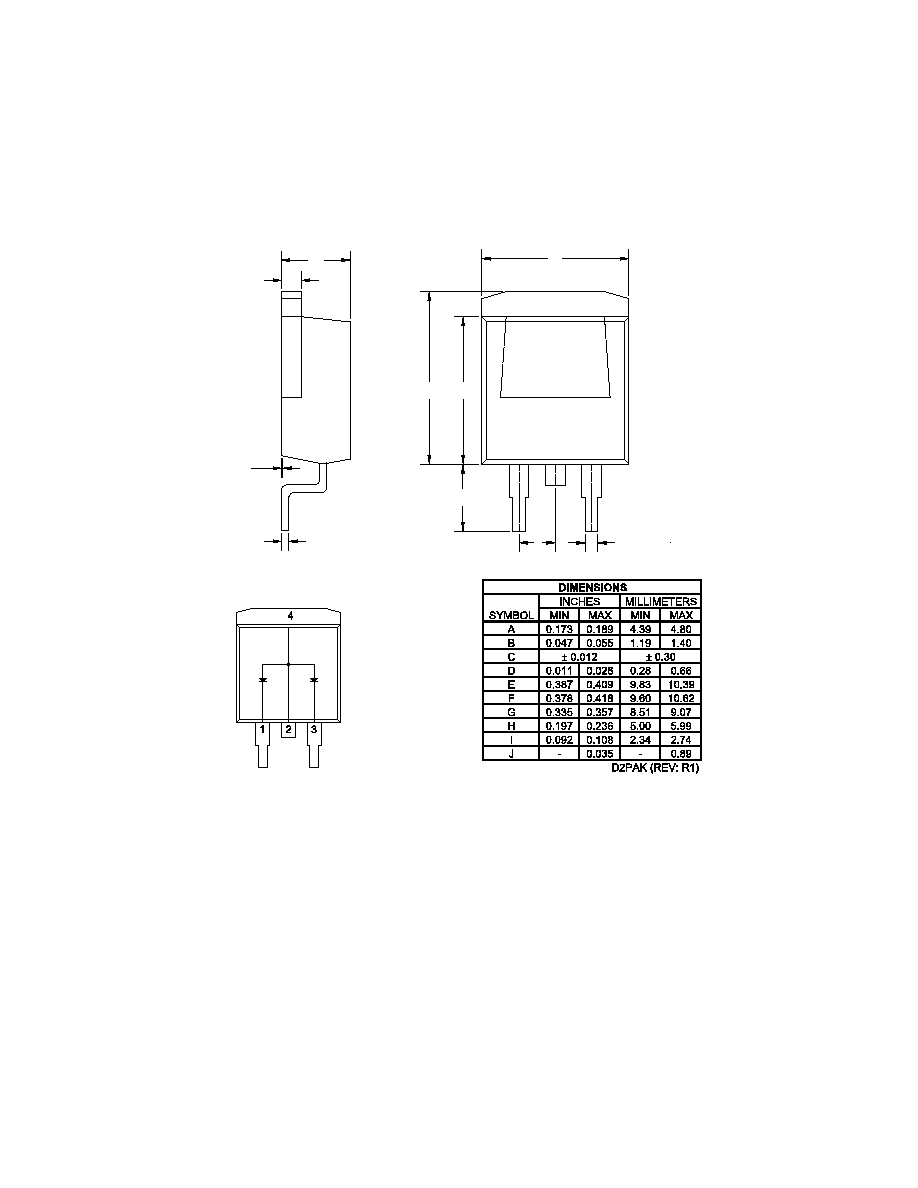

PAK CASE - MECHANICAL OUTLINE
CUDD16-02A
CUDD16-04A
CUDD16-08A
SURFACE MOUNT
ULTRA FAST RECOVERY RECTIFIERS
DUAL, COMMON ANODE
16 AMP, 200 THRU 800 VOLTS
R1
A
B
D
E
G
J
I
4
1
2
3
F
C
H
R0 ( 31-August 2001)
PIN 2 IS COMMON TO THE TAB(4)
