24-Bit Stereo Audio Codec with 3V Interface
Features
l
100 dB Dynamic Range A/D Converters
l
100 dB Dynamic Range D/A Converters
l
105 dB DAC Signal-to-Noise Ratio (EIAJ)
l
Analog Volume Control (CS4221 only)
l
Differential Inputs / Outputs
l
On-chip Anti-aliasing and Output Smoothing
Filters
l
De-emphasis for 32, 44.1 and 48 kHz
l
Supports Master and Slave Modes
l
Single +5 V power supply
l
On-Chip Crystal Oscillator
l
3 - 5 V Digital Interface
Description
The CS4220/1 is a highly integrated, high performance,
24-bit, audio codec providing stereo analog-to-digital
and stereo digital-to-analog converters using delta-sig-
ma conversion techniques. The device operates from a
single +5 V power supply, and features low power con-
sumption. Selectable de-emphasis filter for 32, 44.1, and
48 kHz sample rates is also included.
The CS4221 also includes an analog volume control ca-
pable of 113.5 dB attenuation in 0.5 dB steps. The
analog volume control architecture preserves dynamic
range during attenuation. Volume control changes are
implemented using a "soft" ramping or zero crossing
technique.
Applications include digital effects processors, DAT, and
multitrack recorders.
ORDERING INFORMATION
CS4220-KS
-10 to +70 C
28-pin SSOP
CS4221-KS
-10 to +70 C
28-pin SSOP
CDB4220/1
Evaluation Board
I
SCL/CCLK SDA/CDIN AD0/CS
MCLK
VD
VA
RST
LRCK
SCLK
SDIN
SDOUT
DGND
AGND
AOUTL+
AOUTL-
AOUTR+
AOUTR-
AINL-
AINL+
AINR-
AINR+

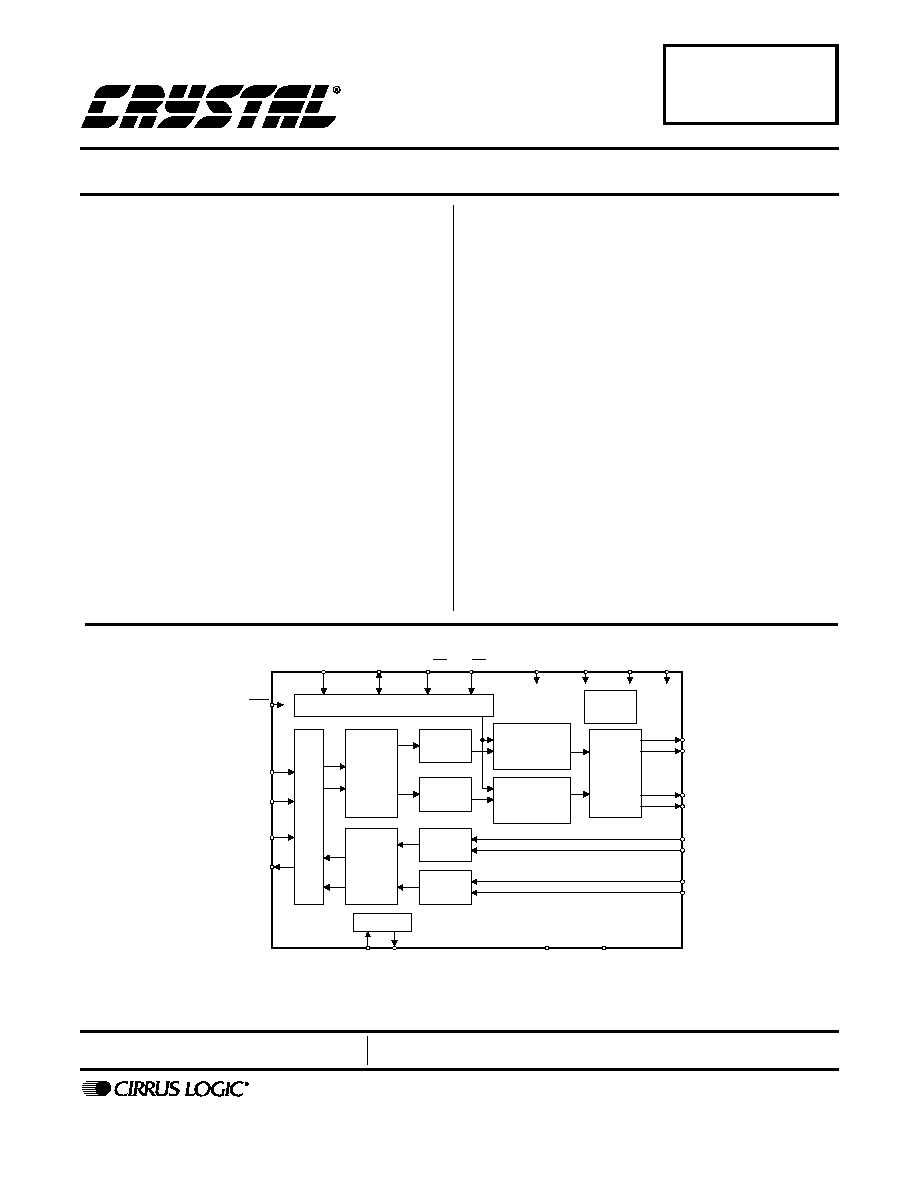

Control Port
Se
r
i
a
l
Au
di
o
D
at
a
I
n
t
er
f
a
c
e
Digit
a
l
F
ilt
er
s
w
i
th
D
e
-E
m
phas
i
s
D
i
git
a
l
F
ilt
ers
Left
DAC
Right
DAC
A
n
alo
g
Lo
w
P
as
s
an
d
O
utp
u
t
S
t
a
g
e
Voltage
Reference
Left
ADC
Right
ADC
Volume
Control
(DIF1)
(DIF0)
(DEM0)
I C/SPI
(DEM1)
2
Clock OSC
( ) = CS4220
Volume
Control
V
L
XTI
XTO
*
= CS4221
*
*
APR `00
DS284PP3
CS4220
CS4221
CS4220 CS4221
2
DS284PP3
TABLE OF CONTENTS
1. CHARACTERISTICS AND SPECIFICATIONS ........................................................................ 4
ANALOG CHARACTERISTICS ............................................................................................... 4
ABSOLUTE MAXIMUM RATINGS .......................................................................................... 6
RECOMMENDED OPERATING CONDITIONS ...................................................................... 6
SWITCHING CHARACTERISTICS ......................................................................................... 7
SWITCHING CHARACTERISTICS - CONTROL PORT - SPI MODE (CS4221) .................... 8
SWITCHING CHARACTERISTICS - CONTROL PORT - I
2
C MODE (CS4221) ..................... 9

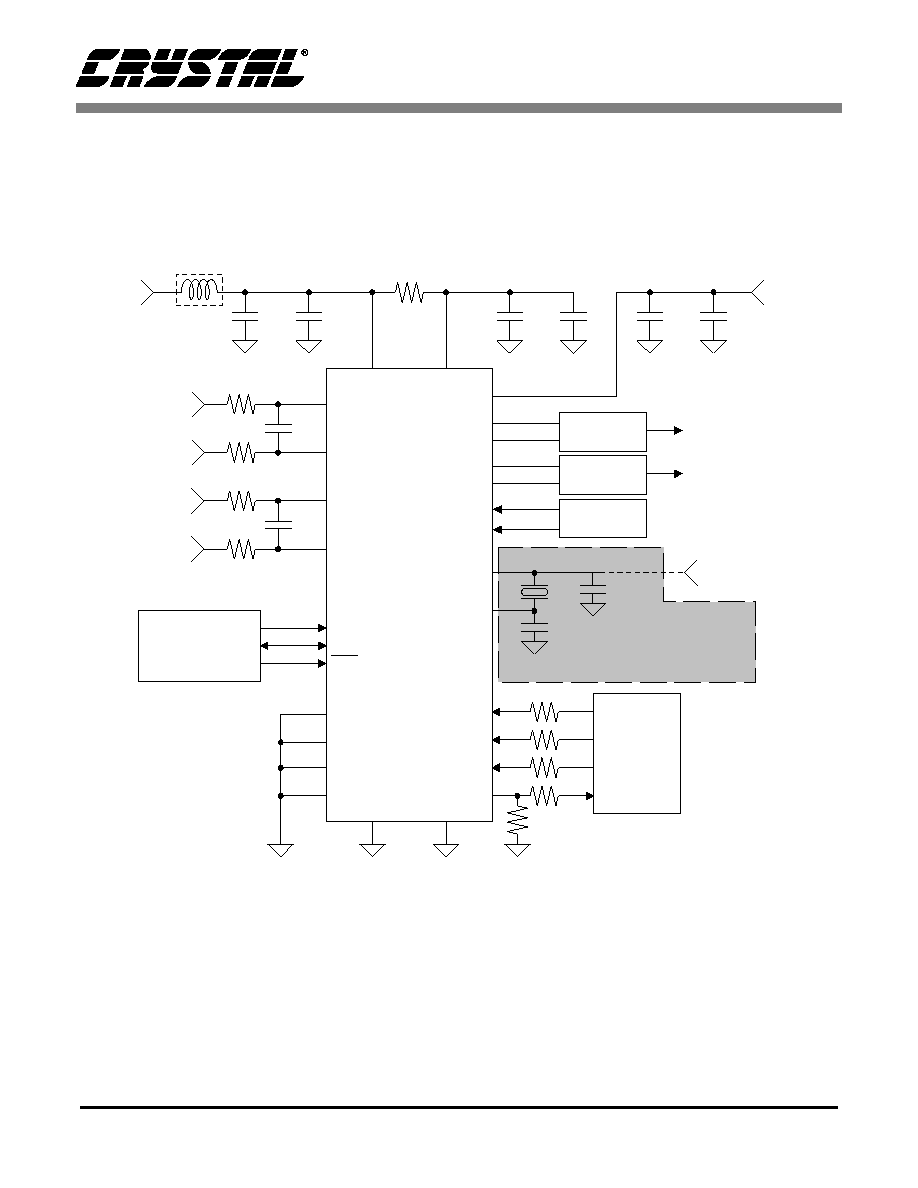

2. TYPICAL CONNECTION DIAGRAM -- CS4220 ................................................................... 10
3. TYPICAL CONNECTION DIAGRAM -- CS4221 ................................................................... 11
4. REGISTER QUICK REFERENCE - CS4221 .......................................................................... 12
5. REGISTER DESCRIPTIONS - CS4221 .................................................................................. 13
5.1 ADC Control (address 01h) .............................................................................................. 13
5.1.1 Power Down ADC (PDN) ....................................................................................... 13
5.1.2 Left and Right channel High Pass Filter Defeat (HPDR-HPDL) ............................. 13
5.1.3 Left and Right Channel ADC Muting (ADMR-ADML) ............................................. 13
5.1.4 Calibration Control (CAL) ....................................................................................... 13
5.1.5 Calibration Status (CALP) (Read Only) .................................................................. 13
5.1.6 Clocking Error (CLKE) (Read Only) ....................................................................... 14
5.2 DAC Control (address 02h) .............................................................................................. 14
5.2.1 Mute on Consecutive Zeros (MUTC) ...................................................................... 14
5.2.2 Mute Control (MUTR-MUTL) .................................................................................. 14
5.2.3 Soft RAMP Control (SOFT) .................................................................................... 14
5.2.4 Soft RAMP Step Rate (RMP) ................................................................................. 15
5.3 Left Channel Output Attenuator Level (address 03h) ...................................................... 15
5.4 Right Channel Output Attenuator Level (address 04h) ................................................... 15
5.4.1 Attenuation level (ATT7-ATT0) ............................................................................... 15
5.5 DSP Port Mode (address 05h) ......................................................................................... 16
5.5.1 De-emphasis Control (DEM) .................................................................................. 16
5.5.2 Serial Input/Output Data SCLK Polarity Select (DSCK) ......................................... 16
5.5.3 Serial Data Output Format (DOF) .......................................................................... 16
5.5.4 Serial Data Input Format (DIF) ............................................................................... 16
5.6 Converter Status Report (Read Only) (address 06h) ....................................................... 17
5.6.1 Left and Right Channel Acceptance Bit (ACCR-ACCL) ......................................... 17
5.6.2 Left and Right Channel ADC Output Level (LVR and LVL) .................................... 17
5.7 Master Clock Control (address 07h) ................................................................................ 17
Contacting Cirrus Logic Support
For a complete listing of Direct Sales, Distributor, and Sales Representative contacts, visit the Cirrus Logic web site at:
http://www.cirrus.com/corporate/contacts/
I2C is a registered trademark of Philips Semiconductor.
SPI is a registered trademark of International Business Machines Corporation.
Preliminary product information describes products which are in production, but for which full characterization data is not yet available. Advance product infor-
mation describes products which are in development and subject to development changes. Cirrus Logic, Inc. has made best efforts to ensure that the infor-
mation contained in this document is accurate and reliable. However, the information is subject to change without notice and is provided "AS IS" without
warranty of any kind (express or implied). No responsibility is assumed by Cirrus Logic, Inc. for the use of this information, nor for infringements of patents or
other rights of third parties. This document is the property of Cirrus Logic, Inc. and implies no license under patents, copyrights, trademarks, or trade secrets.
No part of this publication may be copied, reproduced, stored in a retrieval system, or transmitted, in any form or by any means (electronic, mechanical, pho-
tographic, or otherwise) without the prior written consent of Cirrus Logic, Inc. Items from any Cirrus Logic website or disk may be printed for use by the user.
However, no part of the printout or electronic files may be copied, reproduced, stored in a retrieval system, or transmitted, in any form or by any means (elec-
tronic, mechanical, photographic, or otherwise) without the prior written consent of Cirrus Logic, Inc.Furthermore, no part of this publication may be used as a
basis for manufacture or sale of any items without the prior written consent of Cirrus Logic, Inc. The names of products of Cirrus Logic, Inc. or other vendors
and suppliers appearing in this document may be trademarks or service marks of their respective owners which may be registered in some jurisdictions. A list
of Cirrus Logic, Inc. trademarks and service marks can be found at http://www.cirrus.com.
CS4220 CS4221
DS284PP3
3
5.7.1 Master Clock Control (MCK) .................................................................................. 17
6. PIN DESCRIPTIONS -- CS4220 ............................................................................................ 18
7. PIN DESCRIPTIONS -- CS4221 ............................................................................................ 20
8. APPLICATIONS ..................................................................................................................... 22
8.1 Overview .......................................................................................................................... 22
8.2 Grounding and Power Supply Decoupling ....................................................................... 22
8.3 High Pass Filter ............................................................................................................... 22
8.4 Analog Outputs ................................................................................................................ 22
8.5 Master vs. Slave Mode .................................................................................................... 22
8.6 De-emphasis ................................................................................................................... 22
8.7 Power-up / Reset / Power Down Calibration ................................................................... 22
8.8 Control Port Interface (CS4221 only) .............................................................................. 23
8.8.1 SPI Mode ............................................................................................................ 23
8.8.2 I
2
C Mode ............................................................................................................. 23
8.9 Memory Address Pointer (MAP) ...................................................................................... 24
8.9.1 Auto-Increment Control (INCR) .............................................................................. 24
8.9.2 Register Pointer (MAP) .......................................................................................... 24
9. ADC/DAC FILTER RESPONSE ............................................................................................. 28
10. PARAMETER DEFINITIONS ................................................................................................ 29
11. PACKAGE DIMENSIONS .................................................................................................... 30
LIST OF FIGURES
Figure 1. Serial Audio Port Data I/O Timing .................................................................................. 7
Figure 2. SPI Control Port Timing ................................................................................................. 8
Figure 3. I
2
C Control Port Timing .................................................................................................. 9
Figure 4. CS4220 Recommended Connection Diagram ............................................................. 10
Figure 5. CS4221 Recommended Connection Diagram ............................................................. 11
Figure 6. Control Port Timing, SPI mode .................................................................................... 24
Figure 7. Control Port Timing, I
2
C mode ..................................................................................... 24
Figure 8. Serial Audio Format 0 (I2S) ......................................................................................... 25
Figure 9. Serial Audio Format 1 .................................................................................................. 25
Figure 10. Serial Audio Format 2 ................................................................................................ 25
Figure 11. Serial Audio Format 3 ................................................................................................ 26
Figure 12. Optional Input Buffer .................................................................................................. 26
Figure 13. Single-ended Input Application .................................................................................. 26
Figure 14. 2- and 3-Pole Butterworth Filters ............................................................................... 27
Figure 15. Hybrid Digital/Analog Attenuation .............................................................................. 27
Figure 16. De-emphasis Curve ................................................................................................... 27
Figure 17. Hybrid Analog/Digital Attenuation .............................................................................. 27
Figure 18. ADC Filter Response ................................................................................................. 28
Figure 19. ADC Passband Ripple ............................................................................................... 28
Figure 20. ADC Transition Band ................................................................................................. 28
Figure 21. DAC Filter Response ................................................................................................. 28
Figure 22. DAC Passband Ripple ............................................................................................... 28
Figure 23. DAC Transition Band ................................................................................................. 28
LIST OF TABLES
Table 1. Example Volume Settings ............................................................................................... 15
Table 2. Common Clock Frequencies........................................................................................... 18
Table 3. Digital Interface Format - DIF1 and DIF0 ....................................................................... 19
Table 4. De-emphasis Control ...................................................................................................... 19
Table 5. Common Clock Frequencies........................................................................................... 20
CS4220 CS4221
4
DS284PP3
1. CHARACTERISTICS AND SPECIFICATIONS
ANALOG CHARACTERISTICS
(T
A
= 25 C; VA, VD = +5 V; Full Scale Input Sine wave, 997 Hz;
Fs = 48 kHz; Measurement Bandwidth is 20 Hz to 20 kHz; Local components as shown in Figures 4 and 5; SPI
mode, Format 0, unless otherwise specified.)
Notes: 1. Referenced to typical full-scale differential input voltage (2 Vrms).
2. Filter characteristics scale with output sample rate. For output sample rates, Fs, other than 48 kHz, the
0.01 dB passband edge is 0.4535x Fs and the stopband edge is 0.625x Fs.
3. The analog modulator samples the input at 6.144 MHz for an Fs equal to 48 kHz. There is no rejection
of input signals which are multiples of the sampling frequency (n x 6.144 MHz 21.8 kHz where
n = 0,1,2,3...).
4. Group delay for Fs = 48 kHz, t
gd
= 15/48 kHz = 312 s.
Parameter
Symbol
CS4220/1 - KS
Unit
Min Typ
Max
Analog Input Characteristics
ADC Resolution
-
-
24
Bits
Total Harmonic Distortion
THD
-
0.003
-
%
Dynamic Range
A-weighted
unweighted
95
92
100
97
-
-
dB
Total Harmonic Distortion + Noise
(Note 1) THD+N
-
-92
-87
dB
Interchannel Isolation
(1 kHz)
-
90
-
dB
Interchannel Gain Mismatch
-
-
0.1
dB
Offset Error
with High Pass Filter
-
-
0
LSB
Full Scale Input Voltage (Differential)
1.9
2.0
2.1
Vrms
Gain Drift
-
100
-
ppm/C
Input Resistance
10
-
-
k
Input Capacitance
-
-
15
pF
Common Mode Input Voltage
-
2.3
-
V
A/D Decimation Filter Characteristics
Passband
(Note 2)
0
-
21.8
kHz
Passband Ripple
-
-
0.01
dB
Stopband
(Note 2)
30
-
6114
kHz
Stopband Attenuation
(Note 3)
80
-
-
dB
Group Delay (Fs = Output Sample Rate)
(Note 4)
t
gd
-
15/Fs
-
s
Group Delay Variation vs. Frequency
t
gd
-
-
0
s
High Pass Filter Characteristics
Frequency Response
-3 dB (Note 2)
-0.1 dB
-
-
3.7
20
-
-
Hz
Phase Deviation @ 20 Hz
(Note 2)
-
10
-
Degree
Passband Ripple
-
-
0
dB
CS4220 CS4221
DS284PP3
5
ANALOG CHARACTERISTICS (CONTINUED)
Notes: 5. The passband and stopband edges scale with frequency. For input word rates, Fs, other than 48 kHz,
the 0.01 dB passband edge is 0.4535x Fs and the stopband edge is 0.5465x Fs.
6. Digital filter characteristics.
7. Measurement bandwidth is 10 Hz to 3 Fs.
Parameter
Symbol
CS4220/1 - KS
Unit
Min Typ
Max
Analog Output Characteristics - Minimum Attenuation, 10 k
, 100 pF load; unless otherwise specified.
DAC Resolution
-
-
24
Bits
Signal-to-Noise, Idle-Channel Noise (CS4221 only)
DAC
muted, A-weighted
97
105
-
dB
Dynamic Range
DAC not muted, A-weighted
DAC not muted, unweighted
95
92
100
97
-
-
dB
Total Harmonic Distortion
THD
-
0.003
-
%
Total Harmonic Distortion + Noise
THD+N
-
-92
-87
dB
Interchannel Isolation
(1 kHz)
-
90
-
dB
Interchannel Gain Mismatch
-
-
0.1
dB
Attenuation Step Size
All Outputs
0.35
0.5
0.65
dB
Programmable Output Attenuation Span
110
113.5
-
dB
Differential Offset Voltage
-
10
-
mV
Common Mode Output Voltage
-
2.4
-
V
Full Scale Output Voltage
1.8
1.9
2.0
Vrms
Gain Drift
-
100
-
ppm/
C
Out-of-Band Energy
Fs/2 to 2 Fs
-
-60
-
dBFs
Analog Output Load
Resistance
Capacitance
10
-
-
-
-
100
k
pF
Combined Digital and Analog Filter Characteristics
Frequency Response10 Hz to 20 kHz
-
0.1
-
dB
Deviation from Linear Phase
-
0.5
-
Degree
Passband: to 0.01 dB corner
(Notes 5 and 6)
0
-
21.8
kHz
Passband Ripple
(Note 6)
-
-
0.01
dB
Stopband
(Notes 5 and 6)
26.2
-
-
kHz
Stopband Attenuation
(Note 7)
70
-
-
dB
Group Delay (Fs = Input Word Rate)
t
gd
-
16/Fs
-
s
Power Supply
Power Supply Current
VA
VD
VL
Total Power Down
-
-
-
-
46
9
3
0.4
60
20
5
-
mA
Power Supply Rejection Ratio
1 kHz
-
65
-
dB
CS4220 CS4221
6
DS284PP3
DIGITAL CHARACTERISTICS
(T
A
= 25 C; VA, VD = 4.75V - 5.25V)
ABSOLUTE MAXIMUM RATINGS
(AGND, DGND = 0 V, all voltages with respect to 0 V.)
RECOMMENDED OPERATING CONDITIONS
(AGND, DGND = 0 V, all voltages with respect to 0 V.)
Notes: 8. Any pin except supplies. Transient currents of up to 100 mA on the analog input pins will not cause SCR
latch-up.
9. The maximum over or under voltage is limited by the input current.
WARNING: Operation at or beyond these limits may result in permanent damage to the device.
Normal operation is not guaranteed at these extremes.
Parameter
Symbol Min
Max
Unit
High-level Input Voltage
VL = 5V
VL = 3V
V
IH
V
IH
2.8
2.0
VL + 0.3
VL + 0.3
V
V
Low-level Input Voltage
V
IL
-0.3
0.8
V
High-level Output Voltage at I
O
= -2.0 mA
V
OH
VL - 1.0
-
V
Low-level Output Voltage at I
O
= 2.0 mA
V
OL
-
0.5
V
Input Leakage Current
Digital Inputs
-
10
A
Output Leakage Current
High Impedance Digital Outputs
-
10
A
Parameter
Symbol Min
Max
Unit
Power Supplies
Digital
Analog
VD
VA
-0.3
-0.3
6.0
6.0
V
Input Current
(Note 8)
-
10
mA
Analog Input Voltage
(Note 9)
-0.7
VA + 0.7
V
Digital Input Voltage
(Note 9)
-0.7
VD + 0.7
V
Ambient Temperature
Power Applied
-55
+125
C
Storage Temperature
-65
+150
C
Parameter
Symbol Min Typ
Max
Unit
Power Supplies
Digital
Analog
Digital
| VA - VD |
VD
VA
VL
4.75
4.75
2.7
-
5.0
5.0
5.0
-
5.25
5.25
5.25
0.4
V
Ambient Operating Temperature
T
A
-10
25
70
C
CS4220 CS4221
DS284PP3
7
SWITCHING CHARACTERISTICS
(T
A
= 25 C; VA, VD = 4.75 V - 5.25 V; outputs loaded with
30 pF)
Notes: 10. After powering up the CS4220/1, PDN should be held low for 10 ms to allow the power supply to settle.
Parameter
Symbol Min Typ
Max
Unit
Audio ADC's and DAC's Sample Rate
Fs
4
-
50
kHz
XTI Frequency
XTI = 256, 384, or 512 Fs
1.024
-
26
MHz
XTI Pulse Width High
XTI = 512 Fs
XTI = 384 Fs
XTI = 256 Fs
13
21
31
-
-
-
-
-
-
ns
XTI Pulse Width Low
XTI = 512 Fs
XTI = 384 Fs
XTI = 256 Fs
13
21
31
-
-
-
-
-
-
ns
XTI Jitter Tolerance
-
500
-
psRMS
RST Low Time
(Note 10)
10
-
-
ms
SCLK falling edge to SDOUT output valid
DSCK = 0
t
dpd
-
-
ns
LRCK edge to MSB valid
t
lrpd
-
-
45
ns
SDIN setup time before SCLK rising edge
DSCK = 0
t
ds
25
-
-
ns
SDIN hold time after SCLK rising edge
DSCK = 0
t
dh
25
-
-
ns
SCLK Period
t
sckw
-
-
ns
SCLK High Time
t
sckh
40
-
-
ns
SCLK Low Time
t
sckl
40
-
-
ns
SCLK rising to LRCK edge
DSCK = 0
t
lrckd
35
-
-
ns
LRCK edge to SCLK rising
DSCK = 0
t
lrcks
40
-
-
ns
1
(384) Fs
----------------------
20
+
1
(128) Fs
----------------------
sckh
sckl
sckw
t
t
t
MSB
MSB-1
*SCLK shown for DSCK = 0, SCLK inverted for DSCK = 1.
t dpd
SDOUT
LRCK
SCLK*
SDIN
dh
t
ds
t
lrpd
t
lrcks
t
lrckd
t
Figure 1. Serial Audio Port Data I/O Timing
CS4220 CS4221
8
DS284PP3
SWITCHING CHARACTERISTICS - CONTROL PORT - SPI MODE (CS4221)
(T
A
= 25 C; VA, VD = 4.75 V - 5.25 V; Inputs: Logic 0 = DGND, Logic 1 = VD; C
L
= 30 pF)
Notes: 11. Not tested but guaranteed by design.
12. t
spi
only needed before first falling edge of CS after RST rising edge. t
spi
= 0 at all other times.
13. Data must be held for sufficient time to bridge the transition time of CCLK.
14. For F
SCK
< 1 MHz.
Parameter
Symbol
Min
Max
Unit
SPI Mode (SPI/I2C = 0)
CCLK Clock Frequency
f
sck
-
6
MHz
RST rising edge to CS falling
(Note 11)
t
srs
41
-
s
CCLK edge to CS falling
(Note 12)
t
spi
500
-
ns
CS High Time between transmissions
t
csh
1.0
-
s
CS falling to CCLK edge
t
css
20
-
ns
CCLK Low Time
t
scl
66
-
ns
CCLK High Time
t
sch
66
-
ns
CDIN to CCLK rising setup time
t
dsu
40
-
ns
CCLK rising to DATA hold time
(Note 13)
t
dh
15
-
ns
Rise time of CCLK and CDIN
(Note 14)
t
r2
-
100
ns
Fall time of CCLK and CDIN
(Note 14)
t
f2
-
100
ns
t r2
t f2
t dsu t dh
t sch
t scl
CS
CCLK
CDIN
tcss
t csh
t spi
t srs
RST
Figure 2. SPI Control Port Timing
CS4220 CS4221
DS284PP3
9
SWITCHING CHARACTERISTICS - CONTROL PORT - I
2
C MODE (CS4221)
(T
A
= 25 C; VA, VD = 4.75 V - 5.25 V; Inputs: Logic 0 = DGND, Logic 1 = VD; C
L
= 30 pF)
Notes: 15. Not tested but guaranteed by design.
16. Data must be held for sufficient time to bridge the 300 ns transition time of SCL.
Parameter
Symbol
Min
Max
Unit
I
2
C
Mode (SPI/I2C = 1)
SCL Clock Frequency
f
scl
-
100
kHz
RST rising edge to Start
(Note 15)
t
irs
50
-
s
Bus Free Time between transmissions
t
buf
4.7
-
s
Start Condition Hold Time (prior to first clock pulse)
t
hdst
4.0
-
s
Clock Low Time
t
low
4.7
-
s
Clock High Time
t
high
4.0
-
s
Setup time for repeated Start Condition
t
sust
4.7
-
s
SDA hold time for SCL falling
(Note 16)
t
hdd
0
-
s
SDA setup time to SCL rising
t
sud
250
-
ns
Rise time of SCL
t
rc
-
25
ns
Fall time of SCL
t
fc
-
25
ns
Rise time of SDA
t
rd
-
1
s
Fall time of SDA
t
fd
-
300
ns
Setup time for Stop Condition
t
susp
4.7
-
s
t
buf
t
hdst
t
hdst
t
low
t rc
t fc
t
hdd
t high
t sud
t sust
t susp
Stop
Start
Start
Stop
Repeated
SDA
SCL
t
irs
RST
t rd
t fd
Figure 3. I
2
C Control Port Timing
CS4220 CS4221
10
DS284PP3
2. TYPICAL CONNECTION DIAGRAM -- CS4220
AINL+
AINL-
1 F
+
0.1 F
2
0.1 F + 1 F
+5V
Supply
21
6
VA
VD
Ferrite Bead
2.2 nF
150
150
AINR+
AINR-
2.2 nF
150
150
20
19
17
16
22
7
AGND
DGND
10
11
Mode Selection
DIF1
DIF0
5
4
Audio
DSP
SCLK
LRCK
9
SDIN
8
SDOUT
R
s
R
s
CS4220
27
RST
R
= 500
NC
1
NC
14
NC
15
NC
28
R
s
R
s
s
0.1 F + 1 F
13
VL
+2.7 - 5V
47 k
*
* Required for
Master Mode only
Digital Audio
Source
18
25
26
AOUTL+
AOUTL-
24
23
Analog Filter
AOUTR+
AOUTR-
12
DEM0
DEM1
XTI
XTO
2
3
External
Clock Input
40 pF
40 pF
Eliminate the crystal
and capacitors when
using an external
clock input
Analog Filter
Figure 4. CS4220 Recommended Connection Diagram
(Also see
Recommended Layout Diagram
)
CS4220 CS4221
DS284PP3
11
3. TYPICAL CONNECTION DIAGRAM -- CS4221
AINL+
AINL-
1 F
+
0.1 F
2
0.1 F + 1 F
+5V
Supply
21
6
VA
VD
Ferrite Bead
2.2 nF
150
150
AINR+
AINR-
2.2 nF
150
150
20
19
17
16
22
7
AGND
DGND
12
27
Microcontroller
AD0/CS
RST
CS4221
18
I2C/SPI
R
= 500
NC
1
NC
14
NC
15
NC
28
s
0.1 F + 1 F
+2.7 - 5V
10
11
SCL/CCLK
SDA/CDIN
* Required for
Master Mode only
4
5
Audio
DSP
SCLK
LRCK
9
SDIN
8
SDOUT
R
s
R
s
R
s
R
s
13
VL
*
47 k
25
26
AOUTL+
AOUTL-
24
23
Analog Filter
AOUTR+
AOUTR-
XTI
XTO
2
3
External
Clock Input
40 pF
40 pF
Eliminate the crystal
and capacitors when
using an external
clock input
Analog Filter
Figure 5. CS4221 Recommended Connection Diagram
(Also see
Recommended Layout Diagram
)
CS4220 CS4221
12
DS284PP3
4. REGISTER QUICK REFERENCE - CS4221
Addr
Function
7
6
5
4
3
2
1
0
0h
Reserved
Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved
default
0
0
0
0
0
0
0
0
1h
ADC Control
PDN
HPDR
HPDL
ADMR
ADML
CAL
CALP
CLKE
default
0
0
0
0
0
0
0
0
2h
DAC Control
Reserved
MUTC
MUTR
MUTL
SOFT
Reserved
RMP1
RMP0
default
0
0
0
0
0
0
0
0
3h-4h Output Attenuator
Level
ATT7
ATT6
ATT5
ATT4
ATT3
ATT2
ATT1
ATT0
default
0
0
0
0
0
0
0
0
5h
DSP Port Mode
Reserved
DEM1
DEM0
DSCK
DOF1
DOF0
DIF1
DIF0
default
0
0
0
0
0
0
0
0
6h
Converter Status
Report
ACCR
ACCL
LVR2
LVR1
LVR0
LVL2
LVL1
LVL0
default
0
0
0
0
0
0
0
0
7h
Master Clock Con-
trol
Reserved Reserved Reserved Reserved Reserved Reserved
MCK1
MCK0
default
0
0
0
0
0
0
0
0
CS4220 CS4221
DS284PP3
13
5. REGISTER DESCRIPTIONS - CS4221
Note: All registers are read/write in I
2
C mode and write-only in SPI mode, unless otherwise noted.
5.1
ADC Control (address 01h)
5.1.1
POWER DOWN ADC (PDN)
Default = 0
0 - Disabled
1 - Enabled
Function:
The ADC will enter a low-power state when this function is enabled.
5.1.2
LEFT AND RIGHT CHANNEL HIGH PASS FILTER DEFEAT (HPDR-HPDL)
Default = 0
0 - Disabled
1 - Enabled
Function:
The internal high-pass filter is defeated when this function is enabled. Control of the internal high-
pass filter is independent for the left and right channel.
5.1.3
LEFT AND RIGHT CHANNEL ADC MUTING (ADMR-ADML)
Default = 0
0 - Disabled
1 - Enabled
Function:
The output for the selected ADC channel will be muted when this function is enabled.
5.1.4
CALIBRATION CONTROL (CAL)
Default = 0
0 - Disabled
1 - Enabled
Function:
The device will automatically perform an offset calibration when brought out of reset, which last ap-
proximately 50 ms. When this function is enabled, a rising edge on the reset line will initiate an offset
calibration.
5.1.5
CALIBRATION STATUS (CALP) (READ ONLY)
Default = 0
0 - Calibration done
1 - Calibration in progress
7
6
5
4
3
2
1
0
PDN
HPDR
HPDL
ADMR
ADML
CAL
CALP
CLKE
0
0
0
0
0
0
0
0
CS4220 CS4221
14
DS284PP3
5.1.6
CLOCKING ERROR (CLKE) (READ ONLY)
Default = 0
0 - No error
1 - Error
5.2
DAC Control (address 02h)
5.2.1
MUTE ON CONSECUTIVE ZEROS (MUTC)
Default = 0
0 - Disabled
1 - Enabled
Function:
The DAC output will mute following the reception of 512 consecutive audio samples of static 0 or -1
when this function is enabled. A single sample of non-static data will release the mute. Detection and
muting is done independently for each channel. The muting function is affected, similar to volume
control changes, by the SOFT bit in the DAC Control register.
5.2.2
MUTE CONTROL (MUTR-MUTL)
Default = 0
0 - Disabled
1 - Enabled
Function:
The output for the selected DAC channel will be muted when this function is enabled. The muting
function is affected, similar to volume control changes, by the SOFT bit in the DAC Control register.
5.2.3
SOFT RAMP CONTROL (SOFT)
Default = 0
0 - Soft Ramp level changes
1 - Zero Cross level changes
Function:
Soft Ramp level changes will be implemented by incrementally ramping, in 0.5 dB steps, from the cur-
rent level to the new level. The rate of change defaults to 0.5 dB per 8 left/right clock periods and is
adjustable through the RMP bits in the DAC Control register.
Zero Cross level changes will be implemented in a single step from the current level to the new level.
The level change takes effect on a zero crossing to minimize audible artifacts. If the signal does not
encounter a zero crossing, the level change will occur after a timeout period of 512 sample periods
(10.7 ms at 48 kHz sample rate). Zero crossing is independently monitored and implemented for each
channel. The ACCR and ACCL bits in the Converter Status Report register indicate when a level
change has occurred for the right and left channel.
7
6
5
4
3
2
1
0
Reserved
MUTC
MUTR
MUTL
SOFT
Reserved
RMP1
RMP0
0
0
0
0
0
0
0
0
CS4220 CS4221
DS284PP3
15
5.2.4
SOFT RAMP STEP RATE (RMP)
Default = 00
00 - 1 step per 8 LRCK's
01 - 1 step per 4 LRCK's
10 - 1 step per 16 LRCK's
11 - 1 step per 32 LRCK's
Function:
The rate of change for the Soft Ramp function is adjustable through the RMP bits.
5.3
Left Channel Output Attenuator Level (address 03h)
5.4
Right Channel Output Attenuator Level (address 04h)
5.4.1
ATTENUATION LEVEL (ATT7-ATT0)
Default = 00h
Function:
The Output Attenuator Level registers allow for attenuation of the DAC outputs in 0.5 dB increments
from 0 to 113.5 dB. Level changes are implemented with an analog volume control until the residual
output noise is equal to the noise floor in the mute state. At this point, volume changes are performed
digitally. This technique is superior to purely digital volume control because the noise is attenuated
by the same amount as the signal, thus preserving dynamic range, see Figure 16. Volume changes
are performed as dictated by the SOFT bit in the DAC Control register. ATT0 represents 0.5 dB of
attenuation and settings greater than 227 (decimal value) will mute the selected DAC output.
7
6
5
4
3
2
1
0
ATT7
ATT6
ATT5
ATT4
ATT3
ATT2
ATT1
ATT0
0
0
0
0
0
0
0
0
Binary Code
Decimal Value
Volume Setting
00000000
0
0 dB
11100011
227
-113.5 dB
11100100
228
Muted
Table 1. Example Volume Settings
CS4220 CS4221
16
DS284PP3
5.5
DSP Port Mode (address 05h)
5.5.1
DE-EMPHASIS CONTROL (DEM)
Default = 00
00 - 44.1 kHz de-emphasis setting
01 - 48 kHz de-emphasis setting
10 - 32 kHz de-emphasis setting
11 - De-emphasis disabled
Function:
Selects the appropriate digital filter to maintain the standard 15
s/50
s digital de-emphasis filter re-
sponse at 32, 44.1 or 48 kHz sample rates, see Figure 15.
5.5.2
SERIAL INPUT/OUTPUT DATA SCLK POLARITY SELECT (DSCK)
Default = 0
0 - Data valid on rising edge of SCLK
1 - Data valid on falling edge of SCLK
Function:
This function selects the polarity of the SCLK edge used to clock data in and out of the serial audio
port.
5.5.3
SERIAL DATA OUTPUT FORMAT (DOF)
Default = 00
00 - I
2
S compatible
01 - Left justified
10 - Right justified, 24-bit
11 - Right justified, 20-bit
Function:
The required relationship between the left/right clock, serial clock and output serial data is defined by
the Serial Data Output Format, and the options are detailed in Figures 8-11.
Note: If the format selected is Right-Justified, SCLK must be 64 Fs when operating in slave mode.
5.5.4
SERIAL DATA INPUT FORMAT (DIF)
Default = 00
00 - I
2
S compatible
01 - Left justified
10 - Right justified, 24-bit
11- Right justified, 20-bit
Function:
The required relationship between the left/right clock, serial clock and input serial data is defined by
the Serial Data Input Format, and the options are detailed in Figures 8-11.
7
6
5
4
3
2
1
0
Reserved
DEM1
DEM0
DSCK
DOF1
DOF0
DIF1
DIF0
0
0
0
0
0
0
0
0
CS4220 CS4221
DS284PP3
17
5.6
Converter Status Report (Read Only) (address 06h)
5.6.1
LEFT AND RIGHT CHANNEL ACCEPTANCE BIT (ACCR-ACCL)
Default = 0
0 - Requested setting valid
1 - New setting loaded
Function:
The ACCR and ACCL bits indicate when a change in the Output Attenuator Level has occurred for
the left and right channels, respectively. The value will be high when a new setting is loaded into the
Output Attenuator Level registers. The value will return low when the requested attenuation setting
has taken effect.
5.6.2
LEFT AND RIGHT CHANNEL ADC OUTPUT LEVEL (LVR AND LVL)
Default = 000
000 - Normal output levels
001 - -6 dB level
010 - -5 dB level
011 - -4 dB level
100 - -3 dB level
101 - -2 dB level
110 - -1 dB level
111 - Clipping
Function:
The analog-to-digital converter is continually monitoring the peak digital signal output for both the left
and right channel, prior to the digital limiter. The maximum output value is stored in the LVL and LVR
bits. The LVL and LVR bits are `sticky', so they are reset after each read is performed.
5.7
Master Clock Control (address 07h)
5.7.1
MASTER CLOCK CONTROL (MCK)
Default = 00
00 - XTI = 256 Fs for Master Mode
01 - XTI = 384 Fs for Master Mode
10 - XTI = 512 Fs for Master Mode
Function:
The MCK bits allow for control of the Master Clock, XTI, input frequency.
Note:
These bits are not valid when operating in slave mode.
7
6
5
4
3
2
1
0
ACCR
ACCL
LVR2
LVR1
LVR0
LVL2
LVL2
LVL0
0
0
0
0
0
0
0
0
7
6
5
4
3
2
1
0
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
MCK1
MCK0
0
0
0
0
0
0
0
0
CS4220 CS4221
18
DS284PP3

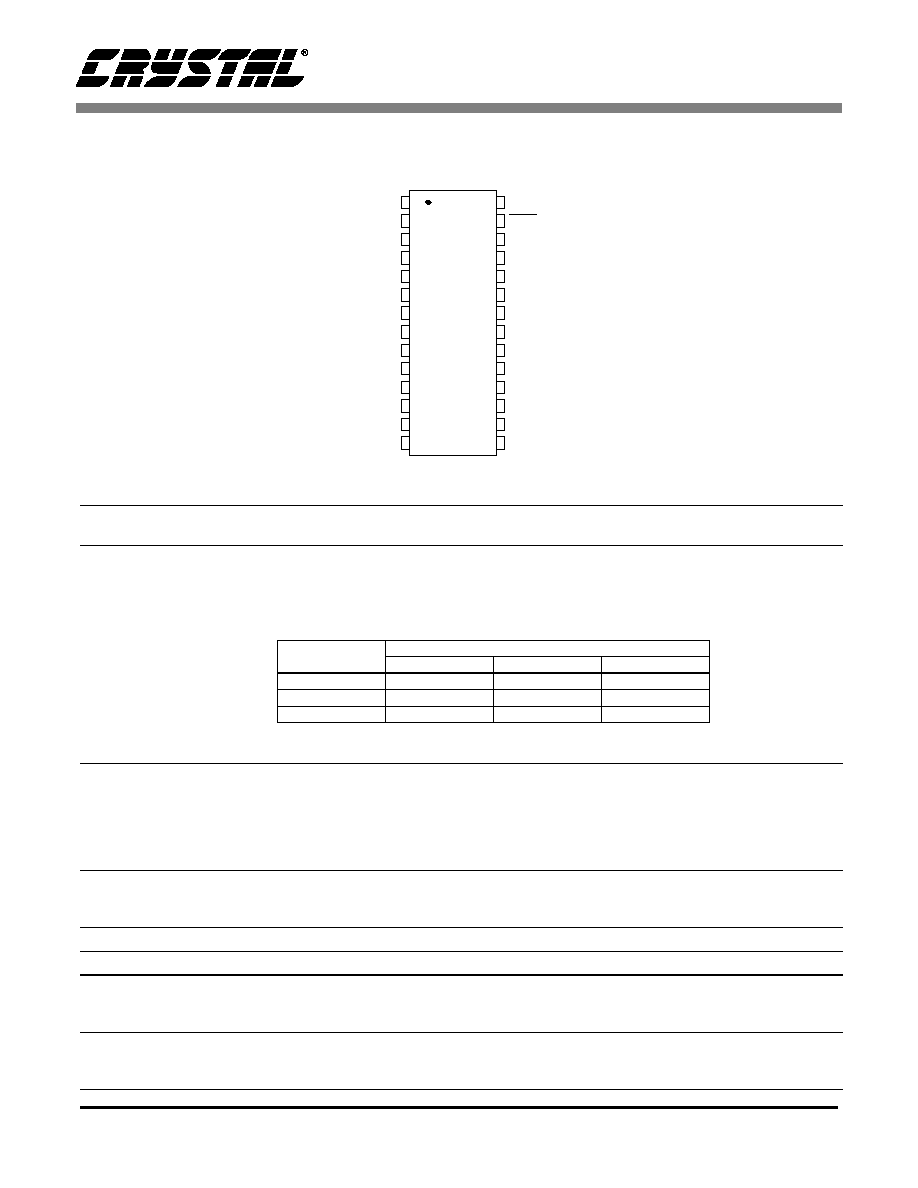

6. PIN DESCRIPTIONS -- CS4220
1
2
3
4
5
6
7
8
21
22
23
24
25
26
27
28
NC
RST
AOUTL-
AOUTL+
AOUTR+
AOUTR-
AGND
VA
SDOUT
DGND
VD
SCLK
LRCK
XTI
XTO
NC
9
10
11
12
17
18
19
20
AINL+
AINL-
DEM1
AINR+
DEM0
DIF0
DIF1
SDIN
13
14
15
16
AINR-
NC
NC
VL
CS4220
1
2
3
4
5
6
7
8
21
22
23
24
25
26
27
28
NC
RST
AOUTL-
AOUTL+
AOUTR+
AOUTR-
AGND
VA
SDOUT
DGND
VD
SCLK
LRCK
XTI
XTO
NC
9
10
11
12
17
18
19
20
AINL+
AINL-
DEM1
AINR+
DEM0
DIF0
DIF1
SDIN
13
14
15
16
AINR-
NC
NC
VL
CS4220
NC
1,14,15, 28 No Connect - These pins are not connected internally and should be tied to DGND to mini-
mize noise coupling.
XTI, XTO
2,3
Crystal Connections (
Input/Output) - Input and output connections for the crystal used to
clock the CS4220. Alternatively, a clock may be input into XTI. This is the clock source for the
delta-sigma modulator and digital filters. The frequency of this clock must be either 256x, 384x,
or 512x Fs in Slave Mode and 256x in Master Mode.
LRCK
4
Left/Right Clock (
Input) - Determines which channel is currently being input/output of the
serial audio data pins SDIN/SDOUT. The frequency of the Left/Right clock must be equal to the
input sample rate. Although the outputs for each ADC channel are transmitted at different
times, Left/Right pairs represent simultaneously sampled analog inputs. The required relation-
ship between the left/right clock, serial clock and serial data is defined by the DIF1-0 pins. The
options are detailed in Figures 8 - 11.
SCLK
5
Serial Data Clock (
Input) - Clocks the individual bits of the serial data into the SDIN pin and
out of the SDOUT pin. The required relationship between the left/right clock, serial clock and
serial data is defined by the DIF1-0 pins. The options are detailed in Figures 8 - 11.
VD
6
Digital Power (
Input) - Positive power supply for the digital section. Typically 5.0 VDC.
DGND
7
Digital Ground (
Input) - Digital ground for the digital section.
SDOUT
8
Serial Data Output (
Output) - Two's complement MSB-first serial data is output on this pin.
The required relationship between the left/right clock, serial clock and serial data is defined by
the DIF1-0 pins. The options are detailed in Figures 8 - 11.
SDIN
9
Serial Data Input (
Input) - Two's complement MSB-first serial data is input on this pin. The
required relationship between the left/right clock, serial clock and serial data is defined by the
DIF1-0 pins. The options are detailed in Figures 8 - 11.
Fs (kHz)
XTI (MHz)
256x
384x
512x
32
8.1920
12.2880
16.3840
44.1
11.2896
16.9344
22.5792
48
12.2880
18.4320
24.5760
Table 2. Common Clock Frequencies
CS4220 CS4221
DS284PP3
19
DIF0, DIF1
10,11
Digital Interface Format (
Input) - The required relationship between the left/right clock, serial
clock and serial data is defined by the Digital Interface Format. The options are detailed in Fig-
ures 8 - 11.
DEM0, DEM1
12,18
De-Emphasis Select (
Input) - Controls the activation of the standard 50/15 s de-emphasis
filter. 32, 44.1, or 48 kHz sample rate selection defined in Table 4.
VL
13
Digital Logic Power (
Input) - Positive power supply for the digital interface section. Typically
3.0 to 5.0 VDC.
AINR-, AINR+
16,17
Differential Right Channel Analog Input (
Input) - The full scale analog input level (differen-
tial) is specified in the Analog Characteristics specification table and may be AC coupled or DC
coupled into the device, see Figure 12 for optional line input buffer.
AINL-, AINL+
19,20
Differential Left Channel Analog Input (
Input) - The full scale analog input level (differential)
is specified in the Analog Characteristics specification table and may be AC coupled or DC
coupled into the device, see Figure 12 for optional line input buffer.
VA
21
Analog Power (
Input) - Positive power supply for the analog section. Nominally +5 Volts.
AGND
22
Analog Ground (
Input) - Analog ground reference.
AOUTR-,
AOUTR+
23, 24
Differential Right Channel Analog Output (
Output) - The full scale analog output level (dif-
ferential) is specified in the Analog Characteristics specification table.
AOUTL-, AOUTL+
25, 26
Differential Left Channel Analog Output (
Output) - The full scale analog output level (differ-
ential) is specified in the Analog Characteristics specification table.
RST
27
Reset (
Input) - When low, the device enters a low power mode and all internal registers are
reset, including the control port. When high, the control port becomes operational and normal
operation will occur.
DIF1
DIF0
DESCRIPTION
FORMAT
FIGURE
0
0
I
2
S, up to 24-bit data
0
8
0
1
Left Justified, up to 24-bit data
1
9
1
0
Right Justified, 24-bit Data
2
10
1
1
Right Justified, 20-bit Data
3
11
Table 3. Digital Interface Format - DIF1 and DIF0
DEM0
DEM1
De-Emphasis
0
0
32 kHz
0
1
44.1 kHz
1
0
48 kHz
1
1
Disabled
Table 4. De-emphasis Control
CS4220 CS4221
20
DS284PP3
7. PIN DESCRIPTIONS -- CS4221
1
2
3
4
5
6
7
8
21
22
23
24
25
26
27
28
NC
RST
AOUTL-
AOUTL+
AOUTR+
AOUTR-
AGND
VA
SDOUT
DGND
VD
SCLK
LRCK
XTI
XTO
NC
9
10
11
12
17
18
19
20
AINL+
AINL-
I2C/SPI
AINR+
AD0/CS
SDA/CDIN
SCL/CCLK
SDIN
13
14
15
16
AINR-
NC
NC
VL
CS4221
NC
1,14,15, 28 No Connect - These pins are not connected internally and should be tied to DGND to mini-
mize noise coupling.
XTI, XTO
2,3
Crystal Connections (
Input/Output) - Input and output connections for the crystal used to
clock the CS4221. Alternatively a clock may be input into XTI. This is the clock source for the
delta-sigma modulator and digital filters. The frequency of this clock must be either 256x, 384x,
or 512x Fs. The default XTI setting in Master Mode is 256x, but this may be changed to 384x
or 512x through the Control Port.
LRCK
4
Left/Right Clock (
Input) - Determines which channel is currently being input/output of the
serial audio data pins SDIN/SDOUT. The frequency of the Left/Right clock must be equal to the
input sample rate. Although the outputs for each ADC channel are transmitted at different
times, Left/Right pairs represent simultaneously sampled analog inputs. The required relation-
ship between the left/right clock, serial clock and serial data is defined by the DSP Port Mode
(05h) register. The options are detailed in Figures 8 - 11.
SCLK
5
Serial Data Clock (
Input) - Clocks the individual bits of the serial data into the SDIN pin and
out of the SDOUT pin. The required relationship between the left/right clock, serial clock and
serial data is defined by the DSP Port Mode (05h) register. The options are detailed in Figures
8 - 11.
VD
6
Digital Power (
Input) - Positive power supply for the digital section. Typically 5.0 VDC.
DGND
7
Digital Ground (
Input) - Digital ground for the digital section.
SDOUT
8
Serial Data Output (
Output) - Two's complement MSB-first serial data is output on this pin.
The required relationship between the left/right clock, serial clock and serial data is defined by
the DSP Port Mode (05h) register. The options are detailed in Figures 8 - 11.
Fs (kHz)
XTI (MHz)
256x
384x
512x
32
8.1920
12.2880
16.3840
44.1
11.2896
16.9344
22.5792
48
12.2880
18.4320
24.5760
Table 5. Common Clock Frequencies
CS4220 CS4221
DS284PP3
21
SDIN
9
Serial Data Input (
Input) - Two's complement MSB-first serial data is input on this pin. The
required relationship between the left/right clock, serial clock and serial data is defined by the
DSP Port Mode (05h) register. The options are detailed in Figures 8 - 11.
SCL/CCLK
10
Serial Control Port Clock (
Input) - Clocks the serial control bits into and out of the CS4221.
In I
2
C mode, SCL requires an external pull-up resistor according to the I
2
C specification.
SDA/CDIN
11
Serial Control Port Data (
Input/Output)- SDA is a data I/O line in I
2
C mode and requires an
external pull-up resistor according to the I
2
C specification. CDIN in the input data line for the
serial control port in SPI mode.
AD0/CS
12
Address Bit/Control Chip Select (
Input) - In I
2
C mode, AD0 is a chip address bit. In SPI
mode, CS is used to enable the control port interface on the CS4221. The CS4221 control port
interface is defined by the SPI/I2C pin.
VL
13
Logic Power (
Input) - Positive power supply for the digital interface section. Typically 3.0 to
5.0 VDC.
AINR-, AINR+
16,17
Differential Right Channel Analog Input (
Input) - The full scale analog input level (differen-
tial) is specified in the Analog Characteristics specification table and may be AC coupled or DC
coupled into the device, see Figure 12 for optional line input buffer.
I2C/SPI
18
Control Port Format (
Input) - When this pin is high, I
2
C mode is selected, when low, SPI is
selected.
AINL-, AINL+
19,20
Differential Left Channel Analog Input (
Input) - The full scale analog input level (differential)
is specified in the Analog Characteristics specification table and may be AC coupled or DC
coupled into the device, see Figure 12 for optional line input buffer.
VA
21
Analog Power (
Input) - Positive power supply for the analog section. Typically 5.0 VDC.
AGND
22
Analog Ground (
Input) - Analog ground reference.
AOUTR-,
AOUTR+
23, 24
Differential Right Channel Analog Outputs (
Output) - The full scale analog output level (dif-
ferential) is specified in the Analog Characteristics specification table.
AOUTL-,
AOUTL+
25, 26
Differential Left Channel Analog Outputs (
Output) - The full scale analog output level (dif-
ferential) is specified in the Analog Characteristics specification table.
RST
27
Reset (
Input) - When low, the device enters a low power mode and all internal registers are
reset, including the control port. When high, the control port becomes operational and normal
operation will occur.
CS4220 CS4221
22
DS284PP3
8. APPLICATIONS
8.1
Overview
The CS4220 is a stand-alone device controlled
through dedicated pins. The CS4221 is controlled
with an external microcontroller using the serial
control port.
8.2
Grounding and Power Supply
Decoupling
As with any high resolution converter, the
CS4220/1 requires careful attention to power sup-
ply and grounding arrangements to optimize per-
formance. Figures 4 and 5 shows the
recommended power arrangement with VA, VD
and VL connected to clean supplies. Decoupling
capacitors should be located as close to the device
package as possible. If desired, all supply pins may
be connected to the same supply, but a decoupling
capacitor should still be used on each supply pin.
8.3
High Pass Filter
The operational amplifiers in the input circuitry
driving the CS4220/1 may generate a small DC off-
set into the A/D converter. The CS4220/1 includes
a high pass filter after the decimator to remove any
DC offset which could result in recording a DC lev-
el, possibly yielding "clicks" when switching be-
tween devices in a multichannel system.
8.4
Analog Outputs
The recommended off-chip analog filter is either a
2nd order Butterworth or a 3rd order Butterworth,
if greater out-of-band noise filtering is desired. The
CS4220/1 DAC interpolation filter has been pre-
compensated for an external 2nd order Butterworth
filter with a 3 dB corner at Fs, or a 3rd order But-
terworth filter with a 3 dB corner at 0.75 Fs to pro-
vide a flat frequency response and linear phase over
the passband (see Figure 14 for Fs = 48 kHz). If the
recommended filter is not used, small frequency re-
sponse magnitude and phase errors will occur. In
addition to providing out-of-band noise attenua-
tion, the output filters shown in Figure 14 provide
differential to single-ended conversion.
8.5
Master vs. Slave Mode
The CS4220/1 may be operated in either master
mode or slave mode. In master mode, SCLK and
LRCK are outputs which are internally derived
from MCLK. The device will operate in master
mode when a 47 k
pulldown resistor is present on
SDOUT at startup or after reset, see Figure 5.
LRCK and SCLK are inputs to the CS4220/1 when
operating in slave mode. See Figures 8-11 for the
available clocking modes.
8.6
De-emphasis
The CS4220/1 includes digital de-emphasis for 32,
44.1, or 48 kHz sample rates. The frequency re-
sponse of the de-emphasis curve, as shown in Fig-
ure 15, will scale proportionally with changes in
samples rate, Fs. The de-emphasis feature is in-
cluded to accommodate older audio recordings that
utilize pre-emphasis as a means of noise reduction.
De-emphasis control is achieved with the DEM1/0
pins on the CS4220 or through the DEM1-0 bits in
the DSP Port Mode Byte (#5) on the CS4221.
8.7
Power-up / Reset / Power Down
Calibration
Upon power up, the user should hold RST = 0 for
approximately 10 ms. In this state, the control port
is reset to its default settings and the part remains in
the power down mode. At the end of RST, the de-
vice performs an offset calibration which lasts ap-
proximately 50 ms after which the device enters
normal operation. In the CS4221, a calibration may
also be initiated via the CAL bit in the ADC Con-
trol Byte (#1). The CALP bit in the ADC Control
Byte is a read only bit indicating the status of the
calibration.
Reset/Power Down is achieved by lowering the
RST pin causing the part to enter power down.
CS4220 CS4221
DS284PP3
23
Once RST goes high, the control port is functional
and the desired settings should be loaded.
The CS4220/1 will also enter power down mode if
the master clock source stops for approximately
10 s or if the LRCK is not synchronous to the
master clock. The control port will retain its current
settings.
The CS4220/1 will mute the analog outputs and en-
ter the power down mode if the supply drops below
approximately 4 volts.
8.8
Control Port Interface (CS4221 only)
The control port is used to load all the internal set-
tings. The operation of the control port may be
completely asynchronous with the audio sample
rate. However, to avoid potential interference prob-
lems, the control port pins should remain static if
no operation is required.
The control port has 2 modes: SPI
and I
2
C
, with
the CS4221 operating as a slave device. The con-
trol port interface format is selected by the SPI/I2C
pin.
8.8.1
SPI Mode
In SPI mode, CS is the CS4221 chip select signal,
CCLK is the control port bit clock, CDIN is the in-
put data line from the microcontroller and the chip
address is 0010000. All signals are inputs and data
is clocked in on the rising edge of CCLK.
Figure 6 shows the operation of the control port in
SPI mode. To write to a register, bring CS low. The
first 7 bits on CDIN form the chip address, and
must be 0010000. The eighth bit is a read/write in-
dicator (R/W), which must be low to write. Regis-
ter reading from the CS4221 is not supported in the
SPI mode. The next 8 bits form the Memory Ad-
dress Pointer (MAP), which is set to the address of
the register that is to be updated. The next 8 bits are
the data which will be placed into a register desig-
nated by the MAP.
The CS4221 has a MAP auto increment capability,
enabled by the INCR bit in the MAP register. If
INCR is a zero, then the MAP will stay constant for
successive writes. If INCR is set to a 1, then MAP
will auto increment after each byte is written, al-
lowing block writes of successive registers. Regis-
ter reading from the CS4221 is not supported in the
SPI mode.
8.8.2
I
2
C Mode
In I
2
C mode, SDA is a bidirectional data line. Data
is clocked into and out of the part by the clock,
SCL, with the clock to data relationship as shown
in Figure 7. There is no CS pin. Pin AD0 forms the
partial chip address and should be tied to VD or
DGND as desired. The upper 6 bits of the 7 bit ad-
dress field must be 001000. In order to communi-
cate with the CS4221, the LSB of the chip address
field (first byte sent to the CS4221) should match
the setting of the AD0 pin. The eighth bit of the ad-
dress byte is the R/W bit (high for a read, low for a
write). If the operation is a write, the next byte is
the Memory Address Pointer which selects the reg-
ister to be read or written. If the operation is a read,
the contents of the register pointed to by the Mem-
ory Address Pointer will be output. Setting the auto
increment bit in MAP, allows successive reads or
writes of consecutive registers. Each byte is sepa-
rated by an acknowledge bit.
CS4220 CS4221
24
DS284PP3
8.9
Memory Address Pointer (MAP)
8.9.1
AUTO-INCREMENT CONTROL (INCR)
Default = 0
0 - Disabled
1 - Enabled
8.9.2
REGISTER POINTER (MAP)
Default = 000
7
6
5
4
3
2
1
0
INCR
Reserved
Reserved
Reserved
Reserved
MAP2
MAP1
MAP0
0
0
0
0
0
0
0
0
CS
CCLK
CDIN
CHIP
ADDRESS
0010000
R/W
MAP
DATA
MSB
LSB
byte 1
byte n
MAP = Memory Address Pointer
Figure 6. Control Port Timing, SPI mode
SDA
SCL
001000
ADDR
AD0
R/W
ACK
DATA 1-8
ACK
DATA 1-8
ACK
Start
Stop
Figure 7. Control Port Timing, I
2
C mode
CS4220 CS4221
DS284PP3
25
Master
Slave
I
2
S, up to 24-bit data
XTI = 256, 384, 512 Fs (CS4223 - 256 Fs only)
LRCK = 4 to 50 kHz
SCLK = 64 Fs
I
2
S, up to 24-bit data
XTI = 256, 384, 512 Fs
LRCK = 4 to 50 kHz
SCLK = 48,64, 128 Fs
LRCK
SCLK
Left Channel
Right Channel
SDATA
+3 +2 +1 LSB
+5 +4
MSB -1 -2 -3 -4 -5
+3 +2 +1 LSB
+5 +4
MSB -1 -2 -3 -4
Figure 8. Serial Audio Format 0 (I
2
S)
Figure 9. Serial Audio Format 1
Master
Slave
Left-justified, up to 24-bit data
XTI = 256, 384, 512 Fs (CS4223 - 256 Fs only)
LRCK = 4 to 50 kHz
SCLK = 64 Fs
Left-justified, up to 24-bit data
XTI = 256, 384, 512 Fs
LRCK = 4 to 50 kHz
SCLK = 48, 64, 128 Fs
LRCK
SCLK
Left Channel
Right Channel
SDATA
+3 +2 +1 LSB
+5 +4
MSB -1 -2 -3 -4 -5
+3 +2 +1 LSB
+5 +4
MSB -1 -2 -3 -4
Figure 10. Serial Audio Format 2
Master
Slave
Right-justified, 24-bit data
XTI = 256, 384, 512 Fs (CS4223 - 256 Fs only)
LRCK = 4 to 50 kHz
SCLK = 64 Fs
Right-justified, 24-bit data
XTI = 256, 384, 512 Fs
LRCK = 4 to 50 kHz
SCLK = 64 Fs
LRCK
SCLK
Left Channel
SDATA
6
5
4
3
2
1
0
7
23 22 21 20 19 18
6
5
4
3
2
1
0
7
23 22 21 20 19 18
32 clocks
0
Right Channel
CS4220 CS4221
26
DS284PP3
Figure 11. Serial Audio Format 3
Master
Slave
Right-justified, 20-bit data
XTI = 256, 384, 512 Fs (CS4223 - 256 Fs only)
LRCK = 4 to 50 kHz
SCLK = 64 Fs
Right-justified, 20-bit data
XTI = 256, 384, 512 Fs
LRCK = 4 to 50 kHz
SCLK = 64 Fs
LRCK
SCLK
Left Channel
Right Channel
SDATA
6
5
4
3
2
1
0
9
8
7
15 14 13 12 11 10
1
0
6
5
4
3
2
1
0
9
8
7
15 14 13 12 11 10
17 16
17 16
32 clocks
19 18
19 18
Figure 12. Optional Input Buffer
Input
10 F
+
150
2.2 nF
4.7 F +
0.1 F
AINR-
AINR+
CS4223/4
Figure 13. Single-ended Input Application
CS4220 CS4221
DS284PP3
27
Figure 14. 2- and 3-Pole Butterworth Filters
Gain
dB
-10 dB
0 dB
Frequency
T2 = 15 s
T1 = 50 s
F1
F2
Figure 15. De-emphasis Curve
Signal
Noise
0
0
-113.5
Attenuation (d B)
A
m
p
l
i
t
ude
(
d
B)
Analog
Digital
Figure 16. Hybrid Analog/Digital Attenuation
CS4220 CS4221
28
DS284PP3
9. ADC/DAC FILTER RESPONSE
Figure 17. ADC Filter Response
Figure 18. ADC Passband Ripple
Figure 19. ADC Transition Band
Figure 20. DAC Filter Response
Figure 21. DAC Passband Ripple
Figure 22. DAC Transition Band
CS4220 CS4221
DS284PP3
29
10. PARAMETER DEFINITIONS
Dynamic Range
The ratio of the full scale rms value of the signal to the rms sum of all other spectral components over the
specified bandwidth. Dynamic range is a signal-to-noise measurement over the specified bandwidth
made with a -60 dBFS signal. 60 dB is then added to the resulting measurement to refer the measurement
to full scale. This technique ensures that the distortion components are below the noise level and do not
affect the measurement. This measurement technique has been accepted by the Audio Engineering So-
ciety, AES17-1991, and the Electronic Industries Association of Japan, EIAJ CP-307.
Total Harmonic Distortion + Noise
The ratio of the rms value of the signal to the rms sum of all other spectral components over the specified
bandwidth (typically 20 Hz to 20 kHz), including distortion components. Expressed in decibels. ADCs are
measured at -1 dBFS as suggested in AES17-1991 Annex A and DACs are measured at 0 dBFS.
Idle Channel Noise / Signal-to-Noise-Ratio
The ratio of the rms analog output level with 1 kHz full scale digital input to the rms analog output level
with all zeros into the digital input. Measured A-weighted over a 10 Hz to 20 kHz bandwidth. Units in deci-
bels. This specification has been standardized by the Audio Engineering Society, AES17-1991, and re-
ferred to as Idle Channel Noise. This specification has also been standardized by the Electronic Industries
Association of Japan, EIAJ CP-307, and referred to as Signal-to-Noise-Ratio.
Total Harmonic Distortion (THD)
THD is the ratio of the test signal amplitude to the rms sum of all the in-band harmonics of the test signal.
Units in decibels.
Interchannel Isolation
A measure of crosstalk between channels. Measured for each channel at the converter's output with no
signal to the input under test and a full-scale signal applied to the other channel. Units in decibels.
Frequency Response
A measure of the amplitude response variation from 20 Hz to 20 kHz relative to the amplitude response
at 1 kHz. Units in decibels.
Interchannel Gain Mismatch
For the ADCs, the difference in input voltage that generates the full scale code for each channel. For the
DACs, the difference in output voltages for each channel with a full scale digital input. Units are in deci-
bels.
Gain Error
The deviation from the nominal full scale output for a full scale input.
Gain Drift
The change in gain value with temperature. Units in ppm/C.
Offset Error
For the ADCs, the deviation in LSB's of the output from mid-scale with the selected inputs tied to a com-
mon potential. For the DAC's, the differential output voltage with mid-scale input code. Units are in volts.
CS4220 CS4221
30
DS284PP3
11. PACKAGE DIMENSIONS
Notes: 1. "D" and "E1" are reference datums and do not included mold flash or protrusions, but do include mold
mismatch and are measured at the parting line, mold flash or protrusions shall not exceed 0.20 mm per
side.
2. Dimension "b" does not include dambar protrusion/intrusion. Allowable dambar protrusion shall be
0.13 mm total in excess of "b" dimension at maximum material condition. Dambar intrusion shall not
reduce dimension "b" by more than 0.07 mm at least material condition.
3. These dimensions apply to the flat section of the lead between 0.10 and 0.25 mm from lead tips.
INCHES
MILLIMETERS
NOTE
DIM
MIN
NOM
MAX
MIN
NOM
MAX
A
--
--
0.084
--
--
2.13
A1
0.002
0.006
0.010
0.05
0.15
0.25
A2
0.064
0.069
0.074
1.62
1.75
1.88
b
0.009
--
0.015
0.22
--
0.38
2,3
D
0.390
0.4015
0.413
9.90
10.20
10.50
1
E
0.291
0.307
0.323
7.40
7.80
8.20
E1
0.197
0.209
0.220
5.00
5.30
5.60
1
e
0.022
0.026
0.030
0.55
0.65
0.75
L
0.025
0.0354
0.041
0.63
0.90
1.03
0
4
8
0
4
8
JEDEC #: MO-150
Controlling Dimension is Millimeters
28L SSOP PACKAGE DRAWING
E
N
1 2 3
e
b
2
A1
A2
A
D
SEATING
PLANE
E1
1
L
SIDE VIEW
END VIEW
TOP VIEW
Notes
PDF
ZIP
