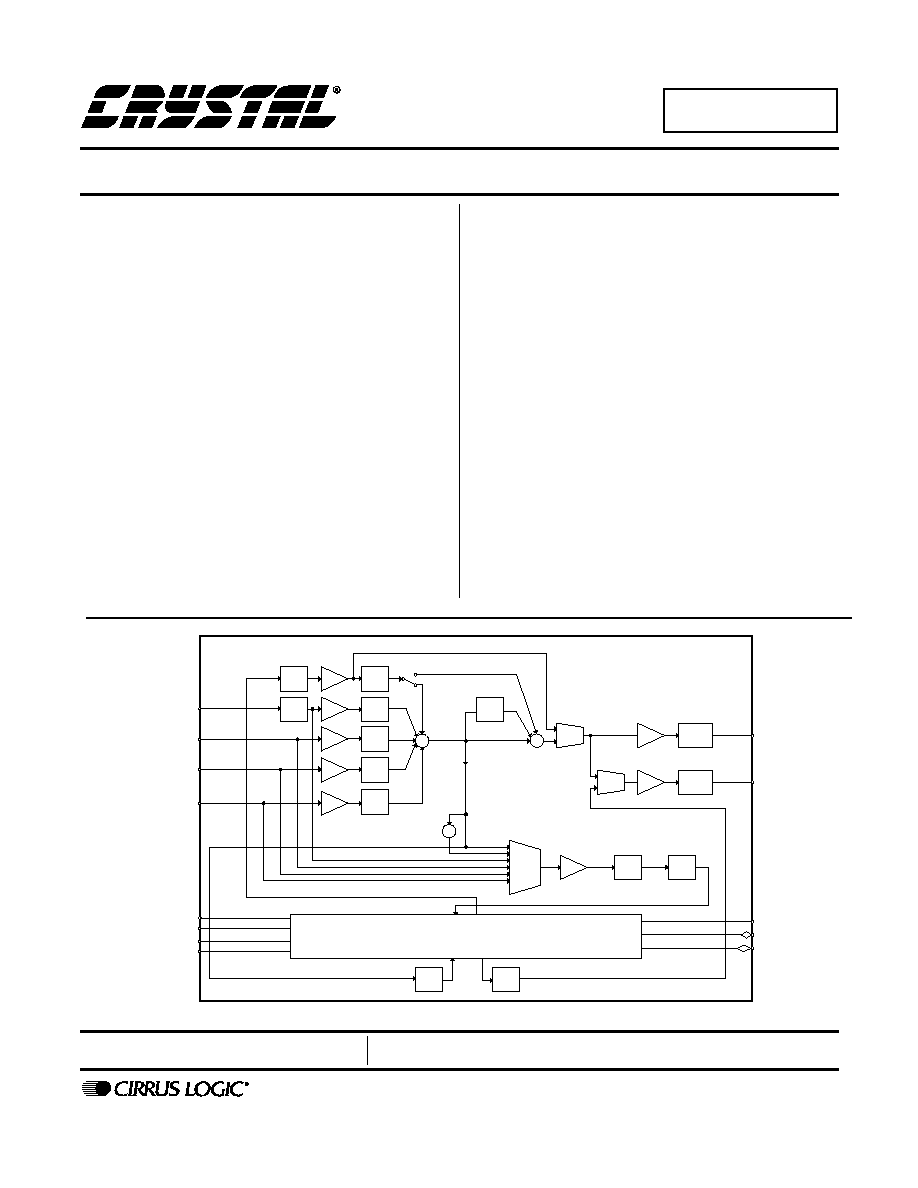

FEATURES

AC `97 2.0 compatible

20-bit quad output and 18-bit dual stereo input
codec with fixed 48 kHz sampling rate

Dedicated ADC for enhanced digital docking

Three analog line-level stereo inputs for connec-
tion from LINE IN, CD, and AUX

High quality pseudo-differential CD input

Dual stereo line level output with independent 6-
bit volume control

6 General Purpose I/O pins

Meets or exceeds Microsoft's

PC 98 and PC 99

audio performance requirements

CrystalClearTM Stereo Enhancement

DESCRIPTION

The CS4294 is an AC `97 compatible Audio Codec
designed for PC multimedia systems. Using the in-
dustry leading CrystalClearTM delta-sigma and
mixed signal technology, the CS4294 is ideal for
PC 98-compliant desktop, notebook, and enter-
tainment PCs, where high-quality audio features
are required. The CS4294 offers four channels of
D/A and A/D conversion along with analog mixing
and stereo enhancement processing. For multi-
channel audio systems, the CS4294 can provide
four audio channels. The CS4294 provides an en-
hanced digital docking mode for portable
applications by providing a dedicated ADC capture
path from the analog input mixer.

ORDERING INFORMATION

CS4294-

48-pin TQFP 9x9x1.4mm

CS4294

-JQ

48-pin TQFP 9x9x1.4mm

VOL

MUTE

VOL

+20dB

DAC

STEREO TO

MONO MIXER

VOL

OUTPUT
BUFFER

MASTER VOLUME

ALTERNATE VOLUME

MAIN D/A

CONVERTERS

PCM_OUT

PCM OUT

PATH

STEREO

INPUT

MIXER

STEREO
OUTPUT

MIXER

MIC1

AUX

LINE

Mode Control

SYNC

SDATA_OUT

MUTE

VOL

ADC

INPUT

MUX

VOL

MUTE

ADC

MAIN ADC GAIN

ADC

DAC

RESET#

ALT_LINE_OUT

LINE_OUT

GPIO

BIT_CLK

SDATA_IN

AC-Link Interface

SoundFusion

Audio/Docking Codec '97 (AMC'97)

CS4294

FEB `00

DS326PP4

CS4294

DS326PP4

TABLE OF CONTENTS

1. CHARACTERISTICS AND SPECIFICATIONS ........................................................................ 5

AUDIO ANALOG CHARACTERISTICS.................................................................................... 5
ABSOLUTE MAXIMUM RATINGS ........................................................................................... 6
RECOMMENDED OPERATING CONDITIONS ....................................................................... 6
MIXER CHARACTERISTICS.................................................................................................... 6
DIGITAL CHARACTERISTICS ................................................................................................. 6
SERIAL PORT TIMING............................................................................................................. 7

2. GENERAL DESCRIPTION ..................................................................................................... 10

2.1 Overview .......................................................................................................................... 10
2.2 Modes of Operation ......................................................................................................... 10

2.2.1 Mode 0 ................................................................................................................ 10
2.2.2 Mode 1 ................................................................................................................ 10

3. DIGITAL SECTION ................................................................................................................. 10

3.1 AC-Link ............................................................................................................................ 10
3.2 Control registers ............................................................................................................... 11

4. ANALOG SECTION ................................................................................................................ 11

4.1 Audio Output Mixer .......................................................................................................... 12
4.2 Audio Input Mux ............................................................................................................... 12
4.3 Audio Input Mixer ............................................................................................................. 12
4.4 Audio Volume Control ...................................................................................................... 12

5. AC `97 ..................................................................................................................................... 12

5.1 AC `97 Frame Definition ................................................................................................... 12
5.2 AC-Link Serial Data Output Frame .................................................................................. 12
5.3 AC-Link Audio Output Frame ........................................................................................... 13

5.3.1 Serial Data Output Slot Tags (Slot 0)................................................................... 13
5.3.2 Register Address (Slot 1) ..................................................................................... 13
5.3.3 Register Write Data (Slot 2) ................................................................................. 14
5.3.4 Playback Data (Slots 3-11) .................................................................................. 14
5.3.5 GPIO Data (Slot12) .............................................................................................. 14

5.4 AC-Link Audio Input Frame .............................................................................................. 14

5.4.1 Serial Data Input Slot Tag Bits (Slot 0) ............................................................... 14
5.4.2 Read-Back Address Port (Slot 1) ......................................................................... 15
5.4.3 Read-Back Data Port (Slot 2)............................................................................... 15
5.4.4 PCM Capture Data (Slot 3-11) ............................................................................. 15
5.4.5 GPIO Pin Status (Slot 12) .................................................................................... 15

Contacting Cirrus Logic Support

For a complete listing of Direct Sales, Distributor, and Sales Representative contacts, visit the Cirrus Logic web site at:
http://www.cirrus.com/corporate/contacts/

CrystalClear is a trademark of Cirrus Logic, Inc.
SoundFusion is a registered trademark of Cirrus Logic, Inc.

Preliminary product information describes products which are in production, but for which full characterization data is not yet available. Advance prod-
uct information describes products which are in development and subject to development changes. Cirrus Logic, Inc. has made best efforts to ensure
that the information contained in this document is accurate and reliable. However, the information is subject to change without notice and is provided
"AS IS" without warranty of any kind (express or implied). No responsibility is assumed by Cirrus Logic, Inc. for the use of this information, nor for
infringements of patents or other rights of third parties. This document is the property of Cirrus Logic, Inc. and implies no license under patents, copy-
rights, trademarks, or trade secrets. No part of this publication may be copied, reproduced, stored in a retrieval system, or transmitted, in any form
or by any means (electronic, mechanical, photographic, or otherwise) without the prior written consent of Cirrus Logic, Inc. Items from any Cirrus
Logic webbiest or disk may be printed for use by the user. However, no part of the printout or electronic files may be copied, reproduced, stored in a
retrieval system, or transmitted, in any form or by any means (electronic, mechanical, photographic, or otherwise) without the prior written consent
of Cirrus Logic, Inc.Furthermore, no part of this publication may be used as a basis for manufacture or sale of any items without the prior written
consent of Cirrus Logic, Inc. The names of products of Cirrus Logic, Inc. or other vendors and suppliers appearing in this document may be trade-
marks or service marks of their respective owners which may be registered in some jurisdictions. A list of Cirrus Logic, Inc. trademarks and service

CS4294

DS326PP4

5.5 AC '97 Reset Modes ........................................................................................................ 15

5.5.1 Cold AC `97 Reset .............................................................................................. 15
5.5.2 Warm AC '97 Reset ............................................................................................ 15
5.5.3 AC '97 Register Reset ........................................................................................ 16

5.6 AC-Link Protocol Violation - Loss of SYNC ..................................................................... 16

6. REGISTER INTERFACE ........................................................................................................ 17

6.1 Register Descriptions ...................................................................................................... 18

6.1.1 Reset (Index 00h) ............................................................................................... 18
6.1.2 Master Volume (Index 02h) ................................................................................. 18
6.1.3 Alternate Volume (Index 04h) ............................................................................. 19
6.1.4 Microphone Volume (Index 0Eh) ......................................................................... 19
6.1.5 Stereo Analog Mixer Input Gain (Index's 10h - 12h, 16h - 18h)........................... 20
6.1.6 Input Mux Select (Index 1Ah)............................................................................... 20
6.1.7 Record Gain (Index 1Ch) ..................................................................................... 21
6.1.8 General Purpose (Index 20h)............................................................................... 21
6.1.9 Stereo Enhancement Control (Index 22h) ........................................................... 21
6.1.10 Power Down Control/Status (Index 26h)............................................................ 22
6.1.11 Extended Audio ID (Index 28h) ......................................................................... 23
6.1.12 Extended Audio Status/Control (Index 2Ah) ..................................................... 23
6.1.13 PCM Front DAC Rate (Index 2Ch) .................................................................. 23
6.1.14 PCM Surround DAC Rate (Index 2Eh) ........................................................... 23
6.1.15 PCM LFE DAC Rate (Index 30h) .................................................................... 24
6.1.16 PCM LR ADC Rate (Index 32h) ......................................................................... 24
6.1.17 Center LFE Volume (Index 36h) ........................................................................ 24
6.1.18 LR Surround Volume (Index 38h) ...................................................................... 24
6.1.19 Extended Codec ID (Index 3Ch) ....................................................................... 25
6.1.20 Extended Codec Status/Control (Index 3Eh) .................................................... 25
6.1.21 Extended Audio DAC1/ADC1 Rate (Index 40h)................................................. 26
6.1.22 Extended Audio DAC2/ADC2 (Index 44h) ......................................................... 26
6.1.23 Extended Audio DAC1/ADC1 Level (Index 46h)................................................ 26
6.1.24 Extended AudioDAC2/ADC2 Level (Index 4Ah) ................................................ 26
6.1.25 GPIO Pin Configuration (Index 4Ch).................................................................. 27
6.1.26 GPIO Pin Polarity/Type Configuration (Index 4Eh)............................................ 27
6.1.27 GPIO Pin Sticky (Index 50h) .............................................................................. 27
6.1.28 GPIO Pin Wakeup Mask (Index 4Ch) ............................................................... 28
6.1.29 GPIO Pin Status (Index 54h) ............................................................................. 28
6.1.30 AC Mode Control (Index 5Eh)............................................................................ 28
6.1.31 Vendor ID1 (Index 7Ch) ..................................................................................... 29
6.1.32 Vendor ID2 (Index 7Eh) ..................................................................................... 29

7. ANALOG HARDWARE DESCRIPTION ................................................................................. 30

7.1 Line-Level Inputs ............................................................................................................. 30
7.2 Microphone Level Inputs ................................................................................................. 30
7.3 Line Level Outputs ........................................................................................................... 31
7.4 Miscellaneous Analog Signals ......................................................................................... 31
7.5 Power Supplies ................................................................................................................ 32

8. PIN DESCRIPTIONS .............................................................................................................. 33

8.1 Digital I/O Pins ................................................................................................................. 33
8.2 Analog I/O Pins ................................................................................................................ 35
8.3 Filter and Reference Pins ................................................................................................ 36
8.4 Power Supplies ................................................................................................................ 37

9. PARAMETER AND TERM DEFINITIONS .............................................................................. 38
10. REFERENCES ...................................................................................................................... 39
11. PACKAGE DIMENSIONS .................................................................................................... 40

CS4294

DS326PP4

LIST OF FIGURES

Figure 1. Power Up Timing.............................................................................................................. 8
Figure 2. Clocks .............................................................................................................................. 8
Figure 3. Codec Ready from Startup or Fault Condition ................................................................. 8
Figure 4. Data Setup and Hold........................................................................................................ 9
Figure 5. PR4 Powerdown .............................................................................................................. 9
Figure 6. Test Mode ........................................................................................................................ 9
Figure 7. AC-link Connections....................................................................................................... 11
Figure 8. Mixer Diagram................................................................................................................ 11
Figure 9. AC-link Input and Output Framing.................................................................................. 12
Figure 10. Line Inputs.................................................................................................................... 30
Figure 11. Differential CDROM In ................................................................................................. 30
Figure 12. PC `99 Microphone Pre-amplifier ................................................................................. 31
Figure 13. Headphones Driver ...................................................................................................... 32
Figure 14. Voltage Regulator ........................................................................................................ 32

LIST OF TABLES

Table 1. Mixer Registers ............................................................................................................... 17
Table 2. Alternate Line-Out and Master Mono Attenuation ........................................................... 19
Table 3. Analog Mixer Input Gain Values...................................................................................... 19
Table 4. Stereo Volume Register Index ........................................................................................ 20
Table 5. Input Mux Selection......................................................................................................... 20
Table 6. 6 Channel Volume Attenuation........................................................................................ 24
Table 7. GPIO Input/Output Configuration .................................................................................... 27
Table 8. Slot Assignments............................................................................................................ 28
Table 9. Reg. 7Eh Defined Part ID's ............................................................................................. 29

CS4294

DS326PP4

1. CHARACTERISTICS AND SPECIFICATIONS

AUDIO ANALOG CHARACTERISTICS

(Standard test conditions unless otherwise noted:

ambient

= 25° C, AVdd = 5.0 V ±5%, DVdd = 3.3 V ±5%; 1 kHz Input Sine wave; Sample Frequency, Fs = 48 kHz;

=10 k

680 pF load C

= 18 pF load (Note 1); Measurement bandwidth is 20 Hz - 20 kHz, 18-bit linear coding

for ADC, 20-bit linear coding for DAC; Mixer registers set for unity gain.

Notes: 1. Z

refers to the analog output pin loading and C

refers to the digital output pin loading.

2. Parameter definitions are given in the Parameter and Term Definitions section.
3. Path refers to the signal path used to generate this data. These paths are defined in the Parameter and

Term Definition section.

4. Typical measured with Z

= 47 k

/680 pF load.

5. This specification is guaranteed by silicon characterization, it is not production tested.

Parameter (Note 2)

Symbol

Path

(Note 3)

CS4294-KQ

CS4294-JQ

Unit

Min Typ

Max

Min Typ

Max

Full Scale Analog Input Voltage
Line Inputs
Mic Inputs

(20 dB=0)

Mic Inputs

(20 dB=1)

A-D
A-D
A-D

0.91
0.91

0.091

1.00
1.00
0.10

-
-
-

0.91
0.91

0.091

1.00
1.00
0.10

-
-
-

RMS

Full Scale Output Voltage (Note 4)
Line and Alternate Line Outputs

D-A

0.91

1.0

1.13

0.91

1.0

1.13

RMS

Frequency Response
Analog

Ac = ± 0.5 dB

DAC

Ac = ± 0.5 dB

ADC

Ac = ± 0.5 dB

A-A

D-A
A-D

20
20
20

-
-
-

20,000
20,000
20,000

20
20
20

-
-
-

20,000
20,000
20,000

Hz
Hz
Hz

Dynamic Range
Stereo Analog inputs to LINE_OUT
Mono Analog inputs to LINE_OUT
DAC Dynamic Range
ADC Dynamic Range

A-A
A-A

D-A
A-D

90
85
85
85

95
90
90
90

-
-
-
-

90
85
87
85

-
-
-
-

dB FS A
dB FS A
dB FS A
dB FS A

DAC SNR (-20 dB FS input w/
CCIR-RMS filter on output)

SNR

D-A

Total Harmonic Distortion + Noise
(-3 dB FS input signal):
Line/Alternate Line Output
DAC
ADC

(all inputs except phone/mic)

ADC

(phone/mic)

THD+N

A-A

D-A
A-D
A-D

-
-
-
-

-94
-86
-87
-87

-80
-80
-80
-74

-
-
-
-

-74
-74
-74
-74

dB FS A
dB FS A
dB FS A
dB FS A

Power Supply Rejection Ratio
(1 kHz, 0.5 V

RMS

w/ 5 V DC offset)(Note 5)

Interchannel Isolation

Spurious Tone

(Note 5)

-100

dB FS

Input Impedance

(Note 5)

External Load Impedance

Output Impedance

(Note 5)

730

Input Capacitance

(Note 5)

Vrefout

2.0

2.3

2.4

2.0

2.3

2.4

CS4294

DS326PP4

ABSOLUTE MAXIMUM RATINGS

(AVss1 = AVss2 = DVss1 = DVss2 = 0 V)

RECOMMENDED OPERATING CONDITIONS

(AVss1 = AVss2 = DVss1 = DVss2 = 0 V)

MIXER CHARACTERISTICS

(for CS4294-KQ only)

DIGITAL CHARACTERISTICS

(AVss = DVss = 0 V)

Parameter

Min Typ

Max

Unit

Power Supplies

+3.3 V Digital

+5 V Digital

Analog

-0.3
-0.3
-0.3

-
-
-

6.0
6.0
6.0

V
V
V

Total Power Dissipation

(Supplies, Inputs, Outputs)

750

Input Current per Pin

(Except Supply Pins)

-10

Output Current per Pin

(Except Supply Pins)

-15

Analog Input voltage

-0.3

AVdd + 0.3

Digital Input voltage

-0.3

DVdd + 0.3

Ambient Temperature

(Power Applied)

-55

110

°C

Storage Temperature

-65

150

°C

Parameter

Symbol

Min Typ

Max

Unit

Power Supplies

+3.3 V Digital

+5 V Digital

Analog

DVdd1, DVdd2
DVdd1, DVdd2

AVdd1, AVdd2

3.135

4.75
4.75

3.3

5
5

3.465

5.25
5.25

V
V
V

Operating Current +3.3 V Digital

+5 V Digital

Analog

DVdd1, DVdd2

AVdd1, AVdd2

40
40
75

52
52

97.5

mA
mA
mA

Operating Ambient Temperature

°C

Parameter

Min Typ

Max

Unit

Mixer Gain Range Span

Line In, Aux, CD, Mic1

Line Out, Alternate Line Out

-
-

46.5
94.5

-
-

dB
dB

Step Size

All volume controls

1.5

Parameter

Symbol

Min

Typ

Max

Unit

DVdd = 3.3V
Low level input voltage

0.8

High level input voltage

2.15

High level output voltage

3.0

3.25

Low level output voltage

0.03

.35

Input Leakage Current (AC-link inputs)

-10

µA

Output Leakage Current (Tri-stated AC-link outputs)

-10

µA

Output buffer drive current

BIT_CLK

SDATA_IN, EAPD

mA
mA

DVdd = 5.0 V
Low level input voltage

0.8

High level input voltage

3.25

High level output voltage

4.5

4.95

Low level output voltage

0.03

.35

Input Leakage Current (AC-link inputs)

-10

µA

Output Leakage Current (Tri-stated AC-link outputs)

-10

µA

Output buffer drive current

BIT_CLK

SDATA_IN, EAPD

mA
mA

CS4294

DS326PP4

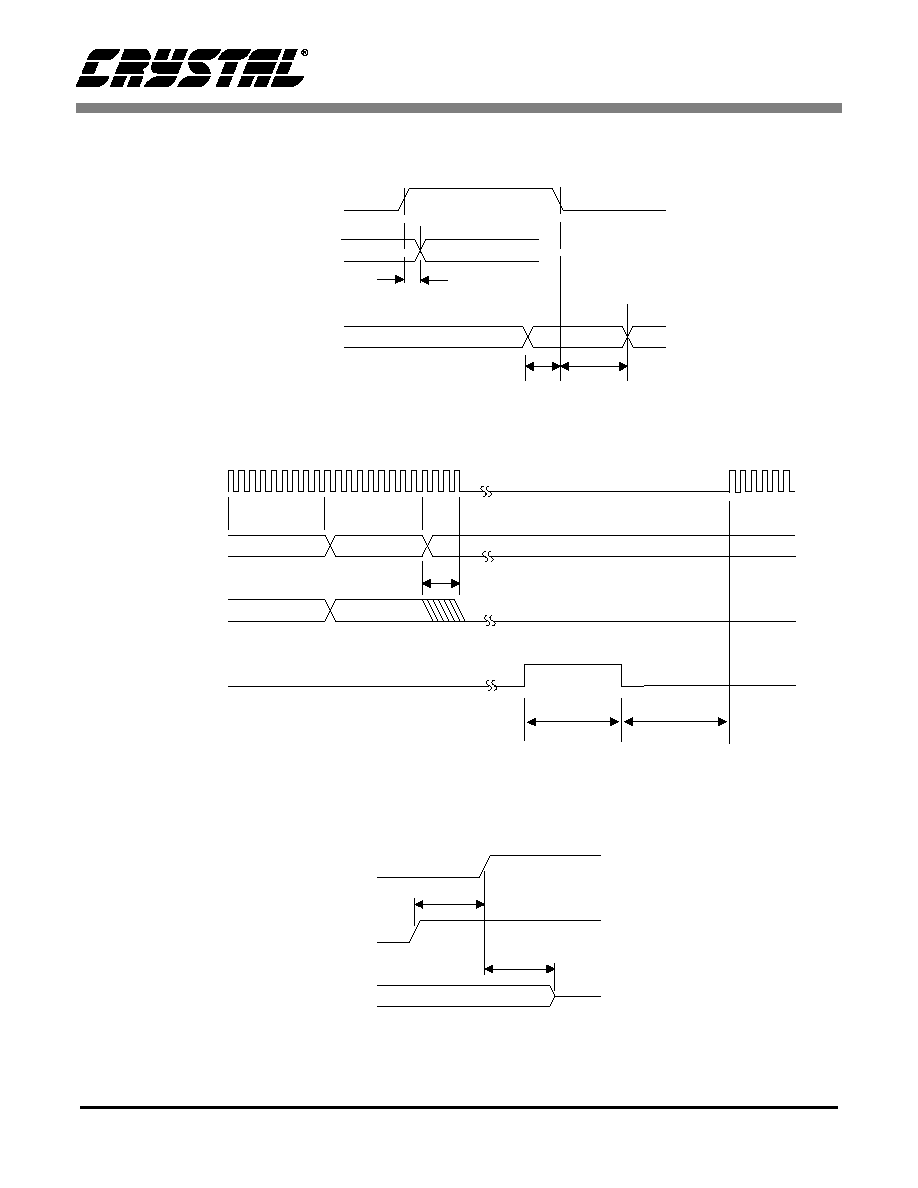

SERIAL PORT TIMING

Notes: 6. BIT_CLK measured with 47

series termination and C

= 50

pF.

Parameter

Symbol

Min

Typ

Max

Unit

RESET# Timing

Vdd stable to RESET# inactive

vdd2rst#

RESET# active low pulse width

rst_low

1.0

RESET# inactive to BIT_CLK start-up delay

rst2clk

120

1st SYNC active to CODEC READY set

sync2crd

62.4

Clocks

BIT_CLK frequency

clk

12.288

MHz

BIT_CLK period

clk_period

81.4

BIT_CLK output jitter (depends on XTAL_IN source)

750

BIT_CLK high pulse width

clk_high

40.7

BIT_CLK low pulse width

clk_low

40.7

SYNC frequency

sync

kHz

SYNC period

sync_period

20.8

SYNC high pulse width

sync_high

1.3

SYNC low pulse width

sync_low

19.5

Data Setup and Hold

Output Propagation delay from rising edge of BIT_CLK

Input setup time from falling edge of BIT_CLK

isetup

Input hold time from falling edge of BIT_CLK

ihold

Input Signal rise time

irise

Input Signal fall time

ifall

Output Signal rise time

(Note 5, 6)

orise

Output Signal fall time

(Note 5, 6)

ofall

Misc. Timing Parameters

End of Slot 2 to BIT_CLK, SDATA_IN low (PR4)

s2_pdown

.34

1.0

SYNC pulse width (PR4) Warm Reset

sync_pr4

1.1

SYNC inactive (PR4) to BIT_CLK start-up delay

sync2clk

162.8

350

Setup to trailing edge of RESET# (test mode)

(Note 5)

setup2rst

Rising edge of RESET# to Hi-Z delay

(Note 5)

off

CS4294

DS326PP4

2. GENERAL DESCRIPTION

2.1

Overview

The CS4294 is a Mixed-Signal Audio Codec based
on the AC `97 1.0 Specification, and the AC `97
2.0 Extensions. It is designed to be paired with a
digital controller, typically located on the PCI bus.
The Controller is responsible for all communica-
tions between the CS4294 and the rest of the sys-
tem. The CS4294 functions as an analog mixer, a
stereo audio ADC, a stereo audio DAC, and a con-
trol and digital stream interface to the Controller.
The CS4294 contains three distinct functional sec-
tions: Digital, Analog Audio, and Extended Analog
Audio.

The Digital section includes the AC-Link registers,
power management support, SYNC detection cir-
cuitry, and AC-Link serial port interface logic. The
Analog Audio section includes the analog input
multiplexer (mux), stereo input mixer, stereo out-
put mixer, stereo ADCs, stereo DACs, and analog
volume controls. The Extended Audio section in-
cludes dual ADCs, dual DACs, GPIO control and
status, and power down and wake-up logic.

2.2

Modes of Operation

The CS4294 has two basic modes of operation.
Each mode allows varying functionality to meet a
wide variety of software and hardware configura-
tions. On power up or system reset, the device re-
verts to the basic configuration Mode 0. The four
channel expansion and enhanced digital docking
are activate in Mode 1.

2.2.1 Mode 0

This is the default operating mode for the CS4294.
It supports the legacy AC `97 audio modes of oper-
ation including audio mixer, ADC's, and DAC's.

2.2.2 Mode 1

Mode 1 is the four channel expansion mode. The
second ADC/DAC pairs are utilized for enhanced

audio functionality. The second stereo DAC's are
routed to the alternate line audio outputs providing
2 additional audio channels. The secondary ADC
inputs may be connected to the output of the analog
stereo input mixer for enhanced audio effect pro-
cessing or enhanced digital docking in a note book
application.

3. DIGITAL SECTION

3.1

AC-Link

All communication with the Codec is established
with a 5-wire digital interface to the Controller chip
as shown in Figure 7. All clocking for the serial
communication is synchronous to the BIT_CLK
signal. BIT_CLK is generated by the primary Co-
dec and is used to slave the Controller and any sec-
ondary Codecs, if applicable. An AC-link audio
frame is a sequence of 256 serial bits organized into
13 groups referred to as `slots'. One frame consists
of one 16-bit slot and twelve 20-bit slots. During
each audio frame, data is passed bi-directionally
between the Codec and the Controller. The input
frame is driven from the Codec on the SDATA_IN
line. The output frame is driven from the Controller
SDATA_OUT line. Both input and output frames
contain the same number of bits and are organized
with the same `slot' configuration. The input and
output frame have differing functions for each slot.
The Controller synchronizes the beginning of a
frame with the SYNC signal. In Figure 9 the posi-
tion of each bit location within the frame is noted.
The first bit position in a new serial data frame is F0
and the last bit position in the serial data frame is
F255. When SYNC goes active (high) and is sam-
pled active by the CS4294 (on the falling edge of
BIT_CLK), both devices are synchronized to a new
serial data frame. The data on the SDATA_OUT
pin at this clock edge is the final bit of the previous
frame's serial data. On the next rising edge of
BIT_CLK, the first bit of Slot 0 is driven by the
Controller on the SDATA_OUT pin. The CS4294
latches in this data, as the first bit of the frame, on

CS4294

DS326PP4

the next falling edge of the BIT_CLK clock signal.
The Controller is also responsible for issuing reset
via the RESET# signal. After being reset, the Co-
dec is responsible for flagging the Controller that it
is ready for operation after synchronizing its inter-
nal functions. The AC-link signals may be refer-
enced to either 5 Volts or 3.3 Volts. The CS4294
must use the same digital supply voltage as the
Controller chip.

3.2

Control registers

All read accesses to the Codec are generated by re-
questing a register address (index number) in slot 1
of a SDATA_OUT frame. The following
SDATA_IN frame will contain the register content
in its slot 2. The write operation is identical with the
index in slot 1 and the write data in slot 2. The
AC `97 Frame Definition section details the func-
tion of each input and output frame. Individual reg-
ister descriptions are found in the Register
Interface section.

AC-97 Register Interface

The CS4294 implements the AC '97 Registers in
accordance with the AC '97 2.0 Specification. See
the Register Interface section for details on the
CS4294's register set.

4. ANALOG SECTION

Please refer to Figure 8, Mixer diagram, for a high-
level graphical representation of the CS4294 ana-
log mixer structure.

CODEC

SYNC

BIT_CLK

SDATA_OUT

SDATA_IN

RESET#

Digital AC'97

Controller

Figure 7. AC-link Connections

Figure 8. Mixer Diagram

VOL

MUTE

VOL

+20dB

DAC

STEREO TO

MONO MIXER

VOL

OUTPUT
BUFFER

MASTER VOLUME

ALTERNATE VOLUME

MAIN D/A

CONVERTERS

PCM_OUT

PCM OUT

PATH

STEREO

INPUT
MIXER

STEREO
OUTPUT

MIXER

MIC1

AUX

LINE

Mode Control

SYNC

SDATA_OUT

MUTE

VOL

ADC

INPUT

MUX

VOL

MUTE

ADC

MAIN ADC GAIN

ADC

DAC

RESET#

ALT_LINE_OUT

LINE_OUT

GPIO

BIT_CLK

SDATA_IN

AC-Link Interface

CS4294

DS326PP4

4.1

Audio Output Mixer

The stereo output mixer sums together the analog
outputs from the Input Mixer, stereo enhancement,
and the PCM DAC output. The stereo output mix is
sent to the LINE_OUT and ALT_LINE_OUT out-
put pins of the CS4294. When the device is set to
Mode 1 or the EAM bit in AC Mode Control (Index
5Eh) is set, the secondary DAC outputs are routed
to ALT_LINE_OUT.

4.2

Audio Input Mux

The input multiplexer controls which analog input
is sent to the ADCs. The output of the input mux is
converted to stereo 18-bit digital PCM data and
sent to the Digital Controller chip in Slots 3 and 4
of the AC-Link SDATA_IN signal.

4.3

Audio Input Mixer

The input mixer is an analog mix of the analog in-
put signals such as MIC, LINE_IN, etc., and the
PCM Audio DAC output. The output of the mixer
is routed to the ADC Input Mux, Audio Output
Mixer, and may be routed to the Extended Audio
ADC input.

4.4

Audio Volume Control

The volume control registers of the AC '97 Regis-
ter interface control analog input level to the input

mixer, the master volume level, and the alternate
volume level. All analog volume controls imple-
ment volume steps at nominally 1.5 dB per step.
The analog inputs allow a mixing range of +12 dB
of signal gain to -34.5 dB of signal attenuation. The
analog output volume controls allows from 0 dB to
-94.5 dB of attenuation.

5. AC `97

5.1

AC `97 Frame Definition

The AC Link is a bi-directional serial port with
thirteen time-division multiplexed slots in each di-
rection. The first slot is 16 bits long and termed the
tag slot. Bits in the tag slot determine if the Codec
is ready and indicate which, if any, other slots con-
tain valid data. Slots 1 through 11 are 20-bits long
and can contain audio data. Slot 12 contains data to
be written and read from GPIO. The serial data line
is defined from the Controller's perspective, NOT
from the Audio Codec's perspective.

5.2

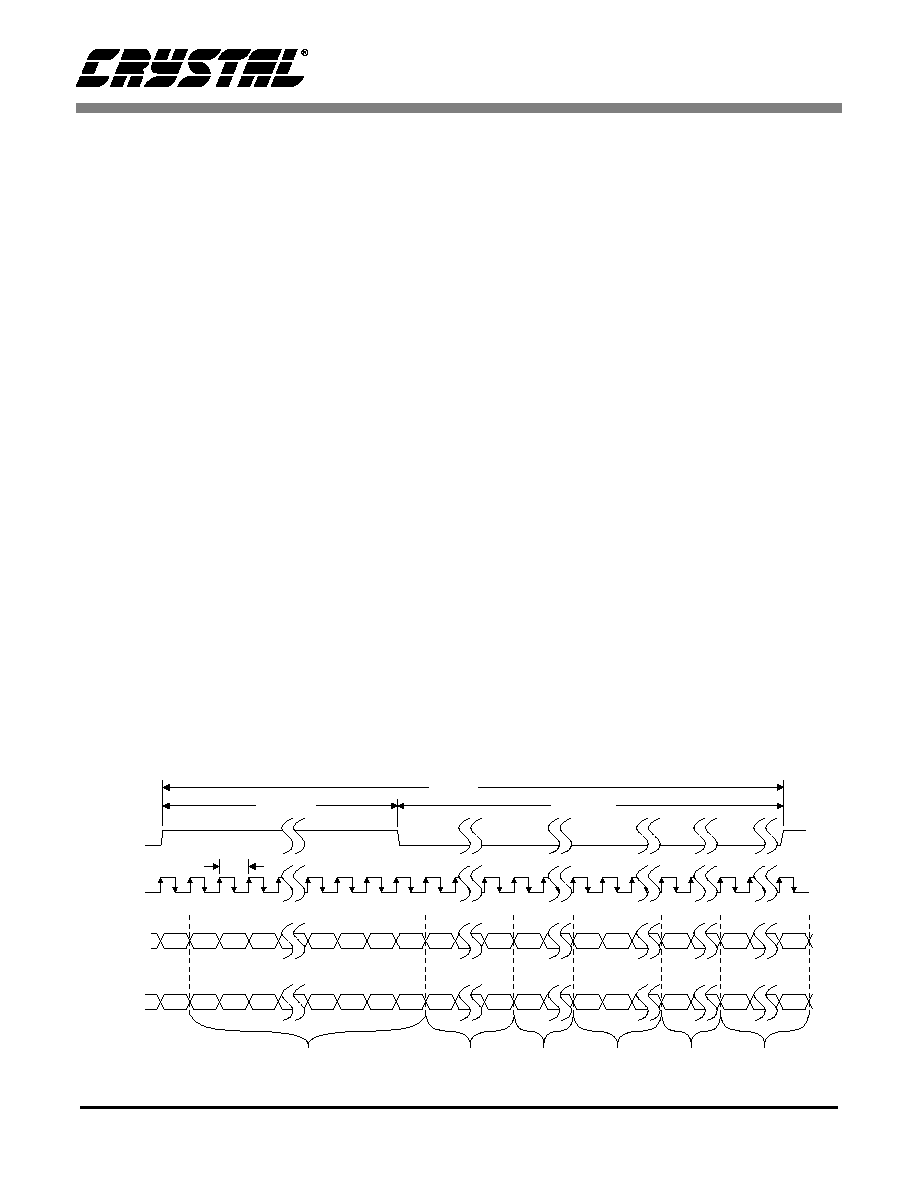

AC-Link Serial Data Output Frame

In the serial data output frame, data is passed on the
SDATA_OUT pin TO the CS4294 FROM the
Controller. Figure 9 illustrates the serial port tim-
ing.

20.8

(48 kHz)

Tag Phase

Data Phase

12.288 MHz

81.4 nS

SYNC

BIT_CLK

SDATA_OUT

SDATA_IN

F16

F15

F14

F13

F12

F35

F56

F76

F255

Valid

Frame

Slot 1

Valid

SCRA1 SCRA0

R/W

WD15

F36

F57

LP19

LP18

RP19

LC17

LC16

RC17

RD15

Bit Frame Position:

F16

F15

F14

F13

F12

F35

F56

F76

F255

F36

F57

F255

F97

Slot 0

Slot 1

Slot 2

Slot 3

Slot 4

Slots 5-12

Slot 2

Valid

Slot 1

Valid

Slot 2

Valid

Codec
Ready

Bit Frame Position:

Figure 9. AC-link Input and Output Framing

CS4294

DS326PP4

5.3

AC-Link Audio Output Frame

5.3.1

Serial Data Output Slot Tags (Slot 0)

Valid Frame

Determines if any of the following slots contain either valid playback data for the Codec's DACs, data
for read/write operation, or GPIO data. When set, at least one of the other AC-link slots contain valid
data. If this bit is clear, the remainder of the frame is ignored.

Slot [1:2] Valid

Indicates valid slot data when accessing the register set of the primary Codec (SCRA[1:0] = 00). For a
read operation, Slot 1 Valid is set when Register Address (Slot 1) contains valid data. For a write oper-
ation, Slot 1 Valid and Slot 2 Valid are set indicating Register Address (Slot 1) and Register Write Data
(Slot 2) contain valid data. The register address and write data must be valid within the same frame.
SCRA[1:0] must be cleared when accessing the primary Codec. The physical address of a Codec is
determined by the ID[1:0]# input pins which are reflected in the Extended Audio ID (Index 28h) register
and the Extended Codec ID (Index 3Ch) register.

Slot [3:11] Valid

If a Slot Valid bit is set, the named slot contains valid audio data. If the bit is clear, the slot will be ignored.
The definition of each slot is determined by the basic operating mode selected for the CS4294. For more
information, see the AC Mode Control (Index 5Eh) register.

Slot 12 Valid

If Slot 12 Valid is set, Slot 12 contains valid write data for the GPIO pins.

SCRA[1:0] Secondary Codec Register Access. Unlike the primary Codec, SCRA[1:0] indicate valid slot data when

accessing the register set of a secondary Codec. The value set in SCRA[1:0] (01,10,11) determines
which of the three possible secondary Codecs is accessed. For a read operation, the SCRA[1:0] bits
are set when Register Address (Slot 1) contains valid data. For a write operation, SCRA[1:0] bits are
set when Register Address (Slot 1) and Register Write Data (Slot 2) contain valid data. The write oper-
ation requires the register address and the write data to be valid within the same frame. SCRA[1:0] must
be cleared when accessing the primary Codec. They must also be cleared during the idle period where
no register read or write is pending. The physical address of a Codec is determined by the ID[1:0]# input
pins which are reflected in the Extended Audio ID (Index 28h) register and the Extended Codec ID (In-
dex 3Ch) register. The SCRA[1:0] bits are listed as the ID[1:0] bits in Slot 0 in the AC `97 specification.

5.3.2

Register Address (Slot 1)

R/W #

Read/Write#. Determines if a read (R/W# = 1) or write (R/W# = 0) operation is requested. For a read
operation, the following Input Frame will return the register index in the Read-Back Address Port (Slot
1) and the contents of the register in the Read-Back Data Port (Slot 2). A write operation does not return
any valid data in the following frame. If the R/W# bit = 0, data must be valid in both the Register Address
(Slot 1) and the Register Write Data (Slot 2)

during a frame when Slot [1:2] Valid or SCRA[1:0] are set.

RI[6:0]

Register index/address. Registers can only be accessed on word boundaries; RI0 must be set to 0.
RI[6:0] must contain valid data during a frame when the Slot 1 Valid or SCRA[1:0] are set.

Bit 15

Valid

Frame

Slot 1

Valid

Slot 2

Valid

Slot 3

Valid

Slot 4

Valid

Slot 5

Valid

Slot 6

Valid

Slot 7

Valid

Slot 8

Valid

Slot 9

Valid

Slot 10

Valid

Slot 11

Valid

Slot 12

Valid

SCRA

Bit 19

R/W# RI6

RI5

RI4

RI3

RI2

RI1

RI0

CS4294

DS326PP4

5.3.3

Register Write Data (Slot 2)

WD[15:0]

Codec register data for write operations. For read operations, this data is ignored. If R/W# = 0, data must
be valid in both the Register Address (Slot 1) and the Register Write Data (Slot 2) during a frame when
the Slot [1:2] Valid = 11 or either SCRA[1:0] bit is set. Splitting the register address and the write data
across multiple frames is not permitted.

5.3.4

Playback Data (Slots 3-11)

PD[19:0]

20-bit PCM playback (2's complement) data for the left and right DACs. Any PCM data from the Con-
troller less than 20 bits should be left justified in the slot and zero-padded. Table 8 on page 28 lists the
definition of each respective slot. The mapping of a given slot is determined by the MD[1:0] bits found
in the AC Mode Control (Index 5Eh) register.

5.3.5

GPIO Data (Slot12)

GP[9:0]

GPIO Output Data. Output data is transferred to the GPIO pins every frame in Slot 12.

5.4

AC-Link Audio Input Frame

In the serial data input frame, data is passed on the SDATA_IN pin FROM the CS4294 to the AC '97
Controller. The data format for the input frame is very similar to the output frame. Figure 9 illustrates
the serial port timing.

5.4.1

Serial Data Input Slot Tag Bits (Slot 0)

Codec Ready

Indicates the readiness of the CS4294's AC-link and Control and Status registers. Immediately after a
Cold Reset this bit will be clear. Once the CS4294's clocks and voltages are stable, this bit will be set.
Until the Codec Ready bit is set, no AC-link transactions should be attempted by the Controller. The
Codec Ready bit does not indicate readiness of the DACs, ADCs, Vref, or any other analog function.
Those must be checked in the Power Down Control/Status (Index 26h), Extended Audio Stat/Ctrl (Index
2Ah), and Extended Codec Stat/Ctrl (Index 3Eh) registers by the Controller before any access is made
to the mixer registers. Any accesses to the Codec while Codec Ready is clear is ignored.

Slot 1 Valid Tag

Indicates Slot 1 contains a valid read back address.

Slot 2 Valid Tag

Indicates Slot 2 contains valid register read data.

Slot [3:11] Valid Tag

Indicates Slot [3:11] contains valid capture data from the Codec's ADC.

Slot 12 Valid Tag

Indicates Slot 12 contains valid read data of the GPIO Pin Status Register (Index 54h).

Bit 19

WD15 WD14 WD13 WD12 WD11 WD10 WD9 WD8 WD7 WD6 WD5 WD4 WD3 WD2 WD1 WD0

Bit 19

PD19 PD18 PD17 PD16 PD15 PD14 PD13 PD12 PD11 PD10 PD9 PD8 PD7 PD6 PD5 PD4 PD3 PD2 PD1 PD0

Bit 19

GP9 GP8 GP7 GP6 GP5 GP4 GP3 GP2 GP1 GP0

Bit 15

Codec
Ready

Slot 1

Valid

Slot 2

Valid

Slot 3

Valid

Slot 4

Valid

Slot 5

Valid

Slot 6

Valid

Slot 7

Valid

Slot 8

Valid

Slot 9

Valid

Slot 10

Valid

Slot 11

Valid

Slot 12

Valid

CS4294

DS326PP4

5.4.2

Read-Back Address Port (Slot 1)

RI[6:0]

Register index. The Read-Back Address Port echoes the AC '97 Register address when a register read
has been requested in the previous frame. The Codec will only echo the register index for a read access.
Write accesses will not return valid data in Slot 1.

5.4.3

Read-Back Data Port (Slot 2)

RD[15:0]

16-bit register value. The Read-Back Data Port contains the register data requested by the Controller
from the previous read request. All read requests will return the read address in the Read-Back Address
Port (Slot 1) and the register data in the Read-Back Data Port (Slot 2) on the following serial data frame.

5.4.4

PCM Capture Data (Slot 3-11)

CD[17:0]

18-bit PCM (2's compliment) data. The mapping of a given slot to an ADC is determined by the state of
the MD[1:0] bits found in the AC Mode Control (Index 5Eh) register.

5.4.5

GPIO Pin Status (Slot 12)

GI[9:0]

Status of the GPIO[8:3] pin.

IRQ

Set when the GPIO generates a wake up or interrupt cycle. See GPIO Pin Wake Up Mask (Index 52h)
register.

The capture data in Slot [3:12] will only be valid when the respective slot valid bit is set in Slot 0.

5.5

AC '97 Reset Modes

Three methods of resetting the CS4294, as defined
in the AC '97 Specification, are supported: Cold
AC '97 Reset, Warm AC '97 Reset, and AC '97
Register Reset. A Cold AC '97 Reset is required to
restart the AC-link when bit PR5 is set in the Power
Down Control/Status (Index 26h) register.

5.5.1 Cold AC `97 Reset

A Cold Reset is performed by asserting RESET# in
accordance with the minimum timing specifica-
tions in the Serial Port Timing section. Once de-as-
serted, all of the Codec's registers will be reset to
their default power-on states and the BIT_CLK
clock and SDATA_IN signals will be reactivated.

The timing of power-up/reset events is discussed in
detail in the Power Management section.

5.5.2 Warm AC '97 Reset

The CS4294 may also be reactivated when the AC-
link is powered down (refer to the PR4 bit descrip-
tion in the Power Management section) by a Warm
Reset. A Warm Reset allows the AC-link to be re-
activated without losing information in the Codec's
registers. Warm Reset is initiated when the SYNC
signal is driven high for at least 1 µs and then driv-
en low in the absence of the BIT_CLK clock signal.
The BIT_CLK clock will not restart until at least 2
normal BIT_CLK clock periods (± 162.8 ns) af-
ter the SYNC signal is de-asserted.

Bit 19

RI6

RI5

RI4

RI3

RI2

RI1

RI0

Bit 19

RD15 RD14 RD13 RD12 RD11 RD10 RD9 RD8 RD7 RD6 RD5 RD4 RD3 RD2 RD1 RD0

Bit 19

CD17 CD16 CD15 CD14 CD13 CD12 CD11 CD10 CD9 CD8 CD7 CD6 CD5 CD4 CD3 CD2 CD1 CD0

Bit 19

GI8

GI7

GI6

GI5

GI4

GI3

IRQ

CS4294

DS326PP4

5.5.3 AC '97 Register Reset

The third reset mode provides a register reset to the
CS4294. This is available only when the CS4294's
AC-link is active and the Codec Ready bit is set.
The audio and extended codec subsections may be
reset independently. Any write to Reset (Index 00h)
register will reset the audio subsection while any
write to Extended Codec Stat/Ctrl (Index 3Eh) reg-
ister will reset the Extended Codec subsection. See
the respective register descriptions for additional
information.

5.6

AC-Link Protocol Violation - Loss of
SYNC

The CS4294 is designed to handle SYNC protocol
violations. The following are situations where the
SYNC protocol has been violated:

· The SYNC signal is not sampled high for

exactly 16 BIT_CLK clock cycles at the
start of an audio frame.

· The SYNC signal is not sampled high on

the 256th BIT_CLK clock period after
the previous SYNC assertion.

· The SYNC signal goes active high before

the 256th BIT_CLK clock period after
the previous SYNC assertion.

Upon loss of synchronization with the Controller,
the Codec will mute all analog outputs and clear the
Codec Ready bit in the serial data input frame until
two valid frames are detected. During this detection
period, the Codec will ignore all register reads and
writes and will discontinue the transmission of
PCM capture data.

CS4294

DS326PP4

6. REGISTER INTERFACE

Certain register locations change definition based on the basic operating mode (Mode 0,1) selected by the
MD[1:0] bits found in the AC Mode Control (Index 5Eh) register. The reset default is Mode 0.

Reg

Num

Name

D15

D14

D13 D12

D11

D10

Default

00h

Reset Mode 0

SE4 SE3 SE2

SE1

SE0

ID8

ID7

ID4

1990h

00h

Reset Mode 1

SE4 SE3 SE2

SE1

SE0

ID8

ID7

1980h

02h

Master Volume

Mute

ML5

ML4

ML3

ML2

ML1

ML0

MR5

MR4

MR3

MR2

MR1

MR0

8000h

04h

Alternate Line Out Volume Mute

ML5

ML4

ML3

ML2

ML1

ML0

MR5

MR4

MR3

MR2

MR1

MR0

8000h

0Eh

Mic Volume

Mute

20dB

GN4

GN3

GN2

GN1

GN0

8008h

10h

Line In Volume

Mute

GL4

GL3

GL2

GL1

GL0

GR4

GR3

GR2

GR1

GR0

8808h

12h

CD Volume

Mute

GL4

GL3

GL2

GL1

GL0

GR4

GR3

GR2

GR1

GR0

8808h

16h

Aux Volume

Mute

GL4

GL3

GL2

GL1

GL0

GR4

GR3

GR2

GR1

GR0

8808h

18h

PCM Out Vol

Mute

GL4

GL3

GL2

GL1

GL0

GR4

GR3

GR2

GR1

GR0

8808h

1Ah

Record Select

SL2

SL1

SL0

SR2

SR1

SR0

0000h

1Ch

Record Gain

Mute

GL3

GL2

GL1

GL0

GR3

GR2

GR1

GR0

8000h

20h

General Purpose

POP

SEE

LPBK

0000h

22h

Stereo Enhancement

0000h

26h

Powerdown Ctrl/Stat

PR6

PR5

PR4

PR3

PR2

PR1

PR0

REF

ANL

DAC

ADC

000Fh

28h

Ext'd Audio ID Mode 0

ID1

ID0

VRA

x000h

28h

Ext'd Audio ID Mode 1

ID1

ID0

LDAC SDAC CDAC

VRA

x1C0h

2Ah

Ext'd Audio Stat/Ctrl Mode
0

0000h

2Ah

Ext'd Audio Stat/Ctrl Mode
1

PRK

PRJ

PRI

LDAC SDAC CDAC

01C0h

2Ch

PCM Front DAC Rate

SR15

SR14 SR13 SR12 SR11 SR10 SR9

SR8

SR7

SR6

SR5

SR4

SR3

SR2

SR1

SR0

BB80h

2Eh

PCM Surround DAC Rate

SR15

SR14 SR13 SR12 SR11 SR10 SR9

SR8

SR7

SR6

SR5

SR4

SR3

SR2

SR1

SR0

BB80h

30h

PCM LFE DAC Rate

SR15

SR14 SR13 SR12 SR11 SR10 SR9

SR8

SR7

SR6

SR5

SR4

SR3

SR2

SR1

SR0

BB80h

32h

PCM Left/Right ADC Rate SR15

SR14 SR13 SR12 SR11 SR10 SR9

SR8

SR7

SR6

SR5

SR4

SR3

SR2

SR1

SR0

BB80h

36h

Center LFE Volume

Mute

LFE5 LFE4 LFE3

LFE2

LFE1

LFE0

Mute

CNT5 CNT4 CNT3 CNT2 CNT1

CNT0 8080h

38h

LR Surround Volume

Mute

LSR5 LSR4 LSR3 LSR2 LSR1

LSR0 Mute

RSR5 RSR4 RSR3 RSR2 RSR1

RSR0 8080h

3Ch

Ext'd Codec ID

ID1

ID0

x005h

3Eh

Ext'd Codec Stat/Ctrl

Mode 0

PRH

PRG

PRD

PRC

PRB

PRA

EDAC
2

EADC
2

EDA
C1

EAD
C1

EREF

GPIO 00CFh

3Eh

Ext'd Codec Stat/Ctrl

Mode 1

PRG

PRC

PRB

PRA

EADC
2

EAD
C1

EREF

GPIO 0047h

Ext'd DAC1/ADC1 Rate

SR15

SR14 SR13 SR12 SR11 SR10 SR9

SR8

SR7

SR6

SR5

SR4

SR3

SR2

SR1

SR0

BB80h

Ext'd DAC2/ADC2 Rate

SR15

SR14 SR13 SR12 SR11 SR10 SR9

SR8

SR7

SR6

SR5

SR4

SR3

SR2

SR1

SR0

BB80h

Ext'd DAC1/ADC1 Level

Mute

DAC3 DAC2 DAC1

DAC0 Mute

ADC3 ADC2

8080h

Ext'd DAC2/ADC2 Level

Mute

DAC3 DAC2 DAC1

DAC0 Mute

ADC3 ADC2

8080h

GPIO Pin Configuration

GC8

GC7

GC6

GC5

GC4

GC3

03FFh

GPIO Pin Polarity/Type

GP8

GP7

GP6

GP5

GP4

GP3

FFFFh

GPIO Pin Sticky

GS8

GS7

GS6

GS5

GS4

GS3

0000h

GPIO Pin Wakeup Mask

GW8

GW7

GW6

GW5

GW4

GW3

0000h

GPIO Pin Status

Gi8

GI7

GI6

GI5

GI4

GI3

xxxxh

Cirrus Defined Registers:

Crystal Revision / Fab

0302h

Slot Map Register

EDM

EAM

DDM

MD1

MD0

0000h

7Ch

Vendor ID1(CR)

4352h

7Eh

Vendor ID2(Y-)

PID2

PID1

PID0

RID2

RID1

RID0

5923h

Table 1. Mixer Registers

CS4294

DS326PP4

6.1

Register Descriptions

6.1.1

Reset (Index 00h)

SE[4:0]

Enhanced Stereo Technique.
00110 - Crystal 3D Stereo Enhancement.

ID8 set

18-bit ADC resolution.

ID7 set

20-bit DAC resolution.

ID4 set

Headphone out support. (Alternate Line Output)

Read-only data

Mode 0 1990h

Mode 1 1980h

Any write to this register causes the audio control registers (Index 02h - 38h) and the Crystal specific
registers (Index 5Eh - 68h) to be reset forcing them to their default state. The mode control bits
MD[1:0] of the AC Mode Control (Index 5Eh) register are also cleared forcing the Codec to Mode 0
configuration. Reads return configuration information about the audio Codec

6.1.2

Master Volume (Index 02h)

Mute

Master mute for the LINE_OUT_L and the LINE_OUT_R output signals.

ML[5:0]

Master Volume control for LINE_OUT_L pin. Least significant bit represents -1.5 dB with 00000 = 0 dB.
The total range is 0 dB to -94.5 dB.

MR[5:0]

Master Volume control for LINE_OUT_R pin. Least significant bit represents -1.5 dB with 00000 = 0 dB.
The total range is 0 dB to -94.5 dB.

Default

8000h, corresponding to 0 dB attenuation and mute on.

In Mode 1 the LINE_OUT volume is controlled by the Left Right Surround (Index 38h) register in place
of Master Volume.

Mode

D15

D14

D13

D12

D11

D10

SE4

SE3

SE2

SE1

SE0

ID8

ID7

ID4

SE4

SE3

SE2

SE1

SE0

ID8

ID7

D15

D14

D13

D12

D11

D10

Mute

ML5

ML4

ML3

ML2

ML1

ML0

MR5

MR4

MR3

MR2

MR1

MR0

CS4294

DS326PP4

6.1.3

Alternate Volume (Index 04h)

Mute

Master mute for the ALT_LINE_OUT_L and the ALT_LINE_OUT_R output signals.

ML[5:0]

Master Volume control for ALT_LINE_OUT_L pin. Least significant bit represents -1.5 dB with 00000 =
0 dB. The total range is 0 dB to -94.5 dB.

MR[5:0]

Master Volume control for ALT_LINE_OUT_R pin. Least significant bit represents -1.5 dB with 00000 =
0 dB. The total range is 0 dB to -94.5 dB.

Default

8000h, corresponding to 0 dB attenuation and mute on.

In Mode 1 the ALT_LINE_OUT volume is controlled by the LFE/CNT Volume (Index 36h) register
in place of Alternate Volume.

6.1.4

Microphone Volume (Index 0Eh)

Mute

When set, mutes MIC signal.

GN[4:0]

MIC Volume Control. Least significant bit represents 1.5 dB with 01000 = 0 dB. The total range is 12 dB
to -34.5 dB.

20dB

Enables 20 dB microphone gain block.

Default

8008h, 0 dB attenuation and Mute set.

This register controls the gain level of the Microphone input source to the Input Mixer. It also con-
trols the +20 dB gain block which connects to the input volume control and to the Input Record Mux.
The gain mapping for this register is shown in Table 3.

D15

D14

D13

D12

D11

D10

Mute

ML5

ML4

ML3

ML2

ML1

ML0

MR5

MR4

MR3

MR2

MR1

MR0

ML[5:0]/MR[5:0]/MM[5:0]

Write

ML[5:0]/MR[5:0]/MM[5:0

Read

Gain Level

000000

0 dB

000001

-1.5 dB

...

111111

-94.5 dB

Table 2. Alternate Line-Out and Master Mono Attenuation

D15

D14

D13

D12

D11

D10

Mute

20dB

GN4

GN3

GN2

GN1

GN0

GN4 - GN0

Gain Level

Mic Gain with 20dB = 1

00000

+12.0 dB

+32.0 dB

00001

+10.5 dB

30.5 dB

...

00111

+1.5 dB

21.5 dB

01000

0.0 dB

20.0 dB

01001

-1.5 dB

18.5 dB

...

11111

-34.5 dB

-14.5 dB

Table 3. Analog Mixer Input Gain Values

CS4294

DS326PP4

6.1.5

Stereo Analog Mixer Input Gain (Index's 10h - 12h, 16h - 18h)

Mute

When set mutes the respective input. Setting this bit mutes both right and left inputs.

GL[4:0]

Left Volume Control. Least significant bit represents 1.5 dB with 01000 = 0 dB. The total range is 12 dB
to -34.5 dB. See Table 3.

GR[4:0]

Right Volume Control. Least significant bit represents 1.5 dB with 01000 = 0 dB. The total range is 12
dB to -34.5 dB. See Table 3.

Default

8808h, 0 dB gain with Mute enabled.

These registers control the gain levels of the analog input sources to the Input Mixer. The analog in-
puts associated with registers 10h-18h are found in Table 4.

6.1.6

Input Mux Select (Index 1Ah)

SL[2:0]

Left Channel ADC input source select.

SR[2:0]

Right Channel ADC input source select.

Default

0000h, MIC inputs selected for both channels.

When capturing PCM data, this register controls the input MUX for the ADCs. Table 5 below lists
the possible values for each input.

D15

D14

D13

D12

D11

D10

Mute

GL4

GL3

GL2

GL1

GL0

GR4

GR3

GR2

GR1

GR0

Register Index

Function

10h

Line IN Volume

12h

CD Volume

16h

Aux Volume

18h

PCM Out Volume

Table 4. Stereo Volume Register Index

D15

D14

D13

D12

D11

D10

SL2

SL1

SL0

SR2

SR1

SR0

Sx2 - Sx0

Record Source

MIC

CD Input

Not Available

AUX Input

Line Input

Stereo Mix

Mono Mix

Not Available

Table 5. Input Mux Selection

CS4294

DS326PP4

6.1.7

Record Gain (Index 1Ch)

Mute

When set, mutes the input to the ADCs.

GL[3:0]

Left ADC gain. Least significant bit represents +1.5 dB with 0000 = 0 dB.
The total range is 0 dB to +22.5 dB.

GR[3:0]

Right ADC gain. Least significant bit represents +1.5 dB with 0000 = 0 dB.
The total range is 0 dB to +22.5 dB.

Default

8000h, 0 dB gain with Mute on.

6.1.8

General Purpose (Index 20h)

POP

PCM Output Path. By default, the PCM output is mixed prior to the Stereo Enhancement. When set, the
PCM output is mixed after the Stereo Enhancement.

SEE

Stereo Enhancement Enable. If set, enables the CrystalClear Stereo Enhancement.

LPBK

Loopback. If set, enables Analog ADC/DAC Loopback Mode.

Default

0000h.

6.1.9

Stereo Enhancement Control (Index 22h)

S[3:0]

Spacial Enhancement Depth. Spacial Enhancement is enabled by the Stereo Enhancement Enable bit
in the General Purpose (Index 20h) register.
0000 - No spacial enhancement.
1111 - Full spacial enhancement.

Default

0000h, no spacial enhancement added.

The Spacial Enhancements is not available on the ALT_LINE output when the codec is in Mode 1
or EAM is set. See the AC Mode Control (Index 5Eh) register for more detail.

D15

D14

D13

D12

D11

D10

Mute

GL3

GL2

GL1

GL0

GR3

GR2

GR1

GR0

D15

D14

D13

D12

D11

D10

POP

SEE

LPBK

D15

D14

D13

D12

D11

D10

CS4294

DS326PP4

6.1.10 Power Down Control/Status (Index 26h)

PR6

When set, the alternate line-out buffer is powered down.

PR5

When set, the internal master clock is disabled. The only way to recover from setting this bit is through
a cold AC `97 reset (driving the RESET# signal active).

PR4

When set, the AC link is powered down. The AC link can be restarted through a warm AC `97 reset using
the SYNC signal, or a cold AC `97 reset using the RESET# signal (the primary codec only).

PR3

When set, the analog mixer and voltage reference are powered down. When clearing this bit, the ANL,
ADC, and DAC bits should be checked before writing any mixer registers. Because the reference volt-
age is shared with the extended audio subsection, it will not power down unless the PRB bit is also set
in the Extended Codec Stat/Ctrl (Index 3Eh) register.

PR2

When set, the analog mixer is powered down (the voltage reference is still active). When clearing this
bit, the ANL bit should be checked before writing any mixer registers.

PR1

When set, the DACs are powered down. When clearing this bit, the DAC bit should be checked before
sending any data to the DACs.

PR0

When set, the ADCs and the ADC input muxes are powered down. When clearing this bit, no valid data
will be sent down the AC link until the ADC bit goes high.

REF

Voltage Reference Ready Status. When set, indicates the voltage reference is at a nominal level.

ANL

Analog Ready Status. When set, the analog output mixer, input multiplexer, and volume controls are
ready. When clear, no volume control registers should be written.

DAC

DAC Ready Status. When set, the DACs are ready to receive data across the AC link. When clear, the
DACs will not accept any valid data.

ADC

ADC Ready Status. When set, the ADCs are ready to send data across the AC link. When clear, no data
will be sent to the Controller.

Default

0000h, all blocks are powered on. The lower four bits will eventually change as the Codec finishes an
initialization and calibration sequence.

The PR[6:0] are power-down control for different sections of the Codec. The REF, ANL, DAC, and
ADC bits are status bits which, when set, indicate that a particular section of the Codec is ready. After
the Controller receives the Codec Ready bit in Slot 0, these status bits must be checked before writing
to any mixer registers.

D15

D14

D13

D12

D11

D10

PR6

PR5

PR4

PR3

PR2

PR1

PR0

REF

ANL

DAC

ADC

CS4294

DS326PP4

6.1.11 Extended Audio ID (Index 28h)

ID[1:0]

Codec configuration ID. Primary is 00; Secondary is 01,10,or 11. This is a reflection of the ID[1:0]# con-
figuration pins. The state of the ID# pins are determined at power-up and are the inverse of the ID bits
in this register.

LDAC

PCM LFE DAC. Indicates a LFE DAC is supported.

SDAC

PCM Surround DAC. Indicates a Surround DAC is supported.

CDAC

PCM Center DAC. Indicates a Center DAC is supported.

VRA

Variable Rate Audio. This bit is clear indicating variable sample rates are not supported.

Read-only data

Mode 0 x000h. Where x is determined by the state of ID[1:0] input pins.

Mode 1 x1C0h.

6.1.12 Extended Audio Status/Control (Index 2Ah)

CDAC

PCM Center DAC Ready. When set, the Center DAC is ready.

LDAC

PCM LFE DAC Ready. When set, the LFE DAC is ready.

SDAC

PCM Surround DAC Ready. When set, the Surround DACs are ready.

PRI

PCM Center DAC Disable. When set, the Center DAC is disabled.

PRJ

PCM Surround DAC Disable. When set, the Surround DAC is disabled.

PRK

PCM LFE DAC Disable. When set, the LFE DAC is disabled.

Default

Mode 0 0000h
Mode 1 01C0h

CDAC, LDAC, and SDAC are read only bits.

6.1.13 PCM Front DAC Rate (Index 2Ch)

SR[15:0]

Front DAC Sample Rate.

Default

Read-only value BB80h, indicating 48 kHz sample rate.

6.1.14 PCM Surround DAC Rate (Index 2Eh)

SR[15:0]

Surround DAC Sample Rate.

Default

Read-only value BB80h, indicating 48 kHz sample rate.

Mode

D15

D14

D13

D12

D11

D10

ID1

ID0

VRA

ID1

ID0

LDAC SDAC CDAC

VRA

Mode

D15

D14

D13

D12

D11

D10

PRK

PRJ

PRI

LDAC

SDAC

CDAC

D15

D14

D13

D12

D11

D10

SR15

SR14

SR13

SR12

SR11

SR10

SR9

SR8

SR7

SR6

SR5

SR4

SR3

SR2

SR1

SR0

D15

D14

D13

D12

D11

D10

SR15

SR14

SR13

SR12

SR11

SR10

SR9

SR8

SR7

SR6

SR5

SR4

SR3

SR2

SR1

SR0

CS4294

DS326PP4

6.1.15 PCM LFE DAC Rate (Index 30h)

SR[15:0]

LFE DAC Sample Rate.

Default

Read-only value BB80h, indicating 48 kHz sample rate.

6.1.16 PCM LR ADC Rate (Index 32h)

SR[15:0]

LR ADC Sample Rate.

Default

Read-only value BB80h, indicating 48 kHz sample rate.

6.1.17 Center LFE Volume (Index 36h)

LFE[5:0]

LFE Volume. Least significant bit represents -1.5 dB with 00000 = 0 dB. The total range is 0 dB to -
94.5 dB.

CNT[5:0]

Center Volume.Least significant bit represents -1.5 dB with 00000 = 0 dB. The total range is 0 dB to -
94.5 dB.

Default

8080h, indicating mute with 0 dB attenuation.

6.1.18 LR Surround Volume (Index 38h)

LSR[5:0]

Left Surround Volume. Least significant bit represents -1.5 dB with 00000 = 0 dB. The total range is 0
dB to -94.5 dB.

RSR[5:0]

Right Surround Volume. Least significant bit represents -1.5 dB with 00000 = 0 dB. The total range is 0
dB to -94.5 dB.

Default

8080h, indicating 0 dB attenuation.

D15

D14

D13

D12

D11

D10

SR15

SR14

SR13

SR12

SR11

SR10

SR9

SR8

SR7

SR6

SR5

SR4

SR3

SR2

SR1

SR0

D15

D14

D13

D12

D11

D10

SR15

SR14

SR13

SR12

SR11

SR10

SR9

SR8

SR7

SR6

SR5

SR4

SR3

SR2

SR1

SR0

D15

D14

D13

D12

D11

D10

Mute

LFE5

LFE4

LFE3

LFE2

LFE1

LFE0

Mute

CNT5 CNT4 CNT3 CNT2 CNT1 CNT0

LFE[5:0]/LSR[5:0]

CNT[5:0]/RSR[5:0]

Write

LFE[5:0]/LSR[5:0]

CNT[5:0]/RSR[5:0]

Read

Gain Level

000000

0 dB

000001

-1.5 dB

...

111111

-94.5 dB

Table 6. 6 Channel Volume Attenuation

D15

D14

D13

D12

D11

D10

Mute

LSR5

LSR4

LSR3

LSR2

LSR1

LSR0

Mute

RSR5 RSR4 RSR3 RSR2 RSR1 RSR0

CS4294

DS326PP4

6.1.19 Extended Codec ID (Index 3Ch)

ID[1:0]

Codec configuration ID. Primary is 00; Secondary is 01,10,or 11. This is a reflection of the configuration
pins. The state of the ID# pins are determined at power-up and are the inverse of the ID bits in this reg-
ister.

Default

Mode 0 x005h
Mode 1 x000h Where x is determined by the state of ID[1:0] input pins.

The Extended Codec ID is a read/write register. Writing any value to this location issues a reset to
the Extended Codec registers (Index 3Ch-56h). The primary Audio registers are not reset by a write
to this location.

NOTE: All GPIO registers (Index 46h-54h) are reset by any write to this location.

6.1.20 Extended Codec Status/Control (Index 3Eh)

PRH

Extended DAC2. When set powers down the Extended DAC2.

PRG

Extended ADC2. When set powers down the Extended ADC2.

PRD

Extended DAC2. When set powers down the Extended DAC1.

PRC

Extended ADC1. When set powers down the Extended ADC1.

PRB

Extended ADC/DAC Reference. When set powers down the extended ADC/DAC reference. The ex-
tended ADC/DAC and audio share a common reference. The reference will not power down unless PR3
of the Power Down Ctrl/Stat (Index 26h) register is also set.

PRA

GPIO. When set the GPIO pins are tri-state and powered down. Slot 12 is marked invalid if the AC-link
is active.

EDAC2

Extended DAC2. When set indicates the Extended DAC2 is ready.

EADC2

Extended ADC2. When set indicates the Extended ADC2 is ready.

EDAC1

Extended DAC1. When set indicates the Extended DAC1 is ready.

EADC1

Extended ADC1. When set indicates the Extended ADC1 is ready.

EREF

Extended ADC/DAC Reference. When set indicates the extended ADC/DAC reference is ready.

GPIO

GPIO. When set the GPIO pins are ready. Slot 12 is marked valid.

Default

Mode 0 x0CFh
Mode 1 x047h Where x is determined by the state of ID[1:0] input pins.

PR[A:D,G:H] are read/write bits that provide power management of the extended codec subsection.
All remaining bits are read/only status indicating the subsystems are ready for operation. After reset
or issuing a change to the MD[1:0] of AC Mode (Index 5Eh) register, the respective status bits for
that mode will be clear until the subsystem becomes ready.

Mode

D15

D14

D13

D12

D11

D10

ID1

ID0

ID1

ID0

Mode

D15

D14

D13

D12

D11

D10

PRH

PRG

PRD

PRC

PRB

PRA

EDAC2

EADC2

EDAC1

EADC1

EREF

GPIO

PRG

PRC

PRB

PRA

EADC2

EADC1

EREF

GPIO

CS4294

DS326PP4

6.1.21 Extended Audio DAC1/ADC1 Rate (Index 40h)

SR[15:0]

Extended Audio DAC1/ADC1 Sample Rate.

Default

Read-only value BB80h, indicating 48 kHz sample rate.

6.1.22 Extended Audio DAC2/ADC2 (Index 44h)

SR[15:0]

Extended Audio DAC2/ADC2 Sample Rate.

Default

Read-only value BB80h, indicating 48 kHz sample rate.

6.1.23 Extended Audio DAC1/ADC1 Level (Index 46h)

Mute[D15] Mute. Mutes the input of Extended Audio DAC1.

Mute[D7]

Mute. Mutes the output of Extended Audio ADC1.

DAC[3:0]

Extended Audio DAC1 attenuation. Least significant bit represents 1.5 dB with 00000 = 0 dB. The total
range is 0 dB to -22.5 dB.

ADC[3:2]

Extended Audio ADC1 gain. Least significant bit represents 6 dB with 00 = 0 dB. The total range is 0 dB
to +18 dB.

Default

8080h indicating mute with 0 dB attenuation or gain.

When EAM of the AC Mode Control (Index 5Eh) is set, the Extended Audio DAC1 attenuation is
controlled by ML[4:0] of the Alternate Volume (Index 04h) register.

6.1.24 Extended AudioDAC2/ADC2 Level (Index 4Ah)

Mute[D15] Mute. Mutes the input of Extended Audio DAC2.

Mute[D7]

Mute. Mutes the output of Extended Audio ADC2.

DAC[3:0]

Extended Audio DAC2 attenuation. Least significant bit represents 1.5 dB with 00000 = 0 dB. The total
range is 0 dB to -22 dB.

ADC[3:2]

Extended Audio ADC2 gain. Least significant bit represents 6 dB with 00 = 0 dB. The total range is 0 dB
to +18 dB.

Default

8080h indicating mute with 0 dB attenuation or gain.

When EAM of the AC Mode Control (Index 5Eh) is set, the Extended Audio DAC2 attenuation is
controlled by MR[4:0] of the Alternate Volume (Index 04h) register.

D15

D14

D13

D12

D11

D10

SR15

SR14

SR13

SR12

SR11

SR10

SR9

SR8

SR7

SR6

SR5

SR4

SR3

SR2

SR1

SR0

D15

D14

D13

D12

D11

D10

SR15

SR14

SR13

SR12

SR11

SR10

SR9

SR8

SR7

SR6

SR5

SR4

SR3

SR2

SR1

SR0

D15

D14

D13

D12

D11

D10

Mute

DAC3 DAC2 DAC1 DAC0

Mute

ADC3 ADC2

D15

D14

D13

D12

D11

D10

Mute

DAC3 DAC2 DAC1 DAC0

Mute

ADC3 ADC2

CS4294

DS326PP4

6.1.25 GPIO Pin Configuration (Index 4Ch)

GC[9:0]

GPIO Pin Configuration. When set defines the corresponding GPIO pin as an input

Default

03FFh

After a cold reset, power up, or extended codec register reset (see Extended Codec ID (Index 3Ch))
all GPIO pins are configured as inputs.

6.1.26 GPIO Pin Polarity/Type Configuration (Index 4Eh)

GP[9:0]

GPIO Pin Configuration. The definition of GP[8:3] changes based on the pin defined as an input or an
output by GC[8:3] of GPIO Pin Configuration (Index 4Ch).

Default

FFFFh

When the GPIO pin is defined as an input, its status is reported in the GPIO Pin Status (Index 54h)
register as well as Slot 12.

6.1.27 GPIO Pin Sticky (Index 50h)

GS[8:3]

GPIO Pin Sticky. If set, the GPIO pin input is latched.

Default

0000h

If a GPIO is defined as "sticky" the input requires a transition of the GPIO input pin to set the corre-
sponding bit in Slot 12 and the GPIO Pin Status (Index 54h) register. When "sticky" is set the corre-
sponding bit in GPIO Pin Polarity/Type Configuration (Index 4Ah) register determines which edge
of the GPIO pin will set GI[x]. If GP[x] is set, a low to high transition sets the GI[x] bit. A high to
low transition sets GI[x] if GP[x] is clear. Once set, writing a 0 to GI[x] will clear the "sticky" input.

D15

D14

D13

D12

D11

D10

res

GC8

GC7

GC6

GC5

GC4

GC3

res

D15

D14

D13

D12

D11

D10

res

GP8

GP7

GP6

GP5

GP4

GP3

res

GCx

GPx

Function

Output

CMOS drive

Output

Open drain

Input

Active Low

Input

Active High (default)

Table 7. GPIO Input/Output Configuration

D15

D14

D13

D12

D11

D10

GS8

GS7

GS6

GS5

GS4

GS3

CS4294

DS326PP4

6.1.28 GPIO Pin Wakeup Mask (Index 4Ch)

GW[8:3]

Wake up mask. If set, allow the GPIO input to generate AC-LINK wake up protocol.

Default

0000h

The CS4294 has the ability to generate a "wake up" cycle by a transition of a GPIO pin when the
AC-Link has been powered down. If a mask bit is set, a one being set in the corresponding GPIO Pin
Status (Index 54h) will initiate a wake up interrupt. Bit 0 of SDATA_IN Slot 12 will be set indicating
a GPIO interrupt. GPIO pins must be defined as "input", "sticky", and the mask set to allow a GPIO
interrupt. The GPIO interrupt is cleared by writing a 0 to the respective status bit in GPIO Pin Status
(Index 54h) register.

6.1.29 GPIO Pin Status (Index 54h)

GI[8:3]

GPIO pin status. Reflects the state of all GPIO pins either input or output. If the GPIO pin is defined as
an output, the respective bit reflects the state of SDATA_OUT Slot 12. If the GPIO pin is defined as an
input, the register is reflected in SDATA_IN Slot 12. GPIO output pins cannot be accessed by Slot 1,2
register access, only by SDATA_OUT Slot 12.

6.1.30 AC Mode Control (Index 5Eh)

DDM

DAC Direct Mode. This bit controls the source to the line and alternate line output drivers. When set, the
Left and Right DAC directly drive the line and alternate line outputs by bypassing the audio mixer. When
clear, the audio mixer is the source for the line and alternate line outputs.

EAM

Extended Audio Mode. When set the output of EDAC2 and EDAC1 are mapped to the ALT_LINE OUT-
PUT. The Extended Audio DAC volumes are set by the Alternate Line Volume (Index 04h) register when
in this mode.

EDM

Extended Docking Mode. When set the output of the analog input mixer is routed to the EADC1 and
EADC2 inputs. This allows any analog input mix to be digitized and routed to a second AC `97 codec or
allows the host controller to add effects processing to analog sources.

MD[1:0]

Mode. Sets basic operating mode for the codec. This effects the mapping of the ADCs and DACs to AC-
LINK Slot locations. See the Mode of Operation subsection for additional detail. Table 8 below details
the Slot mapping.

Default

0000h

D15

D14

D13

D12

D11

D10

GW8

GW7

GW6

GW5

GW4

GW3

D15

D14

D13

D12

D11

D10

GI8

GI7

GI6

GI5

GI4

GI3

D15

D14

D13

D12

D11

D10

EDM

EAM

DDM

MD1

MD0

Mode

Type

MD[1:0]

Audio

DAC1

Audio

DAC2

Audio

ADC1

Audio

ADC2

Ext'd

DAC1

Ext'd

DAC2

Ext'd

ADC1

Ext'd

ADC2

GPIO

Basic

0,0

Left

Right

Left

Right

Ext'd

Left

Ext'd

Right

Left

Mixer

Right

Mixer

Extended 4

Channel

1,1

Sur'nd

Left

Sur'nd

Right

Left

Right

Center

LFE

Left

Mixer

Right

Mixer

Table 8. Slot Assignments

CS4294

DS326PP4

7. ANALOG HARDWARE

DESCRIPTION

The analog hardware consist of three line-level ste-
reo inputs, one mono microphone input, and dual,
independent stereo line outputs. This section de-
scribes the analog hardware needed to interface
with these pins.

7.1

Line-Level Inputs

The analog inputs consist of three stereo analog in-
puts and one mono input. As shown in Figure 8, the
input to the ADCs comes from the Input Mux
which selects one of the following: Mic1 (Mono),
CD, Aux, Line In, Stereo Input Mix, or the Mono
Input Mix (Mono). Unused analog inputs should be
connected together and then connected through a
capacitor to analog ground or tied to the Vrefout
line directly.

The analog input mixer is designed to accommo-
date four stereo inputs and one mono input. These
inputs are: a stereo line-level input (LINE), a mono
microphone input (MIC), a stereo CD-ROM input
(CD), a stereo auxiliary line-level input (AUX),
and the PCM output from the DACs (if the POP bit
is cleared). Each of the stereo inputs has separate
volume controls for each channel and one mute
control for each left/right pair. The mono micro-
phone input has one mute and one volume control.

The inputs to the output mixer are: the input mixer
output, the stereo enhanced mix, and the DAC out-
put (if the POP bit is set).

All analog inputs to the CS4294, including
CD_GND, should be capacitively coupled to the
input pins.

Since many analog levels can be as large as
2 V

RMS

, the circuit shown in Figure 10 can be used

to attenuate the analog input by 6 dB (to 1 V

RMS)

which is the maximum voltage allowed for all the
stereo line-level inputs: LINE_IN and AUX_IN.

The CD line-level inputs have an extra pin,
CD_GND, which provides a pseudo-differential
input for both CD_L and CD_R. This pin takes the
common-mode noise out of the CD inputs when
connected to the ground coming from the CD ana-
log source. Connecting the CD pins as shown in
Figure 11 provides extra attenuation of common
mode noise coming from the CDROM drive, there-
by producing a higher quality signal. One percent
resistors are recommended since the better the re-
sistors match, the better the common-mode attenu-
ation of unwanted signals. If CD is not used, the
inputs should be connected through AC capacitors
to analog ground or connected to Vrefout.

7.2

Microphone Level Inputs

The microphone level inputs include a selectable -
34.5 dB to +12 dB gain stage for interfacing to an
external microphone. An additional 20 dB gain
block is also available. Figure 12 illustrates a sin-
gle-ended microphone input buffer circuit that will
support lower gain mics. The circuit in Figure 12
supports dynamic mics and phantom-powered mics
that use the right channel (ring) of the jack for pow-
er.

6.8 k

1.0

6.8 k

Figure 10. Line Inputs

Figure 11. Differential CDROM In

6.8 k

1.0

CD_L

CD_R

6.8 k

3.4 k

CD_GND

2.0

3.4 k

(All resistors 1%)

CDROM IN

CS4294

DS326PP4

7.3

Line Level Outputs

The analog output section provides a stereo line-
level output and an alternate stereo line-level out-
put. LINE_OUT_L, LINE_OUT_R,
ALT_LINE_OUT_L, and ALT_LINE_OUT_R
outputs should be capacitively coupled to external
circuitry.

Each of the 4 analog outputs, if used in the design,
require 680 pF or larger NPO dielectric capacitors
between the corresponding pin and AGND. Each
analog output is DC biased up to the Vrefout volt-
age signal reference which is nominally 2.2 V. This
requires that the output either be AC coupled to ex-
ternal circuitry (AC load must be greater than 10
k

) or DC coupled to a buffer op-amp biased at the

Vrefout voltage (see Figure 13 for the recommend-
ed headphone op-amp circuit).

7.4

Miscellaneous Analog Signals

The AFILT1 and AFILT2 pins must have a
1000 pF NPO capacitor (must not be smaller than

390 pF) to analog ground. These capacitors, along
with an internal resistor, provide a single-pole low-
pass filter at the inputs to the ADCs. By placing
these filters at the input to the ADCs, low-pass fil-
ters at each analog input pin are not necessary.

The REFFLT pin lowers the noise of the internal
voltage reference. A 1

F (must not be greater than

F) and 0.1

F capacitor to analog ground should

be connected with a short, wide trace to this pin. No
other connection should be made, as any coupling
onto this pin will degrade the analog performance
of the Codec. Likewise, digital signals should be
kept away from REFFLT for similar reasons.

The Vrefout pin is typically 2.2 V and provides a
common mode signal for single-supply external
circuits. Vrefout only supports light DC loads and
should be buffered if AC loading is needed. For
typical use, a 0.1

F in parallel with a 1

F capaci-

tor should be connected to Vrefout.

AGND

+5 VA

100 k

2.7 k

CGND

220 pF

68 k

AGND

0.068 µF

X7R

AGND

+5 VA

U1A
MC33078D

47 k

10 µF

AGND

47 k

AGND

+5 VA

47 k

6.8 k

10 µF

AGND

220 pF

47 k

U1B
MC33078D

1 µF

X7R

MIC1

Figure 12. PC `99 Microphone Pre-amplifier

CS4294

DS326PP4

7.5

Power Supplies

The power supplies providing analog power should
be as clean as possible to minimize coupling into
the analog section which could degrade analog per-
formance. The pins AVdd1 and AVdd2 supply
power to all the analog circuitry on the CS4294.
This 5 Volt analog supply should be generated
from a voltage regulator (7805 type) connected to a
+12 Volt supply. This helps isolate the analog cir-
cuitry from noise typically found on +5 V digital
supplies which power many digital circuits in a PC
environment. A typical voltage regulator circuit for
analog power using an MC78M05CDT is shown in
Figure 14.

The digital power pins DVdd1 and DVdd2 should
be connected to the same digital supply as the AC
'97 Controller's AC-Link interface. Since the digi-
tal interface on the CS4294 may operate at either

3.3 V or 5 V, proper connection of these pins will
depend on the digital power supply of the AC '97
Controller. connections (vias). The AC-Link digi-
tal interface connection traces should be routed
such that digital ground plane lies underneath these
signals (on the internal ground layer) from the AC
'97 Controller continuously to the CS4294.

Figure 13. Headphones Driver

AGND

1/4 WATT

HP_OUT_R

ALT_LINE_OUT_L

HP_OUT_L

Vrefout

ALT_LINE_OUT_R

22pF

NPO

39k

1
2

22pF

NPO

TDA1308

27k

1
2

TDA1308

220

ELEC

47K

1 2

ELEC

680pF

NPO

680pF

NPO

0.1

Y5V

1.0

Y5V

220

+12VD

AGND

DGND

+5VA

0.1µF

Y5V

10µF

ELEC

10µF

ELEC

MC78M05CDT

OUT

GND

0.1µF

Y5V

Figure 14. Voltage Regulator

CS4294

DS326PP4

8. PIN DESCRIPTIONS

8.1

Digital I/O Pins

RESET# - AC '97 Chip Reset, Input

This active low signal is the asynchronous Cold Reset input to the CS4294. The CS4294 must
be reset before it can enter normal operating mode. When the PR4 bit of register 26h is set, the
RESET# rising edge will be used as an AC `97 2.1 Warm Reset only, preserving register
values.

SYNC - AC-link Serial Port Sync pulse, Input

This signal is the serial port timing signal for the AC-link of the CS4294. Its period is the
reciprocal of the sample rate of the CS4294, 48 kHz. This signal is generated by the AC '97
Controller and is synchronous to BIT_CLK. SYNC is also an asynchronous input when the
CS4294 is in a PR4 powerdown state and is configured as a primary codec. A series
terminating resistor of 47

should be connected on this signal close to the device driving the

signal.

13 14 15 16 17 18 19 20 21 22 23 24

48 47 46 45 44 43 42 41 40 39 38 37

CD_

I
N

_IN_L

I
N_

FFL

I
O

IO7

I
O

GPI

I
O

Vrefout

AVdd3

AVdd2

AVss2

DVss1

DVss2

DVdd1

GPIO3

XTL_OUT

XTL_IN

SDATA_OUT

BIT_CLK

SDATA_IN

DVdd2

SYNC

RESET#

ID0#

ALT_LINE_OUT_R

ALT_LINE_OUT_L

LINE_OUT_R

LINE_OUT_L

ID1#

AFLT2

AFLT1

CS4294-XQ

48-Pin TQFP

CS4294

DS326PP4

BIT_CLK - AC-link Serial Port Master Clock, Input/Output

This input/output signal controls the master clock timing for the AC-link. In codec primary
mode, this signal is an output 12.288 MHz clock signal which is divided down by two from the
XTL_IN input clock pin. In codec secondary mode, this signal is an input which controls the
AC-link serial interface. In BIT_CLK mode, this signal generates all internal clocking
including the AC-link serial interface timing. A series terminating resistor of 47

should be

connected on this signal close to the CS4294 in primary mode or close to the BIT_CLK source
if in secondary mode.

SDATA_OUT - AC-link Serial Data Input Stream to AC `97, Input

This input signal transmits the control information and digital audio output streams to be sent
to the DACs. The data is clocked into the CS4294 on the falling edge of BIT_CLK. A series
terminating resistor of 47

should be connected on this signal close to the device driving the

input.

SDATA_IN - AC-link Serial Data Output Stream from AC `97, Output

This output signal transmits the status information and digital audio input streams from the
ADCs. The data is clocked out of the CS4294 on the rising edge of BIT_CLK. A series
terminating resistor of 47

should be connected on this signal as close to the CS4294 as

possible.

XTL_IN - Crystal Input

This pin accepts either a crystal, with the other pin attached to XTL_OUT, or an external
CMOS clock. XTL_IN must have a crystal or clock source attached for proper operation except
when operating in BIT_CLK mode. The crystal frequency must be 24.576 MHz and designed
for fundamental mode, parallel resonance operation.

XTL_OUT - Crystal Output

This pin is used for a crystal placed between this pin and XLT_IN. If an external clock is used
on XTL_IN or the codec is in BIT_CLK mode, this pin must be left floating with no traces or
components connected to it.

ID1#, ID0# - Codec ID, Inputs

These pins select the codec ID and mode of operation for the CS4294. They are sampled after
the rising edge of RESET# and not used after. These inputs have internal 100 k

pull-ups and

should be left floating for a logic 0 or tied to analog ground for a logic 1. The pins utilize
inverted logic, so the condition of both pins floating sets the codec to primary mode while any
other combination sets the codec to a secondary mode. In primary mode, the codec is always
clocked from an external crystal or an external oscillator connected to the XTL_IN and/or
XTL_OUT pins with BIT_CLK as an output. In secondary mode, the clocking mechanism is
determined by the state of the BCM# pin with BIT_CLK always being an input.

CS4294

DS326PP4

BCM# - BIT_CLK Mode, Input

This pin selects the secondary mode clocking mechanism. BCM# is sampled after the rising
edge of RESET# and not used after. In codec secondary mode (ID1# and or ID0# grounded),
grounding this input will select BIT_CLK mode. In this mode, BIT_CLK is defined as an input
and all internal timing will be derived from the BIT_CLK signal and no connections should be
made to XTAL_IN and XTAL_OUT. When BCM# is floating, all timing will be derived from
the XTAL_IN pin. In this case, XTAL_IN must be synchronous to BIT_CLK. In primary mode,
BCM# must be left floating.

GPIO[8:3] - General Purpose Input/Output

These GPIO pins are used to control discrete digital functions. When a GPIO pin is configured
as an input, it behaves as a Schmitt trigger input with 350 mV of hysteresis at 5 V and 220 mV
of hysteresis at 3.3 V. When a GPIO pin in configured as an output, it may function as a
normal CMOS output (4 mA drive) or as an open drain output. GPIO pins power up in the high
impedance state (tri-state).

8.2

Analog I/O Pins

MIC1 - Analog Mono Source, Input

This analog input is a monophonic source to the analog output mixer. It is intended to be used
as a desktop microphone connection to the audio subsystem. The maximum allowable input is
1 V

RMS

(sinusoidal). If the 20 dB internal boost is enabled, the maximum allowable input is

100 mV

RMS

(sinusoidal). This input is internally biased at the Vrefout voltage reference and

requires AC coupling to external circuitry. If this input is not used, it should be AC coupled to
analog ground.

LINE_IN_L and LINE_IN_R- Analog Line Source, Inputs

These inputs form a stereo input pair to the CS4294. The maximum allowable input is
1 V

RMS

(sinusoidal). These inputs are internally biased at the Vrefout voltage reference. AC

coupling to external circuitry is required. If these inputs are not used, they should both be
connected to the Vrefout pin or both AC coupled, with separate AC coupling caps, to analog
ground.

CD_L and CD_R - Analog CD Source, Inputs

These inputs form a stereo input pair to the CS4294. It is intended to be used for the Red Book
CD audio connection to the audio subsystem. The maximum allowable input is 1 V

RMS

(sinusoidal). These inputs are internally biased at the Vrefout voltage reference. AC coupling to
external circuitry is required. If these inputs are not used, they should both be connected to the
Vrefout pin or both AC coupled, with separate AC coupling caps, to analog ground.

CD_GND - Analog CD Common Source, Input

This analog input is used to remove common mode noise from Red Book CD audio signals.
The impedance on the input signal path should be one half the impedance on the CD_L and
CD_R input paths. This pin requires AC coupling to external circuitry. If this input is not used,
it should be connected to the Vrefout pin or AC coupled to analog ground.

CS4294

DS326PP4

AUX_L and AUX_R - Analog Auxiliary Source, Inputs

These inputs form a stereo input pair to the CS4294. The maximum allowable input is 1 V

RMS

LINE_OUT_L and LINE_OUT_R - Analog Line Level Outputs

These signals are analog outputs from the stereo output mixer. The full scale output voltage for
output is nominally 1 V

RMS

and is internally biased at the Vrefout voltage reference. It is

required to either AC couple these pins to external circuitry or DC couple them to a buffer op-
amp biased at the Vrefout voltage. These pins need a 680 pF to 1000 pF NPO capacitor
attached to analog ground.

ALT_LINE_OUT_L and ALT_LINE_OUT_R - Analog Alternate Line Level Outputs

These signals are analog outputs from the stereo output mixer. The full scale output voltage for
each output is nominally 1 V

RMS

and is internally biased at the Vrefout voltage reference. It is

8.3

Filter and Reference Pins

REFFLT - Internal Reference Voltage, Input

This is the voltage reference used internal to the part. A 0.1

F and a 1

F (must not be larger

than 1

F) capacitor with short, wide traces must be connected to this pin. No other

connections should be made to this pin.

Vrefout - Voltage Reference, Output

All analog inputs and outputs are centered around Vrefout which is nominally 2.2 Volts. This
pin may be used to level shift external circuitry, however any external loading should be
buffered.

AFLT1 - Left Channel Antialiasing Filter Input

This pin needs a 1000 pF NPO capacitor attached to analog ground.

AFLT2 - Right Channel Antialiasing Filter Input

This pin needs a 1000 pF NPO capacitor attached to analog ground.

FLTI - Enhanced Stereo Filter Input

A 1000 pF capacitor must be attached between this pin and FLTO if the

Stereo Enhancement

function is used.

FLTO - Enhanced Stereo Filter Output

A 1000 pF capacitor must be attached between this pin and FLTI if the

Stereo Enhancement

function is used.

CS4294

DS326PP4

9. PARAMETER AND TERM DEFINITIONS

AC '97 Specification

Refers to the Audio Codec `97 Component Specification Ver 2.1 published by Intel

Corporation [].

AC '97 Controller or Controller

Refers to the control chip which interfaces to the Codec's AC-link. This has been also called
DC '97 for Digital Controller `97 [].

AC '97 Registers or Codec registers

Refers to the 64-field register map defined in the AC '97 Specification.

ADC

Refers to a single Analog-to-Digital converter in the Codec. "ADCs" refers to the stereo pair of
Analog-to-Digital converters.

DAC

A single Digital-to-Analog converter in the Codec "DACs" refers to the stereo pair of Digital-
to-Analog converters.

SRC

Sample Rate converter. Converts data derived at one sample rate to a differing sample rate.

Codec

Refers to the chip containing the ADCs, DACs, and analog mixer. In this data sheet, the Codec
is the CS4297A9.

FFT

Fast Fourier Transform.

Resolution

The number of bits in the output words to the DACs, and in the input words to the ADCs.

Differential Nonlinearity

The worst case deviation from the ideal code width. Units in LSB.

dB FS A

dB FS is defined as dB relative to full-scale. The "A" indicates an A weighting filter was used.

CS4294

DS326PP4

Frequency Response (FR)

FR is the deviation in signal level verses frequency. The 0 dB reference point is 1 kHz. The
amplitude corner, Ac, lists the maximum deviation in amplitude above and below the 1 kHz
reference point. The listed minimum and maximum frequencies are guaranteed to be within the
Ac from minimum frequency to maximum frequency inclusive.

Dynamic Range (DR)

DR is the ratio of the RMS full-scale signal level divided by the RMS sum of the noise floor,
in the presence of a signal, available at any instant in time (no change in gain settings between
measurements). Measured over a 20 Hz to 20 kHz bandwidth with units in dB FS A.

Total Harmonic Distortion plus Noise (THD+N)

THD+N is the ratio of the RMS sum of all non-fundamental frequency components, divided by
the RMS full-scale signal level. It is tested using a -3 dB FS input signal and is measured over
a 20 Hz to 20 kHz bandwidth with units in dB FS.

Signal to Noise Ratio (SNR)

SNR, similar to DR, is the ratio of an arbitrary sinusoidal input signal to the RMS sum of the
noise floor, in the presence of a signal. It is measured over a 20 Hz to 20 kHz bandwidth with
units in dB.

Interchannel Isolation

The amount of 1 kHz signal present on the output of the grounded AC-coupled line input
channel with 1 kHz, 0 dB, signal present on the other line input channel. Units in dB.

Interchannel Gain Mismatch

For the ADCs, the difference in input voltage to get an equal code on both channels. For the
DACs, the difference in output voltages for each channel when both channels are fed the same
code. Units in dB.

PATHS

A-D: Analog in, through the ADC, onto the serial link.

D-A: Serial interface inputs through the DAC to the analog output.

A-A: Analog in to Analog out (analog mixer).

10. REFERENCES

Intel, Audio Codec `97 Component Specification, Revision 2.1, May 22,1998.
http://developer.intel.com/pc-supp
/platform/ac97/

Document Outline

Ð­Ð»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: CS4294-XQ

Document Outline

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: CS4294-XQ
