CS5180

Modulator & 8 kHz to 400 kHz 16-Bit ADC

Features

16-Bit Delta-Sigma A/D Converter
Fully Differential Input with 4.0 V

Range

Dynamic Range: 93 dB
Spurious Free Dynamic Range: 96 dB
Total Harmonic Distortion: -95 dB @ 22 kHz
Up to 400 kHz Output Word Rate
No Missing Codes
Non-Aliasing Low-Pass Digital Filter
High Speed 3-Wire Serial Interface
Supply Options:

- VA+ = 5 V, VD+ = 5 V, 690 mW
- VA+ = 5 V, VD+ = 3 V, 368 mW

Modulator Output Mode
Power Down Mode

Description

CS5180 is a fully calibrated high-speed

analog-to-

digital converter, capable of 400 kSamples/second out-
put word rate (OWR). The OWR scales with the master
clock. It consists of a 5th order

modulator, decimation

filter, and serial interface. The chip can use the 2.375 V
on-chip voltage reference, or an external 2.5 V refer-
ence. The input voltage range is 1.6 × VREFIN V

fully

differential. Multiple CS5180s can be fully synchronized
in multi-channel applications with a SYNC signal. The
part has a power-down mode to minimize power con-
sumption at times of system inactivity. The high speed
digital I/O lines have complementary signals to help re-
duce radiated noise from traces on the PC board. The
CS5180 can also be operated in modulator-only mode
which provides the delta-sigma modulator bitstream as
the output.

ORDERING INFORMATION

CS5180-CL

0 °C to 70 °C

28-pin PLCC

AIN+

AIN-

VREF+

VREFIN

VREFOUT

VREFCAP

PWDN

SYNC RESET MODE

VA+

AGND

VD+

DGND

MCLK
MCLK

MFLAG

SDO
SDO
SCLK
SCLK
FSO

Decimator

Clock

x1.6

Reference

Timing

and

Control

Serial

Interface

Modulator

VREF-

Mode

Selector

APR `02

DS259PP4

CS5180

TABLE OF CONTENTS

CHARACTERISTICS/SPECIFICATIONS ............................................................ 4

ANALOG CHARACTERISTICS................................................................... 4
DYNAMIC CHARACTERISTICS ................................................................. 6
DIGITAL CHARACTERISTICS.................................................................... 6
SWITCHING CHARACTERISTICS ............................................................. 7
RECOMMENDED OPERATING CONDITIONS .......................................... 8
ABSOLUTE MAXIMUM RATINGS .............................................................. 8

GENERAL DESCRIPTION .................................................................................. 9
THEORY OF OPERATION .................................................................................. 9

Converter Initialization: Calibration and Synchronization .......................... 9
Clock Generator ........................................................................................ 10
Voltage Reference .................................................................................... 10
Analog Input ............................................................................................. 11
Output Coding .......................................................................................... 11
Modulator-Only mode ............................................................................... 11
Instability Indicator .................................................................................... 13
Digital Filter Characteristics ...................................................................... 13
Serial Interface .......................................................................................... 13
Power Supplies / Board Layout ................................................................ 13
Power-down Mode .................................................................................... 15

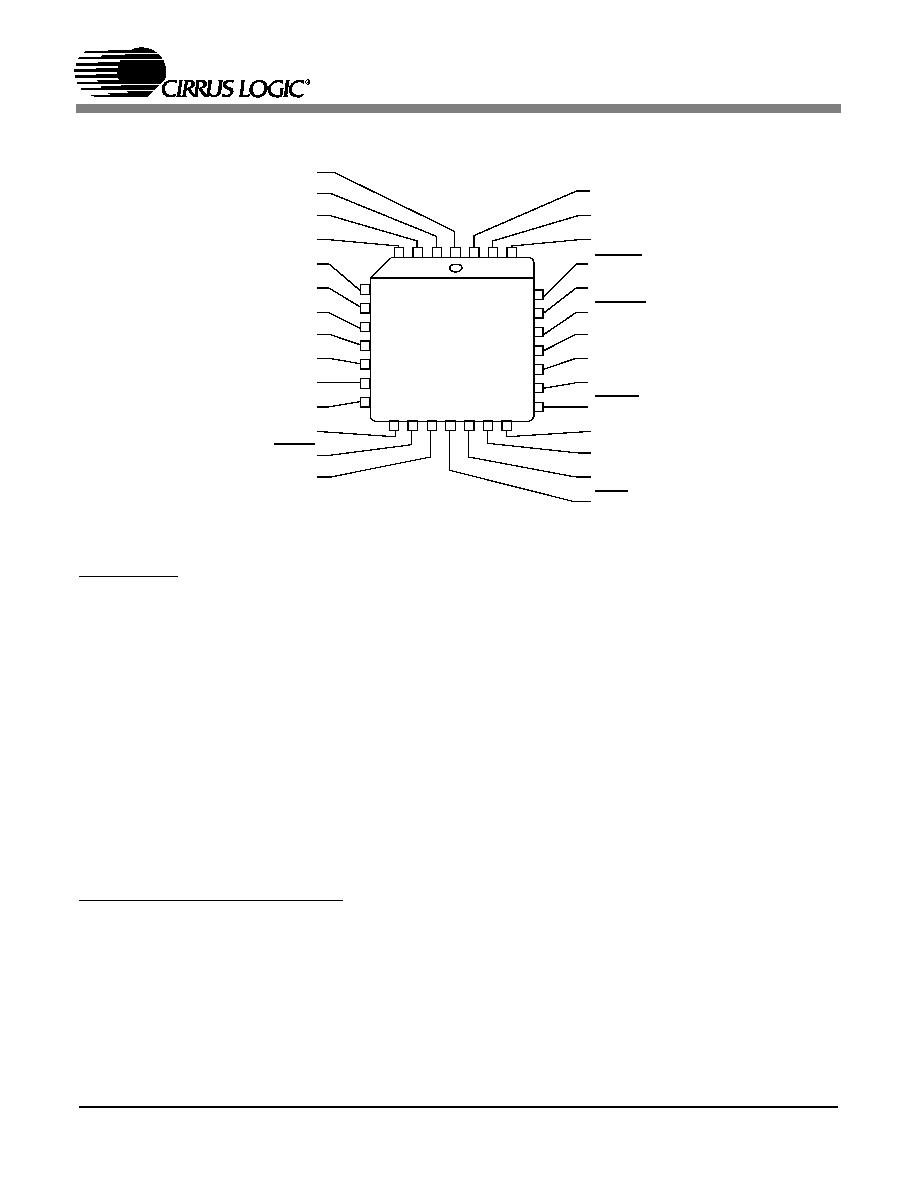

PIN DESCRIPTION ............................................................................................ 16
PARAMETER DEFINITIONS ............................................................................. 19
APPENDIX A: CIRCUIT APPLICATIONS ......................................................... 21

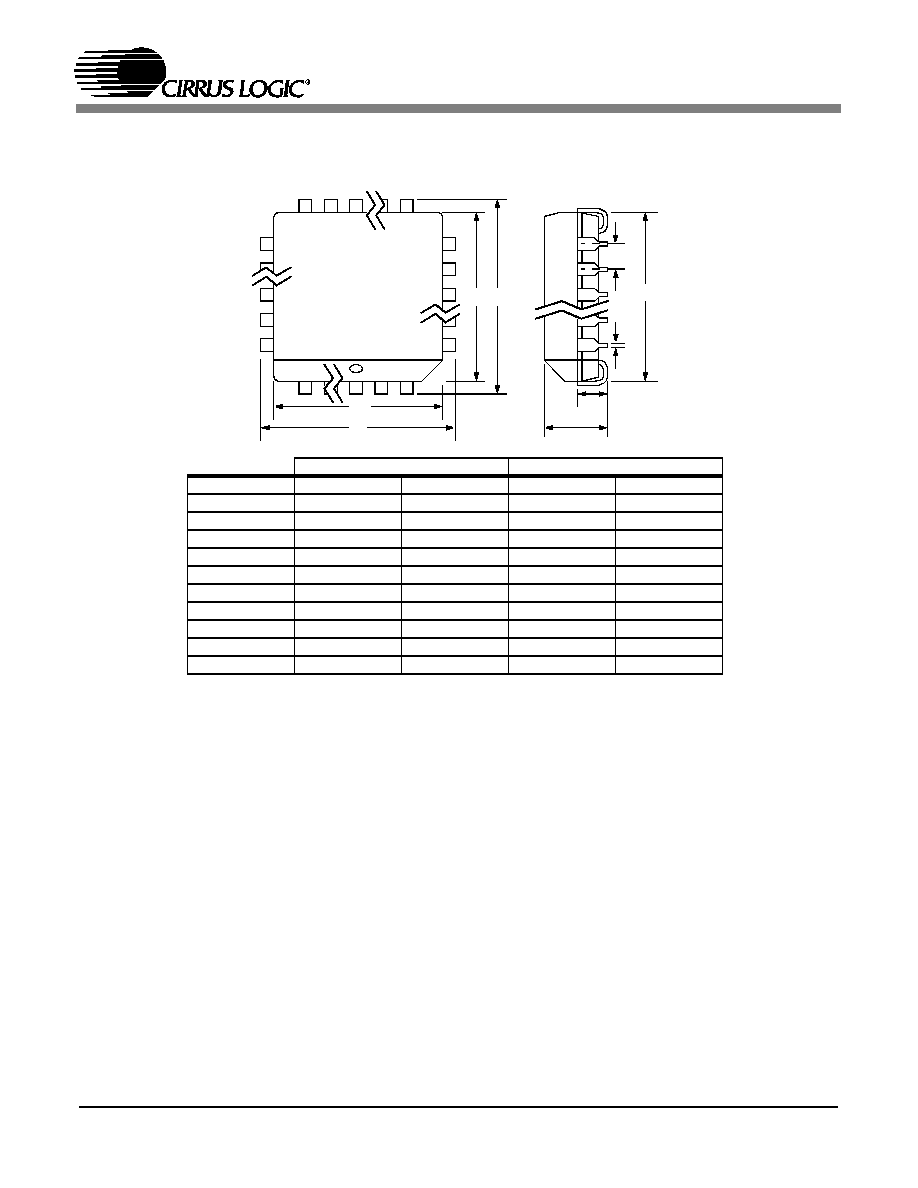

PACKAGE OUTLINE DIMENSIONS ................................................................. 26

Contacting Cirrus Logic Support

For a complete listing of Direct Sales, Distributor, and Sales Representative contacts, visit the Cirrus Logic web site at:
http://www.cirrus.com/corporate/contacts/sales.cfm

IMPORTANT NOTICE

"Preliminary" product information describes products that are in production, but for which full characterization data is not yet available. "Advance" product infor-
mation describes products that are in development and subject to development changes. Cirrus Logic, Inc. and its subsidiaries ("Cirrus") believe that the infor-
mation contained in this document is accurate and reliable. However, the information is subject to change without notice and is provided "AS IS" without warranty
of any kind (express or implied). Customers are advised to obtain the latest version of relevant information to verify, before placing orders, that information being
relied on is current and complete. All products are sold subject to the terms and conditions of sale supplied at the time of order acknowledgment, including those
pertaining to warranty, patent infringement, and limitation of liability. No responsibility is assumed by Cirrus for the use of this information, including use of this
information as the basis for manufacture or sale of any items, or for infringement of patents or other rights of third parties. This document is the property of Cirrus
and by furnishing this information, Cirrus grants no license, express or implied under any patents, mask work rights, copyrights, trademarks, trade secrets or
other intellectual property rights. Cirrus owns the copyrights of the information contained herein and gives consent for copies to be made of the information only
for use within your organization with respect to Cirrus integrated circuits or other parts of Cirrus. This consent does not extend to other copying such as copying
for general distribution, advertising or promotional purposes, or for creating any work for resale.

An export permit needs to be obtained from the competent authorities of the Japanese Government if any of the products or technologies described in this ma-
terial and controlled under the "Foreign Exchange and Foreign Trade Law" is to be exported or taken out of Japan. An export license and/or quota needs to be
obtained from the competent authorities of the Chinese Government if any of the products or technologies described in this material is subject to the PRC Foreign
Trade Law and is to be exported or taken out of the PRC.

CERTAIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF DEATH, PERSONAL INJURY, OR SEVERE
PROPERTY OR ENVIRONMENTAL DAMAGE ("CRITICAL APPLICATIONS"). CIRRUS PRODUCTS ARE NOT DESIGNED, AUTHORIZED, OR WARRANT-
ED TO BE SUITABLE FOR USE IN LIFE-SUPPORT DEVICES OR SYSTEMS OR OTHER CRITICAL APPLICATIONS. INCLUSION OF CIRRUS PRODUCTS
IN SUCH APPLICATIONS IS UNDERSTOOD TO BE FULLY AT THE CUSTOMER'S RISK.

Cirrus Logic, Cirrus, and the Cirrus Logic logo designs are trademarks of Cirrus Logic, Inc. All other brand and product names in this document may be trade-
marks or service marks of their respective owners.

CS5180

LIST OF FIGURES

Figure 1. Serial Port Timing (not to scale) .................................................................. 7
Figure 2. RESET and SYNC logic and timing. ........................................................... 9

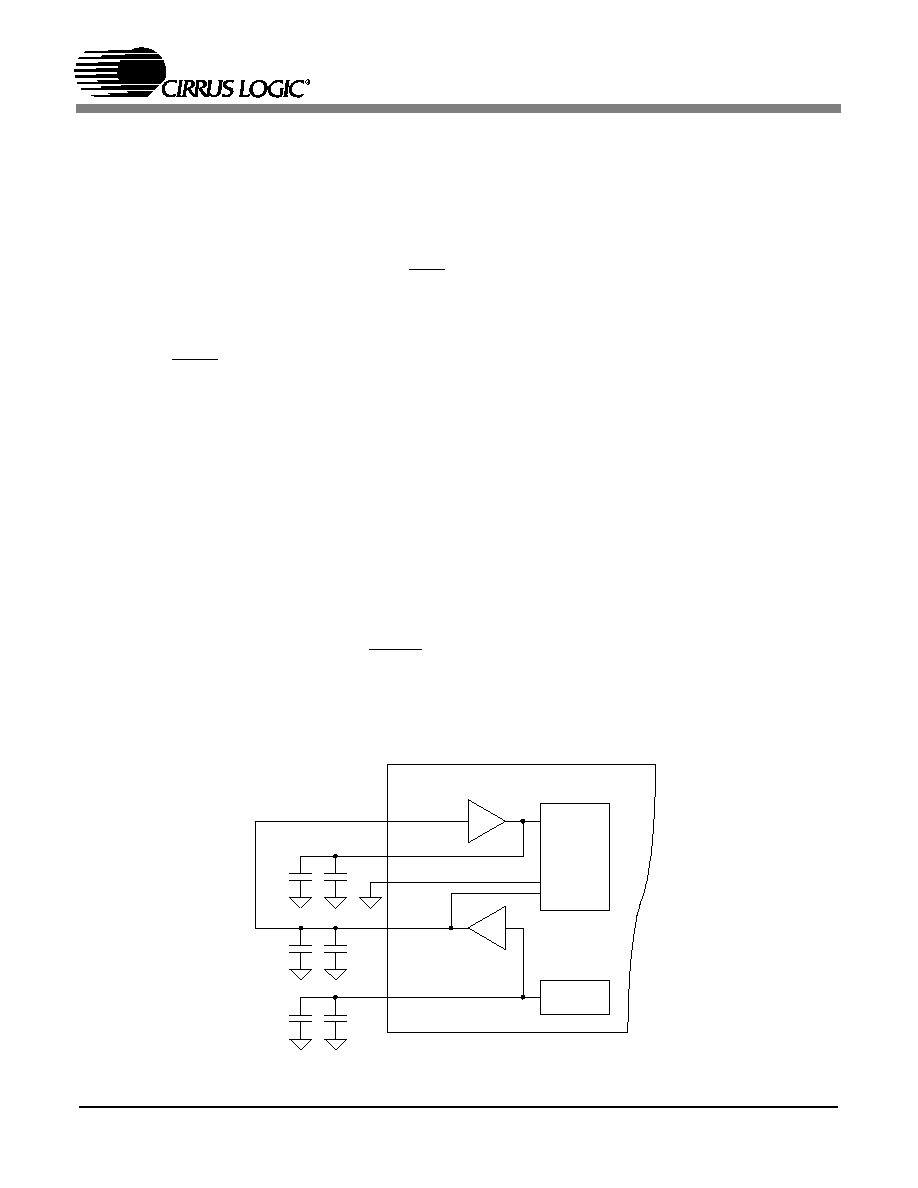

Figure 3. CS5180 connection diagram for using the internal voltage reference. ...... 10
Figure 4. CS5180 connection diagram for using an external voltage reference. ...... 11
Figure 5. Modulator Only Mode Data RTZ Format. .................................................. 12
Figure 6. Circuit to Reconstruct

Return-to-Zero (RTZ) Data from SDO/SDO into Original Modulator Bitstream. 12

Figure 7. Magnitude versus frequency spectrum of modulator

bitstream (MCLK = 25.6 MHz). .......................................................................... 12

Figure 8. Expanded view of the magnitude versus frequency spectrum of

modulator bitstream (MCLK = 25.6 MHz). ......................................................... 12

Figure 9. CS5180 Digital Filter Magnitude Response (MCLK = 25.6 MHz) .............. 13
Figure 10. CS5180 Digital Filter Phase Response

(MCLK = 25.6 MHz) ........................................................................................... 13

Figure 11. CS5180 System Connection Diagram ..................................................... 14
Figure 12. Single amplifier driving only AIN+, AIN- held at steady dc value ............. 21
Figure 13. Performance of amplifier of Figure 12 overdriving AIN+ input to the

CS5180 at 4 VPP ............................................................................................... 21

Figure 14. Performance of amplifier of Figure 12 with AIN+ driven at 2 VPP ........... 21

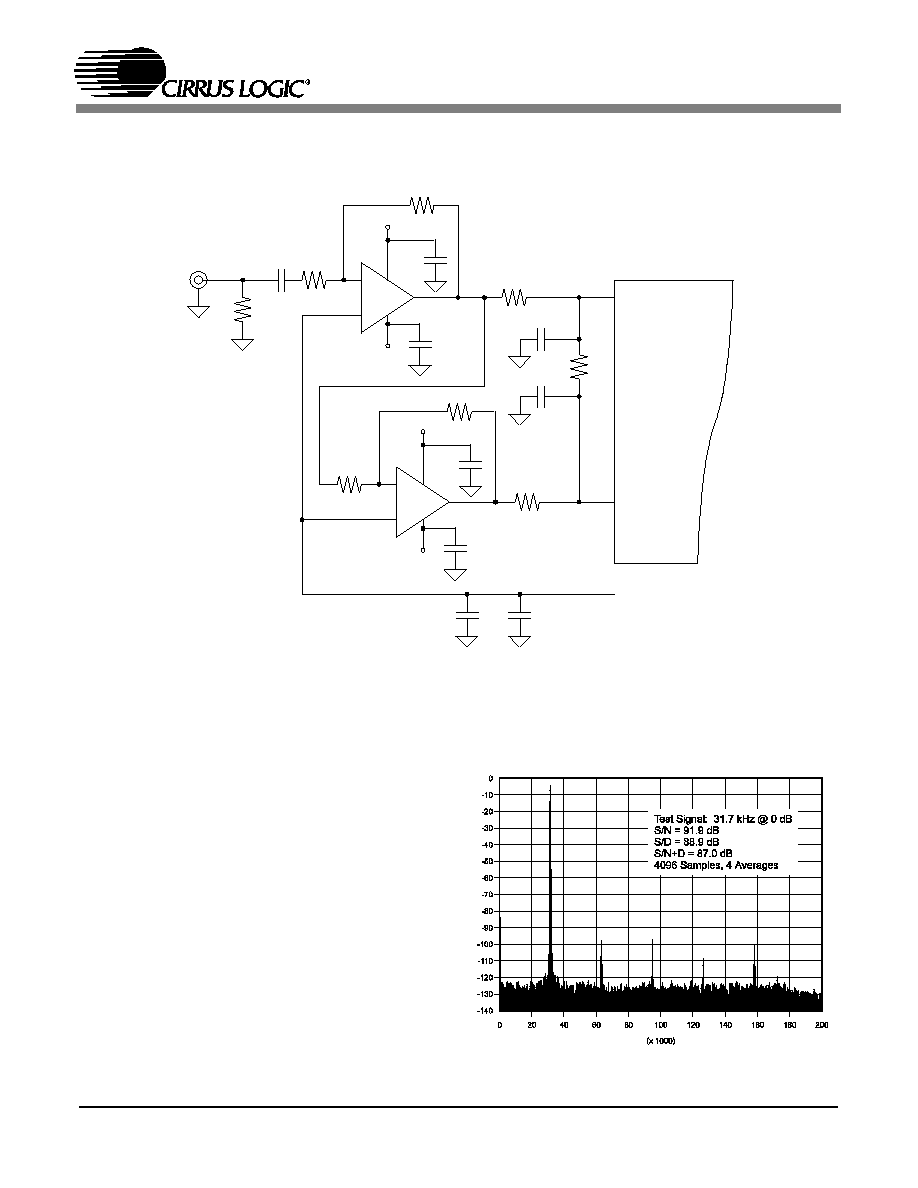

Figure 15. AC-coupled driver using two amplifiers. .................................................. 22
Figure 16. Performance of amplifier in Figure 15 ..................................................... 22
Figure 17. Three amplifier driver .............................................................................. 23
Figure 18. Performance of amplifier in Figure 17 ..................................................... 23
Figure 19. Four amplifier driver. ............................................................................... 24
Figure 20. Performance of amplifier in Figure 19 ..................................................... 24
Figure 21. Performance of amplifier in Figure 19 ..................................................... 24
Figure 22. CS5180 Differential Non-linearity plot.

(Data taken with repeating ramp) ....................................................................... 25

Figure 23. Histogram of DNL from Figure 22 ........................................................... 25
Figure 24. CS5180 Noise Histogram, > 60,000 samples. ........................................ 25

CS5180

CHARACTERISTICS/SPECIFICATIONS

ANALOG CHARACTERISTICS

= 0 °C to 70 °C; VA+ = 5 V ± 5%, VD+ = 3 V ± 10%; AGND =

DGND = 0 V; MCLK = 25.6 MHz; VREFIN = VREFOUT; MODE = VD+; Analog source impedance = 301 Ohms
with 2200 pF to AGND; Full-Scale input sinewave at 22 kHz; Unless otherwise noted)

Notes: 1. Dynamic range is tested with a 22 kHz input signal 60 dB below full scale.

2. Specification guaranteed by design, characterization, and/or test.

3. Full scale fully-differential input span is nominally 1.6 X the VREFIN voltage. The peak negative

excursion of the signals at AIN+ or AIN- should not go below AGND for proper operation.

4. VREFIN current is less than 1 µA under normal operation, but can be as high as ±200 µA during

calibration.

5. Drift of the on-chip reference alone is typically about ±30 ppm/°C. If using an external reference, total

full scale drift will be that of the external reference ±20 ppm/°C, which is the typical drift of the X1.6 buffer.

6. Applies after self-calibration at final operating ambient temperature.

Parameter

Symbol

Min

Typ

Max

Unit

Dynamic Performance

Dynamic Range

(Note 1)

Total Harmonic Distortion

THD

-90

-95

Signal to (Noise + Distortion)

SINAD

Spurious Free Dynamic Range

SFDR

dBc

Static Performance

Linearity Error

(Note 2)

INL

±2

LSB

Differential Non-Linearity

(Note 2)

DNL

±0.5

LSB

Full Scale Error

(Note 6)

±8

LSB

Full Scale Drift with Internal Reference

(Notes 2 and 5)

±50

ppm/°C

Offset Error

(Note 6)

±8

LSB

Offset Drift

(Note 2)

±6.0

µV/°C

Analog Input

Differential Input Voltage Range

(Note 3)

1.6 X

VREFIN

Common Mode Range

CMR

VREFIN

+ 0.25

Input Capacitance

4.0

Differential Input Impedance

MCLK = 25.6 MHz

500

Common Mode Rejection Ratio

(Note 2)

CMRR

Common Mode Input Current

MCLK = 25.6 MHz

±100

±200

µA

Reference Input

VREFIN

2.25

2.375

2.6

VREFIN Current

(Note 4)

±200

µA

Reference Output

VREFOUT Voltage

2.25

2.375

2.5

VREFOUT Output Current

±500

µA

VREFOUT Impedance

0.1

CS5180

SWITCHING CHARACTERISTICS

= 0 °C to 70 °C; VA+ = 5 V ±5%, VD+ = 2.7 V to 5.5 V;

AGND = DGND = 0 V; MODE = VD+)

Notes: 10. Rise and Fall times are specified at 10% to 90% points on waveform.

11. RESET, SYNC, and PWDN have Schmitt-trigger inputs.

12. Specifications applicable to complementary signals SCLK and SDO.

Parameter

Symbol

Min

Typ

Max

Unit

Master Clock Frequency

(Note 2)

MCLK

0.512

25.6

MHz

Master Clock Duty Cycle

Rise Times

(Notes 2, 10, and 11)

Any Digital Input, Except MCLK

MCLK

Any Digital Output

rise

-
-
-

-
-

100

.2/MCLK

Fall Times

(Notes 2, 10, and 11)

Any Digital Input, Except MCLK

MCLK

Any Digital Output

fall

-
-
-

-
-

100

.2/MCLK

Calibration/Sync

RESET rising to MCLK rising

RESET rising recognized, to FSO falling

988205/MCLK

SYNC rising to MCLK rising

SYNC rising recognized to FSO falling

5161/MCLK

PWDN rising recognized to FSO falling

5168/MCLK

SYNC high time

1/MCLK

RESET low time

1/MCLK

Serial Port Timing

(Note 12)

SCLK frequency

MCLK/3

SCLK high time

1/MCLK

SCLK low time

2/MCLK

FSO falling to SCLK rising

2/MCLK + 2E-9

SCLK falling to new data bit available

1.5

SCLK rising to FSO rising

1/MCLK - 2E-9

FSO

SCLK

SDATA XX

MSB

MSB-1

LSB-1

LSB

Figure 1. Serial Port Timing (not to scale)

CS5180

GENERAL DESCRIPTION

The CS5180 is a monolithic CMOS 16-bit A/D
converter designed to operate in a continuous mode
after being reset.

The CS5180 can operate in a modulator-only mode
in which the unfiltered bit stream from the modula-
tor is the data output from the device.

THEORY OF OPERATION

The front page of this data sheet illustrates the
block diagram of the CS5180.

Converter Initialization: Calibration and
Synchronization

The CS5180 does not have an internal power-on re-
set circuit. Therefore when power is first applied to
the device the RESET pin should be held low until
power is established and the voltage reference has
stabilized. This resets the converter's logic to a
known state. When power is fully established the
converter will perform a self-calibration, starting
with the first MCLK rising edge after RESET goes
high. The converter will use 988,205 MCLK cycles
to complete the calibration and to allow the digital
filter to fully settle, after which, it will output fully-
settled conversion words. The converter will then
continue to output conversion words at an output

word rate equal to MCLK/64. Figure 2 illustrates
the RESET and SYNC logic and timing for the con-
verter.

The CS5180 is designed to perform conversions
continuously with an output rate that is equivalent
to MCLK/64. The conversions are performed and
the serial port is updated independent of external
controls. The converter is designed to measure dif-
ferential bipolar input signals, and unipolar signals,
with a common mode voltage of between 1.0 V and
VREF + 0.25 V. Calibration is performed when the
RESET signal to the device is released. If RESET
is properly framed to MCLK, the converter can be
synchronized to a specific MCLK cycle at the sys-
tem level.

The SYNC signal can also be used to synchronize
multiple converters in a system. When SYNC is
used, the converter does not perform calibration.
The SYNC signal is recognized on the first rising
edge of MCLK after SYNC goes high.

SYNC

aligns the output conversion to occur every 64
MCLK clock cycles after the SYNC signal is rec-
ognized and the filter is settled. After the SYNC is
initiated by going high, the converter will wait
5,161 MCLK cycles for the digital filter to settle
before putting out a fully-settled conversion word.
To synchronize multiple converters in a system, the

RESET

MCLK

SYNC

CS5180

CLK

RESET

MCLK

RESET

FSO

988205 MCLK Cycles

CLK

SYNC

MCLK

SYNC

FSO

5161 MCLK Cycles

Figure 2. RESET and SYNC logic and timing.

CS5180

SYNC pulse should rise on a falling edge of the
MCLK signal. This ensures that the SYNC input to
all CS5180s in the system will be recognized on the
next rising edge of MCLK. Use of the SYNC input
is not necessary to make the converter operate
properly. If it is unused it should be tied to DGND.

Conversion data is output from the SDO and SDO
pins of the device. The data is output from the SDO
pin MSB first, in two's complement format. The
converter furnishes a serial clock SCLK and its
complement SCLK to latch the data bits; and a data
framing signal, Frame Sync Output (FSO), which
frames the output conversion word. The SCLK
output frequency is MCLK/3.

Clock Generator

The CS5180 must be driven from a CMOS-com-
patible clock at its MCLK pin. The MCLK input is
powered from the VD+ supply and its signal input
should not exceed this supply.

The required

MCLK is 64 × OWR (Output Word Rate). To
achieve an Output Word Rate of 400 kHz, the
MCLK frequency must be 64 × 400 kHz, or
25.6 MHz. A second clock input pin, MCLK, is
not actually used inside the device but allows the
user to run a fully differential clock to the converter

to minimize radiated noise from the PC board lay-
out.

The CS5180 can be operated with MCLK frequen-
cies from 512 kHz up to 26 MHz. The output word
rate

scales

with

the

MCLK

rate

with

OWR = MCLK/64.

Voltage Reference

The CS5180 can be configured to operate from ei-
ther its internal voltage reference, or from an exter-
nal voltage reference.

The on-chip voltage reference is 2.375 V and is ref-
erenced to the AGND pin. This 2.375 V reference is
output from the VREFOUT pin. It is then filtered
and returned to the VREFIN pin. VREFIN pin is
connected to a buffer which has a gain of 1.6. This
scales the on-chip reference of 2.375 V to 3.8 V.
This value sets the peak-to-peak input voltage into
the AIN pins of the converter. Figure 3 illustrates the
CS5180 connected to use the internal voltage refer-
ence. Note that a 1.0 µF and 0.1 µF capacitor are
shown connected to the VREFCAP pin to filter out
noise. A larger capacitor can be used, but may re-
quire a longer reset period when first applying power
to the part to allow for the reference to charge up the
capacitors and stabilize before self-calibration be-
gins.

10 µF

0.1 µF

VREFIN

VREF+

VREF-

VREFOUT

VREFCAP

X1.6

Modulator

Reference

CS5180

10 µF

0.1 µF

1 µF

0.1 µF

Figure 3. CS5180 connection diagram for using the internal voltage reference.

CS5180

Alternatively, the CS5180 can be configured to use
an external voltage reference. Figure 4 illustrates
the CS5180 connected to use a 2.5 V external ref-
erence. In this case, the peak-to-peak input at the
AIN pins is 4 V.

Analog Input

The analog signal to the converter is input into the
AIN+ and AIN- pins. The input signal is fully dif-
ferential with the maximum peak-to-peak ampli-
tude of VREFIN X 1.6 V. The signal needs to have
a common mode voltage in a range from 1 V to
VREF + 0.25 V. A resistor-capacitor filter should
be included on the AIN+ and AIN- inputs of the
converter. This should consist of a 20

resistor

and a 2200 pF capacitor on each input to ground as
illustrated in the system connection diagram (Fig-
ure ).

Output Coding

Table 1 illustrates the output coding for the con-
verter when operating with the digital filter
(MODE = 1). The converter outputs its data from
the serial port in twos complement format, MSB
first.

The chip offers an MFLAG signal to indicate when
the modulator has gone unstable. MFLAG is set
when an overrange signal forces the modulator into
an unstable condition. Under this condition, output
codes from the converter will be locked to either
plus or minus full scale as is appropriate for the
overrange condition.

Modulator-Only mode

The CS5180 can be operated in modulator-only
mode by connecting the MODE pin to a logic 0
(DGND).

In modulator-only mode the noise-shaped bit-
stream from the fifth-order delta-sigma modulator
is output from the SDO and SDO (inverse bit-
stream) pins.

10 µF

0.1 µF

VREFIN

VREF+

VREF-

VREFOUT

VREFCAP

X1.6

Modulator

Reference

CS5180

10 µF

0.1 µF

1 µF

0.1 µF

10 µF

0.1 µF

2.5 V

10 µF

0.1 µF

Figure 4. CS5180 connection diagram for using an external voltage reference.

Fully Differential Bipolar

Input Voltage

Twos Complement

>(V

- 1.5 LSB)

7FFF

- 1.5 LSB

7FFF
7FFE

-0.5 LSB

0000

FFFF

-V

+ 0.5 LSB

8001
8000

<(-V

+ 0.5 LSB)

8000

Notes: 1. V

= VREFIN x 1.6

Table 1. Output Coding.

CS5180

The data from the modulator is output from
SDO/SDO in RTZ (Return to Zero) format. The
circuit in Figure 6 can be used to reconstruct the
data so it can be captured with the rising or falling
edge of MCLK.

Table 2 illustrates the magnitude of the input signal
into the chip versus the ones density out of the
modulator. The table does not take into account the
potential offset and gain errors of the modulator
and their effect on the ones density.

Figure 7 and Figure 8 illustrate magnitude versus
frequency plots of the modulator bitstream when
running at 25.6 MHz.

Fully Differential Bipolar

Input Voltage

Modulator Ones

Density

75%

50%

-V

25%

Notes: 2. V

= VREFIN x 1.6

3. Ones density is approximate; it does not

take offset and gain errors into
consideration.

Table 2. Modulator-Only Mode Ones Density.

MCLK

Modulator

Data

SDO

Reconstructed

Data

SDO

Figure 5. Modulator Only Mode Data RTZ Format.

SDO

Reconstructed
Data

SDO

Reconstructed
Data

Figure 6. Circuit to Reconstruct
Return-to-Zero (RTZ) Data from

SDO/SDO into Original Modulator Bitstream.

Figure 7. Magnitude versus frequency spectrum of

modulator bitstream

(MCLK = 25.6 MHz).

Figure 8. Expanded view of the magnitude versus fre-

quency spectrum of modulator bitstream

CS5180

Instability Indicator

The MFLAG signal is functional in both modes of
operation of the part and indicates when the modu-
lator has been overdriven into an unstable condi-
tion. In the modulator only mode (MODE = 0), the
MFLAG signal will remain set for 3 MCLK cycles
when the modulator goes unstable, before being re-
turned to the reset state. While the input condition
causing modulator instability persists, the MFLAG
signal will continually get set for 3 MCLK cycles
and then get reset.

When the decimation filter on the part is operation-
al (MODE = 1), the MFLAG signal is set when the
modulator goes unstable. In this mode, however,
the MFLAG signal stays set until 5,120 MCLK cy-
cles after the input condition causing modulator in-
stability is removed.

This delay is provided to

allow the digital filter time to settle, and the part
will output fully settled conversion words after the
MFLAG signal goes low.

Digital Filter Characteristics

Figure 9 illustrates the magnitude versus frequency
plot of the converter when operating at 400 kHz
output word rate. The filter is a non-aliasing 4265
tap filter with a -3 dB corner at 0.4495 of the output
word rate and an out-of-band attenuation of at least
90 dB at frequencies above one half the output
word rate.

The passband ripple is less than

±0.05 dB up to the -3 dB corner frequency.
Figure 10 illustrates the phase response of the dig-
ital filter with the converter operating at 400 kHz
output word rate. The filter characteristics change
proportional to changes in the MCLK rate.

The group delay of the digital filter is 2,370 MCLK
cycles (92.6 µs with MCLK = 25.6 MHz), and the
settling time is 4,740 MCLK cycles (185.2 µs).

Serial Interface

The CS5180 has a serial interface through which
conversion words are output in a synchronous self-
clocking format. The serial port consists of the Se-

rial Data Output pin (SDO), and its complement
(SDO); Serial Clock (SCLK), and its complement
(SCLK); and the Frame Sync Output (FSO). FSO
falls at the beginning of an output word. Data is
output in twos complement format, MSB first.
FSO stays low for 16 SCLK cycles. SCLK is out-
put at a rate equal to MCLK/3.

Power Supplies / Board Layout

The CS5180 can be operated with VA+ supplies at
5 V and VD+ supplies at 5 V; or with VA+ at 5 V
and VD+ at 3 V.

Figure illustrates the system connection diagram
for the chip. For best performance, each of the

Figure 9. CS5180 Digital Filter Magnitude Response

(MCLK = 25.6 MHz)

Figure 10. CS5180 Digital Filter Phase Response

(MCLK = 25.6 MHz)

CS5180

supply pins should be bypassed to the nearest
ground pin on the chip. The bypass capacitors
should be located as close to the chip as possible. If
the chip is surface mounted the bypass capacitors
should be on the same side of the circuit card as the
chip.

The CS5180 is a high speed component that re-
quires adherence to standard high-frequency print-
ed circuit board layout techniques to maintain
optimum performance. These include the use of
ground and power planes, using low noise power
supplies in conjunction with proper supply decou-

pling, minimizing circuit trace lengths, and physi-
cal separation of digital and analog components
and circuit traces.

It is preferred that any clock oscillator circuitry be
located on a ground plane separate from the digital
plane in order to ensure that digital noise does not
induce clock jitter.

For additional insight, see the CDB5180 evaluation
board for more details. Also refer to Application
Note AN18 about layout and design rules for data
converters.

AGND1

+5 V

3.8 V

Fully

Differential

CMV = 2.375 V

+5 V or
+3.0 V

VA1+

VA2+

AGND2

AGND3

VREFOUT

VREFIN

VREF-

VREF+

VREFCAP

AIN+

AIN-

DGND1

VD1+

VD2+

DGND2

PWDN

MODE

RESET

SYNC

MFLAG

MCLK

FSO

SCLK

SDO

SCLK

SDO

Control

Logic

Clock

Source

Data

Interface

CS5180

0.1 µF

10 µF

1 µF

2200 pF

The 3.8 Vpp fully differential input span is set by the converter's internal voltage reference at 2.375 V.

An input span of 4.0 Vpp fully differential would result if an external voltage reference of 2.5 V is used.

Miniature surface mount 25.6 MHz clock oscillators may be ordered from the CTS Reeves Company.

For 4.5 V to 5.5 Volt Operation, order P/N 974-7725-0000A

For 3.0 to 3.6 Volt Operation, order P/N 974-7727-0000A

Figure 11. CS5180 System Connection Diagram

CS5180

PIN DESCRIPTION

Supply Inputs

VA1+, VA2+ -- Positive Analog Supply

Input for positive analog supply is +5 V typical when AGND is 0 V.

AGND -- Analog Ground

Analog ground for circuits supplied by VA+.

VD1+, VD2+ -- Positive Digital Supply

Input for positive digital supply is +5 V typical when DGND is 0 V.

DGND -- Digital Ground

Digital ground for circuits supplied by VD+.

Signal and Reference Related Inputs

AIN+, AIN- -- Differential Analog Inputs

Fully differential signal inputs.

VREFIN -- Voltage Reference Input

VREFOUT or an external reference is connected to VREFIN. Analog input voltage (full scale
fully differential peak-to-peak) into the converter is 1.6 times this value.

Analog Ground

AGND

Pos. Reference

VREF+

VA1+

Positive Analog Supply

Neg. Reference

VREF-

AIN-

Negative Analog Input

Reference Output VREFOUT

AIN+

Positive Analog Input

Pos. Reference Input

VREFIN

PWDN

Power Down Mode

Reference Bypass

VREFCAP

MODE

Modulator Only Mode

Analog Ground

AGND

RESET

Reset and Calibration

Analog Supply

VA2+

DGND

Digital Ground

Invalid Conversion

MFLAG

VD1+

Positive Digital Supply

Sync. Filter

SYNC

MCLK

Master Clock

Digital Ground

DGND

MCLK

Inverse Master Clock

Pos. Digital Supply

VD2+

AGND

Analog Ground

Inverse Serial Clock

SCLK

FSO

Frame Sync Output

Serial Clock

SCLK

SDO

Serial Data Out

SDO

Inverse Serial Data Out\

CS5180

28 27 26

12 13 14 15 16 17

CS5180

VREF+ -- Positive Voltage Reference

Filter capacitor connection for the reference input buffer. The voltage on this pin equals
VREFIN X 1.6.

VREF- -- Negative Voltage Reference

VREF- is connected to AGND.

VREFOUT -- Voltage Reference Output

Output pin for the 2.375 volt on-chip reference relative to AGND.

VREFCAP -- Reference Bypass

Filter capacitor connection for the internal reference.

Serial Interface I/O Signals

SCLK, SCLK -- Serial Interface Clock

Serial Clock Output. A gated serial clock output from the converter at a rate equal to 1/3 the
MCLK clock rate. The SCLK output is a complement of SCLK and helps reduce radiated noise
if the two lines are run adjacent on the PC board layout.

SDO, SDO -- Serial Data Out

Serial Data Output. Output pin for 16-bit serial data word. The SDO output is the complement
of SDO and helps to reduce radiated noise if the two lines are run adjacent on the PC board
layout. Output data is output in twos complement format MSB first.

FSO -- Frame Sync Output

The Frame Sync Output indicates the beginning of an output word from the SDO pin by falling
to a logic low state. FSO remains low until all 16 bits are clocked out.

Control Pins

RESET -- Reset and Calibration

When the RESET pin is pulled to a logic low the converter will perform a reset of its digital
logic. When the level on this pin is brought back to a logic high the chip starts normal
operation, following a two clock cycle delay period. When MODE = 1 the chip goes through
an internal gain and offset calibration routine following this reset sequence.

PWDN -- Power Down Mode

A logic 0 on PWDN pin will put the device into a power-down mode.

CS5180

MODE -- Modulator Mode

MODE is held at a logic high for normal operation. In normal operation the device utilizes the
digital decimation filter and calibration circuitry. MODE = 0 puts the part in modulator-only
mode whereby most of the digital circuitry is powered-down and the modulator bit-stream is
output from the SDO and SDO pins.

SYNC -- Synchronization of Filter

The SYNC input can be used to restart the digital filter of the converter at the beginning of its
convolution cycle. The SYNC input is used to synchronize the filters of multiple converters in
a system. When the SYNC pin goes high, the filter will be initialized and will begin its
convolution cycle on the next rising edge of MCLK. If not used, tie sync to DGND.

MFLAG -- Invalid Conversion Flag

MFLAG goes high if the modulator portion of the converter goes unstable. If MFLAG is high,
the output data from the converter may be invalid.

MCLK, MCLK -- Master Clock Signal

Master clock input accepts a CMOS level clock input to the converter with worst case duty
cycle of 45-55% (typically 25.6 MHz). MCLK is not actually used inside the device, but can
be used for radiated noise cancellation if MCLK and MCLK are run adjacent to each other on
the PC board.

CS5180

PARAMETER DEFINITIONS

Differential Non-Linearity Error - DNL

The deviation of a code's width from ideal. Units in LSBs.

Integral Non-Linearity Error - INL

The deviation of a code from a straight line passing through the endpoints of the transfer
function after zero- and full-scale errors have been accounted for. "Zero-scale" is a point 1/2
LSB below the first code transition and "full-scale" is a point 1/2 LSB beyond the code
transition to all ones. The deviation is measured from the middle of each particular code. Units
in LSB's.

Full-Scale Error - FSEP

The deviation of the last code transition from the ideal (VREF-3/2 LSB's). Units in LSB's.

Offset Error - VOS

The deviation of the mid-scale transition from the ideal (1/2 LSB below 0 Volts). Units in
LSB's.

Spurious-Free-Dynamic-Range - SFDR

The ratio of the rms value of the full-scale signal, to the rms value of the next largest spectral
component (excepting dc). This component is often an aliased harmonic when the signal
frequency is a significant proportion of the sampling rate. Units in dBc (decibels relative to the
carrier).

Total Harmonic Distortion - THD

The ratio of the rms sum of the significant harmonics (2nd through 7th), to the rms value of the
full-scale signal. Units in decibels.

Dynamic Range - DR

The ratio of the rms value of the inferred full-scale signal, to the rms sum of the broadband
noise signals below the Nyquist rate (excepting dc and distortion terms).

Expressed in

decibels. Dynamic Range is tested with a 22 kHz input signal 60 dB below full scale. 60 dB
is then added to the resulting number to refer the noise level to the full-scale signal. This
technique ensures that the distortion components are below the noise level and do not affect the
measurement.

Signal-to-Noise-and-Distortion (s/[n+d]) - SINAD

The ratio of the rms value of the full-scale signal, to the rms sum of all other spectral
components below the Nyquist rate (excepting dc), including distortion components. Expressed
in decibels.

Group Delay

The time delay through the digital filter section of the part. Units in seconds.

CS5180

Resolution - N

The number of different output codes possible. Expressed as N, where 2

is the number of

available output codes.

Noise -

A measure of the variability of the converter's output when a fixed DC input (usually ground)
is applied to the input and a large number of samples are taken. RMS noise is determined
statistically as the Standard Deviation of the Probability Density Function derived from the
histogram of the ADC with the differential inputs shorted together and tied to an appropriate
common mode voltage.

Common Mode Rejection Ratio - CMRR

A measure of the device's ability to cancel out the effect of a common voltage applied to both
of its differential inputs. CMRR is specified as the ratio of the differential signal gain to the
gain for the common-mode signal. Units in dB.

Offset Drift -

Changes in the offset error of the part after self calibration due to changes in ambient
temperature. Specified in microvolts per degree C, relative to the input signal.

Full Scale Drift -

Changes in the full scale error of the part after self calibration due to changes in ambient
temperature. Specified in parts-per-million (PPM) of the full scale range per degree C.

CS5180

APPENDIX A: CIRCUIT APPLICATIONS

Several amplifier circuits have been tested with the
CS5180. Performance at higher frequencies is gen-
erally limited by the operational amplifiers used to
drive the A/D converter.

Figure 12 illustrates a single operational amplifier
circuit which can accept a single-ended ground-ref-
erenced signal and condition it for the input of the
CS5180. The amplifier is AC-coupled to the signal
source. In this circuit the AIN- input to the CS5180
is held at a constant DC value and the AIN+ input
is driven (it is actually overdriven to achieve high
dynamic range, but this sacrifices performance
with regard to distortion). The common mode volt-
age for the CS5180 input should be designed to
stay between 1 V and VREF + 0.25 V when driven
at its AIN+ and AIN- inputs. In Figure 12 the dc
voltage at the AIN- input is set so that when driven
with a 4 V

signal on the AIN+ pin, the common

mode voltage remains within the proper range.

Figures 13 and 14 illustrate the performance of the
amplifier of Figure 12 operating with a 4 V

input

into the AIN+ input; and with 2 V

input into the

AIN+ input respectively.

Figure 15 illustrates an AC-coupled two amplifier
circuit. This circuit gives better performance than

0.15
C0G

10 k

+15

-15

AIN-

VREFOUT

CS5180

10 k

2200 pF

5 k

10 µF +

10 µF

0.1 µF

1 k

AIN+

0.1 µF

Figure 12. Single amplifier driving only AIN+, AIN- held at steady dc value

Figure 13. Performance of amplifier of Figure 12 over-

driving AIN+ input to the CS5180 at 4 V

Figure 14. Performance of amplifier of Figure 12 with

AIN+ driven at 2 V

CS5180

Figure 22. CS5180 Differential Non-linearity plot.

(Data taken with repeating ramp)

Figure 23. Histogram of DNL from Figure 22

00000000000000000000

000000000000000000000

00000000000000000000

105

10684

12085

192

42468

10000

20000

30000

40000

50000

-0

.
2

t
o

-0

.
1

-0

.
1

t
o

-0

.
0

-0

.
0

t
o

0.05

t
o

0.15

t
o

0.25

DNL (LSB) Range

ode

Figure 24. CS5180 Noise Histogram, > 60,000 samples.

0000000000000000000000000000

146

33885

31415

10000

20000

30000

40000

FFF6

FFF5

FFF4

FFF3

Code (Hexadecimal)

Count

1 LSB = 61 µV
STD = 0.507 LSB
Noise (rm s) = 31 µV

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: CS5180

Document Outline

Ð­Ð»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: CS5180

Document Outline

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: CS5180
