Features

·
·

Provides Analog Transmission Line
Interface for T1 and E1 Applications

·
·

Provides Line Driver, Jitter Attenuator
and Clock Recovery Functions

·
·

Transmit Side Jitter Attenuation
Starting at 3 Hz, with > 300 UI of Jitter
Tolerance

·
·

B8ZS/HDB3/AMI Encoders/Decoders

·
·

Compatible with SONET, M13 , CCITT
G.742, and Other Asynchronous Muxes

·
·

50 mA Transmitter Short-Circuit
Current Limiting

General Description

The CS61305A combines the complete analog transmit
and receive line interface for T1 or E1 applications in a
low power, 28-pin device operating from a +5V supply.
The CS61305A is a pin-compatible replacement for the
LXT305A in most applications.

The CS61305A provides a transmitter jitter attenuator
making it ideal for use in asynchronous multiplexor
systems with gapped transmit clocks. The transmitter
features internal pulse shaping and a low impedance
output stage allowing the use of external resistors for
transmitter impedance matching. The receiver uses a
digital Delay-Locked-Loop clock and data recovery cir-
cuit which is continuously calibrated from a crystal
reference to provide excellent stability and jitter toler-
ance.

Applications

Interfacing network transmission equipment such as
SONET multiplexor and M13 to a DSX-1 cross con-
nect.

Interfacing customer premises equipment to a CSU.

ORDERING INFORMATION
CS61305A-IP1

28 Pin Plastic DIP

CS61305A-IL1

28 Pin Plastic PLCC

MAY '96

DS157PP3

Crystal Semiconductor Corporation
P. O. Box 17847, Austin, Texas, 78760
(512) 445 7222 FAX:(512) 445 7581

T1/E1 Line Interface

SIGNAL

QUALITY

MONITOR

TTIP

TCLK

RRING

RTIP

TRING

TGND

CONTROL

DRIVER

MONITOR

LINE RECEIVER

LINE DRIVER

PULSE

SHAPER

RCLK

ACLKI

LLOOP
(SCLK)

RLOOP

(CS)

(INT)

LEN0

(SDI)

LEN1

(SDO)

LEN2

(CLKE)

TAOS

MODE

AMI,

B8ZS,

HDB3

CODER

TPOS

[TDATA]

RPOS

[RDATA]

RNEG

[BPV]

TNEG

[TCODE]

MTIP
[RCODE]
MRING
[PCS]
DPM
[AIS]

LOS

RV+

CLOCK &

DATA

RECOVERY

XTALIN

XTALOUT

JITTER

ATTENUATOR

LOOP
BACK

TV+

[ ] = Pin Function in Extended Hardware Mode
( ) = Pin Function in Host Mode

RGND

Crystal Semiconductor Corporation 1996

CS61305A

This document contains information for a new product. Crystal
Semiconductor reserves the right to modify this product without notice.

Preliminary Product Information

ABSOLUTE MAXIMUM RATINGS

Parameter

Symbol

Min

Max

Units

DC Supply

(referenced to RGND=TGND=0V)

RV+

TV+

-
-

6.0

(RV+) + 0.3

V
V

Input Voltage, Any Pin

(Note 1)

RGND-0.3

(RV+) + 0.3

Input Current, Any Pin

(Note 2)

-10

Ambient Operating Temperature

-40

Storage Temperature

stg

-65

150

WARNING: Operations at or beyond these limits may result in permanent damage to the device.

Normal operation is not guaranteed at these extremes.

Notes:

1. Excluding RTIP, RRING, which must stay within -6V to (RV+) + 0.3V.
2. Transient currents of up to 100 mA will not cause SCR latch-up. Also TTIP, TRING, TV+ and TGND

can withstand a continuous current of 100 mA.

RECOMMENDED OPERATING CONDITIONS

Parameter

Symbol

Min

Typ

Max

Units

DC Supply

(Note 3) RV+, TV+

4.75

5.0

5.25

Ambient Operating Temperature

-40

Power Consumption

(Notes 4,5)

350

Notes:

3. TV+ must not exceed RV+ by more than 0.3V.
4. Power consumption while driving line load over operating temperature range. Includes IC and load.

Digital input levels are within 10% of the supply rails and digital outputs are driving a 50 pF
capacitive load.

5. Assumes 100% ones density and maximum line length at 5.25V.

DIGITAL CHARACTERISTICS

(TA = -40

C to 85

C; TV+, RV+ = 5.0V

5%; GND = 0V)

Parameter

Symbol

Min

Typ

Max

Units

High-Level Input Voltage

(Notes 6, 7)

PINS 1-4, 17, 18, 23-28

2.0

Low-Level Input Voltage

(Notes 6, 7)

PINS 1-4, 17, 18, 23-28

0.8

High-Level Output Voltage

(Notes 6, 7, 8)

IOUT = -400

PINS 6-8, 11, 12, 25

2.4

Low-Level Output Voltage

(Notes 6, 7, 8)

IOUT = 1.6 mA

PINS 6-8, 11, 12, 23, 25

0.4

Input Leakage Current (Except Pin 5)

Low-Level Input Voltage, PIN 5

0.2

High-Level Input Voltage, PIN 5

(RV+) - 0.2

Mid-Level Input Voltage, PIN 5

(Note 9)

2.3

2.7

Notes:

6. In Extended Hardware Mode, pins 17 and 18 are digital inputs. In Host Mode, pin 23 is

an open drain output and pin 25 is a tristate digital output.

7. This specification guarantees TTL compatibility (V

= 2.4V @ I

OUT

= -40

A).

8. Output drivers will drive CMOS logic levels into a CMOS load.
9. As an alternative to supplying a 2.3-to-2.7V input, this pin may be left floating.

CS61305A

DS157PP3

ANALOG SPECIFICATIONS

(TA = -40

C to 85

C; TV+, RV+ = 5.0V

5%; GND = 0V)

Parameter

Min

Typ

Max

Units

Transmitter

AMI Output Pulse Amplitudes

(Note 10)

E1, 75

(Note 11)

E1, 120

(Note 12)

T1, FCC Part 68

(Note 13)

T1, DSX-1

(Note 14)

2.14

2.7
2.7
2.4

2.37

3.0
3.0
3.0

2.6
3.3
3.3
3.6

V
V
V
V

E1 Zero (space) level (LEN2/1/0 = 000)

1:1 transformer and 75

load

1:1.26 transformer and 120

load

-0.237

-0.3

-
-

0.237

0.3

V
V

Load Presented To Transmitter Output

(Note 10)

Jitter Added by the Transmitter

(Note 15)

10Hz - 8kHz
8kHz - 40kHz
10Hz - 40kHz
Broad Band

-
-
-
-

0.01

0.025
0.025

0.05

UI
UI
UI
UI

Power in 2kHz band about 772kHz

(Notes 10, 16)

12.6

17.9

dBm

Power in 2kHz band about 1.544MHz

(Notes 10, 16)

(referenced to power in 2kHz band at 772kHz)

-29

-38

Positive to Negative Pulse Imbalance

(Notes 10, 16)

T1, DSX-1
E1 amplitude at center of pulse
E1 pulse width at 50% of nominal amplitude

-5
-5

0.2

-
-

0.5

5
5

%
%

E1 Transmitter Return Loss

(Notes 10, 16, 17)

51 kHz to 102 kHz
102 kHz to 2.048 MHz
2.048 MHz to 3.072 MHz

20
20
20

28
28
24

-
-
-

dB
dB
dB

E1 Transmitter Short Circuit Current

(Notes 10, 18)

mA RMS

Notes: 10. Using a 0.47

F capacitor in series with the primary of a transformer recommended

in the Applications Section.

11. Pulse amplitude measured at the output of a 1:1 transformer across a 75

load for

line length setting LEN2/1/0 = 0/0/0.

12. Pulse amplitude measured at the output of a 1:1.26 transformer across a 120

load for line length

setting LEN2/1/0 = 0/0/0 or at the output of a 1:1 transformer across a 120

load for LEN2/1/0 = 001.

13. Pulse amplitude measured at the output of a 1:1.15 transformer across a 100

load for

line length setting LEN2/1/0 = 0/1/0.

14. Pulse amplitude measured at the DSX-1 Cross-Connect across a 100

load for all line length

settings from LEN2/1/0 = 0/1/1 to LEN2/1/0 = 1/1/1 using a 1:1.5 transformer.

15. Input signal to RTIP/RRING is jitter free. Values will reduce slightly if jitter free clock is input to TCLK.
16. Not production tested. Parameters guaranteed by design and characterization.
17. Return loss = 20 log

ABS((z

)/(z

-z

)) where z

= impedance of the transmitter, and

= impedance of line load. Measured with a repeating 1010 data pattern with LEN2/1/0 = 0/0/0

and a 1:2 transformer with two 9.4

series resistors terminated by a 75

load,

or for LEN2/1/0 = 0/0/1 with a 1:2 transformer and two 15

series resistors terminated by a

120

load.

18. Measured broadband through a 0.5

resistor across the secondary of the transmitter transformer

during the transmission of an all ones data pattern for LEN2/1/0 = 0/0/0 or 0/0/1with a 1:2 transformer
and the series resistors specified in Table A1.

CS61305A

DS157PP3

ANALOG SPECIFICATIONS

(TA = -40

C to 85

C; TV+, RV+ = 5.0V

5%; GND = 0V)

Parameter

Min

Typ

Max

Units

Transmitter Jitter Attenuator

Jitter Attenuation Curve Corner Frequency

(Notes 16, 19)

Attenuation at 10kHz Jitter Frequency

(Notes 16, 19)

Attenuator Input Jitter Tolerance

(Notes 16, 19)

(Before Onset of FIFO Overflow or Underflow Protection)

138

Receiver

RTIP/RRING Input Impedance

50k

Sensitivity Below DSX (0dB = 2.4V)

-13.6

500

-
-

Data Decision Threshold

T1, DSX-1

(Note 20)

T1, (FCC Part 68) and E1

(Note 21)

53
45

65
50

77
55

% of peak
% of peak

Allowable Consecutive Zeros before LOS

160

175

190

bits

Receiver Input Jitter Tolerance

(Note 22)

10kHz - 100kHz
2kHz
10Hz and below

0.4
6.0

300

-
-
-

UI
UI
UI

Loss of Signal Threshold

0.30

Notes: 19. Attenuation measured with input jitter equal to 3/4 of measured jitter tolerance. Circuit attenuates

jitter at 20 dB/decade above the corner frequency. See Figure 10. Output jitter can increase
significantly when more than 12 UI's are input to the attenuator. See discussion in the text section.

20. For input amplitude of 1.2 V

to 4.14 V

21. For input amplitude of 1.05 V

to 3.3 V

22. Jitter tolerance increases at lower frequencies. See Figure 12.

E1 SWITCHING CHARACTERISTICS

(TA = -40

C to 85

C; TV+, RV+ = 5.0V

5%;

GND = 0V; Inputs: Logic 0 = 0V, Logic 1 = RV+; See Figures 1, 2, & 3)

Parameter

Symbol

Min

Typ

Max

Units

Crystal Frequency

(Note 23)

8.192000

MHz

ACLKI Duty Cycle

pwh3

pw3

ACLKI Frequency

(Note 24)

aclki

2.048

MHz

RCLK Cycle Width

(Note 25)

pw1

pwh1

pwl1

310

120

488
140
348

620
190
500

ns
ns
ns

Rise Time, All Digital Outputs

(Note 26)

Fall Time, All Digital Outputs

(Note 26)

TCLK Frequency

tclk

2.048

MHz

TCLK Pulse Width

(Notes 27, 28)
(Notes 29, 30)

pwh2

150

-
-

340

ns
ns

TPOS/TNEG (TDATA) to TCLK Falling Setup Time

su2

TCLK Falling to TPOS/TNEG (TDATA) Hold Time

RPOS/RNEG Valid Before RCLK Falling

(Note 27)

su1

100

194

RDATA Valid Before RCLK Falling

(Note 29)

su1

100

194

RPOS/RNEG Valid Before RCLK Rising

(Note 28)

su1

100

194

RPOS/RNEG Valid After RCLK Falling

(Note 27)

100

194

RDATA Valid After RCLK Falling

(Note 29)

100

194

RPOS/RNEG Valid After RCLK Rising

(Note 28)

100

194

CS61305A

DS157PP3

T1 SWITCHING CHARACTERISTICS

(TA = -40

C to 85

C; TV+, RV+ = 5.0V

5%;

GND = 0V; Inputs: Logic 0 = 0V, Logic 1 = RV+; See Figures 1, 2, & 3)

Parameter

Symbol

Min

Typ

Max

Units

Crystal Frequency

(Note 23)

6.176000

MHz

ACLKI Duty Cycle

pwh3

pw3

ACLKI Frequency

(Note 24)

aclki

1.544

MHz

RCLK Cycle Width

(Note 25)

pw1

pwh1

pwl1

320
130
100

648
190
458

980
240
850

ns
ns
ns

Rise Time, All Digital Outputs

(Note 26)

Fall Time, All Digital Outputs

(Note 26)

TCLK Frequency

tclk

1.544

MHz

TCLK Pulse Width

(Notes 16, 27, 28)

(Notes 29, 30)

pwh2

150

-
-

500

ns
ns

TPOS/TNEG (TDATA) to TCLK Falling Setup Time

su2

TCLK Falling to TPOS/TNEG (TDATA) Hold Time

RPOS/RNEG Valid Before RCLK Falling

(Note 27)

su1

150

274

RDATA Valid Before RCLK Falling

(Note 29)

su1

150

274

RPOS/RNEG Valid Before RCLK Rising

(Note 28)

su1

150

274

RPOS/RNEG Valid After RCLK Falling

(Note 27)

150

274

RDATA Valid After RCLK Falling

(Note 29)

150

274

RPOS/RNEG Valid After RCLK Rising

(Note 28)

150

274

Notes: 23. Crystal must meet specifications described in CXT6176/CXT8192 data sheet.

24. ACLKI provided by an external source or TCLK but not RCLK.
25. RCLK duty cycle will vary with extent by which pulses are displaced by jitter. Specified under worst

case jitter conditions: 0.4 UI AMI data displacement for T1 and 0.2 UI AMI data displacement for E1.

26. At max load of 1.6 mA and 50 pF.
27. Host Mode (CLKE = 1).
28. Hardware Mode, or Host Mode (CLKE = 0).
29. Extended Hardware Mode.
30. The maximum TCLK burst rate is 5 MHz and t

pw2

(min) = 200ns. The maximum gap size that can

be tolerated on TCLK is 138 VI.

CS61305A

DS157PP3

Any Digital Output

t r

t f

10%

90%

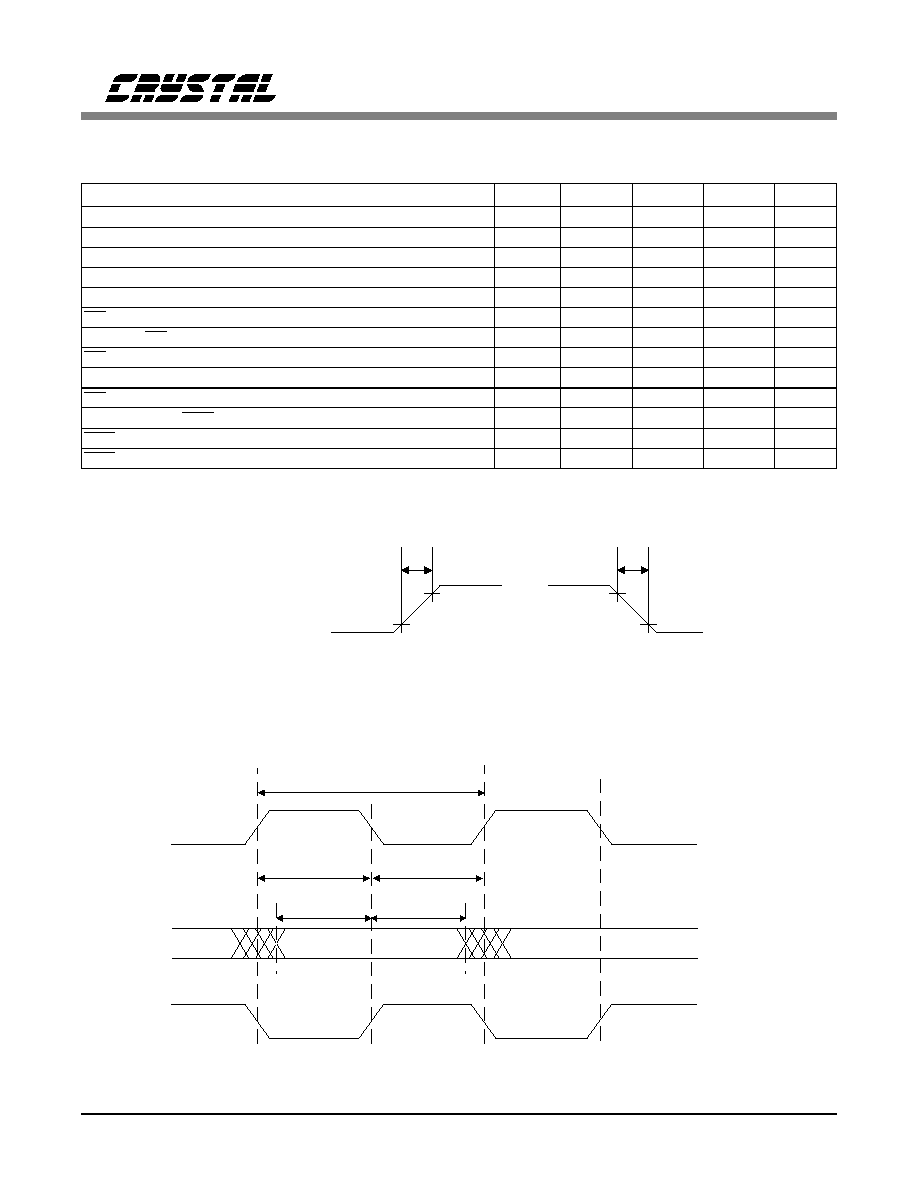

Figure 1. Signal Rise and Fall Characteristics

RCLK

tpw1

tpwl1

tpwh1

HOST MODE
(CLKE = 1)

EXTENDED
HARDWARE
MODE OR

HARDWARE

HOST MODE
(CLKE = 0)

MODE OR

RCLK

RPOS
RNEG

su1

RDATA
BPV

Figure 2. Recovered Clock and Data Switching Characteristics

SWITCHING CHARACTERISTICS

(TA = -40

to 85

C; TV+, RV+ =

5%;

Inputs: Logic 0 = 0V, Logic 1 = RV+)

Parameter

Symbol

Min

Typ

Max

Units

SDI to SCLK Setup Time

SCLK to SDI Hold Time

cdh

SCLK Low Time

240

SCLK High Time

240

SCLK Rise and Fall Time

, t

CS to SCLK Setup Time

SCLK to CS Hold Time

cch

CS Inactive Time

cwh

250

SCLK to SDO Valid

(Note 31)

cdv

200

CS to SDO High Z

cdz

100

Input Valid To PCS Falling Setup Time

su4

PCS Rising to Input Invalid Hold Time

PCS Active Low Time

pcsl

250

Notes: 31. Output load capacitance = 50pF.

CS61305A

DS157PP3

THEORY OF OPERATION

Key Enhancements of the CS61305A Relative
to the LXT305A

12.5% lower power consumption,

50 mA

RMS

transmitter short-circuit current

limiting for E1 (per OFTEL OTR-001),

Optional AMI, B8ZS, HDB3 encoder/de-
coder or external line coding support,

Receiver AIS (unframed all ones) detection,

Improved receiver Loss of Signal handling
(LOS set at power-up, reset upon receipt of
3 ones in 32 bit periods with no more than
15 consecutive zeros),

Transmitter TTIP and TRING outputs are
forced low when TCLK is static.

Introduction to Operating Modes

The CS61305A supports three operating modes
which are selected by the level of the MODE pin
as shown in Tables 1 and 2, Figure 7, and Figures
A1-A3 of the Applications section.

There are thirteen multi-function pins whose
functionality is determined by the operating
mode. (see Table 2). The modes are Hardware
Mode, Extended Hardware Mode, and Host
Mode. In Hardware and Extended Hardware
Modes, discrete pins are used to configure and
monitor the device. The Extended Hardware
Mode provides a parallel chip select input which
latches the control inputs allowing individual ICs
to be configured using a common set of control
lines. In the Host Mode, an external processor
monitors and configures the device through a se-
rial interface.

Hardware

Mode

Extended

Hardware

Mode

Host

Mode

Control

Method

Control

Pins

Control Pins

with Parallel

Chip Select

Serial

Interface

MODE

Pin

Level

<0.2 V

Floating or

2.5 V

>(RV+)-0.2

Line

Coding

External

Internal-

AMI, B8ZS,

or HDB3

External

AIS

Detection

Yes

Driver

Performance

Monitor

Yes

Table 1. Differences Between Operating Modes

MODE

FUNCTION

PIN HARDWARE

EXTENDED

HARDWARE

HOST

TRANSMITTER

TPOS

TDATA

TPOS

TNEG

TCODE

TNEG

RECEIVER/DPM

RNEG

BPV

RNEG

RPOS

RDATA

RPOS

DPM

AIS

DPM

MTIP

RCODE

MTIP

MRING

CONTROL

PCS

LEN0

INT

LEN1

SDI

LEN2

SDO

RLOOP

LLOOP

SCLK

TAOS

CLKE

Table 2. Pin Definitions

CS61305A

DS157PP3

TPOS

TNEG

RNEG

RPOS

TRANSMIT

TRANSFORMER

RRING

RECEIVE

TRANSFORMER

CONTROL

CS62180B

FRAMER

CIRCUIT

TTIP

TDATA

RDATA

TRING

LINE DRIVER

AMI

B8ZS,

HDB3,

CODER

TRANSMIT

TRANSFORMER

RLOOP

PCS

LEN0/1/2

LLOOP

TAOS

CONTROL

HARDWARE MODE

EXTENDED HARDWARE MODE

HOST MODE

CONTROL

P SERIAL PORT

RCODE

TCODE

CLKE

BPV

AIS

JITTER

ATTENUATOR

DRIVER MONITOR

LINE DRIVER

LINE RECEIVER

MTIP

MRING

DPM
RTIP

TTIP

TRING

HIGH

SPEED

MUX

(e.g., M13)

CS61305A

TTIP

TPOS

TNEG

RNEG

TRING

RPOS

RRING

RTIP

RLOOP

LEN0/1/2

LLOOP

TAOS

CONTROL

DPM

DRIVER MONITOR

LINE DRIVER

LINE RECEIVER

MTIP

MRING

CS61305A

CS62180B
FRAMER
CIRCUIT

TRANSMIT

TRANSFORMER

RECEIVE

TRANSFORMER

RECEIVE

TRANSFORMER

RRING

RTIP

AIS

DETECT

JITTER

ATTENUATOR

LINE RECEIVER

JITTER

ATTENUATOR

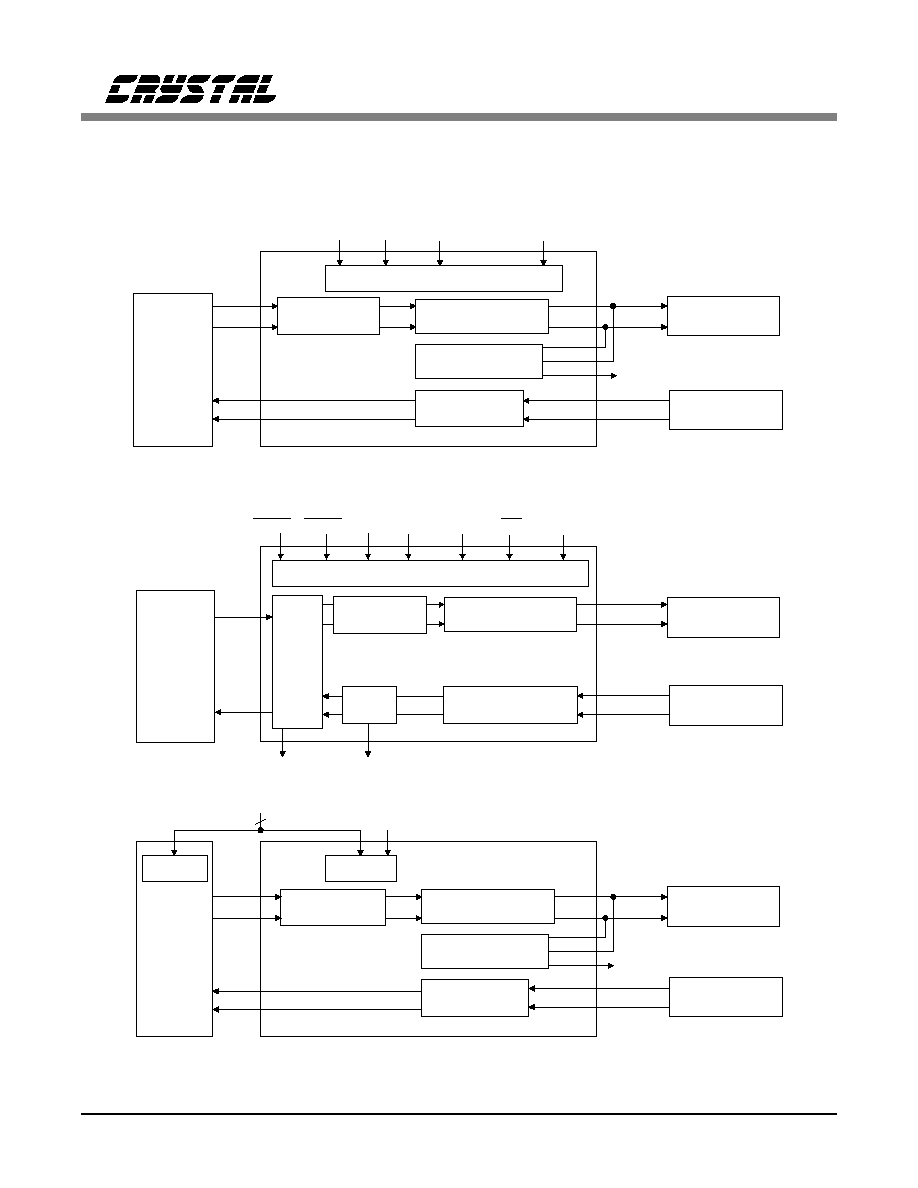

Figure 7. Overview of Operating Modes

CS61305A

DS157PP3

Transmitter

The transmitter takes digital T1 or E1 input data
and drives appropriately shaped bipolar pulses
onto a transmission line. The transmit data (TPOS
& TNEG or TDATA) is supplied synchronously
and sampled on the falling edge of the input
clock, TCLK.

Either T1 (DSX-1 or Network Interface) or E1
CCITT G.703 pulse shapes may be selected.
Pulse shaping and signal level are controlled by
"line length select" inputs as shown in Table 3.
The output options in Table 3 are specified with a
1:1.15 transmitter transformer turns ratio for T1
and a 1:1 turns ratio for E1 without external se-
ries resistors. Other turns ratios may be used if
approriate resistors are placed in series with the
TTIP and TRING pins. Table A1 in the applica-
tions section lists other combinations which can
be used to provide transmitter impedance match-
ing.

For T1 DSX-1 applications, line lengths from 0 to
655 feet (as measured from the transmitter to the
DSX-1 cross connect) may be selected. The five
partition arrangement in Table 3 meets ANSI
T1.102-1993 and AT&T CB-119 requirements
when using #22 ABAM cable. A typical output
pulse is shown in Figure 8. These pulse settings
can also be used to meet CCITT pulse shape re-
quirements for 1.544 MHz operation.

For T1 Network Interface applications, two addi-
tional options are provided. Note that the optimal
pulse width for Part 68 (324 ns) is narrower than
the optimal pulse width for DSX-1 (350 ns). The
CS61305A automatically adjusts the pulse width
based upon the "line length" selection made.

The E1 G.703 pulse shape is supported with line
length selections LEN2/1/0 = 0/0/0 and 0/0/1.
The pulse width will meet the G.703 pulse shape
template shown in Figure 9, and specified in Ta-
ble 4.

The CS61305A transmitter provides short-circuit
current limiting protection and meets OFTEL
OTR-001 short-circuit current limiting require-
ments for E1 applications.

The CS61305A will detect a static TCLK, and
will force TTIP and TRING low to prevent trans-
mission when data is not present. When any
transmit control pin (TAOS, LEN0-2 or LLOOP)
is toggled, the transmitter outputs will require ap-
proximately 22 bit periods to stabilize. The
transmitter will take longer to stabilize when
RLOOP is selected because the timing circuitry
must adjust to the new frequency.

500

1.0

0.5

-0.5

250

750

1000

NORMALIZED
AMPLITUDE

AT&T CB 119
SPECIFICATIONS

PULSE SHAPE

OUTPUT

TIME (nanoseconds)

ANSI T1.102,

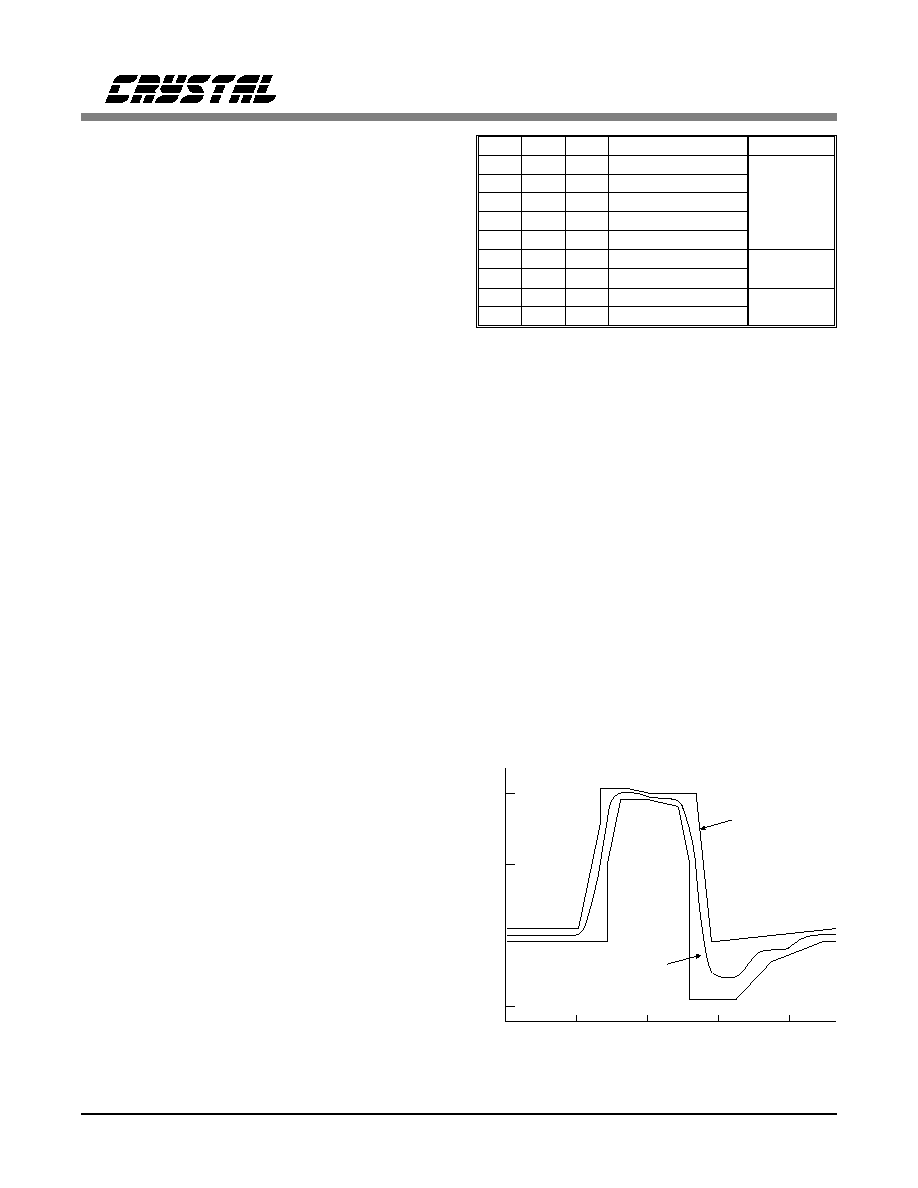

Figure 8. Typical Pulse Shape at DSX-1 Cross Connect

LEN2 LEN1 LEN0

Option Selected

Application

0-133 ft

DSX-1

ABAM

(AT&T 600B

or 600C)

133-266 ft

266-399 ft

399-533 ft

533-655 ft

coax

CCITT G.703

120

twisted-pair

FCC PART 68, OPT. A

Network

Interface

ANSI T1.403

Table 3. Line Length Selection

CS61305A

DS157PP3

Transmit All Ones Select

The transmitter provides for all ones insertion at
the frequency of ACLKI. Transmit all ones is se-
lected when TAOS goes high, and causes
continuous ones to be transmitted on the line
(TTIP and TRING). In this mode, the TPOS and
TNEG (or TDATA) inputs are ignored. A TAOS
request will be ignored if remote loopback is in
effect. ACLKI jitter will be attenuated. TAOS is
not available on the CS61305A when ACLKI is
grounded.

Jitter Attenuator

The jitter attenuator is designed to reduce wander
and jitter in the transmit clock signal. It consists
of a 192 bit FIFO, a crystal oscillator, a set of
load capacitors for the crystal, and control logic.
The jitter attenuator exceeds the jitter attenuation
requirements of Publications 43802 and REC.
G.742. A typical jitter attenuation curve is shown
in Figure 10.

The jitter attenuator works in the following man-
ner. Data on TPOS and TNEG (or TDATA) are

269 ns

244 ns

194 ns

219 ns

488 ns

Nominal Pulse

100

110

120

-10

-20

Percent of
nominal
peak
voltage

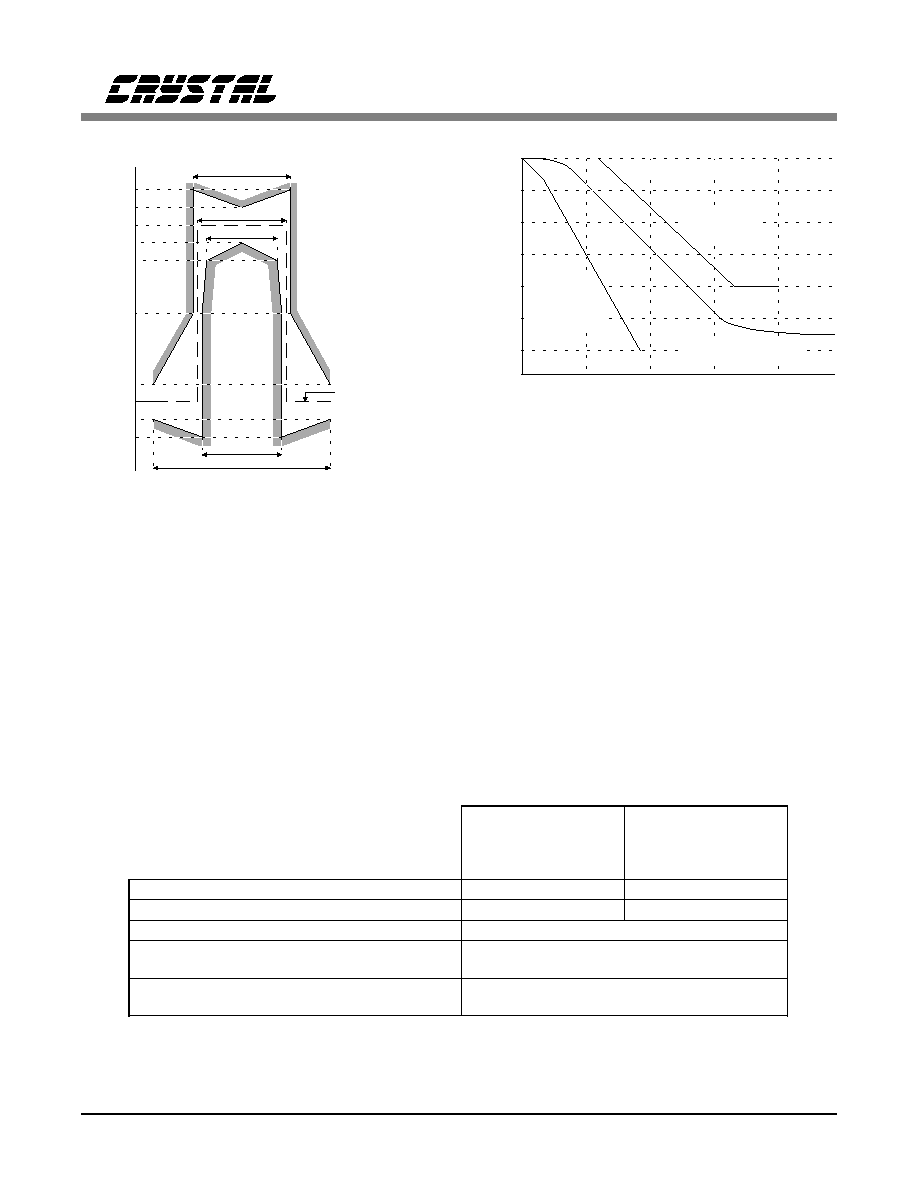

Figure 9. Mask of the Pulse at the 2048 kbps Interface

F o r c o a x i a l c a b l e ,
75

l o a d a n d

transformer specified
in Application Section.

For shielded twisted
pair, 120

load and

transformer specified
in Application Section.

Nominal peak voltage of a mark (pulse)

2.37 V

3 V

Peak voltage of a space (no pulse)

0.237 V

0.30 V

Nominal pulse width

244 ns

Ratio of the amplitudes of positive and negative
pulses at the center of the pulse interval

0.95 to 1.05*

Ratio of the widths of positive and negative
pulses at the nominal half amplitude

0.95 to 1.05*

* When configured with a 0.47

F nonpolarized capacitor in series with the TX transformer

primary as shown in Figures A1, A2 and A3.

Table 4. CCITT G.703 Specifications

t
enuat

i
o

Frequency in Hz

100

1 k

10 k

b) Maximum
Attenuation
Limit

AT&T 62411

Requirements

a) Minimum Attenuation Limit

Measured Performance

Figure 10. Typical Jitter Attenuation Curve

CS61305A

DS157PP3

written into the jitter attenuator's FIFO by TCLK.
The rate at which data is read out of the FIFO and
transmitted is determined by the oscillator. Logic
circuits adjust the capacitive loading on the crys-
tal to set its oscillation frequency to the average
of the TCLK frequency. Signal jitter is absorbed
in the FIFO.

Jitter Tolerance of Jitter Attenuator

The FIFO in the jitter attenuator is designed to
neither overflow nor underflow. If the jitter am-
plitude becomes very large, the read and write
pointers may get very close together. Should the
pointers attempt to cross, the oscillator's divide
by four circuit adjusts by performing a divide by
3 1/2 or divide by 4 1/2 to prevent the overflow
or underflow. When a divide by 3 1/2 or 4 1/2
occurs, the data bit will be driven on to the line
either an eighth bit period early or an eighth bit
period late.

The FIFO of the jitter attenuator in the transmit
path is 192 bits deep. This FIFO will typically be
near the half full point under normal operating
conditions, buffering about 96 bits of data. The
number of bits actually buffered depends on the
relationship of the nominal TCLK frequency to
the center frequency of the crystal oscillator. As
these frequencies deviate, a few bits of FIFO
depth will be lost.

TCLK can have gaps or bursts. As long as the gap
or burst is less than the remaining FIFO depth,
normal operation will continue. For example, if
the nominal TCLK frequency was less than the
oscillator's center frequency by 40 Hz. The FIFO
will operate 3-4 bits off center or 92 bits full. A
gap in TCLK of 80 cycles would empty the FIFO
by 80 bits but would still not envoke the divide
by 4 1/2 circuitry, as about 12 bits would remain
in the FIFO.

The crystal frequency must be 4 times the nomi-
nal signal frequency: 6.176 MHz for 1.544 MHz
operation; 8.192 MHz for 2.048 MHz applica-

tions. Internal capacitors load the crystal, control-
ling the oscillation frequency. The crystal must be
designed so that over operating temperature, the
oscillator frequency range exceeds the system fre-
quency tolerance. Crystal Semiconductor offers
the CXT6176 & CXT8192 crystals, which yield
optimum performance with the CS61305A.

Receiver

The receiver extracts data and clock from an AMI
(Alternate Mark Inversion) coded signal and out-
puts clock and synchronized data. The receiver is
sensitive to signals over the entire range of cable
lengths and requires no equalization or ALBO
(Automatic Line Build Out) circuits. The signal is
received on both ends of a center-tapped, center-
grounded transformer. The transformer is
center-tapped on the IC side. The clock and data
recovery circuit exceeds the jitter tolerance speci-
fications of Publications 43802, 43801, 62411
amended, TR-TSY-000170, and CCITT REC.
G.823.

A block diagram of the receiver is shown in Fig-
ure 11. The two leads of the transformer (RTIP
and RRING) have opposite polarity allowing the
receiver to treat RTIP and RRING as unipolar sig-
nals. Comparators are used to detect pulses on
RTIP and RRING. The comparator thresholds are
dynamically established at a percent of the peak
level (50% of peak for E1, 65% of peak for T1;
with the slicing level selected by LEN2/1/0).

The receiver uses an edge detector and a continu-
ously calibrated delay line to generate the
recovered clock. The delay line divides its refer-
ence clock, ACLKI or the jitter attenuator's
oscillator, into 13 equal divisions or phases. Con-
tinuous calibration assures timing accuracy, even
if temperature or power supply voltage fluctuate.

The leading edge of an incoming data pulse trig-
gers the clock phase selector. The phase selector
chooses one of the 13 available phases which the
delay line produces for each bit period. The out-

CS61305A

DS157PP3

put from the phase selector feeds the clock and
data recovery circuits which generate the recov-
ered clock and sample the incoming signal at
appropriate intervals to recover the data. The jitter
tolerance of the receiver exceeds that shown in
Figure 12.

The CS61305A outputs a clock immediately upon
power-up and will lock onto the AMI data input
immediately. If loss of signal occurs, the RCLK
frequency will equal the ACLKI frequency.

In the Hardware Mode, data at RPOS and RNEG
is stable and may be sampled on the rising edge
of the recovered clock. In the Extended Hardware
Mode, data at RDATA is stable and may be sam-
pled on the fallings edge of the recovered clock.
In the Host Mode, CLKE determines the clock
polarity for which output data is stable and valid
as shown in Table 5.

Jitter and Recovered Clock

The CS61305A is designed for error free clock
and data recovery from an AMI encoded data

10k

100

100k

700

100

300

PEAK-TO-PEAK

JITTER

(unit intervals)

JITTER FREQUENCY

(Hz)

AT&T 62411

Performance

138

Minimum

Figure 12. Minimum Input Jitter Tolerance of Receiver

1 : 2

RTIP

RRING

Data

Level

Slicer

Edge

Detector

Clock

Phase

Selector

Continuously

Calibrated

Delay Line

RPOS

RNEG

RCLK

Data

Clock

Sampling

Extraction

ACLKI or

Oscillator in Jitter

Attenuator

Figure 11. Receiver Block Diagram

MODE

(pin 5)

CLKE

(pin 28)

DATA

CLOCK

Clock Edge

for Valid Data

LOW

(<0.2V)

RPOS
RNEG

RCLK
RCLK

Rising
Rising

HIGH

(>(V+) - 0.2V)

LOW

RPOS
RNEG

SDO

RCLK
RCLK
SCLK

Rising
Rising

Falling

HIGH

(>(V+) - 0.2V)

HIGH

RPOS
RNEG

SDO

RCLK
RCLK
SCLK

Falling
Falling

Rising

MIDDLE

(2.5V)

RDATA

RCLK

Falling

X = Don't care

Table 5. Data Output/Clock Relationship

CS61305A

DS157PP3

stream in the presence of more than 0.4 unit inter-
vals of jitter at high frequency. The clock
recovery circuit is also tolerant of long strings of
zeros. The edge of an incoming data bit causes
the circuitry to choose a phase from the delay line
which most closely corresponds with the arrival
time of the data edge, and that clock phase trig-
gers a pulse which is typically 140 ns in duration.
This phase of the delay line will continue to be
selected until a data bit arrives which is closer to
another of the 13 phases, causing a new phase to
be selected. The largest jump allowed along the
delay line is six phases.

When an input signal is jitter free, the phase se-
lection will occasionally jump between two
adjacent phases resulting in RCLK jitter with an
amplitude of 1/13 UIpp. These single phase
jumps are due to differences in frequency of the
incoming data and the calibration clock input to
ACLKI. For T1 operation the instantaneous pe-
riod can be 14/13 * 648 ns = 698 ns or 12/13 *
648 ns = 598 ns when adjacent clock phases are
chosen. As long as the same phase is chosen, the
period will be 648 ns. Similar calculations hold
for the E1 rate.

The clock recovery circuit is designed to accept at
least 0.4 UI of jitter at the receiver. Since the data
stream contains information only when ones are
transmitted, a clock/data recovery circuit must as-
sume a zero when no signal is measured during a
bit period. Likewise, when zeros are received, no
information is present to update the clock recov-
ery circuit regarding the trend of a signal which is
jittered. The result is that two ones that are sepa-
rated by a string of zeros can exhibit maximum
deviation in pulse arrival time. For example, one
half of a period of jitter at 100 kHz occurs in 5

s, which is 7.7 T1 bit periods. If the jitter ampli-

tude is 0.4 UI, then a one preceded by seven zeros
can have maximum displacement in arrival time,
i.e. either 0.4 UI too early or 0.4 UI too late. The
data recovery circuit correctly assigns a received
bit to its proper clock period if it is displaced by

less than 6/13 of a bit period from its optimal lo-
cation. Theoretically, this would give a jitter
tolerance of 0.46 UI. The actual jitter tolerance of
the CS61305A is only slightly less than the ideal.

In the event of a maximum jitter hit, the RCLK
clock period immediately adjusts to align itself
with the incoming data and prepare to accurately
place the next one, whether it arrives one period
later, or after another string of zeros and is dis-
placed by jitter. For a maximum early jitter hit,
RCLK will have a period of 7/13 * 648 ns = 349
ns. For a maximum late jitter hit, RCLK will have
a period of 19/13 * 648 ns = 947 ns.

Loss of Signal

Receiver loss of signal is indicated upon receiv-
ing 175 consecutive zeros. A digital counter
counts received zeros based on RCLK cycles. A
zero input is determined either when zeros are re-
ceived, or when the received signal amplitude
drops below a 0.3 V peak threshold.

The receiver reports loss of signal by setting the
Loss of Signal pin, LOS, high. If the serial inter-
face is used, the LOS bit will be set and an
interrupt issued on INT. LOS will go low (and
flag the INT pin again if serial I/O is used) when
a valid signal is detected. Note that in the Host
Mode, LOS is simultaneously available from both
the register and pin 12.

In a loss of signal state, the RCLK frequency will
be equal to the ACLKI frequency since ACLKI is
being used to calibrate the clock recovery circuit.
Received data is output on RPOS/RNEG regard-
less of LOS status. LOS returns to logic zero
when 3 ones are received out of 32 bit periods
containing no more than 15 consecutive zeros.
Also, a power-up or manual reset will set LOS
high.

CS61305A

DS157PP3

Local Loopback

Local loopback is selected by taking LLOOP, pin
27, high or by setting the LLOOP register bit via
the serial interface.

The local loopback mode takes clock and data
presented on TCLK, TPOS, and TNEG (or
TDATA), and outputs it at RCLK, RPOS and
RNEG (or RDATA). Inputs to the transmitter are
still transmitted on TTIP and TRING, unless
TAOS has been selected in which case, AMI-
coded continuous ones are transmitted at the
TCLK frequency. The receiver RTIP and RRING
inputs are ignored when local loopback is in ef-
fect. The jitter attenuator is not in the local loop
back path.

Remote Loopback

Remote loopback is selected by taking RLOOP,
pin 26, high or by setting the RLOOP register bit
via the serial interface.

In remote loopback, the recovered clock and data
input on RTIP and RRING are sent through the
jitter attenuator and back out on the line via TTIP
and TRING. Selecting remote loopback overrides
any TAOS request (see Table 7). The recovered

incoming signals are also sent to RCLK, RPOS
and RNEG (or RDATA). A remote loopback oc-
c ur s in r es p o n s e to R LO O P g o i n g h ig h .
Simultaneous selection of local and remote loop-
back modes is not valid (see Reset).

In the Extended Hardware Mode the transmitted
data is looped before the AMI/B8ZS/HDB3 en-
coder/decoder during remote loopback so that the
transmitted signal matches the received signal,
even in the presence of received bipolar viola-
tions. Data output on RDATA is decoded,
however, if RCODE is low.

Driver Performance Monitor

To aid in early detection and easy isolation of
non-functioning links, the IC is able to monitor
transmit drive performance and report when the
driver is no longer operational. This feature can
be used to monitor either the device's perform-
ance or the performance of a neighboring driver.
The driver performance monitor indicator is nor-
mally low, and goes high upon detecting a driver
failure.

The driver performance monitor consists of an ac-
tivity detector that monitors the transmitted signal
when MTIP is connected to TTIP and MRING is
connected to TRING. DPM will go high if the
absolute difference between MTIP and MRING
does not transition above or below a threshold
level within a time-out period. In the Host Mode,
DPM is available from both the register and pin
11.

Whenever more than one line interface IC resides
on the same circuit board, the effectiveness of the
driver performance monitor can be maximized by
having each IC monitor performance of a neigh-
boring IC, rather than having it monitor its own
performance.

RLOOP

Input

Signal

TAOS

Input

Signal

Source of

Data for

TTIP & TRING

Source of

Clock for

TTIP & TRING

TDATA

TCLK

all 1s

TCLK

RTIP & RRING

RTIP & RRING (RCLK)

Notes: 1. X = Don't Care. The identified All Ones Select

input is ignored when the indicated loopback is
in effect.

2. Logic 1 indicates that Loopback or All Ones

option is selected.

Table 7. Interaction of RLOOP with TAOS

CS61305A

DS157PP3

Alarm Indication Signal

In the Extended Hardware Mode, the receiver sets
the output pin AIS high when unframed all-ones
condition (blue alarm) is detected using the crite-
ria of less than 3 zeros out of 2048 bit periods.

Line Code Encoder/Decoder

In the Extended Hardware Mode, three line codes
are available: AMI, B8ZS and HDB3. The input
to the encoder is TDATA. The outputs from the
decoder are RDATA and BPV (Bipolar Violation
Strobe). The encoder and decoder are selected
using the LEN2, LEN1, LEN0, TCODE and
RCODE pins as shown in Table 8.

Parallel Chip Select

In the Extended Hardware Mode, PCS can be
used to gate the digital control inputs: TCODE,
RCODE, LEN0, LEN1, LEN2, RLOOP, LLOOP
and TAOS. Inputs are accepted on these pins only
when PCS is low and will immediately change
the operating state of the device. Therefore, when
cycling PCS to update the operating state, the
digital control inputs should be stable for the en-
tire PCS low period. The digital control inputs are
ignored when PCS is high.

Power On Reset / Reset

Upon power-up, the IC is held in a static state
until the supply crosses a threshold of approxi-
mately 3 Volts. When this threshold is crossed,
the device will delay for about 10 ms to allow the
power supply to reach operating voltage. After
this delay, calibration of the delay lines used in
the transmit and receive sections commences. The
delay lines can be calibrated only if a reference
clock is present. The reference clock for the re-
ceiver is provided by ACLKI, or the crystal
oscillator. The reference clock for the transmitter
is provided by TCLK. The initial calibration
should take less than 20 ms.

In operation, the delay lines are continuously cali-
brated, making the performance of the device
independent of power supply or temperature vari-
ations. The continuous calibration function
eliminates any requirement to reset the line inter-
face when in operation. However, a reset function
is available which will clear all registers.

In the Hardware and Extended Hardware Modes,
a reset request is made by simultaneously setting
both the RLOOP and LLOOP pins high for at
least 200 ns. Reset will initiate on the falling edge
of the reset request (falling edge of RLOOP and
LLOOP). In the Host Mode, a reset is initiated by
simultaneously writing RLOOP and LLOOP to
the register. In either mode, a reset will set all reg-
isters to 0 and force the oscillator to its center
frequency before initiating calibration. A reset
will also set LOS high.

Serial Interface

In the Host Mode, pins 23 through 28 serve as a
microprocessor/microcontroller interface. One
on-board register can be written to via the SDI
pin or read from via the SDO pin at the clock rate
determined by SCLK. Through this register, a

LEN 2/1/0

000

010-111

TCODE

(Transmit

Encoder

Selection)

LOW

HDB3

Encoder

B8ZS

Encoder

HIGH

AMI Encoder

RCODE

(Receiver

Decoder

Selection)

LOW

HDB3

Decoder

B8ZS

Decoder

HIGH

AMI Decoder

Table 8. Encoder/Decoder Selection

CS61305A

DS157PP3

host controller can be used to control operational
characteristics and monitor device status. The se-
rial port read/write timing is independent of the
system transmit and receive timing.

Data transfers are initiated by taking the chip se-
lect input, CS, low (CS must initially be high).
Address and input data bits are clocked in on the
rising edge of SCLK. The clock edge on which
output data is stable and valid is determined by
CLKE as shown in Table 5. Data transfers are ter-
minated by setting CS high. CS may go high no
sooner than 50 ns after the rising edge of the
SCLK cycle corresponding to the last write bit.
For a serial data read, CS may go high any time
to terminate the output.

Figure 13 shows the timing relationships for data
transfers when CLKE = 1. When CLKE = 1, data
bit D7 is held until the falling edge of the 16th
clock cycle. When CLKE = 0, data bit D7 is held
until the rising edge of the 17th clock cycle. SDO
goes to the high impedance state when the serial
port is being written (R/W = 0), or if CS goes
high, or at the end of the hold period of data bit
D7.

An address/command byte, shown in Table 9,
precedes the data byte. The first bit of the ad-
dress/command byte determines whether a read
or a write is requested. The next six bits contain
the address. The line interface responds to address
16 (0010000). The last bit is ignored.

During a write cycle (R/W = 0), data is written to
the input data register on the eight clock cycles
immediately following the address/command
byte. The input data format over SDI is shown in
Table 10.

Bits D0 and D1 are used to clear an interrupt is-
sued from the INT pin, which occurs in response
to a loss of signal or a problem with the output
driver.

Writing a "1" to either "Clear LOS" or "Clear
DPM" over the serial interface has three effects:

Bit

Designation

Description

clr LOS

Clear Loss of Signal

clr DPM

Clear Driver Performance Monitor

LEN0

Bit 0 - Line Length Select

LEN1

Bit 1 - Line Length Select

LEN2

Bit 2 - Line Lenght Select

RLOOP

Remote Loopback

LLOOP

Local Loopback

TAOS

Transmit All Ones Select

Note: Bit D0 is the first bit input (LSB).

Table 10. Input Data Register

Bit

Designation

Description

R/W

Read/Write Select; 0 = write, 1 = read

ADD0

LSB of address, Must be 0

ADD1

Must be 0

ADD2

Must be 0

ADD3

Must be 0

ADD4

Must be 1

Reserved - Must be 0

Don't Care

Note: Bit 0 is the first bit input (LSB).

Table 9. Address/Command Byte

SCLK

SDO

SDI

Address/Command Byte

Data Input/Output

R/W

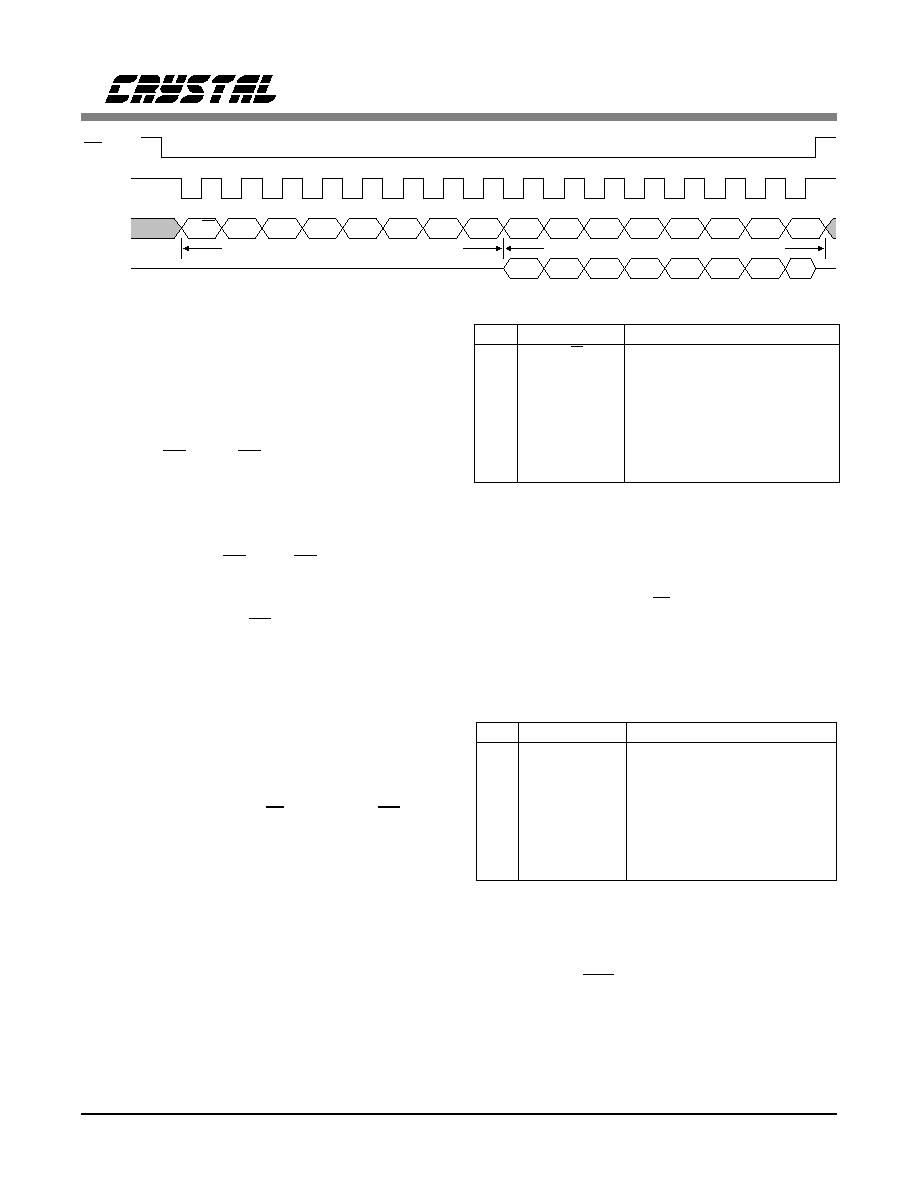

Figure 13. Input/Output Timing

CS61305A

DS157PP3

1) The current interrupt on the serial interface

will be cleared. (Note that simply reading
the register bits will not clear the inter-
rupt).

2) Output data bits D5, D6 and D7 will be re-

set as appropriate.

3) Future interrupts for the corresponding LOS

or DPM will be prevented from occurring.

Writing a "0" to either "Clear LOS" or "Clear
DPM" enables the corresponding interrupt for
LOS or DPM.

During a read cycle (R/W = 1), data is read from
the output data register on the eight clock cycles
immediately following the address/ command
byte. The output data format over SDO is shown
in Tables 11 and 12.

Bits D2, D3 and D4 can be read to verify line
length selection. Bits D5, D6 and D7 must be de-
coded according to Table 12. Codes 101, 110 and
111 (Bits D5, D6 and D7) indicate intermittent
losses of signal and/or driver problems.

The SDO pin goes to a high impedance state
when not in use. The SDO and SDI pins may be
tied together in applications where the host proc-
essor has a bi-directional I/O port.

Power Supply

The device operates from a single +5 Volt supply.
Separate pins for transmit (TV+, TGND) and re-
ceive (RV+, RGND) supplies provide internal
isolation. These pins should be connected exter-
nally near the device and decoupled to their

respective grounds. TV+ must not exceed RV+ by
more than 0.3V.

Decoupling and filtering of the power supplies is
crucial for the proper operation of the analog cir-
cuits in both the transmit and receive paths. A 1.0

F capacitor should be connected between TV+

and TGND, and a 0.1

F capacitor should be con-

nected between RV+ and RGND. Use mylar or
ceramic capacitors and place them as closely as
possible to their respective power supply pins. A
68

F tantalum capacitor should be added close

to the RV+/RGND supply. Wire-wrap bread-
boarding of the line interface is not recommended
because lead resistance and inductance serve to
defeat the function of the decoupling capacitors.

Schematic & Layout Review Service

Confirm Optimum

Schematic & Layout

Before Building Your Board.

For Our Free Review Service

Call Applications Engineering.

C a l l : ( 5 1 2 ) 4 4 5 - 7 2 2 2

Bits

Status

D5 D6 D7

0 0 0 Reset has occurred or no program input.
0 0 1 TAOS in effect.
0 1 0 LLOOP in effect.
0 1 1 TAOS/LLOOP in effect.
1 0 0 RLOOP in effect
1 0 1 DPM changed state since last "clear DPM"

occured.

1 1 0 LOS changed state since last "clear LOS"

occured.

1 1 1 LOS and DPM have changed state since

last "clear LOS" and "clear DPM".

Table 12. Output Data Register (bits D5-D7)

Bit

Designation

Description

LOS

Loss of Signal

DPM

Driver Performance Monitor

LEN0

Bit 0 - Line Length Select

LEN1

Bit 1 - Line Length Select

LEN2

Bit 2 - Line Lenght Select

Note: Bit D0 is the first bit output (LSB)

Table 11. Output Data Register (bits D0-D4)

CS61305A

DS157PP3

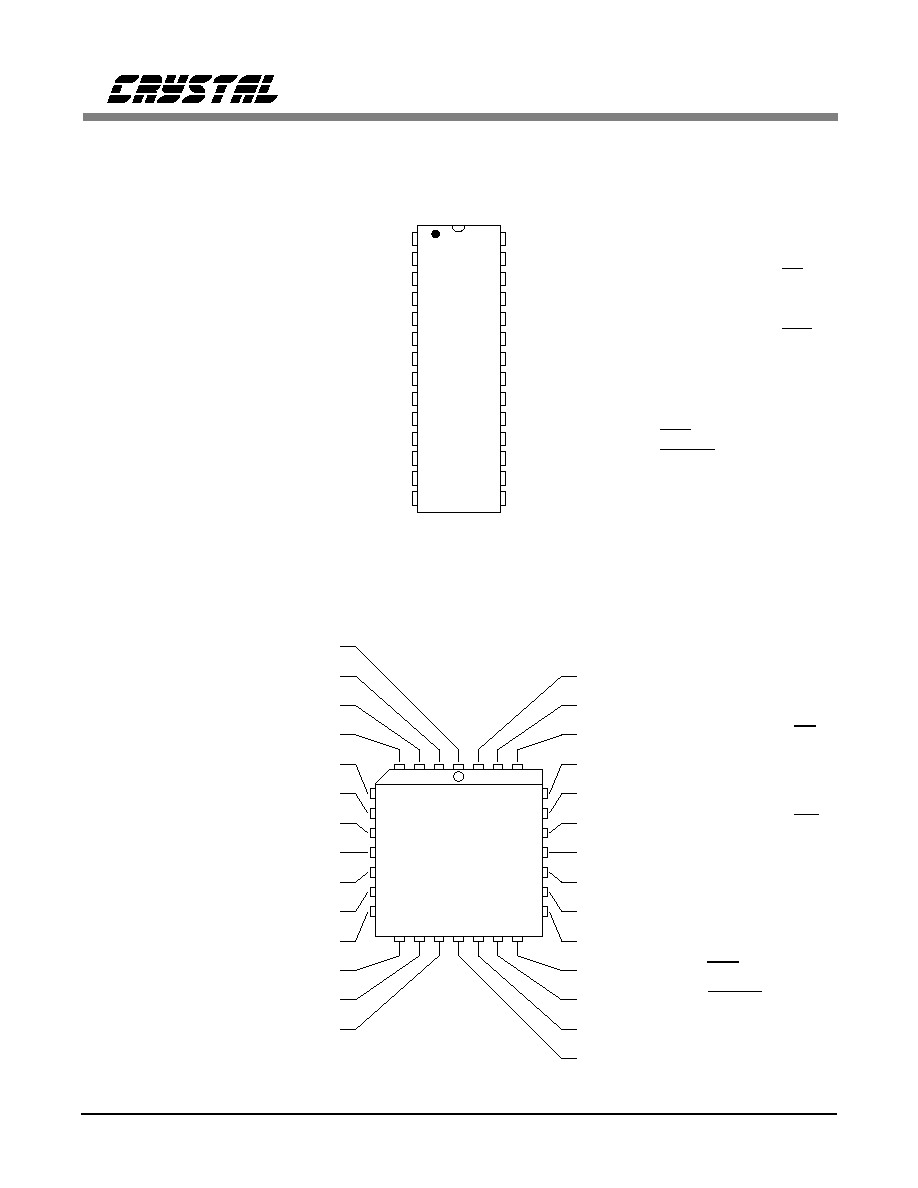

PIN DESCRIPTIONS

Extended Hardware Hardware/Host Hardware Extended Hardware Host

top

view

ACLKI

TCLK

TAOS CLKE

TDATA TPOS

LLOOP SCLK

TCODE TNEG

RLOOP CS

MODE

LEN2 SDO

BPV RNEG

LEN1 SDI

RDATA RPOS

PLCC

LEN0 INT

RCLK

RGND

XTALIN

RV+

XTALOUT

RRING

AIS DPM

RTIP

LOS

MRING PCS

TTIP

MTIP RCODE

TGND

TRING

TV+

ACLKI

TAOS CLKE

TCLK

LLOOP SCLK

TDATA TPOS

RLOOP CS

TCODE TNEG

LEN2 SDO

MODE

LEN1 SDI

BPV RNEG

DIP

LEN0 INT

RDATA RPOS

top

RGND

RCLK

view

RV+

XTALIN

RRING

XTALOUT

RTIP

AIS DPM

MRING PCS

LOS

MTIP RCODE

TTIP

TRING

TGND

TV+

Extended Hardware Hardware/Host Hardware Extended Hardware Host

CS61305A

DS157PP3

Power Supplies

RGND - Ground, Pin 22.

Power supply ground for all subcircuits except the transmit driver; typically 0 Volts.

RV+ - Power Supply, Pin 21.

Power supply for all subcircuits except the transmit driver; typically +5 Volts.

TGND - Ground, Transmit Driver, Pin 14.

Power supply ground for the transmit driver; typically 0 Volts.

TV+ - Power Supply, Transmit Driver, Pin 15.

Power supply for the transmit driver; typically +5 Volts. TV+ must not exceed RV+ by more than
0.3 V.

Oscillator

XTALIN, XTALOUT - Crystal Connections, Pins 9 and 10.

A 6.176 MHz (T1 operation) or 8.192 MHz (E1 operation) crystal should be connected across
these pins. Overdriving the oscillator with an external clock is not supported.

Control

ACLKI - Alternate External Clock Input, Pin 1.

A 1.544 MHz or 2.048 MHz clock signal may be input on ACLKI to calibrate the clock recovery
circuit and control the transmit clock during TAOS. If a clock is not provided on ACLKI, this
input must be grounded, and the oscillator in the jitter attenuator is used to calibrate the clock
recovery circuit and TAOS is not available. ACLKI may not be provided by RCLK.

CLKE - Clock Edge, Pin 28. (Host Mode)

Setting CLKE to logic 1 causes RPOS and RNEG to be valid on the falling edge of RCLK, and
SDO to be valid on the rising edge of SCLK. Conversely, setting CLKE to logic 0 causes RPOS
and RNEG to be valid on the rising edge of RCLK, and SDO to be valid on the falling edge of
SCLK.

CS - Chip Select, Pin 26. (Host Mode)

This pin must transition from high to low to read or write the serial port.

INT - Receive Alarm Interrupt, Pin 23. (Host Mode)

Goes low when LOS or DPM change state to flag the host processor. INT is cleared by writing
"clear LOS" or "clear DPM" to the register. INT is an open drain output and should be tied to the
power supply through a resistor (47k - 100k).

CS61305A

DS157PP3

LEN0, LEN1, LEN2 - Line Length Selection, Pins 23, 24 and 25. (Hardware and Extended
Hardware Modes)

Determines the shape and amplitude of the transmitted pulse to accommodate several cable types
and lengths. See Table 3 for information on line length selection. These pins also control the
receiver slicing level.

LLOOP - Local Loopback, Pin 27. (Hardware and Extended Hardware Modes)

Setting LLOOP to a logic 1 routes the transmit clock and data through to the receive clock and
data pins. TPOS/TNEG (or TDATA) are still transmitted unless overridden by a TAOS request.
Inputs on RTIP and RRING are ignored during LLOOP. The jitter attenuator is bypassed.

Simultaneously taking RLOOP and LLOOP high for at least 200 ns initiates a device reset.

MODE - Mode Select, Pin 5.

Driving the MODE pin high places the line interface in the Host Mode. In the Host mode, a serial
control port is used to control the line interface and determine its status. Grounding the MODE
pin places the line interface in the Hardware Mode, where configuration and status are controlled
by discrete pins. Floating the MODE pin or driving it to +2.5 V places the device in Extended
Hardware Mode, where configuration and status are controlled by discrete pins. When floating
MODE, there should be no external load on the pin. MODE defines the status of 13 pins (see
Table 2).

PCS - Parallel Chip Select, Pin 18. (Extended Hardware Mode)

Setting PCS low causes the line interface to accept the TCODE, RCODE, LEN0, LEN1, LEN2,
RLOOP, LLOOP and TAOS inputs.

RCODE - Receiver Decoder Select, Pin 17. (Extended Hardware Mode)

Setting RCODE low enables B8ZS or HDB3 zero substitution in the receiver decoder. Setting
RCODE high enables the AMI receiver decoder (see Table 8).

RLOOP - Remote Loopback, Pin 26. (Hardware and Extended Hardware Modes)

Setting RLOOP to a logic 1 causes the recovered clock and data to be sent through the jitter
attenuator and through the driver back to the line. The recovered signal is also sent to RCLK and
RPOS/RNEG (or RDATA). Any TAOS request is ignored.

Simultaneously taking RLOOP and LLOOP high for at least 200 ns initiates a device reset.

SCLK - Serial Clock, Pin 27. (Host Mode)

Clock used to read or write the serial port registers. SCLK can be either high or low when the line
interface is selected using the CS pin.

SDI - Serial Data Input, Pin 24. (Host Mode)

Input for the input data register. Sampled on the rising edge of SCLK.

CS61305A

DS157PP3

SDO - Serial Data Output, Pin 25. (Host Mode)

Status and control output from the output data register. If CLKE is high SDO is valid on the
rising edge of SCLK. If CLKE is low SDO is valid on the falling edge of SCLK. This pin goes to
a high-impedance state when the serial port is being written, or if CS is high, or after bit D7 is
output.

TAOS - Transmit All Ones Select, Pin 28. (Hardware and Extended Hardware Modes)

Setting TAOS to a logic 1 causes continuous ones to be transmitted at the frequency determined
by ACLKI.

TCODE - Transmitter Encoder Select, Pin 4. (Extended Hardware Mode)

Setting TCODE low enables B8ZS or HDB3 zero substitution in the transmitter encoder. Setting
TCODE high enables the AMI transmitter encoder .

Data

RCLK - Recovered Clock, Pin 8.

The receiver recovered clock is output on this pin.

RDATA - Receive Data - Pin 7. (Extended Hardware Mode)

Data recovered from the RTIP and RRING inputs is output in NRZ format at this pin, after being
decoded by the line code decoder. RDATA is stable and valid on the falling edge of RCLK.

RPOS, RNEG - Receive Positive Data, Receive Negative Data, Pins 6 and 7. (Hardware and
Host Modes)

The receiver recovered NRZ digital data from RTIP and RRING is output on these pins. A
positive pulse (with respect to ground) received on the RTIP pin generates a logic 1 on RPOS,
and a positive pulse (with respect to ground) received on the RRING pin generates a logic 1 on
RNEG. In the Hardware Mode, RPOS and RNEG are stable and valid on the rising edge of
RCLK. In the Host Mode, CLKE determines the clock edge for which RPOS and RNEG are
stable and valid (see Table 5).

RTIP, RRING - Receive Tip, Receive Ring, Pins 19 and 20.

The AMI receive signal is input on these pins. A center-tapped, center-grounded, 2:1, step-up
transformer is required on these inputs, as shown in Figure A1 of the Applications section. Clock
and data are recovered and output on RCLK and RPOS/RNEG or RDATA.

TCLK - Transmit Clock, Pin 2.

The1.544 MHz (T1 operation) or 2.048 MHz (E1 operation) transmit clock is input on this pin.
TPOS/TNEG or TDATA are sampled on the falling edge of TCLK.

TDATA - Transmit Data, Pin 3. (Extended Hardware Mode)

Data to be transmitted by the TTIP and TRING outputs is input in NRZ format at this pin, after
being encoded by the line code encoder. TDATA is sampled on the falling edge of TCLK.

CS61305A

DS157PP3

TPOS, TNEG - Transmit Positive Data, Transmit Negative Data, Pins 3 and 4. (Hardware and
Host Modes)

The transmit NRZ digital data to TTIP and TRING is input on these pins. A logic 1 on TPOS
causes a positive pulse (with respect to ground) to be transmitted on the TTIP pin, and a logic 1
on TNEG causes a negative pulse (with respect to ground) to be transmitted on the TRING pin.
TPOS and TNEG are sampled on the falling edge of TCLK.

TTIP, TRING - Transmit Tip, Transmit Ring, Pins 13 and 16.

The AMI signal is driven to the line through these pins. This output is designed to drive a 75

load. A transformer is required as shown in Figure A1 of the Applications section. Clock and data
are sourced on TCLK and TPOS/ TNEG or TDATA.

Status

AIS - Alarm Indication Signal, Pin 11. (Extended Hardware Mode)

AIS goes high when unframed all-ones condition (blue alarm) is detected, using the detection
criteria of less than three zeros out of 2048 bit periods.

BPV- Bipolar Violation Strobe, Pin 6. (Extended Hardware Mode)

BPV strobes high when a bipolar violation is detected in the received signal. B8ZS (or HDB3)
zero substitutions are not flagged as bipolar violations if the B8ZS (or HDB3) decoder has been
enabled.

DPM - Driver Performance Monitor, Pin 11. (Hardware and Host Modes)

DPM goes high if no activity is detected on MTIP and MRING.

LOS - Loss of Signal, Pin 12.

LOS goes high when 175 consecutive zeros have been received. LOS returns low when 3 ones
are received within 32 bit periods containing no more than 15 consecutive zeros.

MTIP, MRING - Monitor Tip, Monitor Ring, Pins 17 and 18. (Hardware and Host Modes)

These pins are normally connected to TTIP and TRING and monitor the transmitter output. If the
INT pin in the Host mode is used, and the monitor is not used, writing a "1" to the "clear DPM"
bit will prevent an interrupt from the driver performance monitor.

CS61305A

DS157PP3

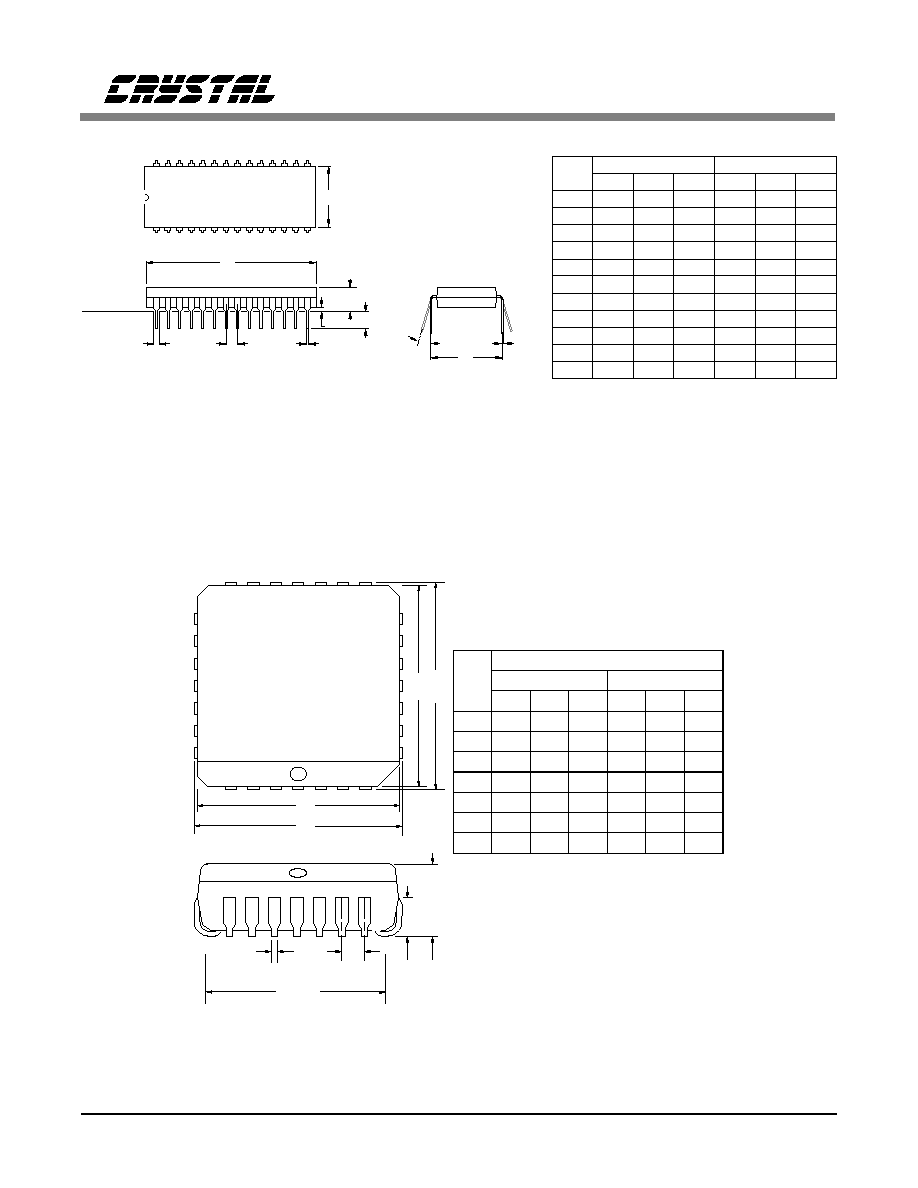

28 pin
Plastic DIP

MILLIMETERS

INCHES

DIM

MIN

MAX

MIN

MAX

13.72

14.22

0.540

0.560

36.45

1.02

0.36

0.51

3.94

3.18

0.20

0°

15.24

37.21

1.65

0.56

1.02

5.08

3.81

0.38

15°

1.435

0.040

0.014

0.020

0.155

0.125

0.600

0.008

0°

1.465

0.065

0.022

0.040

0.200

0.150

0.015

15°

15.87

0.625

2.41

2.67

0.095

0.105

SEATING
PLANE

NOTES:

1. POSITIONAL TOLERANCE OF LEADS SHALL BE WITHIN
0.25mm (0.010") AT MAXIMUM MATERIAL CONDITION, IN
RELATION TO SEATING PLANE AND EACH OTHER.
2. DIMENSION eA TO CENTER OF LEADS WHEN FORMED PARALLEL.
3. DIMENSION E1 DOES NOT INCLUDE MOLD FLASH.

NOM

13.97

36.83

1.27

0.46

0.76

4.32

0.25

2.54

NOM

0.550

1.450

0.050

0.018

0.030

0.170

0.010

0.100

E1
e1
eA

D2/E2

28-pin PLCC

D2/E2

MAX

MIN

MAX

MIN

MILLIMETERS

INCHES

DIM

4.57

4.20

0.180

0.165

D/E

12.32

12.57

0.485

0.495

0.53

0.33

0.021

0.013

2.29

0.090

11.43

11.58

0.450

0.456

9.91

10.92

0.390

0.430

1.19

1.35

0.047

0.053

NOM

4.45

12.45

0.41

2.79

11.51

10.41

1.27

NOM

0.175

0.490

0.016

0.110

0.453

0.410

0.050

3.04

0.120

D1/E1

CS61305A

DS157PP3

Line Interface

Figure A1 illustrates the external components for
the line interface circuitry and Table A1 shows
the specific components for each application.
Figures A2-A4 show typical T1 and E1 line inter-
face application circuits. Figure A2 illustrates a
T1 interface in the Host Mode. Figure A3 illus-
trates a 120

E1 interface in the Hardware

Mode. Figure A4 illustrates a 75

E1 interface

in the Extended Hardware Mode.

The receiver transformer has a grounded center
tap on the IC side. Resistors between the RTIP
and RRING pins to ground provide the termina-
tion for the receive line.

RECEIVE
LINE

RTIP

RRING

TRANSMIT
LINE

TTIP

TRING

0.47

2CT:1

CS61305A

Frequency

MHz

Crystal

XTL

Cable

R1 and R2

LEN2/1/0

T1 turns

ratio

R3 and R4

Typical TX

Return Loss

(dB)

1.544 (T1)

CXT6176

100

200

0/1/1 - 1/1/1

1:1.15

1:2

1:2.3

9.4
9.4

0.5

20
28

2.048 (E1)

CXT8192

120

240

0/0/0
0/0/0
0/0/1
0/0/1

1:1.26

1:2
1:1
1:2

8.7

0.5

150

0/0/0
0/0/0
0/0/1
0/0/1

1:1
1:2
1:1
1:2

9.4

14.3

0.5

Note: Refer to Table A3 for specific transformer recommendations.

Table A1. External Component Values

APPLICATIONS

Figure A1. Line Interface Circuitry

CS61305A

DS157PP3

Figures A2-A4 show a 0.47

F capacitor in series

with the transmit transformer primary. This ca-
pacitor is needed to prevent any output stage
imbalance from resulting in a DC current through
the transformer primary. This current might satu-
rate the transformer producing an output offset
level shift.

Transformers

Recommended transmitter and receiver trans-
former specifications are shown in Table A2. The
transformers in Table A3 are recommended for
use with the CS61305A. Refer to the "Telecom
Transformer Selection Guide" for detailed sche-
matics which show how to connect the line
interface IC with a particular transformer.

Selecting an Oscillator Crystal

Specific crystal parameters are required for
proper operation of the jitter attenuator. It is rec-
ommended that the Crystal Semiconductor
CXT6176 crystal be used for T1 applications and
the CXT8192 crystal be used for E1 applications.

Line Protection

Secondary protection components can be added
to provide lightning surge and AC power-cross
immunity. Refer to the Application Note "Secon-
dary Line Protection for T1 and E1 Line Cards"
for detailed information on the different electrical
safety standards and specific application circuit
recommendations.

Control

Monitor

Frame

Format

Encoder/

Decoder

CS61305A

HOST

MODE

RECEIVE
LINE

TRANSMIT
LINE

XTL

RV+

RGND

0.1

+5V

1.0

TGND

RV+

TV+

CLKE

ACLKI

LOS

DPM

MODE

RPOS

RNEG

RCLK

TPOS

TNEG

TCLK

XTALIN

XTALOUT

RGND

TGND

SCLK

INT

SDI

SDO

RTIP

RRING

MTIP

MRING

TRING

TTIP

0.47

1:1.15

PE-65388

2CT:1

PE-65351

200

Serial

Port

+5V

100 k

Figure A2. T1 Host Mode Configuration

CS61305A

DS157PP3

Control

Monitor

Frame

Format

Encoder/

Decoder

CS61305A

HARDWARE

MODE

Line

Length
Setting

RECEIVE
LINE

TRANSMIT
LINE

XTL

RGND

0.1

+5V

1.0

TGND

RV+

TV+

TAOS

ACLKI

RLOOP

LLOOP

MODE

RPOS

RNEG

RCLK

TPOS

TNEG

TCLK

XTALIN

XTALOUT

RGND

TGND

LEN0

LEN1

LEN2

RTIP

RRING

MTIP

MRING

TRING

TTIP

0.47

1:1.26

PE-65389

2CT:1

PE-65351

LOS

DPM

240

Figure A3. 120

E1 Hardware Mode Configuration

Control

Monitor

Frame

Format

Encoder/

Decoder

CS61305A

EXTENDED

HARDWARE

MODE

Line

Length
Setting

RECEIVE
LINE

TRANSMIT
LINE

XTL

RGND

0.1

+5V

1.0

TGND

RV+

TV+

RCODE

PCS

BPV

TAOS

MODE

RDATA

RCLK

TDATA

TCLK

XTALIN

XTALOUT

RGND

TGND

LEN0

LEN1

LEN2

RTIP

RRING

TRING

TTIP

150

0.47

1:1

PE-65389

2CT:1

PE-65351

ACLKI

RLOOP

LLOOP

LOS

AIS

TCODE

150

Figure A4. 75

E1 Extended Hardware Mode Configuration

CS61305A

DS157PP3

Interfacing The CS61305A With the
CS62180B T1 Transceiver

To interface with the CS62180B, connect the de-
vices as shown in Figure A5. In this case, the line
interface and CS62180B are in Host mode con-
trolled by a microprocessor serial interface. If the
line interface is used in Hardware mode, then the
line interface RCLK output must be inverted be-
fore being input to the CS62180B. If the
CS61305A is used in Extended Hardware Mode,
the RCLK output does not have to be inverted
before being input to the CS62180B.

Parameter

Receiver

Transmitter

Turns Ratio

1:2 CT

1:1

1.5 % for 75

1:1.15

5 % for 100

1:1.26

1.5 % for 120

Primary Inductance

600

H min. @ 772 kHz

1.5 mH min. @ 772 kHz

Primary Leakage Inductance

1.3

H max. @ 772 kHz

0.3

H max. @ 772 kHz

Secondary Leakage Inductance

0.4

H max. @ 772 kHz

0.4

H max. @ 772 kHz

Interwinding Capacitance

23 pF max.

18 pF max.

ET-constant

16 V-

s min. for T1

12 V-

s min. for E1

16 V-

s min. for T1

12 V-

s min. for E1

Table A2. Transformer Specifications

ACLK

TCLK

RCLK

RPOS

RNEG

TPOS

TNEG

CS62180B

CLKE

SCLK

INT

SDO

SDI

TCLK

TPOS

TNEG

RNEG

RPOS

RCLK

SCLK

SDO

SDI

TO HOST CONTROLLER

V+

100k

1.544 MHz

CLOCK

SIGNAL

V+

22k

MODE

CS61305A

Figure A5. Interfacing the CS61305A with a

CS62180B (Host Mode)

CS61305A

DS157PP3

Application

Turns

Ratio(s)

Manufacturer

Part Number

Package Type

RX:

T1 & E1

1:2CT

Pulse Engineering

PE-65351

1.5 kV through-hole, single

Schott

67129300

Bel Fuse

0553-0013-HC

TX:

1:1.15

Pulse Engineering

PE-65388

1.5 kV through-hole, single

Schott

67129310

Bel Fuse

0553-0013-RC

TX:

E1 (75 & 120

)

1:1.26

1:1

Pulse Engineering

PE-65389

1.5 kV through-hole, single

Schott

67129320

Bel Fuse

0553-0013-SC

RX &TX:

1:2CT
1:1.15

Pulse Engineering

PE-65565

1.5 kV through-hole, dual

Bel Fuse

0553-0013-7J

RX &TX:

E1 (75 & 120

)

1:2CT
1:1.26

1:1

Pulse Engineering

PE-65566

1.5 kV through-hole, dual

Bel Fuse

0553-0013-8J

RX &TX:

1:2CT
1:1.15

Pulse Engineering

PE-65765

1.5 kVsurface-mount, dual

Bel Fuse

S553-0013-06

RX &TX:

E1 (75 & 120

)

1:2CT
1:1.26

1:1

Pulse Engineering

PE-65766

1.5 kV surface-mount, dual

Bel Fuse

S553-0013-07

RX :

T1 & E1

1:2CT

Pulse Engineering

PE-65835

3 kV through-hole, single

EN60950, EN41003 approved

TX:

E1 (75 & 120

)

1:1.26

1:1

Pulse Engineering

PE-65839

3 kV through-hole, single

EN60950, EN41003 approved

Table A3. Recommended Transformers

CS61305A

DS157PP3

Features

·
·

Socketed Line Interface Device

·
·

All Required Components for Complete
Line Interface Evaluation

·
·

Configuration by DIP Switch or Serial
Interface

·
·

LED Status Indicators for Alarm
Conditions

·
·

Support for Host, Hardware, and
Extended Hardware Modes

General Description

The evaluation board includes a socketed line interface
device and all support components necessary for
evaluation. The board is powered by an external 5 Volt
supply.

The board may be configured for 100

twisted-pair

T1, 75

coax E1, or 120

twisted-pair E1 operation.

Binding posts are provided for line connections. Sev-
eral BNC connectors are available to provide system
clocks and data I/O. Two LED indicators monitor de-
vice alarm conditions. The board supports all line
interface operating modes.

ORDERING INFORMATION:

CDB61534, CDB61535.

CDB61535A,

CDB6158, CDB6158A,

CDB61574,

CDB61574A, CDB61575, CDB61577,
CDB61304A, CDB61305A

SEP '95

DS40DB3

Crystal Semiconductor Corporation
P.O. Box 17847, Austin, TX 78760
(512) 445-7222 FAX: (512) 445-7581

Line Interface Evaluation Board

CDB61534, CDB61535, CDB61535A, CDB6158,
CDB6158A, CDB61574, CDB61574A, CDB61575,
CDB61577, CDB615304A, & CDB61305A

ACLKI

TCLK

TPOS
(TDATA)

TNEG

RNEG
(BPV)

RPOS
(RDATA)

RCLK

CS61534,
CS61535,

CS61535A,

CS6158,

CS6158A,

CS61574,

CS61574A,

CS61575,
CS61577,

CS61304A

CS61305A

Reset

Circuit

Mode Select

Circuit

(TCODE)

+5V

LED Status

Indicators

Hardware

Control Circuit

Serial Interface
Control Circuit

TTIP

TRING

RTIP

RRING

XTL

POWER SUPPLY

As shown on the evaluation board schematic in
Figure 1, power is supplied to the evaluation
board from an external +5 Volt supply connected
to the two binding posts labeled +5V and GND.
Transient suppressor D10 protects the compo-
nents on the board from over-voltage damage and
reversed supply connections. The recommended
power supply decoupling is provided by C1, C2
and C3. Ceramic capacitor C1 and electrolytic ca-
pacitor C2 are used to decouple RV+ to RGND.
Capacitor C3 decouples TV+ to TGND. The TV+
and RV+ power supply traces are connected at the
device socket U1. A ground plane on the compo-
nent side of the evaluation board insures optimum
performance.

BOARD CONFIGURATION

Pins on line interface device U1 with more than
one pin name have different functions depending
on the operating mode selected. Pin names not
enclosed in parenthesis or square brackets de-
scribe the Hardware mode pin function. Pin
names enclosed in parenthesis describe the Ex-
tended Hardware mode pin function. Pin names
enclosed in square brackets describe the Host
mode pin function.

Table 1 explains how to configure the evaluation
board jumpers depending on the device installed
and the desired operating mode. Mode selection
is accomplished with slide switch SW1 and jump-
e rs J P 2 , J P6 , a nd J P7 . Th e C S6 1 5 3 5 A ,
CS61574A, CS61575, CS61577, CS61304A, and
CS61305A support the Hardware, Extended
Hardware, and Host operating modes. The
CS61534, CS61535, and CS61574 support the
Hardware and Host operating modes. The
CS6158 and CS6158A only support the Hardware
operating mode.

Hardware Mode

In the Hardware operating mode, the line inter-
face is configured using DIP switch S2. The digi-
tal control inputs to the device selected by S2 in-
clude: transmit all ones (TAOS), local loopback
(LLOOP), remote loopback (RLOOP), and trans-
mit line length selection (LEN2,LEN1,LEN0).
Closing a DIP switch on S2 towards the label sets
the device control pin of the same name to logic 1
(+5 Volts). Note that S2 switch positions TCODE
and RCODE have no function in Hardware mode.
In addition, the host processor interface connector
JP1 should not be used in the Hardware mode.

Two LED status indicators are provided in Hard-
ware mode. The LED labeled DPM (AIS) illumi-
nates when the line interface asserts the Driver

JUMPER

POSITION

FUNCTION SELECTED

JP1

Connector for external processor in Host operating mode.

JP2, JP6, JP7

A-A

Extended Hardware operating mode.

B-B

Hardware or Host operating modes.

JP3

Hardware or Extended Hardware operating modes.

OUT

Host operating mode.

JP4

C-C

Connects the ACLKI BNC input to pin 1 of device.

D-D

Grounds the ACLKI BNC input through 51

resistor R1.

JP5

E-E

Transmit line connection for all applications except those listed for "F-F" on the next line.

F-F

coax E1 applications using the Schott 12932/12532 or PE-65389/65566 at transformer T1.

JP8

Shorts resistor R2 for all applications except those listed for "OUT" on the next line.

OUT

Inserts resistor R2 for 75

coax E1 applications using the CS61534, 35, 58, 74, or 77.

Table 1. Evaluation Board Jumper Settings

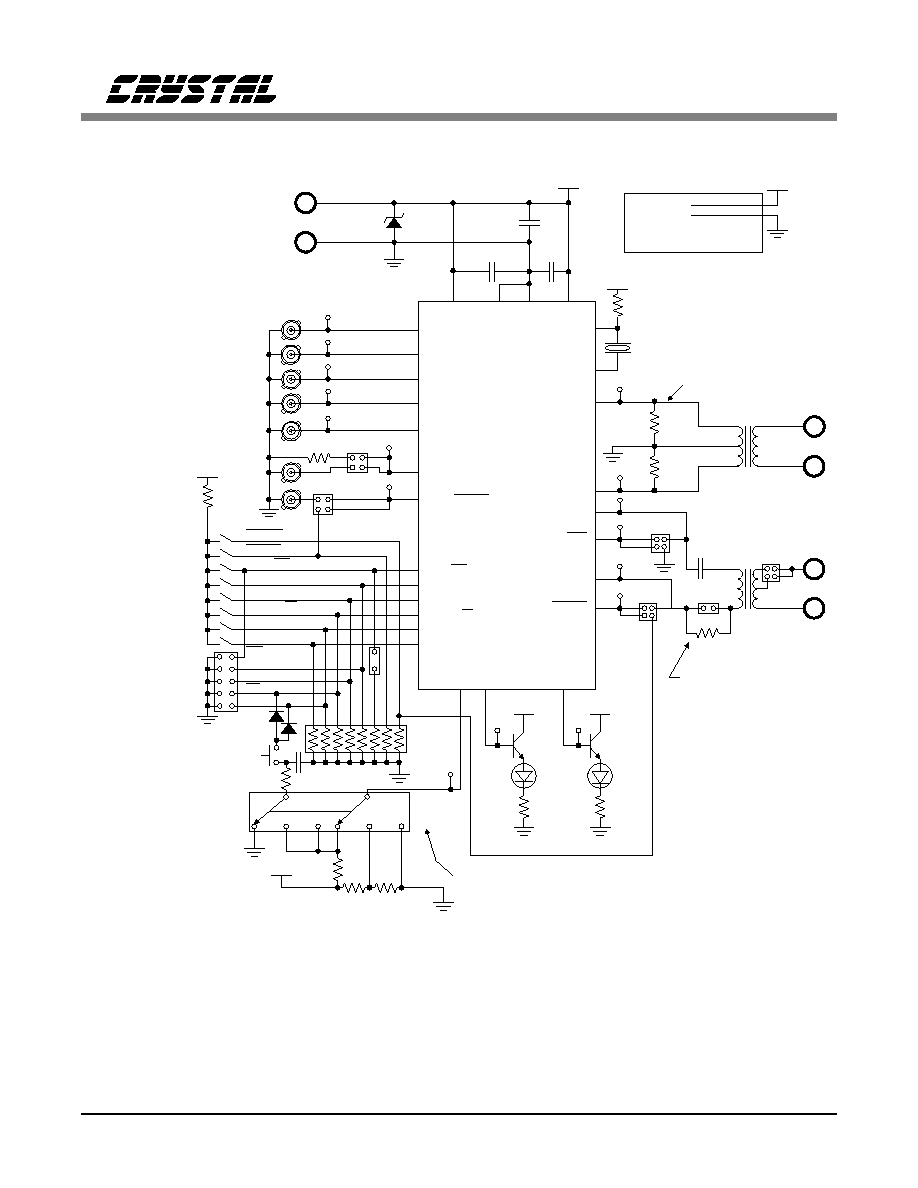

LINE INTERFACE EVALUATION BOARD

DS40DB3

R16
1k

RCLK

TCLK

TPOS

(TDATA)

RNEG

(BPV)

Pin 3

TCLK

RCLK

Pin 6

TNEG

RPOS

(RDATA)

ACLKI

Pin 7

ACLKI

R1 51.1

Pin 4

R15

100

RV+

JP3

RV+

2N2222

470

LED

RV+

2N2222

470

LED

JP1

1N914

R14
4.7kW
SIP

RV+

LOS

DPM
(AIS)

MODE

R18

10k W

R17

10k W

LEN1/SDI

LEN2/SD0

LLOOP/SCLK

TAOS/CLKE

TCODE

RLOOP/CS

SDI

SDO

SCLK

INT

LEN0/INT

RESET

MODE
SW1

221kW

JP4

JP2

RCODE

C4 0.047mF

HOST:3-1,6-8
EXT HW: 3-2, 6-7
HW: 3-4, 6-5

TRING

TTIP

0.47 mF

TRING

TTIP

+5V

RV+

TV+

TGND

RGND

D10
P6KE

T1
(see Table 2)

0.1mF

68mF

RTIP

RRING

RTIP

JP8

4.4W

1 mF

RV+

RCLK

TCLK

RNEG (BPV)

ACLKI

LEN1 [SDI]

LEN2 [SD0]

LLOOP [SCLK]

TAOS [CKLE]

XTALIN

{CS6158/58A: RT}

XTALOUT

{CS6158/58A: NC}

LOS

DPM (AIS)

MODE

RTIP

RRING

TRING

Pin 17

Pin 18

TTIP

RV+

R13 (only included for CS6158/58A)
1kW

(Used only for E1 75W
applications with the CS61534,
CS61535, CS6158, CS61574,
OR CS61577)

CS61534, CS61535,
CS61535A, CS6158,
CS6158A, CS61574,
CS61574A, CS61575,
CS61577, CS61304A,
OR CS61305A

U1:

Prototyping

Area

RV+

LEN0 [INT]

RLOOP [CS]

MRING (PCS)

RPOS (RDATA)

TPOS (TDATA)

MTIP (RCODE)

JP6

JP7

JP5

E1: CXT8192
T1: CXT6176
(not included for CS6158/58A)

TNEG (TCODE)

U 1

R9
200W

R10
200W

(see Table 2)

2:1

GND

(0V)

Change R9 and R10 for E1 operation

Figure 1. Evaluation Board Schematic

LINE INTERFACE EVALUATION BOARD

DS40DB3

Performance Monitor alarm. The LED labeled
LOS illuminates when the line interface receiver
has detected a loss of signal.

Extended Hardware Mode

In the Extended Hardware operating mode, the
line interface is configured using DIP switch S2.
The digital control inputs to the device selected
by S2 include: transmit all ones (TAOS), local
loopback (LLOOP), remote loopback (RLOOP),
transmit line length selection (LEN2, LEN1,
LEN0), transmit line code (TCODE), and receive
line code (RCODE). Closing a DIP switch (mov-
ing it towards the S2 label) sets the device control
pin of the same name to logic 1 (+5 Volts). Note
that the TCODE and RCODE options are active
low and are enabled when the switch is moved
away from the S2 label. The parallel chip select
input PCS is tied to ground in Extended Hard-
ware mode to enable the device to be reconfig-
ured when S2 is changed. In addition, the host
processor interface connector JP1 should not be
used in Extended Hardware mode.

Two LED status indicators are provided in Ex-
tended Hardware mode. The LED labeled DPM
(AIS) illuminates when the line interface detects
the receive blue alarm (AIS). The LED labeled
LOS illuminates when the line interface receiver
has detected a loss of signal.

Host Mode

In the Host operating mode, the line interface is
configured using a host processor connected to
the serial interface port JP1. The S2 switch posi-
tion labeled CLKE selects the active edge of
SCLK and RCLK. Closing the CLKE switch se-
lects RPOS and RNEG to be valid on the falling
edge of RCLK and SDO to be valid on the rising
edge of SCLK as required by the CS2180B T1
framer.

All other DIP switch positions on S2 should be
open (logic 0) to prevent shorting of the serial in-

terface signals. Resistor R15 is a current limiting
resistor that prevents the serial interface signals
from being shorted directly to the +5 Volt supply
if any S2 switch, other than CLKE, is closed.
Jumper JP3 should be out so the INT pin may be
externally pulled-up at the host processor inter-
rupt pin.

Two LED status indicators are provided in Host
mode. The LED labeled DPM (AIS) illuminates
when the line interface asserts the Driver Per-
formance Monitor alarm. The LED labeled LOS
illuminates when the line interface receiver has
detected a loss of signal.

Manual Reset

A manual reset circuit is provided that can be
used in Hardware and Extended Hardware
modes. The reset circuit consists of S1, R4, R16,
C4, D8, and D9. Pressing switch S1 forces both
LLOOP and RLOOP to a logic 1 and causes a
reset. A reset is only necessary for the CS61534
device to calibrate the center frequency of the re-
ceiver clock recovery circuit. All other line inter-
face units use a continuously calibrated clock re-
covery circuit that eliminates the reset require-
ment.

TRANSMIT CIRCUIT

The transmit clock and data signals are supplied
on BNC inputs labeled TCLK, TPOS(TDATA),
and TNEG. In the Hardware and Host operating
modes, data is supplied on the TPOS(TDATA)
and TNEG connectors in dual NRZ format. In the
Extended Hardware operating mode, data is sup-
plied in NRZ format on the TPOS(TDATA) con-
nector and TNEG is not used.

The transmitter output is transformer coupled to
the line through a transformer denoted as T1 in
Figure 1. The signal is available at the TTIP and
TRING binding posts. Capacitor C5 is the recom-
mended 0.47

F DC blocking capacitor.

LINE INTERFACE EVALUATION BOARD

DS40DB3

The evaluation board supports 100

twisted-pair

T1, 75

coax E1, and 120

twisted-pair E1 op-

eration. The CDB61534, CDB61535, CDB6158,
CDB61574, and CDB61577 are supplied from
the factory with a 1:2 transmit transformer that
may be used for all T1 and E1 applications. The
C D B 6 1 5 3 5 A , C D B 6 1 5 8 A , C D B6 1 5 7 4 A ,
CDB61575, CDB61304A, and CDB61305A are
supplied with a 1:1.15 transmit transformer in-
stalled for T1 applications. An additional 1:1:1.26
transformer for E1 applications is provided with
the board. This transformer requires JP5 to be
jumpered across F-F for 75

coax E1 applica-

tions.

T he C D B 6 1 5 3 4 , C D B 6 1 5 3 5 , C D B6 1 5 8 ,
CDB61574, and CDB61577 require the JP8
jumper to be out for 75

coax E1 applications.

This inserts resistor R2 to reduce the transmit
pulse amplitude and meet the 2.37 V nominal
pulse amplitude requirement in CCITT G.703. In
addition, R2 increases the equivalent load imped-
ance across TTIP and TRING.

RECEIVE CIRCUIT

The receive line interface signal is input at the
RTIP and RRING binding posts. The receive sig-
nal is transformer coupled to the line interface de-
vice through a center-tapped 1:2 transformer. The
transformer produces ground referenced pulses of
equal amplitude and opposite polarity on RTIP
and RRING.

The receive line interface is terminated by resis-
tors R9 and R10. The evaluation boards are sup-
plied from the factory with 200

resistors for ter-

minating 100

T1 twisted-pair lines. Resistors

R9 and R10 should be replaced with 240

resis-

tors for terminating 120

E1 twisted-pair lines or

150

resistors for terminating 75

E1 coaxial

lines. Two 243

resistors and two 150

resistors

are included with the evaluation board for this
purpose.

The recovered clock and data signals are avail-
a b l e o n B N C o u t p u t s l ab el e d R C L K ,
RPOS(RDATA), and RNEG(BPV). In the Hard-
ware and Host operating modes, data is output on
the RPOS(RDATA) and RNEG(BPV) connectors
in dual NRZ format. In the Extended Hardware
operating mode, data is output in NRZ format on
the RPOS(RDATA) connector and bipolar viola-
tions are reported on the RNEG(BPV) connector.

QUARTZ CRYSTAL

A quartz crystal must be installed in socket Y1 for
all devices except the CS6158 and CS6158A. A
Crystal Semiconductor CXT6176 crystal is rec-
ommended for T1 operation and a CXT8192 is
recommended for E1 operation. The evaluation
board has a CXT6176 installed at the factory and
a CXT8192 is also provided with the board.

The CDB6158 and CDB6158A have resistor R13
installed instead of a crystal. This connects the RT
pin of the device to the +5 Volt supply.

ALTERNATE CLOCK INPUT

The ACLKI BNC input provides the alternate
clock reference for the line interface device
(ACLK for the CS61534) when JP4 is jumpered
across C-C. This clock is required for the
CS61534, CS61535, CS6158, and CS6158A op-
eration but is optional for all other line interface
devices. If ACLKI is provided, it may be desir-
able to connect both C-C and D-D positions on
JP4 to terminate the external clock source provid-
ing ACLKI with the 51

resistor R1. If ACLKI is

optional and not used, connector JP4 should be
jumpered across D-D to ground pin 1 of the de-
vice through resistor R1.

TRANSFORMER SELECTION

To permit the evaluation of other transformers,
Table 2 lists the transformer and line interface de-
vice combinations that can be used in T1 and E1

LINE INTERFACE EVALUATION BOARD

DS40DB3

applications. A letter at the intersection of a row
and column in Table 2 indicates that the selected
transformer is supported for use with the device.
The transformer is installed in the evaluation
board with pin 1 positioned to match the letter
illustrated on the drawing in Table 2. For exam-
ple, the Pulse Engineering PE-65388 transformer
may be used with the transmitter of the CS61575
device for 100

T1 applications only (as indi-

cated by note 3) when installed in transformer
socket T1 with pin 1 at position D (upper right).

PROTOTYPING AREA

A prototyping area with power supply and ground
connections is provided on the evaluation board.
This area can be used to develop and test a vari-
ety of additional circuits like a data pattern gener-
ator, CS2180B framer, system synchronizer PLL,
or specialized interface logic.

EVALUATION HINTS

1. Properly terminate TTIP/TRING when evaluat-
ing the transmit output signal. For more informa-
tion concerning pulse shape evaluation, refer to
the Crystal application note entitled "Measure-
ment and Evaluation of Pulse Shapes in T1/E1
Transmission Systems."

2. Change the receiver terminating resistors R9
and R10 when evaluating E1 applications. Resis-
tors R9 and R10 should be replaced with 240

resistors for terminating 120

E1 twisted-pair

lines or 150

resistors for terminating 75

coaxial lines. Two 243

resistors and two 150

resistors are included with the evaluation board
for this purpose.

3. Closing a DIP switch on S2 towards the label
sets the device control pin of the same name to
logic 1 (+5 Volts).

4. To avoid damage to the external host controller
connected to JP1, all S2 switch positions (except
CLKE) should be open. In the Host operating
mode, the CLKE switch selects the active edge of
SCLK and RCLK.

LINE INTERFACE EVALUATION BOARD

DS40DB3

NOTES:

1. A letter at the intersection of a row and column in Table 2 indicates

that the selected transformer is supported for use with the device.
The transformer is installed in the evaluation board with pin 1 po-
sitioned to match the letter illustrated in the drawing to the left.

2. The receive transformer (RX) is soldered at location T2 on the

evaluation board and is used for all applications. The transmit
transformer (TX) is socketed at location T1 on the evaluation
board and may be changed according to the application.

3. For use in 100

T1 twisted-pair applications only.

4. For use in 75

and 120

E1 applications only. Place jumper JP5

in position F-F for 75

E1 applications requiring a 1:1 turns ratio.

5. Transmitter return loss improves when using a 1:2 turns ratio trans-

former with the appropriate transmit resistors.

Table 2. Transformer Applications

TRANSFORMER

(Turns Ratio)

1,2

LINE INTERFACE UNIT

'34

'35

'35A

'58

'58A

'74,'77

'74A

'75

'304A,

'305A

RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX

PE-65351 (1:2CT)

Schott 12930 (1:2CT)

PE-65388 (1:1.15)

3,5

Schott 12931 (1:1.15)

3,5

PE-65389 (1:1:1.26)

4,5

Schott 12932 (1:1:1.26)

4,5

PE-64951 (dual 1:2CT)

Schott 11509 (dual 1:2CT)

PE-65565 (dual 1:1.15 & 1:2CT)

3,5

Schott 12531 (dual 1:1.15 & 1:2CT)

3,5

PE-65566 (dual 1:1:1.26 & 1:2CT)

4,5

Schott 12532 (dual 1:1:1.26 & 1:2CT)

4,5

T 2

T 1

T 2

T 1

LINE INTERFACE EVALUATION BOARD

DS40DB3

Document Outline

Ð­Ð»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: CS61305A-IP1

Document Outline

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: CS61305A-IP1
