Website: www.citswitch.com Tel: 763-535-2339 Fax: 763-535-2194

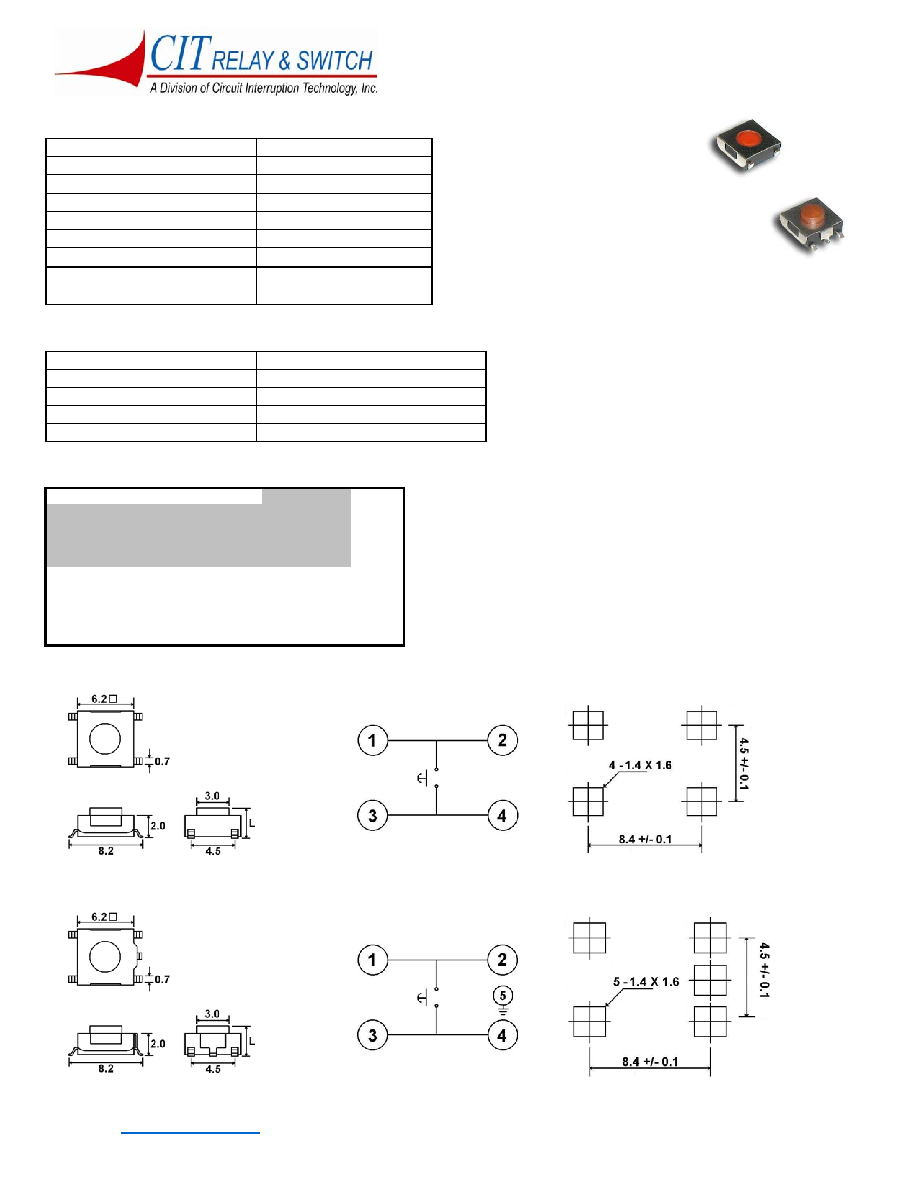

SPECIFICATIONS
Electrical Ratings
50mA @ 48VDC
Electrical Life
100,000 cycles typical
Contact Resistance
< 50 m
initial
Actuation Force
160 +/- 50gF
Actuator Travel
.25 +/- .1mm
Dielectric Strength
1000Vrms min
Insulation Resistance
> 100M
min
Operating Temperature
Storage Temperature
-40
C to 85C
-40
C to 85C
MATERIALS
RoHS COMPLIANT
Actuator 4/6
Nylon
Housing 4/6
Nylon
Cover Steel
Contacts Phosphor
Bronze, Silver Plated
Terminals
Brass, Silver Plated
ORDERING INFORMATION
1. Series:
CS1110
CS1110A w/ grounding tab
CS1110J w/ J lead terminals
CS1110M w/ mounting stems
CS1110A
2. Actuator Length "L" (mm):
2.0
2.3
2.5
3.1
3.1
DIMENSIONS SCHEMATIC & PC LAYOUT
CS1110
CS1110A
CS1110
