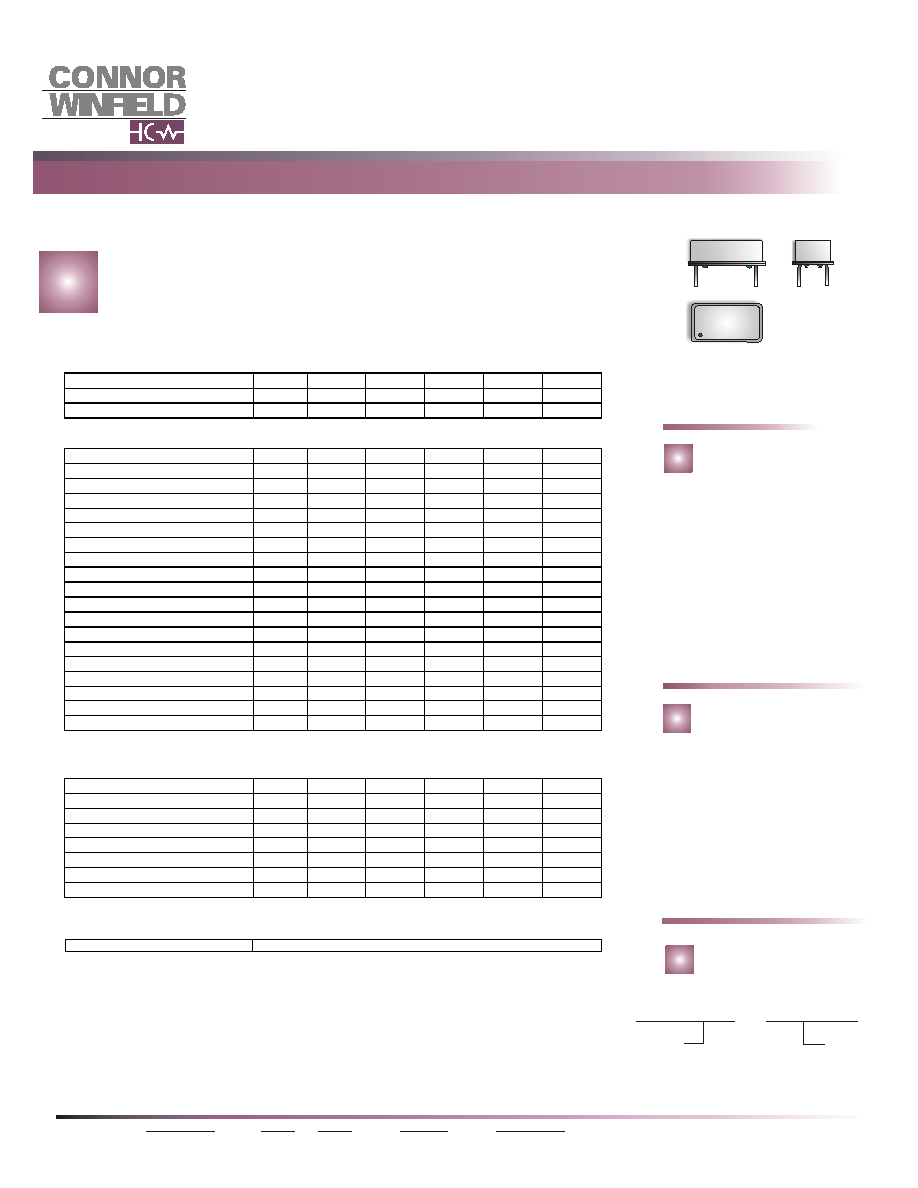

THE CONNOR-WINFIELD CORP.
2111 COMPREHENSIVE DRIVE.
AURORA, IL 60505.
FAX (630) 851-5040.
PHONE (630) 851-4722.
P R O D U C T D A T A S H E E T
Specifications subject to change without notice.
DATA SHEET #:
REV:
DATE:
PAGE
OF
Copyright 2001 Connor-Winfield all rights reserved.
a
CRYSTAL CONTROLLED OSCILLATORS
The Connor-Winfield
CGOF5S3 is a hermetically
sealed 14 Pin DIP, 5.0V Oven
Controlled Crystal Oscillator
(OCXO) HCMOS / TTL
Compatible. The CGOF5S3
is designed for higher
stability Stratum 3
applications requiring low
jitter and tight calibration.
1
2
CGOF5S3 - 10.00MHz
OCXO
SERIES
CENTER
FREQUENCY
FEATURES
DESCRIPTION
ORDERING INFORMATION
5.0V OPERATION
LOW JITTER <3pS RMS
TEMPERATURE STABILITY 0.1ppm
OVERALL FREQUENCY TOLERANCE :
4.6ppm over Twenty Years.
OVERALL AGING: 3.0ppm over Twenty
Years
14 PIN DIP 5.0V STRATUM 3 HCMOS OCXO
Cx028
03
7/12/02
www.conwin.com
CGOF5S3
CW 0107
CGOF5S3
10.00M
ABSOLUTE MAXIMUM RATINGS
TABLE 1.0
PARAMETER
UNITS
MINIMUM
NOMINAL MAXIMUM
UNITS
NOTE
Storage Temperature
-40
-
85
C
Supply Voltage
(Vcc)
-0.5
-
7.0
Vdc
OPERATING SPECIFICATIONS
TABLE 2.0
PARAMETER
MINIMUM
NOMINAL MAXIMUM
UNITS
NOTE
Center Frequency
(Fo)
10.00
MHz
Frequency Calibration
-0.5
0.5
ppm
1
Frequency Stability
-0.1
-
0.1
ppm
2
Frequency Aging Daily
-
-
20
ppb/day
Frequency Aging Lifetime (20 Years)
-
-
3.0
ppm
Total Frequency Tolerance
-4.6
-
4.6
ppm
3
Operating Temperature Range
-20
-
70
C
Supply Voltage
(Vcc)
4.75
5.00
5.25
Vdc
Supply Current
(Icc)
-
-
300
mA
Supply Current Steady State @25C
(Icc)
-
65
-
mA
Jitter (BW=10Hz to 20MHz)
-
-
3
ps rms
Allan Variance (1 second)
-
5.00E-10
-
SSB Phase Noise at 10Hz offset
-
-90
-
dBc/Hz
SSB Phase Noise at 10KHz offset
-
-145
-
dBc/Hz
Start Up Time: Oscillator
-
-
10
mS
Warm Up Time
-
-
5
Minutes
4
TDEV @ 1.0 Sec.
-
-
1
nS
TDEV @ 4.0 Sec.
-
-
2
nS
HCMOS OUTPUT
CHARACTERISTICS
TABLE 3.0
PARAMETER
MINIMUM
NOMINAL MAXIMUM
UNITS
NOTE
LOAD
-
-
15
pf
Voltage (High)
(Voh)
4.5
-
-
Vdc
(Low)
(Vol)
-
-
0.4
Vdc
Current (High)
(Ioh)
-4
-
mA
(Low)
(Ioh)
-
-
4
mA
Duty Cycle at 50% of Vcc
45
50
55
%
Rise / Fall Time 10% to 90%
-
-
6
nS
PACKAGE
CHARACTERISTICS
TABLE 4.0
Package
14 pin DIP, hermetically sealed, grounded case, welded package
Notes:
1) Initial calibration @ 25
C at time of shipment.
2) Frequency vs. temperature stability
3) Inclusive of calibration, operating temperature range, supply voltage change, load change, shock
and vibration and aging over 20 years.
4) Measured @ 25
C, within 5 minutes, the unit will be within +/-0.1ppm of its reference frequency,
measured after 30 minutes of continuous operation at a stable 25
C
THE CONNOR-WINFIELD CORP.
2111 COMPREHENSIVE DRIVE.
AURORA, IL 60505.
FAX (630) 851-5040.
PHONE (630) 851-4722.
P R O D U C T D A T A S H E E T
Specifications subject to change without notice.
DATA SHEET #:
REV:
DATE:
PAGE
OF
Copyright 2001 Connor-Winfield all rights reserved.
a
CRYSTAL CONTROLLED OSCILLATORS
2
2
Cx028
03
7/12/02
www.conwin.com

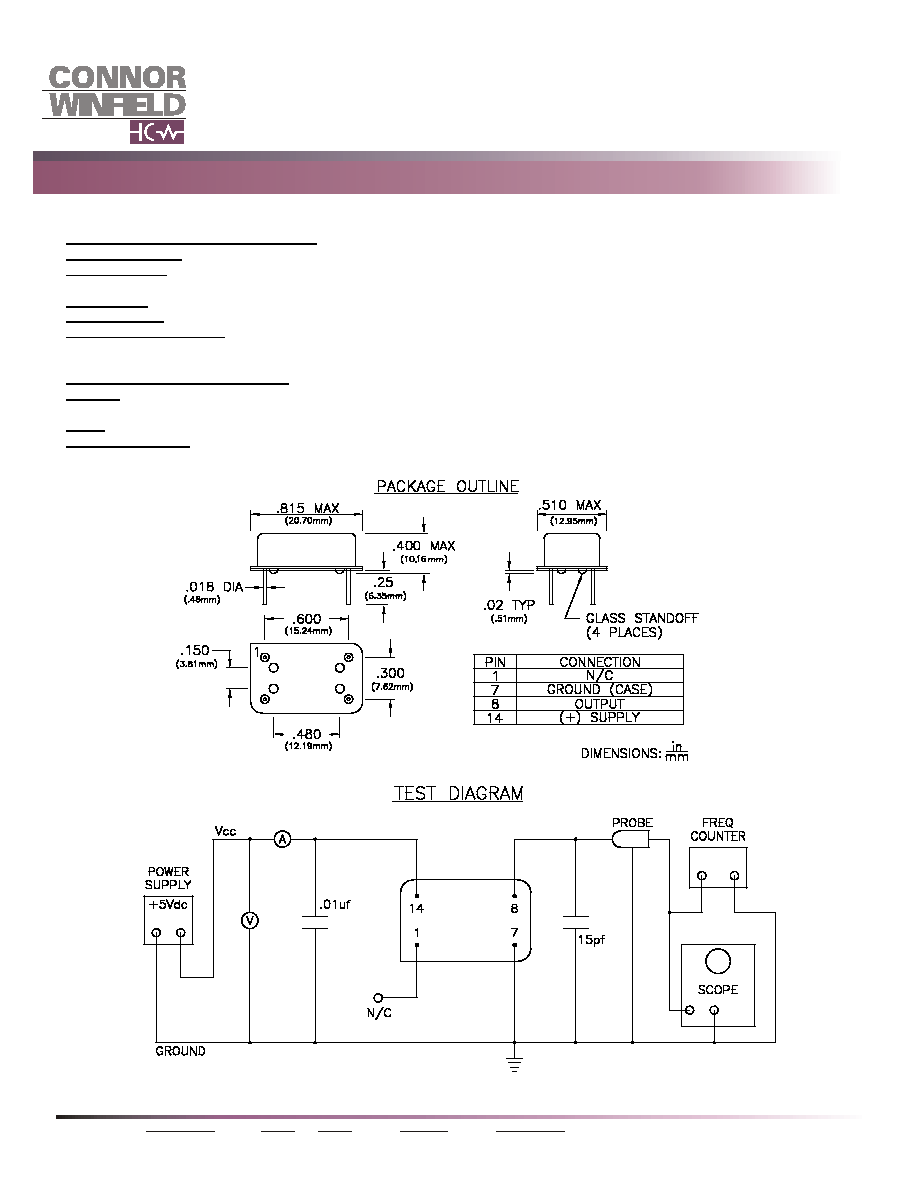

ENVIRONMENTAL CHARACTERISTICS
Temperature Cycle: Per MIL-STD-883, Method 1010, Condition B. -55C to 125C, 20 cycles,10 minute dwell, 1minute transition.
Gross Leak Test: Per MIL-STD-202, Method 112, Condition D. No bubbles in flourinert (FC-43) at 125C 5C for 20 seconds.
SOLDERING
Pin Solderability: Per MIL-STD-883, Method 200. 38 hour steam age prior to 254C 5C Solder pot dip, 95% Coverage.
Resistance to Solder Heat: Per MIL-STD-202, Method 210, Condition C. Wave: Tops ide board-mount product, 260C 5C for 20
Seconds.
MECHANICAL CHARACTERISTICS
Vibration: Per MIL-STD-202, Method 204, Condition A. 10G's peak, 10Hz to 500Hz, 15m inute cycles 12 times each perpendi cular
axis.
Shock: Per MIL-STD-202, Method 213, Condition D. 500G's, 1ms, halfsine, 3 shocks per direction.
Moisture Resistance: Per MIL-STD-202, Method 106. 95% RH @ 65C, 10 cycles 10C to 65C.
