1 of 60

REV: 012104

Note: Some revisions of this device may incorporate deviations from published specifications known as errata. Multiple revisions of any device
may be simultaneously available through various sales channels. For information about device errata, click here:

www.maxim-ic.com/errata

GENERAL DESCRIPTION

The DS21448 is a quad-port E1 or T1 line interface
unit (LIU) for short-haul and long-haul applications. It
incorporates four independent transmitters and four
independent receivers in a single 144-pin PBGA or
128-pin LQFP package.

The transmit drivers generate the necessary G.703
E1 waveshapes in 75

W or 120W applications and the

DSX-1 or CSU line build-outs of 0dB, -7.5dB, -15dB,
and -22.5dB for T1 applications.

The DS21448 has a usable receiver sensitivity of
0 to -43dB for E1 applications and 0 to -36dB for T1
that allows it to operate on 0.63mm (22AWG) cables
up to 2.5km (E1) and 6000ft (T1) in length. The user
has the option to use internal receive termination,
software selectable for 75

W, 100W, and 120W

applications, or external termination.

The on-board crystal-less jitter attenuator can be
placed in either the transmit or the receive data path,
and requires only a 2.048MHz MCLK for both E1 and
T1 applications (with the option of using a 1.544MHz
MCLK in T1 applications).

The DS21448 has diagnostic capabilities such as
loopbacks and PRBS pattern generation and
detection. 16-bit loop-up and loop-down codes can
be generated and detected. A single input pin can
power down all transmitters to allow the
implementation of hitless protection switching (HPS)
for 1+1 redundancy without the use of relays.

The device can be controlled through an 8-bit parallel
port (muxed or nonmuxed) or a serial port, and it can
be used in hardware mode. A standard boundary
scan interface supports board-level testing.

APPLICATIONS

Integrated Multiservice Access Platforms
T1/E1 Cross-Connects, Multiplexers, and Channel

Banks

Central-Office Switches and PBX Interfaces
T1/E1 LAN/WAN Routers
Wireless Base Stations

FEATURES

Four Complete E1, T1, or J1 LIUs

Supports Long- and Short-Haul Trunks

Internal Software-Selectable Receive-Side
Termination for 75

W/100W/120W

3.3V Power Supply

32-Bit or 128-Bit Crystal-Less Jitter Attenuator
Requires Only a 2.048MHz Master Clock for E1
and T1, with the Option to Use 1.544MHz for T1

Generates the Appropriate Line Build-Outs With
and Without Return Loss for E1, and DSX-1 and
CSU Line Build-Outs for T1

AMI, HDB3, and B8ZS Encoding/Decoding

16.384MHz, 8.192MHz, 4.096MHz, or 2.048MHz
Clock Output Synthesized to Recovered Clock

Programmable Monitor Mode for Receiver

Loopbacks and PRBS Pattern Generation/
Detection with Output for Received Errors

Generates/Detects In-Band Loop Codes, 1 to 16
Bits, Including CSU Loop Codes

8-Bit Parallel or Serial Interface with Optional
Hardware Mode

Muxed and Nonmuxed Parallel Bus Supports
Intel or Motorola

Detects/Generates Blue (AIS) Alarms

NRZ/Bipolar Interface for Tx/Rx Data I/O

Transmit Open-Circuit Detection

Receive Carrier Loss (RCL) Indication (G.775)

High-Z State for TTIP and TRING

50mA

RMS

Transmit Current Limiter

JTAG Boundary Scan Test Port per IEEE 1149.1

Meets Latest E1 and T1 Specifications Including
ANSI.403-1999, ANSI T1.408, AT&T TR 62411,
ITU G.703, G.704, G.706, G.736, G.775, G.823,
I.431, O.151, O.161, ETSI ETS 300 166,
JTG.703, JTI.431, TBR12, TBR13, and CTR4

ORDERING INFORMATION

PART TEMP

RANGE

VOLTAGE

(V)

PIN-
PACKAGE

DS21448

0°C to +70°C

3.3

144 BGA

DS21448N

-40°C to +85°C

3.3

144 BGA

DS21448L

0°C to +70°C

3.3

128 LQFP

DS21448LN

-40°C to +85°C

3.3

128 LQFP

Pin Configurations appear in Section

DS21448

3.3V E1/T1/J1 Quad Line Interface

www.maxim-ic.com

DS21448 3.3V T1/E1/J1 Quad Line Interface

2 of 60

TABLE OF CONTENTS

BLOCK DIAGRAMS...................................................................................................................... 5

PIN DESCRIPTION ....................................................................................................................... 7

DETAILED DESCRIPTION...........................................................................................................13

3.1

DS21448

AND

DS21Q348 D

IFFERENCES

....................................................................................13

PORT OPERATION......................................................................................................................13

4.1

ARDWARE

ODE

.......................................................................................................................13

4.2

ERIAL

ORT

PERATION

............................................................................................................15

4.3

ARALLEL

ORT

PERATION

.......................................................................................................17

4.3.1

Device Power-Up and Reset.................................................................................................................17

4.3.2

Register Map.........................................................................................................................................18

4.3.3

Control Registers ..................................................................................................................................19

STATUS REGISTERS..................................................................................................................23

DIAGNOSTICS ............................................................................................................................27

6.1

-B

AND

OOP

-C

ODE

ENERATION AND

ETECTION

.....................................................................27

6.2

OOPBACKS

................................................................................................................................31

6.2.1

Remote Loopback (RLB) ......................................................................................................................31

6.2.2

Local Loopback (LLB) ...........................................................................................................................31

6.2.3

Analog Loopback (LLB) ........................................................................................................................31

6.2.4

Dual Loopback (DLB)............................................................................................................................31

6.3

PRBS G

ENERATION AND

ETECTION

...........................................................................................31

6.4

RROR

OUNTER

........................................................................................................................31

6.5

RROR

OUNTER

PDATE

...........................................................................................................32

6.6

RROR

NSERTION

.......................................................................................................................32

ANALOG INTERFACE.................................................................................................................33

7.1

ECEIVER

...................................................................................................................................33

7.2

RANSMITTER

.............................................................................................................................33

7.3

ITTER

TTENUATOR

...................................................................................................................34

7.4

G.703 S

YNCHRONIZATION

IGNAL

...............................................................................................34

JTAG BOUNDARY SCAN ARCHITECTURE AND TEST ACCESS PORT..................................43

8.1

JTAG TAP C

ONTROLLER

TATE

ACHINE

...................................................................................43

8.2

NSTRUCTION

EGISTER

..............................................................................................................45

8.3

EST

EGISTERS

........................................................................................................................46

OPERATING PARAMETERS.......................................................................................................48

10.

AC TIMING PARAMETERS AND DIAGRAMS ............................................................................49

11.

PIN CONFIGURATIONS ..............................................................................................................56

11.1

144-P

BGA ..........................................................................................................................56

11.2

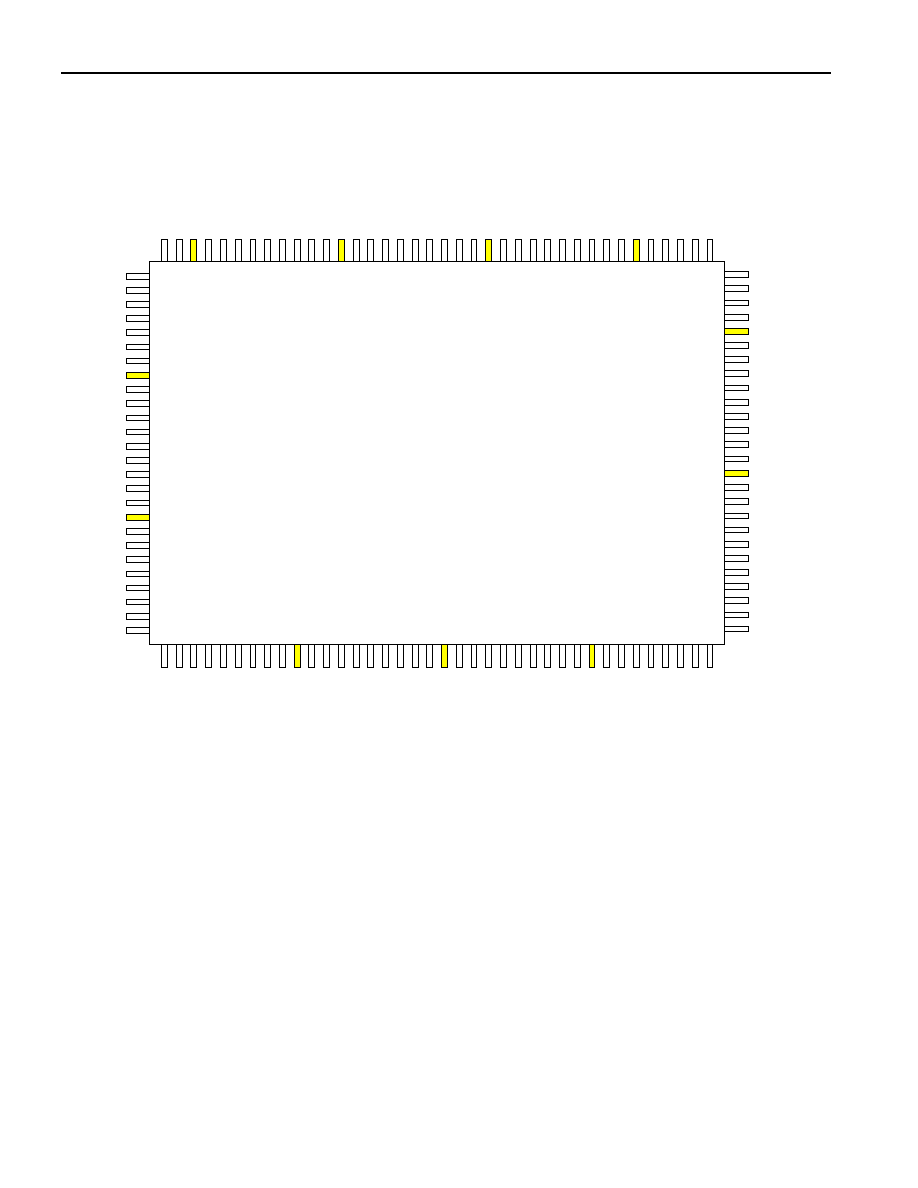

128-P

LQFP.........................................................................................................................57

12.

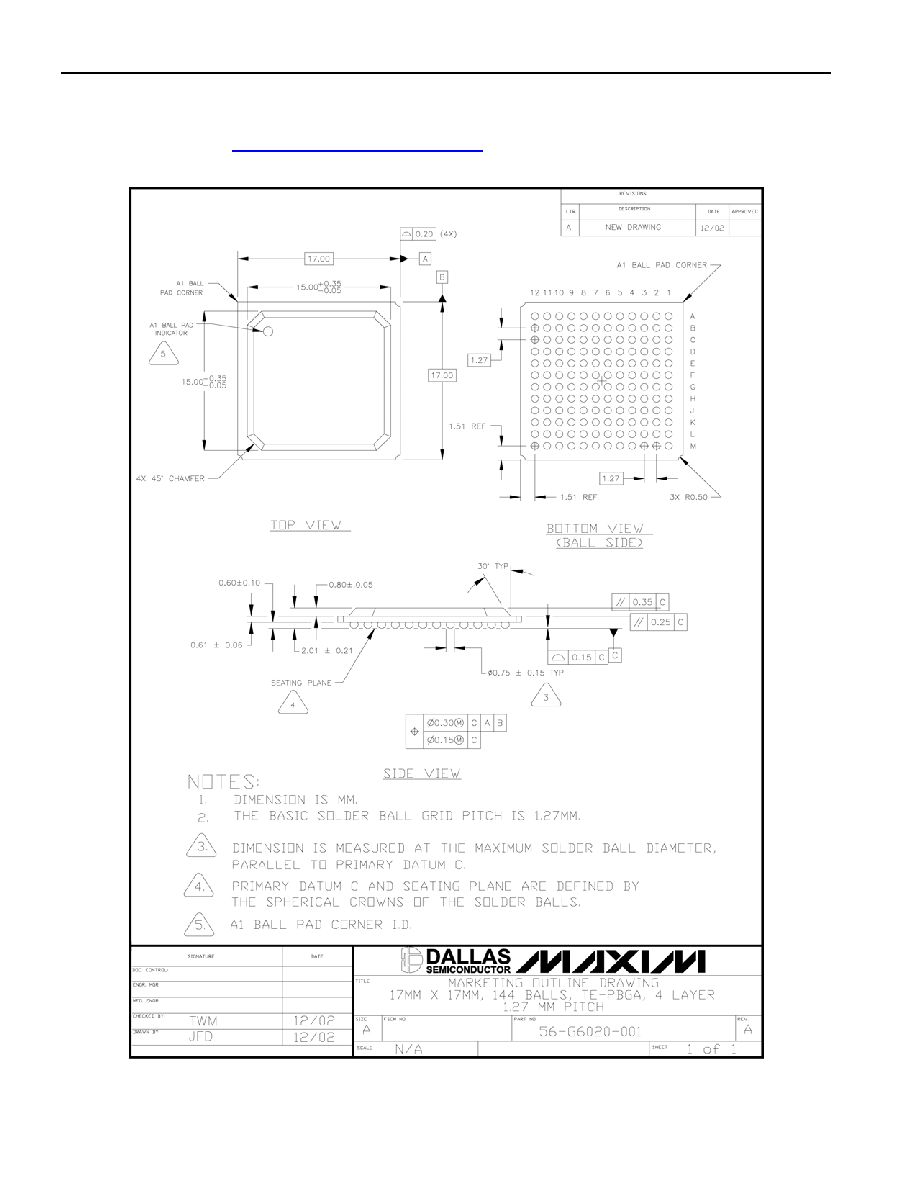

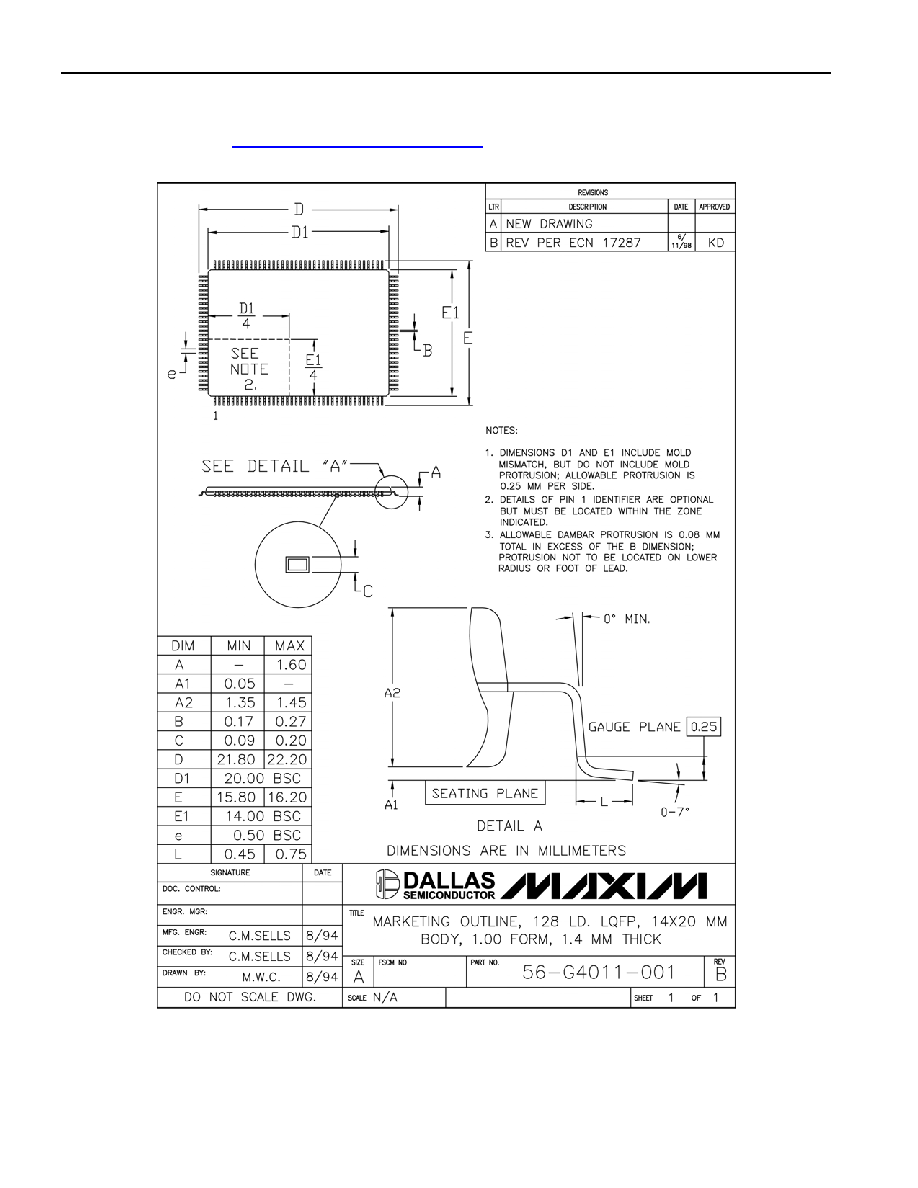

PACKAGE INFORMATION..........................................................................................................58

13.

THERMAL INFORMATION ..........................................................................................................60

14.

REVISION HISTORY....................................................................................................................60

DS21448 3.3V T1/E1/J1 Quad Line Interface

3 of 60

LIST OF FIGURES

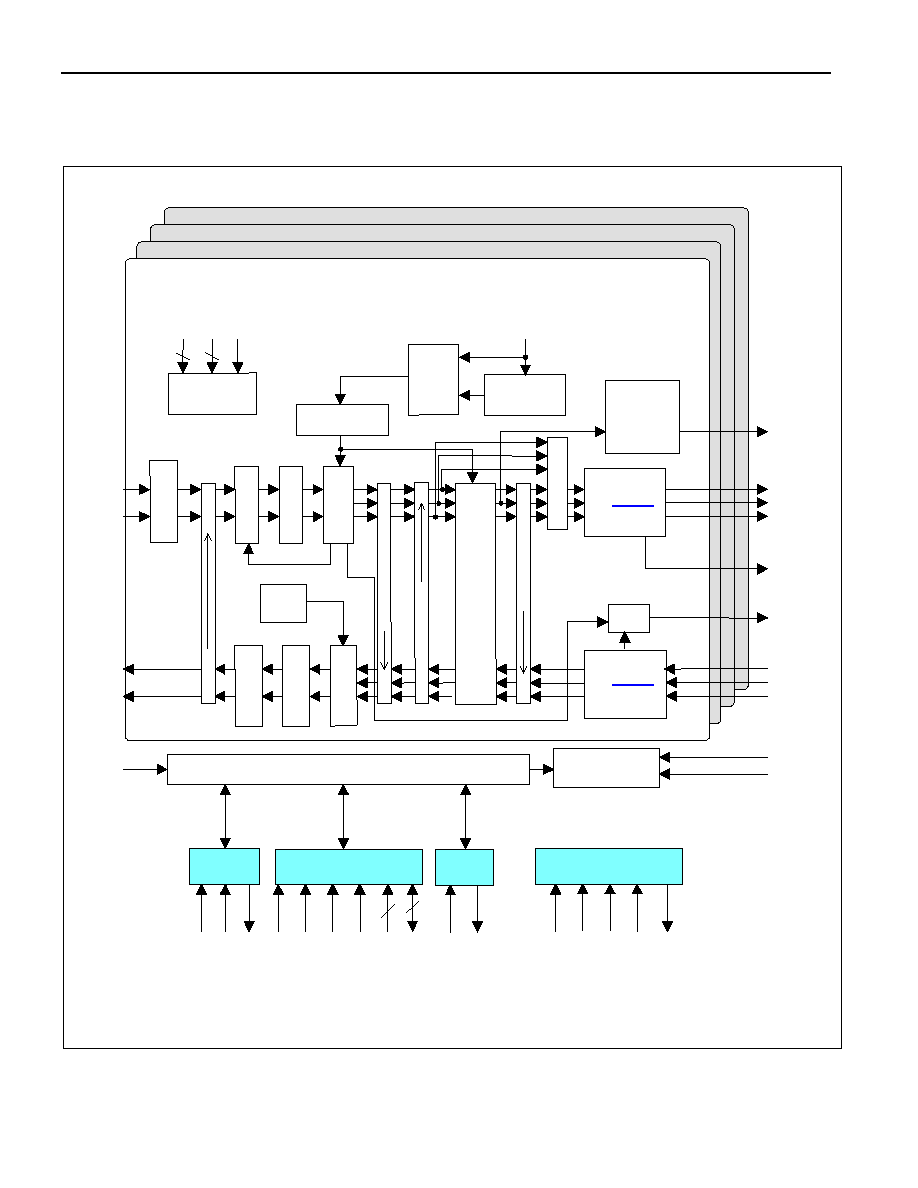

Figure 1-1. Block Diagram ....................................................................................................................... 5

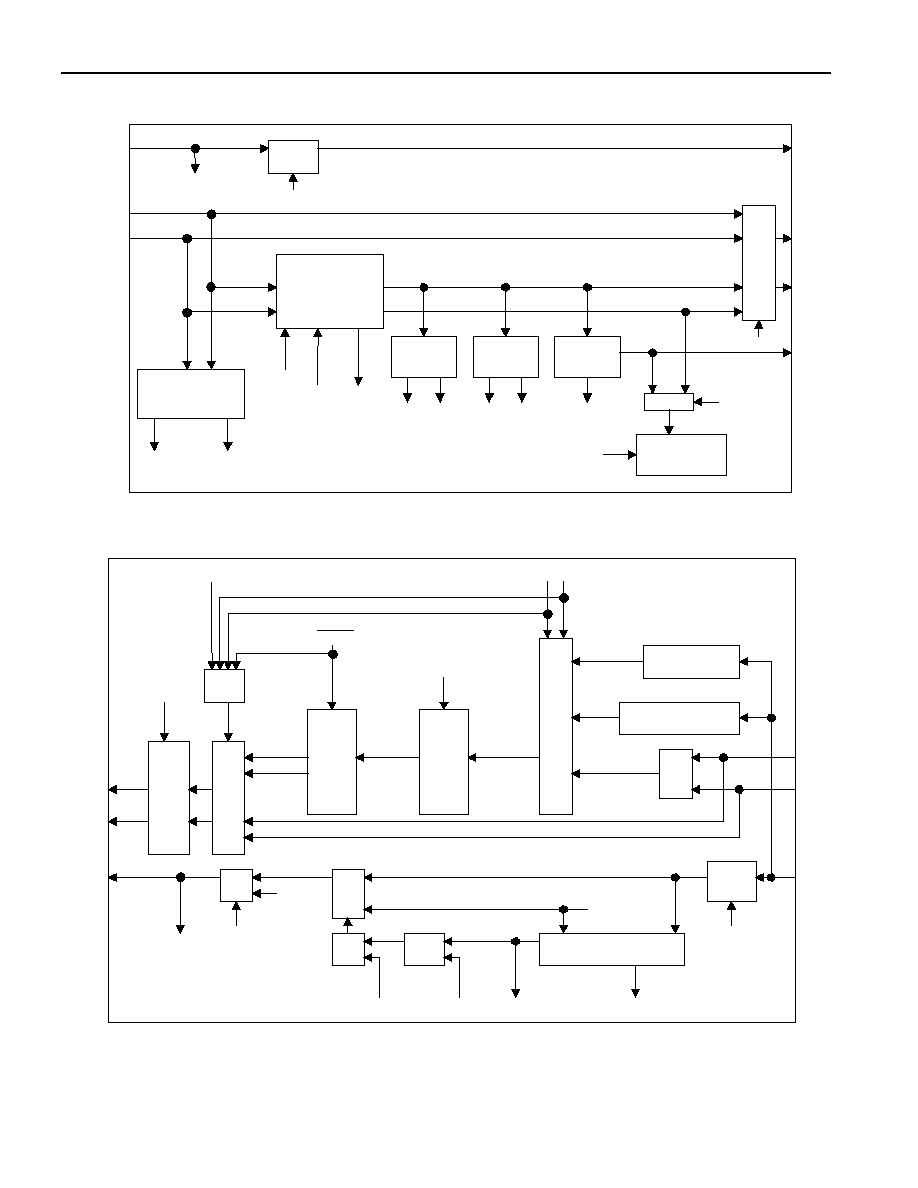

Figure 1-2. Receive Logic Detail.............................................................................................................. 6

Figure 1-3. Transmit Logic Detail............................................................................................................. 6

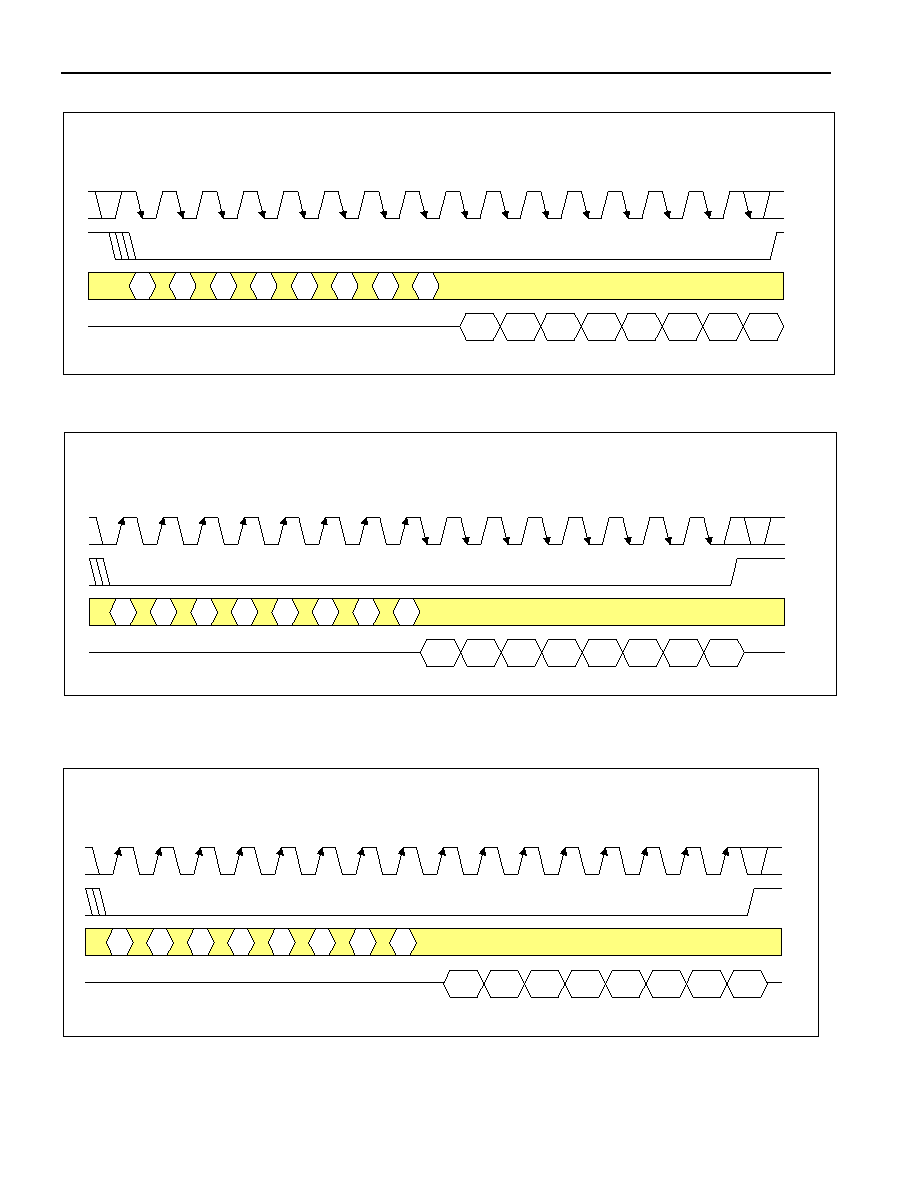

Figure 4-1. Serial Port Operation for Read Access (R = 1) Mode 1 ........................................................15

Figure 4-2. Serial Port Operation for Read Access (R = 1) Mode 2 ........................................................16

Figure 4-3. Serial Port Operation for Read Access (R = 1) Mode 3 ........................................................16

Figure 4-4. Serial Port Operation for Read Access (R = 1) Mode 4 ........................................................16

Figure 4-5. Serial Port Operation for Write Access (R = 0) Modes 1 and 2 .............................................17

Figure 4-6. Serial Port Operation for Write Access (R = 0) Modes 3 and 4 .............................................17

Figure 7-1. Basic Interface......................................................................................................................36

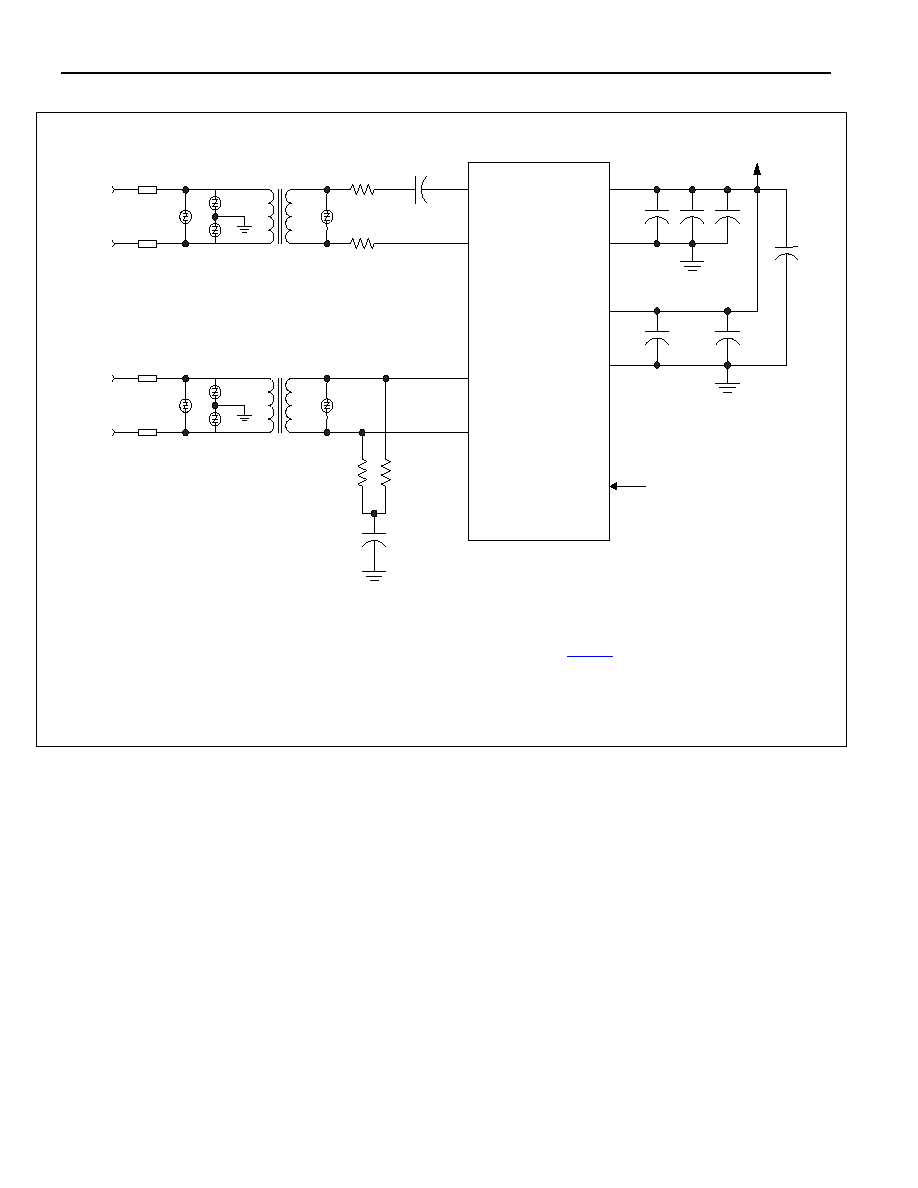

Figure 7-2. Protected Interface Using Internal Receive Termination .......................................................37

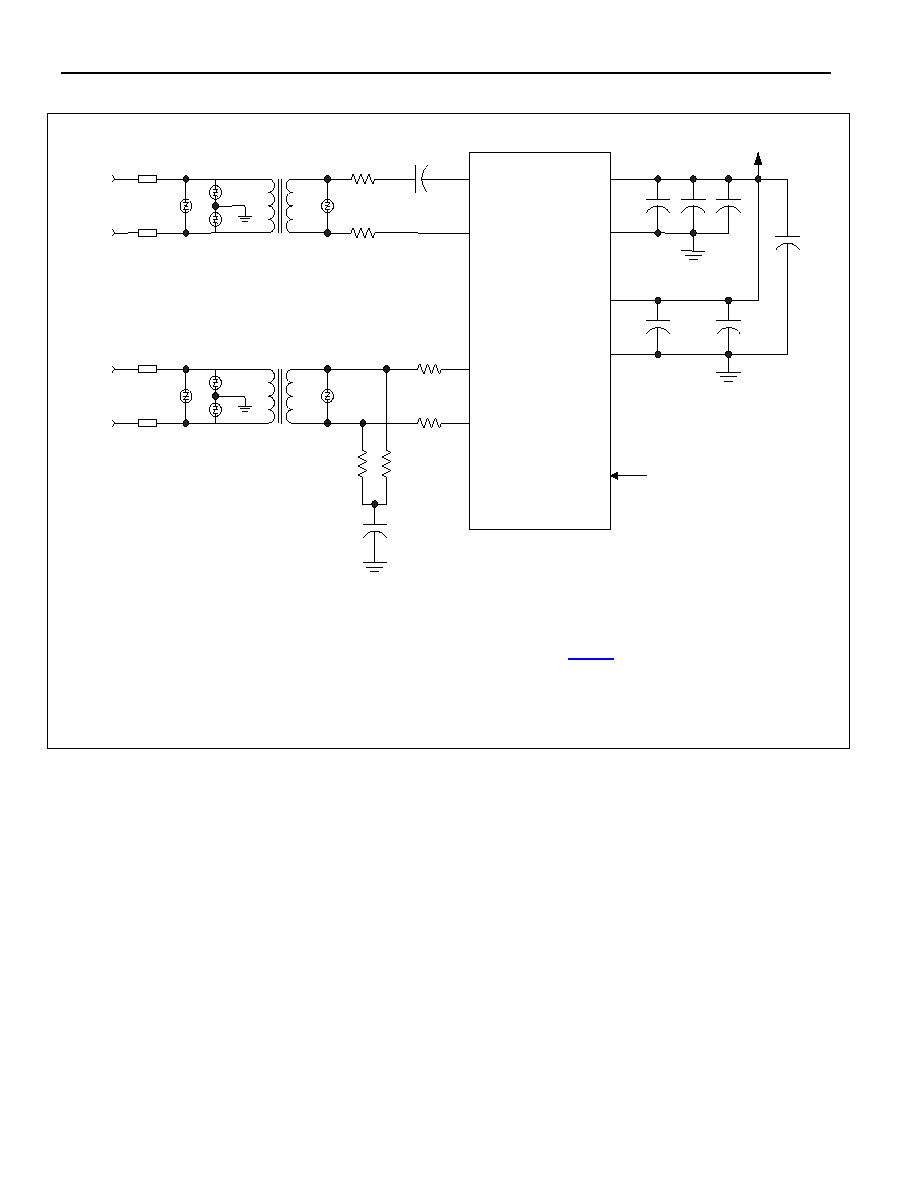

Figure 7-3. Protected Interface Using External Receive Termination......................................................38

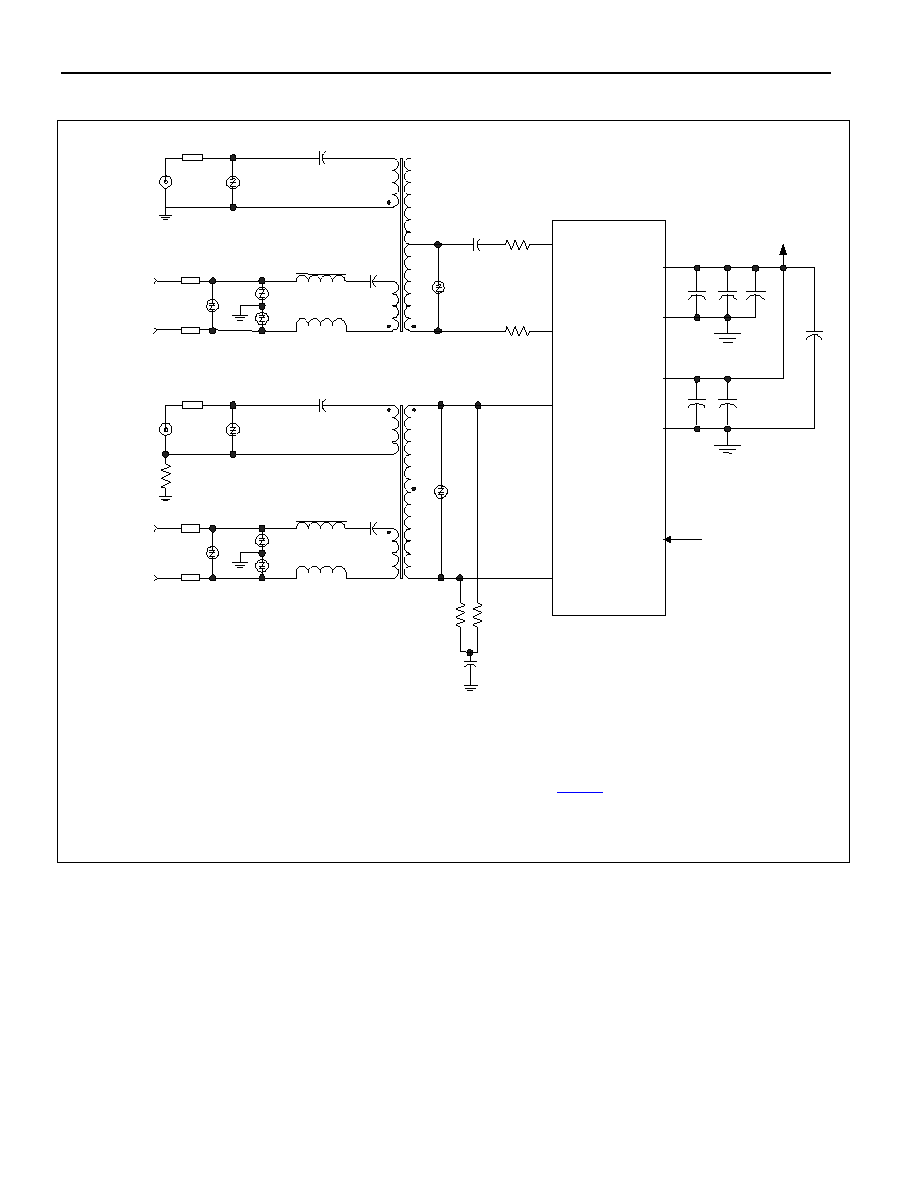

Figure 7-4. Dual Connector-Protected Interface Using Receive Termination ..........................................39

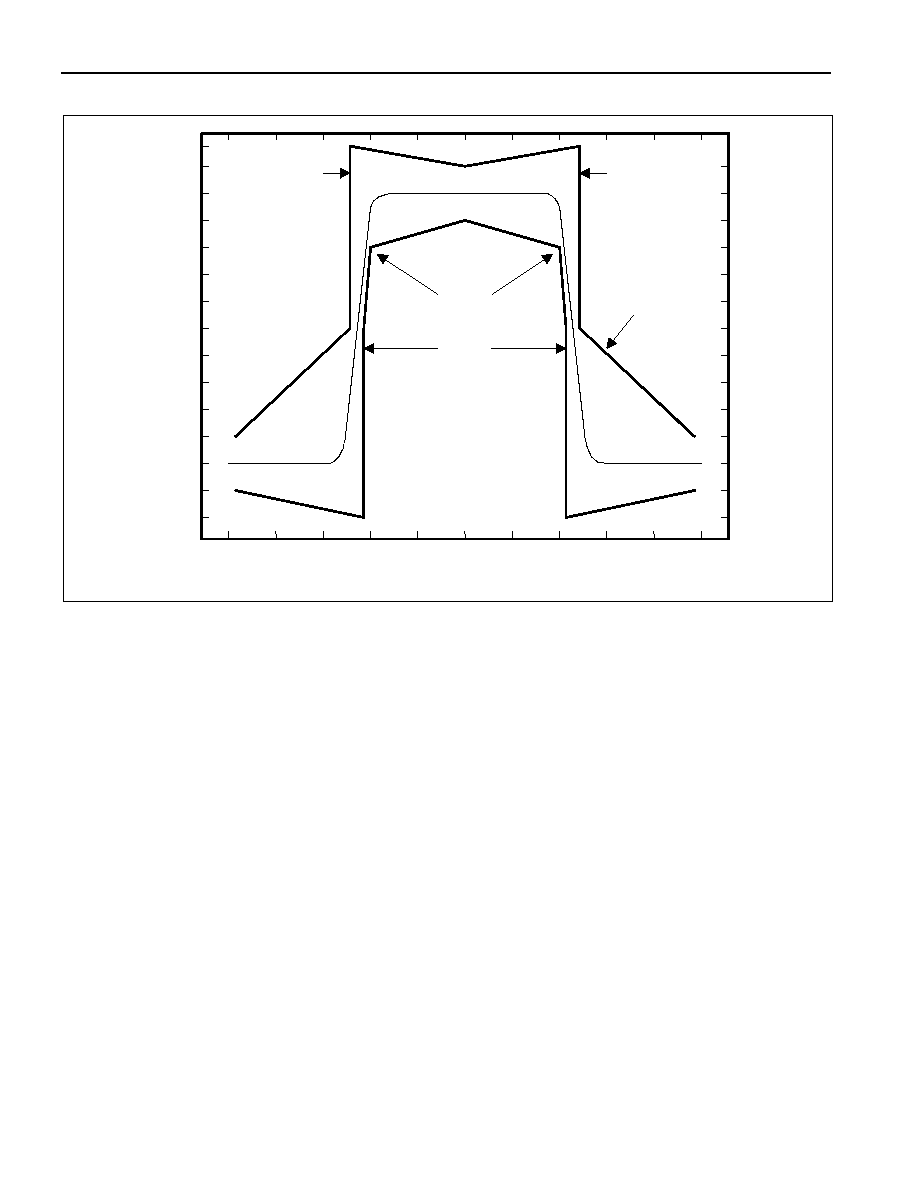

Figure 8-5. E1 Transmit Pulse Template ................................................................................................40

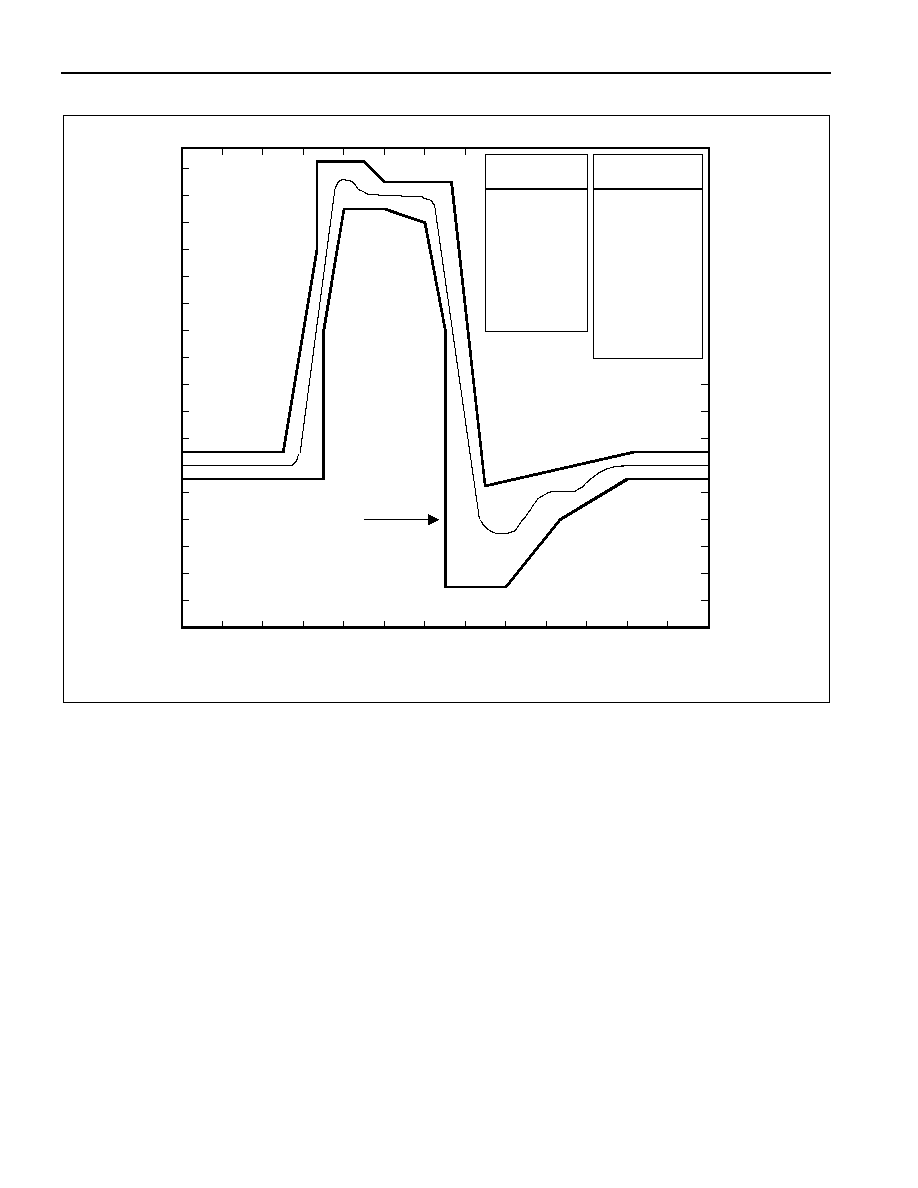

Figure 8-6. T1 Transmit Pulse Template.................................................................................................41

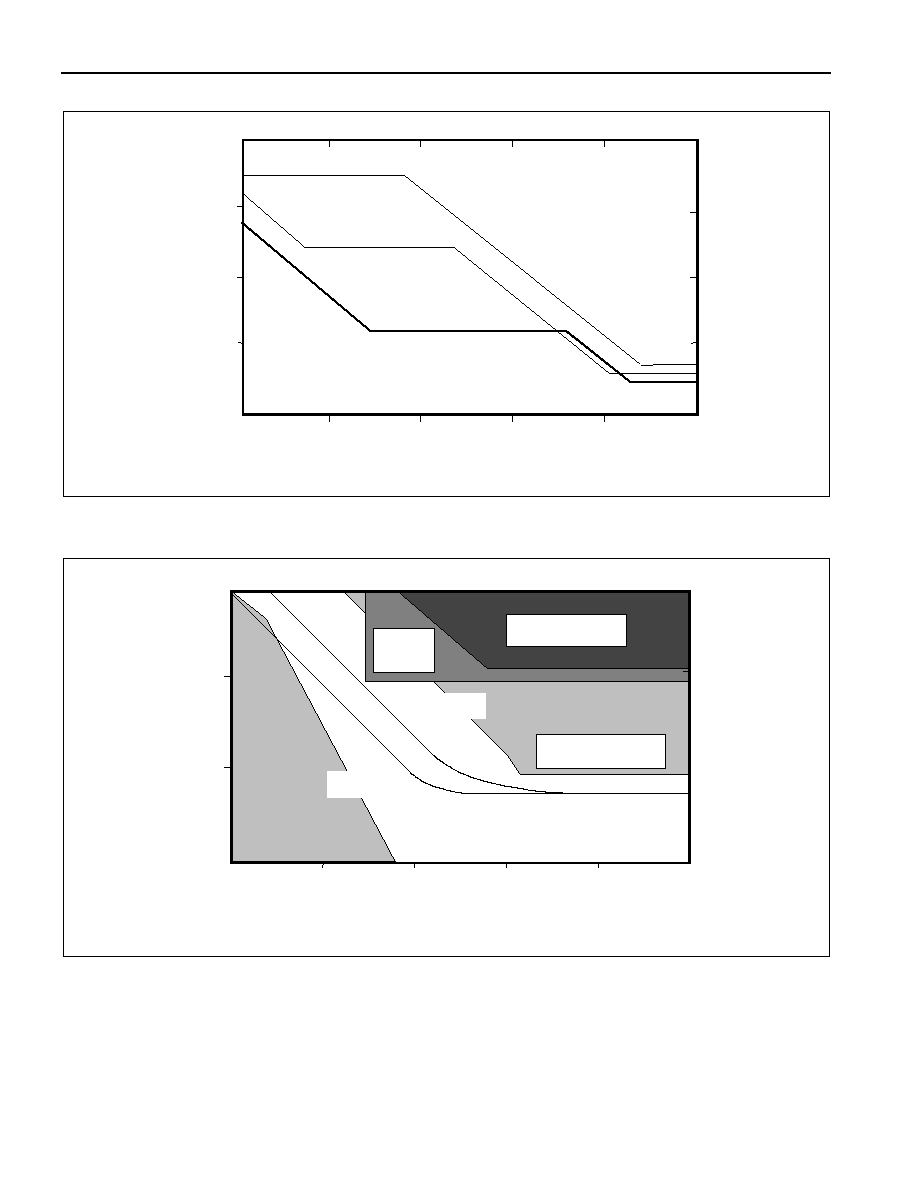

Figure 7-7. Jitter Tolerance.....................................................................................................................42

Figure 7-8. Jitter Attenuation ..................................................................................................................42

Figure 8-1. JTAG Block Diagram ............................................................................................................43

Figure 8-2. TAP Controller State Diagram ..............................................................................................44

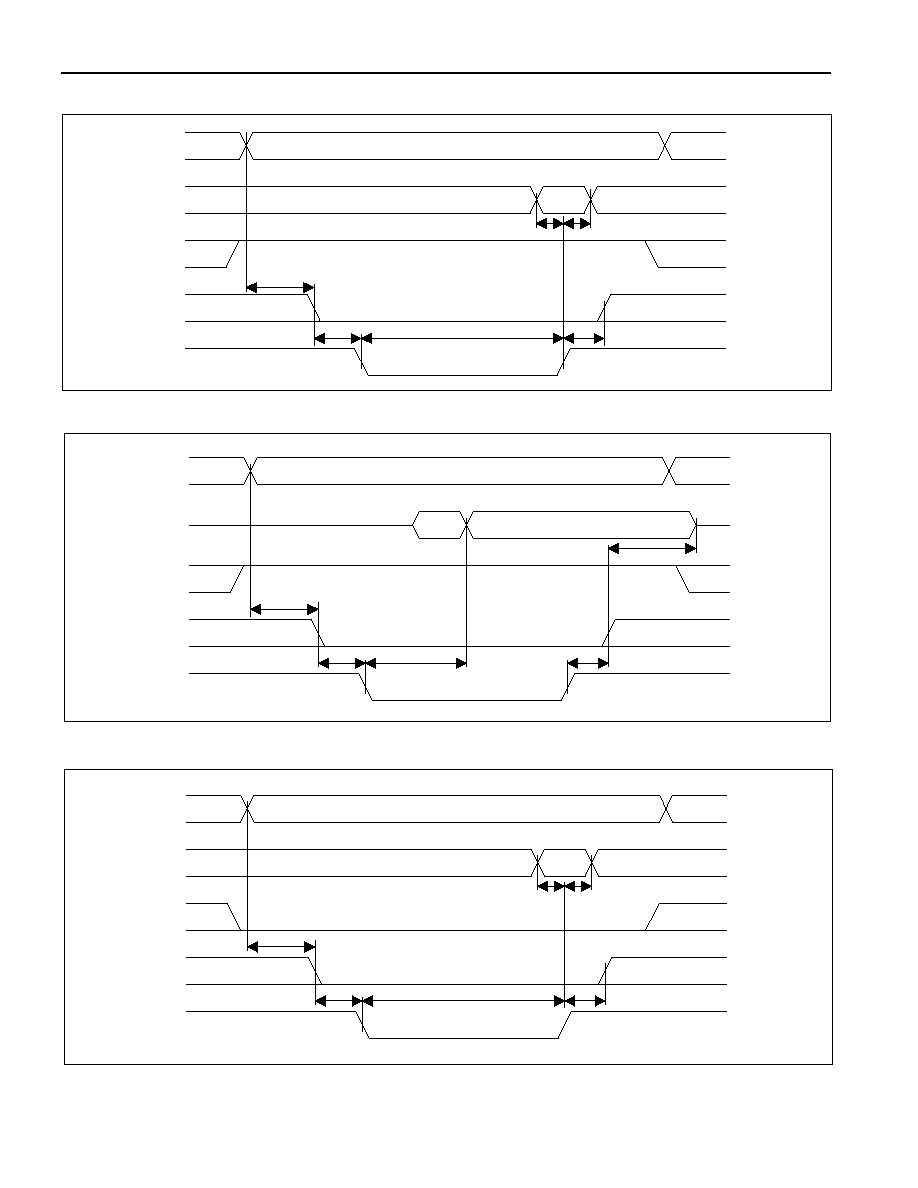

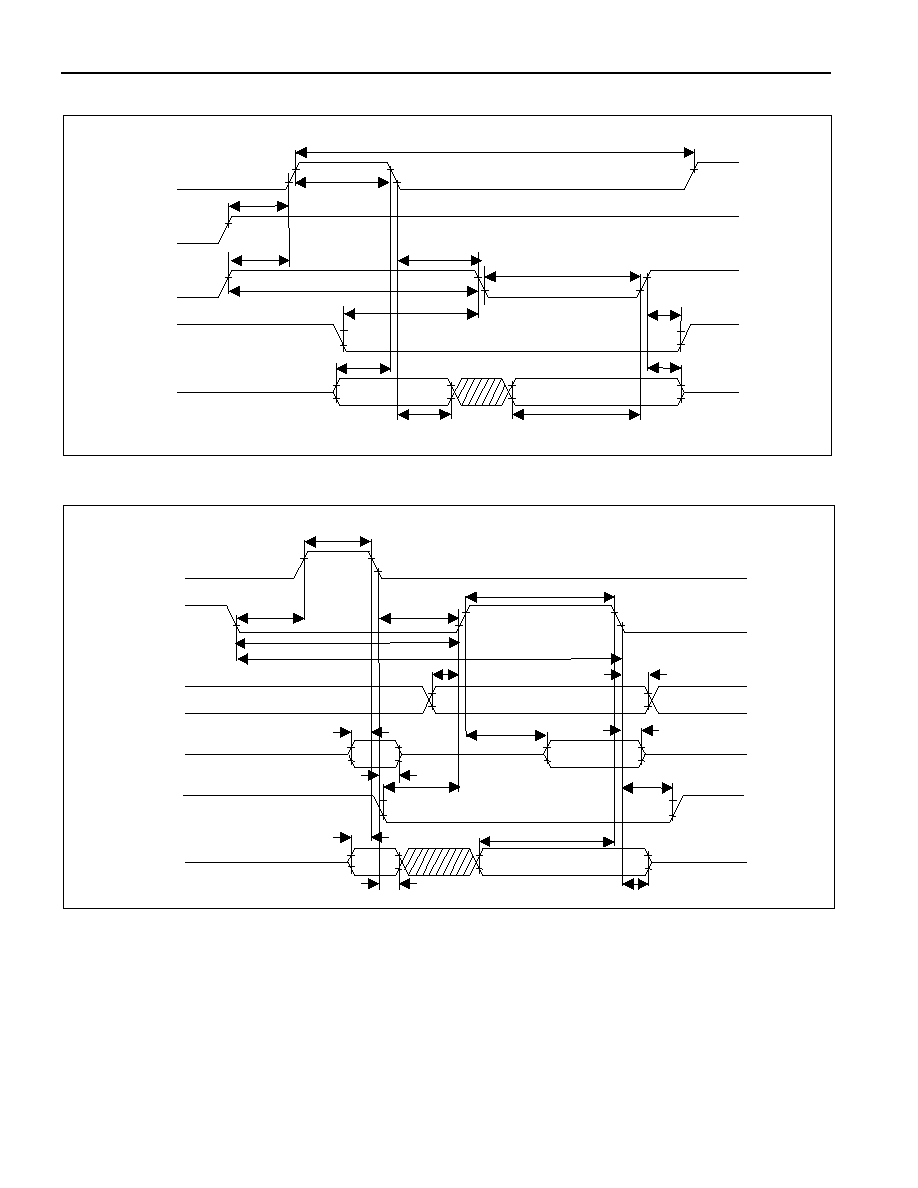

Figure 10-1. Intel Bus Read Timing (PBTS = 0, BIS0 = 0) ......................................................................49

Figure 10-2. Intel Bus Write Timing (PBTS = 0, BIS0 = 0) ......................................................................50

Figure 10-3. Motorola Bus Timing (PBTS = 1, BIS0 = 0) ........................................................................50

Figure 10-4. Intel Bus Read Timing (PBTS = 0, BIS0 = 1) ......................................................................51

Figure 10-5. Intel Bus Write Timing (PBTS = 0, BIS0 = 1) ......................................................................52

Figure 10-6. Motorola Bus Read Timing (PBTS = 1, BIS0 = 1) ...............................................................52

Figure 10-7. Motorola Bus Write Timing (PBTS = 1, BIS0 = 1) ...............................................................52

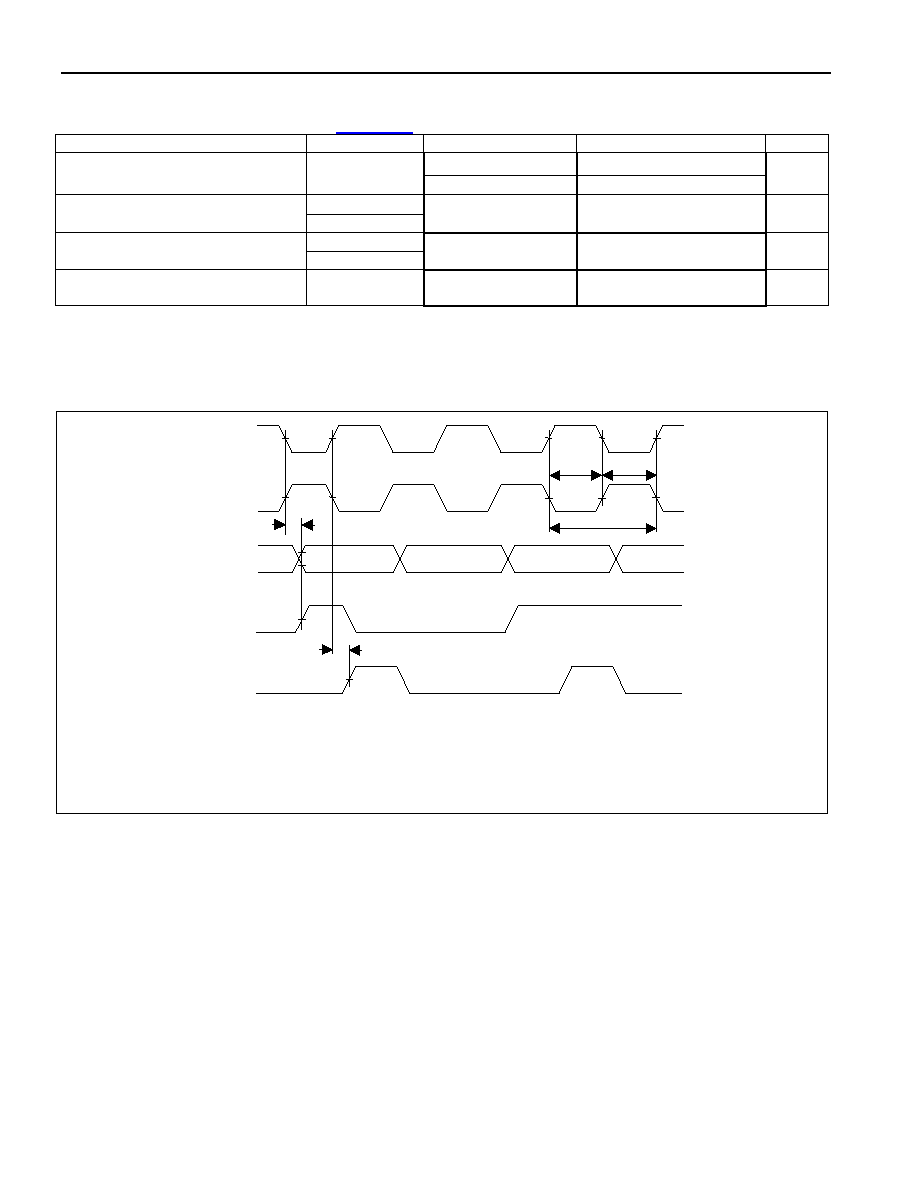

Figure 10-8. Serial Bus Timing (BIS1 = 1, BIS0 = 0)...............................................................................53

Figure 10-9. Receive-Side Timing ..........................................................................................................54

Figure 10-10. Transmit-Side Timing .......................................................................................................55

DS21448 3.3V T1/E1/J1 Quad Line Interface

4 of 60

LIST OF TABLES

Table 2-A. Bus Interface Selection .......................................................................................................... 7

Table 2-B. Pin Assignments .................................................................................................................... 7

Table 2-C. Parallel Interface Mode Pin Description ................................................................................. 9

Table 2-D. Serial Interface Mode Pin Description ...................................................................................10

Table 2-E. Hardware Interface Mode Pin Description .............................................................................11

Table 3-A. DS21448 vs. DS21Q348 Pin Differences ..............................................................................13

Table 4-A. Loopback Control in Hardware Mode ....................................................................................14

Table 4-B. Transmit Data Control in Hardware Mode .............................................................................14

Table 4-C. Receive Sensitivity Settings in Hardware Mode ....................................................................14

Table 4-D. Monitor Gain Settings in Hardware Mode..............................................................................14

Table 4-E. Internal Rx Termination Select in Hardware Mode ................................................................14

Table 4-F. MCLK Selection in Hardware Mode.......................................................................................14

Table 4-G. Parallel Port Mode Selection.................................................................................................18

Table 4-H. Register Map ........................................................................................................................18

Table 4-I. Receive Sensitivity Settings....................................................................................................22

Table 4-J. Backplane Clock Select .........................................................................................................22

Table 4-K. Monitor Gain Settings............................................................................................................22

Table 4-L. Internal Rx Termination Select...............................................................................................22

Table 5-A. Received Alarm Criteria ........................................................................................................25

Table 5-B. Receive Level Indication .......................................................................................................27

Table 6-A. Transmit Code Length...........................................................................................................29

Table 6-B. Receive Code Length............................................................................................................29

Table 6-C. Definition of Received Errors.................................................................................................32

Table 6-D. Function of ECRS Bits and RNEG Pin ..................................................................................32

Table 7-A. Line Build-Out Select for E1 in Register CCR4 (ETS = 0)......................................................34

Table 7-B. Line Build-Out Select for T1 in Register CCR4 (ETS = 1)......................................................34

Table 7-C. Line Build-Out Select for E1 in Register CCR4 (ETS = 0) Using Alternate Transformer

Configuration ...................................................................................................................................35

Table 7-D. Transformer Specifications (3.3V Operation) ........................................................................35

Table 8-A. Instruction Codes for IEEE 1149.1 Architecture.....................................................................45

Table 8-B. ID Code Structure .................................................................................................................46

Table 8-C. Device ID Codes ...................................................................................................................46

Table 8-D. Boundary Scan Control Bits ..................................................................................................47

Table 10-A. AC Characteristics--Multiplexed Parallel Port (BIS0 = 0) ....................................................49

Table 10-B. AC Characteristics--Nonmultiplexed Parallel Port (BIS0 = 1) .............................................51

Table 10-C. AC Characteristics--Serial Port (BIS1 = 1, BIS0 = 0)..........................................................53

Table 10-D. AC Characteristics--Receive Side ......................................................................................54

Table 10-E. AC Characteristics--Transmit Side .....................................................................................55

Table 13-A. Thermal Characteristics--BGA ...........................................................................................60

Table 13-B. Theta-JA (

) vs. Airflow--BGA..........................................................................................60

Table 13-C. Thermal Characteristics--LQFP..........................................................................................60

Table 13-D. Theta-JA (

) vs. Airflow--LQFP........................................................................................60

DS21448 3.3V T1/E1/J1 Quad Line Interface

5 of 60

1. BLOCK DIAGRAMS

Figure 1-1. Block Diagram

POWER

CONNECTIONS

VCO/PLL

2.048MHz TO

1.544MHz PLL

J
I
TTE

TTE

VSM

TRING

TTIP

RRING

RTIP

UNFRAMED

ALL-ONES

INSERTION

BIS0

CONTROL AND TEST

PORT (ROUTED TO

ALL BLOCKS)

MUX (THE SERIAL, PARALLEL, AND HARDWARE INTERFACES

SHARE DEVICE PINS)

HRST

TXDIS/TEST

16.384MHz OR

8.192MHz OR
4.096MHz OR

2.048MHz

SYNTHESIZER

BPCLK

RPOS

RCLK

RNEG

TPOS

TCLK

TNEG

JACLK

See

Figure 1-2

See

Figure 1-3

PBEO

MUX

RCL/LOTC

TYPICAL OF ALL FOUR CHANNELS

CHANNEL 1

CHANNEL 2

CHANNEL 3

CHANNEL 4

JRS

JTAG PORT

CONTROL AND

(ROUTED TO

ALL BLOCKS)

PARALLEL INTERFACE

SDO

SCL

SERIAL

INTERFACE

SDI

PBT

/
W

)

(
DS

)

(
A

/AD0

IONA

RMINA

ION

ANAL

PBACK

I
NE DRIVERS

CSU F

I
L

WAVE

SHAPI

PEAK D

OCK/DAT

RECOVER

BAC

(
DUA

L
M

)

L
O

L
L

PBAC

J
I
TTE

TTE

(
C

AN BE PL

ED I

ER T

ANSM

I
T

RECEIV

PAT

OOP

Dallas

Semiconductor

DS21448

DS21448 3.3V T1/E1/J1 Quad Line Interface

7 of 60

2. PIN DESCRIPTION

The DS21448 can be controlled in parallel port mode, serial port mode, or hardware mode. The bus interface select
bits 0 and 1 (BIS0, BIS1) determine the device mode and pin assignments (

Table 2-A

Table 2-A. Bus Interface Selection

BIS1

BIS0

BUS INTERFACE TYPE

Parallel Port Mode (multiplexed)

Parallel Port Mode (nonmultiplexed)

Serial Port Mode

1 1

Hardware

Mode

Table 2-B. Pin Assignments

PIN

BGA LQFP

I/O

PARALLEL PORT MODE

SERIAL PORT MODE

HARDWARE MODE

J3 18 I

CS1 CS1

EGL1

D3 57 I

CS2 CS2

EGL2

D10 84 I

CS3 CS3

EGL3

K10 114 I

CS4 CS4

EGL4

J2 91 I

RD (DS)

N/A ETS

H1 92 I

WR (R/W)

N/A NRZE

K2 95 I

ALE

(AS)

N/A

SCLKE

J1 35 I

N/A

SCLK

K3 36 I

N/A

SDI

K1 62 I/O

SDO

L1 63 I

ICES

DJA

H11 64 I

OCES

JAMUX

H12 65 I

N/A

JAS

G12 66 I

N/A

HBE

J10

I/O

D7/AD7 N/A CES

H10 76 I/O

D6/AD6

N/A

TPD

G11 77 I/O

D5/AD5

N/A

TX0

J9 78 I/O

D4/AD4

N/A

TX1

E3 79 I/O

D3/AD3

N/A

LOOP0

D4 80 I/O

D2/AD2

N/A

LOOP1

F3 81 I/O

D1/AD1

N/A

MM0

D5 82 I/O

D0/AD0

N/A

MM1

-- 3 I

VSM

L5 115117 --

VDD1

E4 1921 --

VDD2

D8 4951 --

VDD3

J8 8587 --

VDD4

M4 118120 --

VSS1

F4 2224 --

VSS2

D9 5254 --

VSS3

H9 8890 --

VSS4

K9 97 I/O

INT INT

RT1

K5 110 O

PBEO1

G3 111 O

PBEO2

E10 121 O

PBEO3

K8 123 O

PBEO4

L6 126 O

RCL1/LOTC1

RCL1

D7 128 O

RCL2/LOTC2

RCL2

F9 1 O RCL3/LOTC3 RCL3/LOTC3

RCL3

J7 2 O RCL4/LOTC4 RCL4/LOTC4

RCL4

K7 98 I

TXDIS/TEST

TXDIS/TEST TXDIS/TEST

A1 124 I

RTIP1

A4 28 I

RTIP2

A7 60 I

RTIP3

A10 93 I

RTIP4

B2 125 I

RRING1

B5 29 I

RRING2

DS21448 3.3V T1/E1/J1 Quad Line Interface

8 of 60

PIN

BGA LQFP

I/O

PARALLEL PORT MODE

SERIAL PORT MODE

HARDWARE MODE

B8 61 I

RRING3

B11 94 I

RRING4

L9 106 I

HRST HRST

HRST

J6 109 I

MCLK

H4 122 O

BPCLK1

D6 47 O

BPCLK2

F10 56 O

BPCLK3

L8 112 O

BPCLK4

L7 107 I

BIS0

M8 68 I

BIS1

A2 6 O

TTIP1

A5 38 O

TTIP2

A8 71 O

TTIP3

A11 102 O

TTIP4

J4 7 --

TVSS1

D1 39 --

TVSS2

E9 72 --

TVSS3

L10 103 --

TVSS4

J5 8 --

TVDD1

D2 40 --

TVDD2

G9 73 --

TVDD3

M9 104 --

TVDD4

B3 9 O

TRING1

B6 41 O

TRING2

B9 74 O

TRING3

B12 105 O

TRING4

K4 10 O

RPOS1

E1 12 O

RPOS2

D11 14 O

RPOS3

K11 16 O

RPOS4

G2 11 O

RNEG1

E2 13 O

RNEG2

F11 15 O

RNEG3

M10 25 O

RNEG4

H3 127 O

RCLK1

F1 31 O

RCLK2

E11 58 O

RCLK3

L11 96 O

RCLK4

G1 26 I

TPOS1

F2 30 I

TPOS2

E12 33 I

TPOS3

M11 55 I

TPOS4

H2 27 I

TNEG1

M1 32 I

TNEG2

D12 34 I

TNEG3

K12 59 I

TNEG4

M2 17 I

TCLK1

L2 43 I

TCLK2

F12 83 I

TCLK3

L12 113 I

TCLK4

M12 108 I

PBTS

N/A

RT0

L3 42 I

JTRST

M3 48 I

JTMS

M5 44 I

JTCLK

M6 45 I

JTDI

M7 46 O

JTDO

Note 1: The VSM signal is not available with the BGA package option.
Note 2: The LQFP no-connect pin numbers are 4, 5, 37, 67, 69, 70, and 99101.
Note 3: The BGA no-connect pin numbers are A3, A6, A9, A12, B1, B4, B7, B10, C1C12, E5E8, F5F8, G4G8, G10, H5H8, J11, J12, K6,

and L4.

DS21448 3.3V T1/E1/J1 Quad Line Interface

9 of 60

Table 2-C. Parallel Interface Mode Pin Description

PIN I/O

FUNCTION

RD (DS)

Read Input (Data Strobe).

RD and DS are active-low signals. DS is active low when in

nonmultiplexed, Motorola mode. See the bus timing diagrams in Section

WR (R/W)

Write Input (Read/Write).

WR is an active-low signal. See the bus timing diagrams in Section

ALE (AS)

Address Latch Enable (Address Strobe). When using multiplexed bus mode (BIS0 = 0), this pin
serves to demultiplex the bus on a positive-going edge. In nonmultiplexed bus mode (BIS0 = 1),
ALE should be wired low.

A4A0 I

Address Bus. In nonmultiplexed bus operation (BIS0 = 1), these pins serve as the address bus.
In multiplexed bus operation (BIS0 = 0), these pins are not used and should be wired low.

D7/AD7D0/AD0 I/O

Data Bus/Address/Data Bus. In nonmultiplexed bus operation (BIS0 = 1), these pins serve as the
data bus. In multiplexed bus operation (BIS0 = 0), these pins serve as an 8-bit multiplexed
address/data bus.

INT

Interrupt (

INT). The interrupt flags the host controller during conditions and change of conditions

defined in the status register. It is an active-low, open-drain output.

TXDIS/TEST I

Tri-State Control, Multifunctional. Set this pin high, with all

CS1CS4 inputs inactive, to tri-state

TTIP1TTIP4 and TRING1TRING4. Set this pin high with any of the

CS1CS4 inputs active to

tri-state all outputs and I/O pins (including the parallel control port). Set low for normal operation.

HRST

Hardware Reset. Bringing

HRST low resets the DS21448, setting all control bits to the all-zeros

default state.

MCLK I

Master Clock. A 2.048MHz (±50ppm) clock source with TTL levels is applied at this pin. This
clock is used internally for both clock/data recovery and for jitter attenuation. Use of a T1
1.544MHz clock source is optional (Note 1).

BIS0/BIS1

Bus Interface Select Bit 0 and 1. Used to select bus interface option. See

Table 2-A

for details.

PBTS I

Parallel Bus Type Select. When using the parallel port, set PBTS high to select Motorola bus
timing; set low to select Intel bus timing. This pin controls the function of the

RD (DS), ALE (AS),

and

WR (R/W) pins.

Chip Select 1. Must be low to read or write to channel 1 of the device.

CS1 is an active-low

signal.
Chip Select 2. Must be low to read or write to channel 2 of the device.

CS2 is an active-low

signal.
Chip Select 3. Must be low to read or write to channel 3 of the device.

CS3 is an active-low

signal.

CS1CS4

Chip Select 4. Must be low to read or write to channel 4 of the device.

CS4 is an active-low

signal.

PBEO1PBEO4 O

PRBS Bit-Error Output. The receiver constantly searches for a 2

- 1 (E1) or a QRSS (T1)

PRBS, depending on the ETS bit setting (CCR1.7). It remains high if it is out of synchronization
with the PRBS pattern. It goes low when synchronized to the PRBS pattern. Any errors in the
received pattern after synchronization cause a positive-going pulse (with same period as E1 or
T1 clock) synchronous with RCLK. PRBS bit errors can also be reported to the ECR1 and ECR2
registers by setting CCR6.2 to logic 1.

RCL1/LOTC1

RCL4/LOTC4

Receive Carrier Loss/Loss-of-Transmit Clock. An output that toggles high during a receive carrier
loss (CCR2.7 = 0) or toggles high if the TCLK pin has not been toggled for 5

ms ± 2ms (CCR2.7 =

1). CCR2.7 defaults to logic 0 when in hardware mode.

RTIP1RTIP4 I

RRING1RRING4 I

Receive Tip and Ring. Analog inputs for clock recovery circuitry. These pins connect through a
1:1 transformer to the line. See Section

for details.

BPCLK1BPCLK4 O

Backplane Clock. A 16.384MHz, 8.192MHz, 4.096MHz, or 2.048MHz clock output that is
referenced to RCLK selectable through CCR5.7 and CCR5.6.

TTIP1TTIP4 O

TRING1TRING4 O

Transmit Tip and Ring. Analog line-driver outputs. These pins connect through a step-up
transformer to the line. See Section

for details.

RPOS1RPOS4 O

Receive Positive Data. These bits are updated on the rising edge (CCR2.0 = 0) or the falling
edge (CCR2.0 = 1) of RCLK with bipolar data out of the line interface. Set NRZE (CCR1.6) to 1
for NRZ applications. In NRZ mode, data is output on RPOS, and a received error (BPV, CV, or
EXZ) causes a positive-going pulse synchronous with RCLK at RNEG.

RNEG1RNEG4 O

Receive Negative Data. Updated on the rising edge (CCR2.0 = 0) or the falling edge (CCR2.0 =
1) of RCLK with the bipolar data out of the line interface. Set NRZE (CCR1.6) to 1 for NRZ
applications. In NRZ mode, data is output on RPOS, and a received error (BPV, CV, or EXZ)
causes a positive-going pulse synchronous with RCLK at RNEG.

DS21448 3.3V T1/E1/J1 Quad Line Interface

10 of 60

PIN I/O

FUNCTION

RCLK1RCLK4 O

Receive Clock. Buffered recovered clock from the line. Synchronous to MCLK in absence of
signal at RTIP and RRING.

TPOS1TPOS4 I

Transmit Positive Data. Sampled on the falling edge (CCR2.1 = 0) or the rising edge
(CCR2.1 = 1) of TCLK for data to be transmitted out onto the line.

TNEG1TNEG4 I

Transmit Negative Data. Sampled on the falling edge (CCR2.1 = 0) or the rising edge
(CCR2.1 = 1) of TCLK for data to be transmitted out onto the line.

TCLK1TCLK4 I

Transmit Clock. A 2.048MHz or 1.544MHz primary clock. It is used to clock data through the
transmit-side formatter. It can be sourced internally by MCLK or RCLK. See Common Control
Register 1 and

Figure 1-3

JTRST I

JTAG

Reset

JTMS I

JTAG

Mode

Select

JTCLK I

JTAG

Clock

JTDI

JTAG Data In

JTDO

JTAG Data Out

VSM

Voltage Supply Mode (LQFP only). Should be wired low for correct operation.

TVDD1TVDD4

3.3V, ±5% Transmitter Positive Supply

VDD1VDD4

3.3V, ±5% Positive Supply

TVSS1TVSS4

Transmitter Signal Ground

VSS1VSS4 --

Signal

Ground

Table 2-D. Serial Interface Mode Pin Description

PIN I/O

FUNCTION

INT

I/O

Interrupt (

INT). Flags host controller during conditions and change of conditions defined in the

status register. Active-low, open-drain output.

TXDIS/TEST I

Tri-State Control, Multifunctional. Set this pin high with all

CS1CS4 inputs inactive to tri-state

TTIP1TTIP4 and TRING1TRING4. Set this pin high with any of the

CS1CS4 inputs active to

tri-state all outputs and I/O pins (including the parallel control port). Set low for normal operation.

HRST

Hardware Reset. Bringing

HRST low resets the DS21448, setting all control bits to the all-zeros

default state.

MCLK I

Master Clock. A 2.048MHz (±50ppm) clock source with TTL levels is applied at this pin. This
clock is used internally for both clock/data recovery and for jitter attenuation. A T1 1.544MHz
clock source is optional (Note 1).

BIS0/BIS1

Bus Interface Select Bit 0 and 1. Used to select bus interface option. See

Table 2-A

for details.

CS1

Chip Select 1. Must be low to read or write to channel 1 of the device.

CS1 is an active-low

signal.

CS2

Chip Select 2. Must be low to read or write to channel 2 of the device.

CS2 is an active-low

signal.

CS3

Chip Select 3. Must be low to read or write to channel 3 of the device.

CS3 is an active-low

signal.

CS4

Chip Select 4. Must be low to read or write to channel 4 of the device.

CS4 is an active-low

signal.

ICES I

Input Clock-Edge Select. Selects whether the serial interface data input (SDI) is sampled on the
rising (ICES = 0) or falling edge (ICES = 1) of SCLK.

OCES I

Output Clock-Edge Select. Selects whether the serial interface data output (SDO) changes on
the rising (OCES = 1) or falling edge (OCES = 0) of SCLK.

SCLK

Serial Clock. Serial interface clock.

SDI

Serial Data Input. Serial interface data input.

SDO

Serial Data Output. Serial interface data output.

PBEO1PBEO4 O

PRBS Bit-Error Output. The receiver constantly searches for a 2

- 1 (E1) or a QRSS (T1)

RCL1/LOTC1

RCL4/LOTC4

Receive Carrier Loss/Loss-of-Transmit Clock. An output that toggles high during a receive carrier
loss (CCR2.7 = 0) or toggles high if the TCLK pin has not been toggled for 5

ms ± 2ms

(CCR2.7 = 1). CCR2.7 defaults to logic 0 when in hardware mode.

RTIP1RTIP4

RRING1RRING4

Receive Tip and Ring. Analog inputs for clock recovery circuitry. These pins connect through a
1:1 transformer to the line. See Section

for details.

DS21448 3.3V T1/E1/J1 Quad Line Interface

11 of 60

PIN I/O

FUNCTION

BPCLK1BPCLK4 O

Backplane Clock. A 16.384MHz, 8.192MHz, 4.096MHz, or 2.048MHz clock output that is
referenced to RCLK selectable through CCR5.7 and CCR5.6.

TTIP1TTIP4 O

TRINGTRING4 O

Transmit Tip and Ring. Analog line-driver outputs. These pins connect through a step-up
transformer to the line. See Section

for details.

RPOS1RPOS4 O

Receive Positive Data. Updated on the rising edge (CCR2.0 = 0) or the falling edge (CCR2.0 = 1)
of RCLK with bipolar data out of the line interface. Set NRZE (CCR1.6) to 1 for NRZ applications.
In NRZ mode, data is output on RPOS, and a received error (BPV, CV, or EXZ) causes a
positive-going pulse synchronous with RCLK at RNEG.

RNEG1RNEG4 O

RCLK1RCLK4 O

Receive Clock. Buffered recovered clock from the line. Synchronous to MCLK in absence of
signal at RTIP and RRING.

TPOS1TPOS4 I

Transmit Positive Data. Sampled on the falling edge (CCR2.1 = 0) or the rising edge (CCR2.1 =
1) of TCLK for data to be transmitted out onto the line.

TNEG1TNEG4 I

Transmit Negative Data. Sampled on the falling edge (CCR2.1 = 0) or the rising edge (CCR2.1 =
1) of TCLK for data to be transmitted out onto the line.

TCLK1TCLK4 I

Transmit Clock. A 2.048MHz or 1.544MHz primary clock used to clock data through the transmit
side formatter. They can be sourced internally by MCLK or RCLK. See Common Control Register
1 and

Figure 1-3

JTRST I

JTAG

Reset

JTMS I

JTAG

Mode

Select

JTCLK I

JTAG

Clock

JTDI

JTAG Data In

JTDO

JTAG Data Out

VSM

Voltage Supply Mode (LQFP only). VSM should be wired low for correct operation.

TVDD1TVDD4

3.3V, ±5% Transmitter Positive Supply

VDD1VDD4

3.3V, ±5% Positive Supply

TVSS1TVSS4

Transmitter Signal Ground for Transmitter Outputs

VSS1VSS4

Signal Ground

Table 2-E. Hardware Interface Mode Pin Description

PIN I/O

FUNCTION

ETS I

E1/T1 Select
0 = E1
1 = T1

NRZE I

NRZ Enable
0 = bipolar data at RPOS/RNEG and TPOS/TNEG
1 = NRZ data at RPOS and TPOS or TNEG; RNEG outputs a positive-going pulse when the
device receives a BPV, CV, or EXZ.

SCLKE I

Receive and Transmit Synchronization Clock Enable. SCLKE combines RSCLKE (CCR5.3) and
TSCLKE (CCR5.2).
0 = disable 2.048MHz synchronization transmit and receive mode
1 = enable 2.048MHz synchronization transmit and receive mode

DJA I

Disable Jitter Attenuator
0 = jitter attenuator enabled
1 = jitter attenuator disabled

JAMUX I

Jitter Attenuator Clock Mux. Controls the source for JACLK.
0 = JACLK sourced from MCLK (2.048MHz or 1.544MHz at MCLK).
1 = JACLK sourced from internal PLL (2.048 MHz at MCLK).

JAS I

Jitter Attenuator Path Select
0 = place the jitter attenuator on the receive side
1 = place the jitter attenuator on the transmit side

HBE I

Receive and Transmit HDB3/B8ZS Enable. HBE combines RHBE (CCR2.3) and THBE
(CCR2.2).
0 = enable HDB3 (E1)/B8ZS (T1)
1 = disable HDB3 (E1)/B8ZS (T1)

L0/L1/L2 I

Line Build-Out Select Bits 0,1, and 2. These pins set the transmitter build-out; see (

Table 7-A

(E1) and

Table 7-B

(T1).

DS21448 3.3V T1/E1/J1 Quad Line Interface

12 of 60

PIN I/O

FUNCTION

CES I

Receive and Transmit Clock Select. Selects which RCLK edge to update RPOS and RNEG and
which TCLK edge to sample TPOS and TNEG. CES combines TCES and RCES.
0 = update RPOS/RNEG on rising edge of RCLK; sample TPOS/TNEG on falling edge of TCLK
1 = update RPOS/RNEG on falling edge of RCLK; sample TPOS/TNEG on rising edge of TCLK

TPD I

Transmit Power-Down
0 = normal transmitter operation
1 = powers down the transmitter and tri-states TTIP and TRING pins

TX0/TX1 I

Transmit Data Source Select Bits 0 and 1. These inputs determine the source of the transmit
data (

Table 4-B

LOOP0/LOOP1

Loopback Select Bits 0 and 1. These inputs determine the active loopback mode (

Table 4-A

MM0/MM1 I

Monitor Mode Select Bits 0 and 1. These inputs determine if the receive equalizer is in a monitor
mode (

Table 4-D

RT1/RT0 I

Receive LIU Termination Select Bits 0 and 1. These inputs determine the receive termination
(

Table 4-E

TEST I

Tri-State Control. Set high to tri-state all outputs and I/O pins (including the parallel control port).
Set low for normal operation. Useful in board-level testing.

HRST

Hardware Reset. Bringing

HRST low resets the DS21448, setting all control bits to the all-zero

default state.

MCLK I

Table 4-F

for details.

BIS0/BIS1

Bus Interface Select Bit 0 and 1. Used to select bus interface option (

Table 2-A

EGL1EGL4 I

Receive Equalizer Gain-Limit Select. These bits control the sensitivity of the receive equalizers
(

Table 4-C

PBEO1PBEO4 O

PRBS Bit-Error Output. The receiver constantly searches for a 2

- 1 PRBS (ETS = 0) or a

QRSS PRBS (ETS = 1). The pattern is chosen automatically by the value of the ETS pin. It
remains high if it is out of synchronization with the PRBS pattern. It goes low when synchronized
to the PRBS pattern. Any errors in the received pattern after synchronization cause a positive-
going pulse (with same period as E1 or T1 clock) synchronous with RCLK.

RCL1RCL4

Receive Carrier Loss. An output that toggles high during a receive carrier loss.

RTIP1RTIP4 I

RRING1RRING4 I

Receive Tip and Ring. Analog inputs for clock recovery circuitry. These pins connect through a
1:1 transformer to the line. See Section

for details.

BPCLK1BPCLK4

Backplane Clock. A 16.384MHz clock output that is referenced to RCLK.

TTIP1TTIP4

TRING1TRING4

Transmit Tip and Ring. Analog line-driver outputs. These pins connect through a step-up
transformer to the line. See Section

for details.

RPOS1RPOS4 O

Receive Positive Data. Updated on the rising edge (CES = 0) or the falling edge (CES = 1) of
RCLK with bipolar data out of the line interface. In NRZ mode (NRZE = 1), data is output on
RPOS, and a received error (BPV, CV, or EXZ) causes a positive-going pulse synchronous with
RCLK at RNEG.

RNEG1RNEG4 O

Receive Negative Data. Updated on the rising edge (CES = 0) or the falling edge (CES = 1) of
RCLK with bipolar data out of the line interface. In NRZ mode (NRZE = 1), data is output on
RPOS, and a received error (BPV, CV, or EXZ) causes a positive-going pulse synchronous with
RCLK at RNEG.

RCLK1RCLK4 O

Receive Clock. Buffered recovered clock from the line. Synchronous to MCLK in absence of
signal at RTIP and RRING.

TPOS1TPOS4 I

Transmit Positive Data. Sampled on the falling edge (CES = 0) or the rising edge (CES = 1) of
TCLK for data to be transmitted out onto the line.

TNEG1TNEG4 I

Transmit Negative Data. Sampled on the falling edge (CES = 0) or the rising edge (CES = 1) of
TCLK for data to be transmitted out onto the line.

TCLK1TCLK4 I

Transmit Clock. A 2.048MHz or 1.544MHz primary clock used to clock data through the transmit
side formatter. It can be sourced internally by MCLK or RCLK. See Common Control Register 1
and

Figure 1-3

JTRST I

JTAG

Reset

JTMS I

JTAG

Mode

Select

JTCLK I

JTAG

Clock

JTDI

JTAG Data In

JTDO

JTAG Data Out

VSM

Voltage Supply Mode (LQFP only). VSM should be wired low for correct operation.

TVDD1TVDD4

3.3V, ±5% Transmitter Positive Supply

VDD1VDD4

3.3V, ±5% Positive Supply

DS21448 3.3V T1/E1/J1 Quad Line Interface

13 of 60

PIN I/O

FUNCTION

TVSS1TVSS4

Transmitter Signal Ground for Transmitter Outputs

VSS1VSS4 --

Signal

Ground

Note 1: G.703 requires an accuracy of ±50ppm for T1 and E1. TR62411 and ANSI specs require ±32ppm accuracy for T1 interfaces.

3. DETAILED DESCRIPTION

The DS21448 contains four independent LIUs that share a common interface for configuration and status. The user
can choose between three different means of accessing the device: a parallel microprocessor interface, a serial
interface, and a hardwired mode, which configures the device by setting levels on the device's pins. The
DS21448's four chip selects (

CS1, CS2, CS3, and CS4) determine which LIU is accessed when using the parallel

or serial interface modes. Four sets of identical register maps exist, one for each channel. Using the appropriate
chip select accesses a channel's register map.

The analog AMI/HDB3 waveform off the E1 line or the AMI/B8ZS waveform off the T1 line is transformer-coupled
into the RTIP and RRING pins of the DS21448. The user has the option to use internal termination, software
selectable for 75

W/100W/120W applications, or external termination. The device recovers clock and data from the

analog signal and passes it through the jitter attenuation mux, outputting the received line clock at RCLK and
bipolar or NRZ data at RPOS and RNEG. The DS21448 contains an active filter that reconstructs the analog-
received signal for the nonlinear losses that occur in transmission. The receive circuitry is also configurable for
various monitor applications. The device has a usable receive sensitivity of 0 to -43dB for E1 and 0 to -36dB for T1
that allows the device to operate on 0.63mm (22AWG) cables up to 2.5km (E1) and 6k feet (T1) in length. Data
input at TPOS and TNEG is sent through the jitter attenuation mux to the waveshaping circuitry and line driver. The
DS21448 drives the E1 or T1 line from the TTIP and TRING pins through a coupling transformer. The line driver
can handle both CEPT 30/ISDN-PRI lines for E1 and long-haul (CSU) or short-haul (DSX-1) lines for T1.

3.1 DS21448 and DS21Q348 Differences

The DS21448 BGA is a monolithic quad-port LIU that is a replacement for the DS21Q348. The additional features
of JTAG, transmit driver disable, and the serial interface in the DS21448 have changed the function of several pins,
as shown in

Table 3-A

Table 3-A. DS21448 vs. DS21Q348 Pin Differences

PIN DS21Q348 DS21448

G4 VSM

N.C.

J1 VSS

SCLK

K1 A4 A4/SDO
K3 VSS

SDI

K7 TEST TXDIS/TEST

L3 N.C. JTRST*

M3 N.C.

JTMS*

M5 N.C.

JTCLK

M6 N.C.

JTDI*

M7 N.C.

JTDO

DS21448 pin is internally pulled up.

4. PORT OPERATION

4.1 Hardware

Mode

The DS21448 supports a hardware configuration mode that allows the user to configure the device by setting levels
on the device's pins. This mode allows the DS21448 configuration without the use of a microprocessor, simplifying
designs. Not all of the device features are supported in the hardware mode.

In hardware mode (BIS0 = 1, BIS1 = 1) several pins have been redefined so they can be used for initializing the
DS21448. Refer to

Table 2-B

and

Table 2-E

for pin assignment and definition. Because of limited pin count, several

DS21448 3.3V T1/E1/J1 Quad Line Interface

14 of 60

functions have been combined and affect all four channels in the device and/or treat the receive and transmit paths
as one block. Restrictions when using the hardware mode include the following:

· BPCLK pins only output a 16.384MHz signal.

· The RCL/LOTC pins are designated to RCL.

· The RHBE and THBE control bits are combined and controlled by HBE.

· RSCLKE and TSCLKE bits are combined and controlled by SCLKE.

· TCES and RCES are combined and controlled by CES.

· The transmitter functions are combined and controlled by TX1 and TX0.

· Loopback functions are controlled by LOOP1 and LOOP0.

· JABDS defaults to 128-bit buffer depth.

· All other control bits default to logic 0.

Table 4-A. Loopback Control in Hardware Mode

LOOPBACK SYMBOL LOOP1 LOOP0

Remote Loopback

RLB

Local Loopback

LLB

Analog Loopback

ALB

No Loopback

Table 4-B. Transmit Data Control in Hardware Mode

TRANSMIT DATA

SYMBOL

TX1

TX0

Unframed All Ones

TUA1

Alternating Ones and Zeros

TAOZ

PRBS

TPRBSE

0 1

TPOS and TNEG

Table 4-C. Receive Sensitivity Settings in Hardware Mode

EGL

ETS

RECEIVE SENSITIVITY (dB)

0 (E1)

-12 (short haul)

0 (E1)

-43 (long haul)

1 (T1)

-30 (limited long haul)

1 (T1)

-36 (long haul)

Table 4-D. Monitor Gain Settings in Hardware Mode

MM1

MM0

INTERNAL LINEAR GAIN BOOST (dB)

Normal operation (no boost)

0 1

1 0

1 1

Table 4-E. Internal Rx Termination Select in Hardware Mode

RT1 RT0

INTERNAL RECEIVE

TERMINATION CONFIGURATION

Internal receive-side termination disabled

Internal receive-side 120 enabled

Internal receive-side 100 enabled

Internal receive-side 75 enabled

Table 4-F. MCLK Selection in Hardware Mode

MCLK (MHz)

JAMUX

ETS

2.048 0 0
2.048 1 1
1.544 0 1

DS21448 3.3V T1/E1/J1 Quad Line Interface

15 of 60

4.2 Serial Port Operation

Setting BIS1 = 1 and BIS0 = 0 enables the serial bus interface on the DS21448 (

Table 2-A

). Serial port read/write

timing is unrelated to the system transmit and receive timing, allowing asynchronous reads or writes by the host.
See Section

for the AC timing of the serial port. All serial port accesses are LSB first. See

Figure 4-1

Figure 4-2

Figure 4-3

Figure 4-4

Figure 4-5

, and

Figure 4-6

for additional details.

A serial bus access requires the use of four signals: serial clock (SCLK), one of the four chip selects (

CS), serial

data input (SDI), and serial data output (SDO). The DS21448 uses SCLK to sample data that is present on SDI and
output data onto SDO. Input clock-edge select (ICES) allows the user to choose which SCLK edge input data is
sampled on. Output clock-edge select (OCES) allows the user to choose which SCLK edge output data changes
on. When ICES is low, input data is latched on the rising edge of SCLK, and when ICES is high, input data is
latched on the falling edge of SCLK. When OCES is low, data is output on the falling edge of SCLK, and when
OCES is high, data is output on the rising edge of SCLK. Data is held until the next falling or rising edge of SCLK.
All data transfers are initiated by driving the appropriate port's

CS input low and ends with CS going inactive. CS

must go inactive between data transfers. See the serial bus timing information in Section

for details. All data

transfers are terminated if the port's

CS input transitions high. Port control logic is disabled, and SDO is tri-stated

when all

CS pins are inactive.

Reading from or writing to the internal registers requires writing one address/command byte prior to the transferring
register data. Two types of serial bus transfers exist, standard and burst. The standard serial bus access always
consists of two bytes, an address/command byte that is always supplied by the user on SDI, and a data byte that
can either be written to the DS21448 using SDI (write operation) or output by the DS21448 on SDO (read
operation). The burst serial bus access consists of a single address/command byte followed either by 22 read or 22
write data bytes.

The first bit written (LSB) of the address/command byte specifies whether the access is to be a read (1) or a write
(0). The next 5 bits identify the register address. Valid register addresses are 00h through 15h. Bit 7 is reserved
and must be set to 0 for proper operation. Bit 8, the last bit (MSB) of the address/command byte, is the burst mode-
enable bit. When the burst bit is enabled (set to 0) and a READ operation is performed, the DS21448 automatically
outputs the contents of registers 00h through 15h sequentially, starting with register address 00h. When the burst
bit is enabled and a WRITE operation is performed, data supplied on SDI is sequentially written into the DS21448's
register space starting at address 00h. Burst operation is stopped once address 15h is read or

CS goes inactive.

For both burst read and burst write transfers, the address/command byte's register address bits must be set to 0.

The user can broadcast register write accesses to multiple ports simultaneously by enabling the desired channels'
chip selects at the same time. However, only one port can be read at a time. Any attempt to read multiple ports
simultaneously results in invalid data being returned on SDO.

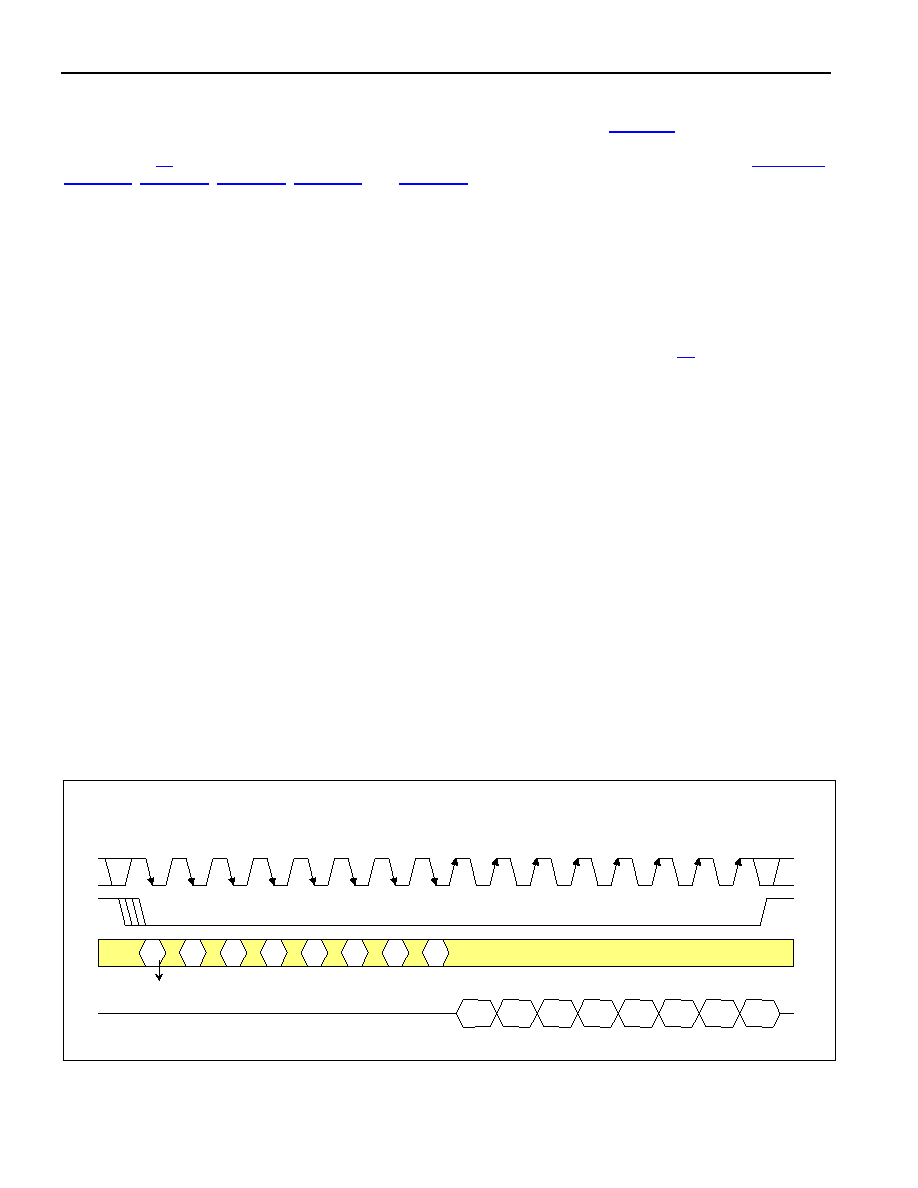

Figure 4-1. Serial Port Operation for Read Access (R = 1) Mode 1

SCLK

SDI

SDO

(LSB)

(MSB)

(LSB)

(MSB)

READ ACCESS ENABLED

ICES = 1 (SAMPLE SDI ON THE FALLING EDGE OF SCLK)
OCES = 1 (UPDATE SDO ON RISING EDGE OF SCLK)

DS21448 3.3V T1/E1/J1 Quad Line Interface

17 of 60

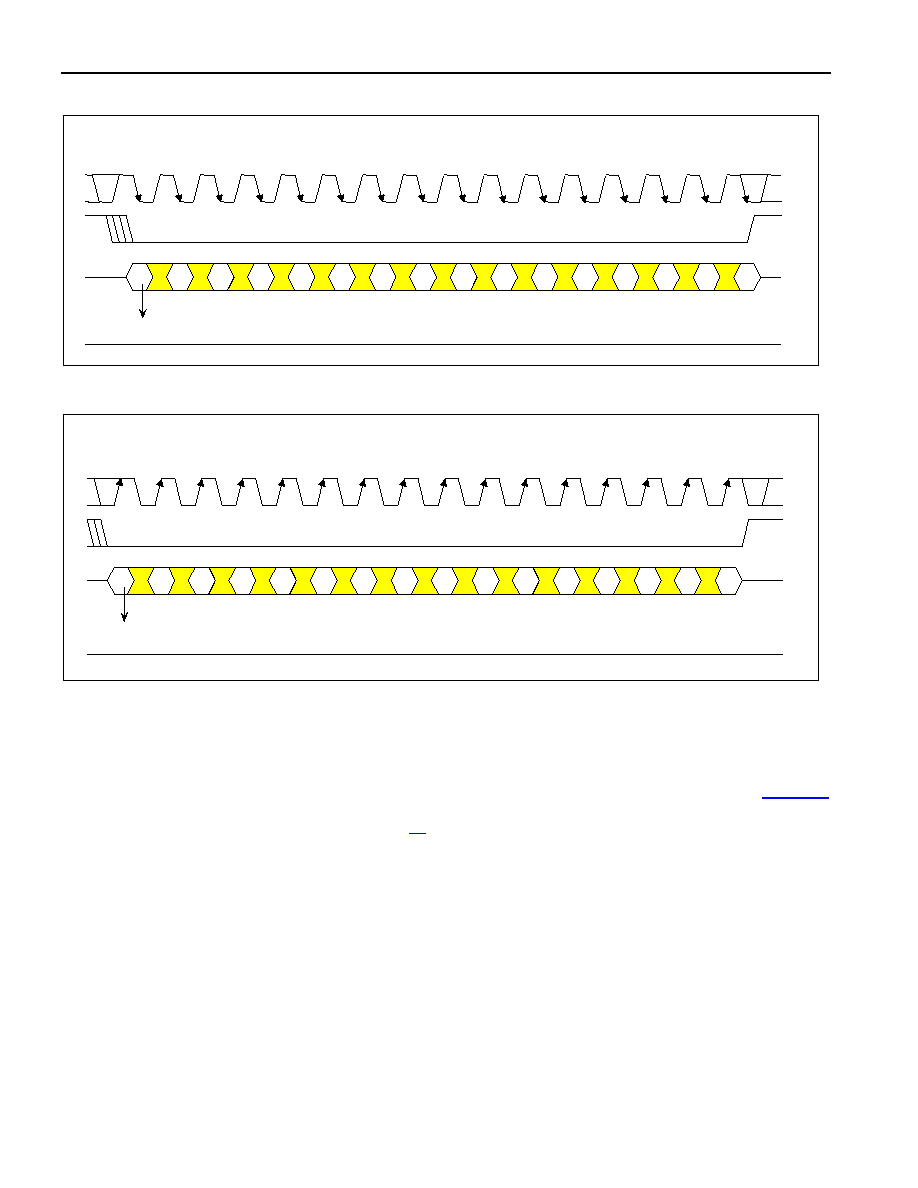

Figure 4-5. Serial Port Operation for Write Access (R = 0) Modes 1 and 2

Figure 4-6. Serial Port Operation for Write Access (R = 0) Modes 3 and 4

4.3 Parallel Port Operation

The option for either multiplexed bus operation (BIS0 = 0) or nonmultiplexed bus operation (BIS0 = 1) is available
when using the parallel interface. The DS21448 can operate with either Intel or Motorola bus timing configurations.
If the PBTS pin is wired low, Intel timing is selected; if wired high, Motorola timing is selected. All Motorola bus
signals are listed in parentheses (). Four sets of identical register maps exist, one for each channel. See

Table 4-H

for register names and addresses. Use the appropriate chip select (

CS1, CS2, CS3, or CS4) to access a channel's

for more details. Hardware and serial port modes are not

supported when using parallel port operation.

4.3.1

Device Power-Up and Reset

The DS21448 resets itself upon power-up, setting all writeable registers to 00h and clearing the status and
information registers. CCR3.7 (TUA1) = 0 results in the LIU transmitting unframed all ones. After the power
supplies have settled, initialize all control registers to the desired settings, then toggle the LIRST bit (CCR3.2). The
DS21448 can at any time be reset to the default settings by bringing

HRST low (level triggered) or by powering

down and powering up again.

SCLK

(MSB)

SDI

SDO

(LSB)

(MSB)

(LSB)

WRITE ACCESS ENABLED

ICES = 1 (SAMPLE SDI ON THE FALLING EDGE OF SCLK)

SCLK

(MSB)

SDI

SDO

(LSB)

(MSB)

(LSB)

WRITE ACCESS ENABLED

ICES = 0 (SAMPLE SDI ON THE RISING EDGE OF SCLK)

DS21448 3.3V T1/E1/J1 Quad Line Interface

18 of 60

Table 4-G. Parallel Port Mode Selection

PBTS

BIS0

PROCESSOR

BUS INTERFACE TYPE

Intel

Parallel Port Mode (Multiplexed)

Intel

Parallel Port Mode (Nonmultiplexed)

Motorola

Parallel Port Mode (Multiplexed)

Motorola

Parallel Port Mode (Nonmultiplexed)

4.3.2 Register

Map

Table 4-H

shows the typical register map for all four ports. Use the appropriate chip select (

CS1, CS2, CS3, or CS4)

to access a channel's register map.

Table 4-H. Register Map

NAME R/W ADDRESS

FUNCTION

CCR1

R/W

00h

Common Control Register 1

CCR2

R/W

01h

Common Control Register 2

CCR3

R/W

02h

Common Control Register 3

CCR4

R/W

03h

Common Control Register 4

CCR5

R/W

04h

Common Control Register 5

CCR6

R/W

05h

Common Control Register 6

SR R 06h

Status

IMR

R/W

07h

Interrupt Mask Register

RIR1

08h

Receive Information Register 1

RIR2

09h

Receive Information Register 2

IBCC

R/W

0Ah

In-Band Code Control Register

TCD1

R/W

0Bh

Transmit Code Definition Register 1

TCD2

R/W

0Ch

Transmit Code Definition Register 2

RUPCD1

R/W

0Dh

Receive-Up Code Definition Register 1

RUPCD2

R/W

0Eh

Receive-Up Code Definition Register 2

RDNCD1 R/W

0Fh Receive-Down

Code Definition Register 1

RDNCD2 R/W

10h Receive-Down

Code Definition Register 2

ECR1

11h

Error Count Register 1

ECR2

12h

Error Count Register 2

TEST1 R/W

13h Test

TEST2 R/W

14h Test

TEST2 R/W

15h Test

-- --

(Note

Note 1: Register addresses 16h1Fh do not exist.

DS21448 3.3V T1/E1/J1 Quad Line Interface

19 of 60

4.3.3 Control

Registers

CCR1 (00H): Common Control Register 1

(MSB)

(LSB)

ETS NRZE RCLA ECUE

JAMUX

TTOJ TTOR

LOTCMC

NAME POSITION

FUNCTION

ETS CCR1.7

E1/T1 Select
0 = E1
1 = T1

NRZE CCR1.6

NRZ Enable
0 = bipolar data at RPOS/RNEG and TPOS/TNEG
1 = NRZ data at RPOS and TPOS or TNEG; RNEG outputs a positive-going pulse when the
device receives a BPV, CV, or EXZ

RCLA CCR1.5

Receive-Carrier-Loss Alternate Criteria
0 = RCL declared upon 255 (E1) or 192 (T1) consecutive zeros
1 = RCL declared upon 2048 (E1) or 1544 (T1) consecutive zeros

ECUE CCR1.4

Error Counter Update Enable. A 0-to-1 transition forces the next receive clock cycle to load the
error counter registers with the latest counts and reset the counters. The user must wait a
minimum of two clock cycles (976ns for E1 and 1296ns for T1) before reading the error count
registers to allow for a proper update. See Section

for details.

JAMUX CCR1.3

Jitter Attenuator Clock Mux. Controls the source for JACLK (

Figure 1-1

0 = JACLK sourced from MCLK (2.048MHz or 1.544MHz at MCLK)
1 = JACLK sourced from internal PLL (2.048MHz at MCLK)

TTOJ CCR1.2

TCLK to JACLK. Internally connects TCLK to JACLK (

Figure 1-3

0 = disabled
1 = enabled

TTOR CCR1.1

TCLK to RCLK. Internally connects TCLK to RCLK (

Figure 1-3

0 = disabled
1 = enabled

LOTCMC CCR1.0

Loss-of-Transmit Clock Mux Control. Determines whether the transmit logic should switch to
JACLK if the TCLK input should fail to transition (

Figure 1-3

0 = do not switch to JACLK if TCLK stops
1 = switch to JACLK if TCLK stops

DS21448 3.3V T1/E1/J1 Quad Line Interface

20 of 60

CCR2 (01H): Common Control Register 2

(MSB)

(LSB)

RLPIN -- SCLD CLDS RHBE THBE TCES RCES

NAME POSITION

FUNCTION

RLPIN CCR2.7

RCL/LOTC Pin Function Select. Forced to logic 0 in hardware mode.
0 = toggles high during a receive-carrier loss condition
1 = toggles high if TCLK does not transition for at least 5

CCR2.6

Not Assigned. Should be set to 0 when written to.

SCLD CCR2.5

Short Circuit-Limit Disable (ETS = 0). Controls the 50mA (RMS) current limiter.
0 = enable 50mA current limiter
1 = disable 50mA current limiter

CLDS CCR2.4

Custom Line-Driver Select. Setting this bit to 1 redefines the operation of the transmit line
driver. When this bit is set to 1 and CCR4.5 = CCR4.6 = CCR4.7 = 0, the device generates a
square wave at the TTIP and TRING outputs instead of a normal waveform. When this bit is
set to 1 and CCR4.5 = CCR4.6 = CCR4.7

¹ 0, the device forces TTIP and TRING outputs to

become open-drain drivers instead of their normal push-pull operation. This bit should be set
to 0 for normal operation of the device. Contact the factory for more details about how to use
this bit.

RHBE CCR2.3

Receive HDB3/B8ZS Enable
0 = enable HDB3 (E1)/B8ZS (T1)
1 = disable HDB3 (E1)/B8ZS (T1)

THBE CCR2.2

Transmit HDB3/B8ZS Enable
0 = enable HDB3 (E1)/B8ZS (T1)
1 = disable HDB3 (E1)/B8ZS (T1)

TCES CCR2.1

Transmit Clock-Edge Select. Selects which TCLK edge to sample TPOS and TNEG.
0 = sample TPOS and TNEG on falling edge of TCLK
1 = sample TPOS and TNEG on rising edge of TCLK

RCES CCR2.0

Receive Clock-Edge Select. Selects which RCLK edge to update RPOS and RNEG.
0 = update RPOS and RNEG on rising edge of RCLK
1 = update RPOS and RNEG on falling edge of RCLK

DS21448 3.3V T1/E1/J1 Quad Line Interface

21 of 60

CCR3 (02H): Common Control Register 3

(MSB)

(LSB)

TUA1 ATUA1 TAOZ TPRBSE TLCE LIRST IBPV IBE

NAME POSITION

FUNCTION

TUA1 CCR3.7

Transmit Unframed All Ones. The polarity of this bit is set such that the device transmits an all-
ones pattern on power-up or device reset. This bit must be set to 1 to allow the device to transmit
data. The transmission of this data pattern is always timed off JACLK (

Figure 1-1

0 = transmit all ones at TTIP and TRING
1 = transmit data normally

ATUA1 CCR3.6

Automatic Transmit Unframed All Ones. Automatically transmit an unframed all-ones pattern at
TTIP and TRING during an RCL condition.
0 = disabled
1 = enabled

TAOZ CCR3.5

Transmit Alternate Ones and Zeros. Transmit a ...101010... pattern at TTIP and TRING. The
transmission of this data pattern is always timed off TCLK.
0 = disabled
1 = enabled

TPRBSE CCR3.4

Transmit PRBS Enable. Transmit a 2

- 1 (E1) or a QRSS (T1) PRBS at TTIP and TRING.

0 = disabled
1 = enabled

TLCE CCR3.3

Transmit Loop-Code Enable. Enables the transmit side to transmit the loop-up code in the transmit
code definition registers (TCD1 and TCD2). See Section

for details.

0 = disabled
1 = enabled

LIRST CCR3.2

Line Interface Reset. Setting this bit from 0 to 1 initiates an internal reset that resets the clock
recovery state machine and recenters the jitter attenuator. Normally this bit is only toggled on
power-up. It must be cleared and set again for a subsequent reset.

IBPV CCR3.1

Insert Bipolar Violation (BPV). A 0-to-1 transition on this bit causes a single bipolar violation to be
inserted into the transmit data stream. Once this bit has been toggled from 0 to 1, the device waits
for the next occurrence of three consecutive 1s to insert the BPV. This bit must be cleared and set
again for a subsequent error to be inserted (

Figure 1-3

IBE CCR3.0

Insert Bit Error. A 0-to-1 transition on this bit causes a single logic error to be inserted into the
transmit data stream. This bit must be cleared and set again for a subsequent error to be inserted
(

Figure 1-3

CCR4 (03H): Common Control Register 4

(MSB)

(LSB)

L2 L1 L0 EGL

JAS

JABDS

DJA

TPD

NAME POSITION

FUNCTION

CCR4.7

Line Build-Out Select Bit 2. Sets the transmitter build-out (

Table 7-A

for E1,

Table 7-B

for T1).

CCR4.6

Line Build Out Select Bit 1. Sets the transmitter build-out (

Table 7-A

for E1,

Table 7-B

for T1).

CCR4.5

Line Build Out Select Bit 0. Sets the transmitter build-out (

Table 7-A

for E1,

Table 7-B

for T1).

EGL

CCR4.4

Receive Equalizer Gain Limit. This bit controls the sensitivity of the receive equalizer (

Table 4-I

JAS CCR4.3

Jitter Attenuator Path Select
0 = place the jitter attenuator on the receive side
1 = place the jitter attenuator on the transmit side

JABDS CCR4.2

Jitter Attenuator Buffer Depth Select
0 = 128 bits
1 = 32 bits (use for delay-sensitive applications)

DJA CCR4.1

Disable Jitter Attenuator
0 = jitter attenuator enabled
1 = jitter attenuator disabled

TPD CCR4.0

Transmit Power-Down
0 = normal transmitter operation
1 = powers down the transmitter and tri-states the TTIP and TRING pins

DS21448 3.3V T1/E1/J1 Quad Line Interface

22 of 60

Table 4-I. Receive Sensitivity Settings

EGL

(CCR4.4)

ETS

(CCR1.7)

RECEIVE SENSITIVITY

(dB)

0 (E1)

-12 (short haul)

0 (E1)

-43 (long haul)

1 (T1)

-30 (limited long haul)

1 (T1)

-36 (long haul)

CCR5 (04H): Common Control Register 5

(MSB)

(LSB)

BPCS1 BPCS0 MM1 MM0 RSCLKE

TSCLKE RT1

RT0

NAME POSITION

FUNCTION

BPCS1

CCR5.7

Backplane Clock Frequency Select 1. See

Table 4-J

for details.

BPCS0

CCR5.6

Backplane Clock Frequency Select 0. See

Table 4-J

for details.

MM1

CCR5.5

Monitor Mode Gain Select 1 (

Table 4-K.

)

MM0

CCR5.4

Monitor Mode Gain Select 0. See (

Table 4-K.

RSCLKE CCR5.3

Receive Synchronization Clock Enable
0 = disable 2.048MHz synchronization receive mode
1 = enable 2.048MHz synchronization receive mode

TSCLKE CCR5.2

Transmit Synchronization Clock Enable
0 = disable 2.048MHz transmit synchronization clock
1 = enable 2.048MHz transmit synchronization clock

RT1

CCR5.1

Receive Termination Select 1. See

Table 4-L

for details.

RT0

CCR5.0

Receive Termination Select 0. See

Table 4-L

for details.

Table 4-J. Backplane Clock Select

BPCS1

(CCR5.7)

BPCS0

(CCR5.6)

BPCLK FREQUENCY (MHz)

0 0

16.384

0 1

8.192

1 0

4.096

1 1

2.048

Table 4-K. Monitor Gain Settings

MM1

(CCR5.5)

MM0

(CCR5.4)

INTERNAL LINEAR GAIN

BOOST (dB)

Normal operation (no boost)

0 1

1 0

1 1

Table 4-L. Internal Rx Termination Select

RT1

(CCR5.1)

RT0

(CCR5.0)

INTERNAL RECEIVE

TERMINATION CONFIGURATION

Internal receive-side termination disabled

0 1 Internal receive-side 120

W enabled

1 0 Internal receive-side 100

W enabled

1 1 Internal receive-side 75

W enabled

DS21448 3.3V T1/E1/J1 Quad Line Interface

23 of 60

CCR6 (05H): Common Control Register 6

(MSB)

(LSB)

LLB RLB

ARLBE

ALB RJAB

ECRS2

ECRS1

ECRS0

NAME POSITION

FUNCTION

LLB CCR6.7

Local Loopback. In local loopback, transmit data is looped back to the receive path, passing
through the jitter attenuator if it is enabled. Data in the transmit path acts as normal. See
Section

6.2

for details.

0 = loopback disabled
1 = loopback enabled

RLB CCR6.6

Remote Loopback. In remote loopback, data output from the clock/data recovery circuitry is
looped back to the transmit path, passing through the jitter attenuator if it is enabled. Data in
the receive path acts as normal, while data presented at TPOS and TNEG is ignored. See
Section

6.2

for details.

0 = loopback disabled
1 = loopback enabled

ARLBE CCR6.5

Automatic Remote Loopback Enable and Reset. When this bit is set high, the device
automatically goes into remote loopback when it detects loop-up code programmed into the
receive loop-up code definition registers (RUPCD1 and RUPCD2) for a minimum of 5
seconds; it also sets the RIR2.1 status bit. Once it is in an RLB state, the bit remains in this
state until it has detected the loop code programmed into the receive loop-down code
definition registers (RDNCD1 and RDNCD2) for a minimum of 5 seconds, at which point it
forces the device out of RLB and clears RIR2.1. Toggling this bit from 1 to 0 resets the
automatic RLB circuitry. The action of the automatic remote loopback circuitry is logically
ORed with the RLB (CCR6.6) control bit (i.e., either one can cause a RLB to occur).

ALB CCR6.4

Analog Loopback. In analog loopback, signals at TTIP and TRING are internally connected to
RTIP and RRING. The incoming line signals at RTIP and RRING are ignored. The signals at
TTIP and TRING are transmitted as normal. See Section

6.2

for more details.

0 = loopback disabled
1 = loopback enabled

RJAB CCR6.3

RCLK Jitter Attenuator Bypass. This control bit allows the receive-recovered clock and data to
bypass the jitter attenuation, while still allowing the BPCLK output to use the jitter attenuator.
See Section

7.3

for details.

0 = disabled
1 = enabled

ECRS2

CCR6.2

Error Count Register Select 2. See Section

6.4

for details.

ECRS1

CCR6.1

Error Count Register Select 1. See Section

6.4

for details.

ECRS0

CCR6.0

Error Count Register Select 0. See Section

6.4

for details.

5. STATUS REGISTERS

The three registers that contain information about the device's real-time status are the status register (SR) and
receive information registers 1 and 2 (RIR1/RIR2). When a particular event has occurred (or is occurring), the
appropriate bit in one of these registers is set to 1. Some bits in SR, RIR1, and RIR2 are latched bits and some are
real-time bits (denoted in the following register descriptions). For latched status bits, when an event or an alarm
occurs, the bit is set to 1 and remains set until the user reads that bit. The bit is cleared when it is read, and it is not
set until the event has occurred again. Two of the latched status bits (RUA1 and RCL) remain set after reading if
the alarm is still present.

The user always precedes a read of any of the three status registers with a write. The byte written to the register
informs the DS21448 which bits the user wishes to read and have cleared. The user writes a byte to one of these
registers with a 1 in the bit positions to be read and a 0 in the other bit positions. When a 1 is written to a bit
location, that location is updated with the latest information. When a 0 is written to a bit position, that bit position is
not updated, and the previous value is held. A write to the status and information registers is immediately followed
by a read of the same register. The read result should be logically ANDed with the mask byte that was just written,
and this value should be written back into the same register to ensure that bit does indeed clear. This second write
step is necessary because the alarms and events in the status registers occur asynchronously with respect to their
access through the parallel port. This write-read-write scheme allows an external microcontroller or microprocessor
to individually poll certain bits without disturbing the other bits in the register. This operation is key in controlling the
DS21448 with higher-order software languages.

DS21448 3.3V T1/E1/J1 Quad Line Interface

24 of 60

The bits in the SR register have the unique ability to initiate a hardware interrupt through the

INT output pin. Each

of the alarms and events in the SR can be either masked or unmasked from the interrupt pin through the interrupt
mask register (IMR). The interrupts caused by the RCL, RUA1, and LOTC bits in the SR act differently than the
interrupts caused by the other status bits in the SR. The RCL, RUA1, and LOTC bits forces the

INT pin low

whenever they change state (i.e., go active or inactive). The

INT pin is allowed to return high (if no other interrupts

are present) when the user reads the alarm bit that caused the interrupt to occur, even if the alarm is still present.
The other status bits in the SR can force the

INT pin low when they are set. The INT pin is allowed to return high (if

no other interrupts are present) when the user reads the event bit that caused the interrupt to occur.

The host can quickly determine which of the four LIU channels is generating an interrupt by reading one of the
unused addresses in the 16h1Fh range in any LIU channel. See the following LIU channel interrupt status
description for additional information.

LIU Channel Interrupt Status

(MSB)

(LSB)

-- -- -- --

LIU4

LIU3

LIU2

LIU1

NAME POSITION

FUNCTION

N/A

Not Assigned. Could be any value when read.

N/A

Not Assigned. Could be any value when read.

N/A

Not Assigned. Could be any value when read.

N/A

Not Assigned. Could be any value when read.

LIU4 3

LIU4 Status Register. A 1 in this bit position indicates that the status register (SR) in channel 4 is
asserting an interrupt.

LIU3 2

LIU3 Status Register. A 1 in this bit position indicates that the status register (SR) in channel 3 is
asserting an interrupt.

LIU2 1

LIU2 Status Register. A 1 in this bit position indicates that the status register (SR) in channel 2 is
asserting an interrupt.

LIU1 0

LIU1 Status Register. A 1 in this bit position indicates that the status register (SR) in channel 1 is
asserting an interrupt.

SR (06H): Status Register

(MSB)

(LSB)

LUP LDN LOTC RUA1 RCL TCLE TOCD

PRBSD

NAME POSITION

FUNCTION

LUP

(Latched)

SR.7

Loop-Up Code Detected. This bit is set when the loop-up code defined in registers RUPCD1 and
RUPCD2 is being received. See Section

6.1

for details.

LDN

(Latched)

SR.6

Loop-Down Code Detected. This bit is set when the loop-down code defined in registers
RDNCD1 and RDNCD2 is being received. See Section

6.1

for details.

LOTC

(Real Time)

SR.5

Loss-of-Transmit Clock. This bit is set when the TCLK pin has not transitioned for 5

ms (±2ms),

forcing the LOTC pin high.

RUA1

(Latched)

SR.4

Receive Unframed All Ones. This bit is set when an unframed all-ones code is received at RRING
and RTIP (

Table 5-A

RCL

(Latched)

SR.3

Receive Carrier Loss. This bit is set when an RCL condition exists at RRING and RTIP. See
(

Table 5-A

) for details.

TCLE

(Real Time)

SR.2

Transmit Current-Limit Exceeded. This bit is set when the 50mA (RMS) current limiter is activated
whether or not the current limiter is enabled.

TOCD

(Real Time)

SR.1

Transmit Open-Circuit Detect. This bit is set when the device detects that the TTIP and TRING
outputs are open circuited.

PRBSD

(Real Time)

SR.0

PRBS Detect. This bit is set when the receive side detects a 2

- 1 (E1) or a QRSS (T1)

pseudorandom bit sequence (PRBS).

DS21448 3.3V T1/E1/J1 Quad Line Interface

25 of 60

Table 5-A. Received Alarm Criteria

ALARM

E1/T1

SET CRITERIA

CLEAR CRITERIA

RUA1

Fewer than two 0s in two frames (512 bits)

More than two 0s in two frames (512 bits)

RUA1 T1

Over a 3ms window, five or fewer 0s are
received.

Over a 3ms window, six or more 0s are
received.

RCL

(Note 1)

255 (or 2048) consecutive 0s received
(G.775) (Note 2)

In 255-bit times, at least 32 1s are
received.

RCL

(Note 1)

192 (or 1544) consecutive 0s are received
(Note 2)

14 or more 1s out of 112 possible bit
positions are received, starting with the
first 1 received.

Note 1: RCL is also known as a loss of signal (LOS) or Red Alarm in T1.
Note 2: See CCR1.5 for details.

IMR (07H): Interrupt Mask Register

(MSB)

(LSB)

LUP LDN LOTC RUA1 RCL TCLE TOCD

PRBSD

NAME POSITION

FUNCTION

LUP IMR.7

Loop-Up Code Detected
0 = interrupt masked
1 = interrupt enabled

LDN IMR.6

Loop-Down Code Detected
0 = interrupt masked
1 = interrupt enabled

LOTC IMR.5

Loss-of-Transmit Clock
0 = interrupt masked
1 = interrupt enabled

RUA1 IMR.4

Receive Unframed All Ones
0 = interrupt masked
1 = interrupt enabled

RCL IMR.3

Receive Carrier Loss
0 = interrupt masked
1 = interrupt enabled

TCLE IMR.2

Transmit Current-Limiter Exceeded
0 = interrupt masked
1 = interrupt enabled

TOCD IMR.1

Transmit Open-Circuit Detect
0 = interrupt masked
1 = interrupt enabled

PRBSD IMR.0

PRBS Detection
0 = interrupt masked
1 = interrupt enabled

DS21448 3.3V T1/E1/J1 Quad Line Interface

26 of 60

RIR1 (08H): Receive Information Register 1

(MSB)

(LSB)

ZD 16ZD HBD RCLC

RUA1C

JALT -- --

NAME POSITION

FUNCTION

(Latched)

RIR1.7

Zero Detect. This bit is set when a string of at least four (ETS = 0) or eight (ETS = 1)
consecutive 0s (regardless of the length of the string) have been received. This bit is cleared
when read.

16ZD

(latched)

RIR1.6

16 Zero Detect. This is set when at least 16 consecutive 0s (regardless of the length of the
string) have been received. This bit is cleared when read.

HBD

(Latched)

RIR1.5

HDB3/B8ZS Word Detect. This is set when an HDB3 (ETS = 0) or B8ZS (ETS = 1) codeword
is detected independently of the receive HDB3/B8ZS mode (CCR4.6) being enabled. This bit
is cleared when read. It is useful for automatically setting the line coding.

RCLC

(Latched)

RIR1.4

RCL Clear. Set when the RCL alarm has met the clear criteria defined in

Table 5-A

. This bit

is cleared when read.

RUA1C

(Latched)

RIR1.3

Receive Unframed All-Ones Clear. This bit is set when the unframed all-ones signal is no
longer detected. This bit is cleared when read (

Table 5-A

JALT

(Latched)

RIR1.2

Jitter Attenuator Limit Trip. This bit is set when the jitter attenuator FIFO reaches within 4 bits
of its useful limit. This bit is cleared when read and is useful for debugging jitter attenuation
operation.

N/A

RIR1.1

Not Assigned. Could be any value when read.

N/A

RIR1.0

Not Assigned. Could be any value when read.

RIR2 (09H): Receive Information Register 2

(MSB)

(LSB)

RL3 RL2 RL1 RL0 -- -- ARLB SEC

NAME POSITION

FUNCTION

RL3

(Real Time)

RIR2.7

Receive Level Bit 3 (

Table 5-B

)

RL2

(Real Time)

RIR2.6

Receive Level Bit 2

(

Table 5-B

)

RL1

(Real Time)

RIR2.5

Receive Level Bit 1 (

Table 5-B

)

RL0

(Real Time)

RIR2.4

Receive Level Bit 0

(

Table 5-B

)

N/A

RIR2.3

Not Assigned. Could be any value when read.

N/A

RIR2.2

Not Assigned. Could be any value when read.

ARLB

(Real Time)

RIR2.1

Automatic Remote Loopback Detected. This bit is set to 1 when the automatic remote
loopback circuitry has detected the presence of a loop-up code for 5 seconds. It remains set
until the automatic RLB circuitry has detected the loop-down code for 5 seconds. See
Section

for more details. This bit is forced low when the automatic RLB circuitry is

disabled (CCR6.5 = 0).

SEC

(Latched)

RIR2.0

One-Second Timer. This bit is set to 1 on one-second boundaries as timed by the device,
based on the RCLK. It is cleared when read.

DS21448 3.3V T1/E1/J1 Quad Line Interface

27 of 60

Table 5-B. Receive Level Indication

1 0 0 0 -20.0

-22.5

1 0 0 1 -22.5

-25.0

1 0 1 0 -25.0

-27.5

1 0 1 1 -27.5

-30.0

1 1 0 0 -30.0

-32.5

1 1 0 1 -32.5

-35.0

1 1 1 0 -35.0

-37.5

1 1 1 1 -37.5

-40.0

6. DIAGNOSTICS

6.1 In-Band Loop-Code Generation and Detection

The DS21448 can generate and detect a repeating bit pattern from 1 to 8 or 16 bits in length. To transmit a pattern,
the user loads the pattern into the transmit code definition (TCD1 and TCD2) registers and selects the proper
length of the pattern by setting the TC0 and TC1 bits in the in-band code control (IBCC) register. When generating
a 1-, 2-, 4-, 8-, or 16-bit pattern, the transmit code registers (TCD1 and TCD2) must be filled with the proper code.
Generation of a 1-, 3-, 5-, or 7-bit pattern only requires TCD1 to be filled. Once this is accomplished, the pattern is
transmitted, as long as the TLCE control bit (CCR3.3) is enabled. For example, if the user wished to transmit the
standard loop-up code for CSUs, which is a repeating pattern of ...10000100001..., then 80h would be loaded into
TCD1, and the length would set using TC1 and TC0 in the IBCC register to 5 bits.

The DS21448 can detect two separate repeating patterns to allow for a loop-up code and a loop-down code to be
detected. The user programs the codes in the receive-up code definition (RUPCD1 and RUPCD2) registers and the
receive-down code definition (RDNCD1 and RDNCD2) registers; the length of each pattern is selected through the
IBCC register. The DS21448 detects repeating pattern codes with bit-error rates as high as 1 x 10

-2

. The code

detector has a nominal integration period of 48ms, so after approximately 48ms of receiving either code, the proper
status bit (LUP at SR.7 and LDN at SR.6) is set to 1. Normally codes are sent for a period of 5 seconds. It is
recommended that the software poll the DS21448 every 100ms to 1000ms until 5 seconds has elapsed to ensure
the code is continuously present.

RL3 RL2 RL1 RL0

RECEIVE

LEVEL

(dB)

0 0 0 0 Greater

than

-2.5

0 0 0 1

-2.5

-5.0

0 0 1 0

-5.0

-7.5

0 0 1 1 -7.5

-10.0

0 1 0 0 -10.0

-12.5

0 1 0 1 -12.5

-15.0

0 1 1 0 -15.0

-17.5

0 1 1 1 -17.5

-20.0

DS21448 3.3V T1/E1/J1 Quad Line Interface

29 of 60

Table 6-A. Transmit Code Length

TC1 TC0

LENGTH SELECTED

(BITS)

0 0

0 1

6/3

1 0

1 1

16/8/4/2/1

Table 6-B. Receive Code Length

RUP2/RDN2 RUP1/RDN1 RUP0/RDN0

LENGTH SELECTED

(BITS)

0 0 0

0 0 1

0 1 0

0 1 1

1 0 0

1 0 1

1 1 0

1 1 1

16/8

TCD1 (0BH): Transmit Code Definition Register 1

(MSB)

(LSB)

C7 C6 C5 C4 C3 C2 C1 C0

NAME POSITION

FUNCTION

TCD1.7

Transmit Code Definition Bit 7. First bit of the repeating pattern.

TCD1.6

Transmit Code Definition Bit 6

TCD1.5

Transmit Code Definition Bit 5

TCD1.4

Transmit Code Definition Bit 4

TCD1.3

Transmit Code Definition Bit 3

TCD1.2

Transmit Code Definition Bit 2. A don't care if a 5-bit length is selected.

TCD1.1

Transmit Code Definition Bit 1. A don't care if a 5-bit or 6-bit length is selected.

TCD1.0

Transmit Code Definition Bit 0. A don't care if a 5-, 6-, or 7-bit length is selected.

TCD2 (0CH): Transmit Code Definition Register 2

(MSB)

(LSB)

C15 C14 C13 C12 C11 C10 C9 C8

NAME POSITION

FUNCTION

C15

TCD2.7

Transmit Code Definition Bit 15

C14

TCD2.6

Transmit Code Definition Bit 14

C13

TCD2.5

Transmit Code Definition Bit 13

C12

TCD2.4

Transmit Code Definition Bit 12

C11

TCD2.3

Transmit Code Definition Bit 11

C10

TCD2.2

Transmit Code Definition Bit 10

TCD2.1

Transmit Code Definition Bit 9

TCD2.0

Transmit Code Definition Bit 8

DS21448 3.3V T1/E1/J1 Quad Line Interface

30 of 60

RUPCD1 (0DH): Receive-Up Code Definition Register 1

(MSB)

(LSB)

C7 C6 C5 C4 C3 C2 C1 C0

NAME POSITION

FUNCTION

RUPCD1.7

Receive-Up Code Definition Bit 7. First bit of the repeating pattern.

RUPCD1.6

Receive-Up Code Definition Bit 6. A don't care if a 1-bit length is selected.

RUPCD1.5

Receive-Up Code Definition Bit 5. A don't care if a 1-bit or 2-bit length is selected.

RUPCD1.4

Receive-Up Code Definition Bit 4. A don't care if a 1-bit to 3-bit length is selected.

RUPCD1.3

Receive-Up Code Definition Bit 3. A don't care if a 1-bit to 4-bit length is selected.

RUPCD1.2

Receive-Up Code Definition Bit 2. A don't care if a 1-bit to 5-bit length is selected.

RUPCD1.1

Receive-Up Code Definition Bit 1. A don't care if a 1-bit to 6-bit length is selected.

RUPCD1.0

Receive-Up Code Definition Bit 0. A don't care if a 1-bit to 7-bit length is selected.

RUPCD2 (0EH): Receive-Up Code Definition Register 2

(MSB)

(LSB)

C15 C14 C13 C12 C11 C10 C9 C8

NAME POSITION

FUNCTION

C15

RUPCD2.7

Receive-Up Code Definition Bit 15

C14

RUPCD2.6

Receive-Up Code Definition Bit 14

C13

RUPCD2.5

Receive-Up Code Definition Bit 13

C12

RUPCD2.4

Receive-Up Code Definition Bit 12

C11

RUPCD2.3

Receive-Up Code Definition Bit 11

C10

RUPCD2.2

Receive-Up Code Definition Bit 10

RUPCD2.1

Receive-Up Code Definition Bit 9

RUPCD2.0

Receive-Up Code Definition Bit 8

RDNCD1 (0FH): Receive-Down Code Definition Register 1

(MSB)

(LSB)

C7 C6 C5 C4 C3 C2 C1 C0

NAME POSITION

FUNCTION

C7 RDNCD1.7

Receive-Down Code Definition Bit 7. First bit of the repeating pattern.

RDNCD1.6

Receive-Down Code Definition Bit 6. A don't care if a 1-bit length is selected.

C5 RDNCD1.5

Receive-Down

Code Definition Bit 5. A don't care if a 1-bit or 2-bit length is selected.

C4 RDNCD1.4

Receive-Down

Code Definition Bit 4. A don't care if a 1-bit to 3-bit length is selected.

C3 RDNCD1.3

Receive-Down

Code Definition Bit 3. A don't care if a 1-bit to 4-bit length is selected.

C2 RDNCD1.2

Receive-Down

Code Definition Bit 2. A don't care if a 1-bit to 5-bit length is selected.

C1 RDNCD1.1

Receive-Down

Code Definition Bit 1. A don't care if a 1-bit to 6-bit length is selected.

C0 RDNCD1.0

Receive-Down Code Definition Bit 0. A don't care if a 1-bit to 7-bit length is selected.

RDNCD2 (10H): Receive-Down Code Definition Register 2

(MSB)

(LSB)

C15 C14 C13 C12 C11 C10 C9 C8

NAME POSITION

FUNCTION

C15 RDNCD2.7

Receive-Down Code Definition Bit 15

C14 RDNCD2.6

Receive-Down Code Definition Bit 14

C13 RDNCD2.5

Receive-Down Code Definition Bit 13

C12 RDNCD2.4

Receive-Down Code Definition Bit 12

C11 RDNCD2.3

Receive-Down Code Definition Bit 11

C10 RDNCD2.2

Receive-Down Code Definition Bit 10

C9 RDNCD2.1

Receive-Down Code Definition Bit 9

C8 RDNCD2.0

Receive-Down Code Definition Bit 8

DS21448 3.3V T1/E1/J1 Quad Line Interface

31 of 60

6.2 Loopbacks

6.2.1 Remote Loopback (RLB)

When RLB (CCR6.6) is enabled, the DS21448 is placed into remote loopback. In this loopback, data from the
clock/data recovery state machine is looped back to the transmit path, passing through the jitter attenuator if it is
enabled. The data at the RPOS and RNEG pins is valid, while data presented at TPOS and TNEG is ignored. See

Figure 1-1

for more details.

If the automatic RLB enable (CCR6.5) is set to 1, the DS21448 automatically goes into remote loopback when it
detects the loop-up code programmed in the receive-up code definition registers (RUPCD1 and RUPCD2) for a
minimum of 5 seconds. When the DS21448 detects the loop-down code programmed in the receive loop-down
code definition registers (RDNCD1 and RDNCD2) for a minimum of 5 seconds, the DS21448 comes out of remote
loopback. Setting ARLBE to 0 can also disable the ARLB.

6.2.2 Local Loopback (LLB)

When LLB (CCR6.7) is set to 1, the DS21448 is placed into local loopback. In this loopback, data on the transmit
side is transmitted as normal. TCLK and TPOS/TNEG pass through the jitter attenuator (if enabled) and are output
at RCLK and RPOS/RNEG. Incoming data from the line at RTIP and RRING is ignored. If transmit unframed all
ones (CCR3.7) is set to 1 while in LLB, TTIP and TRING transmit all ones while TCLK and TPOS/TNEG are looped
back to RCLK and RPOS/RNEG. See

Figure 1-1

for more details.

6.2.3 Analog Loopback (LLB)

Setting ALB (CCR6.4) to 1 puts the DS21448 in analog loopback. Signals at TTIP and TRING are internally
connected to RTIP and RRING. The incoming signals at RTIP and RRING are ignored. The signals at TTIP and
TRING are transmitted as normal. See

Figure 1-1

for more details.

6.2.4 Dual

Loopback

(DLB)

Setting CCR6.7 and CCR6.6 (LLB and RLB, respectively) to 1 puts the DS21448 into dual loopback operation. The
TCLK and TPOS/TNEG signals are looped back through the jitter attenuator (if enabled) and output at RCLK and
RPOS/RNEG. Clock and data recovered from RTIP and RRING are looped back to the transmit side and output at
TTIP and TRING. This mode of operation is not available when implementing hardware operation. See

Figure 1-1

more details.

6.3 PRBS Generation and Detection

Setting TPRBSE (CCR3.4) = 1 enables the DS21448 to transmit a 2

- 1 (E1) or a QRSS (T1) PRBS, depending

on the ETS bit setting in CCR1.7. The DS21448's receive side always searches for these PRBS patterns
independently of CCR3.4. The PRBS bit-error output (PBEO) remains high until the receiver has synchronized to
one of the two patterns (64 bits received without an error), at which time PBEO goes low, and the PRBSD bit in the
SR is set. Once synchronized, any bit errors received cause a positive-going pulse at PBEO, synchronous with
RCLK. This output can be used with external circuitry track bit-error rates during the PRBS testing. Setting CCR6.2
(ECRS2) = 1 allows the PRBS errors to be accumulated in the 16-bit counter in registers ECR1 and ECR2. The
PRBS synchronizer remains in sync until it experiences six bit errors or more within a 64-bit span. Both PRBS
patterns comply with the ITU-T O.151 specifications.

6.4 Error

Counter

Error count register 1 (ECR1) is the most significant word and ECR2 is the least significant word of a user-
selectable 16-bit counter that records incoming errors, including BPVs, code violations (CVs), excessive zero
violations (EXZs), and/or PRBS errors. See

Table 6-C

Table 6-D

, and

Figure 1-2

for details.

DS21448 3.3V T1/E1/J1 Quad Line Interface

32 of 60

Table 6-C. Definition of Received Errors

ERROR

E1 OR T1

DEFINITION OF RECEIVED ERRORS

BPV E1/T1

Two consecutive marks with the same polarity. Ignores BPVs because of HDB3 and B8ZS zero
suppression when CCR2.3 = 0. Typically used with AMI coding (CCR2.3 = 1). ITU-T O.161.

CV E1

When HDB3 is enabled (CCR2.3 = 0) and the receiver detects two consecutive BPVs with the same
polarity. ITU-T O.161.

EXZ

When four or more consecutive zeros are detected.
When receiving AMI-coded signals (CCR2.3 = 1), detection of 16 or more 0s or a BPV. ANSI T1.403
1999.

EXZ T1

When receiving B8ZS-coded signals (CCR2.3 = 0), detection of eight or more 0s or a BPV. ANSI
T1.403 1999.

PRBS

E1/T1

A bit error in a received PRBS pattern. See Section

6.3

for details. ITU-T O.151.

Table 6-D. Function of ECRS Bits and RNEG Pin

E1 or T1

(CCR1.7)

ECRS2

(CCR6.2)

ECRS1

(CCR6.1)

ECRS0

(CCR6.0)

RHBE

(CCR2.3)

FUNCTION OF ECR COUNTERS/RNEG

(Note 1)

0 0 0 0 X

CVs

0 0 0 1 X BPVs

(HDB3

codewords

not

counted)

0 0 1 0 X

CVs

EXZs

0 0 1 1 X

BPVs

EXZs

1 0 X 0 0 BPVs

(B8ZS

codewords

not

counted)

BPVs + 8 EXZs

1 0 X 0 1

BPVs

BPVs + 16 EXZs

PRBS Errors (Note 2)

Note 1: RNEG outputs error data only when in NRZ mode (CCR1.6 = 1).
Note 2: PRBS errors are always output at PBEO, independent of ECR control bits and NRZ mode, and are not present at RNEG.

6.5 Error Counter Update

A 0-to-1 transition of the ECUE (CCR1.4) control bit updates the ECR registers with the current values and resets
the counters. ECUE must be set back to 0 and another 0-to-1 transition must occur for subsequent reads/resets of
the ECR registers. Note that the DS21448 can report errors at RNEG when in NRZ mode (CCR1.6 = 1) by
outputting a pulse for each error occurrence. The counter saturates at 65,535 and does not roll over.

ECR1 (11H): Upper Error Count Register 1/ECR2 (12H): Lower Error Count Register 2

(MSB)

(LSB)

E15 E14 E13 E12 E11 E10 E9 E8 ECR1

E7 E6 E5 E4 E3 E2 E1 E0

ECR2

NAME POSITION

FUNCTION

E15

ECR1.7

MSB of the 16-bit error count.

ECR2.0

LSB of the 16-bit error count.

6.6 Error

Insertion

When IBPV (CCR3.1) is transitioned from 0 to 1, the device waits for the next occurrence of three consecutive 1s
to insert a BPV. IBPV must be cleared and set again for another BPV error insertion. See

Figure 1-3

for details on

the insertion of the BPV into the data stream.

When IBE (CCR3.0) is transitioned from 0 to 1, the device inserts a logic error. IBE must be cleared and set again
for another logic error insertion. See

Figure 1-2

and

Figure 1-3

for details about the logic error insertion into the

data steam.

DS21448 3.3V T1/E1/J1 Quad Line Interface

33 of 60

7. ANALOG INTERFACE

7.1 Receiver

The DS21448 contains a digital clock recovery system. The DS21448 couples to the receive E1 or T1 twisted pair
(or coaxial cable in 75

W E1 applications) through a 1:1 transformer. See

Table 7-C

for transformer details.

Figure 7-1

Figure 7-2

Figure 7-3

, and

Table 4-L

show the receive termination requirements. The DS21448 has the

option of using internal termination resistors.

The DS21448 is designed to be fully software selectable for E1 and T1 without the need to change any external
resistors for the receive side. The receive side allows user configuration for 75

W, 100W, or 120W receive

termination by setting the RT1 (CCR5.1) and RT0 (CCR5.0) bits. When using the internal termination feature, the
R

resistors should be 60

W each. See

Figure 7-1

for details. If external termination is required, RT1 and RT0 should

be set to 0, and both R

resistors (

Figure 7-1

) should be 37.5

W, 50W, or 60W each, depending on the line

impedance.

The resultant E1 or T1 clock derived from the 2.048/1.544 PLL (JACLK in

Figure 1-1

) is internally multiplied by 16

through another internal PLL and fed to the clock recovery system. The clock recovery system uses the clock from
the PLL circuit to form a 16-times oversampler used to recover the clock and data. This oversampling technique
offers outstanding performance to meet jitter tolerance specifications, as shown in

Figure 7-7

Normally, the clock that is output at the RCLK pin is the recovered clock from the E1 AMI/HDB3 or T1 AMI/B8ZS
waveform presented at the RTIP and RRING inputs. When no signal is present at RTIP and RRING, an RCL
condition occurs, and the RCLK is derived from the JACLK source. See

Figure 1-1

for more details. If the jitter

attenuator is placed in the receive path (as is the case in most applications), the jitter attenuator restores the RCLK
to an approximate 50% duty cycle. If the jitter attenuator is either placed in the transmit path or is disabled, the
RCLK output can exhibit slightly shorter high cycles of the clock. This is because of the highly oversampled digital
clock recovery circuitry. See the receive-side AC timing characteristics in Section

for more details.

The receive-side circuitry also contains a clock synthesizer that outputs a user-configurable clock (up to
16.384MHz) synthesized from RCLK at BPCLK (pin 31). See

Table 4-J

for details about output clock frequencies at

BPCLK. In hardware mode, BPCLK defaults to a 16.384MHz output.

The DS21448 has a bypass mode for the receive-side clock and data. This allows the BPCLK to be derived from
RCLK after the jitter attenuator, while the clock and data presented at RCLK, RPOS, and RNEG go unaltered. This
is intended for applications where the receive-side jitter attenuation is done after the LIU. Setting RJAB (CCR6.3) to
logic 1 enables the bypass. Ensure the jitter attenuator is in the receive path (CCR4.3 = 0). See

Figure 1-1

for more

details.

The DS21448 reports the signal strength at RTIP and RRING in 2.5dB increments through RL3RL0 located in the
receive information register 2. This feature is helpful when troubleshooting line performance problems (

Table 5-B

E1 and T1 monitor applications require various flat-gain settings for the receive-side circuitry. The DS21448 can be
programmed to support these applications through the monitor mode control bits MM1 and MM0. When the monitor
modes are enabled, the receiver tolerates normal line loss up to -6dB (

Table 4-K

7.2 Transmitter

The DS21448 uses a set of laser-trimmed delay lines with a precision digital-to-analog converter (DAC) to create
the waveforms that are transmitted onto the E1 or T1 line. The waveforms meet the latest ETSI, ITU, ANSI, and
AT&T specifications. The user selects which waveform to generate by setting the ETS bit (CCR1.7) for E1 or T1
operation, then programming the L2/L1/L0 bits in common control register 4 for the appropriate application. See

Table 7-A

and

Table 7-B

for the proper L2/L1/L0 settings.

A 2.048MHz or 1.544MHz TTL clock is required at TCLK for transmitting data at TPOS and TNEG. ITU
specification G.703 requires ±50ppm accuracy for T1 and E1. TR62411 and ANSI specs require ±32ppm accuracy
for T1 interfaces. The clock can be sourced internally by RCLK or JACLK. See CCR1.2, CCR1.1, CCR1.0, and

Figure 1-3

for details. Because of the transmitter's design, very little jitter (less than 0.005UI

P-P

broadband from

DS21448 3.3V T1/E1/J1 Quad Line Interface

34 of 60

10Hz to 100kHz) is added to the jitter present on TCLK. Also, the waveforms created are independent of the duty
cycle of TCLK. The transmitter couples to the E1 or T1 transmit-twisted pair (or coaxial cable in some E1
applications) through a 1:2 step-up transformer. For the device to create the proper waveforms, the transformer
used must meet the specifications listed in

Table 7-C

The DS21448 has an automatic short-circuit limiter that limits the source current to 50mA (RMS) into a 1 load.
This feature can be disabled by setting the SCLD bit (CCR2.5) = 1. When the current limiter is activated, TCLE
(SR.2) is set even if the short-circuit limiter is disabled. The TPD bit (CCR4.0) powers down the transmit-line driver
and tri-states the TTIP and TRING pins. The DS21448 can also detect when the TTIP or TRING outputs are open
circuited. When an open circuit is detected, TOCD (SR.1) is set.

7.3 Jitter

Attenuator

The DS21448 contains an on-board jitter attenuator that can be set to a depth of either 32 or 128 bits through the
JABDS bit (CCR4.2). The 128-bit mode is used in applications where large excursions of wander are expected.
The 32-bit mode is used in delay-sensitive applications.

Figure 7-8

shows the attenuation characteristics. The jitter

attenuator can be placed in either the receive path or the transmit path by appropriately setting or clearing the JAS
bit (CCR4.3). Also, setting the DJA bit (CCR4.1) can disable the jitter attenuator (in effect, remove it). For the jitter
attenuator to operate properly, a 2.048MHz or 1.544MHz clock must be applied at MCLK. ITU specification G.703
requires ±50ppm accuracy for T1 and E1. TR62411 and ANSI specs require ±32ppm accuracy for T1 interfaces.
An on-board PLL for the jitter attenuator converts the 2.048MHz clock to a 1.544MHz rate for T1 applications.
Setting JAMUX (CCR1.3) to logic 0 bypasses this PLL. On-board circuitry adjusts either the recovered clock from
the clock/data recovery block or the clock applied at the TCLK pin to create a smooth jitter-free clock, which is used
to clock data out of the jitter attenuator FIFO. It is acceptable to provide a gapped/bursty clock at the TCLK pin if
the jitter attenuator is placed on the transmit side. If the incoming jitter exceeds either 120UI

P-P

(buffer depth is 128

bits) or 28UI

P-P

(buffer depth is 32 bits), the DS21448 divides the internal nominal 32.768MHz (E1) or 24.704MHz

(T1) clock by either 15 or 17 instead of the normal 16 to keep the buffer from overflowing. When the device divides
by either 15 or 17, it also sets the JALT bit in the receive information register 1 (RIR1).

7.4 G.703 Synchronization Signal

The DS21448 can receive a 2.048MHz square-wave synchronization clock, as specified in Section 10 of ITU
G.703. To use the DS21448 in this mode, set the receive-synchronization-clock enable (CCR5.3) = 1. The
DS21448 can also transmit the 2.048MHz square-wave synchronization clock, as specified in Section 10 of G.703.
To transmit the 2.048MHz clock, set the transmit-synchronization-clock enable (CCR5.2) = 1.

Table 7-A. Line Build-Out Select for E1 in Register CCR4 (ETS = 0)

L2 L1 L0

APPLICATION

N RETURN

LOSS R

(

0 0 0

W normal

1:2 N.M.

0 0 1

120

W normal

1:2 N.M.

1 0 0

W with high return loss

1:2 21dB 6.2

1 0 1

120

W with high return loss

1:2 21dB 11.6

Table 7-B. Line Build-Out Select for T1 in Register CCR4 (ETS = 1)

L2 L1 L0

APPLICATION

N RETURN

LOSS R

(

DSX-1 (0 to 133ft)/0dB CSU

1:2

N.M.

DSX-1 (133 to 266f)

1:2

N.M.

DSX-1 (266 to 399ft)

1:2

N.M.

DSX-1 (399 to 533ft)

1:2

N.M.

DSX-1 (533 to 655ft)

1:2

N.M.

1 0 1

-7.5dB

CSU

1:2

N.M.

1 1 0

-15dB

CSU

1:2

N.M.

1 1 1

-22.5dB

CSU

1:2

N.M.

Note: See

Figure 7-1

Figure 7-2

, and

Figure 7-3

N.M. = Not meaningful.

DS21448 3.3V T1/E1/J1 Quad Line Interface

39 of 60

Figure 7-4. Dual Connector-Protected Interface Using Receive Termination

TTIP

TRING

RTIP

RRING

Dallas

Semiconductor

DS21448

0.01

0.1

1.0

MCLK

2.048MHz (THIS CAN ALSO
BE 1.544MHz FOR T1 ONLY
OPERATION)

0.1

FUSE

BALANCED LINE
(100

W/120W)

UNBALANCED
LINE (75

FUSE

0.22

FUSE

0.22

0.8:1:1CT

51.1

BALANCED LINE
(100

W/120W)

UNBALANCED
LINE (75

1:1

0.8:1

1.6:1

2:1

0.8:1:1CT

NOTE 1:

REFER TO APPLICATION NOTE 384 FOR A COMPLETE DISCUSSION OF THIS CIRCUIT.

NOTE 2:

ALL RESISTOR VALUES ARE ±1%.

NOTE 3:

THE FUSES ARE OPTIONAL TO PREVENT AC POWER LINE CROSSES FROM COMPROMISING THE TRANSFORMERS.

NOTE 4:

S IS A SIDACTOR.

NOTE 5:

THE R

RESISTORS ARE USED TO INCREASE THE TRANSMITTER RETURN LOSS (

Table 7-C

)

NO RETURN LOSS IS REQUIRED

FOR T1 APPLICATIONS.

NOTE 6:

THE 68

mF IS USED TO KEEP THE LOCAL POWER PLANE POTENTIAL WITHIN TOLERANCE DURING A SURGE.

DS21448 3.3V T1/E1/J1 Quad Line Interface

43 of 60

8. JTAG BOUNDARY SCAN ARCHITECTURE AND TEST ACCESS PORT

The DS21448 IEEE 1149.1 design supports the standard instruction codes SAMPLE/PRELOAD, BYPASS, and
EXTEST. Optional public instructions included are HIGHZ, CLAMP, and IDCODE (

Table 8-A

). The DS21448

contains the following items, which meet the requirements set by the IEEE 1149.1 Standard Test Access Port
(TAP) and Boundary Scan Architecture:

Test Access Port
TAP Controller
Instruction Register

Bypass Register
Boundary Scan Register
Device Identification Register

The TAP has the necessary interface pins JTRST, JTCLK, JTMS, JTDI, and JTDO. See the pin descriptions in
Section

for details. Details on Boundary Scan Architecture and the Test Access Port can be found in IEEE

1149.1-1990, IEEE 1149.1a-1993, and IEEE 1149.1b-1994.

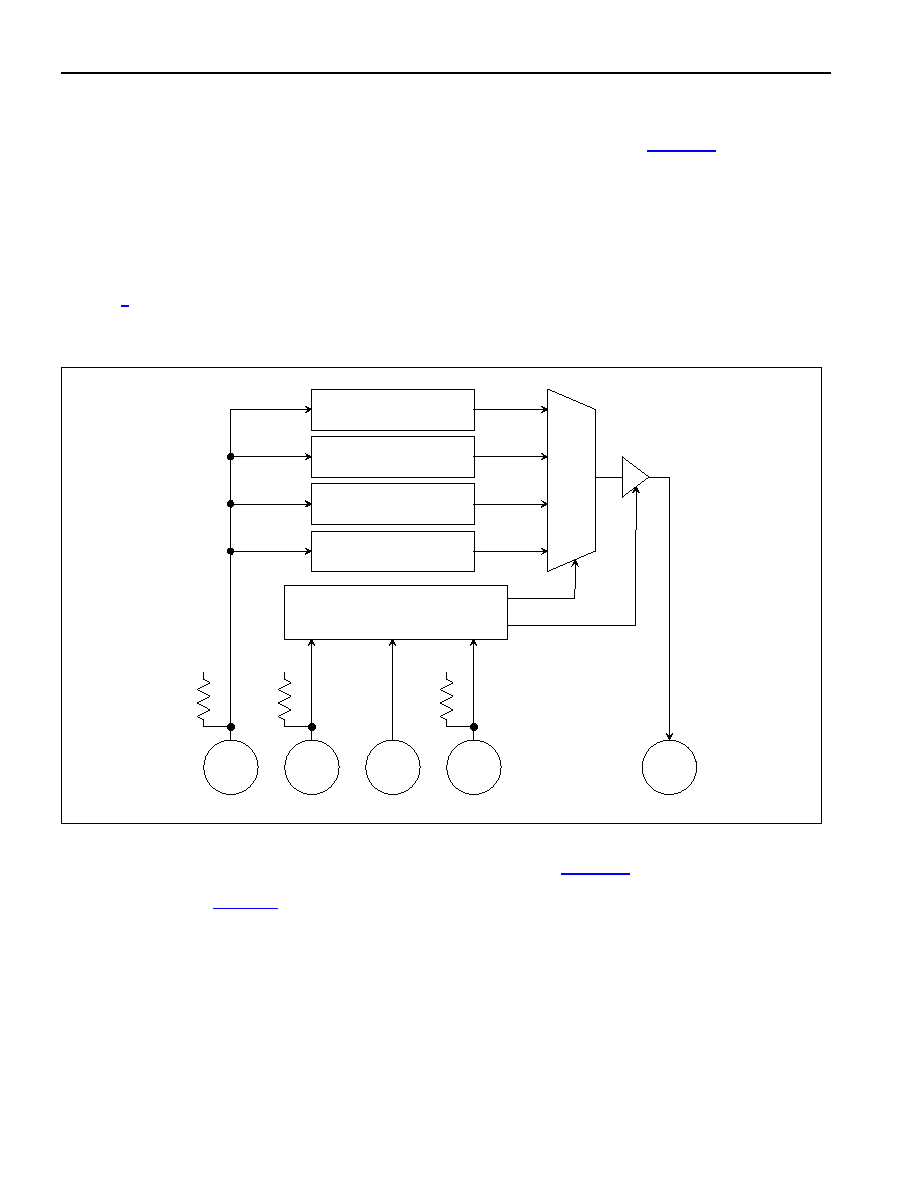

Figure 8-1. JTAG Block Diagram

8.1 JTAG TAP Controller State Machine

This section covers the operation of the TAP controller state machine. See

Figure 8-2

for details on each of the

states described below. The TAP controller is a finite state machine that responds to the logic level at JTMS on the
rising edge of JTCLK (

Table 8-B

Test-Logic-Reset. Upon power-up, the TAP controller is in test-logic-reset state. The instruction register contains
the IDCODE instruction. All system logic of the device operates normally.

Run-Test-Idle. The run-test-idle is used between scan operations or during specific tests. The instruction register
and test registers remain idle.

Select-DR-Scan. All test registers retain their previous state. With JTMS LOW, a rising edge of JTCLK moves the
controller into the capture-DR state and initiates a scan sequence. JTMS HIGH during a rising edge on JTCLK
moves the controller to the select-IR-scan state.

JTDI JTMS JTCLK JTRST JTDO

TEST ACCESS PORT

CONTROLLER

BOUNDRY SCAN

BYPASS

INSTRUCTION

IDENTIFICATION

MUX

SELECT

OUTPUT ENABLE

10k

DS21448 3.3V T1/E1/J1 Quad Line Interface

44 of 60

Figure 8-2. TAP Controller State Diagram

Capture-DR. Data can be parallel-loaded into the test data registers selected by the current instruction. If the
instruction does not call for a parallel load or the selected register does not allow parallel loads, the test register
remains at its current value. On the rising edge of JTCLK, the controller goes to the shift-DR state if JTMS is LOW,
or it goes to the exit1-DR state if JTMS is HIGH.

Shift-DR. The test data register selected by the current instruction is connected between JTDI and JTDO, and
shifts data one stage toward its serial output on each rising edge of JTCLK. If a test register selected by the current
instruction is not placed in the serial path, it maintains its previous state.

Exit1-DR. While in this state, a rising edge on JTCLK puts the controller in the update-DR state, which terminates
the scanning process, if JTMS is HIGH. A rising edge on JTCLK with JTMS LOW puts the controller in the pause-
DR state.

Pause-DR. Shifting of the test registers is halted while in this state. All test registers selected by the current
instruction retain their previous state. The controller remains in this state while JTMS is LOW. A rising edge on
JTCLK with JTMS HIGH puts the controller in the exit2-DR state.

Exit2-DR. A rising edge on JTCLK with JTMS HIGH while in this state puts the controller in the update-DR state
and terminates the scanning process. A rising edge on JTCLK with JTMS LOW enters the shift-DR state.

Update-DR. A falling edge on JTCLK while in the update-DR state latches the data from the shift register path of
the test registers into the data output latches. This prevents changes at the parallel output due to changes in the
shift register.

Select
DR-Scan

Capture DR

Shift DR

Exit DR

Pause DR

Exit2 DR

Update DR

Select
IR-Scan

Capture IR

Shift IR

Exit IR

Pause IR

Exit2 IR

Update IR

Test Logic
Reset

Run Test/
Idle

DS21448 3.3V T1/E1/J1 Quad Line Interface

45 of 60

Select-IR-Scan. All test registers retain their previous state. The instruction register remains unchanged during this
state. With JTMS LOW, a rising edge on JTCLK moves the controller into the capture-IR state and initiates a scan
sequence for the instruction register. JTMS HIGH during a rising edge on JTCLK puts the controller back into the
test-logic-reset state.

Capture-IR. The capture-IR state is used to load the shift register in the instruction register with a fixed value. This
value is loaded on the rising edge of JTCLK. If JTMS is HIGH on the rising edge of JTCLK, the controller enters the
exit1-IR state. If JTMS is LOW on the rising edge of JTCLK, the controller enters the shift-IR state.

Shift-IR. In this state, the shift register in the instruction register is connected between JTDI and JTDO and shifts
data one stage for every rising edge of JTCLK toward the serial output. The parallel register and all test registers
remain at their previous states. A rising edge on JTCLK with JTMS HIGH moves the controller to the exit1-IR state.
A rising edge on JTCLK with JTMS LOW keeps the controller in the shift-IR state while moving data one stage
through the instruction shift register.

Exit1-IR. A rising edge on JTCLK with JTMS LOW puts the controller in the pause-IR state. If JTMS is HIGH on the
rising edge of JTCLK, the controller enters the update-IR state and terminates the scanning process.

Pause-IR. Shifting of the instruction shift register is halted temporarily. With JTMS HIGH, a rising edge on JTCLK
puts the controller in the exit2-IR state. The controller remains in the pause-IR state if JTMS is LOW during a rising
edge on JTCLK.
Exit2-IR. A rising edge on JTCLK with JTMS HIGH puts the controller in the update-IR state. The controller loops
back to shift-IR if JTMS is LOW during a rising edge of JTCLK in this state.

Update-IR. The instruction code shifted into the instruction shift register is latched into the parallel output on the
falling edge of JTCLK as the controller enters this state. Once latched, this instruction becomes the current
instruction. A rising edge on JTCLK with JTMS LOW puts the controller in the run-test-idle state. With JTMS HIGH,
the controller enters the select-DR-scan state.

8.2 Instruction

Register

The instruction register contains a shift register, as well as a latched parallel output, and is 3 bits in length. When
the TAP controller enters the shift-IR state, the instruction shift register is connected between JTDI and JTDO.
While in the shift-IR state, a rising edge on JTCLK with JTMS LOW shifts the data one stage toward the serial
output at JTDO. A rising edge on JTCLK in the exit1-IR state or the exit2-IR state with JTMS HIGH moves the
controller to the update-IR state. The falling edge of that same JTCLK latches the data in the instruction shift
register to the instruction parallel output.

Table 8-A

shows the instructions supported by the DS21448 and its

respective operational binary codes.

Table 8-A. Instruction Codes for IEEE 1149.1 Architecture

INSTRUCTION SELECTED

REGISTER INSTRUCTION

CODES

SAMPLE/PRELOAD Boundary

Scan

010

BYPASS Bypass

111

EXTEST Boundary

Scan

000

CLAMP Bypass

011

HIGHZ Bypass 100

IDCODE Device

Identification

001

SAMPLE/PRELOAD. This is a mandatory instruction for the IEEE 1149.1 specification that supports two functions.
The digital I/Os of the device can be sampled at the boundary scan register without interfering with the normal
operation of the device by using the capture-DR state. SAMPLE/PRELOAD also allows the device to shift data into
the boundary scan register through JTDI using the shift-DR state.

BYPASS. When the BYPASS instruction is latched into the parallel instruction register, JTDI connects to JTDO
through the 1-bit bypass test register. This allows data to pass from JTDI to JTDO without affecting the device's
normal operation.

DS21448 3.3V T1/E1/J1 Quad Line Interface

46 of 60

EXTEST. This allows testing of all interconnections to the device. When the EXTEST instruction is latched in the
instruction register, the following actions occur. Once enabled through the update-IR state, the parallel outputs of
all digital output pins are driven. The boundary scan register is connected between JTDI and JTDO. The capture-
DR samples all digital inputs into the boundary scan register.

CLAMP. All digital outputs of the device are output data from the boundary scan parallel output while connecting
the bypass register between JTDI and JTDO. The outputs do not change during the CLAMP instruction.

HIGHZ. All digital outputs of the device are placed in a high-impedance state. The BYPASS register is connected
between JTDI and JTDO.

IDCODE. When the IDCODE instruction is latched into the parallel instruction register, the identification test
register is selected. The device identification code is loaded into the identification register on the rising edge of
JTCLK following entry into the capture-DR state. Shift-DR can be used to shift the identification code out serially
through JTDO. During test-logic-reset, the identification code is forced into the instruction register's parallel output.
The ID code always has a 1 in the LSB position. The next 11 bits identify the manufacturer's JEDEC number and
number of continuation bytes followed by 16 bits for the device and 4 bits for the version

Table 8-B

Table 8-C

lists

the device ID code for the SCT devices.

Table 8-B. ID Code Structure

MSB

LSB

Version

(Contact Factory)

Device ID

JEDEC

4 bits

16 bits

00010100001

Table 8-C. Device ID Codes

DEVICE 16-BIT

DS21448 0018

8.3 Test

Registers

IEEE 1149.1 requires a minimum of two test registers--the bypass register and the boundary scan register. An
optional test register, the identification register, has been included with the DS21448 design. It is used with the
IDCODE instruction and the test-logic-reset state of the TAP controller.

Bypass Register

The bypass register is a single 1-bit shift register used with the BYPASS, CLAMP, and HIGHZ instructions that
provides a short path between JTDI and JTDO.

Identification Register

The identification register contains a 32-bit shift register and a 32-bit latched parallel output. This register is
selected during the IDCODE instruction and when the TAP controller is in the test-logic-reset state. See

Table 8-B

and

Table 8-C

for more information about bit usage.

Boundary Scan Register

The boundary scan register contains a shift register path and a latched parallel output for all control cells and digital
I/O cells, and is n bits in length. See

Table 8-D

for all cell bit locations and definitions.

DS21448 3.3V T1/E1/J1 Quad Line Interface

47 of 60

Table 8-D. Boundary Scan Control Bits

PIN

BIT

BGA LQFP

NAME I/O

-- A1 124 RTIP1 I
-- A2 6 TTIP1 O
-- A4 28 RTIP2 I
-- A5 38 TTIP2 O
-- A7 60 RTIP3 I
-- A8 71 TTIP3 O
-- A10 93 RTIP4 I
-- A11 102 TTIP4 O
-- B2 125

RRING1 I

-- B3 9 TRING1 O
-- B5 29

RRING2 I

-- B6 41 TRING2 O
-- B8 61

RRING3 I

-- B9 74 TRING3 O
-- B11 94 RRING4 I
-- B12 105 TRING4 O
-- D1 39 TVSS2 --
-- D2 40 TVDD2 --

64 D3 57

CS2

48 D4 80 D2/AD2 I/O
46 D5 82 D0/AD0 I/O
67 D6 47 BPCLK2 O
22 D7 128

RCL/LOTC2

-- D8

4951

VDD3 --

-- D9

5254

VSS3 --

44 D10 84

CS3

15 D11 14 RPOS3 O

3 D12 34 TNEG3 I

17 E1 12 RPOS2 O
16 E2 13 RNEG2 O
49 E3 79 D3/AD3 I/O

-- E4

1921

VDD2 --

-- E9 72 TVSS3 --

27 E10 121 PBEO3 O
63 E11 58 RCLK3 O

4 E12 33 TPOS3 I
6 F1 31 RCLK2 O
7 F2 30

TPOS2 I

47 F3 81 D1/AD1 I/O

-- F4

2224

VSS2 --

21 F9 1

RCL/LOTC3

65 F10 56 BPCLK3 O
14 F11 15 RNEG3 O
45 F12 83 TCLK3 I

9 G1 26 TPOS1 I

18 G2 11 RNEG1 O
31 G3 111 PBEO2 O

-- G9 73 TVDD3 --

51 G11 77 D5/AD5 I/O

PIN

BIT

BGA LQFP

NAME I/O

(Note 1)

-- BUScntl

56 G12 66 A0

42 H1 92

WR (R/W)

8 H2 27 TNEG1 I

23 H3 127 RCLK1 O
26 H4 122

BPCLK1 O

-- H9

8890

VSS4 --

52 H10 76 D6/AD6 I/O
58 H11 64 A2

57 H12 65 A1

2 J1 35 SCLK I

43 J2 91

RD (DS)

11 J3 18

CS1

-- J4 7 TVSS1 --
-- J5 8 TVDD1 --

33 J6 109 MCLK I
20 J7 2

RCL/LOTC4

-- J8

8587

VDD4 --

50 J9 78 D4/AD4 I/O
53 J10 75 D7/AD7 I/O
60 K1 62 A4

41 K2 95

ALE

(AS) I

1 K3 36 SDI I

19 K4 10 RPOS1 O
32 K5 110

PBEO1 O

37 K7 98

TXDIS/TEST

25 K8 123

PBEO4 O

(Note 2)

INTcntl

38 K9 97

INT

I/O

28 K10 114

CS4

13 K11 16 RPOS4 O
62 K12 59 TNEG4 I
59 L1 63 A3

0 L2 43 TCLK2 I

-- L3 42 JTRST I
-- L5

115117

VDD1 --

24 L6 126

RCL/LOTC1

35 L7 107 BIS0 I
30 L8 112

BPCLK4 O

36 L9 106

HRST

-- L10 103 TVSS4 --

40 L11 96 RCLK4 O
29 L12 113 TCLK4 I

5 M1 32 TNEG2 I

12 M2 17 TCLK1 I

-- M3 48 JTMS I
-- M4

118120

VSS1 --

-- M5 44 JTCLK I

DS21448 3.3V T1/E1/J1 Quad Line Interface

48 of 60

PIN

BIT

BGA LQFP

NAME I/O

-- M6 45 JTDI

-- M7 46 JTDO O

55 M8 68 BIS1

-- M9 104 TVDD4 --

PIN

BIT

BGA LQFP

NAME I/O

10 M10 25 RNEG4 O
61 -- --

ADRScntl --

66 M11 55 TPOS4 I
34 M12 108 PBTS

Note 1: 0 = Dn/ADn are inputs; 1 = Dn/ADn are outputs.
Note 2: 0 =

INT is an input; 1 = INT is an output.

9. OPERATING PARAMETERS

ABSOLUTE MAXIMUM RATINGS

Voltage on Any Pin Relative to Ground

-1.0V to +6.0V

Operating Temperature for DS21448TN

-40°C to +85°C

Storage Temperature

See IPC/JEDEC J-STD-020A Specification

Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only,
and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is
not implied. Exposure to the absolute maximum rating conditions for extended periods may affect device.

RECOMMENDED DC OPERATING CONDITIONS

= -40°C to +85°C)

PARAMETER SYMBOL CONDITIONS MIN

TYP

MAX

UNITS

Logic 1

2.2 5.5 V

Logic 0

-0.3 +0.8 V

Supply for 3.3V Operation

(Note

3.135 3.3 3.465 V

CAPACITANCE

= +25°C)

PARAMETER SYMBOL CONDITIONS MIN

TYP

MAX

UNITS

Input Capacitance

5 pF

Output Capacitance

OUT

7 pF

DC CHARACTERISTICS

= 3.3V

±5%, T

= -40°C to +85°C.)

PARAMETER SYMBOL CONDITIONS MIN

TYP

MAX

UNITS

Input Leakage

(Note

-1.0 +1.0 mA

Output Leakage

(Note

+1.0 mA

Output Current (2.4V)

-1.0

Output Current (0.4V)

+4.0

Supply Current at 3.3V

(Notes

320 400 mA

Power Dissipation at 3.3V

(Notes

1.06 1.32 W

Note 1: Applies to V

Note 2: 0.0V < V

< V

Note 3: Applied to

INT when tri-stated.

Note 4: TCLK = MCLK = 2.048MHz.
Note 5: Power dissipation with all ports active, TTIP and TRING driving a 30

W load, for an all-ones data density.

DS21448 3.3V T1/E1/J1 Quad Line Interface

49 of 60

10. AC TIMING PARAMETERS AND DIAGRAMS

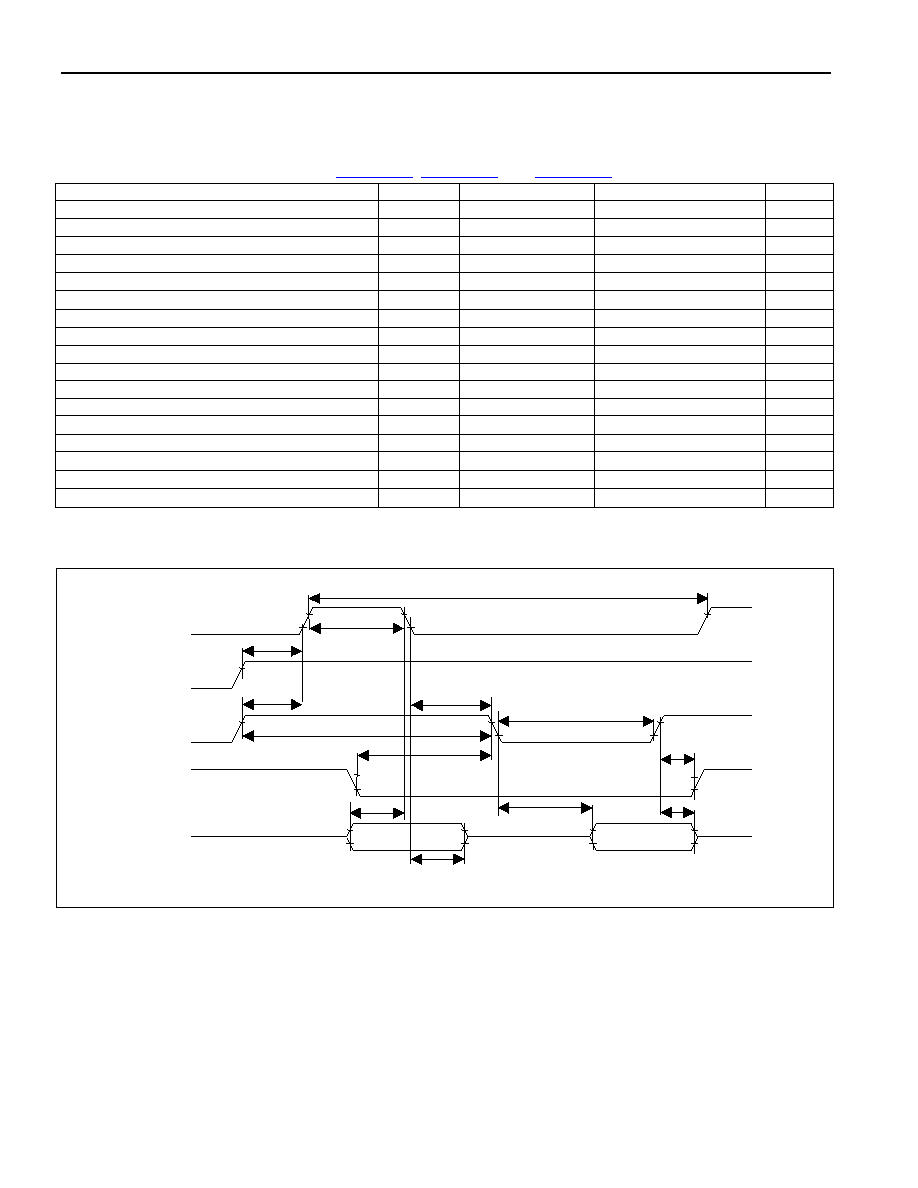

Table 10-A. AC Characteristics--Multiplexed Parallel Port (BIS0 = 0)

= 3.3V

±5%, T

= -40°C to +85°C.) (

Figure 10-1

Figure 10-2

, and

Figure 10-3

)

PARAMETER SYMBOL

CONDITIONS

MIN

TYP

MAX

UNITS

Cycle Time

CYC

200

Pulse Width, DS Low or

RD High

100

Pulse Width, DS High or

RD Low

100

Input Rise/Fall Times

, t

20 ns

W Hold Time

RWH

W Setup Time Before DS High

RWS

CS Setup Time Before DS, WR, or RD Active

20 ns

CS Hold Time

0 ns

Read Data Hold Time

DHR

10 50 ns

Write Data Hold Time

DHW

Muxed Address Valid to AS or ALE Fall

ASL

15 ns

Muxed Address Hold Time

AHL

Delay Time DS,

WR, or RD to AS or ALE Rise

ASD

Pulse Width AS or ALE High

ASH

Delay Time, AS or ALE to DS,

WR, or RD

ASED

Output Data Delay Time from DS or

DDR

20 80 ns

Data Setup Time

DSW

Figure 10-1. Intel Bus Read Timing (PBTS = 0, BIS0 = 0)

ASH

t CYC

t ASD

AHL

ASL

ASED

AD0AD7

DHR

t DDR

ALE

DS21448 3.3V T1/E1/J1 Quad Line Interface

56 of 60

11. PIN

CONFIGURATIONS

11.1 144-Pin BGA

RTIP1

TTIP1

N.C.

RTIP2

TTIP2

N.C.

RTIP3

TTIP3

N.C.

RTIP4

TTIP4

N.C.

RRING1 TRING1

N.C.

RRING2 TRING2

N.C.

RRING3 TRING3

N.C.

RRING4 TRING4

N.C.

TVSS2 TVDD2

CS2

D2/

AD2

D0/

AD0

BPCLK2

RCL/

LOTC2

VDD3

VSS3

CS3

RPOS3 TNEG3

RPOS2 RNEG2

D3/

AD3

VDD2

N.C.

TVSS3 PEBO3 RCLK3 TPOS3

RCLK2 TPOS2

D1/

AD1

VSS2

N.C.

RCL/

LOTC3

BPCLK3 RNEG3 TCLK3

TPOS1 RNEG1 PEBO2

N.C. N.C. N.C.

N.C.

TVDD3

N.C.

D5/

AD5

(R/

TNEG1 RCLK1 BPCLK1

N.C.

VSS4

D6/

AD6

A2/

OCES

SCLK

(

DS)

CS1

TVSS1 TVDD1

MCLK

RCL/

LOTC4

VDD4

D4/

AD4

D7/

AD7

N.C.

A4/

SDO

ALE

(AS)

SDI

RPOS1 PEBO1

N.C.

TXDIS/

TEST

PEBO4

INT

CS4

RPOS4 TNEG4

A3/

ICES

TCLK2 JTRST

N.C.

VDD1

RCL/

LOTC1

BIS0 BPCLK4

HRST

TVSS4 RCLK4

TCLK4

TNEG2 TCLK1

JTMS

VSS1

JTCLK

JTDI

JTDO

BIS1

TVDD4 RNEG4 TPOS4

PBTS

DS21448 3.3V T1/E1/J1 Quad Line Interface

57 of 60

11.2 128-Pin LQFP

L3/
LO
TC
3

L4/
LO
TC
4

VSM

N.C.

TTI
P

VSS1

DD1

TR
I
N

RPOS1

RNEG1

RPOS2

RNEG2

RPOS3

RNEG3

RPOS4

TC
LK
1

S1
/

EG
L
1

VDD2

VSS2

RNEG4

VSS2

TP
O

TN
E

RT
IP2

TP
O

RRING2

RCL

TN
E

TP
O

SCL

/
L
2

TN
E

I/L1

TTI
P

N.C.

TVSS2

TVDD2

TRING2

JTRST

TCLK2

100

110

120

JTCLK

JTDI

JTDO

BPCLK2

JTMS

VDD3

VSS3

TPOS4

BPCLK3

CS2/EGL2

RCLK3

TNEG4

RTIP3

RRING3

A4/SD0/L0

A3/ICES/DJA

A2/OCES/JAMUX

/
J
AS

/
H

N.C.

TTI

VSS3

DD3

I
N

/AD7

/
C

/AD6

/
T

/AD5

/
T

/AD4

/
T

/AD3

/
L
O

/AD2

/
L
O

/AD1

/
M

/AD0

/
M

GL3

VDD4

VSS4

( DS

)/E

)/N

IP4

RRING4

L
E

(

AS)

/
S

L
KE

RCL

I
N

T
/

EST

N.C.

TTI

TVSS4

TVDD4

TRING4

HRST

BIS0

PBTS/RT0

MCLK

PBEO1

PBEO2

BPCLK4

TCLK4

CS4

/EGL4

VDD1

VSS1

PBEO3

BPCLK1

PBEO4

RTIP1

RRING1

RCL1/LOTC1

RCLK1

RCL2/LOTC2

Dallas Semiconductor

DS21448

DS21448 3.3V T1/E1/J1 Quad Line Interface

Maxim/Dallas Semiconductor cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim/Dallas Semiconductor product.
No circuit patent licenses are implied. Maxim/Dallas Semiconductor reserves the right to change the circuitry and specifications without notice at any time.

Ma xi m I nt e gr at e d Pr o du ct s, 1 2 0 S a n G abr i el Dr i ve, S un n yv al e, C A 94 0 8 6 40 8- 7 37- 7 60 0

· Printed USA

60 of 60

13. THERMAL

INFORMATION

Table 13-A. Thermal Characteristics--BGA

PARAMETER MIN

TYP

MAX

UNITS

Ambient Temperature (Note 1)

-40

+85

°C

Junction Temperature

+125

°C

Theta-JA (

) in Still Air (Note 2)

+24 °C/W

Table 13-B. Theta-JA (

) vs. Airflow--BGA

FORCED AIR (m/s)

THETA-JA (

)

0 24°C/W
1 21°C/W

2.5 19°C/W

Table 13-C. Thermal Characteristics--LQFP

PARAMETER MIN

TYP

MAX

UNITS

Ambient Temperature (Note 1)

-40

+85

°C

Junction Temperature

+125

°C

Theta-JA (

) in Still Air (Note 2)

+27.8 °C/W

Theta-JC (

) in Still Air (Note 3)

+0.1 °C/W

Table 13-D. Theta-JA (

) vs. Airflow--LQFP

FORCED AIR (m/s)

THETA-JA (

)

0 27.8°C/W
1 23.5°C/W

2.5 21.6°C/W

Note 1: The package is mounted on a four-layer JEDEC-standard test board.
Note 2: Theta-JA (

) is the junction-to-ambient thermal resistance, when the package is mounted on a four-layer JEDEC-standard test board.

Note 3: While Theta-JC (

) is commonly used as the thermal parameter that provides a correlation between the junction temperature (Tj) and

the average temperature on top center of the LQFP package (TC), the proper term is Psi-JT. It is defined by: (Tj - TC) / overall package
power.

Note 4: The method of measurement for the thermal parameters is defined in the EIA/JEDEC-standard document EIA-JESD51-2.

14. REVISION

HISTORY

REVISION DESCRIPTION

042303

New product release.

012104

Table 5-B. Receive Level Indication: Changed "-12.5 to -5.0" to "-12.5 to -15.0". Adjusted steps
after -17.5 dB to be in -2.5dB decrements.

Section 9, Operating Parameters: Updated supply current and power dissipation values in the DC
Characteristics table to reflect latest characterization data. Updated Note 5 to show that values are for all ports
active.

Document Outline

Ð­Ð»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: DS21448L

Document Outline

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: DS21448L
