Dialight Corporation 1501 Route 34 South Farmingdale, NJ 07727 TEL: (732) 919-3119 FAX: (732) 751-5778 www.dialight.com
2
3 x 5mm Rectangular
Optopipe
TM

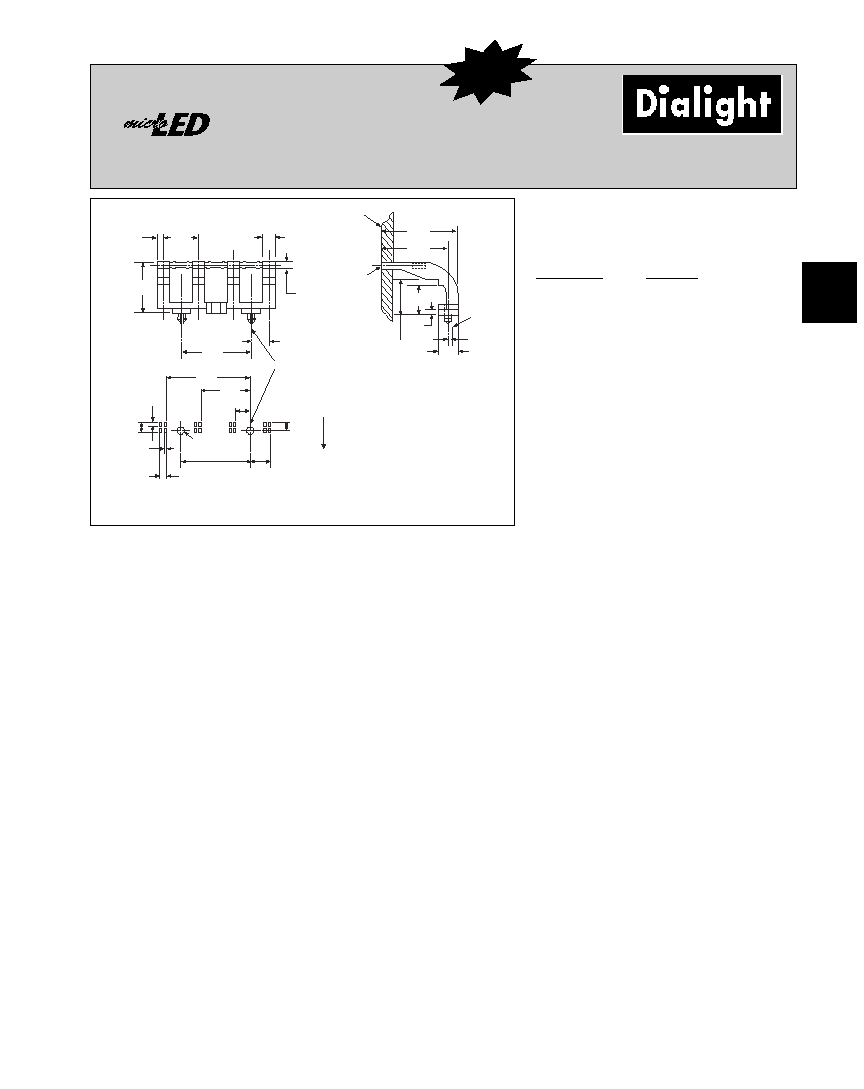

Optical Light Pipe, 4 Array (RJ45 Jack)
515-1055
13.97
[.550]
TYP
3 PLCS
2.54
[.100]
5.08
[.200]
(4) PLACES
3.05
[.120]
(4) PLACES
20.57
[.81]
6.99
[.275]
27.94
[1.10]
3.99
[.157]
TYP
1.50
[.059]
TYP
.99
[.039]
TYP
2.69
[.106]
TYP
33.53
[1.32]
19.61
[.772]
5.64
[.222]
3.58
[.141]
TYP]
8.33
[.328]
27.94
.08
[1.100
.003]
[ .113
.002]
TYP 2 PLACES
RECOMMENDED SOLDER PAD /HOLES LAYOUT
7.62
[.300]
1.57
[.062]
1.91
[.075]
C.L. MOUNTING
PIN #1
11.43
[.450]
13.97
[.550]
27.43
[1.08]
31.2
[1.23]
REF
DIFFUSED
FRONT
SURFACES
DIRECTION
OF LIGHT
C.L. LED
FRONT
PANEL
Dimensions in mm [inches]
MicroLED SMT LEDs
for use with 515-1055
PART NO.
PAGE #
Recommended
597-3xx1-1xx
1-19
597-77x1-1xx
1-20
Alternatives
597-3xxx-4xx
1-27 & 1-28
597-3xx1-4xx
1-28
597-3xx1-5xx
1-30
597-5x11-4xx
1-27
597-5202-4xx
1-27
LED alternatives may not produce optimum light
output
Solder Pad/Holes layout shown is for bi-color
LEDs listed under "Recommended" category
Contact factory for other layouts
Features
High transmissivity polycarbonate material
UL94V-0 compliance
ESD protection (circuit isolation from front panel)
Wide viewing angle
Arrays reduce insertion costs
Secures to PCB by snap-fit
LED Data
For absolute maximum ratings and other electrical and optical
data on the recommended LEDs, refer to LED data sheets.
Dialight
Optopipe
Light Pipe Description
This OptopipeTM functions as a through-the-case indicator by conducting the light over the top of connectors or
switches with a maximum height of 0.550". It is equivalent to the 515-1022 and well suited to applications where vibration
is a concern. This Optopipe'sTM four 3 x 5mm rectangular light emitting surfaces appear bright and are optically well
isolated. The light pipe is reliably held in place by 2 snap-fit pins located next to the first and fourth light pipe elements.
These pins positively lock onto 0.062" thick PCBs regardless of individual variations in thickness. A textured finish on the 4
light emitting surfaces maximizes the viewing angle. The recommended light sources are Dialight's 597 Series PLCC-2 or
PLCC-4 type SMT LEDs. The LEDs are mounted in a straight line on a 0.550" pitch. The light pipe material is water clear
transmissive polycarbonate rated UL94-V0, and has a 35% oxygen index.
Dialight can provide custom OptopipeTM solutions for your applications.
Operating/Storage Temperature
30C to +100C
NOTE: designed for
post-reflow
PC board insertion.
