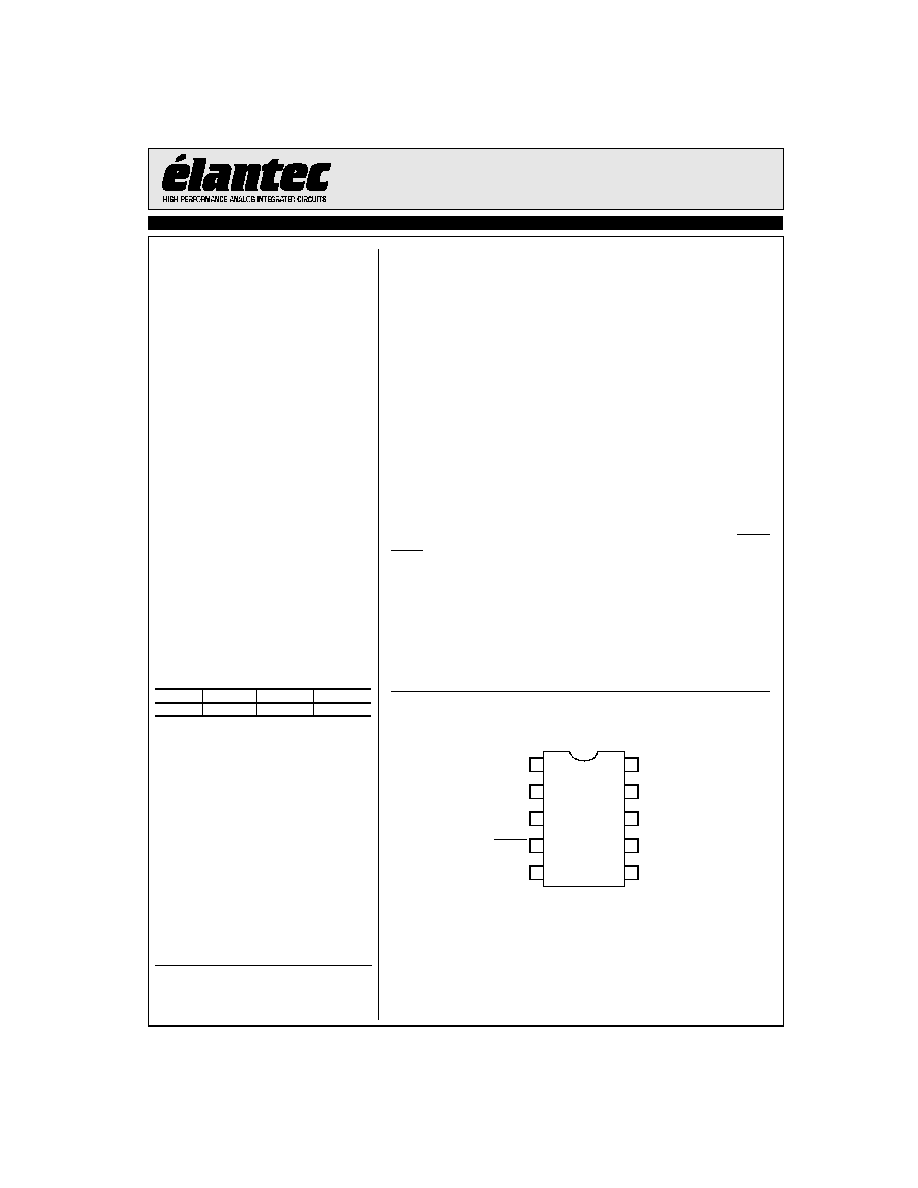

Features
Mini-Small Package Outline
Voltage-controlled output current
source requiring one external set
resistor per channel
Current-controlled output current
source.
Rise time = 1.0 ns
Fall time = 1.1 ns
On chip oscillator with frequency
and amplitude control by use of
external resistors to ground
Oscillator to 500 MHz
Oscillator to 100 mA pk/pk
Single +5V supply (10%)
Current amplification = 100
CMOS control signals
Applications
MO drives
Mini-Disc drives
Writable optical drives
Laser diode current switching
Ordering Information
Part No
Temp. Range
Package
Outline #
EL6252CY
0C to +70C
MSOP10
MDP0043
EL6252C
- Product Brief
2-Channel laser diode Driver + Oscillator
Jan
uary 31, 2000
General Description
The EL6252C is a high-performance two channel laser diode current
amplifier that provides controlled current to a grounded laser diode.
The write amplifier can provide over 200mA of DC or pulsed current.
The R and W channels have switching speeds of approximately one
nanosecond rise/fall time and are summed together at the I
OUT
output.
The level of the output current is set by an analog voltage applied to an
external resistor which converts the voltage into a current at the I
IN
pin
(virtually ground). The current seen at this pin is then amplified by
100X to become a current source at pin I
OUT
.
An on-chip 500 MHz oscillator is provided to allow current modula-
tion when in the read mode. This is turned on when the OSCEN pin is
held high (floating not recommended). Complete control of amplitude
and frequency is set by two external resistors connected to ground at
pins RFREQ and RAMP (see graphs in this data sheet for further
explanation).
Write current pulses appear when an `L' signal is applied to the OUT-
ENW pin.
The external resistors allow the user to accurately and independently
set each amplifier transconductance by applying a voltage to each
resistor, without restriction on the voltage range, thus ensuring broad
voltage DAC compatibility. Alternatively, the I
IN
pin can be biased
from a current DAC or other current source.
Connection Diagram
1
2
3
4
10
9
8
7
5
6
V
CC
I
OUT
GND
RAMP
V
CC
I
INR
I
INW
RFREQ
OUTENW
OSCEN
2
EL6252C - Product Brief
2-Channel laser diode Driver + Oscillator
EL625
2C
- Produ
c
t
