General Description
The EL6262C consists of 4 20MHz trans-impedance amplifiers and 4
70MHz trans-impedance amplifiers. The four 70MHz amplifier out-
puts also are averaged to provide differential 70MHz outputs.
The EL6262C is designed to amplify the photo diode currents for CD,
DVD, or other photo diode pick-up applications.
Two TTL/CMOS compatible inputs select the gain for all eight ampli-
fiers. The gain settings are 8K
, 15K
,
and 40K
for all channels.
The sum and sumbar outputs are 11K
, 20K
,
and 45K
single
ended. Gain matching is typically 3%, channel to channel. An auto-
zero input brought high after power up reduces the output offsets to
less than 10mV.
The E, F, G, and H channel bandwidths are 20MHz for all gains and
reasonable input and output loads. The A, B, C, D, S, and S channels
have bandwidths of 70MHz, 46MHz, and 32MHz at low, middle, and
high gains respectively after driving 25cm of flex circuit.
Each amplifier output can typically sink or source up to 5mA and their
outputs can swing 1V
P-P
at full bandwidth.
The EL6262C operates from a single +5V supply and is available in
QSOP-24 package. It is specified for operation from -0
C to 7
0
C.

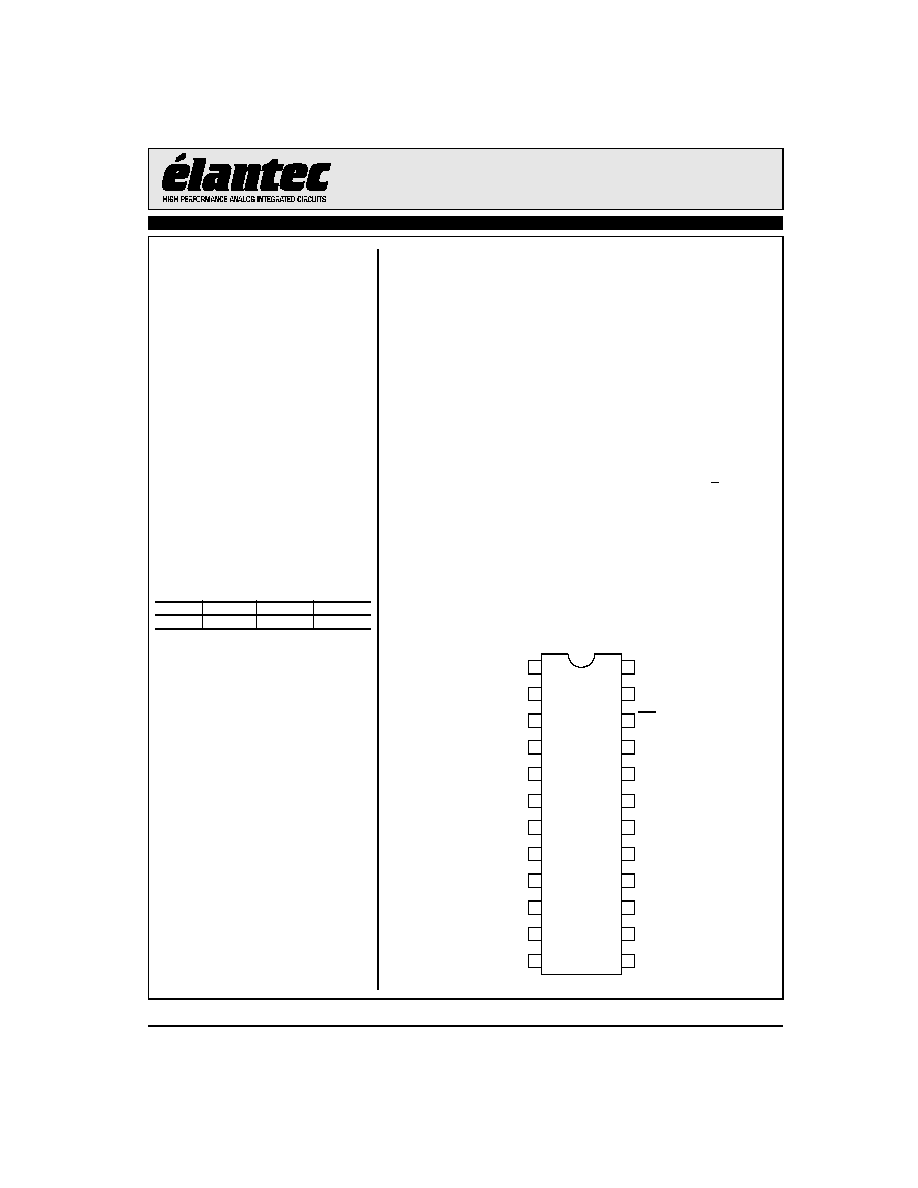

Connection Diagram
1
2
3
4
16
15
14
13
5
6
7
12
11
9
8
10
20
19
18
17
24
23
22
21
GAIN 0 SELECT
GAIN 1 SELECT
REF INPUT
A INPUT
B INPUT
C INPUT
D INPUT
0V (VSS)
F INPUT
E INPUT
G INPUT
H INPUT
AZ INPUT
SUM OUTPUT
A OUTPUT
SUM OUTPUT
B OUTPUT
C OUTPUT
D OUTPUT
+5V (VDD)
G OUTPUT
H OUTPUT
F OUTPUT
E OUTPUT
Features
Autozero of output offset to
<10mV
3 selectable gains; 8K
, 15K
,
40K
Space saving QSOP-24 package
Differential Sum & Sum-Bar
outputs
Single 5V supply
Applications
DVD RAM, RW, and ROM
CD RW, R and ROM
MO drives
Optical Pickup pre-amplifier
Servo positioning systems
High speed instrumentation
Ordering Information
Part No
Temp. Range
Package
Outline #
EL6262CU
0C to +70C
24-Lead QSOP
MDP0040
EL6262C - Product Brief
Quad 20MHz & Quad, 70MHz, Switched Gain Pre-Amp
