* This specification are subject to be changed without notice.

EM58P300 SERIES

TINY CONTROLLER-BASED

DUAL CHANNEL SOUND PROCESSOR

10.15.2001

EASY SOUND -

PIN DESCRIPTIONS

Pin NO.

I/O

Symbol

Function

P1.2/OEB/Mode option

Bit 2 of Port 1 / Program control signal

P1.1/PGMB/Mode option

Bit 1 of Port 1 / Program control signal

P1.0

Bit 0 of Port 1

VSS

Negative power supply.

OSC/ACLK

Oscillation component connection pin /
Program control signal

TEST/Vpp

Test/Programing.

VO2

Voice output.

VO1

No connect

VDD

Positive power supply.

I/O

P3.3

Bit 3 of Port 3.

I/O

P3.2

Bit 2 of Port 3.

I/O

P3.1

Bit 1 of Port 3.

I/O

P3.0

Bit 0 of Port 3.

I/O

P2.3

Bit 3 of Port 2.

I/O

P2.2

Bit 2 of Port 2.

I/O

P2.1/Dout

Bit 1 of Port 2 / Program data output signal

I/O

P2.0/Din

Bit 0 of Port 2 / Program data input signal

I/O

P1.3/Din.out.clk/Mode option

Bit 3 of Port 1 / Program control signal

GENERAL DESCRIPTION

EM58P300 is a tiny-controller-based voice synthesizer/dual tone melody/dual tone sound effect IC which contains
all the function of EM58000 series and has an OTP (One Time Programmable) ROM inside.

FEATURES

· EM58P300 ROM : 64k x 10 bits (21 sec@6K sample rate).
· Single power supply 2.4V ~ 5.5V.
· Port1 and Port2 with wake-up function, Port3.2 with programmable IR (38KHz carry) communication function.
· Power down mode for saving power consumption.
· Single ROM for voice, melody, sound effect and program data.
· Readable ROM code data.
· One 6-bit timer overflow control.
· Two stacks for subroutine calling.
· Dual channel output simultaneously : (voice + voice), (voice + dual tone melody) or (voice + dual tone sound

effect).

· 5-bit ASPCM synthesizer.
· Dual tone melody/sound effect generator with programmable envelope.
· Multiple playing sppeeds in 2KHz ~ 32KHz for voice playback.
· Multiple tempos and variable beats for dual tone melody/sound effect play-back.
· Multiple levels of volume control.
· Fixed current D/A to drive external connected transistor for audio output.

* This specification are subject to be changed without notice.

EM58P300 SERIES

TINY CONTROLLER-BASED

DUAL CHANNEL SOUND PROCESSOR

10.15.2001

EASY SOUND -

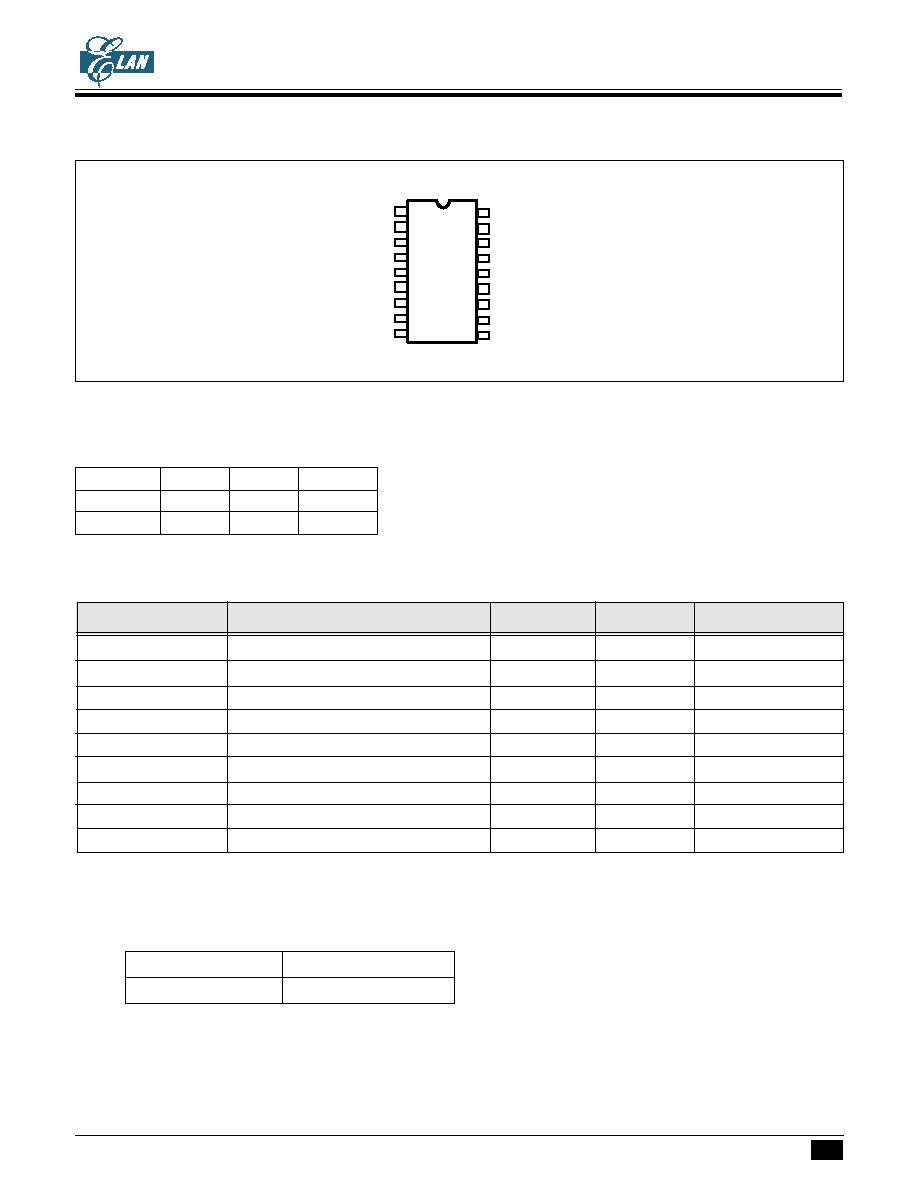

TIMING PARAMETER

Symbol

Parameter

Min.

Max.

Unit

Trs

Level set up time

Tmcs

Mode code setup time

Tdsu

Data set up time

100

Tdsh

Data hold time

100

Tas

ACLK to byte select time

Tacpw

Address clock pulse width

Tppw

Program pulse width

100

Tps

Programming mode set up time

Toed

Output enable setup time

300

Note : Segment ROM S1, S0 is programed just while 5 LSBs of ADDR are all 0.

Programming for security mode :

When programming in security mode, the waveform is just like above. The programming data is as below :

B11 ~ B1

User defined

Security bit

Note : When security = 0, enable security;

When security = 1, disable security.

PROGRAMMING MODE

Mode

P13

P12

P11

Regular

Security

PIN ASSIGNMENT

EM58P300

18 pin DIP

1
2
3
4
5
6
7
8
9

18
17
16
15
14
13
12
11
10

P1.2
P1.1
P1.0

GND

OSC

VPP

VO2
VO1

VDD

P1.3
P2.0
P2.1
P2.2
P2.3
P3.0
P3.1
P3.2
P3.3

* This specification are subject to be changed without notice.

EM58P300 SERIES

TINY CONTROLLER-BASED

DUAL CHANNEL SOUND PROCESSOR

10.15.2001

EASY SOUND -

DC PROGRAMMING CHARACTERISTICS

(

= 5V+0.5v, V

= 12.5V+0.5v)

Items

Sym.

Min.

Max.

Unit

Test Conditions

Input high voltage

2.2

+1.0

Input low voltage

-0.3

0.8

Input current

µA

=5V, V

=0~V

Output high voltage

2.4

=400µA

Output low volatge

0.4

=2.1mA

VDD supply current

100

=5V

VPP supply current

=12.5V

ELECTRICAL CHARACTERISTICS

(

= 3V,25

C unless otherwise specified)

Parameter

Sym.

Min.

Typ.

Max.

Unit

Condition

Operating voltage

2.4

3.0

5.5

Standby current

DDS

1.0

µA

=3V

Operating current

DDO

250

µA

=3V, No load

Drive current of P2,P3

2.0

3.0

=3V, V

=2.4V

Sink current of P3

2.3

3.5

=3V, V

=0.4V

Sink current of P2 (after KEYB)

OS1

2.3

3.5

=3V, V

=0.4V

Sink current of P2

OS2

3.0

µA

=3V, V

=0.4V

(before KEYB)

Input current of P1

3.0

µA

=3V

Output current of VO1, VO2

4.0

5.0

6.0

=3V, V

=0.7V,

two channel full scale output

Oscillation resistor

Rosc

100

=2.4V ~ 5.5V

Oscillator frequency

osc

0.9

1.0

1.1

MHz

=2.4V ~ 5.5V

Oscillator frequency deviation

osc

-10

=2.4V ~ 5.5V

ABSOLUTE MAXIMUM RATINGS

Items

Sym.

Min.

Max.

Unit

Supply Voltage

-V

-0.3

6.0

Input Voltage

-0.3

+0.3

Operating Temperature

O P

-20

Storage Temperature

STG

-55

+125

* This specification are subject to be changed without notice.

EM58P300 SERIES

TINY CONTROLLER-BASED

DUAL CHANNEL SOUND PROCESSOR

10.15.2001

EASY SOUND -

Pad No.

Symbol

P1.2

325.8

900.6

P1.1

128.7

900.6

P1.0

-56.5

900.6

GND

-708.4

876.7

OSC

-1325.0

879.0

VPP

-1256.2

-890.0

VO2

-879.3

-890.0

VO1

-233.4

-890.0

VDD

-13.7

-878.4

P3.3

963.2

-878.4

P3.2

1084.1

-878.4

P3.1

1205.0

-878.4

P3.0

1325.9

-878.4

P2.3

1275.9

900.6

P2.2

1090.6

900.6

P2.1

893.5

900.6

P2.0

708.2

900.6

P1.3

511.1

900.6

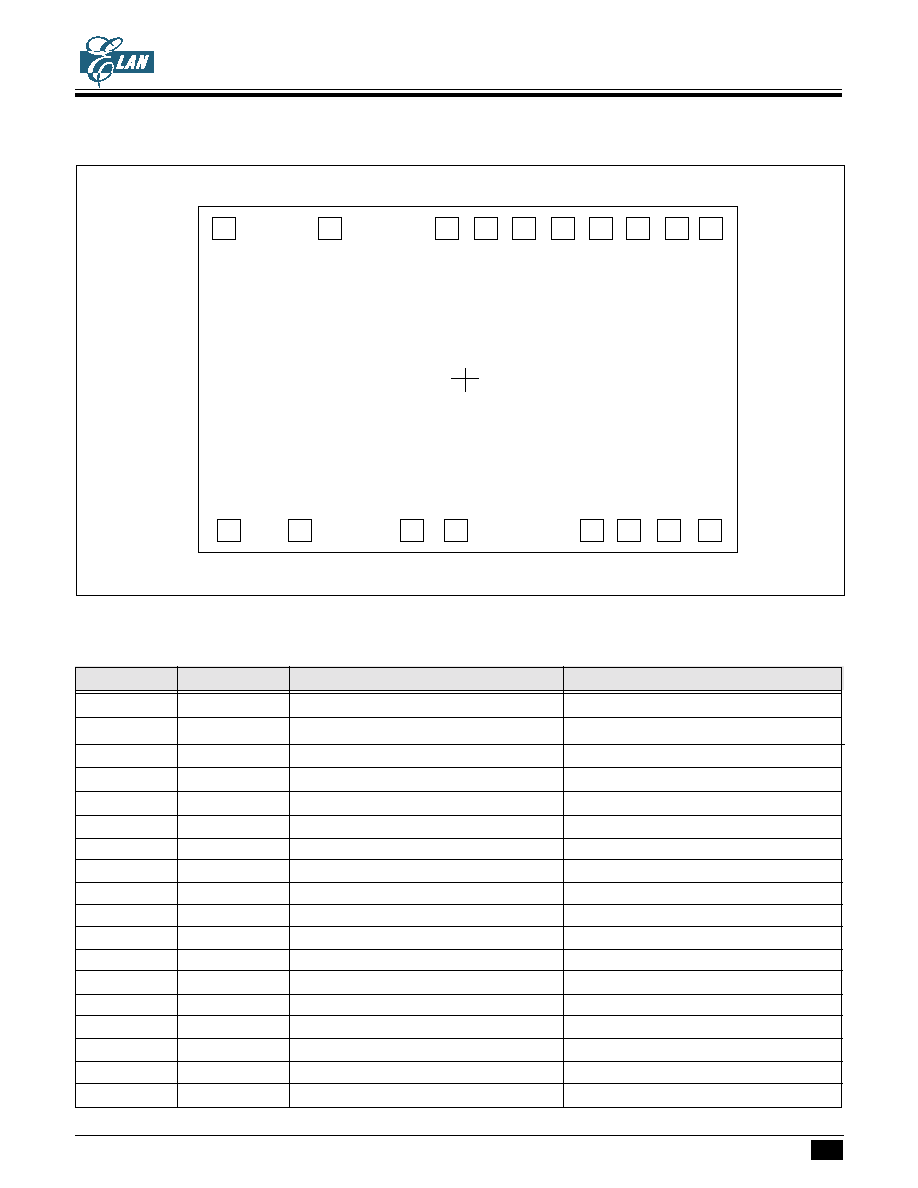

PAD DIAGRAM

Chip Size : 2930 x 2100 um
For PCB layout, IC substrate must be connected to Vss.

(0,0)

EM58P300

P3.0

P1.1

P2.3

P2.2

P3.1

P2.1

P2.0

P1.3

P1.2

P1.0

VPP

VDD

VO1

GND

OSC

P3.2

P3.3

VO2
