* This specification is subject to be changed without notice.

8.11.1999

B3-1

EM78P156E

GENERAL DESCRIPTION

EM78P156E is an 8-bit microprocessor with low-power and high-speed CMOS technology. There is a 1K*13-
bit Electrical One Time Programmable Read Only Memory (OTP-ROM) within it. It provides a PROTECTION
bit to prevent a user's code from intruding as well as 7 OPTION bits to match the user's requirements.

Because of the OTP-ROM, the EM78P156E offers users a convenient way to develop and verify their programs.
Moreover, a user's developed code can be programmed easily by an EMC writer.

II.

FEATURES

· Operating voltage range: 2.2V~5.5V
· Available in temperature range: 0

C~70

· Operating frequency range: DC ~ 36MHz
· Low power consumption:

* less than 1.6 mA at 5V/4MHz
* typical of 15

A at 3V/32KHz

* typical of 1

A during the sleep mode

· 1Kx13 bits on chip ROM
· One security register to prevent the code in the OTP memory from intruding
· One configuration register to match the user's requirements
· 48x8 bits on chip registers (SRAM)
· 2 bi-directional I/O ports
· 5 level stacks for subroutine nesting
· 8-bit real time clock/counter (TCC) with selective signal sources, trigger edges, and overflow interrupt
· Two clocks per instruction cycle
· Power-down mode (SLEEP mode)
· Three available interruptions

* TCC overflow interrupt
* Input-port status changed interrupt (wake up from the sleep mode)
* External interrupt

· Programmable free running watchdog timer
· 8 pull-high pins
· 7 pull-down pins
· 8 open-drain pins
· Two R-option pins
· Package type: SOP, SOIC and DIP
· 99.9% single instruction cycle commands

* This specification is subject to be changed without notice.

8.11.1999

B3-2

EM78P156E

Symbol

I/O

Function

OSCI

* XTAL type : Crystal input terminal or external clock input pin.

* ERC type: RC oscillator input pin.

* IRC type: 50K ohm pulled high for 4MHz.

OSCO

I/O

* XTAL type: Output terminal for crystal oscillator or external clock input pin.
* RC type: Instruction clock ouput.
* External clock signal input.

TCC

* Real time clock/counter with Schmitt trigger input pin, must be tied to V

or V

if not in use.

PIN DESCRIPTION

Table 1 Pin description-EM78P156E

WDT Timer

IOC5

Instruction
Decoder

ROM

Interrupt

Controller

R1(TCC)

Oscillator/Timing

Control

Prescaler

RAM

Instruction

Stack

OSCI

OSCO

/RESET

DATA & CONTROL BUS

TCC

/INT

ACC

ALU

WDT
Time-out

IOCA

Internal C

External R

oscillator

Sleep

& Wake

Control

P
5
0

P
5
2

P
5
3

P
5
1

IOC6

P
6
0

P
6
2

P
6
3

P
6
1

P
6
4

P
6
6

P
6
7

P
6
5

IV.

FUNCTIONAL BLOCK DIAGRAM

III.

PIN ASSIGNMENTS

DIP

SOP

SOIC

P52

P53

TCC

RESET

P60,INT

P61

P62

P63

P51

P50

OSCI

OSCO

P67

P66

P65

P64

EM78P156E

Fig. 1 Pin assignments

Fig. 2 Functional block diagram

* This specification is subject to be changed without notice.

8.11.1999

B3-3

EM78P156E

VI. FUNCTION DESCRIPTION

VI.1 Operational Registers

R0 (Indirect Addressing Register)

· R0 is not a physically implemented register. Its major function is to be an indirect addressing pointer. Any instruction

using R0 as a pointer actually accesses data pointed by the RAM Select Register (R4).

R1 (Time Clock /Counter)

· Increased by an external signal edge which is defined by TE bit (CONT-4) through the TCC pin,

or by the instruction cycle clock.

· Writable and readable as any other registers.

R2 (Program Counter) & Stack

· R2 and hardware stacks

are 10~12-bit wide. The structure is depicted in Fig. 3.

· Generating 1024x13 bits on-chip OTP ROM addresses to the relative programming instruction codes. One program

page is 1024 words long.

· The contents of R2 are set all "0"s upon a RESET condition.
· "JMP" instruction allows the direct loading of the lower 10 program counter bits. Thus, "JMP" allows PC to go to

any location within a page.

· "CALL" instruction loads the lower 10 bits of the PC, and then PC+1 is pushed into the stack. Thus, the subroutine

entry address can locate anywhere within a page.
" RET" ("RETL K", "RETI") instruction loads the program counter with the contents of the top-level stack.
"ADD R2,A" allows a relative address to be added to the current PC, and the ninth and tenth bits of the PC are cleared.

· "MOV R2,A" allows to load an address from the "A" register to the lower 8 bits of the PC, and the ninth and tenth

bits of the PC are cleared.

· Any instruction which would change the contents of R2 (e.g. "ADD R2,A", "MOV R2,A", "BC R2,6",......) will

cause the ninth and tenth bits (A8~A9) of the PC to be cleared. Thus, the computed jump is limited to the first
256 locations of a page.

· All instructions are single instruction cycle (fclk/2) except the instructions which would change the contents of R2

need one more instruction cycle.

Symbol

I/O

Function

/RESET

* Input pin with Schmitt trigger. If this pin remains at logic low, the controller

will keep in reset condition.

P50~P53

I/O

* P50~P53 are bi-directional I/O pins. P50 and P51 can also be defined as the

R-option pins. P50~P52 can be pulled down by software .

P60~P67

I/O

* P60~P67 are bi-directional I/O pins. These can be pull-high or can be open-

drain by software programming. In addition, P60~P63 can be pull-down
also by software.

/INT

* External interrupt pin triggered by falling edge.

* Power supply.

* Ground.

* This specification is subject to be changed without notice.

8.11.1999

B3-5

EM78P156E

R3 (Status Register)

GP2

GP1

GP0

Bit 0 (C)

Carry flag

Bit 1 (DC)

Auxiliary carry flag

Bit 2 (Z)

Zero flag. Set to "1" if the result of an arithmetic or logic operation is zero.

Bit 3 (P)

Power-down bit. Set to 1 during power-on or by a "WDTC" command and reset to 0 by a
"SLEP" command.

Bit 4 (T)

Time-out bit. Set to 1 by the "SLEP" and "WDTC" commands, or during power-up and reset
to 0 by WDT time-out.

Bit 5~7 (GP0~2)

General-purpose read/write bits.

R4 (RAM Select Register)

Bits 0 ~ 5 are used to select registers (address: 00~06, 0F~3F) in the indirect addressing mode.

Bits 6 ~ 7 are general-purpose read/write bits.

See the configuration of the data memory in Fig.4.

R5 ~ R6 (Port 5 ~ Port 6)

R5 and R6 are I/O registers.

Only the lower 4 bits of R5 are available.

RF (Interrupt Status Register)

EXIF

ICIF

TCIF

"1" means interrupt request, and "0" means non-interrupt occurence.

Bit 0 (TCIF)

TCC overflowing interrupt flag. Set when TCC timer overflows, reset by software.

Bit 1 (ICIF)

Port 6 input status changed interrupt flag. Set when Port 6 input changes, reset by software.

Bit 2 (EXIF)

External interrupt flag. Set by falling edge on /INT pin, reset by software.

Bits 3 ~ 7

Not used.

RF can be cleared by instruction but can not be set.

IOCF is the interrupt mask register.

Note that the result of reading RF is the "logic AND" of RF and IOCF.

R10 ~ R3F

All of these are the 8-bit general-purpose registers.

VI.2 Special Purpose Registers

A (Accumulator)

* This specification is subject to be changed without notice.

8.11.1999

B3-6

EM78P156E

Internal data transfer, or instruction operand holding

It can not be addressed.

CONT (Control Register)

/INT

PAB

PSR2

PSR1

PSR0

Bit 0 (PSR0)~Bit 2 (PSR2) TCC/WDT prescaler bits.

PSR2

PSR1

PSR0

TCC Rate

WDT Rate

1:2

1:1

1:4

1:2

1:8

1:4

1:16

1:8

1:32

1:16

1:64

1:32

1:128

1:64

1:256

1:128

Bit 3 (PAB) Prescaler assignment bit.

0: TCC
1: WDT

Bit 4 (TE) TCC signal edge

0: increment if the transition from high to low takes place on TCC pin
1: increment if the transition from high to low takes place on TCC pin

Bit 5 (TS) TCC signal source

0: internal instruction cycle clock
1: transition on TCC pin

Bit 6 (INT) Interrupt enable flag

0: masked by DISI or hardware interrupt
1: enabled by ENI/RETI instruction

CONT register is both readable and writable.

IOC5 ~ IOC6 (I/O Port Control Register)

"1" puts the relative I/O pin into high impedance, while "0" defines the relative I/O pin as output.

Only the lower 4 bits of IOC5 are able to be defined.

IOC5 and IOC6 registers are both readable and writable.

IOCA (Prescaler Counter Register)

IOCA register is readable.

The value of IOCA is equal to the contents of Prescaler counter.

Down counter.

* This specification is subject to be changed without notice.

8.11.1999

B3-7

EM78P156E

IOCB (Pull-down Control Register)

/PD7

/PD6

/PD5

/PD4

/PD2

/PD1

/PD0

Bit 0 (/PD0)

Control bit used to enable the pull-down of P50 pin.

0: Enable internal pull-down
1: Disable internal pull-down

Bit 1 (/PD1)

Control bit used to enable the pull-down of P51 pin.

Bit 2 (/PD2)

Control bit used to enable the pull-down of P52 pin.

Bit 3

Not used.

Bit 4 (/PD4)

Control bit used to enable the pull-down of P60 pin.

Bit 5 (/PD5)

Control bit used to enable the pull-down of P61 pin.

Bit 6 (/PD6)

Control bit used to enable the pull-down of P62 pin.

Bit 7 (/PD7)

Control bit used to enable the pull-down of P63 pin.

IOCB register is both readable and writable.

6. IOCC (Open-drain Control Register)

OD7

OD6

OD5

OD4

OD3

OD2

OD1

OD0

Bit 0 (OD0)

Control bit used to enable the open-drain of P60 pin.

0: Disable open-drain output
1: Enable open-drain output

Bit 1 (OD1)

Control bit used to enable the open-drain of P61 pin.

Bit 2 (OD2)

Control bit used to enable the open-drain of P62 pin.

Bit 3 (OD3)

Control bit used to enable the open-drain of P63 pin.

Bit 4 (OD4)

Control bit used to enable the open-drain of P64 pin.

Bit 5 (OD5)

Control bit used to enable the open-drain of P65 pin.

Bit 6 (OD6)

Control bit used to enable the open-drain of P66 pin.

Bit 7 (OD7)

Control bit used to enable the open-drain of P67 pin.

IOCC register is both readable and writable.

7. IOCD (Pull-high Control Register)

/PH7

/PH6

/PH5

/PH4

/PH3

/PH2

/PH1

/PH0

Bit 0 (/PH0)

Control bit used to enable the pull-high of P60 pin.

0: Enable internal pull-high
1: Disable internal pull-high

Bit 1 (/PH1)

Control bit used to enable the pull-high of P61 pin.

Bit 2 (/PH2)

Control bit used to enable the pull-high of P62 pin.

Bit 3 (/PH3)

Control bit used to enable the pull-high of P63 pin.

Bit 4 (/PH4)

Control bit used to enable the pull-high of P64 pin.

Bit 5 (/PH5)

Control bit used to enable the pull-high of P65 pin.

* This specification is subject to be changed without notice.

8.11.1999

B3-8

EM78P156E

Bit 6 (/PH6)

Control bit used to enable the pull-high of P66 pin.

Bit 7 (/PH7)

Control bit used to enable the pull-high of P67 pin.

IOCD register is readable and writable.

IOCE (WDT Control Register)

WDTE

EIS

ROC

Bit 7 (WDTE)

Control bit used to enable Watchdog Timer.

0: Disable WDT.
1: Enable WDT.

WDTE is both readable and writable.

Bit 6 (EIS)

Control bit used to define the function of P60 (/INT) pin.

0: P60, bi-directional I/O pin.
1: /INT, external interrupt pin. In this case, the I/O control bit of P60 (bit 0 of IOC6) must be set to "1".

When EIS is "0", the path of /INT is masked. When EIS is "1", the status of /INT pin can also be read by
way of reading Port 6 (R6). Refer to Fig.7(a).

EIS is both readable and writable.

Bit 4 (ROC)

ROC is used for the R-option.

Setting the ROC to "1" will enable the status of R-option pins (P50~P51) to be read by the controller. Clearing
the ROC will disable the R-option function. If the R-option function is selected, the user must connect the P51
pin or/and P50 pin to VSS by a 430K

external resistor (Rex). If the Rex is connected/disconnected, the status

of P50 (P51) will be read as "0"/"1". Refer to Fig.8.

ROC is readable and writable.

Bits 0~3, 5

Not used.

IOCF (Interrupt Mask Register)

EXIE

ICIE

TCIE

Bit 0 (TCIE)

TCIF interrupt enable bit.

0: disable TCIF interrupt
1: enable TCIF interrupt

Bit 1 (ICIE)

ICIF interrupt enable bit.

0: disable ICIF interrupt
1: enable ICIF interrupt

Bit 2 (EXIE)

EXIF interrupt enable bit.

0: disable EXIF interrupt
1: enable EXIF interrupt

Bits 3~7

Not used.

Individual interrupt is enabled by setting its associated control bit in the IOCF to "1".

Global interrupt is enabled by the ENI instruction and is disabled by the DISI instruction. Refer to Fig.10.

IOCF register is both readable and writable.

* This specification is subject to be changed without notice.

8.11.1999

B3-9

EM78P156E

VI.3 TCC/WDT & Prescaler

There is an 8-bit counter available as prescaler for the TCC or WDT. The prescaler is available for the TCC only
or the WDT only at the same time and the PAB bit of the CONT register is used to determine the prescaler assigment.
The PSR0~PSR2 bits determine the ratio. The prescaler will be cleared by the instructions which write to TCC each time,
when assigned to TCC mode. The WDT and prescaler, when assigned to WDT mode, will be cleared by the "WDTC"
and "SLEP" instructions. Fig.5 depicts the circuit diagram of TCC/WDT.

R1 (TCC) is an 8-bit timer/counter. The clock source of TCC can be internal clock or external clock input (edge
selectable from TCC pin). If TCC signal source is from internal clock, TCC will increase by 1 in every instruction
cycle (without prescaler). Refer to Fig.5, CLK=Fosc/2 or CLK=Fosc/4 is depended on the CODE option bit CLKS.
CLK=Fosc/2 if CLKS bit is "0", and CLK=Fosc/4 if CLKS bit is "1". If TCC signal source is from external clock
input, TCC will increase by 1 on every falling edge or rising edge of TCC pin.

The watchdog timer is a free running on-chip RC oscillator. The WDT will keep running even the oscillator driver
has been turned off (i.e. in sleep mode). During the normal operation or the sleep mode, a WDT time-out (if enabled)
will cause the device to reset. The WDT can be enabled or disabled at any time during the normal mode by software
programming. Refer to WDTE bit of IOCE register. With no presacler, the WDT time-out period is approximately
18 ms.

Fig. 5 Block diagram of TCC and WDT

Data Bus

8-bit Counter

8-to-1 MUX

TCC overflow interrupt

PSR0 ~PSR2

WDT time-out

WDTE

(in IOCE)

TCC

PAB

MUX

PAB

CLK(Fosc/2 or Fosc/4)

TCC(R1)

M
U
X

SYNC
2 cycles

WDT

IOCA

VI.4 I/O Ports

The I/O registers, both Port 5 and Port 6, are bi-directional tri-state I/O ports. Port 6 can be pulled high internally
by software. In addition, Port 6 can also have open-drain output by software. There is an input status changed interrupt
(or wake-up) function on Port 6. P50 ~ P52 and P60 ~ P63 pins can be pulled down by software. Each I/O pin can be
defined as "input" or "output" pin by the I/O control registers (IOC5 ~ IOC6). P50~P51 are the R-option pins enabled
by setting the ROC bit in the IOCE register to 1. While the R-option function is used, P50~P51 are recommended to be
used as output pins. During the period of R-option being enabled, P50~P51 must be programmed as input pins. In the
R-option mode, the current consuming by the Rex should be taken into the consideration, if the low power consumption
is concerned.

* This specification is subject to be changed without notice.

8.11.1999

B3-10

EM78P156E

PORT

U
X

IOD

PDRD

PDWR

PCWR

PCRD

CLK

C
L

CLK

C
L

*Pull-down is not shown in the figure.

Fig. 6 The circuit of I/O port and I/O control register for Port 5

P
R

CLK
C

CLK

M
U
X

CLK

P60, /INT

PORT

Bit 6 of IOCE

PCRD

PCWR

PDWR

PDRD

IOD

TI0

INT

*Pull-high (down) and open-drain are not shown in the figure.

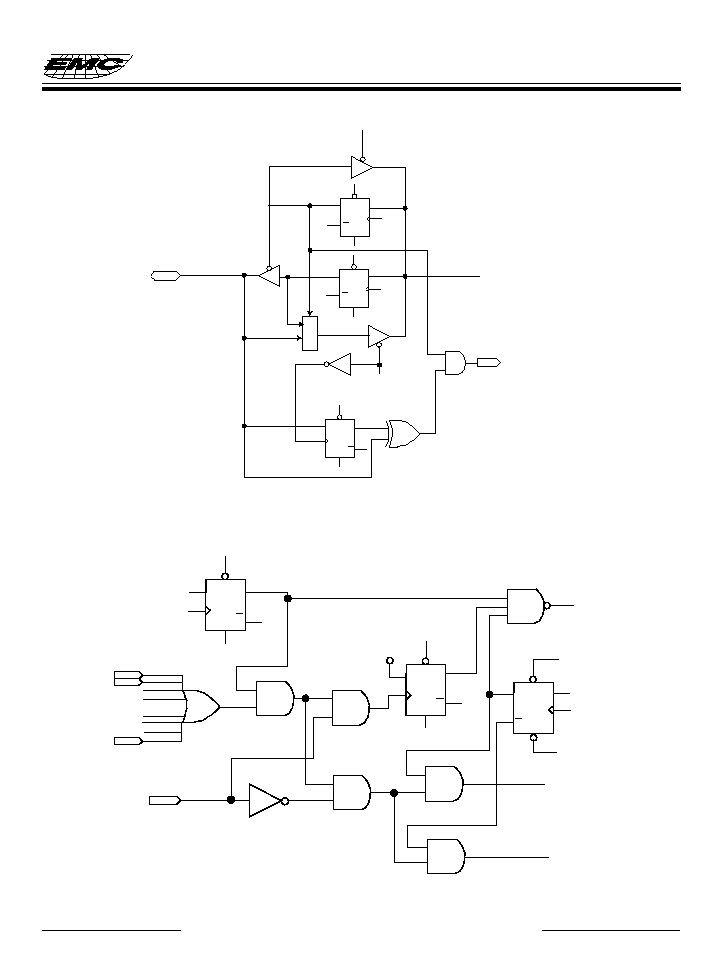

Fig. 7(a) The circuit of I/O port and I/O control register for P60(/INT)

The I/O registers and I/O control registers are both readable and writable. The I/O interface circuits for Port 5 and
Port 6 are shown in Fig.6 and Fig.7(a), 7(b) respectively.

* This specification is subject to be changed without notice.

8.11.1999

B3-11

EM78P156E

Pull-high (down) and open-drain are not shown in the figure.

Fig. 7(b) The circuit of I/O port and I/O control register for P61~P67

P
R

CLK
C

M
U
X

CLK

P61~P67

PORT

PCRD

PCWR

PDWR

PDRD

IOD

TIn

Fig. 7(c) Block diagram of I/O Port 6 with input changed interrupt/wake-up

P
R

CLK

P
R

CLK

P
R
CLK

/SLEP

Interrupt

ENI instruction

DISI instruction

Interrupt
(Wake-up from SLEEP)

Next Instruction
(Wake-up from SLEEP)

VCC

RF.1

IOCF.1

TI0
TI1

TI7

* This specification is subject to be changed without notice.

8.11.1999

B3-12

EM78P156E

Usage of Port 6 Input Status Changed Wake-up/Interrupt

(I) Wake-up from Port 6 input status changed

(II) Port 6 input status changed Interrupt

(a) Before SLEEP

1. Read I/O Port 6 (MOV R6,R6)

1. Disable WDT

(using very carefully)

2. Execute "ENI"

2. Read I/O Port 6 (MOV R6,R6)

3. Enable interrupt (Set IOCF.1)

3. Execute "ENI" or "DISI"

4. If Port 6 changed (interrupt)

4. Enable interrupt (Set IOCF.1)

Interrupt vector (008H)

5. Execute "SLEP" instruction

(b) After wake-up

1. If "ENI"

Interrupt vector (008H)

2. If "DISI"

Next instruction

PCRD

PCWR

CLK

PDWR

PDRD

CLK

PORT

U
X

IOD

ROC

Rex *

Weekly
Pull-up

VCC

* The Rex is 430K ohm external resistor.

Fig. 8 The circuit of I/O port with R-option (P50,P51)

VI.5 RESET and Wake-up

RESET

The RESET can be caused by
(1) Power-on reset
(2) /RESET pin input "low", or
(3) WDT time-out (if enabled).

Note that only power-on reset, or only voltage detector in Case (1) is enabled in the system by CODE option bit.
Refer to Fig. 9. The device will be kept in a RESET condition for a period of approx. 18ms (one-oscillator start-
up timer period) after the reset is detected. Once the RESET occurs, the following functions
are performed.
· The oscillator is running, or will be started.
· The Program Counter (R2) is set to all "0".
· All I/O port pins are configured as input mode (high-impedance state).

Note : Software disables WDT (watchdog timer) but hardware must be enabled before using port6 changed
wake-up function. (CODE Option Register, bit 11 (ENWDTB-) set to "1").

Table 2 Usage of Port 6 input changed wake-up/interrupt function

* This specification is subject to be changed without notice.

8.11.1999

B3-13

EM78P156E

· The Watchdog Timer and prescaler are cleared.
· Upon power-on, the upper 3 bits of R3 are cleared.
· The bits of the CONT register are set to all "1" except the bit 6 (INT flag).
· The bits of the IOCA register are set to all "1".
· The bits of the IOCB register are set to all "1".
· The IOCC register is cleared.
· The bits of the IOCD register are set to all "1".
· Bit 7 of the IOCE register is set to "1", and Bits 4 and 6 are cleared.
· Bits 0~2 of RF register and bits 0~2 of IOCF register are cleared.

Executing the "SLEP" instruction can perform the sleep mode (power-down mode). While entering sleep
mode, WDT (if enabled) is cleared but keeps running. The controller can be awakened by
(1) external reset input on /RESET pin,
(2) WDT time-out (if enabled), or
(3) Port 6 input status changed (if enabled).

The first two cases will cause the EM78P156E to reset. The T and P flags of R3 can be used to determine the source
of the reset (wake-up). The last case is considered the continuation of program execution and the global interrupt
("ENI" or "DISI" being executed) decides whether or not the controller branches to the interrupt vector following
wake-up. If ENI is executed before SLEP, the instruction will begin to execute from the address 008H after wake-
up. If DISI is executed before SLEP, the instruction will restart from the place where is right next to SLEP after
wake-up.

Only one of the cases 2 and 3 can be enabled before entering the sleep mode. That is,
[a] if Port 6 input status changed interrupt is enabled before SLEP , WDT must be disabled by software; however,

the WDT bit in the option register is still enabled. Hence, the EM78P156E can be awakened only by case 1 or 3.

[b] if WDT is enabled before SLEP, Port 6 input status changed interrupt must be disabled. Hence, the EM78P156E

can be awakened only by case 1 or 2. Refer to the section on interrupt.

If Port 6 input status changed interrupt is used to wake up the EM78P156E (the case [a]), the following
instructions must be executed before SLEP:

MOV A, 0bxx000110

; Select internal TCC clock

CONTW
CLR R1

; Clear TCC and prescaler

MOV A, 0bxxxx1110

; Select WDT prescaler

CONTW
WDTC

; Clear WDT and prescaler

MOV A, 0b0xxxxxxx

; Disable WDT

IOW RE
MOV R6, R6

; Read Port 6

MOV A, 0b00000x1x

; Enable Port 6 input changed interrupt

IOW RF
ENI (or DISI)

; Enable (or disable) global interrupt

SLEP

; Sleep

NOP

One problem should be aware that after waking up from the sleep mode, WDT would enable automatically.
The WDT operation (being enabled or disabled) should be handled appropriately by software after waking up from
the sleep mode.

* This specification is subject to be changed without notice.

8.11.1999

B3-14

EM78P156E

Table 3 The summary of the initialized values for registers

Address

Name

Reset Type

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3 Bit 2 Bit 1 Bit 0

Bit Name

C53

C52

C51

C50

N/A

IOC5

Power-on

/RESET and WDT

Wake-up from Pin Changed

Bit Name

C67

C66

C65

C64

C63

C62

C61

C60

N/A

IOC6

Power-on

/RESET and WDT

Wake-up from Pin Changed

Bit Name

/INT

PAB PSR2 PSR1 PSR0

N/A

CONT

Power-on

/RESET and WDT

Wake-up from Pin Changed

Bit Name

0X00

R0(IAR)

Power-on

/RESET and WDT

Wake-up from Pin Changed

Bit Name

0X01

R1(TCC)

Power-on

/RESET and WDT

Wake-up from Pin Changed

Bit Name

0X02

R2(PC)

Power-on

/RESET and WDT

Wake-up from Pin Changed

**0/P

**0/P **0/P **0/P **1/P **0/P **0/P **0/P

Bit Name

GP2

GP1

GP0

0X03

R3(SR)

Power-on

/RESET and WDT

Wake-up from Pin Changed

Bit Name

GP1

GP0

0x04

R4(RSR)

Power-on

/RESET and WDT

Wake-up from Pin Changed

Bit Name

P53

P52

P51

P50

0x05

R5(P5)

Power-on

/RESET and WDT

Wake-up from Pin Changed

Bit Name

P67

P66

P65

P64

P63

P62

P61

P60

0x06

R6(P6)

Power-on

/RESET and WDT

Wake-up from Pin Changed

Bit Name

EXIF ICIF TCIF

0x0F

RF(ISR)

Power-on

/RESET and WDT

Wake-up from Pin Changed

Bit Name

0x0A

IOCA

Power-on

/RESET and WDT

Wake-up from Pin Changed

* This specification is subject to be changed without notice.

8.11.1999

B3-15

EM78P156E

Table 4 The values of T and P after RESET

Reset Type

Power-on

/RESET during operating mode

/RESET wake-up during SLEEP mode

WDT during operating mode

WDT wake-up during SLEEP mode

Wake-up on pin changed during SLEEP mode

*P: Previous status before reset

** To jump address 0x08, or to execute the instruction which is next to the "SLEP" instruction.
X: not used.

U: unknown or don't care.

P: previous value before reset.

t: check Table 4

The status of T and P of STATUS register

A RESET condition can be caused by the following events:
1. a power-on condition,
2. a high-low-high pulse on /RESET pin, and
3. Watchdog Timer time-out.

The values of T and P, listed in Table 4 can be used to check how the processor wakes up. Table 5 shows the events which
may affect the status of T and P .

Address

Name

Reset Type

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3 Bit 2 Bit 1 Bit 0

Bit Name

/PD7

/PD6

/PD5

/PD4

/PD2 /PD1 /PD0

0x0B

IOCB

Power-on

/RESET and WDT

Wake-up from Pin Changed

Bit Name

OD7

OD6

OD5

OD4

OD3 OD2 OD1 OD0

0x0C

IOCC

Power-on

/RESET and WDT

Wake-up from Pin Changed

Bit Name

/PH7

/PH6

/PH5

/PH4

/PH3 /PH2 /PH1 /PH0

0x0D

IOCD

Power-on

/RESET and WDT

Wake-up from Pin Changed

Bit Name

WDTC

EIS

ROC

0x0E

IOCE

Power-on

/RESET and WDT

Wake-up from Pin Changed

Bit Name

EXIE ICIE TCIE

0x0F

IOCF

Power-on

/RESET and WDT

Wake-up from Pin Changed

Bit Name

0x10

R10~R3F

Power-on

~ 0x3F

/RESET and WDT

Wake-up from Pin Changed

* This specification is subject to be changed without notice.

8.11.1999

B3-16

EM78P156E

Table 5 The status of T and P being affected by events

Event

Power-on

WDTC instruction

WDT time-out

SLEP instruction

Wake-up on pin changed during SLEEP mode

Fig. 9 Block diagram of Reset of controller

VI.6 Interrupt

EM78P156E has three falling edge interrupts listed below :
(1) TCC overflow interrupt
(2) Port 6 input status changed interrupt
(3) External interrupt [(P60//INT) pin].

Before Port 6 input status changed interrupt being enabled, reading Port 6 (e.g. "MOV R6,R6") is necessary.
Each pin of Port 6 can have this feature if its status changed. Any pin configured as output or P60 pin configured
as /INT is excluded from this function. The Port 6 input status changed interrupt can wake up the EM78P156E from the
sleep mode if it is enabled prior to going into the sleep mode by executing SLEP. When waking up, the controller will
continue to execute the succesive address if the global interrupt is disabled or branch to the interrupt vector 008H if the
global interrupt is enabled.

RF is the interrupt status register, which records the interrupt requests in the relative flags/bits. IOCF is an
interrupt mask register. The global interrupt is enabled by the ENI instruction and is disabled by the DISI
instruction. When one of the interrupts (when enabled) occurs, the next instruction will be fetched from address

CLK

CLR

CLK

RESET

18 ms

WDT

Oscillator

Power-on

Reset

WDTE

WDT Timeout

/RESET

M
U
X

Voltage
Detector

/Enable

CODE
Option

*P: Previous value before reset

* This specification is subject to be changed without notice.

8.11.1999

B3-17

EM78P156E

008H. Once in the interrupt service routine, the source of an interrupt can be determined by polling the flag bits
in RF. The interrupt flag bit must be cleared by instructions before leaving the interrupt service routine and
enabling interrupts to avoid recursive interrupts.

The flag (except ICIF bit) in the Interrupt Status Register (RF) is set regardless of the status of its mask bit or the
execution of ENI. Note that the outcome of RF will be the logic AND of RF and IOCF. Refer to Fig.10. The
RETI instruction ends the interrupt routine and enables the global interrupt (the execution of ENI).

When an interrupt is generated by the INT instruction (when enabled), the next instruction will be fetched from
address 001H

P
R

CLK

P
R

CLK

/INT

IOD

VCC

/RESET

IRQn

.
.

IRQm

ENI/DISI

RPRD

IOCFWR

IOCF

IOCFRD

RFWR

/IRQn

VI.7 Oscillator

Oscillator Modes

EM78P156E can be operated in four different oscillator modes. There are Internal Capacitor oscillator mode (IRC),
External RC oscillator mode (ERC), High XTAL oscillator mode (HXT) and Low XTAL oscillator mode (LXT). Users
can select one of them by programming MS and HLF in the CODE option register. Table 6 depicts how these four modes
to be defined.

The up-limited operation frequency of crystal/resonator on the different VDDs is listed in Table 7.

Table 6 Oscillator Modes defined by MS, HLF, HLP and IRCEN

Mode

HLF

HLP

IRCEN

External RC oscillator mode

High XTAL oscillator mode

Low XTAL oscillator mode

Internal C, External R oscillator mode

<Note> 1. X, Do not care

2. The transient point of system frequency between HXT and LXY is around 400 KHz.

Fig. 10 Interrupt input circuit

* This specification is subject to be changed without notice.

8.11.1999

B3-18

EM78P156E

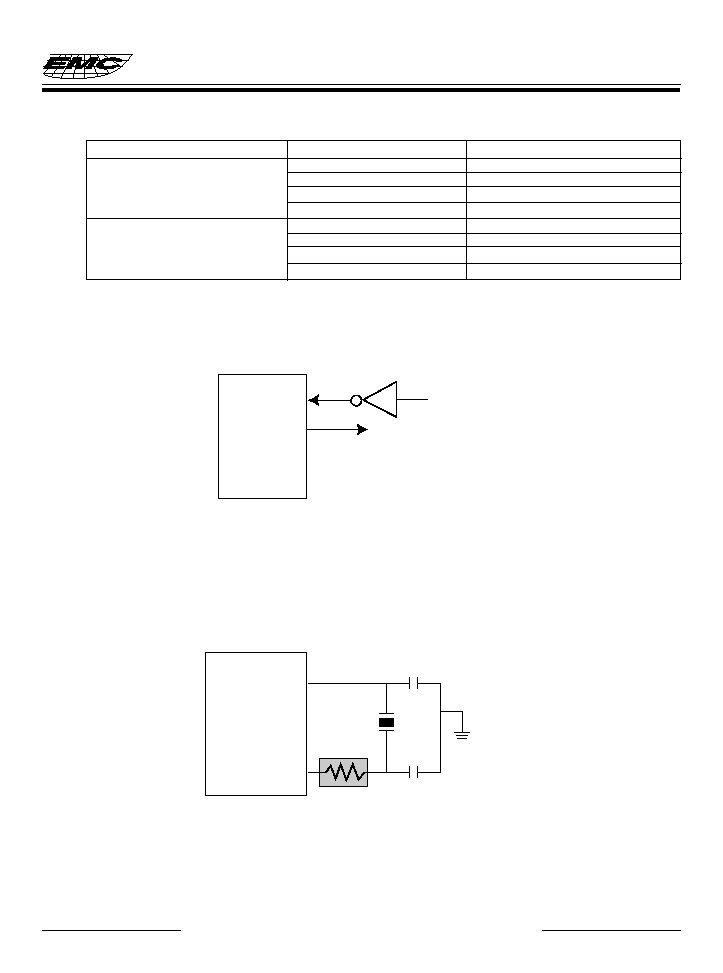

Table 7 The summary of maximum operating speeds

Conditions

VDD (V)

Fxt max. (MHz)

2.5

Two clocks

6.4

2.5

Four clocks

6.5

2. Crystal Oscillator/Ceramic Resonators (XTAL)

EM78P156E can be driven by an external clock signal through the OSCI pin as shown in Fig.11

Ext. Clock

OSCI

OSCO

EM78P156E

Fig. 11 Circuit for External Clock Input

In the most applications, pin OSCI and pin OSCO can be connected with a crystal or ceramic resonator to generate
oscillation. Fig.12 depicts the circuit. It is the same no matter in the HXT mode or in the LXT mode. Table 8
recommends the values of C1 and C2. Since each resonator has its own attribute, users should refer to their specifications
for appropriate values of C1 and C2. RS, a serial resistor, may be necessary for AT strip cut crystal or low frequency
mode

OSCI

OSCO

EM78P156E

XTAL

Fig. 12 Circuit for Crystal/Resonator

* This specification is subject to be changed without notice.

8.11.1999

B3-19

EM78P156E

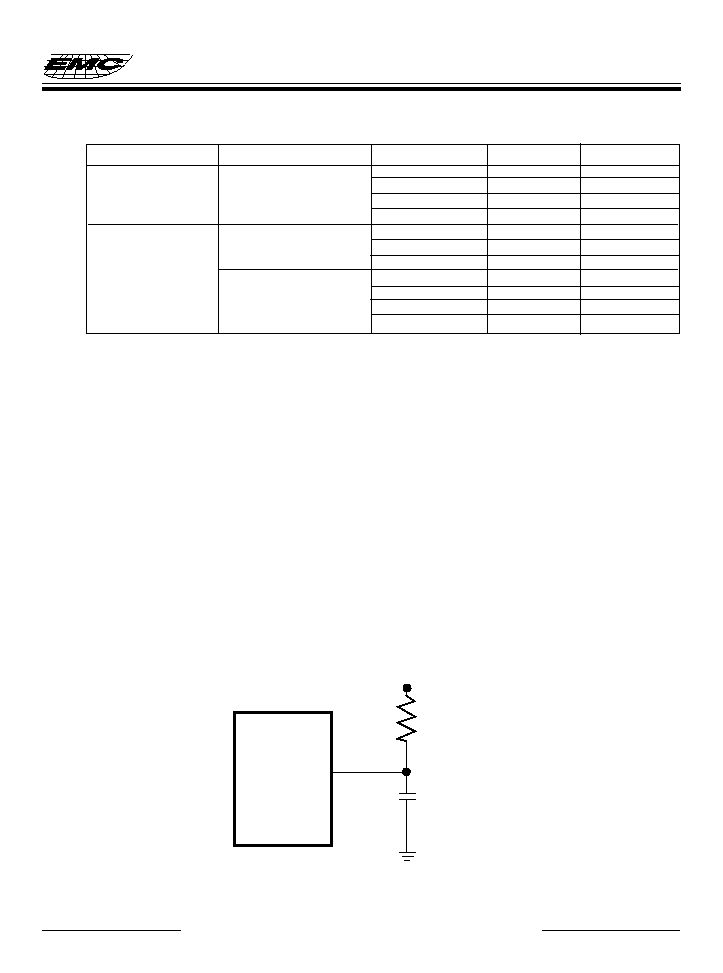

Table 8 Capacitor Selection Guide for Crystal Oscillator or Ceramic Resonators

Oscillator Type

Frequency Mode

Frequency

C1 (pF)

C2 (pF)

455 KHz

100~150

1.00 MHz

40~80

Ceramic Resonator

HXT

2.0 MHz

20~40

4.0 MHz

10~30

32.768 KHz

LXT

100 KHz

200 KHz

Crystal Oscillator

455 KHz

20~40

20~150

HXT

1.0 MHz

15~30

2.0 MHz

4.0 MHz

ERC Oscillator Mode

For some applications whose timing need not be calculated precisely, the RC oscillator (Fig.13) offers a lot of cost
savings. Nevertheless, it should be aware that the frequency of the RC oscillator is the function of the supply voltage,
the values of the resistor (Rext), the capacitor (Cext), and even the operation temperature.
Moreover to this, the frequency also changes slightly from one chip to another due to the process variation.

In order to maintain a stable system frequency, the values of the Cext should not be less than 20pF as well as the
value of Rext should not be greater than 1M ohm. If they can not be kept in this range, the frequency is affected easily
by noise, humidity and leakage.

The smaller Rext the RC oscillator has, the faster frequency it gets. On the contrary, for very low Rext values,
for instance, 1K

, the oscillator becomes unstable because the NMOS can not discharge the current of the

capacitance correctly.

On a basis of the above reasons, it must be kept in mind that all of the supply voltage, the operation temperature, the
components of the RC oscillator, the package types and the ways of PCB layout will effect the system frequency.

Rext

Cext

OSCI

EM78P156E

Fig. 13 Circuit for External RC Oscillator Mode

* This specification is subject to be changed without notice.

8.11.1999

B3-20

EM78P156E

Table 9 RC Oscillator Frequencies

Cext

Rext

Average Fosc @ 5V, 25

Average Fosc @ 3V, 25

3.3k

3.92 MHz

3.65 MHz

5.1k

2.67 MHz

2.60 MHz

10k

1.39 MHz

1.40 MHz

100k

1.49 KHz

156 KHz

3.3k

1.39 MHz

1.33 MHz

5.1k

940 KHz

920 KHz

10k

480 KHz

475 KHz

100k

52 KHz

50 KHz

3.3k

595 KHz

560 KHz

5.1k

400 KHz

390 KHz

10k

200 KHz

100k

21 KHz

20 KHz

* 1. Measured on DIP packages.

2. Design reference only

IRC Oscillator Mode

In IRC mode, it consists of an internal C which default frequency value is 4MHz. We suggest that the external Resistant
value here should be 50K

connected to vdd with internal C.

VI.8 CODE Option Register

Code Option Register

The EM78P156E has one Code option register which is not a part of the normal program memory. The option bits
can not be accessed during normal program execution.

5~0

ENWDTB

CLKS

PTB

HLF

IRCEN

HLP

------

Bit 12 (MS): Oscillator type selection.

0: RC type
1: XTAL type (XTAL1 and XTAL2)

Bit 11 (ENWDTB): Watchdog Timer enable.

0: Enable
1: Disable

Bit 10 (CLKS): Instruction period option.

0: two oscillator periods
1: four oscillator periods
Refer to the section of Instruction Set.

Bit 9 (PTB): Protect bit

0: Enable
1: Disable

Bit 8 (HLF): XTAL frequency selection.

0: XTAL2 type (Low frequency, 32.768KHz)

300pF

100pF

20pF

* This specification is subject to be changed without notice.

8.11.1999

B3-21

EM78P156E

1: XTAL1 type (High frequency)
This bit will affect system oscillation only when Bit 12 (MS) is "1". When MS is "0", HLF must be "0".

Bit 7 (IRCEN): RC oscillator selection.

0: R connected to Vdd with internal C.
1: External RC

Bit 6 (HLP): Power selection.

0: Low power
1: High power

Bits 5 ~ 0: Not used.

User's ID Register

The EM78P156E has one User's ID register which is not a part of the normal program memory. The User's ID bits
can not be accessed during normal program execution.

12 ~0

XXXXXXXXXXXXX

Bit 12 ~ 0: User's ID code.

Rin

VDD

/RESET

EM78P156E

Fig. 14 External Power-up Reset Circuit

VI.9 Power-on Considerations

Any microcontroller is not warranted to start proper operation before the power supply stays in its steady state.
EM78P156E is equipped with Power On Voltage Detector (POVD) which the detective level is about 1.8V. It
will work well if Vdd rises quickly enough (50ms or less). In many critical applications; however, extra devices
are still required to assist in solving power-up problems.

VI.10 External Power-on Reset Circuit

The circuit shown in Fig.14 implements an external RC to produce the reset pulse. The pulse width (time constant)
should keep long enough until Vdd has reached minimum operation voltage. This circuit is used when the power supply
has slow rise time. Because the current leakage from the /RESET pin is about 5A, it is recommended that R should
not be greater than 40K. In this way, the voltage in pin /RESET will be held below 0.2V. The diode (D) acts a short circuit
at the moment of power-down. The capacitor, C, will be discharged rapidly and fully. Rin, the current-limited resistor,

protects against a high discharging current or ESD (electrostatic discharge) flowing to pin /RESET.

* This specification is subject to be changed without notice.

8.11.1999

B3-22

EM78P156E

VDD

33K

10K

IN4684

VDD

/RESET

EM78P156E

100K

Fig. 15 Circuit 1 for the residue voltage protection

VDD

/RESET

EM78P156E

Fig. 16 Circuit 2 for the residue voltage protection

VI.11 Residue Voltage Protection

In some applications, replacing battery as an instance, device power (Vdd) is taken off and recovered within a few
seconds. A residue voltage, which trips below Vdd min but not to zero, may exist. This condition may cause a poor
power-on reset. Fig.15 and Fig.16 show how to build the residue voltage protection circuit

* This specification is subject to be changed without notice.

8.11.1999

B3-23

EM78P156E

VI.12 Instruction Set

Each instruction in the instruction set is a 13-bit word divided into an OP code and one or more operands.
Normally, all instructions are executed within one single instruction cycle (one instruction consists of 2 oscillator
periods), unless the program counter is changed by instruction "MOV R2,A", "ADD R2,A", or instructions of arithmetic
or logic operation on R2 (e.g. "SUB R2,A", "BS(C) R2,6", "CLR R2", ......). In this case, the execution takes two
instruction cycles.

Under some conditions, if the specification of the instruction cycle is not suitable for some applications, they can be
modified as follows:
(A) one instruction cycle consists of 4 oscillator periods.
(B) "JMP", "CALL", "RET", "RETL", "RETI", and the conditional skip ("JBS", "JBC", "JZ", "JZA", "DJZ",
"DJZA") tested to be true are executed within two instruction cycles. The instructions that write to the program
counter also take two instruction cycles.

The Case (A) is selected by the CODE option bit, called CLKS. One instruction cycle consists of two oscillator
clocks if CLKS is low, and consists of four oscillator clocks if CLKS is high.

Note that once 4 oscillator periods within one instruction cycle is selected in Case (A), the internal clock source to
TCC is CLK=Fosc/4 instead of Fosc/ 2 that is shown in Fig.5.

In addition, the instruction set has the following features:
(1) Every bit of any register can be set, cleared or tested directly.
(2) The I/O registers can be regarded as general registers. That is, the same instruction can operate on I/O register.

The symbol "R" represents a register designator which specifies which one of the registers (including operational
registers and general-purpose registers) to be utilized by the instruction. The symbol "b" represents a bit field designator
which selects the number of the bit located in the register "R" affected by the operation. The symbol "k" represents an
8 or 10-bit constant or literal value.

* This specification is subject to be changed without notice.

8.11.1999

B3-24

EM78P156E

INSTRUCTION

HEX

MNEMONIC

OPERATION

STATUS

BINARY

AFFECTED

0000 0000 0000

0000

NOP

No Operation

None

0000 0000 0001

0001

DAA

Decimal Adjust A

0000 0000 0010

0002

CONTW

CONT

None

0000 0000 0011

0003

SLEP

WDT, Stop oscillator

T,P

0000 0000 0100

0004

WDTC

WDT

T,P

0000 0000 rrrr

000r

IOW R

IOCR

None <Note1>

0000 0001 0000

0010

ENI

Enable Interrupt

None

0000 0001 0001

0011

DISI

Disable Interrupt

None

0000 0001 0010

0012

RET

[Top of Stack]

None

0000 0001 0011

0013

RETI

[Top of Stack]

PC,

None

Enable Interrupt

0000 0001 0100

0014

CONTR

CONT

None

0000 0001 rrrr

001r

IOR R

IOCR

None <Note1>

0000 01rr rrrr

00rr

MOV R,A

None

0000 1000 0000

0080

CLRA

0000 11rr rrrr

00rr

CLR R

0001 00rr rrrr

01rr

SUB A,

R R-A

Z,C,DC

0001 01rr rrrr

01rr

SUB R,A

R-A

Z,C,DC

0001 10rr rrrr

01rr

DECA R

R-1

0001 11rr rrrr

01rr

DEC R

R-1

0010 00rr rrrr

02rr

OR A,R

0010 01rr rrrr

02rr

OR R,A

0010 10rr rrrr

02rr

AND A,R

A & R

0010 11rr rrrr

02rr

AND R,A

A & R

0011 00rr rrrr

03rr

XOR A,R

0011 01rr rrrr

03rr

XOR R,A

0011 10rr rrrr

03rr

ADD A,R

A + R

Z,C,DC

0011 11rr rrrr

03rr

ADD R,A

A + R

Z,C,DC

0100 00rr rrrr

04rr

MOV A,R

0100 01rr rrrr

04rr

MOV R,R

0100 10rr rrrr

04rr

COMA R

0100 11rr rrrr

04rr

COM R

0101 00rr rrrr

05rr

INCA R

R+1

0101 01rr rrrr

05rr

INC R

R+1

0101 10rr rrrr

05rr

DJZA

R R-1

A, skip if zero

None

0101 11rr rrrr

05rr

DJZ R

R-1

R, skip if zero

None

0110 00rr rrrr

06rr

RRCA R

R(n)

A(n-1)

R(0)

C, C

A(7)

0110 01rr rrrr

06rr

RRC R

R(n)

R(n-1)

R(0)

C, C

R(7)

0110 10rr rrrr

06rr

RLCA R

R(n)

A(n+1)

R(7)

C, C

A(0)

0110 11rr rrrr

06rr

RLC R

R(n)

R(n+1)

R(7)

C, C

R(0)

0111 00rr rrrr

07rr

SWAPA R

R(0-3)

A(4-7)

R(4-7)

A(0-3)

None

0111 01rr rrrr

07rr

SWAP R

R(0-3)

R(4-7)

None

0111 10rr rrrr

07rr

JZA R

R+1

A, skip if zero

None

0111 11rr rrrr

07rr

JZ R

R+1

R, skip if zero

None

Table 10 The list of the instruction set of EM78P156E

* This specification is subject to be changed without notice.

8.11.1999

B3-25

EM78P156E

INSTRUCTION

HEX

MNEMONIC

OPERATION

STATUS

BINARY

AFFECTED

0 100b bbrr rrrr

0xxx

BC R,b

R(b)

None <Note2>

0 101b bbrr rrrr

0xxx

BS R,b

R(b)

None <Note3>

0 110b bbrr rrrr

0xxx

JBC R,b

if R(b)=0, skip

None

0 111b bbrr rrrr

0xxx

JBS R,b

if R(b)=1, skip

None

1 00kk kkkk kkkk

1kkk

CALL k

PC+1

[SP], (Page, k)

None

1 01kk kkkk kkkk

1kkk

JMP k

(Page, k)

None

1 1000 kkkk kkkk

18kk

MOV A,k

None

1 1001 kkkk kkkk

19kk

OR A,k

1 1010 kkkk kkkk

1Akk

AND A,k

A & k

1 1011 kkkk kkkk

1Bkk

XOR A,k

1 1100 kkkk kkkk

1Ckk

RETL k

A, [Top of Stack]

None

1 1101 kkkk kkkk

1Dkk

SUB A,k

k-A

Z,C,DC

1 1110 0000 0001

1E01

INT

PC+1

[SP], 001H

None

1 1111 kkkk kkkk

1Fkk

ADD A,k

k+A

Z,C,DC

<Note 1> This instruction can operate on IOC5~IOC6, IOCA~IOCF only.
<Note 2> This instruction is not recommended to operate on RF.
<Note 3> This instruction cannot operate on RF.

* This specification is subject to be changed without notice.

8.11.1999

B3-26

EM78P156E

VIII. DC ELECTRICAL CHARACTERISTIC

(Ta=0

C ~ 70

C, V

=5.0V

5%, V

=0V)

Parameter

Sym.

Condition

Min.

Typ.

Max.

Unit

XTAL : VDD to 3V

Fxt

Two cycles with two clocks

12.0

MHz

XTAL : VDD to 5V

Fxt

18.0

MHz

ERC : VDD to 5V

R : 5.1K

, C : 100pF

20%

760

20%

KHz

IRC : VDD to 5V

R : 50K

20%

MHz

Input Leakage Current

= V

, V

for input pins
Input High Voltage

Ports 5, 6

2.0

Input Low Voltage

Ports 5, 6

0.8

Input High Threshold Voltage

IHT

/RESET, TCC

2.0

Input Low Threshold Voltage

ILT

/RESET, TCC

0.8

Clock Input High Voltage

IHX

OSCI

3.5

Clock Input Low Voltage

ILX

OSCI

1.5

Output High Voltage

OH1

= -12mA

2.4

(Port 5,6)
Output Low Voltage

OL1

= 10.5mA

0.4

(P50~P53,P62~P67)
Output Low Voltage

OL2

= 12mA

0.4

(P60,P61)

Pull-high current

Pull-high active, input pin at V

-50

-70

-240

Pull-down current

Pull-down active, input pin at V

120

Power-down current

SB1

All input and I/O pins at V

, output

pin floating, WDT disabled

Power-down current

SB2

All input and I/O pins at V

, output

pin floating, WDT enabled

Operating supply current

CC1

/RESET='High', Fosc=32KHz(Crystal

=3V)

type, CLKS="0"), output pin floating,

at two cycles/two clocks

WDT disabled

Operating supply current

CC2

/RESET='High', Fosc=32KHz(Crystal

=3V)

type,CLKS="0"), output pin floating,

at two cycles/two clocks

WDT enabled

Operating supply current

CC3

/RESET='High', Fosc=4MHz (Crystal

=5V)

type,CLKS="0"), output pin floating

1.6

at two cycles/two clocks

WDT enable

Operating supply current

CC4

/RESET='High', Fosc=10MHz (Crystal

=5V)

type,CLKS="0"), output pin floating

at two cycles/two clocks

WDT enable

Items

Sym.

Condition

Rating

Temperature under bias

OPR

C to 70

Storage temperature

STR

-65

C to 150

Input voltage

-0.3V to +6.0V

Output voltage

-0.3V to +6.0V

VII. ABSOLUTE MAXIMUM RATINGS

* This specification is subject to be changed without notice.

8.11.1999

B3-27

EM78P156E

Input CLK duty cycle

Dclk

Instruction cycle time

Tins

XTAL Type

125

(CLKS="0")

RC Type

500

TCC input period

Ttcc

(Tins+20)/N*

Device reset hold time

Tdrh

Ta = 25

16.8

Watchdog Timer period

Twdt

Ta = 25

16.8

Input pin setup time

Tset

Input pin hold time

Thold

Output pin delay time

Tdelay

Cload=20pF

Note : N*= selected prescaler ratio.

IX.

VOLTAGE DETECTOR ELECTRICAL CHARACTERISTIC (Ta = 25

Parameter

Symbol

Condition

Min.

Typ.

Max.

Unit

Detect voltage

Vdet

1.7

1.8

1.9

Release voltage

Vrel

Vdet x1.05

Current consumption

Iss

= 5V

Operating voltage

Vop

0.7*

5.5

Temperature

Vdet/

-2

mV/

characteristic of Vdet

AC ELECTRICAL CHARACTERISTICS

(Ta=0

C ~ 70

C, V

=5.0V

5%, V

=0V)

Parameter

Symbol

Condition

Min.

Typ.

Max.

Unit

Ð­Ð»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: EM78P156E

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: EM78P156E
