ESS Technology, Inc.
SAM0417-051701
1
A
ESS Technology, Inc.
ES3210
Video CD Processor
Product Brief
DESCRIPTION
The ES3210 Video CD processor is a highly integrated,
high quality and cost-effective single-chip solution for Video
CD players. Based upon ESS's Programmable Multimedia
Processor (PMP) architecture, the ES3210 integrates
MPEG1 video and audio processing and a full MPEG
system stream parser. The ES3210 is fully programmable
and incorporates a RISC-based 32-bit processor as an on-
chip video controller (VC) and a supporting 64-bit
processor core that functions as an on-chip video
processor (VP).
The VC module can be used as a microcontroller to provide
system and user interface controls, while also being able to
support embedded systems applications. The VP module
performs MPEG audio and video processing operations
such as arbitrary scaling, video standards conversion and
video filtering. The MPEG1 system layer bitstream is
decoded at up to 9 Mb/s at Standard Intermediate Format
(SIF) resolution with a picture rate of 30 f/s. Two channels
of MPEG layer 1 or audio layer 2 are decoded
simultaneously.
The ES3210 includes SmartScale
TM
technology for advanced
scaling techniques, SmartStream
TM
technology for video
error concealment, and SmartZoom
TM
technology for
enabling in/out zooming of a particular area of a still picture.
Additional features include DiscScan, TrackScan, QuickScan, On-
Screen-Display (OSD), Karaoke, Playback Control (PBC) for
Video CD 2.0, Smart Art and entertainment game software.
The incoming MPEG1 bit stream from a video CD is passed
to the ES3210 through its five-wire TDM serial bus, parses the
system layer and demultiplexes the video and audio
channels. Video is decoded and output as YUV or RGB
digital pixels to an NTSC or PAL video DAC/encoder, then
to the screen. Audio is decoded and passed to the
speakers via the audio serial bus, then to an audio DAC.
The ES3210 also has general-purpose auxiliary pins and
an integrated audio Digital-to-Analog Converter (DAC)
interface to reduce the need for external audio glue logic.
When coupled with the ES3207 Video CD Companion
Chip, echo cancellation and vocal reverb are also
supported. The echo cancellation feature removes
unwanted acoustic reflection from the audio output, while
the vocal reverb feature simulates a theater acoustic
environment.
The ES3210 is available in an industry-standard 100-pin
Thin Quad Flat Pack (TQFP) device package.
FEATURES
Single-chip Video CD processor in a 100-pin TQFP
package.
Programmable Multimedia Processor (PMP) architecture.
MPEG1 video/audio decoder and system parser.
Video CD 1.1 and 2.0, and Audio CD compatible.
On-chip video interlacing hardware incorporated.
Color Space Conversion (CSC) function supported.
STC interpretation and video/audio Phase-lock Loop (PLL)
Power management
3.3V power supply with 5V tolerant I/Os.
8- and 16-bit YUV output supported.
On-chip On Screen Display (OSD) controller supports
karaoke lyric and subtitle text display functions.
Video
Playback Control (PBC) for Video CD 2.0 supported.
Trick mode functions such as Repeat, Goto, and Set A-B
supported.
SmartScale
TM
for NTSC to PAL conversion and vice versa
supported.
SmartZoom
TM
for motion zoom and pan supported.
SmartStream
TM
for video error concealment supported.
Video Fader for fading video image in and out supported.
Audio
CD block decoder functions supported.
256/384 frame sync audio system clocks supported.
Programmable master clock for external audio DAC.
Independent bit clock for audio transmit and receive.
3DSound and surround sound supported.
Software Support
Software stack support for the TCP/IP protocols defined by
RFC 791 and RFC 793.
Software stack support for the POP3, SMTP and SNMP
Internet e-mail protocols defined by RFC 821, RFC
1157and RFC 2449.
Software stack support provided for the HTTP Web
browsing protocol defined by RFC 1945, RFC 2068 and
RFC2616.
Software stack support provided for RTP payload format for
MPEG-1/2 and H.261 video streaming protocols defined by
Character generation and software support for English,
Big 5/GB Chinese and Japanese fonts.
Software support for infrared remote control and wireless
keyboard.
2
SAM0417-051701
ESS Technology, Inc.
ES3210 PRODUCT BRIEF
ES3210 PINOUT
A
ES3210 PINOUT

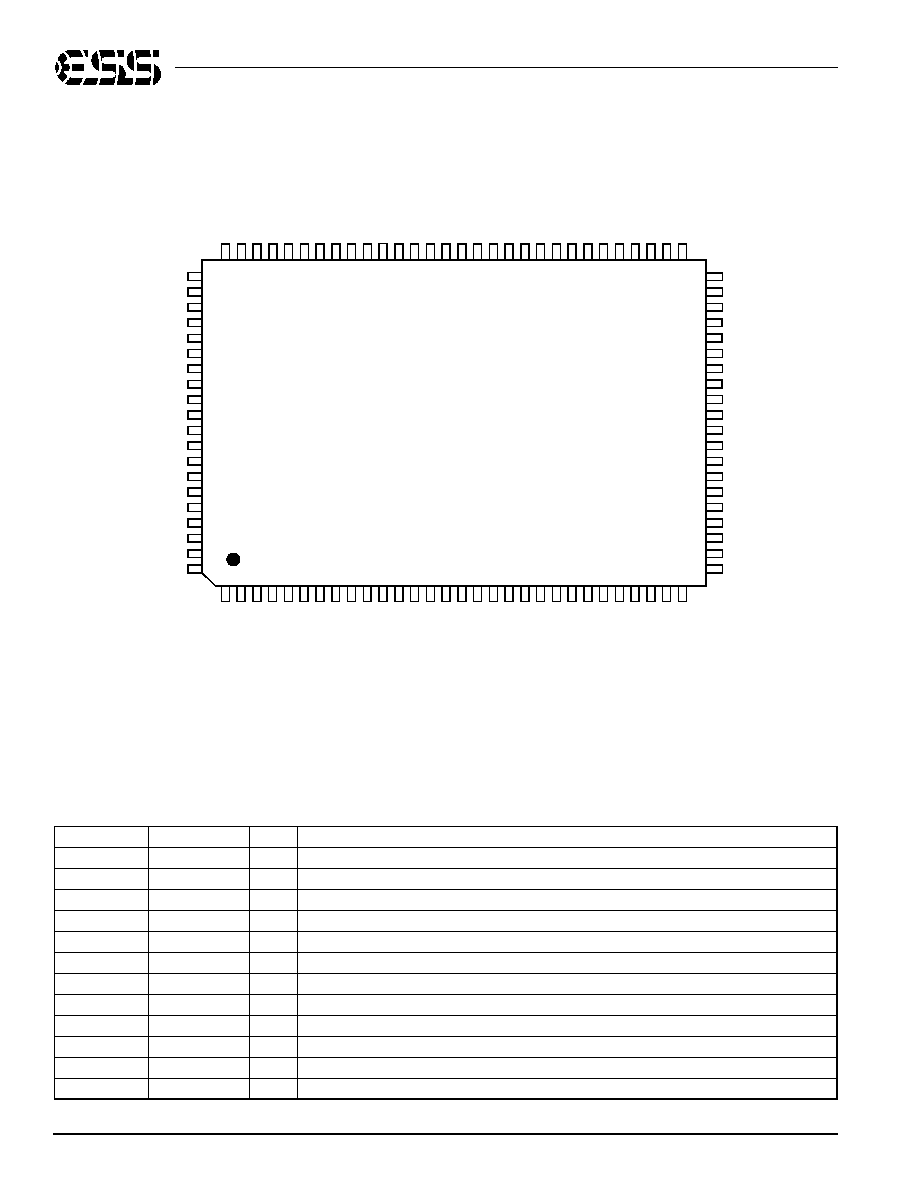

Figure 1 shows the ES3210 device pinout.
Figure 1 ES3210 Pinout Diagram
ES3210 PIN DESCRIPTION
Table 1 lists the ES3210 pin descriptions.
1
VSS
AUX4
AUX3
AUX2
AUX1
AUX0
PCLK
PCLK2X
CPUCLK
HSYNC
VSYNC
YUV7
YUV6
YUV5
YUV4
YUV3
YUV2
YUV1
YUV0
VDD
VPP
LA12
LA13
LA14
LA15
LA16
LA17
ACLK
AOUT/SEL_PLL0
ATCLK
ATFS/SEL_PLL1
DOE#
AIN
ARCLK
ARFS
TDMCLK
TDMDR
TDMFS
CAS#
VSS
DBUS8
DBUS7
DBUS6
DBUS5
DBUS4
DBUS3
DBUS2
DBUS1
DBUS0
MA
8
MA
7
MA
6
MA
5
MA
4
MA
3
MA
2
MA
1
MA
0
RAS#
VDD
VS
S
RESET#
DWE#
DBUS14
DBUS15
DBUS1
3
DBUS1
2
DB
U
S
1
1
DBUS1
0
DBUS9
LD6
LD
7
LW
R
#
LO
E
#
LCS3#
LC
S
1
#
LC
S
0
#
LA0
LA
1
LA2
LA
3
LA
4
LA5
LA
6
LA
7
LA8
LA
9
LA10
LA
1
1
VSS
VDD
AUX6
AUX5
AUX7
LD
0
LD1
LD2
LD3
LD
4
LD
5
31
30
51
50
80
81
100
2
3
4
5
6
7
8
9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
ES3210
100-pin PQFP
Table 1 ES3210 Pin Description
Name
Number
I/O
Definition
VDD
1, 31, 51
I
Voltage supply for 3.3V.
RAS#
2
O
DRAM row address strobe (active low).
DWE#
3
O
DRAM write enable (active low).
MA[8:0]
12:4
O
DRAM multiplexed row and column address bus.
DBUS[15:0]
28:13
I/O
DRAM data bus I/O [15:0].
RESET#
29
I
System reset (active low).
VSS
30, 50, 80, 100
I
Ground.
YUV[7:0]
39:32
O
YUV[7:0] pixel output data.
VSYNC
40
I/O
Vertical sync for screen video interface, programmable for rising or falling edge.
HSYNC
41
I/O
Horizontal sync for screen video interface, programmable for rising or falling edge.
CPUCLK
42
I
RISC and system clock input. CPUCLK is used only if SEL_PLL[1:0] = 00.
PCLK2X
43
I/O
Pixel clock; two times the actual pixel clock for screen video interface.
ESS Technology, Inc.
SAM0417-051701
3
ES3210 PRODUCT BRIEF
ES3210 PIN DESCRIPTION
A
PCLK
44
I/O
Pixel clock qualifier in for screen video interface.
AUX[7:0]
54:52, 49:45
I/O
Auxiliary control pins (AUX0 and AUX1 are open collectors).
LD[7:0]
62:55
I/O
RISC interface data bus.
LWR#
63
O
RISC interface write enable (active low).
LOE#
64
O
RISC interface output enable (active low).
LCS[3,1,0]#
65:67
O
RISC interface chip select (active low).
LA[17:0]
87:82, 79:68
O
RISC interface address bus.
VPP
81
I
Digital supply voltage for 5V.
ACLK
88
I/O
Master clock for external audio DAC (8.192 MHz, 11.2896 MHz, 12.288 MHz, 16.9344
MHz, and 18.432 MHz).
AOUT/
89
O
Dual-purpose pin. AOUT is the audio interface serial data output
SEL_PLL0
I
Select PLL[0] input.
The matrix below lists the available clock frequencies and their
respective PLL bit settings.
ATCLK
90
I/O
Audio transmit bit clock.
ATFS
91
O
Audio transmit frame sync.
SEL_PLL1
I
Refer to the description and matrix for SEL_PLL0 pin 89.
DOE#
92
O
DRAM output enable (active low).
AIN
93
I
Audio serial data input.
ARCLK
94
I
Audio receive bit clock.
ARFS
95
I
Audio receive frame sync.
TDMCLK
96
I
TDM interface serial clock.
TDMDR
97
I
TDM interface serial data receive.
TDMFS
98
I
TDM interface frame sync.
CAS#
99
O
DRAM column address strobe bank 0 (active low).
Table 1 ES3210 Pin Description (Continued)
Name
Number
I/O
Definition
SEL_PLL1 SEL_PLL0 Clock Output
0
0
Bypass PLL
0
1
54.0 MHz
1
0
67.5 MHz
1
1
81.0 MHz
4
1997-2001 ESS Technology, Inc. All rights reserved
SAM0417-051701
ES3210 PRODUCT BRIEF
MECHANICAL DIMENSIONS
A
ESS Technology, Inc.
48401 Fremont Blvd.
Fremont, CA 94538
Tel: 510 - 492-1088
Fax: 510 - 492-1098
No part of this publication may be reproduced, stored in a
retrieval system, transmitted, or translated in any form or
by any means, electronic, mechanical, manual, optical, or
otherwise, without the prior written permission of ESS
Technology, Inc.
ESS Technology, Inc. makes no representations or
warranties regarding the content of this document.
All specifications are subject to change without prior
notice.
ESS Technology, Inc. assumes no responsibility for any
errors contained herein.
(P) U.S. Patent 4,214,125 and others, other patents
pending.
VideoDrive
is a registered trademark of ESS Technology,
Inc.
All other trademarks are owned by their respective
holders and are used for identification purposes only.
MECHANICAL DIMENSIONS
Figure 2 shows the mechanical dimensions of the ES3210
package.
Figure 2 ES3210 Mechanical Dimensions
ORDERING INFORMATION
Part Number
Description
Package
ES3210
Video CD processor
100-pin PQFP
Symbol
Description
Millimeters
Min
Nom
Max
D
Lead to lead, X-axis
23.65
23.90
24.15
D1
Package's outside, X-axis
19.90
20.00
20.10
E
Lead to lead, Y-axis
17.65
17.90
18.15
E1
Package's outside, Y-axis
13.90
14.00
14.10
A1
Board standoff
0.10
0.25
0.36
A2
Package thickness
2.57
2.71
2.87
b
Lead width
0.20
0.30
0.40
e
Lead pitch
-
0.65
-
e1
Lead gap
0.24
-
-
L
Foot length
0.65
0.80
0.95
L1
Lead length
1.88
1.95
2.02
-
Foot angle
0
-
7
-
Coplanarity
-
-
0.102
-
Leads in X-axis
-
30
-
-
Leads in Y-axis
-
20
-
-
Total leads
-
100
-
-
Package type
-
PQFP
-
E1
A2
A1
L
E
D1
b
D
ES3210
e
1
e1
L1
