ESS Technology, Inc.
SAM0416-073001
1
Visba
TM
ES3883
Video CD Companion Chip
Product Brief
DESCRIPTION
The Visba ES3883 video CD companion chip (CC) is the
second-generation companion chip that provides an optimal
system design for a video CD player when used with the Visba
ES3880 video CD PC. The ES3883 Visba video CD CC
integrates the CD-ROM controller (featuring direct servo control),
as well as most of the required analog discrete components, into
a simple, highly cost-effective design for a video CD player. The
Visba video CD CC provides the best quality for both video and
audio, and easily passes the highest graded level for the China
VCD standard.
The Visba video CD CC features include a high-quality NTSC/
PAL digital video encoder (DVE), echo, surround sound, audio
DACs, and PLL clock synthesizer. Additionally, there are also
three 9-bit video DACs and two 16-bit sigma-delta audio DACs.
One video DAC handles composite video output, while the other
two handle the S-video outputs. The two 16-bit sigma-delta audio
DACs offer differential outputs. The differential dual audio
outputs from these audio DACs ensure further noise reduction to
a minimum of 90 dB, enabling the Visba video CD CC to pass the
best quality audio on all video CD parameter specifications.
The DVE generates composite and S-video analog signals.
Color space conversions (CSCs) are provided to match the input
data to the required output format. Then, the data is filtered to
meet the selected video standards. In addition, the Visba video
CD CC is equipped with a remote control interface for power
standby on/off, two microphone ports, auxiliary ports, and an
interface for accessing internal registers.
The ES3883 is available in an industry-standard 100-pin plastic
quad flat pack (PQFP) package.
FEATURES
Multistandard TV encoder:
--
CCIR601 nonsquare operation
--
NTSC/PAL formats
--
Master video mode
--
8-bit interface for YCrCb (4:2:2) input format
--
Simultaneous composite and S-video output
--
Interlaced operation
Audio DACs:
--
Two 16-bit sigma-delta DACs
--
Dual audio output, SNR better than 90 dB
--
Accepts I
2
S format data
--
Programmable functions
Surround sound
Remote control interface for power standby on/off
Digitally controlled echo with up to 130-ms delay
Dual microphone input
Clock synthesizer (PLL):
--
Based on 27-MHz crystal input
--
Generates required clocks for video encoder, audio
DAC, echo and surround sound, and video processor
Device serial communication (DSC) port for command issued/
register access
Graphical user interface (GUI) and hyperlink
Direct CD servo control
Vocal assist
Remote control
Interrupt control
Power management
100-pin PQFP
Single 5V power supply
Figure 1 shows a block diagram of a standalone system with a
Visba video CD processor chip and a video CD companion chip.
Figure 1 Visba ES3883 Video CD Companion Chip System Block Diagram
Visba ES3883
DRAM
Remote
VFD
VFD
Driver
Panel
Receiver
Audio DAC
Echo/Surround/Vocal Assist
PLL
NTSC/PAL Video
DSC
ROM
Television
Speakers
Preamp
Volume Control
Preamp
Volume Control
Mic 1
Mic 2
Visba ES3880
(Video CD)
CD-ROM
Kit
CD-ROM Controller
Companion Chip
Remote
Control
Interrupt
Control
2
SAM0416-073001
ESS Technology, Inc.
ES3883 PRODUCT BRIEF
PINOUT

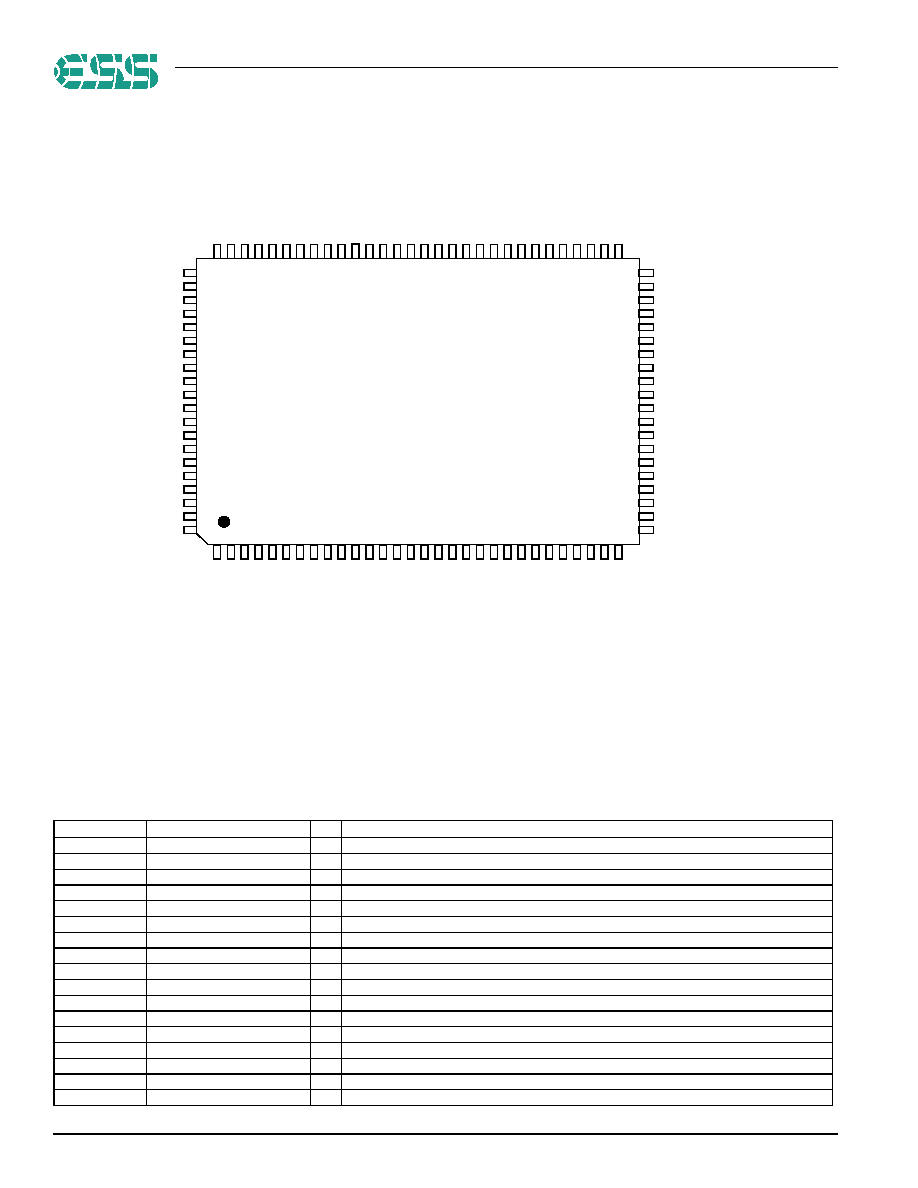

Figure 2 shows the Visba ES3883 pinout diagram.
Figure 2
Visba ES3883 Pinout Diagram
VISBA ES3883 PIN DESCRIPTIONS
Table 1 lists the Visba ES3883 pin descriptions.
1
MIC2
MIC1
AOL+
AOL-
AOR-
AOR+
VCCAA
VREFP
VCM
VSSAA
AUX15/IR
AUX14/SOS1
AUX13/SP
RBCK/SER_IN
AUX12/C2PO
AUX11/IRQ
AUX10/SQCK
RSD/SEL_PLL0
VCC
VSS
DSC_D7
HSYN_B
DSC_D6
VSYN_B
DSC_D5
YUV7
YUV6
YUV5
YUV4
VCC
VSS
YUV3
DSC_D4
YUV2
DSC_D3
YUV1
DSC_D2
YUV0
DSC_D1
VSS
TS
D
A
U
X
9
/S
QS
0
T
W
S/
SP
L
L
_
O
UT
A
U
X
8
/
V
F
D
_C
LK
MC
LK
VC
C
MU
T
E
AUX7
/
V
F
D
_
D
I
RES
E
T
_
B
D
C
L
K/
EX
T_
CL
K
AU
X2
DSC
_
S
AU
X1
DSC_
D0
AU
X0
DS
C_
C
VC
C
NC
NC
VSS
NC
NC
NC
NC
NC
VSS
VSS
RST
O
UT
_
B
R
W
S/
SEL
_
P
L
L
1
TB
C
K
YD
A
C
V
SSA
V
V
SSA
V
VD
A
C
AC
A
P
VC
C
AU
X
6
/
V
FD
_
D
O
AU
X
5
AU
X
4
AU
X
3
XO
U
T
VS
S
VC
C
XI
N
VS
S
NC
VS
S
VC
C
PC
L
K
2X
P
C
LK
V
SSA
A
VR
E
F
VR
E
F
M
R
SET
CO
M
P
V
SSA
V
V
SSA
V
CD
A
C
V
CCA
V
V
CCA
V
31
30
51
50
80
81
100
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
Visba ES3883
Video CD
Companion Chip
100-Pin PQFP
Table 1 Visba ES3883 Pin Description
Name
Number
I/O Definition
VSS
1,25:26,31,72,75,77,91,100
I
Ground.
VCC
5,16,32,66,73,78,90
I
Voltage supply, 5V
DSC_C
6
I
Clock for programming to access internal registers
AUX0
7
I/O
Servo forward or general-purpose I/O
AUX1
9
I/O
Servo reverse or general-purpose I/O
AUX2
11
I/O
Servo LDON or general-purpose I/O
AUX3
70
I/O
Servo CW/limit or general-purpose I/O
AUX4
69
I/O
Servo CCW/close or general-purpose I/O
AUX5
68
I/O
Servo data or general-purpose I/O
AUX6
67
I/O
Servo XLAT or general-purpose I/O/VFD_DO
AUX7
14
I/O
Servo BRKM/sense or general-purpose I/O/VFD_DI
AUX8
18
I/O
Servo mute/open or general-purpose I/O/VFD_CLK
AUX9
20
I/O
Servo SQS0 or general-purpose I/O
AUX10
34
I/O
Servo SQCK or general-purpose I/O
AUX11
35
I/O
ES3880 IRQ or interrupt output or general-purpose I/O
AUX12
36
I/O
CD C2PO or interrupt input or general-purpose I/O
AUX13
38
I/O
Serial interrupt/CD-mute or general-purpose I/O
ESS Technology, Inc.
SAM0416-073001
3
ES3883 PRODUCT BRIEF
AUX14
39
I/O
Servo SCOR (S0S1), interrupt input, or general-purpose I/O
AUX15
40
I/O
Interrupt input or general-purpose I/O
DSC_D[7:0]
81,83,85,93,95,97,99,8
I/O
Data for programming to access internal registers
DSC_S
10
I
Strobe for programming to access internal registers
DCLK
12
O
Dual-purpose. DCLK is the MPEG decoder clock
EXT_CLK
I
EXT_CLK is the external clock. EXT_CLK is an input during bypass PLL mode
RESET_B
13
I
Video reset (active-low)
MUTE
15
O
Audio mute
MCLK
17
I
Audio master clock.
TWS
19
I
Dual-purpose. TWS is the transmit audio frame sync
SPLL_OUT
O
SPLL_OUT is the select PLL output
TSD
21
I
Transmit audio data input
TBCK
22
I
Transmit audio bit clock
RWS
23
O
Dual-purpose. RWS is the receive audio frame sync
SEL_PLL1
I
SEL_PLL[1:0] select the PLL clock frequency for the DCLK output.
RSTOUT_B
24
O
Reset output (active-low)
NC
2:4,27:30,76
No connect.
RSD
33
O
Dual-purpose. RSD is the receive audio data input
SEL_PLL0
I
SEL_PLL0 and SEL_PLL1 select the PLL clock frequency for the DCLK output. Refer to
the table in the definition for pin 23.
RBCK
37
O
Dual-purpose. RBCK is the receive audio bit clock.
SER_IN
I
SER_IN is the serial input DSC mode:
0 = Parallel DSC mode
1 = Serial DSC mode
VSSAA
41,51
I
Audio analog ground
VCM
42
I
ADC common mode reference (CMR) buffer output. CMR is approximately 2.25V. Bypass
to analog ground with 47-
F electrolytic in parallel with 0.1
F.
VREFP
43
I
DAC and ADC maximum reference. Bypass to video CMR (VCMR) with 10
F in parallel with
0.1
F.
VCCAA
44
I
Analog VCC, 5V
AOR+, AOR
45:46
O
Right channel output
AOL, AOL+
47:48
O
Left channel output
MIC1
49
I
Microphone input 1
MIC2
50
I
Microphone input 2
VREF
52
I
Internal resistor divider generates CMR voltage. Bypass to analog ground with 0.1
F.
VREFM
53
I
DAC and ADC minimum reference. Bypass to VCMR with 10
F in parallel with 0.1
F.
RSET
54
I
Full-scale DAC current adjustment
COMP
55
I
Compensation pin
VSSAV
56:57,62:63
I
Video analog ground
CDAC
58
O
Modulated chrominance output
VCCAV
59,60
I
Video VCC, 5V
YDAC
61
O
Y luminance data bus for screen video port
VDAC
64
O
Composite video output.
ACAP
65
I
Audio CAP
XOUT
71
O
Crystal output
XIN
74
I
27-MHz crystal input
PCLK
79
I/O
13.5-MHz pixel clock.
2XPCLK
80
I/O
27-MHz (2 times pixel clock)
HSYN_B
82
O
Horizontal sync (active-low)
VSYN_B
84
O
Vertical sync (active-low)
YUV[7:0]
86:89,92,94,96,98
I
YUV data bus for screen video port
Table 1 Visba ES3883 Pin Description (Continued)
Name
Number
I/O Definition
SEL_PLL1
SEL_PLL0
DCLK
0
0
Bypass PLL (input mode)
0
1
27 MHz (output mode)
1
0
32.4 MHz (output mode)
1
1
40.5 MHz (output mode)
4
2001 ESS Technology, Inc. All rights reserved.
SAM0416-073001
ES3883 PRODUCT BRIEF
ORDERING INFORMATION
No part of this publication may be reproduced, stored in a
retrieval system, transmitted, or translated in any form or
by any means, electronic, mechanical, manual, optical, or
otherwise, without the prior written permission of ESS
Technology, Inc.
ESS Technology, Inc. makes no representations or
warranties regarding the content of this document.
All specifications are subject to change without prior
notice.
ESS Technology, Inc. assumes no responsibility for any
errors contained herein.
U.S. patents pending.
Visba is a trademark of ESS Technology, Inc.
MPEG is the Moving Picture Experts Group of the ISO/
IEC.
All other trademarks are owned by their respective
holders and are used for identification purposes only.
ESS Technology, Inc.
48401 Fremont Blvd.
Fremont, CA 94538
Tel: (510) 492-1088
Fax: (510) 492-1898
ORDERING INFORMATION
Part Number
Description
Package
ES3883F
Video CD Companion Chip
100-pin PQFP
