Description
TransDimension's DC2003 is a general purpose, single
port USB 2.0 High Speed Device controller with IDE
support that is the first in a family of integrated low-
cost, high-performance device controllers optimized
and specifically designed for embedded systems,
mobile communication, and consumer products.
The DC2003 is a non-PCI based controller with built-in
UTMI 1.0 compliant transceiver macro cell and
optimized serial interface engine (SIE). The DC2003 is
a USB Specification Rev. 2.0 compliant high-speed
(480Mb/s) and full-speed (12Mb/s) device controller
and achieves High Speed data transfer rates with a
standard DMA port. The DC2003 controller enables an
embedded system to function as a USB Device and to
easily connect to USB Hosts and Hubs. In addition to
silicon, development kits, USB Device Stack and
interface code to the DC2003 for numerous RTOS' are
available via our wholly owned subsidiary, SoftConnex
Technologies, Inc.
The DC2003 is optimized for cost, performance and
ease of development. It can be interfaced to CISC or
RISC microprocessors, microcontrollers, or digital
signal processors (DSPs) using a standard 8-bit data
bus and is ideal for providing High Speed USB device
functions to a wide range of applications including Hard
Disk Drives, DVD-ROM, Printer, Scanner and PDAs.
The complete solution including silicon and software
from TransDimension and SoftConnex offers the
advantages of shortened time-to-market, simplified
procurement and technical support from one source.
Features
High performance USB device controller for
embedded applications
USB Specification 2.0 compliant high-speed
(480Mb/s) and full-speed (12Mb/s) device
controller
Built-in UTMI 1.0 compliant transceiver
Includes both High Speed and Full Speed
terminations
Standard 8-bit microprocessor bus interface
Port Interface
IDE Interface (Ultra ATA-66)
16-bit standard interface
Supports all four types of USB transfers (control,
bulk, interrupt, and isochronous)
Four endpoints
2.5Kbyte of programmable FIFO for use with
endpoints
Programmable Vendor ID & Product ID
Input clock frequency: 12/16/20/24 MHz
Evaluation/development kits available
Embedded RTOS software available for popular
microprocessors, RISC, CISC, and DSPs using
WinCE, Linux, VxWorks, Nucleus, Lynx, QNX,
pSOS, PowerTV, SMX, ThreadX, VRTX, ITRON,
Symbian OS and MS-DOS operating systems with
more in development
Single 3.3V power supply
100 pin QFP package
Datasheet
December, 2002
MU5002, Rev. 1.0
DC2003
USB 2.0 High Speed Device Controller with IDE Interface
TransDimension
Datasheet
DC2003
TransDimension Inc. -- Proprietary
2

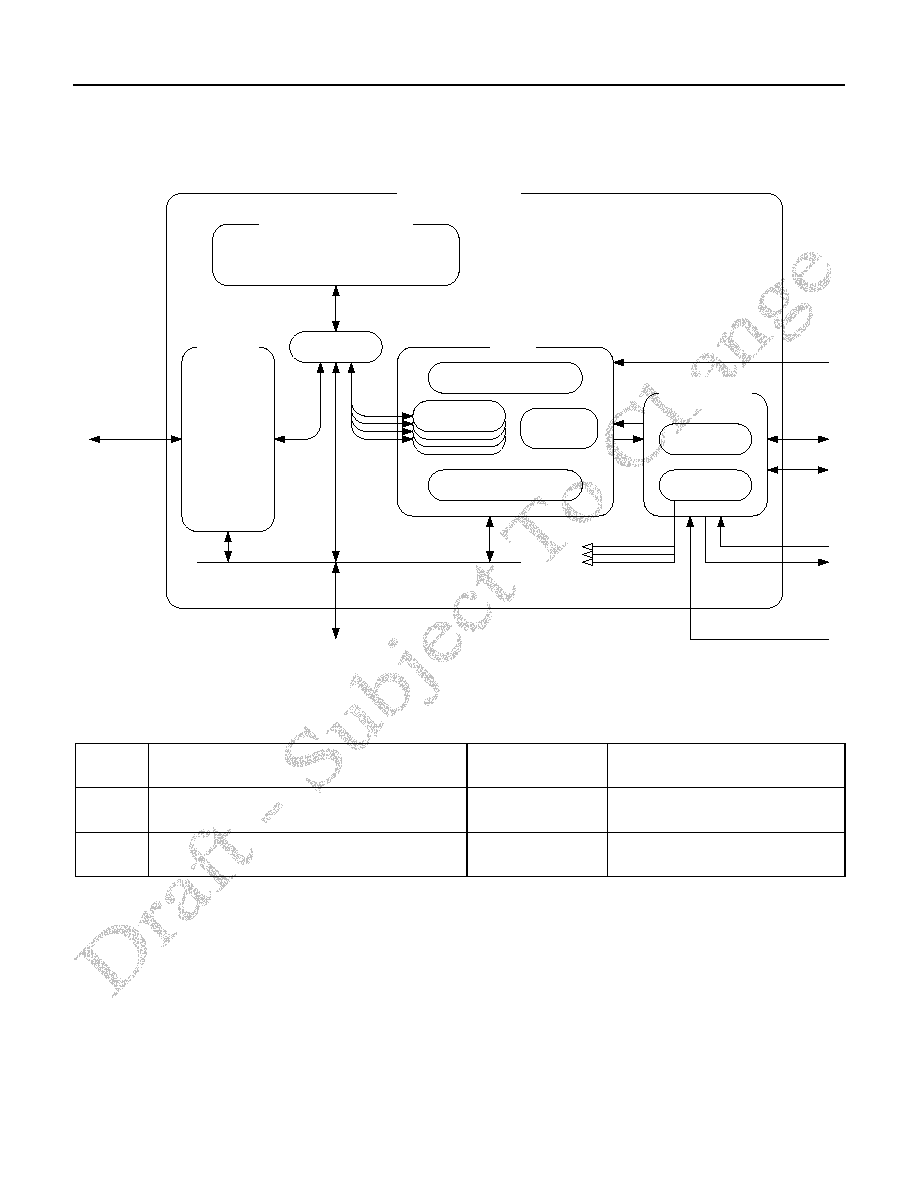

Bus Configurations
UTMI1.0
XcvrMacro
Embedded
2.5kB SRAM
IDE
or
8/16 bit
IDE like DMA
DMA
DP
DM
XI
XO
ClockSelect[1:0]
Clock
Packet
Handler
Suspend/Resume
Controller
CPU BUS
DC2003
Embedded
USB Front-end
CLOCK
synthesis
FIFO SRAM
SIE
VBUS
DMA Bus
Endpoints
Transaction
Manager
FIFO
Controller
TransDimension USB2.0 High Speed Device Controller Family
Product
Name
Function Order
Number
Samples
DC2003 USB2.0 High Speed General Purpose Device
Controller with IDE interface (100-pin QFP)
TDDC2003-000C
Production parts in limited
quantities available Jan `03
DC2013 USB2.0 High Speed General Purpose Device
Controller with DMA interface (64-pin QFP)
TDDC2013-000C
Engineering Samples in limited
quantities available now
Datasheet
TransDimension
DC2003
TransDimension Inc. -- Proprietary
3
