PS/2 Mouse Controller with Auto-Ref EC3592R
.
.
Page 1 of 11
TEL(03)5785888 FAX(03)5783630 VERSION 1.1
F
EATURES
4 wires PS/II interface built-in.
CMOS technology for lower power consumption.
Fully compatible with IBM PS/II series PC.
Supports four working modes: Reset, Stream, Remote and Wrap.
16 commands plus acknowledgment code.
7 different sample rates from 10/sec to 200/sec.
4 different resolutions: 1, 2, 4 and 8 count/mm.
Scaling can be set to 2:1 as specified by IBM spec.
Reduced external component counts by chip integration.
RC oscillation.
Built-in X/Y independent Auto-Ref function (E-CMOS Patented)X/Y threshold voltage level track
with input signal dynamically and independently.
High standard ESD and EFT immunity.
G
ENERAL
D
ESCRIPTION
EC3592R is a single chip PS/II Mouse Controller, designed and fabricated in CMOS Technology. The
EC3592R is available in 14-pin or 16-pin P-DIP package.
B
LOCK
D
IAGRAM
X MOVEMENT
PROCESS
Y MOVEMENT
PROCESS
BUTTON
PROCESS
SELECTION
COMMAND
PROCESS
ERROR
PROCESS
INFORMATION
PROCESS
TIMING
GENERATOR
X/Y
SAMPLING
OSCILLATOR
X/Y
RESOLUTION
X/Y
SCALE
BL
BM
BR
PX1
PX2
PY1
PY2
OSCR
OSCOUT
TEST
CLOCK
DATA
AUTO
REF
AUTO
REF
PS/2 Mouse Controller with Auto-Ref EC3592R
.
.
Page 2 of 11
TEL(03)5785888 FAX(03)5783630 VERSION 1.1
P
IN
C
ONFIGURATIONS
NC
OSCOUT
CLOCK
DATA
VSS
VDD
PY2
PY1
PX2
PX1
BL
BM
BR
NC
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
OSCR
NC
EC3592RS
P
IN
D
ESCRIPTIONS
P
IN
N
AME
I/O
F
UNCTION
OSCR
I
Crystal or RC oscillation input.
OSCOUT
O
Crystal or RC oscillation output.
CLOCK
I/O Bi-directional signal line between EC3592R and
PC system. Whenever the mouse is ready to send
data
to the system or the system wants to send command
to the mouse, it will clock in 11 bits of CLOCK on
this line.
DATA I/O
Bi-directional
signal
line
to transfer data. This is an
open-drain output with internal pull-up resistor. All
mouse data and system commands are transmitted
through this line.
VSS P
Ground
pin.
NC
DATA
VSS
BR
OSCR
PY2
PY1
PX2
PX1
BL
BM
VDD
1
2
3
4
5
6
7
8
14
13
12
11
10
9
CLOCK
OSCOUT
EC3592RE
PS/2 Mouse Controller with Auto-Ref EC3592R
.
.
Page 3 of 11
TEL(03)5785888 FAX(03)5783630 VERSION 1.1
P
IN
N
AME
I/O
F
UNCTION
BR
I
Right button selection. Built-in pull-down resistor
of 50K BR pin is HIGH when right button is
pressed and becomes LOW when it is released.
EC3592R has edge-triggered button operation. It
will only report through DATA line on a rising
edge or falling edge of the input signal.
BM I
Middle button selection. Built-in pull-down resistor
of 50K. It is also edge-triggered button operation
as "BR".
BL
I
Left button selection. Built-in pull-down resistor of
50K. It is also edge-triggered button operation as
"BR".
PX1
I
Input from the first X-axis photo-encoder.
PX2
I
Input from the second X-axis photo- encoder. PX1
and PX2 constitute positive (negative) counts for
rightward (leftward) movement on the screen.
PY1
I
Input from the first Y-axis photo-encoder.
PY2
I
Input from the second Y-axis photo-encoder. PY1
and PY2 constitute positive (negative) counts for
downward (upward) movement on the screen.
VDD
P
+5V power supply.
A
BSOLUTE
M
AXIMUM
R
ATINGS
P
ARAMETER
S
YMBOL
M
IN
. M
AX
. U
NIT
Supply Voltage
Vdd
0
6.5
V
Ambient Temperature
Tamb
0
70
Storage Temperature
Tstg
-40
125
Power Dissipation
(Temp. = 70 )
Pd
100
mW
Note: This is a stress rating only and functional operation of the device at these or at any other conditions
above those indicated in the operational sections of this specification is not implied. Exposure to absolute
PS/2 Mouse Controller with Auto-Ref EC3592R
.
.
Page 4 of 11
TEL(03)5785888 FAX(03)5783630 VERSION 1.1
maximum rating may affect device reliability.
DC
E
LECTRICAL
C
HARACTERISTICS
(N
OTE
:
V
DD
=5V,
UNLESS OTHERWISE SPECIFIED
)
P
ARAMETER
S
YMBOL
M
IN
. T
YP
. M
AX
. U
NIT
Operating Voltage
Vdd
4.5
5
5.5
V
Operating current (No load)
Iop
1.0
2.5
mA
PX1/PX2/PY1/PY2 Input range
Vir
0.1
3.2
V
PX1/PX2/PY1/PY2 Input amplitude
Via
0.6
V
PX1/PX2/PY1/PY2 Internal Resistor
Rpxy
12
K
BL/BM/BR Input High Voltage
Vih
3.2
V
BL/BM/BR Input Low Voltage
Vil
1.3
V
BL/BM/BR Internal Pull-down
Resistor
Rbut 50 K
CLOCK/DATA Output Current
(Vol. =0.5V)
Iol 8
mA
CLOCK/DATA Internal Pull-up
Resistor
Rcd 5
K
PX1/PX2/PY1/PY2/BL/BM/BR
Input Leakage Current
(Vih = 5V)
Iih 2
uA
AC
E
LECTRICAL
C
HARACTERISTICS
P
ARAMETER
S
YMBOL
M
IN
. T
YP
. M
AX
. U
NIT
Oscillator Frequency
R=270 K
Foscr 62 75 90 KHz
BL/BM/BR Button Debounce Time
Tbd
43
ms
PS/2 Mouse Controller with Auto-Ref EC3592R
.
.
Page 5 of 11
TEL(03)5785888 FAX(03)5783630 VERSION 1.1
T
IMING
D
IAGRAM
Mouse sends data out:
T3 T4
Start
Bit
Parity
Bit
T2
T1
Bit 0
Bit 1
1st
2nd
3rd
10th
11th
CLOCK
DATA
Stop
Bit
Clock
Mouse receive data:
T5 T6
Start
Bit
Parity
Bit
T7
Bit 0
1st
2nd
10th
11th
CLOCK
DATA
Stop
Bit
9th
T9
T8
Clock
Line-control
Bit
IBM SPEC E-CMOS SPEC
T1 Time from DATA transition to the falling edge of
CLOCK.
5~25 13.3
T2 Time from the rising edge of CLOCK to DATA
transition.
5~(T4-5) 26.7
T3
Duration of CLOCK Low.
30~50
40
T4
Duration of CLOCK High.
30~50
40
T5
Duration of CLOCK Low.
30~50
40
T6
Duration of CLOCK High.
30~50
40
T7 Time from the rising edge of CLOCK to DATA
sampled point.
5~25 13.3
T8 Time from the rising edge of the 10th CLOCK to
starting point of line-control bit.
13.3
T9 The pulse width of line-control bit.
80
(Base on oscillator frequency=70KHz)
(Unit in s)
PS/2 Mouse Controller with Auto-Ref EC3592R
.
.
Page 6 of 11
TEL(03)5785888 FAX(03)5783630 VERSION 1.1
PS/2
C
OMMAND
L
IST
H
EX
C
ODE
C
OMMAND
EC3592'
S
R
ESPONSE
FF Reset FA,
AA,
00
FE Resend XX,
(XX,
XX)
F6 Set
Default
FA
F5 Disable
FA
F4 Enable
FA
F3, XX
Set Sampling Rate
FA, FA
F2
Read Device Type
FA, 00
F0 Set
Remote
Mode
FA
EE Set
Wrap
Mode
FA
EC Reset
Wrap
Mode
FA
EB
Read Data
FA, XX, XX, XX
EA
Set Stream Mode
FA
E9
Status Request
FA, XX, XX, XX
E8, XX
Set Resolution
FA, FA
E7 Set
Scaling
2:1
FA
E6 Reset
Scaling
FA
A.
F3,
XX
S
ET
S
AMPLING
R
ATE
S
ECOND
B
YTE
XX
S
AMPLING
R
ATE
0A 10/sec.
14 20/sec.
28 40/sec.
3C 60/sec.
50 80/sec.
64 100/sec.
C8 200/sec.
PS/2 Mouse Controller with Auto-Ref EC3592R
.
.
Page 7 of 11
TEL(03)5785888 FAX(03)5783630 VERSION 1.1
B.
E9
S
TATUS
R
EQUEST
B
YTE
B
IT
D
ESCRIPTION
3
0-7
Current Sampling Rate (Bit 0=LSB)
2
0-7
Current Sampling Setting (Bit 0=LSB)
1 7
Reserved
6
0 = Stream Mode, 1 = Remote Mode
5
0 = Disabled, 1 = Enabled
4
0 = Scaling 1:1, 1 = Scaling 2:1
3
Reserved
2
1= Left Button Pressed
1
Reserved
0
1 = Right Button Pressed
C.
E8,
XX
S
ET
R
ESOLUTION
S
ECOND
B
YTE
XX R
ESOLUTION
(C
OUNTS PER
MM)
00 1
01 2
02 4
03 8
D.
E7
S
ET
S
CALING
2:1
I
NPUT
O
UTPUT
0 0
1 1
2 1
3 3
4 6
5 9
N (6) 2.0N
PS/2 Mouse Controller with Auto-Ref EC3592R
.
.
Page 8 of 11
TEL(03)5785888 FAX(03)5783630 VERSION 1.1
I
NPUT
/O
UTPUT
E
QUIVALENT
C
IRCUIT
TEST2
Input Pin:
BL
BM
BR
CLOCK
DATA
I/O Pin:
PS/2 Mouse Controller with Auto-Ref EC3592R
.
.
Page 9 of 11
TEL(03)5785888 FAX(03)5783630 VERSION 1.1
PX1
PX2
Input Pin:
PY1
PY2
PS/2 Mouse Controller with Auto-Ref EC3592R
.
.
Page 10 of 11
TEL(03)5785888 FAX(03)5783630 VERSION 1.1

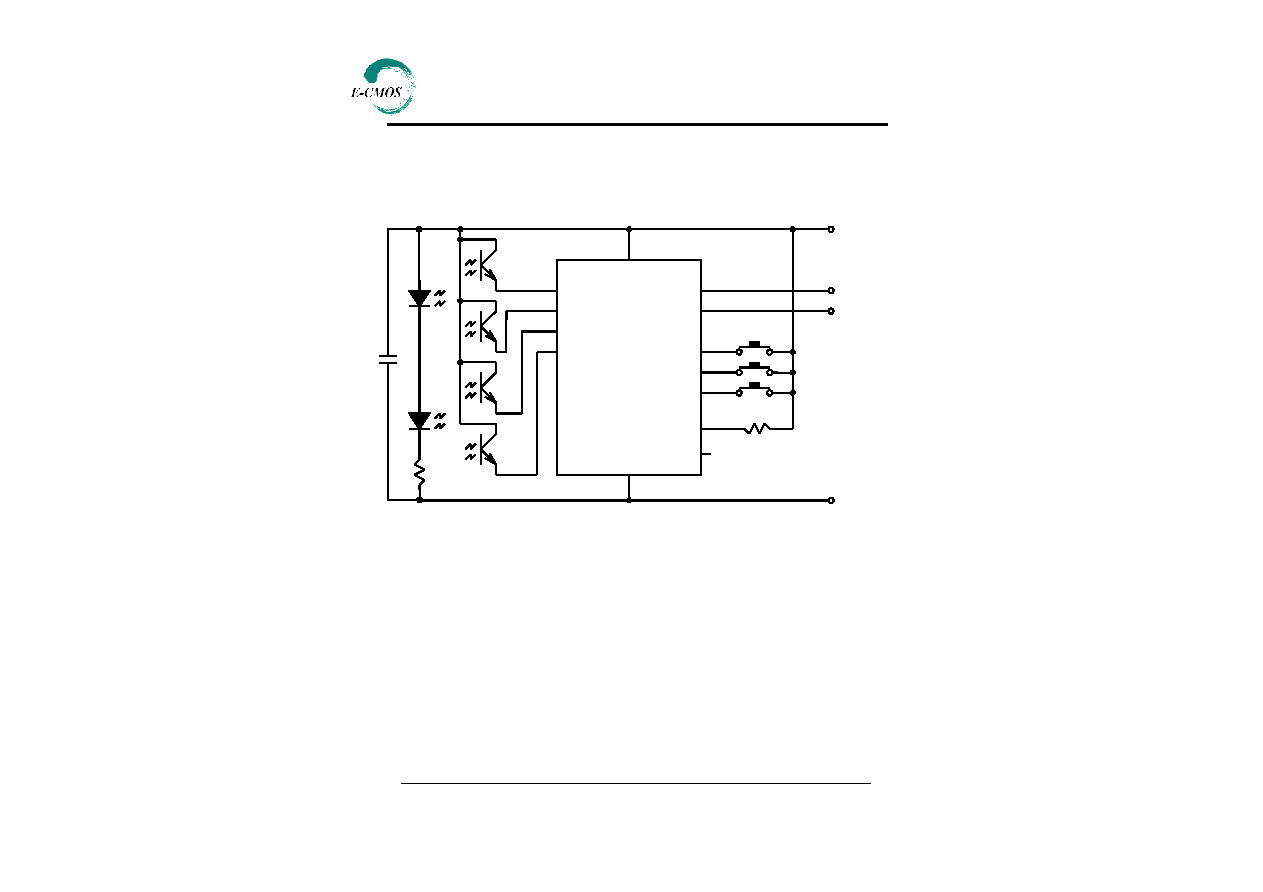

A
PPLICATION
C
IRCUITS
(Note: This application circuit is for reference only)
VDD
VSS
BL
BM
BR
OSCR
OSCOUT
DATA
CLOCK
PX1
PX2
PY1
PY2
VCC
DATA
CLOCK
GND
270K
EC3592RE
10u
+
-
10
1
13
12
11
14
7
8
9
4
5
6
PS/2 Mouse Controller with Auto-Ref EC3592R
.
.
Page 11 of 11
TEL(03)5785888 FAX(03)5783630 VERSION 1.1
BR
BL BM
GND
7
9
8
6
10
11
12
13
EC3592RE
VDD
1
9
11
Y1
18.432MHZ(*)
OSC1
OSC2
X2
X1
Y1
Y2
5
4
DATA
CLK
270K
RIN
14
VDD
DATA
CLK
GND
MODE/XA
RB/XB
MB/YB
LB/YA
5
4
3
2
GND
GND
12
10
7
13
14
VDD
5
VDD5 VDD3
3.3V
REGULATOR
LP2950ACZ-3.3
8
REFB
1
OUT
IN
0.22
NRESET
PS2_D
PS2_C
XY_LED
15
16
1
6
10
0.1
70
2N3904
HLMP-ED80
SURFACE
S1
S2
S3
0.1
(*)Y1 IS A CERAMIC RESONATOR SUCH AS CSA18.43MXZ040
(FROM MURATA) OR KBR-18.43-MSA(FROM AVX).
HDNS-2000
Typical Application Circuit For HDNS-2000 Optical Input (For Reference Only)
