5.25" Mini Modules
w
w
w
.
e
v
a
l
u
e
-
t
e
c
h
.
c
o
m
3-12
A p p l i e d c o m p u t i n g s o l u t i o n s
3-13
SOM
3.5"
5.25"
MB
PC/104
FS
HS
IPC
NA
Barebone
PPC
DVR
APPX

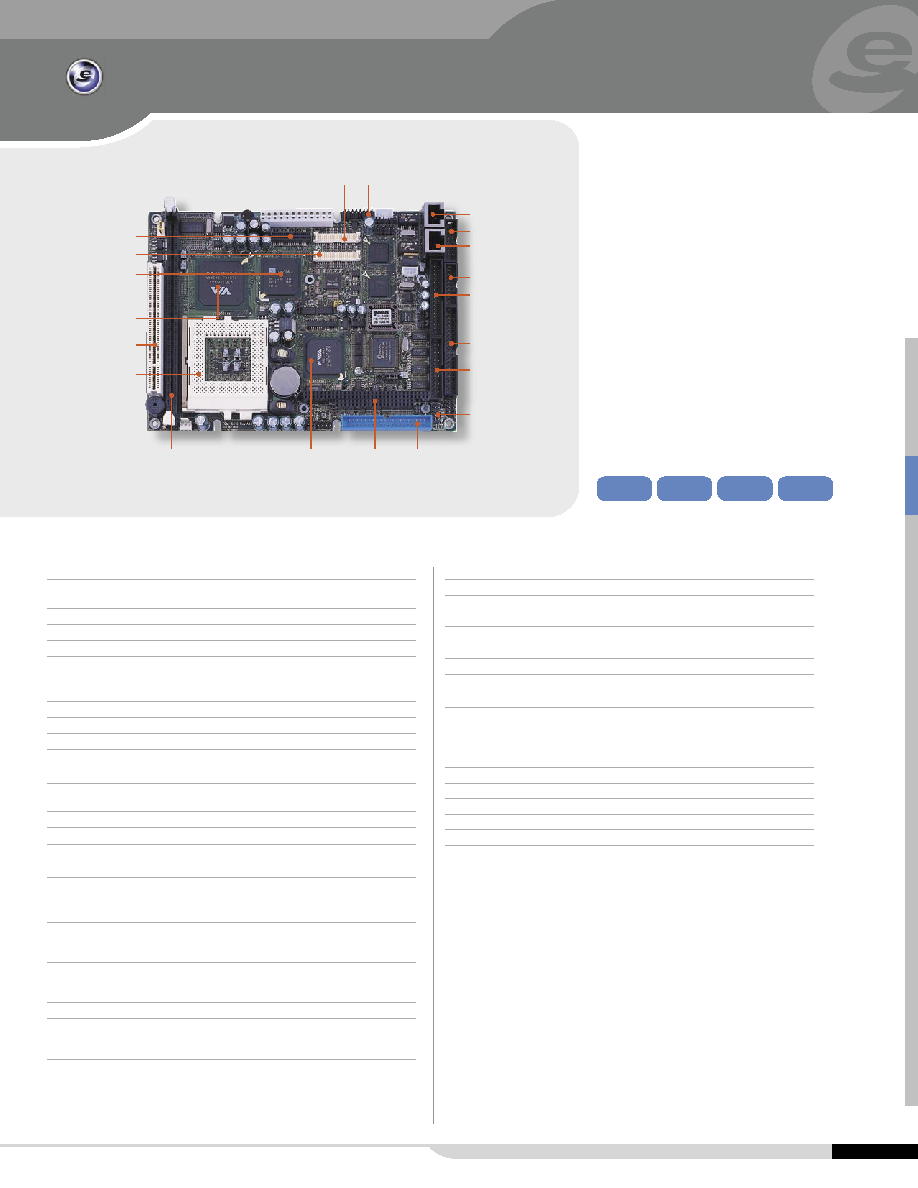

ECM-5610
5.25" Intel
Pentium
III / Celeron
Mini Module
System
CPU
Supports Intel
Pentium
III / Celeron
(CopperMine
only ) & VIA C3
FSB
66/100/133 MHz
BIOS
Award 256 KB Flash BIOS
System Chipset
VIA Apollo Pro 133A VT82C694X/VT82C686B
I/O Chip
VIA VT82C686B/Winbond W83977EF-AW
System Memory
One 168-pin DIMM socket supports up to 512 MB
SDRAM
SSD
One CompactFlash Type I/II socket
Watchdog Timer
Reset/IRQx; 32 sec.~254 min. and 1 min./step
Expansion
One PC/104 connector, one PCI slot
I/O
MIO
2 x EIDE (Ultra DMA 100), 2 x FDD, 1 x LPT,
3 x RS-232, 1 x RS-232/422/485, 1 x K/B, 1 x Mouse
IrDA
115k bps, IrDA 1.0 compliant
USB
2 x USB 1.1 ports
Display
Chipset
SMI Lynx3DM SM721 with integrated 2D/3D graphics
engine
Display Memory
4 MB SGRAM frame buffer
Resolution
CRT mode: 1280 x 1024 @ 24 bpp (60 Hz)
LCD/Simultaneous mode: 1280 x 1024 @ 24 bpp
(60 Hz)
VGA/LCD Interface
AGP 2X VGA/LCD interface
Supports 9/12/18/24/36/48-bit TFT and 16/24-bit color
DSTN panels
DVI
Optional Silicon Image Sil164 DVI transmitter onboard
TV-out
SMI SM721 integrated TV encoder supports both
NTSC/PAL
Supports both S-video and composite video
Audio
Chipset
VIA VT82C686B
AC97 Codec
AD1819B
Audio Interface
Mic in, Line in, CD Audio in, Line out
Ethernet
Chipset
Dual Intel
82559ER or optional Intel
82559
Ethernet Interface
IEEE 802.3u 100Base-Tx Fast Ethernet compatible
Remote Boot ROM
Optional built-in boot ROM in Flash BIOS
Mechanical & Environmental
Power Requirement
+5 V @ 5 A, +12 V @ 0.11 A
(with Intel
Celeron
850 MHz & 128 MB SDRAM)
Power Type
AT/ATX
Operating Temperature 0~60C (32~140F)
Operating Humidity
0%~90% relative humidity, noncondensing
Size (L x W)
8" x 5.75" (203 mm x 146 mm)
Weight
0.88 lbs (0.4 Kg)
Features
n
Supports Intel
Pentium
III / Celeron
CPU
n
VIA VT82C694X Chipset
n
48-bit TFT, Dual View, & Optional DVI
n
AC97 Audio & TV-out
n
Dual Intel
82559ER or Intel
82559
10/100Mbps LAN
n
1 PC/104, 1 PCI, Type I/II CF
n
4 COM, 2 USB 1.1
Ordering Information
ECM-5610
5.25" Intel
Pentium
III / Celeron
Mini Module with VGA, LCD, TV-out, Audio,
Dual LAN, CF, PC/104, PCI, 4 COM, & 2 USB 1.1
ECM-5610L
Same as above, but with Single LAN
EES-5610
P. 10-12
Intel
Pentium
III / Celeron
Mini PC with VGA, LCD, Audio, Dual LAN, CF, 4 COM,
& 2 USB 1.1
ACC-56102-1
Cable Kit for ECM-5610 Series
ACC-CFC-xx
CompactFlash Card (xx = Capacity, Capacity Option: 8, 16, 32, 64, 128, 256, 512 MB)
Zoom Video Port
VIA VT82C694X
Chipset
SMI Lynx3DM
SM721 Chipset
PCI
Supports Intel
Pentium
III /
Celeron
CPU
1 DIMM up to
512 MB SDRAM
VIA VT82C686B
Chipset
PC/104 Socket 40-pin IDE
USB 1.1
LPT
COM 1, 2, 3, 4
FDD
Audio & TV-out
LAN 2
LAN 1
VGA
DVI
(Optional)
LCD 1
Dual
View
TV-out
DVI
LCD 2
PC/104
