SINGLE-CHIP/SINGLE-PORT
10/100M FAST ETHERNET PHYCEIVER
(With Auto Crossover)
DATASHEET
Rev. 1.21
12 October 2004
Track ID: JATR-1076-21
RTL8201CP
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver ii Track ID: JATR-1076-21 Rev. 1.21
COPYRIGHT
2004 Realtek Semiconductor Corp. All rights reserved. No part of this document may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means without the written permission of Realtek Semiconductor Corp.
DISCLAIMER
Realtek provides this document "as is", without warranty of any kind, neither expressed nor implied,
including, but not limited to, the particular purpose. Realtek may make improvements and/or changes in
this document or in the product described in this document at any time. This document could include
technical inaccuracies or typographical errors.
TRADEMARKS
Realtek is a trademark of Realtek Semiconductor Corporation. Other names mentioned in this document
are trademarks/registered trademarks of their respective owners.
USING THIS DOCUMENT
This document is intended for the software engineer's reference and provides detailed programming
information.
Though every effort has been made to ensure that this document is current and accurate, more information
may have become available subsequent to the production of this guide. In that event, please contact your
Realtek representative for additional information that may help in the development process.
REVISION HISTORY
Revision
Release Date
Summary
1.0 2003/06/09
First
release.
1.1
2003/09/26
Minor cosmetic changes.
Modify LED Pin behavior.
1.2
2004/01/20
Add LED multi-mode definition (7.5 LED and PHY Address
Configuration, page 19).
Add Power dissipation info (Table 31).
Bit <0:8> default setting changed to 0 (Table 9).
Bit <0:13> default setting changed to 0 (Table 9).
Bit <5:7> default setting changed to 0 (Table 14).
Bit <17:5> default setting changed to 1 (Table 17).
Bit <25:0> default setting changed to 0 (Table 20).
Bit <25:1> default setting changed to 0 (Table 20).
Bit <25:11~7> default setting changed to 00001 (Table 20).
1.21
2004/10/12
Package additions. See section 10, Ordering Information, page 33.
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver iii Track ID: JATR-1076-21 Rev. 1.21
Table of Contents
1.
GENERAL DESCRIPTION................................................................................................................................................1
2.
FEATURES...........................................................................................................................................................................1
3.
BLOCK DIAGRAM.............................................................................................................................................................2
4.

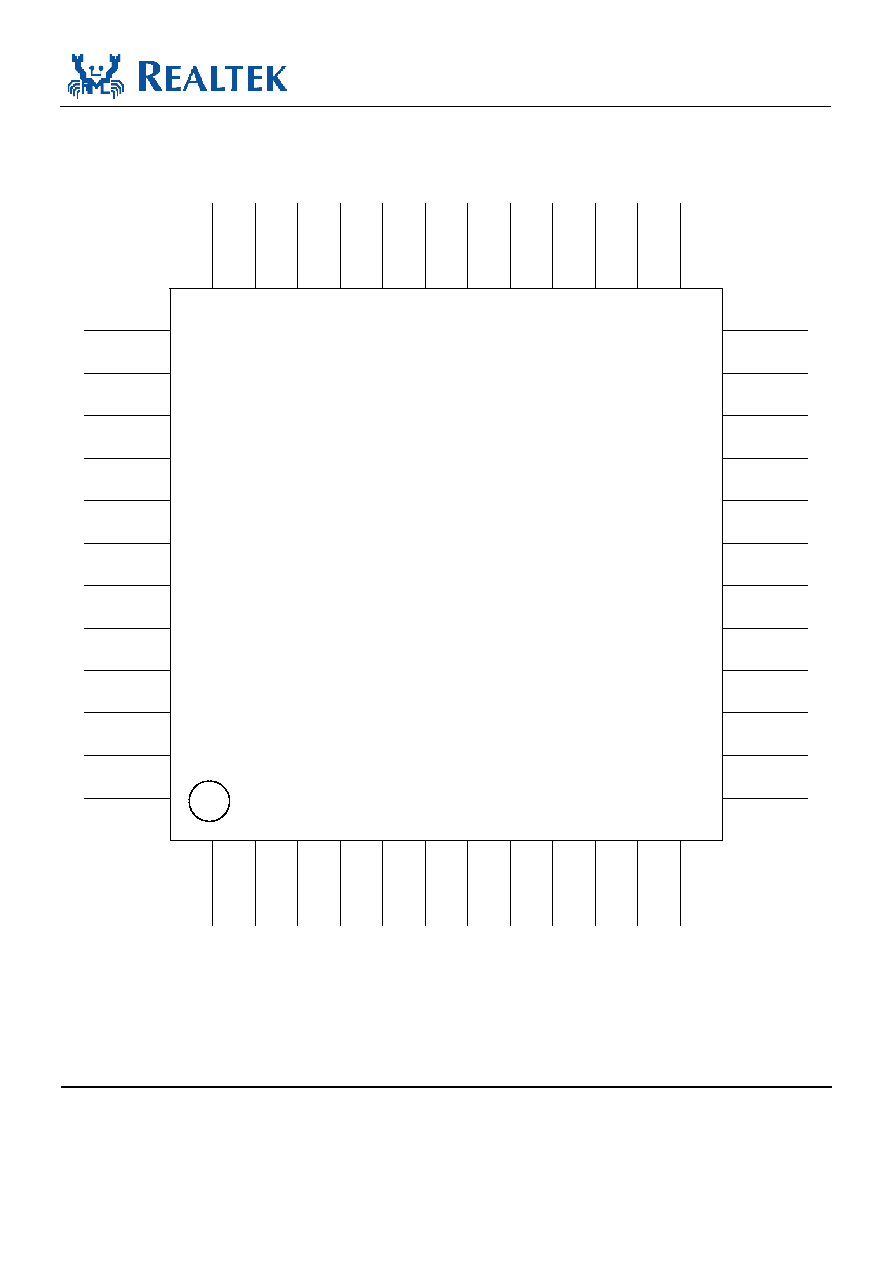

PIN ASSIGNMENTS ...........................................................................................................................................................3
5.
PIN DESCRIPTION ............................................................................................................................................................4
5.1.
MII I
NTERFACE
............................................................................................................................................................4
5.2.
SNI (S
ERIAL
N
ETWORK
I
NTERFACE
) 10M
BPS
O
NLY
....................................................................................................5
5.3.
C
LOCK
I
NTERFACE
.......................................................................................................................................................5
5.4.
10M
BPS
/100M
BPS
N
ETWORK
I
NTERFACE
....................................................................................................................5
5.5.
D
EVICE
C
ONFIGURATION
I
NTERFACE
...........................................................................................................................6
5.6.
LED I
NTERFACE
/PHY A
DDRESS
C
ONFIGURATION
.......................................................................................................6
5.7.
P
OWER AND
G
ROUND
P
INS
..........................................................................................................................................7
5.8.
R
ESET AND
O
THER
P
INS
...............................................................................................................................................7
6.
REGISTER DESCRIPTIONS ............................................................................................................................................8
6.1.
R
EGISTER
0 B
ASIC
M
ODE
C
ONTROL
R
EGISTER
............................................................................................................8
6.2.
R
EGISTER
1 B
ASIC
M
ODE
S
TATUS
R
EGISTER
...............................................................................................................9
6.3.
R
EGISTER
2 PHY I
DENTIFIER
R
EGISTER
1 ...................................................................................................................9
6.4.
R
EGISTER
3 PHY I
DENTIFIER
R
EGISTER
2 ...................................................................................................................9
6.5.
R
EGISTER
4 A
UTO
-N
EGOTIATION
A
DVERTISEMENT
R
EGISTER
(ANAR) ....................................................................10
6.6.
R
EGISTER
5 A
UTO
-N
EGOTIATION
L
INK
P
ARTNER
A
BILITY
R
EGISTER
(ANLPAR)......................................................10
6.7.
R
EGISTER
6 A
UTO
-N
EGOTIATION
E
XPANSION
R
EGISTER
(ANER) .............................................................................11
6.8.
R
EGISTER
16 NW
AY
S
ETUP
R
EGISTER
(NSR) ............................................................................................................12
6.9.
R
EGISTER
17 L
OOPBACK
, B
YPASS
, R
ECEIVER
E
RROR
M
ASK
R
EGISTER
(LBREMR) ................................................12
6.10.
R
EGISTER
18 RX_ER C
OUNTER
(REC).....................................................................................................................13
6.11.
R
EGISTER
19 SNR D
ISPLAY
R
EGISTER
......................................................................................................................13
6.12.
R
EGISTER
25 T
EST
R
EGISTER
.....................................................................................................................................13
7.
FUNCTIONAL DESCRIPTION.......................................................................................................................................14
7.1.
MII
AND
M
ANAGEMENT
I
NTERFACE
..........................................................................................................................14
7.1.1.
Data Transition.....................................................................................................................................................14
7.1.2.
Serial Management...............................................................................................................................................15
7.2.
A
UTO
-N
EGOTIATION AND
P
ARALLEL
D
ETECTION
......................................................................................................16
7.2.1.
Setting the Medium Type and Interface Mode to MAC.........................................................................................16
7.2.2.
UTP Mode and MII Interface ...............................................................................................................................16
7.2.3.
UTP Mode and SNI Interface ...............................................................................................................................17
7.2.4.
Fiber Mode and MII Interface..............................................................................................................................17
7.3.
F
LOW
C
ONTROL
S
UPPORT
..........................................................................................................................................17
7.4.
H
ARDWARE
C
ONFIGURATION AND
A
UTO
-N
EGOTIATION
............................................................................................18
7.5.
LED
AND
PHY A
DDRESS
C
ONFIGURATION
................................................................................................................19
7.6.
S
ERIAL
N
ETWORK
I
NTERFACE
....................................................................................................................................20
7.7.
P
OWER
D
OWN
, L
INK
D
OWN
, P
OWER
S
AVING
,
AND
I
SOLATION
M
ODES
......................................................................20
7.8.
M
EDIA
I
NTERFACE
.....................................................................................................................................................20
7.8.1.
100Base-TX ..........................................................................................................................................................20
7.8.2.
100Base-FX Fiber Mode Operation.....................................................................................................................21
7.8.3.
10Base-T TX/RX ...................................................................................................................................................21
7.9.
R
EPEATER
M
ODE
O
PERATION
.....................................................................................................................................22
7.10.
R
ESET
,
AND
T
RANSMIT
B
IAS
......................................................................................................................................22
7.11.
3.3V P
OWER
S
UPPLY AND
V
OLTAGE
C
ONVERSION
C
IRCUIT
.......................................................................................22
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver iv Track ID: JATR-1076-21 Rev. 1.21
7.12.
F
AR
E
ND
F
AULT
I
NDICATION
......................................................................................................................................22
8.
CHARACTERISTICS .......................................................................................................................................................23
8.1.
DC C
HARACTERISTICS
...............................................................................................................................................23
8.1.1.
Absolute Maximum Ratings..................................................................................................................................23
8.1.2.
Operating Conditions ...........................................................................................................................................23
8.1.3.
Power Dissipation ................................................................................................................................................23
8.1.4.
Input Voltage: Vcc ................................................................................................................................................23
8.2.
AC C
HARACTERISTICS
...............................................................................................................................................24
8.2.1.

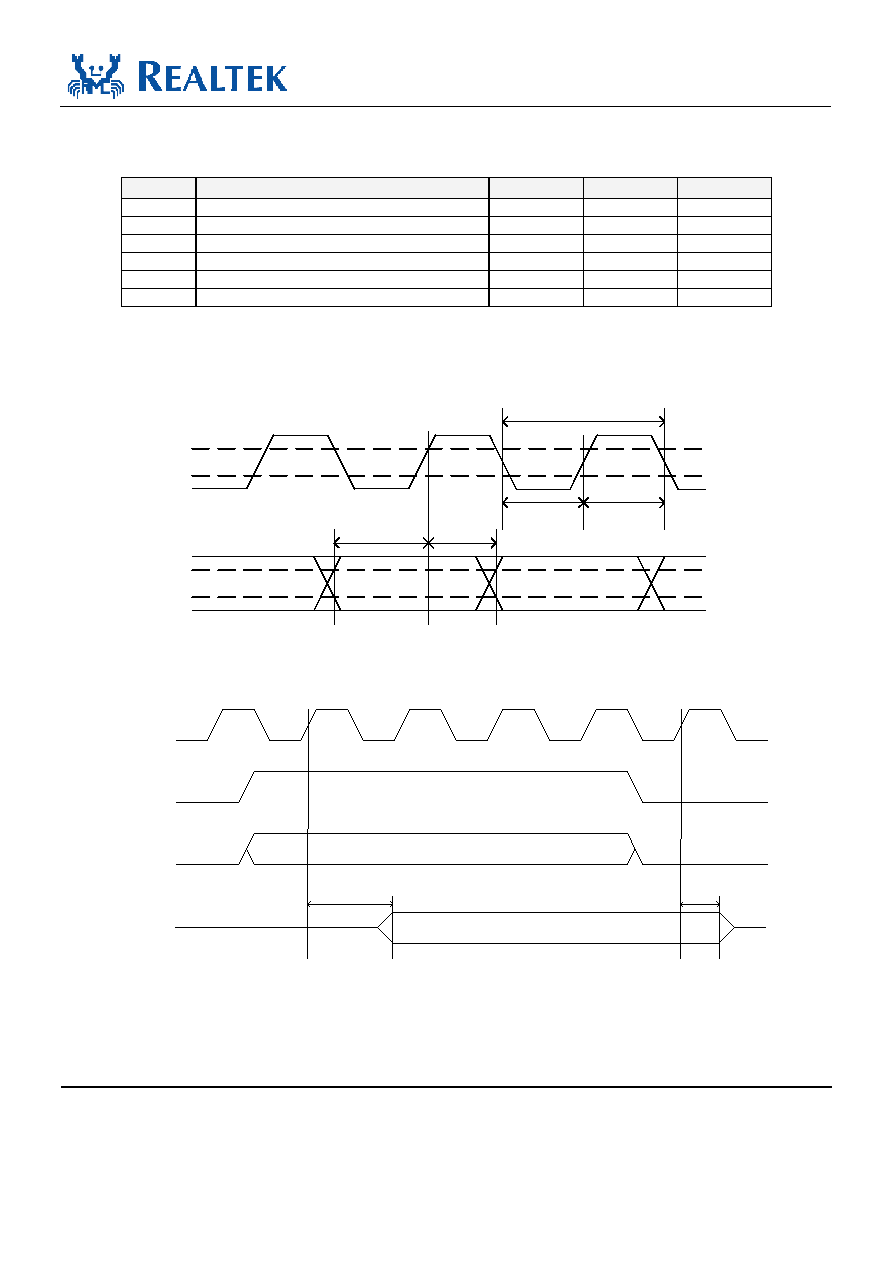

MII Transmission Cycle Timing............................................................................................................................24
8.2.2.
MII Reception Cycle Timing .................................................................................................................................25
8.2.3.
SNI Transmission Cycle Timing............................................................................................................................27
8.2.4.
SNI Reception Cycle Timing .................................................................................................................................28
8.2.5.
MDC/MDIO Timing..............................................................................................................................................29
8.3.
C
RYSTAL
C
HARACTERISTICS
......................................................................................................................................30
8.4.
T
RANSFORMER
C
HARACTERISTICS
............................................................................................................................30
9.
MECHANICAL DIMENSIONS .......................................................................................................................................31
9.1.
M
ECHANICAL
D
IMENSIONS
N
OTES
............................................................................................................................32
10.
ORDERING INFORMATION......................................................................................................................................33
List of Tables
Table 1. MII Interface..................................................................................................................................4
Table 2. SNI (Serial Network Interface) 10Mbps Only ..............................................................................5
Table 3. Clock Interface ..............................................................................................................................5
Table 4. 10Mbps/100Mbps Network Interface............................................................................................5
Table 5. Device Configuration Interface .....................................................................................................6
Table 6. LED Interface/PHY Address Configuration..................................................................................6
Table 7. Power and Ground Pins .................................................................................................................7
Table 8. Reset and Other Pins......................................................................................................................7
Table 9. Register 0 Basic Mode Control Register .......................................................................................8
Table 10. Register 1 Basic Mode Status Register..........................................................................................9
Table 11. Register 2 PHY Identifier Register 1.............................................................................................9
Table 12. Register 3 PHY Identifier Register 2.............................................................................................9
Table 13. Register 4 Auto-Negotiation Advertisement Register (ANAR)..................................................10
Table 14. Register 5 Auto-Negotiation Link Partner Ability Register (ANLPAR) ....................................10
Table 15. Register 6 Auto-Negotiation Expansion Register (ANER).........................................................11
Table 16. Register 16 NWay Setup Register (NSR)....................................................................................12
Table 17. Register 17 Loopback, Bypass, Receiver Error Mask Register (LBREMR) ..............................12
Table 18. Register 18 RX_ER Counter (REC)............................................................................................13
Table 19. Register 19 SNR Display Register ..............................................................................................13
Table 20. Register 25 Test Register.............................................................................................................13
Table 21. Serial Management ......................................................................................................................15
Table 22. Setting the Medium Type and Interface Mode to MAC..............................................................16
Table 23. UTP Mode and MII Interface ......................................................................................................16
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver v Track ID: JATR-1076-21 Rev. 1.21
Table 24. UTP Mode and SNI Interface......................................................................................................17
Table 25. Fiber Mode and MII Interface .....................................................................................................17
Table 26. Auto-Negotiation Mode Pin Settings ..........................................................................................18
Table 27. LED Definitions ..........................................................................................................................19
Table 28. Power Saving Mode Pin Settings ................................................................................................20
Table 29. Absolute Maximum Ratings........................................................................................................23
Table 30. Operating Conditions...................................................................................................................23
Table 31. Power Dissipation........................................................................................................................23
Table 32. Input Voltage: Vcc.......................................................................................................................23

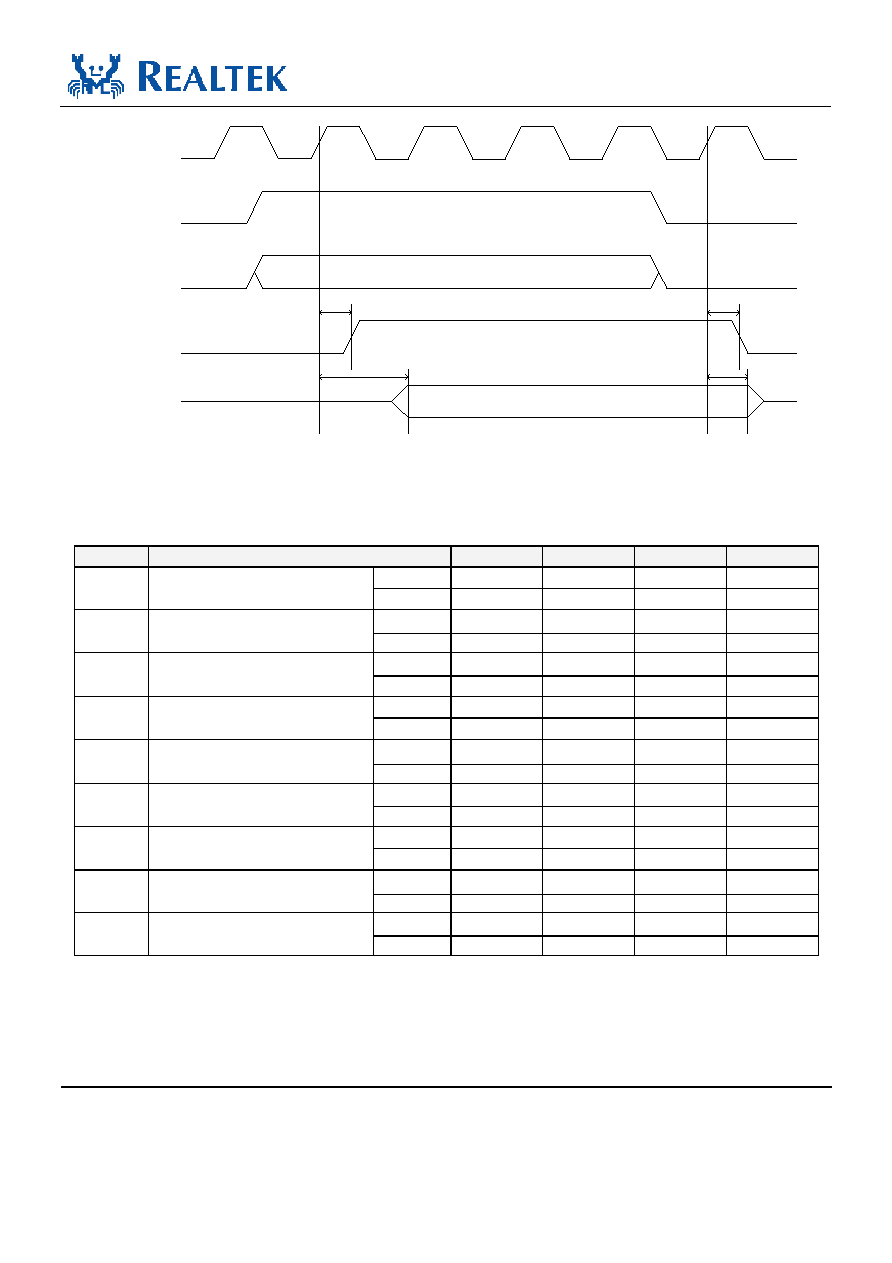

Table 33. MII Transmission Cycle Timing .................................................................................................24
Table 34. MII Reception Cycle Timing.......................................................................................................25
Table 35. SNI Transmission Cycle Timing .................................................................................................27
Table 36. SNI Reception Cycle Timing ......................................................................................................28
Table 37. MDC/MDIO Timing....................................................................................................................29
Table 38. Crystal Characteristics.................................................................................................................30
Table 39. Transformer Characteristics ........................................................................................................30
Table 40. Ordering Information...................................................................................................................33
List of Figures
Figure 1. Block Diagram .............................................................................................................................2
Figure 2. Pin Assignments...........................................................................................................................3

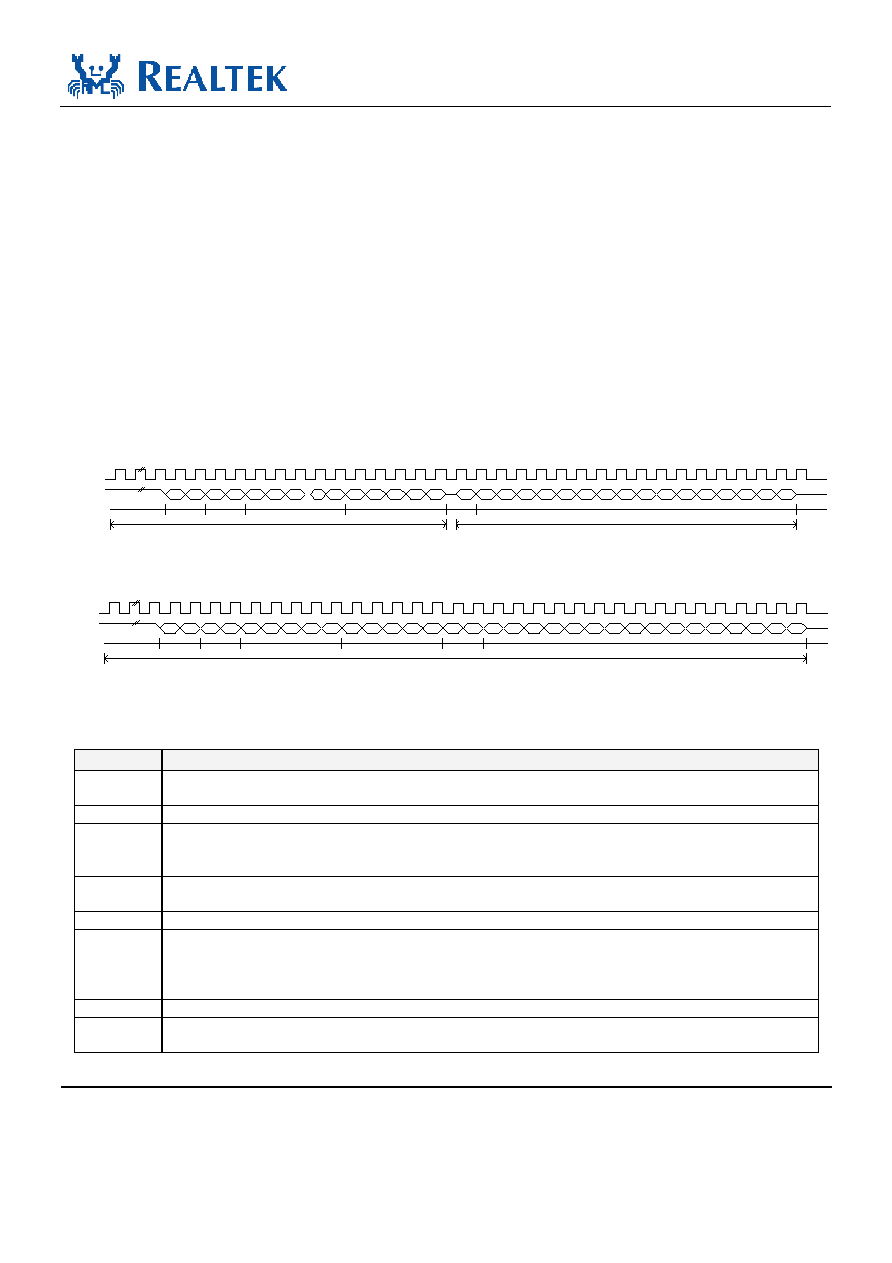

Figure 3. Read Cycle .................................................................................................................................15
Figure 4. Write Cycle ................................................................................................................................15
Figure 5. LED and PHY Address Configuration.......................................................................................19
Figure 7. MII Transmission Cycle Timing-1.............................................................................................24
Figure 8. MII Transmission Cycle Timing-2.............................................................................................25
Figure 9. MII Reception Cycle Timing-1 ..................................................................................................26
Figure 10. MII Reception Cycle Timing-2 ..................................................................................................26
Figure 11. SNI Transmission Cycle Timing-1 ............................................................................................27
Figure 12. SNI Transmission Cycle Timing-2 ............................................................................................27
Figure 13. SNI Reception Cycle Timing-1..................................................................................................28
Figure 14. SNI Reception Cycle Timing-2..................................................................................................28
Figure 15. MDC/MDIO Timing ..................................................................................................................29
Figure 16. MDC/MDIO MAC to PHY Transmission Without Collision ...................................................29
Figure 17. MDC/MDIO PHY to MAC Reception Without Error ...............................................................30
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 1 Track ID: JATR-1076-21 Rev. 1.21
1. General
Description
The RTL8201CP is a single-chip/single-port PHYceiver with an MII (Media Independent Interface)/SNI
(Serial Network Interface). It implements all 10/100M Ethernet Physical-layer functions including the
Physical Coding Sublayer (PCS), Physical Medium Attachment (PMA), Twisted Pair Physical Medium
Dependent Sublayer (TP-PMD), with an auto crossover detection function, 10Base-Tx Encoder/Decoder,
and Twisted-Pair Media Access Unit (TPMAU).
A PECL (Pseudo Emitter Coupled Logic) interface is supported to connect with an external 100Base-FX
fiber optical transceiver. The chip utilizes an advanced CMOS process to meet low voltage and low
power requirements. With on-chip DSP (Digital Signal Processing) technology, the chip provides
excellent performance under all operating conditions.
The RTL8201CP can be used for applications such as those for a Network Interface Adapter, MAU
(Media Access Unit), CNR (Communication and Network Riser), ACR (Advanced Communication
Riser), an Ethernet hub, and an Ethernet switch. In addition, it can be used in any embedded system with
an Ethernet MAC that needs a UTP physical connection or Fiber PECL interface to an external
100Base-FX optical transceiver module.
2. Features
The Realtek RTL8201CP is a Fast Ethernet PHYceiver with selectable MII or SNI interface to the MAC
chip. It provides the following features:
Pin-to-pin compatible with the RTL8201BL
Supports MII and 7-wire SNI (Serial Network
Interface)
10/100Mbps operation
Full/half duplex operation
Twisted pair or fiber mode output
Auto-Negotiation
Supports power down mode
Supports operation under Link Down Power
Saving mode
Supports Base Line Wander (BLW)
compensation
Supports auto crossover detection (new
RTL8201CP function)
Supports repeater mode
Adaptive Equalization
Network status LEDs
Flow control support
25MHz crystal/oscillator as clock source
IEEE 802.3/802.3u compliant
Supports IEEE 802.3u clause 28; 1.8V
operation with 3.3V IO signal tolerance
Low dual power supply, 1.8V and 3.3V; 1.8V
is generated by an internal regulator
0.18m CMOS process
48-pin LQFP package
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 2 Track ID: JATR-1076-21 Rev. 1.21
3. Block
Diagram

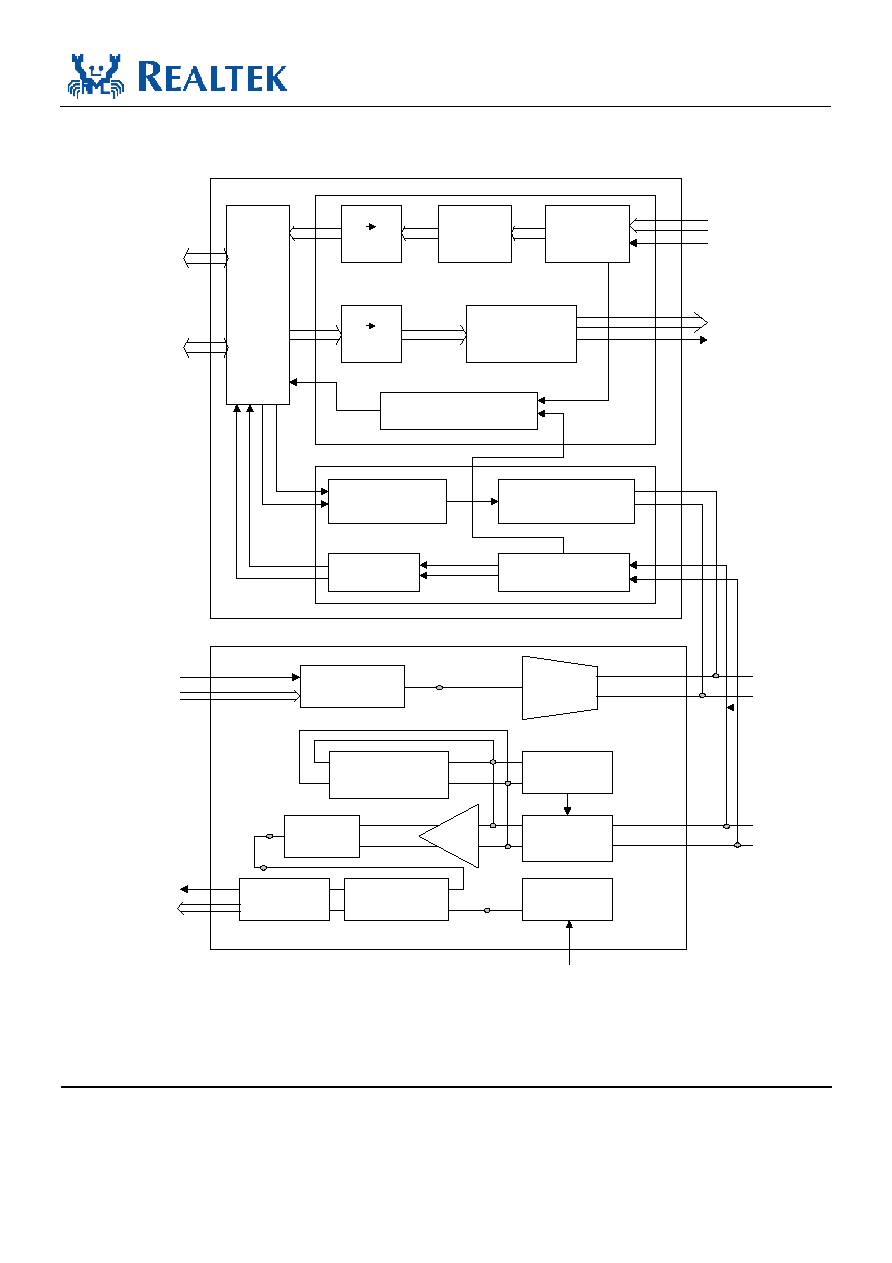

Figure 1. Block Diagram
RXIN+
RXIN-
TXO+
TXO -
RXC 25M
25M
TXC 25M
TXD
RXD
TD+
Variable Current
3 Level
Driver
Master
PPL
Adaptive
Equalizer
Peak
Detect
3 Level
Comparator
Control
Voltage
MLT-3
to NRZI
Serial to
Parrallel
ck
data
Slave
PLL
Parrallel
to Serial
Baseline
wander
Correction
5B 4B
Decoder
Data
Alignment
Descrambler
4B 5B
Encoder
Scrambler
10/100
half/full
Switch
Logic
10/100M Auto-negotiation
Control Logic
Manchester coded
waveform
10M Output waveform
shaping
Data Recovery
Receive low pass filter
RXD
RXC 25M
TXD
TXC 25M
TXD10
TXC10
RXD10
RXC10
Link pulse
10M
100M
MII
Interface
SNI
Interface
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 3 Track ID: JATR-1076-21 Rev. 1.21
4. Pin
Assignments
RTL8201CP
7.
T
X
C
2.
T
X
EN
3
.
TXD3
4
.
TXD2
5
.
TXD1
6
.
TXD0
16. RXC
1.
C
O
L
23. CRS
22. RXDV
18. RXD3
19. RXD2
20. RXD1
21. RXD0
25.
M
D
C
26.
M
D
I
O
46. X1
47. X2
3
3
.
TP
TX
-
3
4
.
TP
TX
+
28.
R
T
S
E
T
31.
T
P
R
X
+
30.
T
P
R
X
-
43. ISOLATE
40. RPTR
39. SPEED
38. DUPLEX
37. ANE
41. LDPS
44. MII/SNIB
9.
L
E
D0
/
PHY
AD0
12
.
L
ED2
/
P
H
YA
D2
13. LED3/
PHYAD3
15. LED4/
PHYAD4
27.
NC
42. RESETB
48. DVDD33
32.
PW
F
B
O
U
T
36.
A
VDD33
29.
A
G
N
D
35.
A
G
N
D
45. DGND
8.
PWFB
IN
14. DVDD33
17. DGND
11
.
D
G
N
D
24. RXER
/FXEN
10
.
L
ED1
/
PH
Y
A
D
1
Figure 2. Pin Assignments
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 4 Track ID: JATR-1076-21 Rev. 1.21
5. Pin
Description
LI: Latched Input during Power up or Reset
O: Output
I: Input
IO: Bi-directional input and output
P: Power
5.1. MII
Interface
Table 1. MII Interface
Name
Type
Pin No.
Description
TXC O
7 Transmit
Clock.
This pin provides a continuous clock as a timing reference for TXD[3:0] and
TXEN.
TXEN I
2 Transmit
Enable.
The input signal indicates the presence of valid nibble data on TXD[3:0].
TXD[3:0]
I
3, 4, 5, 6
Transmit Data.
The MAC will source TXD[0..3] synchronous with TXC when TXEN is
asserted.
RXC O
16 Receive
Clock.
This pin provides a continuous clock reference for RXDV and RXD[0..3]
signals. RXC is 25MHz in 100Mbps mode and 2.5Mhz in 10Mbps mode.
COL LI/O
1
Collision
Detect.
COL is asserted high when a collision is detected on the media.
During power on reset, this pin status is latched to determine at which LED
mode to operate:
0: CP LED mode
1: BL LED mode
An internal weak pull low resistor sets this to the default CP LED mode. It is possible
to use an external 5.1K pull high resistor to enable BL LED mode.
CRS LI/O
23 Carrier
Sense.
This pin's signal is asserted high if the media is not in Idle state.
An internal weak pull low resistor sets this to normal operation mode. An external
5.1K pull low resistor could be reserved to ensure operating at normal mode.
RXDV O
22 Receive
Data
Valid.
This pin's signal is asserted high when received data is present on the RXD[3:0]
lines. The signal is de-asserted at the end of the packet. The signal is valid on
the rising edge of the RXC.
RXD[3:0] O 18,
19,
20, 21 Receive Data.
These are the four parallel receive data lines aligned on the nibble boundaries
driven synchronously to the RXC for reception by the external physical unit
(PHY).
RXER/
FXEN
LI/O 24
Receive
Error.
If a 5B decode error occurs, such as invalid /J/K/, invalid /T/R/, or invalid
symbol, this pin will go high.
Fiber/UTP Enable.
During power on reset, this pin status is latched to determine the media mode to
operate in.
1: Fiber mode
0: UTP mode
An internal weak pull low resistor sets this to the default of UTP mode. It is possible to
use an external 5.1K pull high resistor to enable fiber mode.
After power on, the pin operates as the Receive Error pin.
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 5 Track ID: JATR-1076-21 Rev. 1.21
Name
Type
Pin No.
Description
MDC
I
25
Management Data Clock.
This pin provides a clock synchronous to MDIO, which may be asynchronous to
the transmit TXC and receive RXC clocks. The clock rate can be up to 2.5MHz.
MDIO
IO
26
Management Data Input/Output.
This pin provides the bi-directional signal used to transfer management
information.
5.2. SNI (Serial Network Interface) 10Mbps Only
Table 2. SNI (Serial Network Interface) 10Mbps Only
Name
Type
Pin No.
Description
COL O 1 Collision
Detect.
RXD0 O 21 Received
Serial
Data.
CRS O 23
Carrier
Sense.
RXC O 16
Receive
Clock.
Resolved from received data.
TXD0
I
6
Transmit Serial Data.
TXC O 7 Transmit
Clock.
Generated by PHY.
TXEN I 2 Transmit
Enable.
For MAC to indicate transmit operation.
5.3. Clock
Interface
Table 3. Clock Interface
Name
Type
Pin No.
Description
X2
O
47
25MHz Crystal Output.
This pin provides the 25MHz crystal output. It must be left open when an external
25MHz oscillator drives X1.
X1
I
46
25MHz Crystal Input.
This pin provides the 25MHz crystal input. If a 25MHz oscillator is used, connect
X1 to the oscillator's output (see 8.3 Crystal Characteristics, page 30, for clock
source specifications.
5.4. 10Mbps/100Mbps Network Interface
Table 4. 10Mbps/100Mbps Network Interface
Name
Type
Pin No.
Description
TPTX+
TPTX-
O
O
34
33
Transmit Output.
Differential transmit output pair shared by 100Base-TX, 100Base-FX and
10Base-T modes. When configured as 100Base-TX, output is an MLT-3 encoded
waveform. When configured as 100Base-FX, the output is pseudo-ECL level.
RTSET
I
28
Transmit Bias Resistor Connection.
This pin should be pulled to GND by a 2K (1%) resistor to define driving
current for the transmit DAC. The resistance value may be changed, depending on
experimental results of the RTL8201CP.
TPRX+
TPRX-
I
I
31
30
Receive Input.
Differential receive input pair shared by 100Base-TX, 100Base-FX, and 10Base-T
modes.
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 6 Track ID: JATR-1076-21 Rev. 1.21
5.5. Device Configuration Interface
Table 5. Device Configuration Interface
Name
Type
Pin No.
Description
ISOLATE
I
43
Set high to isolate the RTL8201CP from the MAC. This will also isolate the MDC/MDIO
management interface. In this mode, the power consumption is minimum. This pin can be
directly connected to GND or VCC.
RPTR
I
40
Set high to put the RTL8201CP into repeater mode. This pin can be directly connected
to GND or VCC.
SPEED
LI
39
This pin is latched to input during a power on or reset condition. Set high to put
the RTL8201CP into 100Mbps operation. This pin can be directly connected to GND or
VCC.
DUPLEX
LI
38
This pin is latched to input during a power on or reset condition. Set high to
enable full duplex. This pin can be directly connected to GND or VCC.
ANE
LI
37
This pin is latched to input during a power on or reset condition. Set high to
enable Auto-negotiation mode, set low to force mode. This pin can be directly
connected to GND or VCC.
LDPS
I
41
Set high to put the RTL8201CP into LDPS mode. This pin can be directly connected
to GND or VCC. See 7.7 Power Down, Link Down, Power Saving, and Isolation
Modes, page 20, for more information.
MII/SNIB
LI/O
44
This pin is latched to input during a power on or reset condition. Pull high to set
the RTL8201CP into MII mode operation. Set low for SNI mode. This pin can be
directly connected to GND or VCC.
5.6. LED
Interface/PHY
Address
Configuration
These five pins are latched into the RTL8201CP during power up reset to configure the PHY address
[0:4] used for the MII management register interface. In normal operation, after initial reset, they are used
as driving pins for status indicator LEDs. The driving polarity, active low or active high, is determined by
each latched status of the PHY address [4:0] during power-up reset. If the latched status is High, then it
will be active low. If the latched status is Low, then it will be active high. See section 7.5 LED and PHY
Address Configuration, page 19, for more information.
Table 6. LED Interface/PHY Address Configuration
Name
Type
Pin No.
Description
PHYAD0/
LED0
LI/O 9 PHY
Address
[0].
Link LED.
Lit when linked.
PHYAD1/
LED1
LI/O 10 PHY
Address
[1].
Full Duplex LED.
Lit when in Full Duplex operation.
PHYAD2/
LED2
LI/O 12 PHY
Address
[2].
CP LED Mode: 10 ACT LED
Blinking when transmitting or receiving data.
BL LED Mode: Link 10 / ACT LED
Active when linked in 10Base-T mode, and blinking when transmitting or
receiving data.
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 7 Track ID: JATR-1076-21 Rev. 1.21
Name
Type
Pin No.
Description
PHYAD3/
LED3
LI/O 13 PHY
Address
[3].
CP LED Mode: 100 ACT LED
Blinking when transmitting or receiving data.
BL LED Mode: Link 100 / ACT LED
Active when linked in 100Base-T mode, and blinking when transmitting or
receiving data.
PHYAD4/
LED4
LI/O 15 PHY
Address
[4].
Collision LED.
Blinks when collisions occur.
5.7. Power and Ground Pins
Table 7. Power and Ground Pins
Name
Type
Pin No.
Description
AVDD33 P
36 3.3V
Analog
Power
Input.
3.3V power supply for analog circuit; should be well decoupled.
AGND P 29,
35 Analog
Ground.
Should be connected to a larger GND plane.
DVDD33
P
14, 48
3.3V Digital Power Input.
3.3V power supply for digital circuit.
DGND
P
11, 17, 45
Digital Ground.
Should be connected to a larger GND plane.
5.8. Reset and Other Pins
Table 8. Reset and Other Pins
Name
Type
Pin No.
Description
RESETB I
42 RESETB.
Set low to reset the chip. For a complete reset, this pin must be asserted low
for at least 10ms.
PWFBOUT
O
32
Power Feedback Output.
Be sure to connect a 22uF tantalum capacitor for frequency compensation and
a 0.1uF capacitor for noise de-coupling. Then connect this pin through a
ferrite bead to PWFBIN (pin8). The connection method is outlined in
7.11 3.3V Power Supply and Voltage Conversion Circuit, page 22.
PWFBIN
I
8
Power Feedback Input. See the PWFBOUT description above.
NC 27
Not
Connected.
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 8 Track ID: JATR-1076-21 Rev. 1.21
6. Register
Descriptions
This section describes the functions and usage of the registers available in the RTL8201CP.
In this section the following abbreviations are used:
RO: Read Only
RW: Read/Write
6.1. Register 0 Basic Mode Control Register
Table 9. Register 0 Basic Mode Control Register
Address
Name
Description
Mode
Default
0:15
Reset
This bit sets the status and control registers of the PHY in a default
state. This bit is self-clearing.
1: Software reset
0: Normal operation
RW
0
0:14
Loopback This bit enables loopback of transmit data nibbles TXD3:0 to the
receive data path.
1: Enable loopback
0: Normal operation
RW 0
0:13
Spd_Set
This bit sets the network speed.
1: 100Mbps
0: 10Mbps
After completing auto negotiation, this bit will reflect the Speed status.
1: 100Base-T
0: 10Base-T)
When 100Base-FX mode is enabled, this bit=1 and is read only.
RW 0
0:12 Auto
Negotiation
Enable
This bit enables/disables the NWay auto-negotiation function.
1: Enable auto-negotiation; bits 0:13 and 0:8 will be ignored.
0: Disable auto-negotiation; bits 0:13 and 0:8 will determine the link
speed and the data transfer mode, respectively.
When 100Base-FX mode is enabled, this bit=0 and is read only.
RW 1
0:11
Power Down This bit turns down the power of the PHY chip, including the internal
crystal oscillator circuit. The MDC, MDIO is still alive for accessing
the MAC.
1: Power down
0: Normal operation
RW 0
0:10 Reserved
0:9 Restart
Auto
Negotiation
This bits allows the NWay auto-negotiation function to be reset.
1: Re-start auto-negotiation
0: Normal operation
RW 0
0:8 Duplex
Mode
This bit sets the duplex mode if auto-negotiation is disabled
(bit 0:12=0).
1: Full duplex
0: Half duplex
After completing auto-negotiation, this bit will reflect the duplex status.
1: Full duplex
0: Half duplex
RW 0
0:7:0 Reserved
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 9 Track ID: JATR-1076-21 Rev. 1.21
6.2. Register 1 Basic Mode Status Register
Table 10. Register 1 Basic Mode Status Register
Address
Name
Description
Mode
Default
1:15
100Base-T4
1: Enable 100Base-T4 support
0: Suppress 100Base-T4 support
RO 0
1:14
100Base_TX_ FD 1: Enable 100Base-TX full duplex support
0: Suppress 100Base-TX full duplex support
RO 1
1:13
100BASE_TX_HD 1: Enable 100Base-TX half duplex support
0: Suppress 100Base-TX half duplex support
RO 1
1:12
10Base_T_FD
1: Enable 10Base-T full duplex support
0: Suppress 10Base-T full duplex support
RO 1
1:11
10_Base_T_HD
1: Enable 10Base-T half duplex support
0: Suppress 10Base-T half duplex support
RO 1
1:10~7 Reserved
1:6 MF
Preamble
Suppression
The RTL8201CP will accept management frames with preamble
suppressed.
A minimum of 32 preamble bits are required for the first SMI
read/write transaction after reset. One idle bit is required
between any two management transactions as per IEEE 802.3u
specifications.
RO 1
1:5 Auto
Negotiation
Complete
1: Auto-negotiation process completed
0: Auto-negotiation process not completed
RO 0
1:4
Remote Fault
1: Remote fault condition detected (cleared on read)
0: No remote fault condition detected
When in 100Base-FX mode, this bit means an in-band signal
Far-End-Fault has been detected. See 7.12 Far End Fault
Indication, page 22.
RO
0
1:3
Auto Negotiation
1: Link has not experienced fail state
0: Link experienced fail state
RO
1
1:2
Link Status
1: Valid link established
0: No valid link established
RO 0
1:1
Jabber Detect
1: Jabber condition detected
0: No jabber condition detected
RO 0
1:0
Extended Capability 1: Extended register capability
0: Basic register capability only
RO 1
6.3. Register 2 PHY Identifier Register 1
Table 11. Register 2 PHY Identifier Register 1
Address
Name
Description
Mode
Default
2:15~0
PHYID1
PHY identifier ID for software recognition of the RTL8201CP.
RO
0000
6.4. Register 3 PHY Identifier Register 2
Table 12. Register 3 PHY Identifier Register 2
Address
Name
Description
Mode
Default
3:15~0
PHYID2
PHY identifier ID for software recognition of the RTL8201CP.
RO
8201
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 10 Track ID: JATR-1076-21 Rev. 1.21
6.5. Register 4 Auto-Negotiation Advertisement Register (ANAR)
This register contains the advertised abilities of this device as they will be transmitted to its link partner
during auto-negotiation.
Table 13. Register 4 Auto-Negotiation Advertisement Register (ANAR)
Address
Name
Description
Mode
Default
4:15 NP
Next
Page
bit.
0: Transmitting the primary capability data page
1: Transmitting the protocol specific data page
RO 0
4:14
ACK
1: Acknowledge reception of link partner capability data word
0: Do not acknowledge reception
RO 0
4:13
RF
1: Advertise remote fault detection capability
0: Do not advertise remote fault detection capability
RW 0
4:12 Reserved
4:11
TXFC
1: TX flow control is supported by local node
0: TX flow control not supported by local node
RW 0
4:10
RXFC
1: RX flow control is supported by local node
0: RX flow control not supported by local node
RW 0
4:9
T4
1: 100Base-T4 is supported by local node
0: 100Base-T4 not supported by local node
RO
0
4:8
TXFD
1: 100Base-TX full duplex is supported by local node
0: 100Base-TX full duplex not supported by local node
RW 1
4:7
TX
1: 100Base-TX is supported by local node
0: 100Base-TX not supported by local node
RW 1
4:6
10FD
1: 10Base-T full duplex supported by local node
0: 10Base-T full duplex not supported by local node
RW 1
4:5
10
1: 10Base-T is supported by local node
0: 10Base-T not supported by local node
RW 1
4:4~0
Selector
Binary encoded selector supported by this node. Currently only
CSMA/CD 00001 is specified. No other protocols are supported.
RW 00001
6.6. Register 5 Auto-Negotiation Link Partner Ability Register
(ANLPAR)
This register contains the advertised abilities of the Link Partner as received during auto-negotiation. The
content changes after a successful auto-negotiation if Next-pages are supported.
Table 14. Register 5 Auto-Negotiation Link Partner Ability Register (ANLPAR)
Address
Name
Description
Mode
Default
5:15 NP
Next
Page
bit.
0: Transmitting the primary capability data page
1: Transmitting the protocol specific data page
RO 0
5:14
ACK
1: Link partner acknowledges reception of local node's capability
data word
0: No acknowledgement
RO 0
5:13
RF
1: Link partner is indicating a remote fault
0: Link partner does not indicate a remote fault
RO 0
5:12
Reserved
5:11
TXFC
1: TX flow control is supported by Link partner
0: TX flow control not supported by Link partner
RO 0
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 11 Track ID: JATR-1076-21 Rev. 1.21
Address
Name
Description
Mode
Default
5:10
RXFC
1: RX flow control is supported by Link partner
0: RX flow control not supported by Link partner
RO 0
5:9
T4
1: 100Base-T4 is supported by link partner
0: 100Base-T4 not supported by link partner
RO 0
5:8
TXFD
1: 100Base-TX full duplex is supported by link partner
0: 100Base-TX full duplex not supported by link partner
RO 0
5:7
100BASE-TX 1: 100Base-TX is supported by link partner
0: 100Base-TX not supported by link partner
This bit will also be set if the link in 100Base is established by
parallel detection.
RO 0
5:6
10FD
1: 10Base-T full duplex is supported by link partner
0: 10Base-T full duplex not supported by link partner
RO 0
5:5
10Base-T
1: 10Base-T is supported by link partner
0: 10Base-T not supported by link partner
This bit will also be set if the link in 10Base-T is established by
parallel detection.
RO 0
5:4~0
Selector
Link Partner's binary encoded node selector Currently only
CSMA/CD 00001 is specified
RO 00000
6.7. Register 6 Auto-Negotiation Expansion Register (ANER)
This register contains additional status for NWay auto-negotiation.
Table 15. Register 6 Auto-Negotiation Expansion Register (ANER)
Address
Name
Description
Mode
Default
6:15~5
Reserved
This bit is permanently set to 0.
6:4
MLF
Indicates whether a multiple link fault has occurred.
1: Fault occurred
0: No fault occurred
RO 0
6:3
LP_NP_ABLE Indicates whether the link partner supports Next Page negotiation.
1: Supported
0: Not supported
RO 0
6:2
NP_ABLE
This bit indicates whether the local node is able to send additional
Next Pages. Internal use only.
RO 0
6:1
PAGE_RX
This bit is set when a new Link Code Word Page has been
received. It is automatically cleared when the auto-negotiation link
partner's ability register (register 5) is read by management.
RO 0
6:0
LP_NW_ABLE 1: Link partner supports NWay auto-negotiation.
RO
0
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 12 Track ID: JATR-1076-21 Rev. 1.21
6.8. Register 16 NWay Setup Register (NSR)
Table 16. Register 16 NWay Setup Register (NSR)
Address
Name
Description
Mode
Default
16:15~12 Reserved
16:11
ENNWLE
1: LED4 Pin indicates linkpulse
RW
0
16:10
Testfun
1: Auto-negotiation speeds up internal timer
RW
0
16:9
NWLPBK
1: Set NWay to loopback mode
RW
0
16:8~3 Reserved
16:2
FLAGABD
1: Auto-negotiation experienced ability detect state
RO
0
16:1
FLAGPDF
1: Auto-negotiation experienced parallel detection fault state
RO
0
16:0
FLAGLSC
1: Auto-negotiation experienced link status check state
RO
0
6.9. Register 17 Loopback, Bypass, Receiver Error Mask
Register (LBREMR)
Table 17. Register 17 Loopback, Bypass, Receiver Error Mask Register (LBREMR)
Address
Name
Description
Mode
Default
17:15
RPTR
Set to 1 to put the RTL8201CP into repeater mode.
RW
0
17:14
BP_4B5B
Assertion of this bit allows bypassing of the 4B/5B & 5B/4B
encoder.
RW 0
17:13
BP_SCR
Assertion of this bit allows bypassing of the
scrambler/descrambler.
RW 0
17:12
LDPS
Set to 1 to enable Link Down Power Saving mode.
RW
0
17:11
AnalogOFF
Set to 1 to power down analog function of transmitter and receiver.
RW
0
17:10 Reserve
Reserved.
17:9
LB
Set to 1 to enable DSP Loopback.
RW
0
17:8
F_Link_10
Used to logic force good link in 10Mbps for diagnostic purposes.
RW
1
17:7
F_Link_100
Used to logic force good link in 100Mbps for diagnostic purposes.
RW
1
17:6
JBEN
Set to 1 to enable Jabber Function in 10Base-T.
RW
0
17:5
CODE_err
Assertion of this bit causes a code error detection to be reported.
RW
1
17:4
PME_err
Assertion of this bit causes a pre-mature end error detection to be
reported.
RW 0
17:3
LINK_err
Assertion of this bit causes a link error detection to be reported.
RW
0
17:2
PKT_err
Assertion of this bit causes a `detection of packet errors due to
722 ms time-out' to be reported.
RW 0
17:1
FXMODE
This bit indicates whether Fiber Mode is Enabled.
RO
0
17:0
RMIIMODE
This bit indicates whether RMII mode is Enabled.
RO
0
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 13 Track ID: JATR-1076-21 Rev. 1.21
6.10. Register 18 RX_ER Counter (REC)
Table 18. Register 18 RX_ER Counter (REC)
Address
Name
Description
Mode
Default
18:15~0
RXERCNT
This 16-bit counter increments by 1 for each valid packet received.
RW
H'[0000]
6.11. Register 19 SNR Display Register
Table 19. Register 19 SNR Display Register
Address
Name
Description
Mode
Default
19:15~4
Reserved
Realtek Test Mode Internal use. Do not change this field without
Realtek's approval.
19:3~0
SNR
These 4-bits show the Signal to Noise Ratio value.
RW
0000
6.12. Register 25 Test Register
Table 20. Register 25 Test Register
Address
Name
Description
Mode
Default
25:15~12
Test
Reserved for internal testing.
RW
25:11~7
PHYAD[4:0] Reflects the PHY address defined by external PHY address
configuration pins.
RO 00001
25:6~2
Test
Reserved for internal testing.
RO
25:1
LINK10
1: 10Base-T link established
0: No 10Base-T link established
RO 0
25:0
LINK100
1: 100Base-FX or 100Base-TX link established
0: No 100Base link established
RO 0
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 14 Track ID: JATR-1076-21 Rev. 1.21
7. Functional
Description
The RTL8201CP PHYceiver is a physical layer device that integrates 10Base-T and
100Base-TX/100Base-FX functions, and some extra power management features into a 48-pin single chip
that is used in 10/100 Fast Ethernet applications. This device supports the following functions:
MII interface with MDC/MDIO SMI management interface to communicate with MAC
IEEE 802.3u clause 28 Auto-Negotiation ability
Flow control ability support to cooperate with MAC
Speed, duplex, auto-negotiation ability configurable by hard wire or MDC/MDIO
Flexible LED configuration
7-wire SNI (Serial Network Interface) support (only in 10Mbps mode)
Power Down mode support
4B/5B transform
Scrambling/De-scrambling
NRZ to NRZI, NRZI to MLT-3
Manchester Encode and Decode for 10Base-T operation
Clock and Data recovery
Adaptive Equalization
Far End Fault Indication (FEFI) in fiber mode
7.1. MII and Management Interface
7.1.1. Data
Transition
To set the RTL8201CP for MII mode operation, pull the MII/SNIB pin high and set the ANE, SPEED,
and DUPLEX pins.
The MII (Media Independent Interface) is an 18-signal interface (as described in IEEE 802.3u) supplying
a standard interface between the PHY and MAC layer. This interface operates at two frequencies
25MHz and 2.5MHz to support 100Mbps/10Mbps bandwidth for both transmit and receive functions.
Transmission
The MAC asserts the TXEN signal. It then changes byte data into 4-bit nibbles and passes them to the
PHY via TXD[0..3]. The PHY will sample TXD[0..3] synchronously with TXC -- the transmit clock
signal supplied by PHY during the interval TXEN is asserted.
Reception
The PHY asserts the RXEN signal. It passes the received nibble data RXD[0..3] clocked by RXC. CRS
and COL signals are used for collision detection and handling.
In 100Base-TX mode, when the decoded signal in 5B is not IDLE, the CRS signal will assert. When 5B is
recognized as IDLE it will be de-asserted. In 10Base-T mode, CRS will assert when the 10M preamble
has been confirmed and will be de-asserted when the IDLE pattern has been confirmed.
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 15 Track ID: JATR-1076-21 Rev. 1.21
The RXDV signal will be asserted when decoded 5B are /J/K/ and will be de-asserted if the 5B are /T/R/
or IDLE in 100Mbps mode. In 10Mbps mode, the RXDV signal is the same as the CRS signal.
The RXER (Receive Error) signal will be asserted if any 5B decode errors occur such as invalid J/K,
invalid T/R, or invalid symbol. This pin will go high for one or more clock periods to indicate to the
reconciliation sublayer that an error was detected somewhere in the frame.
Note: The RTL8201CP does not use a TXER signal. This does not affect the transmit function.
7.1.2. Serial
Management
The MAC layer device can use the MDC/MDIO management interface to control a maximum of 31
RTL8201CP devices, configured with different PHY addresses (00001b to 11111b). During a hardware
reset, the logic levels of pins 9, 10, 12, 13, 15 are latched into the RTL8201CP to be set as the PHY
address for management communication via the serial interface. Setting the PHY address to 00000b will
put the RTL8201CP into power down mode. The read and write frame structure for the management
interface is illustrated in Figure 3 and Figure 4.
D15 D14 D13 D12 D11 D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
A4
A3
A2
A1 A0
R4
R3
R2
R1
R0
0
1
1
0
0
32 1s
OP
ST
Preamble
PHYAD[4:0]
TA
DATA
REGAD[4:0]
Idle
MDC
MDIO
MDIO is sourced by MAC. Clock data into PHY on rising edge of MDC
Z
MDIO is sourced by PHY. Clock data from PHY on rising edge of MDC
Figure 3. Read Cycle
D15 D14 D13 D12 D11 D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
A4
A3
A2
A1
A0
R4
R3
R2
R1
R0
1
0
1
0
1
0
32 1s
OP
ST
Preamble
PHYAD[4:0]
TA
DATA
REGAD[4:0]
Idle
MDC
MDIO
MDIO is sourced by MAC. Clock data into PHY on rising edge of MDC
Figure 4. Write Cycle
Table 21. Serial Management
Name
Description
Preamble
32 contiguous logical `1's sent by the MAC on MDIO along with 32 corresponding cycles on MDC. This
provides synchronization for the PHY.
ST
Start of Frame. Indicated by a 01 pattern.
OP Operation
Code.
Read: 10
Write: 01
PHYAD
PHY Address. Up to 31 PHYs can be connected to one MAC. This 5-bit field selects which PHY the
frame is directed to.
REGAD
Register Address. This is a 5-bit field that sets which of the 32 registers of the PHY this operation refers to.
TA
Turnaround. This is a 2-bit time-spacing between the register address and the data field of a frame to avoid
contention during a read transaction. For a read transaction, both the STA and the PHY shall remain in a
high-impedance state for the first bit time of the turnaround. The PHY shall drive a zero bit during the
second bit time of the turnaround of a read transaction.
DATA
Data. These are the 16 bits of data.
IDLE
Idle Condition. Not truly part of the management frame. This is a high impedance state. Electrically, the
PHY's pull-up resistor will pull the MDIO line to a logical `1'.
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 16 Track ID: JATR-1076-21 Rev. 1.21
7.2. Auto-Negotiation and Parallel Detection
The RTL8201CP supports IEEE 802.3u clause 28 Auto-negotiation for operation with other transceivers
supporting auto-negotiation. The RTL8201CP can auto detect the link partner's abilities and determine
the highest speed/duplex configuration possible between the two devices. If the link partner does not
support auto-negotiation, then the RTL8201CP will enable half duplex mode and enter parallel detection
mode. The RTL8201CP will default to transmit FLP (Fast Link Pulse) and wait for the link partner to
respond. If the RTL8201CP receives FLP, then the auto-negotiation process will go on. If it receives NLP
(Normal Link Pulse), then the RTL8201CP will change to 10Mbps and half duplex mode. If it receives a
100Mbps IDLE pattern, it will change to 100Mbps and half duplex mode.
To enable auto-negotiation mode operation on the RTL8201CP, just pull the ANE (Auto-Negotiation
Enable) pin high. The SPEED and DUPLEX pins will set the ability content of the auto-negotiation
register. Auto-negotiation mode can be externally disabled by pulling the ANE pin low. In this case, the
SPEED pin and DUPLEX pin will change the media configuration of the RTL8201CP.
Below is a list of all configurations of the ANE/SPEED/DUPLEX pins and their operation in Fiber or
UTP mode.
7.2.1. Setting
the
Medium
Type and Interface Mode to MAC
Table 22. Setting the Medium Type and Interface Mode to MAC
FX (Pin 24)
MII/SNIB (Pin 44)
Operation Mode
L
H
UTP mode and MII interface.
L
L
UTP mode and SNI interface.
H
X
Fiber mode and MII interface.
7.2.2. UTP Mode and MII Interface
Table 23. UTP Mode and MII Interface
ANE
(Pin 37)
SPEED
(Pin 39)
DUPLEX
(Pin 38)
Operation
H L L
Auto-negotiation enabled. The ability field does not support 100Mbps or full
duplex mode operation.
H L H
Auto-negotiation enabled. The ability field does not support 100Mbps
operation.
H H L
Auto-negotiation enabled. The ability field does not support full duplex
mode operation.
H H H
Default setup, auto-negotiation enabled. The RTL8201CP supports 10Base-T
/100Base-TX, half/full duplex mode operation.
L L L
Auto-negotiation disabled. Forces the RTL8201CP into 10Base-T and half
duplex mode.
L L H
Auto-negotiation disabled. Forces the RTL8201CP into 10Base-T and full
duplex mode.
L H L
Auto-negotiation disabled. Forces the RTL8201CP into 100Base-TX and half
duplex mode.
L H H
Auto-negotiation disabled. Forces the RTL8201CP into 100Base-TX and full
duplex mode.
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 17 Track ID: JATR-1076-21 Rev. 1.21
7.2.3. UTP Mode and SNI Interface
SNI interface to MAC (only operates in 10Base-T when the SNI interface is enabled)
Table 24. UTP Mode and SNI Interface
ANE
(Pin 37)
SPEED
(Pin 39)
DUPLEX
(Pin 38)
Operation
X
X
L
The duplex pin is pulled low to support the 10Base-T half duplex function.
10Base-T half duplex is the specified default mode in the SNI interface.
X
X
H
The RTL8201CP also supports full duplex in SNI mode. The duplex pin is
pulled high to support 10Base-T full duplex function.
7.2.4. Fiber Mode and MII Interface
The RTL8201CP only supports 100Base-FX when Fiber mode is enabled. ANE (Auto-Negotiation
Enable) and SPEED configuration is ignored when Fiber mode is enabled.
Table 25. Fiber Mode and MII Interface
ANE
(Pin 37)
SPEED
(Pin 39)
DUPLEX
(Pin 38)
Operation
X
X
H
The duplex pin is pulled high to support 100Base-FX full duplex function.
X
X
L
The duplex pin is pulled low to support 100Base-FX half duplex function.
7.3. Flow Control Support
The RTL8201CP supports flow control indications. The MAC can program the MII register to indicate to
the PHY that flow control is supported. When the MAC supports the Flow Control mechanism, setting
bit 10 of the ANAR register using the MDC/MDIO SMI interface, then the RTL8201CP will add the
ability to its NWay ability. If the Link partner also supports Flow Control, then the RTL8201CP can
recognize the Link partner's NWay ability by examining bit 10 of ANLPAR (register 5).
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 18 Track ID: JATR-1076-21 Rev. 1.21
7.4. Hardware Configuration and Auto-Negotiation
This section describes methods to configure the RTL8201CP and set the auto-negotiation mode. Table 26
shows the various pins and their settings.
Table 26. Auto-Negotiation Mode Pin Settings
Pin Name
Description
Isolate
Set high to isolate the RTL8201CP from the MAC. This will also isolate the MDC/MDIO
management interface. In this mode, power consumption is minimum (see 7.7 Power Down, Link
Down, Power Saving, and Isolation Modes, page 20).
RPTR
Pull high to set the RTL8201CP into repeater mode. This pin is pulled low by default (see
7.9 Repeater Mode Operation, page 22.
LDPS
Pull high to set the RTL8201CP into LDPS mode. This pin is pulled low by default (see 7.7 Power
Down, Link Down, Power Saving, and Isolation Modes, page 20).
MII/SNIB
Pull high to set RTL8201CP into MII mode operation, which is the default mode for the RTL8201.
This pin pulled low will set the RTL8201CP into SNI mode operation. When set to SNI mode, the
RTL8201CP will operate at 10Mbps (see 7.6 Serial Network Interface, page 20).
ANE
Auto-Negotiation Enable. Pull high to enable auto-negotiation (default). Pull low to disable auto-
negotiation and activate the parallel detection mechanism (see 7.2 Auto-Negotiation and Parallel
Detection, page 16).
SPEED
When ANE is pulled high, the ability to adjust speed is setup. When ANE is pulled low, pull this pin
low to force 10Mbps operation and high to force 100Mbps operation (see 7.2 Auto-Negotiation and
Parallel Detection, page 16).
DUPLEX
When ANE is pulled high, the ability to adjust the DUPLEX pin will be setup. When ANE is pulled
low, pull this pin low to force half duplex and high to force full duplex operation (see 7.2 Auto-
Negotiation and Parallel Detection, page 16).
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 19 Track ID: JATR-1076-21 Rev. 1.21
7.5. LED and PHY Address Configuration
In order to reduce the pin count on the RTL8201CP, the LED pins are duplexed with the PHY address
pins. Because the PHYAD strap options share the LED output pins, the external combinations required
for strapping and LED usage must be considered in order to avoid contention. Specifically, when the LED
outputs are used to drive LEDs directly, the active state of each output driver is dependent on the logic
level sampled by the corresponding PHYAD input upon power-up/reset. For example, as Figure 5 (left-
side) shows, if a given PHYAD input is resistively pulled high then the corresponding output will be
configured as an active low driver. On the right side, we can see that if a given PHYAD input is
resistively pulled low then the corresponding output will be configured as an active high driver. The PHY
address configuration pins should not be connected to GND or VCC directly, but must be pulled high or
low through a resistor (ex 5.1K). If no LED indications are needed, the components of the LED path
(LED+510) can be removed.
PAD[0:4]/
LED[0:4]
PAD[0:4]/
LED[0:4]
VCC
LED
510 ohm
5.1K ohm
LED
5.1K ohm
510 ohm
PHY Address[:] = Logical 1
PHY Address[:] = Logical 0
LED Indication = Active low
LED Indication = Active High
Figure 5. LED and PHY Address Configuration
Table 27. LED Definitions
LED
LED Definitions
LED0 Link
LED1 Full
Duplex
LED2
[CP LED Mode]10-Activity
LED3
[CP LED Mode]Fiber/100-Activity
LED4 Collision
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 20 Track ID: JATR-1076-21 Rev. 1.21
7.6. Serial
Network
Interface
The RTL8201CP also supports the traditional 7-wire serial interface to operate with legacy MACs or
embedded systems. To setup for this mode of operation, pull the MII/SNIB pin low. By doing so, the
RTL8201CP will ignore the setup of the ANE and SPEED pins. In this mode, the RTL8201CP will set
the default operation to 10Mbps and half-duplex mode.
Note: The RTL8201CP also supports full-duplex mode operation if the DUPLEX pin has been pulled high.
This interface consists of a 10Mbps transmit and receive clock generated by PHY, 10Mbps transmit and
receive serial data, transmit enable, collision detect, and carry sense signals.
7.7. Power Down, Link Down, Power Saving, and Isolation
Modes
Four types of Power Saving mode operation are supported. This section describes how to implement each
mode. The first three modes are configured through software, and the fourth through hardware.
Table 28. Power Saving Mode Pin Settings
Mode
Description
Analog Off
Setting bit 11 of register 17 to 1 will put the RTL8201CP into analog off state. In analog off state, the
RTL8201CP will power down all analog functions such as transmit, receive, PLL, etc. However, the
internal 25MHz crystal oscillator will not be powered down. Digital functions in this mode are still
available which allows reacquisition of analog functions
LDPS
Setting bit 12 of register 17 to 1, or pulling the LDPS pin high will put the RTL8201CP into LDPS
(Link Down Power Saving) mode. In LDPS mode, the RTL8201CP will detect the link status to
decide whether or not to turn off the transmit function. If the link is off, FLP or 100Mbps
IDLE/10Mbps NLP will not be transmitted. However, some signals similar to NLP will be
transmitted. Once the receiver detects leveled signals, it will stop the signal and transmit FLP or
100Mbps IDLE/10Mbps NLP again. This can cut power used by 60%~80% when the link is down.
PWD
Setting bit 11 of register 0 to 1 puts the RTL8201CP into power down mode. This is the maximum
power saving mode while the RTL8201CP is still alive. In PWD mode, the RTL8201CP will turn off
all analog/digital functions except the MDC/MDIO management interface. Therefore, if the
RTL8201CP is put into PWD mode and the MAC wants to recall the PHY, it must create the
MDC/MDIO timing by itself (this is done by software).
Isolation
This mode is different from the three previous software configured power saving modes. This mode
is configured by hardware pin 43. Setting pin 43 high will isolate the RTL8201CP from the Media
Access Controller (MAC) and the MDC/MDIO management interface. In this mode, power
consumption is minimal.
7.8. Media
Interface
7.8.1. 100Base-TX
100Base-TX Transmit Function
Transmit data in 4-bit nibbles (TXD[3:0]) clocked at 25MHz (TXC) is transformed into 5B symbol code
(4B/5B encoding). Scrambling, serializing, and conversion to 125MHz, and NRZ to NRZI then takes
place. After this process, the NRZI signal is passed to the MLT-3 encoder, then to the transmit line driver.
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 21 Track ID: JATR-1076-21 Rev. 1.21
The transmitter will first assert TXEN. Before transmitting the data pattern, it will send a /J/K/ symbol
(Start-of-frame delimiter), the data symbol, and finally a /T/R/ symbol known as the End-Of-Frame
delimiter. The 4B/5B and the scramble process can be bypassed via a PHY register setting (see Table 1,
page 4, Pin number 24). For better EMI performance, the seed of the scrambler is based on the PHY
address. In a hub/switch environment, each RTL8201CP will have different scrambler seeds and so
spread the output of the MLT-3 signals.
100Base-TX Receive Function
The received signal is compensated by the adaptive equalizer to make up for signal loss due to cable
attenuation and Inter Symbol Interference (ISI). Baseline Wander Correction monitors the process and
dynamically applies corrections to the process of signal equalization. The PLL then recovers the timing
information from the signals and from the receive clock. With this, the received signal is sampled to form
NRZI data. The next steps are the NRZI to NRZ process, unscrambling of the data, serial to parallel and
5B to 4B conversion, and passing of the 4B nibble to the MII interface.
7.8.2. 100Base-FX Fiber Mode Operation
The RTL8201CP can be configured as 100Base-FX via hardware configuration. The hardware
100Base-FX setting takes priority over NWay settings. A scrambler is not required in 100Base-FX.
100Base-FX Transmit Function
Di-bits of TXD are processed as 100Base-TX except without a scrambler before the NRZI stage. Instead
of converting to MLT-3 signals, as in 100Base-TX, the serial data stream is driven out as NRZI PECL
signals, which enter the fiber transceiver in differential-pairs form.
100Base-FX Receive Function
The signal is received through PECL receiver inputs from the fiber transceiver and directly passed to the
clock recovery circuit for data/clock recovery. The scrambler/de-scrambler is bypassed in 100Base-FX.
7.8.3. 10Base-T
TX/RX
10Base-T Transmit Function
Transmit data in 4-bit nibbles (TXD[3:0]) clocked at 25MHz (TXC) is first fed to a parallel-to-serial
converter, then the 10Mbps NRZ signal is sent to a Manchester encoder. The Manchester encoder
converts the 10Mbps NRZ data into a Manchester Encoded data stream for the TP transmitter and adds a
Start of Idle pulse (SOI) at the end of the packet as specified in IEEE 802.3. Finally, the encoded data
stream is shaped by a bandlimited filter embedded in the RTL8201CP and then transmitted.
10Base-T Receive Function
In 10Base-T receive mode, the Manchester decoder in the RTL8201CP converts the Manchester encoded
data stream into NRZ data by decoding the data and stripping off the SOI pulse. Then the serial NRZ data
stream is converted to a parallel 4-bit nibble signal (RXD[0:3]).
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 22 Track ID: JATR-1076-21 Rev. 1.21
7.9. Repeater Mode Operation
Setting bit 15 of register 17 to 1, or pulling the RPTR pin high, sets the RTL8201CP into repeater mode.
In repeater mode, the RTL8201CP will assert CRS high only when receiving a packet. In NIC mode, the
RTL8201CP will assert CRS high both when transmitting and receiving packets. If using the RTL8201CP
in a NIC or switch application, set to the default mode. NIC/Switch mode is the default setting and has
the RPTR pin pulled low, or bit 15 of register 17 is set to 0.
7.10. Reset, and Transmit Bias
The RTL8201CP can be reset by pulling the RESETB pin low for about 10ms, then pulling the pin high.
It can also be reset by setting bit 15 of register 0 to 1, and then setting it back to 0. Reset will clear the
registers and re-initialize them. The media interface will disconnect and restart the auto-
negotiation/parallel detection process.
The RTSET pin must be pulled low by a 2K resister with 1% accuracy to establish an accurate transmit
bias. This will affect the signal quality of the transmit waveform. Keep its circuitry away from other clock
traces and transmit/receive paths to avoid signal interference.
7.11. 3.3V Power Supply and Voltage Conversion Circuit
The RTL8201CP is fabricated in a 0.18
m process. The core circuit needs to be powered by 1.8V,
however, the digital IO and DAC circuits need a 3.3V power supply. A regulator is embedded in the
RTL8201CP to convert 3.3V to 1.8V. As with many commercial voltage conversion devices, the 1.8V
output pin (PWFBOUT) of this circuit requires the use of an output capacitor (22uF tantalum capacitor)
as part of the device frequency compensation, and another small capacitor (0.1uF) for high frequency
noise de-coupling.
PWFBIN is fed with the 1.8V power from PWFBOUT through a ferrite bead as shown in the reference
design schematic document (available for download from www.realtek.com.tw).
Note: Do not supply 1.8V produced by any power device other than PWFBOUT and PWFBIN.
The analog and digital ground planes should be as large and intact as possible. If the ground plane is large
enough, the analog and digital grounds can be separated, which is the ideal configuration. However, if the
total ground plane is not sufficiently large, partition of the ground plane is not a good idea. In this case,
all the ground pins can be connected together to a larger single and intact ground plane.
7.12. Far End Fault Indication
The MII Reg.1.4 (Remote Fault) is the Far End Fault Indication (FEFI) bit when 100FX mode is enabled
and indicates when a FEFI has been detected. FEFI is an alternative in-band signaling method which is
composed of 84 consecutive `1's followed by one `0'. When the RTL8201CP detects this pattern three
times, Reg.1.4 is set, which means the transmit path (the Remote side's receive path) has a problem. On
the other hand, if an incoming signal fails to cause a `Link OK', the RTL8201CP will start sending this
pattern, which in turn causes the remote side to detect a Far End Fault. This means that the receive path
has a problem from the point of view of the RTL8201CP. The FEFI mechanism is used only in 100Base-
FX mode.
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 23 Track ID: JATR-1076-21 Rev. 1.21
8.
Characteristics
8.1. DC
Characteristics
8.1.1. Absolute Maximum Ratings
Table 29. Absolute Maximum Ratings
Item
Minimum
Typical
Maximum
Supply Voltage
3.0V
3.3V
3.6V
Storage Temperature
-55
C
125
C
8.1.2. Operating
Conditions
Table 30. Operating Conditions
Item
Condition
Minimum
Typical
Maximum
Vcc 3.3V
3.3V Supply voltage
3.0V
3.3V
3.6V
TA Operating
Temperature
0
C
70
C
8.1.3. Power
Dissipation
Test Condition: VCC=3.3V
Table 31. Power Dissipation
Symbol
Condition
Total Current Consumption
P
LDPS
Link down power saving mode
19mA
P
AnaOff
Analog off mode
19mA
P
PWD
Power
down
mode
14mA
P
Isolate
Isolate
mode
14mA
P
100F
100Base
full
duplex
116mA
P
10F
10Base-T
full
duplex
120mA
P
10TX
10Base-T
transmit
120mA
P
10RX
10Base-T
receive
19mA
P
10IDLE
10Base-T
idle
18mA
8.1.4. Input
Voltage:
Vcc
Table 32. Input Voltage: Vcc
Symbol
Condition
Minimum
Maximum
TTL V
IH
Input High Vol.
0.5*Vcc
Vcc +0.5V
TTL V
IL
Input
Low
Vol.
-0.5V
0.3*Vcc
TTL V
OH
Output
High
Vol.
IOH=-8mA
0.9*Vcc
Vcc
TTL V
OL
Output
Low
Vol.
IOL=8mA
0.1*Vcc
TTL I
OZ
Tri-state Leakage
Vout=Vcc or GND
-10uA
10uA
I
IN
Input Current
Vin=Vcc or GND
-1.0uA
1.0uA
PECL V
IH
PECL Input High Vol.
Vdd -1.16V
Vdd -0.88V
PECL V
IL
PECL Input Low Vol.
Vdd -1.81V
Vdd -1.47V
PECL V
OH
PECL Output High Vol.
Vdd -1.02V
PECL V
OL
PECL Output Low Vol.
Vdd -1.62V
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 24 Track ID: JATR-1076-21 Rev. 1.21
8.2. AC
Characteristics
8.2.1. MII
Transmission
Cycle
Timing

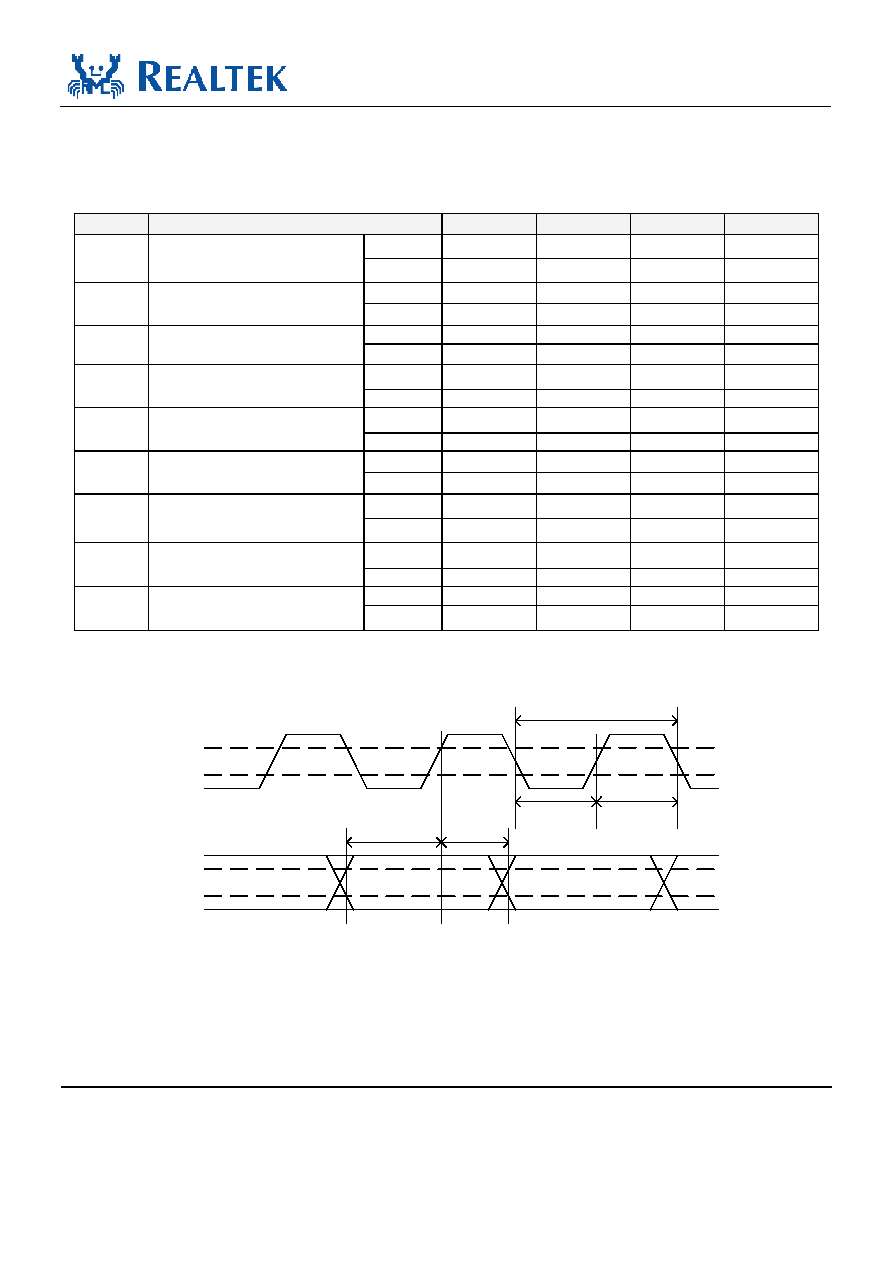

Table 33. MII Transmission Cycle Timing
Symbol
Description
Minimum
Typical
Maximum
Unit
100Mbps
14 20 26 ns
t
1
TXCLK high pulse width
10Mbps
140 200 260 ns
100Mbps
14 20 26 ns
t
2
TXCLK low pulse width
10Mbps
140 200 260 ns
100Mbps
40 ns
t
3
TXCLK
period
10Mbps 400
ns
100Mbps 10
24
ns
t
4
TXEN, TXD[0:3] setup to
TXCLK rising edge
10Mbps 5
ns
100Mbps
10
25
ns
t
5
TXEN, TXD[0:3] hold after
TXCLK rising edge
10Mbps 5
ns
100Mbps
40
ns
t
6
TXEN sampled to CRS high
10Mbps
400 ns
100Mbps
160 ns
t
7
TXEN sampled to CRS low
10Mbps
2000 ns
100Mbps 60
70
140
ns
t
8
Transmit
latency
10Mbps
400 ns
100Mbps
100 170 ns
t
9
Sampled TXEN inactive to end
of frame
10Mbps
ns
Figure 6 shows an example of a packet transfer from MAC to PHY on the MII interface.
TXCLK
V
I H(min)
V
I L(max)
TXD[0:3]
TXEN
V
IH(min)
V
I L(max)
t
4
t
5
t
3
t
1
t
2
Figure 6. MII Transmission Cycle Timing-1
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 25 Track ID: JATR-1076-21 Rev. 1.21
TXCLK
TXEN
TXD[0:3]
CRS
TPTX+-
t
6
t
8
t
t
9
7
Figure 7. MII Transmission Cycle Timing-2
8.2.2. MII Reception Cycle Timing
Table 34. MII Reception Cycle Timing
Symbol
Description
Minimum
Typical
Maximum
Unit
100Mbps 14
20
26
ns
t
1
RXCLK high pulse width
10Mbps 140 200 260
ns
100Mbps 14
20
26
ns
t
2
RXCLK low pulse width
10Mbps 140 200 260
ns
100Mbps
40
ns
t
3
RXCLK
period
10Mbps
400 ns
100Mbps 10
ns
t
4
RXER, RXDV, RXD[0:3] setup to
RXCLK rising edge
10Mbps 6
ns
100Mbps 10
ns
t
5
RXER, RXDV, RXD[0:3] hold
after RXCLK rising edge
10Mbps 6
ns
100Mbps
130 ns
t
6
Receive frame to CRS high
10Mbps
600 ns
100Mbps
240 ns
t
7
End of receive frame to CRS low
10Mbps
600 ns
100Mbps
150 ns
t
8
Receive frame to sampled edge of
RXDV
10Mbps
3200 ns
100Mbps
120 ns
t
9
End of receive frame to sampled
edge of RXDV
10Mbps
800 ns
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 26 Track ID: JATR-1076-21 Rev. 1.21
Figure 8 shows an example of a packet transfer from PHY to MAC on the MII interface.
RXCLK
RXD[0:3]
RXDV
RXER
V
IH(min)
V
I L(max)
V
I H(min)
V
I L(max)
t
4
t
5
t
1
t
3
t
2
Figure 8. MII Reception Cycle Timing-1
RXCLK
RXDV
RXD[0:3]
CRS
TPRX+-
t
8
t
6
t
7
t
9
Figure 9. MII Reception Cycle Timing-2
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 27 Track ID: JATR-1076-21 Rev. 1.21
8.2.3. SNI
Transmission
Cycle
Timing
Table 35. SNI Transmission Cycle Timing
Symbol
Description
Minimum
Maximum
Unit
t
1
TXCLK high pulse width
36
ns
t
2
TXCLK low pulse width
36
ns
t
3
TXCLK
period
80
120
ns
t
4
TXEN, TXD0 setup to TXCLK rising edge
20
ns
t
5
TXEN, TXD0 hold after TXCLK rising edge
10
ns
t
8
Transmit
latency
50
ns
Figure 10 shows an example of a packet transfer from MAC to PHY on the SNI interface.
Note: SNI mode only runs at 10Mbps.
TXCLK
V
IH(min)
V
IL(max)
t
1
t
3
t
2
TXD0
TXEN
V
IH(min)
V
IL(max)
t
4
t
5
Figure 10. SNI Transmission Cycle Timing-1
TXCLK
TXEN
TXD0
TPTX+-
t
8
t
9
Figure 11. SNI Transmission Cycle Timing-2
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 28 Track ID: JATR-1076-21 Rev. 1.21
8.2.4. SNI
Reception
Cycle
Timing
Table 36. SNI Reception Cycle Timing
Symbol
Description
Minimum
Typical
Maximum
Unit
t
1
RXCLK high pulse width
36
ns
t
2
RXCLK low pulse width
36
ns
t
3
RXCLK
period
80
120
ns
t
4
RXD0 setup to RXCLK rising edge
40
ns
t
5
RXD0 hold after RXCLK rising edge
40
ns
t
6
Receive frame to CRS high
50
ns
t
7
End of receive frame to CRS low
160
ns
t
8
Decoder acquisition time
600
1800
ns
Figure 12 shows an example of a packet transfer from PHY to MAC on the SNI interface.
Note: SNI mode only runs at 10Mbps.
RXCLK
RXD0
V
IH(min)
V
IL(max)
V
I H(min)
V
IL(max)
t
4
t
5
t
1
t
3
t
2
Figure 12. SNI Reception Cycle Timing-1
RXCLK
RXD0
CRS
TPRX+-
t
6
t
8
t
7
Figure 13. SNI Reception Cycle Timing-2
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 29 Track ID: JATR-1076-21 Rev. 1.21
8.2.5. MDC/MDIO
Timing
Table 37. MDC/MDIO Timing
Symbol
Description
Minimum
Maximum
Unit
t
1
MDC high pulse width
160
ns
t
2
MDC low pulse width
160
ns
t
3
MDC
period
400
ns
t
4
MDIO setup to MDC rising edge
10
ns
t
5
MDIO hold time from MDC rising edge
10
ns
t
6
MDIO valid from MDC rising edge
0
300
ns
MDC
MDIO
sourced by
STA
VIH(min)
VIL(max)
VIH(min)
VIL(max)
MDIO
sourced by
RTL8201CP
VIH(min)
VIL(max)
t
4
t
5
t
3
t
1
t
2
t
6
Figure 14. MDC/MDIO Timing
Transmission Without Collision
Figure 15 shows an example of a packet transfer from MAC to PHY.
Figure 15. MDC/MDIO MAC to PHY Transmission Without Collision
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 30 Track ID: JATR-1076-21 Rev. 1.21
Reception Without Error
Figure 16 shows an example of a packet transfer from PHY to MAC.
Figure 16. MDC/MDIO PHY to MAC Reception Without Error
8.3. Crystal
Characteristics
Table 38. Crystal Characteristics
Parameter
Range
Nominal Frequency
25.000MHz
Oscillation Mode
Base wave
Frequency Tolerance at 25
C
50 ppm
Operating Temperature Range
-10
C ~ +70C
Equivalent Series Resistance
30 ohm Max.
Drive Level
0.1 mV
Load Capacitance
20 pF
Shunt Capacitance
7 pF Max.
Insulation Resistance
Mega ohm Min./DC 100V
Test Impedance Meter
Saunders 250A
Aging Rate Per Year
0.0003%
8.4. Transformer
Characteristics
Table 39. Transformer Characteristics
Parameter
Transmit End
Receive End
Turn Ratio
1:1 CT
1:1
Inductance (min.)
350 uH @ 8mA
350 uH @ 8mA
Leakage Inductance
0.05-0.15 uH
0.05-0.15 uH
Capacitance (max)
15 pF
15 pF
DC Resistance (max)
0.4 ohm
0.4 ohm
Note: To enable the Auto-Crossover Detection Function, a transformer with symmetrical TX/RX
schematics plus TX Center Tap shorted to RX Center Tap is necessary, i.e. Pulse Engineer H1245 (refer to
the suggested RTL8201CP Schematic available for download at www.realtek.com.tw).
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 31 Track ID: JATR-1076-21 Rev. 1.21
9. Mechanical
Dimensions
See the following page for drawing related notes.
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 32 Track ID: JATR-1076-21 Rev. 1.21
9.1. Mechanical Dimensions Notes
Notes:
1.To be determined at seating plane -c-
2.Dimensions D1 and E1 do not include mold protrusion.
Symb
ol
Dimension in
inchs
Dimension in
millimeters
D1 and E1 are maximum plastic body size dimensions
including mold mismatch.
Min
Nom
Max
Min
Nom
Max
3.Dimension b does not include dambar protrusion.
A
-
-
0.067
-
-
1.70
Dambar can not be located on the lower radius of the foot.
A1 0.000 0.004 0.008 0.00 0.1 0.20
4.Exact
shape
of
each corner is optional.
A2
0.051
0.055
0.059
1.30
1.40
1.50
5.These dimensions apply to the flat section of the lead
b
0.006
0.009
0.011
15
0.22
0.29
between 0.10 mm and 0.25 mm from the lead tip.
b1
0.006
0.008
0.010
0.15
0.20
0.25
6. A1 is defined as the distance from the seating plane to
the lowest point of the package body.
c1
0.004
-
0.006
0.09
-
0.16
7.Controlling dimension: millimeter.
D
0.354 BSC
9.00 BSC
8. Reference document: JEDEC MS-026, BBC
D1
0.276 BSC
7.00 BSC
E
0.354 BSC
9.00 BSC
TITLE: 48LD LQFP ( 7x7x1.4mm)
E1
0.276 BSC
7.00 BSC
PACKAGE OUTLINE DRAWING, FOOTPRINT 2.0mm
e
0.020 BSC
0.50 BSC
LEADFRAME MATERIAL:
L 0.016 0.024 0.031 0.40 0.60 0.80
DOC.
NO.
L1
0.039 REF
1.00 REF
VERSION
1
0
3.5
9
0
3.5
9
APPROVE
PAGE
OF
1 0
- - 0
-
-
DWG NO.
SS048 - P1
2 12 TYP
12
TYP
CHECK
DATE
3 12 TYP
12
TYP
REALTEK SEMICONDUCTOR CORP.
RTL8201CP
Datasheet
Single-Chip/Port 10/100 Fast Ethernet PHYceiver 33 Track ID: JATR-1076-21 Rev. 1.21
10. Ordering
Information
Table 40. Ordering Information
Part Number
Package
Status
RTL8201CP
Rev. C. 48-pin LQFP
RTL8201CP-LF
Rev. C. 48-pin LQFP Lead (Pb)-Free package
RTL8201CP-VD
Rev. D. 48-pin LQFP
RTL8201CP-VD-LF
Rev. D. 48-pin LQFP Lead (Pb)-Free package
Realtek Semiconductor Corp.
Headquarters
No. 2, Industry East Road IX, Science-based
Industrial Park, Hsinchu, 300, Taiwan, R.O.C.
Tel: 886-3-5780211 Fax: 886-3-5776047
www.realtek.com.tw
