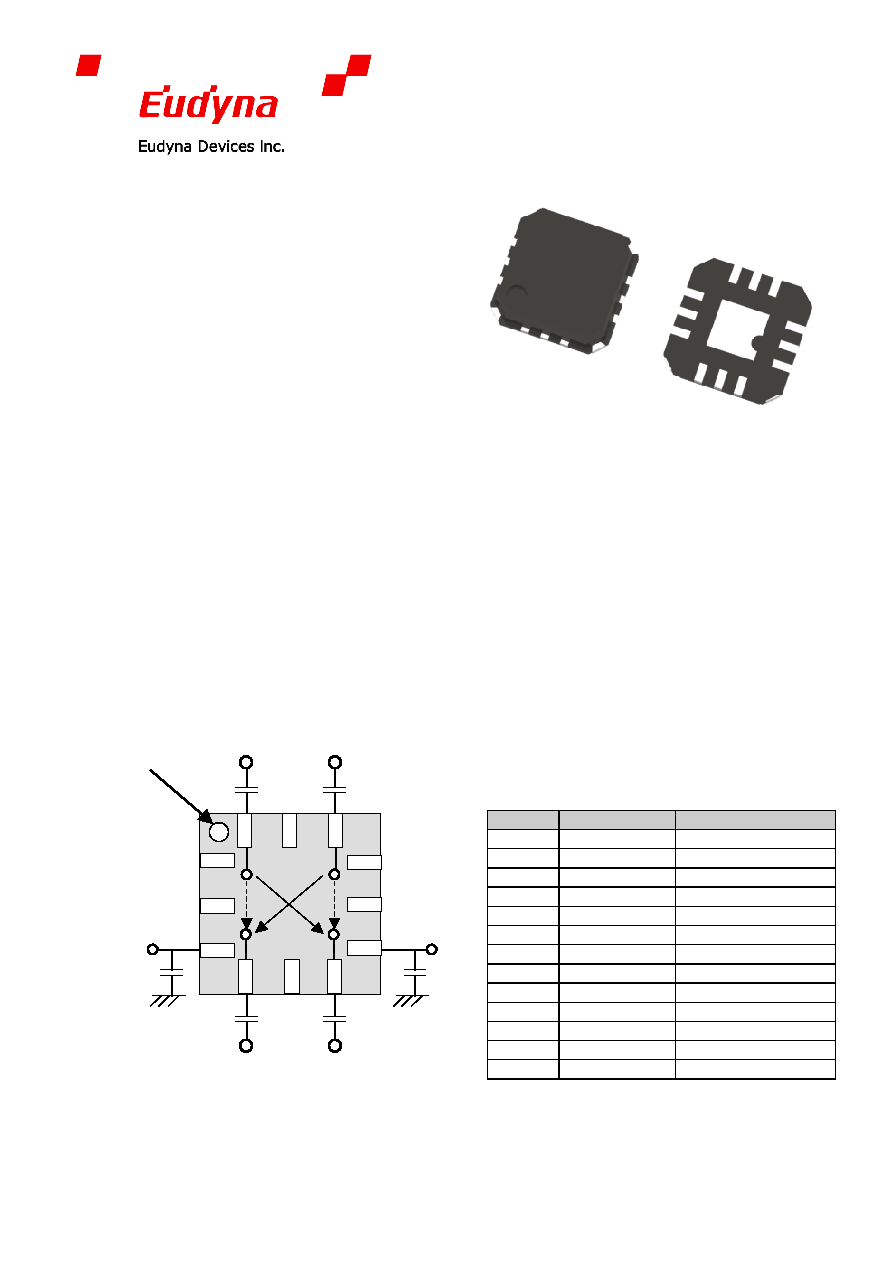

Preliminary
ES/EMM5322ZU
Double Pole Double Throw
GaAs PHEMT Switch 0.1 6 GHz
Rev 0.1
April 15, 2005
1
Eudyna Devices Inc. Confidential
FEATURES
Low Insertion Loss: 0.8 dB at 2.4 GHz
and 1.0 dB at 4.9 to 6.0 GHz
High Isolation: 25 dB at 2.4 GHz
and 20 dB at 4.9 to 6.0 GHz
GaAs PHEMT technology
Miniature QFN-12 Plastic Package
APPLICATIONS
802.11a,b,g Wireless LAN T/R switching
DESCRIPTION
ES/EMM5322ZU is a DPDT GaAs PHEMT switch designed for transmit / receive and diversity
switching in 0.1GHz to 6 GHz range. ES/EMM5322ZU is ideally suited for applications where low
profile and small size are critical. It also features high linearity, low control voltage, low insertion loss,
and high isolation. Typical applications are for WLAN IEEE 802.11a/b/g systems that employ two
antennas for trasimit and receive diversity. The device is in low-cost miniature 12-lead 3.0mm x
3.0mm package.
Pin No.
Pin Name
Description
1 GND
Ground
2 GND
Ground
3 V1 Control
1
4
ANT1
Antenna Port 1
5 GND
Ground
6
ANT2
Antenna Port 2
7 V2 Control
2
8 GND
Ground
9 GND
Ground
10
Rx
Receive Port 1
11 GND
Ground
12 Tx Transmit
Port
13 GND(Paddle)
Ground
Pin Configuration
V2
C1-C4: DC Blocking Capacitors
C5-C6: Bypass Capacitors
Function Block Diagram(Top View)
3.0 mm x 3.0 mm x 0.9mm
Lead Free Package
ANT2
ANT1
1
2
3
4
5 6
7
8
9
10
11
12
Tx Rx
V1
GND
GND
GND
GND
GND
GND
C4
C3
C1 C2
C5 C6
INDEX
Preliminary
ES/EMM5322ZU
Double Pole Double Throw
GaAs PHEMT Switch 0.1 6 GHz
Rev 0.1
April 15, 2005
2
Eudyna Devices Inc. Confidential
TARGET SPECIFICATIONS
ABSOLUTE MAXIMUM RATINGS (Ambient Temperature Ta=25C)
Parameter
Symbol
Rating
Unit
DC Input Voltage
V1, V2
+6
V
Input Power
Pin
+32
dBm
Storage Temperature
Tstg
-40 to +85
C
Operating Case Temperature
Top
-40 to +85
C
ELECTRICAL SPECIFICATIONS (Case Temperature Tc=25C)
Parameter
Symbol
Condition/comments
Min
Typ
Max
Unit
Frequency range
F
0.1
6.0
GHz
Insertion Loss
I.L.
2.4 - 2.5 GHz
4.9 6.0 GHz
-
-
0.80
1.00
-
-
dB
Isolation ISO
2.4 - 2.5 GHz
4.9 6.0 GHz
-
-
25
20
-
-
dB
Return Loss
RL
2.4 - 2.5 GHz
4.9 6.0 GHz
-
23
15
- dB
Control Voltage V1 V2
Vhigh
Vlow
High
Low
2.5
-0.2
2.8
0
3.6
+0.2
V
Input P0.1dB
P0.1dB
Vhigh=2.8V, Vlow=0V
-
31
-
dBm
Control Current
Icontrol
Vhigh=2.8V, Vlow=0V
-
15
-
uA
(Unless otherwise specified Zsource=Zload=50
System, Tc=25C)
TRUTH TABLE
V1
V2
ANT1 - Rx
ANT1 - Tx
ANT2 - Tx
ANT2 Rx
High Low ON
OFF
ON
OFF
Low High OFF
ON
OFF
ON
Specifications are subject to change without notice.
Preliminary
ES/EMM5322ZU
Double Pole Double Throw
GaAs PHEMT Switch 0.1 6 GHz
Rev 0.1
April 15, 2005
3
Eudyna Devices Inc. Confidential
PACKAGE DIMENSIONS
Measurement (mm)
Dimension
Symbol
Min
Nom
Max
A -
0.85
0.90
A1 0.00 0.01 0.05
A2 - 0.65
0.70
A3 0.20
REF
b 0.18
0.23 0.30
D 3.00
BSC
D1 2.75
BSC
D2 1.15 1.30 1.45
E 3.00
BSC
E1 2.75
BSC
E2 1.15 1.30 1.45
e 0.50
BSC
L 0.50
0.60
0.75
