EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-125-004
REV.:
2
3.0mm Round Type LED Lamps
PART NO. :
1254SOT
ECN:
Page:
1/4
Features :

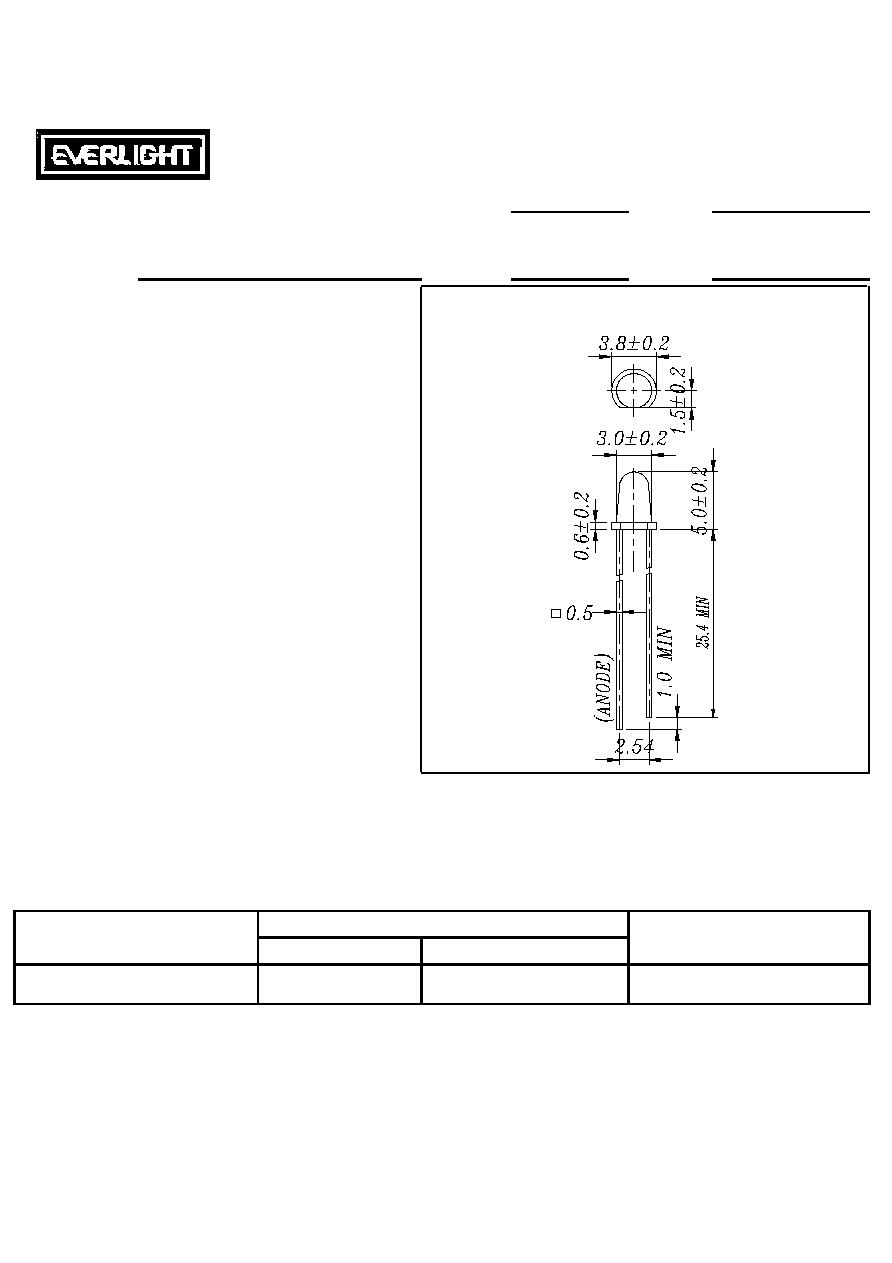

Package Dimensions:
Choice of various viewing angles
Available on tape and reel.
Reliable and robust
Descriptions :
The series is specially designed for
applications requiring higher
brightness
The led lamps are available with
different colors, intensities,
Applications :
Notes :
TV set
1. All dimensions are in millimeters.
Monitor
2. An epoxy meniscus may extend about
Telephone
1.5mm(0.059'') down to the lead.
Computer
3. Tolerances unless Dimension
0.25mm.
Chip
Material
Emitted Color
1254SOT
1254SOT
1254SOT
1254SOT
GaAsP/GaP
GaAsP/GaP
GaAsP/GaP
GaAsP/GaP
Sunset Orange
Sunset Orange
Sunset Orange
Sunset Orange
Sunset Orange Trans
Sunset Orange Trans
Sunset Orange Trans
Sunset Orange Trans
Office : 7C Building, Lian Hua Port Industrial District, Lian Hua Shan
Bonded Pricessing Zone Pan Yu, Guang Zhou, China
TEL. : (020)84860913,84860914
FAX : (020)84860600
http : //www.everlight.com
A96659
Lens Color
PART NO.
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-125-004
2
3.0mm Round Type LED Lamps
PART NO. :
1254SOT
ECN:
Page:
Absolute Maximum Ratings at Ta = 25
Parameter
Symbol
Rating
Unit
Forward Current
I
F
40
mA
Operating Temperature
Topr
-40 to +85
Storage Temperature
Tstg
-40 to +100
Soldering Temperature
Tsol
260
5
Power Dissipation
Pd
110
mW
Peak Forward
Current(Duty 1/10 @
1KH
Z
)
I
F
(Peak)
160
mA
Reverse Voltage
V
R
5
V
Electronic Optical Characteristics :
Parameter
Symbol
Min.
Typ.
Max.
Unit
Condition
Luminous Intensity
Iv
10
32
mcd I
F=
10 mA
Viewing Angle
21/2
30
deg I
F=
20 mA
Peak Wavelength
p
610
nm
I
F=
20 mA
Dominant Wavelength
d
605
nm
I
F=
20 mA
Spectrum Radiation
Bandwidth
40
nm
I
F=
20 mA
Forward Voltage
V
F
1.7
2.0
2.4
V
I
F=
20 mA
Reverse Current
I
R
10
A V
R
= 5 V
REV.:
2/4
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-125-004
REV.:
2
3.0mm Round Type LED Lamps
PART NO. :
1254SOT
ECN :
Page:
3/4
Typical Electro-Optical Characteristic Curves:
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-125-004
REV.:
2
3.0mm Round Type LED Lamps
PART NO. :
1254SOT
ECN :
Page:
4/4
Reliability test items and conditions:
NO
Item
Test Conditions
Test
Hours/Cycle
Ac/Re
1
Solder Heat
TEMP : 260
5
5 SEC
76 PCS
0/1
H : +85 30min
2
Temperature Cycle
5 min
50 CYCLES
76 PCS
0/1
L : -55 30min
H : +100 5min
3
Thermal Shock
10 sec
50 CYCLES
76 PCS
0/1
L : -10 5min
4
High Temperature
Storage
TEMP : 100
1000 HRS
76 PCS
0/1
5
Low Temperature
Storage
TEMP : -55
1000 HRS
76 PCS
0/1
7
High Temperature /
High Humidity
85 / 85% RH
1000 HRS
76 PCS
0/1
76 PCS
0/1
I
F
= 20mA
6
DC Operating Life
TEMP : 25
1000 HRS
