EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DDW-110-003
REV:
1.1
20mm Round Big LED Lamp
MODEL NO :
EL-1100ID
ECN :
Page:
1/5
Features :
Applications:
Graphic stacking allow-able.
Audio equipment
High luminous intensity.
Instrument panels
Solid state reliability.
Description :
The EL-1100 series consists of 20.0mm
diameter big lamps.design for viewing
distances up to 7 meters.
There are separate anodes and
cathodes for each light segment and
choice of five colors is offered.
These device are available with red
offering a wide possibility in design.
PART NO
CHIP
C.C. or C.A.
Material
Emitted Color
EL-1100ID
GaAsP/GaP
Hi-Eff Red
*****
OFFICE : NO. 25,Lane 76,Sec.3, Chung Yang Rd., Tucheng 236, Taipei, Taiwan, R.O.C.
TEL : 886-2-2267-2000,2267-9936
FAX : 886-2-2267-6244,22676189,22676306
http://www.everlight.com
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DDW-110-003
REV:
1.1
20mm Round Big LED Lamp
MODEL NO :
EL-1100ID
ECN :
Page:
2/5
Package Dimension:
NOTES:
1.All dimensions are millimeters tolerance is 0.25mm unless otherwise noted.
2.Above specification may be changed without notice.
Supplier will reserve authority on material change for above specification.
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DDW-110-003
REV:
1.1
20mm Round Big LED Lamp
MODEL NO :
EL-1100ID
ECN :
Page:
3/5
Absolute maximum ratings at Ta = 25
Parameter
Symbol
Rating
Unit
Reverse Voltage
Vr
5
V
Forward Current
If
30
mA
Operating Temperature
Topr
-40 to +85
Storage Temperature
Tstg
-40 to +100
Soldering Temperature
Tsol
260 5
Power Dissipation
Pd
100
mW
Peak Forward
Current(Duty 1/10 @
1KHZ)
If(Peak)
160
mA
Electronic optical characteristics :
Parameter
Symbol
MIN.
TYP.
MAX.
Unit
Condition
Luminous Intensity
Iv
11.0
25.0
----
mcd
If=10mA
Peak Wavelength
p
----
635
----
nm
If=20mA
Dominant Wavelength
d
----
625
----
nm
If=20mA
Spectrum Rediation
Bandwidth
----
45
----
nm
If=20mA
Forward Voltage
Vf
1.7
2.0
2.6
V
If=20mA
Reverse Current
Ir
----
----
10
A
Vr
=5V
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DDW-110-003
REV:
1.1
20mm Round Big LED Lamp
MODEL NO :
EL-1100ID
ECN :
Page:
4/5
Reliability test item and condition:
NO
Item
Test Conditions
Test
Hours/Cycle
Sample Size
Ac/Re
1
Solder Heat
TEMP : 260 5
5 SEC
76 PCS
0/1
H : +85 30min
2
Temperature Cycle
5 min
50 CYCLE
76 PCS
0/1
L : -55 30min
H : +100 5min
3
Thermal Shock
10 sec
50 CYCLE
76 PCS
0/1
L : -10 5min
4
High Temperature
Storage
TEMP : 100
1000 HRS
76 PCS
0/1
5
Low Temperature
Storage
TEMP : -55
1000 HRS
76 PCS
0/1
6
DC Operating Life
If = 20 mA
1000 HRS
76 PCS
0/1
7
High Temperature /
High Humidity
85/85% RH
1000 HRS
76 PCS
0/1
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DDW-110-003
REV:
1.1
20mm Round Big LED Lamp
MODEL NO:
EL-1100ID
ECN :
Page:
5/5

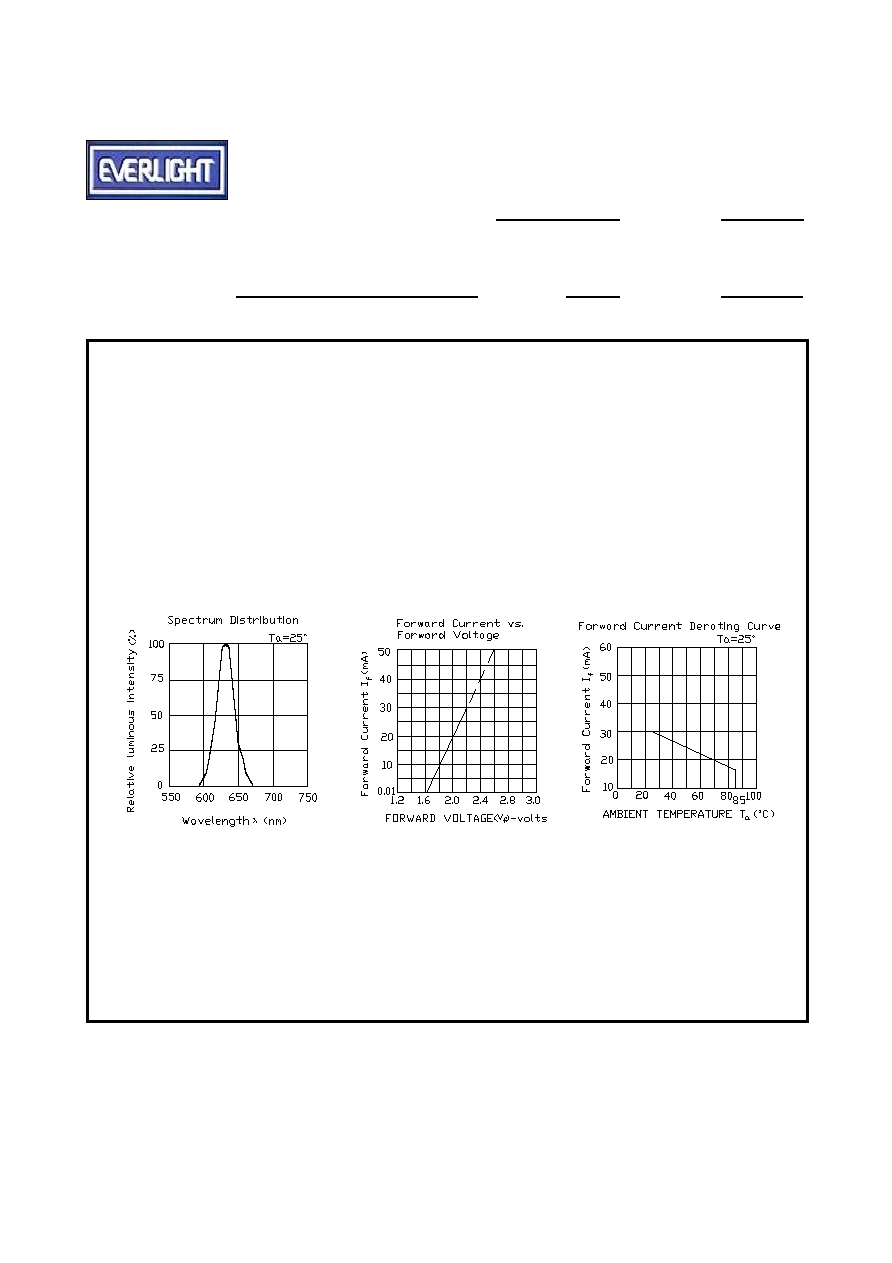

Typical Electro-Optical Characteristic Curves:
