EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DDM-183-013
REV:
1.0
1.22" 8*8 Dot Matrix Display
MODEL NO :
ELM-1883GWA
ECN :
Page:
1/4
Features :

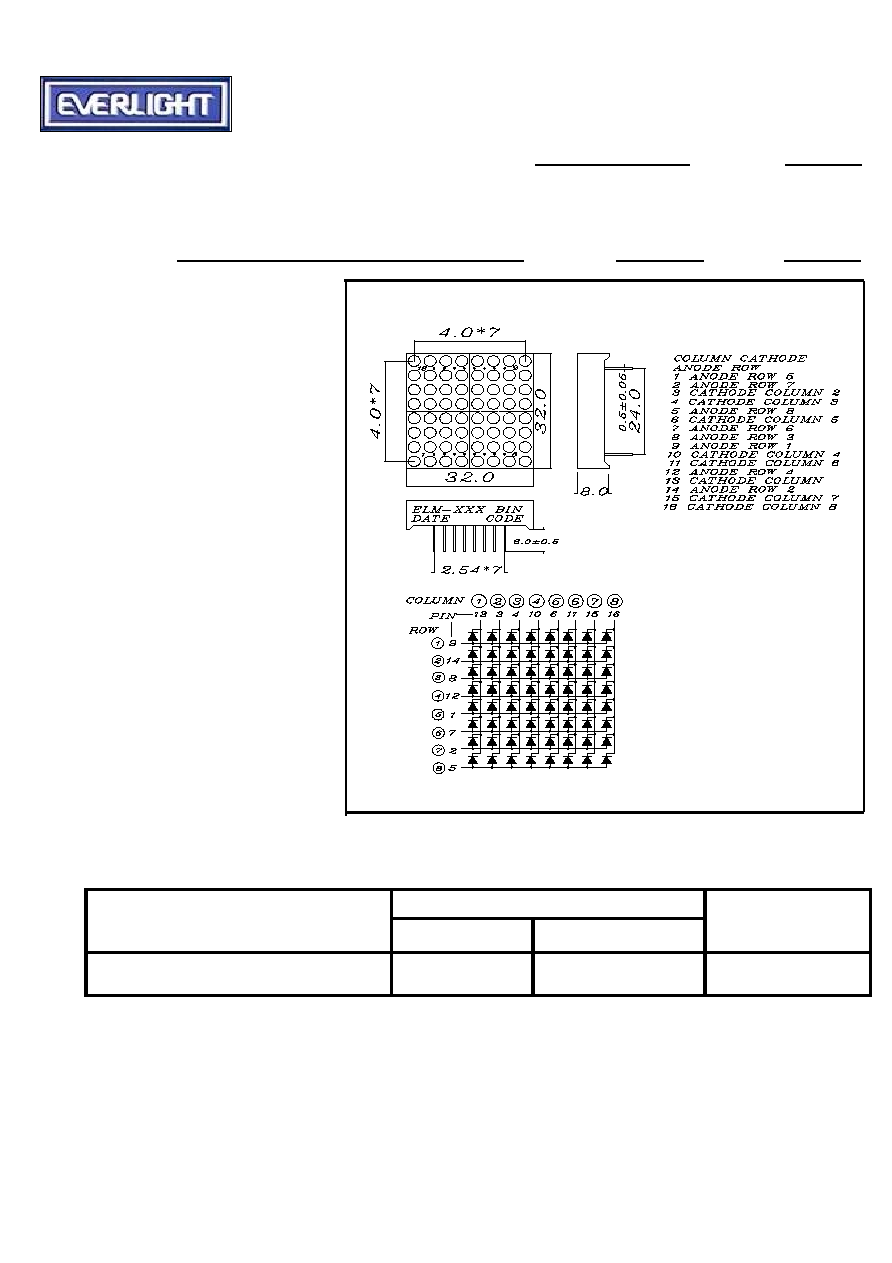

Package Dimension:
Large Emitting Dot0.12"Diameter.
Low Power/High Brightness.
Description :
The ELM-1883 series are a large
large emitting area(3.0mm
diameter)LED sources configured
in a 64 dots 8*8 matrix array.
These device is made with white
dots and gray surface.
Applications;
Instrument Panels
Digital Readout Display
NOTES:
1.All dimensions are millimeters (inch),tolerance is 0.25mm unlessotherwisenoted.
2.ABOVE SPECIFICATION MAY BE CHANGED WITHOUT NOTICE.
SUPPLIER WILL RESERVE AUTHORITY ON MATERIAL CHANGE FOR ABOVE SPECIFICATION.
PART NO
CHIP
C.C. or C.A.
Material
Emitted Color
ELM-1883GWA
GaP
Green
C.C.
OFFICE : NO. 25,Lane 76,Sec.3, Chung Yang Rd., Tucheng 236, Taipei, Taiwan, R.O.C.
TEL : 886-2-2267-2000,2267-9936
FAX : 886-2-2267-6244,22676189,22676306
http://www.everlight.com
E125-M1883G.XLS
T99503 B990902
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DDM-183-013
REV:
1.0
1.22" 8*8 Dot Matrix Display
MODEL NO :
ELM-1883GWA
ECN :
Page:
2/4
Absolute Maximum Ratings at Ta = 25
Parameter
Symbol
Rating
Unit
Reverse Voltage
Vr
5
V
Forward Current
If
30
mA
Operating Temperature
Topr
-40 to +85
Storage Temperature
Tstg
-40 to +100
Soldering Temperature
Tsol
260 5
Power Dissipation
Pd
100
mW
Peak Forward
Current(Duty 1/10 @
1KHZ)
If(Peak)
160
mA
Electronic Optical Characteristics :
Parameter
Symbol
MIN.
TYP.
MAX.
Unit
Condition
Luminous Intensity
Iv
2.80
5.00
----
mcd
If=10mA
Peak Wavelength
p
----
565
----
nm
If=20mA
Dominant Wavelength
d
----
570
----
nm
If=20mA
Spectrum Rediation
Bandwidth
----
30
----
nm
If=20mA
Forward Voltage
Vf
1.7
2.1
2.4
V
If=20mA
Reverse Current
Ir
----
----
10
A
Vr = 5V
E125-M1883G.XLS
T99503 B990902
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DDM-183-013
REV:
1.0
1.22" 8*8 Dot Matrix Display
MODEL NO
ELM-1883GWA
ECN :
Page:
3/4
Reliability test item and condition:
NO
Item
Test Conditions
Test
Hours/Cycle
Sample Size
Ac/Re
1
Solder Heat
TEMP : 260 5
5 SEC
76 PCS
0/1
H : +85 30min
2
Temperature Cycle
5 min
50 CYCLE
76 PCS
0/1
L : -55 30min
H : +100 5min
3
Thermal Shock
10 sec
50 CYCLE
76 PCS
0/1
L : -10 5min
4
High Temperature
Storage
TEMP : 100
1000 HRS
76 PCS
0/1
5
Low Temperature
Storage
TEMP : -55
1000 HRS
76 PCS
0/1
6
DC Operating Life
If = 20 mA
1000 HRS
76 PCS
0/1
7
High Temperature /
High Humidity
85/85% RH
1000 HRS
76 PCS
0/1
E125-M1883G.XLS
T99503 B990902
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DDM-183-013
REV:
1.0
1.22" 8*8 Dot Matrix Display
MODEL NO:
ELM-1883GWA
ECN :
Page:
4/4

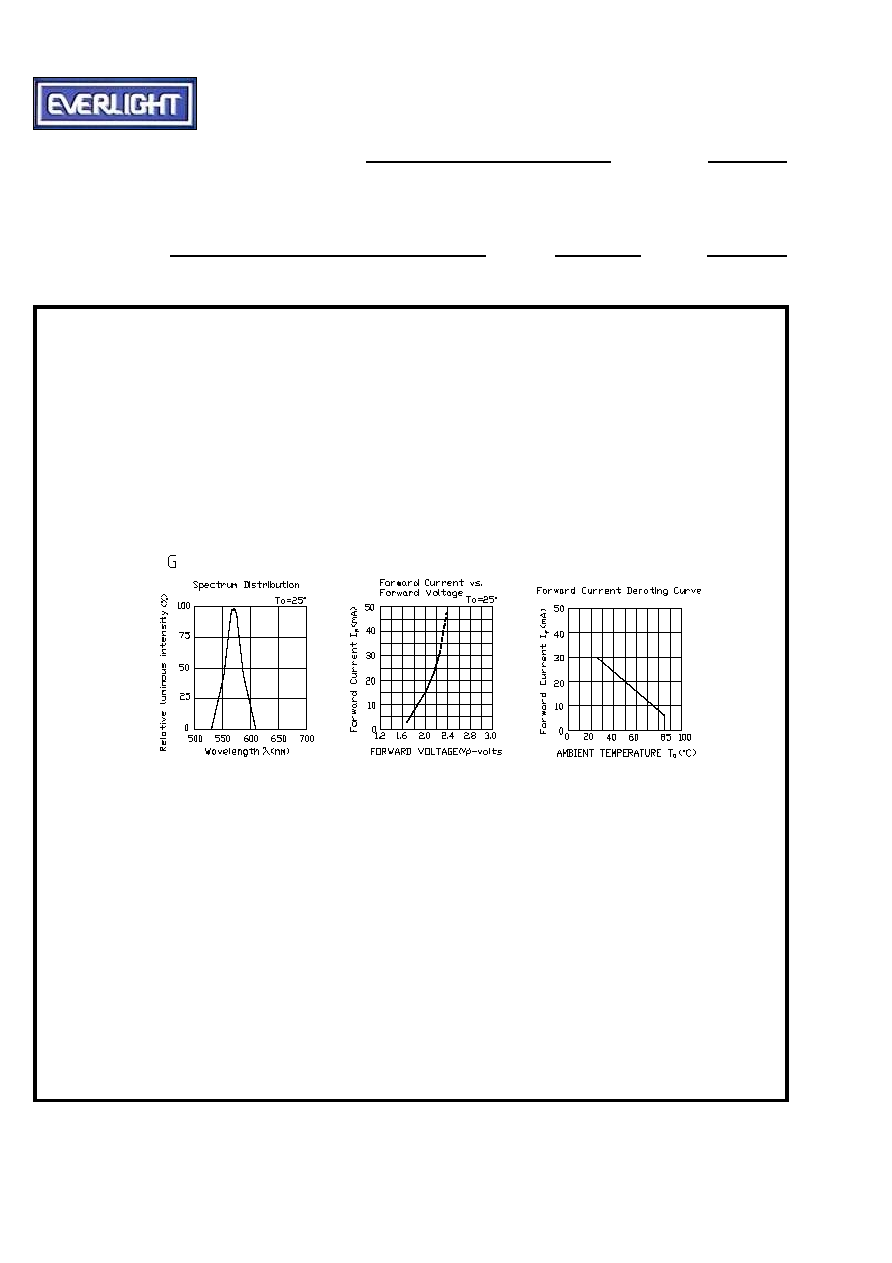

Typical Electro-Optical Characteristic Curves:
E125-M1883G.XLS
T99503 B990902
