EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DDS-400-006
REV:
1.0
4.0" Single Digit Display
MODEL NO :
ELS-4006UBW
ECN :
Page:
1/5
Features :
Applications:
Industrial standard size.
Audio equipment
Low power consumption.
Instrument panels
Categorized for luminous intensity.
Digital readout display
Description :
The ELS-4006 series is a large 101.5mm
(4.0")high seven segment display
design for viewing distances up to
7 meters.
These displays provide excellent
reliability in bright ambient light .
These device is made with white
segments and white surface.
PART NO
CHIP
C.C. or C.A.
Material
Emitted Color
ELS-4006UBW
GaN/Sic Substrate
Blue
C.A.
OFFICE : NO. 25,Lane 76,Sec.3, Chung Yang Rd., Tucheng 236, Taipei, Taiwan, R.O.C.
TEL : 886-2-2267-2000,2267-9936
FAX : 886-2-2267-6244,22676189,22676306
http://www.everlight.com
AS99035 S991596
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DDS-400-006
REV:
1.0
4.0" Single Digit Display
MODEL NO :
ELS-4006UBW
ECN :
Page:
2/5
Package Dimension:
NOTES:
1.All dimensions are millimeters, tolerance is 0.25mm unless otherwise noted.
2.Above specification may be changed without notice.
Supplier will reserve authority on material change for above specification.
AS99035 S991596
101.5
1
1
1
9.5
0.5
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DDS-400-006
REV:
1.0
4.0" Single Digit Display
MODEL NO :
ELS-4006UBW
ECN :
Page:
3/5
Absolute maximum ratings at Ta = 25
Parameter
Symbol
Rating
Unit
Reverse Voltage
Vr
5
V
Forward Current
If
30
mA
Operating Temperature
Topr
-40 to +85
Storage Temperature
Tstg
-40 to +100
Soldering Temperature
Tsol
260 5
Power Dissipation
Pd
140
mW
Peak Forward Current(Duty
1/10 @ 1KHZ)
If(Peak)
70
mA
Electronic optical characteristics :
Parameter
Symbol
MIN.
TYP.
MAX.
Unit
Condition
Luminous
Per
segment
42
60
----
mcd
If=10mA
Intensity
Per
decimal
point
Iv
24
36
----
Peak Wavelength
p
----
430
----
nm
If=20mA
Dominant Wavelength
d
----
466
----
nm
If=20mA
Spectrum Rediation
Bandwidth
----
65
----
nm
If=20mA
Forward Voltage
Vf
----
3.8
4.5
V
If=20mA
Reverse Current
Ir
----
----
10
A
Vr=5V
AS99035 S991596
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DDS-400-006
REV:
1.0
4.0" Single Digit Display
MODEL NO :
ELS-4006UBW
ECN :
Page:
4/5
Reliability test item and condition:
NO
Item
Test Conditions
Test
Hours/Cycle
Sample Size
Ac/Re
1
Solder Heat
TEMP : 260 5
5 SEC
76 PCS
0/1
H : +85 30min
2
Temperature Cycle
5 min
50 CYCLE
76 PCS
0/1
L : -55 30min
H : +100 5min
3
Thermal Shock
10 sec
50 CYCLE
76 PCS
0/1
L : -10 5min
4
High Temperature
Storage
TEMP : 100
1000 HRS
76 PCS
0/1
5
Low Temperature
Storage
TEMP : -55
1000 HRS
76 PCS
0/1
6
DC Operating Life
If = 20 mA
1000 HRS
76 PCS
0/1
7
High Temperature /
High Humidity
85/85% RH
1000 HRS
76 PCS
0/1
AS99035 S991596
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DDS-400-006
REV:
1.0
4.0" Single Digit Display
MODEL NO:
ELS-4006UBW
ECN :
Page:
5/5

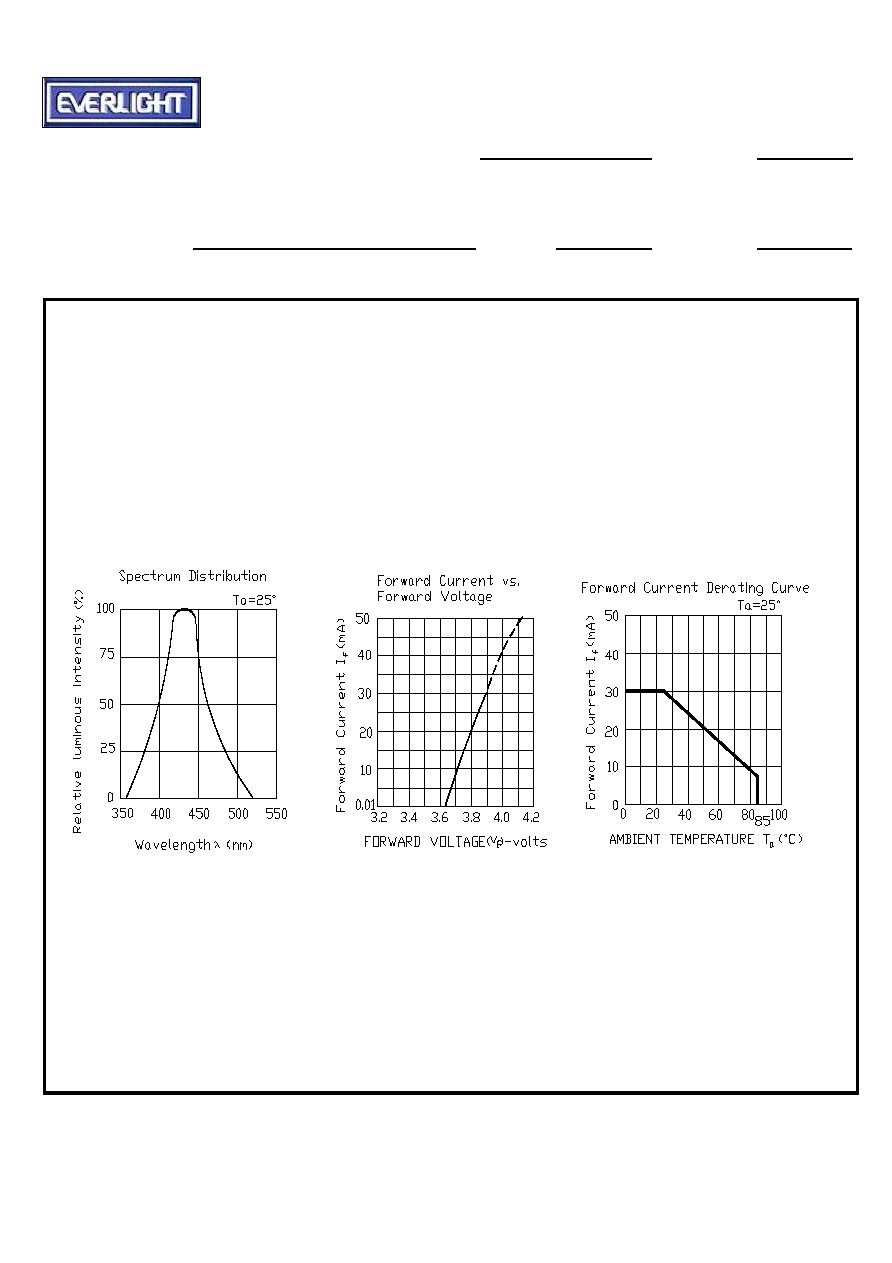

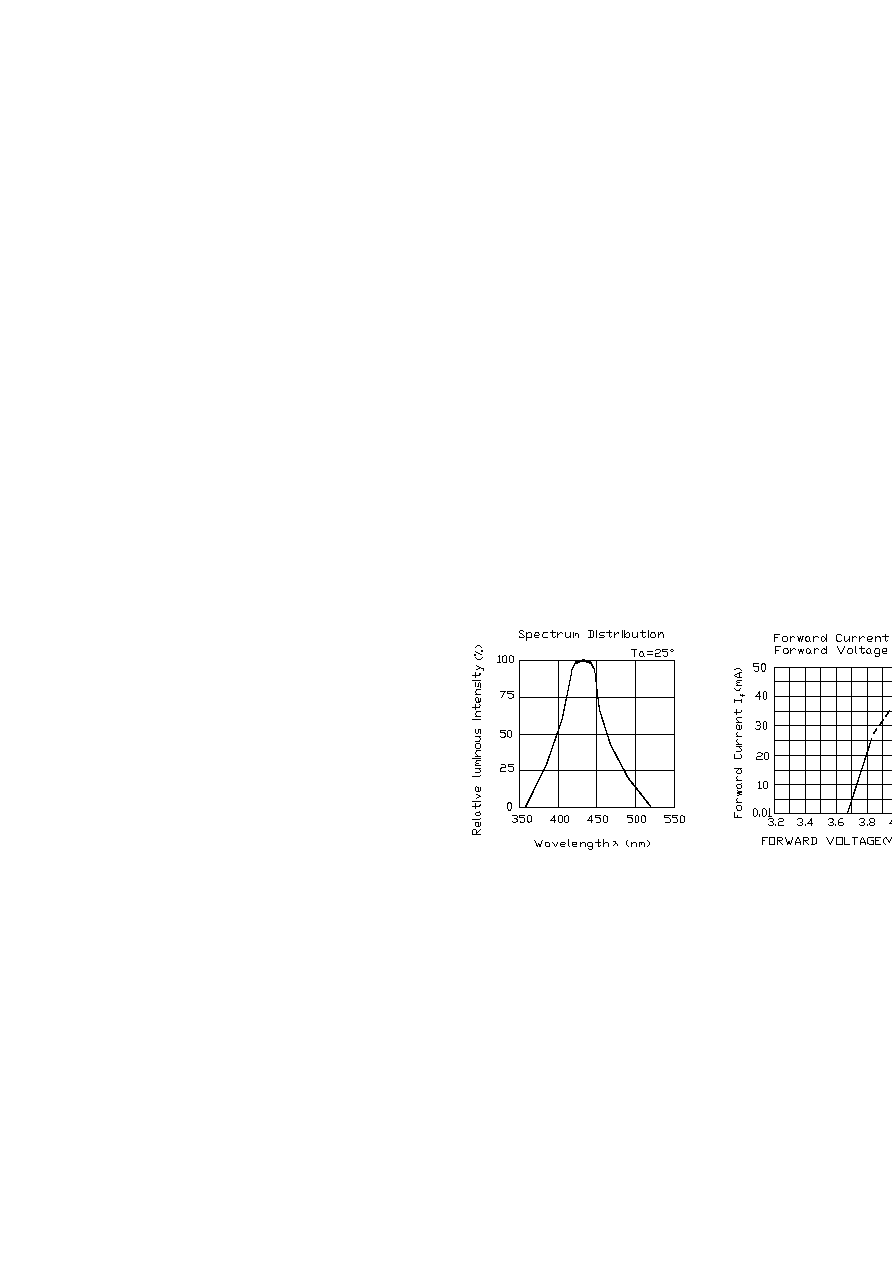

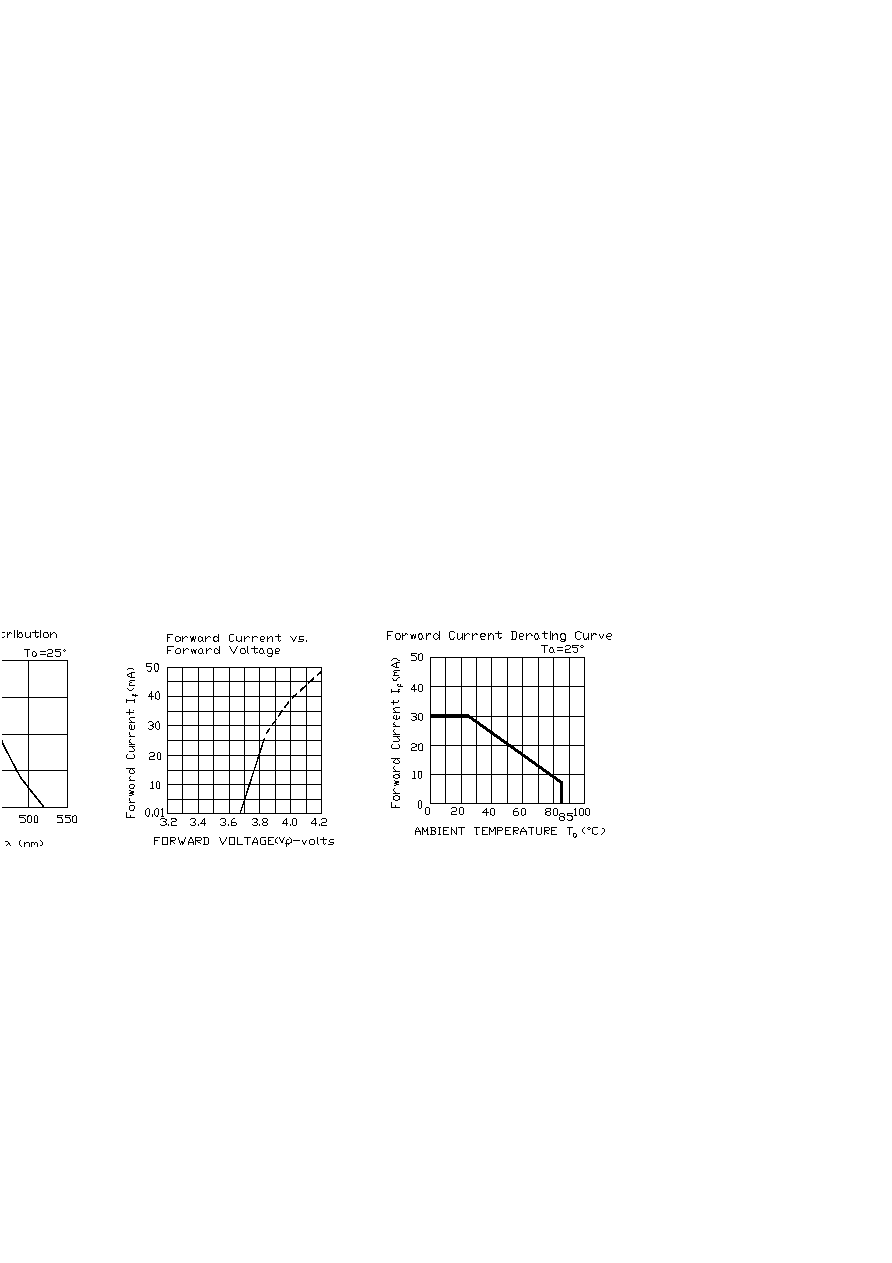

Typical Electro-Optical Characteristic Curves:
AS99035 S991596
