74F2243
Quad Bus Transceiver
with 25
Series Resistors in the Outputs
General Description
The 74F2243 is a quad bus transmitter/receiver which can
be used for 4-line asynchronous 2-way data communica-
tions between data busses. It is designed to drive the
capacitive inputs of MOS memory drivers, address drivers,
clock drivers, and bus-oriented transmitters/receivers.
The 25
series resistors in the outputs reduce ringing and
eliminate the need for external resistors.
Features
s
25
series resistors in outputs eliminate the need for
external resistors
s
2-Way asynchronous data bus communication
s
3-STATE outputs
s
12 mA source current
s
Designed to drive the capacitive inputs of MOS devices
Ordering Code:
Devices also available in Tape and Reel. Specify by appending the suffix letter "X" to the ordering code.
Logic Symbol
IEEE/IEC
Connection Diagram
Truth Table
H
=
HIGH Voltage Level
Z
=
High Impedance
L
=
LOW Voltage Level
N/A
=
Not Allowed
Unit Loading/Fan Out
Order Number
Package Number
Package Description
74F2243SC
M14A
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow
Inputs
Inputs/Outputs
E
1
E
2
A
n
B
n
L
L
Input
B
=
A
L
H
N/A
N/A
H
L
Z
Z
H
H
A
=
B
Input
Pin Names
Description
U.L.
Input I
IH
/I
IL
HIGH/LOW
Output I
OH
/I
OL
E
1
Enable Input (Active LOW)
1.0/1.67
20
A/
-
1 mA
E
2
Enable Input (Active HIGH)
1.0/1.67
20
A/
-
1 mA
A
n
, B
n
Inputs
3.5/2.67
70
A/
-
1.6 mA
Outputs
750/20
-
15 mA/12 mA
www.fairchildsemi.com
2
74F2243
Absolute Maximum Ratings
(Note 1)
Recommended Operating
Conditions
Note 1: Absolute maximum ratings are values beyond which the device
may be damaged or have its useful life impaired. Functional operation
under these conditions is not implied.
Note 2: Either voltage limit or current limit is sufficient to protect inputs.
DC Electrical Characteristics
AC Electrical Characteristics
Storage Temperature
-
65
C to
+
150
C
Ambient Temperature under Bias
-
55
C to
+
125
C
Junction Temperature under Bias
-
55
C to
+
150C
V
CC
Pin Potential to Ground Pin
-
0.5V to
+
7.0V
Input Voltage (Note 2)
-
0.5V to
+
7.0V
Input Current (Note 2)
-
30 mA to
+
5.0 mA
Voltage Applied to Output
in HIGH State (with V
CC
=
0V)
Standard Output
-
0.5V to V
CC
3-STATE Output
-
0.5V to
+
5.5V
Current Applied to Output
in LOW State (Max)
twice the rated I
OL
(mA)
ESD Last Passing Voltage (Min)
4000V
Free Air Ambient Temperature
0
C to
+
70
C
Supply Voltage
+
4.5V to
+
5.5V
Symbol
Parameter
Min
Typ
Max
Units
V
CC
Conditions
V
IH
Input HIGH Voltage
2.0
V
Recognized as a HIGH Signal
V
IL
Input LOW Voltage
0.8
V
Recognized as a LOW Signal
V
CD
Input Clamp Diode Voltage
-
1.2
V
Min
I
IN
=
-
18 mA
V
OH
Output HIGH
10% V
CC
2.4
I
OH
=
-
3 mA (A
n
, B
n
)
Voltage
10% V
CC
2.0
V
Min
I
OH
=
-
15 mA (A
n
, B
n
)
5% V
CC
2.7
I
OH
=
-
3 mA (A
n
, B
n
)
V
OL
Output LOW
0.50
V
Min
I
OL
=
1 mA (A
n
, B
n
)
Voltage
0.75
I
OL
=
12 mA (A
n
, B
n
)
I
IH
Input HIGH Current
20
A
Max
V
IN
=
2.7V (E
1
, E
2
)
I
BVI
Input HIGH Current
100
A
Max
V
IN
=
7.0V (E
1
, E
2
)
Breakdown Test
I
BVIT
Input HIGH Current
1.0
mA
Max
V
IN
=
5.5V (A
n
, B
n
)
Breakdown Test (I/O)
I
IL
Input LOW Current
-
1.0
mA
Max
V
IN
=
0.5V (E
1
, E
2
)
I
IH
+
I
OZH
Output Leakage Current
70
A
Max
V
OUT
=
2.7V (A
n
, B
n
)
I
IL
+
I
OZL
Output Leakage Current
-
1.6
mA
Max
V
OUT
=
0.5V (A
n
, B
n
)
I
OS
Output Short-Circuit Current
-
100
-
225
mA
Max
V
OUT
=
0V (A
n
, B
n
)
I
CEX
Output HIGH Leakage Current
250
A
Max
V
OUT
=
V
CC
I
CCH
Power Supply Current
64
80
mA
Max
V
O
=
HIGH
I
CCL
Power Supply Current
64
90
mA
Max
V
O
=
LOW
I
CCZ
Power Supply Current
71
90
mA
Max
V
O
=
HIGH Z
Symbol
Parameter
T
A
=
+
25
C
T
A
=
0
C to
+
70
C
Units
V
CC
=
+
5.0V
V
CC
=
+
5.0V
C
L
=
50 pF
C
L
=
50 pF
Min
Typ
Max
Min
Max
t
PLH
Propagation Delay
1.5
7.0
1.5
7.0
ns
t
PHL
A
n
to B
n
, B
n
to A
n
2.5
8.0
2.0
8.0
t
PZH
Output Enable Time
1.5
9.0
1.0
9.5
ns
t
PZL
E
1
to B
n
, E
2
to A
n
2.5
11.5
2.5
12.0
t
PHZ
Output Disable Time
1.5
9.0
1.0
9.5
t
PLZ
E
1
to B
n
, E
2
to A
n
1.5
8.5
1.5
9.5
3
www.fairchildsemi.com
7
4F2243 Q
u
a
d
Bus T
r
ansc
eiver
Physical Dimensions
inches (millimeters) unless otherwise noted

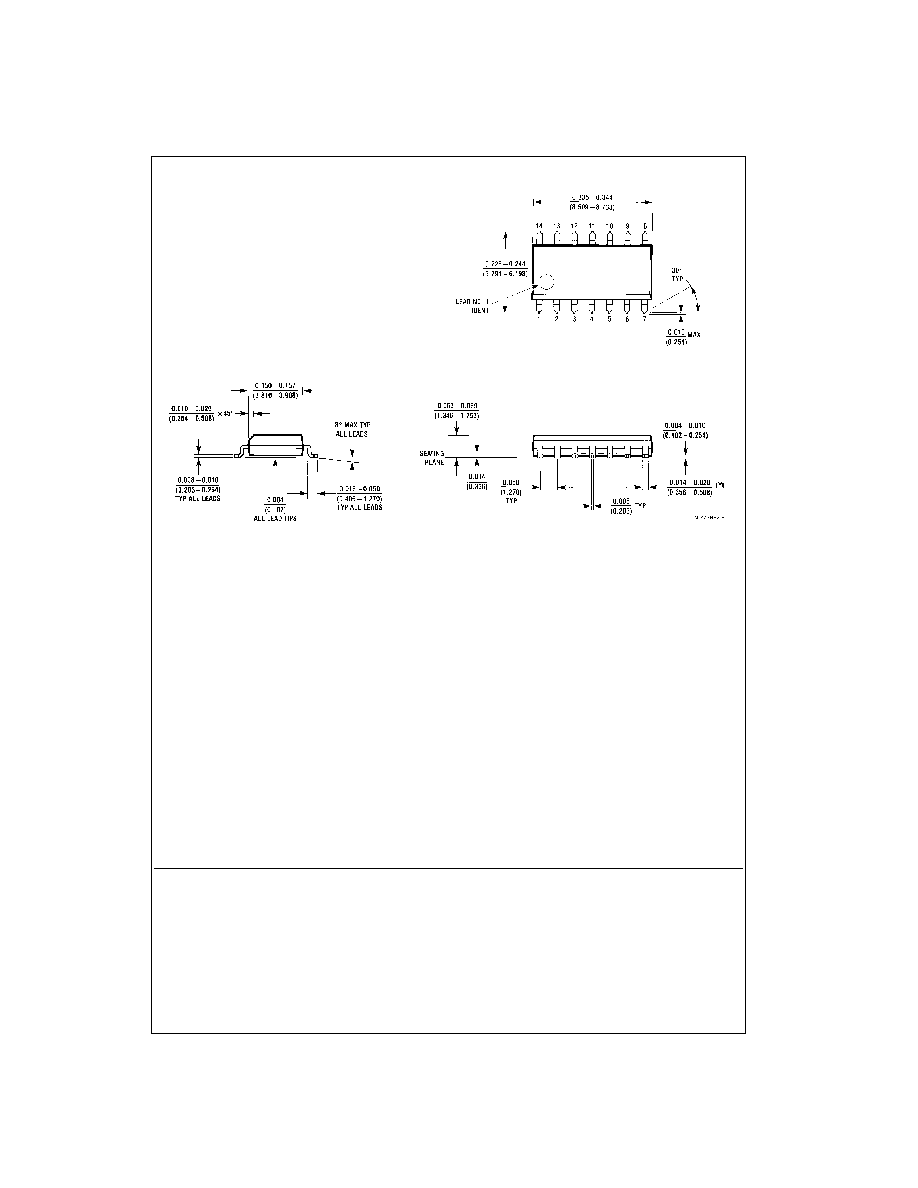

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow
Package Number M14A
