Document order number:

MPC18730

Rev 1.0, 10/2005

Freescale Semiconductor

Technical Data

* This document contains information on a product under development.

Freescale reserves the right to change or discontinue this product without notice.

Power Management IC with Five

Regulated Outputs

Programmed Through 3-Wire

Serial Interface

The MPC18730 Power Management IC (PMIC) regulates five

independent output voltages from either a single cell Li-Ion (2.7 V to
4.2 V input range) or from a single cell Ni-MH or dry cell (0.9 V to
2.2 V input range).

The PMIC includes 2 DC-DC converters and 3 low drop out (LDO)

linear regulators. The output voltage for each of the 5 output voltages
is set independently through a 3-wire serial interface. The serial
interface also configures the PMIC's versatile start-up control system,
which includes multiple wakeup, sleep, standby, and reset modes to
minimize power consumption for portable equipment.

In single cell Li-Ion applications two DC-DC converters are

configured as buck (step-down) regulators. In single cell Ni-MH or dry
cell applications, one DC-DC converter is configured as a boost
(step-up) regulator, and the other as buck-boost regulator. The DC-
DC converters' output voltages have set ranges 1.613 V to 3.2 V at
up to 120 mA, and 0.805 V to 1.5 V up to 100 mA through the serial
interface.

Features

· Operates from single cell Li-Ion, Ni-MH, or Alkaline
· 2 DC-DC Converters
· 3 Low Drop Regulators
· Serial Interface Sets Output Voltages
· 4 Wake Inputs
· Low Current Standby Mode
· Pb-Free Packaging Designated by Suffix Code EP

Figure 1. MPC18730 Simplified Application Diagram

POWER MANAGEMENT IC

EP SUFFIX

98ARL10571D

64-TERMINAL 0.5 mm PITCH

QFN

18730

ORDERING INFORMATION

Device

Temperature

Range (T

)

Package

MPC18730EP/R2

-10°C to 65°C

64 QFN

MPC18730

VREF

RSTO1B

RSTO2B

CONTROL
LOGIC
INPUTS

GND

PGND

VCC1

VO1

SW1

VCC2

VO2

SW2

SREGO1

SREGO2

SREGO3

SWG

MCU

2.7 V to 4.2 V Input

SREGI1

SREGI2

SREGI3

EXT_G_ON

1.613 V to 3.2 V

0.805 V to 1.5 V

0.865 V to 2.8 V

0.011 V to 2.8 V

2.08 V to 2.8 V

Programmable

Analog Integrated Circuit Device Data

Freescale Semiconductor

18730

INTERNAL BLOCK DIAGRAM

INTERNAL BLOCK DIAGRAM

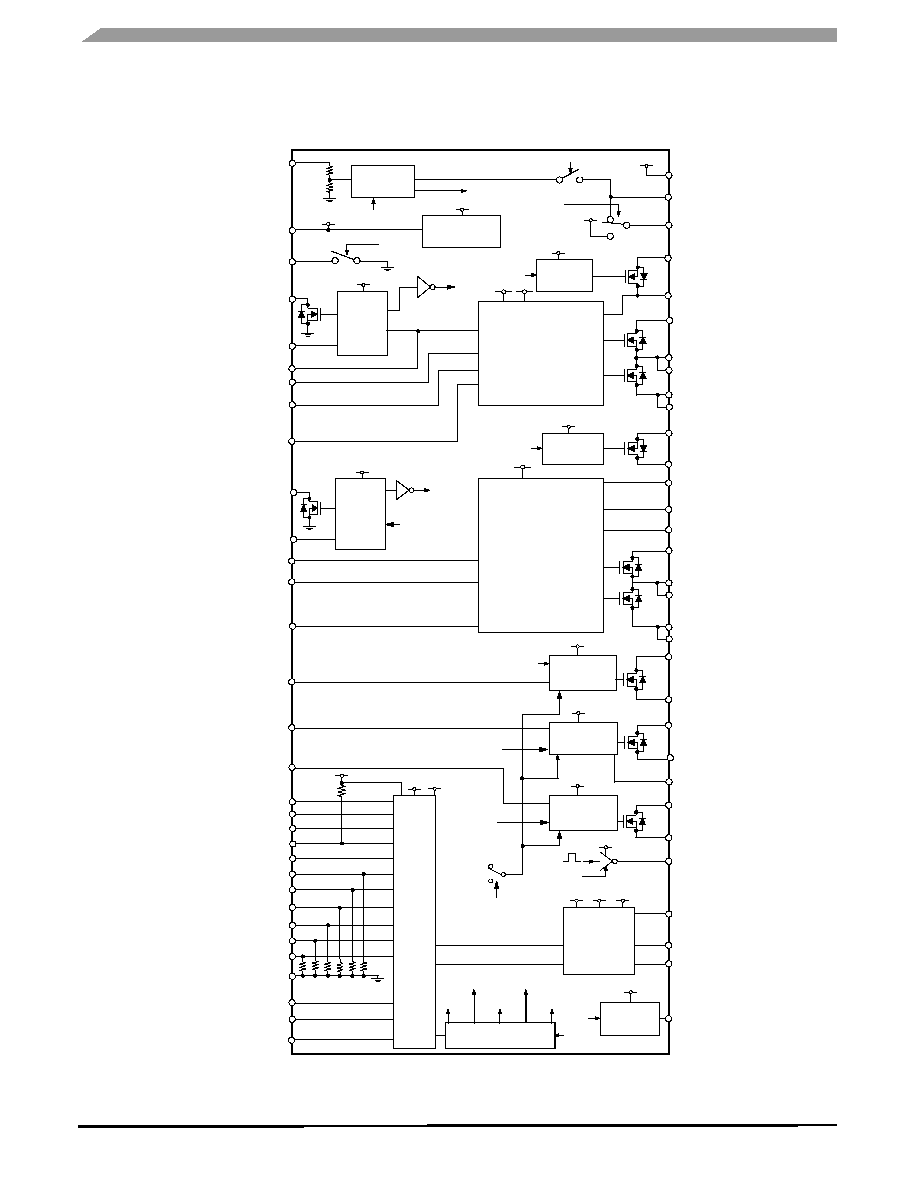

Figure 2. MPC18730 Simplified Internal Block Diagram

EXT_G_ON

VREF

INM1

RF1

DTC1

PGND1

VI1

VCC1

SW2

V_STBY

LVB

HVB

INM2

RF2

DTC2

CRST2

PGND2

VI2

VCC2

VO2IN

DATA

STRB

SREGO1

SREGC1

SREGC2

SREGC3

PGND3

SREGI1

WDT

GND

SEQSEL

C1L

SREGO2

SREGO3

SREGI3

CLR

VO1

BANDGAP

VO1

POWER

SWITCH1

LVB

RSTO1B(Int)

RSTO2B(Int)

Driver

REFERENCE

VO1 VG

Step-UpDown

DC/DC

VMODE

RSTO1B(Int)

VREF

POWER

SWITCH2

REF2

RSTO2B(Int)

Step-UpDown

DC/DC

RSTO2B(Int)

CONTROL

VO1 VB

Series Pass

VO1

VREF

Regulator1

Series Pass

REF3

REF4

REF5

SEQSEL

CLKIN

REF1

REF2

REF3

REF4

REF5

REF DAC

VMODE

Series Pass

Regulator3

Regulator2

CPoff

VG_duty

VG_select

DW_2T

DW_2B

SREGI2

SWG

EXT gate

CLKIN

CLR

SCKIN

WAKE1B

WAKE2B

WAKE3B
WAKE4B

RST1ADJ

RSTO1B

LSWO

SLEEP

CRST1

Buffer

SREG2G

Control

Logic

Step-Up

DC/DC

Convertor

Converter

RESET

Block 2

VO1

RESET

Block 1

RSTO2B

RSTO1B(Int)

CH1

Converter

CH2

V_STBY

(Int)

RSTO2B

SREGC1

VGSEL1

VGSEL2

VO2

VO1

SW1

Analog Integrated Circuit Device Data
Freescale Semiconductor

18730

TERMINAL CONNECTIONS

TERMINAL CONNECTIONS

Figure 3. MPC18730 Terminal Connections

Table 1. MPC18730 Terminal Definitions

A functional description of each terminal can be found in the Functional Terminal Description section beginning on

page 14

Terminal

Number

Terminal

Name

Terminal
Function

Formal Name

Definition

CLR

Input

Clear

Start-up Signal Input Latch/Clear

WAKE4B

Input

Wake Signal 4

Start-up Signal Input 4

WAKE3B

Input

Wake Signal 3

Start-up Signal Input 3

WAKE2B

Input

Wake Signal 2

Start-up Signal Input 2

WAKE1B

Input

Wake Signal 1

Start-up Signal Input 1

LSWO

Output

Low-Side Switch

Output

Low-Side Switch Output Terminal

LVB

Input

Low Voltage Battery

VB Power Supply Connection for Ni_mh

HVB

Input

High Voltage Battery

VB Power Supply Connection for Li_ion

V_STBY

Output

Standby Voltage

V_STBY Voltage Output

19 20 21 22 23 24 25 26 27 28 29 30 31 32

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50

TOP VIEW

CLR

WAKE4B

WAKE3B

WAKE2B

WAKE1B

LSWO

LVB

HVB

V_STBY

VO1

VCC1

VI1

SW1

PGND1

RSTO1B

ST1

RST1ADJ

INM1

C1L

PGND3

INM2

CRST2

RSTO2B

PGND2

SW2

VI2

VCC2

VO2IN

SREGO3

SREGI3

SREGO

VO2

SREG

SREGI1

SREG

SREGC2

SREGC3

GND

SREG2G

SEL1

SEL2

DW_2B

VREF

DW_2T

DAT

STRB

SCKIN

WDT

CLKIN

SLEEP

EXT_G_ON

SREGI2

PGND2

SEQS

Analog Integrated Circuit Device Data

Freescale Semiconductor

18730

TERMINAL CONNECTIONS

VO1

Input

Voltage Input 1

Switching Power Supply Circuit 1, VO1 Voltage Input, VO1 Power Supply

VCC1

Output

Voltage Output 1

Power Switch 1 Output

VI1

Output

Voltage Output 1

Switching Power Supply Circuit 1 Output

SW1

Power

Switching 1

Switching Power Supply Circuit 1 Coil Connection

SW1

Power

Switching 1

Switching Power Supply Circuit 1 Coil Connection

PGND1

Ground

Power Ground 1

Switching Power Supply Circuit 1 Power GND

PGND1

Ground

Power Ground 1

Switching Power Supply Circuit 1 Power GND

RSTO1B

Output

Inverted Reset

Output 1

Reset Circuit 1 Reset Signal Output

CRST1

Input

Reset Delay

Capacitor 1

Reset Circuit 1 Reset Signal Delaying Capacitor Connection

RST1ADJ

Output

Reset1 Adjustment

Switching Power Supply Circuit 1 Reset Voltage Reference Output

DTC1

Power

Duty Control

Switching Power Supply Circuit 1 Maximum Duty Setting

RF1

Output

Reference Feedback 1 Switching Power Supply Circuit 1 Error Amp Output

INM1

Input

Input Minus 1

Switching Power Supply Circuit 1 Error Amp Inverse Input

C1L

Power

Charge Pump

Capacitor

VG Power Supply Circuit Charge Pump Capacitor Connection

Output

Gate Voltage

VG Power Supply Circuit Voltage Output, Pre-Diver Circuit Power Supply

SWG

Power

Switching

VG Power Supply Circuit Coil Connection

PGND3

Ground

Power Ground 3

VG Power Supply Circuit Power GND

Power

Battery Voltage

VB Power Supply Connection

VGSEL2

Output

VG Select 2

VG Power Supply Circuit Output Voltage Setting 2

VGSEL1

Output

VG Select 1

VG Power Supply Circuit Output Voltage Setting 1

INM2

Input

Input Minus

Switching Power Supply Circuit 2 Error Amp Inverting Input

RF2

Output

Reference Feedback 2 Switching Power Supply Circuit 2 Error Amp Output

DTC2

Power

Duty Control

Switching Power Supply Circuit 2 Maximum Duty Setting

CRST2

Input

Reset Delay

Capacitor 1

Reset Circuit 2 Reset Signal Delay Capacitor Connection

RSTO2B

Output

Inverted Reset

Output 2

Reset Circuit 2 Reset Signal Output

PGND2

Ground

Power Ground 2

Switching Power Supply Circuit 2 Power GND

PGND2

Ground

Power Ground 2

Switching Power Supply Circuit 2 Power GND

SW2

Power

Switching

Switching Power Supply Circuit 2 Coil Connection

SW2

Power

Switching

Switching Power Supply Circuit 2 Coil Connection

VI2

Output

Voltage Output

Switching Power Supply Circuit 2 Output

VCC2

Output

Voltage Output

Power Switch 2 Output

VO2IN

Input

Voltage Input

Power Switch 2 Voltage Input

VO2

Input

Voltage Input

Switching Power Supply Circuit 2 VO2 Voltage Input

Table 1. MPC18730 Terminal Definitions (continued)

A functional description of each terminal can be found in the Functional Terminal Description section beginning on

page 14

Terminal

Number

Terminal

Name

Terminal
Function

Formal Name

Definition

Analog Integrated Circuit Device Data
Freescale Semiconductor

18730

TERMINAL CONNECTIONS

DW_2T

Output

Step Down Top FET 2 Switching Power Supply Circuit 2 Step down Top side FET Gate Output

for Ni_mh

DW_2B

Output

Step Down Bottom

FET 2

Switching Power Supply Circuit 2 Step down Bottom side FRT Gate
Output for Ni_mh

EXT_G_ON

Output

Gate Switch

External Transistor Gate Signal Output

SREGC3

Power

Regulator Capacitor 3 Series Pass Power Supply Circuit 3 External Feedback Connection

SREGO3

Output

Regulator Output 3

Series Pass Power Supply Circuit 3 Output

SREGI3

Power

Regulator Input 3

Series Pass Power Supply Circuit 3 Power Supply

SREGC2

Power

Regulator Capacitor 2 Series Pass Power Supply Circuit 2 External Feedback Connection

SREG2G

Output

Regulator Gate Output

Series Pass Power Supply Circuit 2 External Transistor Gate Signal
Output

SREGO2

Output

Regulator Output 2

Series Pass Power Supply Circuit 2 Output

SREGI2

Power

Regulator Input 2

Series Pass Power Supply Circuit 2 Power Supply

SREGC1

Power

Regulator Capacitor 1 Series Pass Power Supply Circuit 1 External Feedback Connection

SREGO1

Output

Regulator Output 1

Series Pass Power Supply Circuit 1 Output

SREGI1

Power

Regulator Input 1

Series Pass Power Supply Circuit 1 Power Supply

GND

Ground

GND

VREF

Output

Reference Voltage

Reference Voltage Output

DATA

Input

Data Signal

Serial Interface Data Signal Input

STRB

Input

Strobe

Serial Interface Strobe Signal Input

SCKIN

Input

Serial Clock

Serial Interface Clock Signal Input

WDT

Input

Watch Dog Timer

Watchdog Timer Capacitor Connection

SEQSEL

Input

Sequence Input

Start-Up Sequence Setting Input

CLKIN

Input

Clock Input

External Synchronous Clock Signal Input

SLEEP

Input

Sleep Signal

Sleep Signal Input

Table 1. MPC18730 Terminal Definitions (continued)

A functional description of each terminal can be found in the Functional Terminal Description section beginning on

page 14

Terminal

Number

Terminal

Name

Terminal
Function

Formal Name

Definition

Analog Integrated Circuit Device Data

Freescale Semiconductor

18730

MAXIMUM RATINGS

MAXIMUM RATINGS

Table 2. Maximum Ratings

All voltages are with respect to ground unless otherwise noted. Exceeding these ratings may cause a malfunction or

permanent damage to the device.

Ratings

Symbol

Value

Unit

ELECTRICAL RATINGS

Power Supply Voltage

-0.5 to 5.0

Analog Signal Input

(1)

INAN

-0.5 to VO1+0.5

Logic Signal Input

WAKE1~4B
CLR, SLEEP, CLKIN, SCKIN, DATA, STRB
VGSEL1,2

ILRSTB

ILGC

ILGSEL

-0.5 to V_STBY+0.5

-0.5 to VO1+0.5

-0.5 to VB+0.5

Output Power Current

CC1

Power Supply Circuit

(2)

CC2

Power Supply Circuit

SREG1 Power Supply Circuit
SREG2 Power Supply Circuit
SREG3 Power Supply Circuit
VG Power Supply Circuit
RSTO1B Power Supply Circuit

OVO1

OVO2

OREG1

OREG2

OREG3

OVG

ORSTB

120
100

100

-20

Open-Drain Output Apply Voltage

RSTO1B
LSWO

IODR

IODV

-0.5 to 3.3
-0.5 to 3.3

ESD Voltage

Human Body Model (HBM)

(3)

Machine Model (MM)

(4)

Charge Device Model (CDM)

ESD1

ESD2

CDM

± 1500

± 200
± 750

THERMAL RATINGS

Operating Temperature

Ambient
Junction

-10 to 65

150

°C

Storage Temperature

STG

-50 to 150

°C

Thermal Resistance

(5)

Junction to Ambient

C/W

Lead Soldering Temperature

(6)

SOLDER

260

°C

Notes

VREF, DTC1, DTC2, SREGC1, SREGC2, SREGC3 and RST1ADJ.

Includes the series pass power supply circuit output current.

ESD1 testing is performed in accordance with the Human Body Model (C

ZAP

= 100 pF, R

ZAP

= 1500 ).

ESD2 testing is performed in accordance with the Machine Model (C

ZAP

= 200 pF, R

ZAP

= 0 ) and in accordance with the system

module specification with a capacitor 0.01 µF connected from OUT to GND.

Device mounted on a 2s2p test board, in accordance with JEDEC JESD51-6 and JESD51-7.

Terminal soldering temperature limit is for 10 seconds maximum duration. Not designed for immersion soldering. Exceeding these limits
may cause malfunction or permanent damage to the device.

Analog Integrated Circuit Device Data
Freescale Semiconductor

18730

STATIC ELECTRICAL CHARACTERISTICS

STATIC ELECTRICAL CHARACTERISTICS

Table 3. Static Electrical Characteristics

Characteristics noted under conditions V

= 1.2 V, V

= 2.4 V, V

= 6.0 V, f

CLK

= 176.4 kHz unless otherwise noted. Typical

values noted reflect the approximate parameter means at T

= 27°C under nominal conditions unless otherwise noted.

Characteristic

Symbol

Min

Typ

Max

Unit

GENERAL

VB Power Supply Voltage

Power Supply Voltage 1
Power Supply Voltage 2

LVB

HVB

0.9
2.7

1.2
3.5

2.2
4.2

Series Regulator Input Voltage

(7)

(8)

SREGI

SREG

+0.2

(9)

SREG

+0.3

SREG

+0.4

Start-Up Voltage

BST

0.9

Analog Signal Input

(10)

IANA

Logic Signal Input

RSTO1 ~ 4B
CLR, SLEEP, CLKIN, DATA, STRB and SCKIN
VGSEL1, 2

ILRSTB

ILGC

ILGSEL

0
0
0

-
-
-

V_STBY

VO1

Output Power Current

CC1

Power Supply Circuit

(11)

CC2

Power Supply Circuit

(11)

SREG1 Power Supply Circuit
SREG2 Power Supply Circuit
SREG3 Power Supply Circuit
VG Power Supply Circuit
RSTO

OVCC1

OVCC2

OSREG1

OSREG2

OSREG3

OVG

ORSTB

0
0
5
6
5
0

-5

-
-
-
-
-
-
-

100

80
60
80
60

6
0

Supply Current in Stand-by mode

VB Supply Current (VB = 1.2 V for Ni_MH)
(HVB = 3.5 V for Li-Ion)

BSNi

BSLi

-
-

5
8

10
12

Supply Current in Operating mode

VB Supply Current (VB = 1.2 V for Ni_MH)
(HVB = 3.5 V for Li-Ion)

BNi

BLi

-
-

9
7

18
14

Reference Power Supply Circuit

Output Voltage
Output Current

REF

OREF

1.255

-0.3

1.275

1.295

0.3

Switching Power Supply 1

CC1

Output Voltage (I

= 0~100 mA)

CC1

2.3

2.4

2.5

Notes

When applying voltage from an external source.

0.3 V when VG is 4.5 V.

Provide 2 V or higher for the voltage difference (VG - VO1).

10.

VREF, DTC1, DTC2, SREGC1, SREGC2, SREGC3 and RST1ADJ.

11.

Includes the series pass power supply circuit output current.

Analog Integrated Circuit Device Data

Freescale Semiconductor

18730

STATIC ELECTRICAL CHARACTERISTICS

Switching Power Supply 2

CC2

Output Voltage (I

= 0~80 mA)

DW_2T Output Voltage

(12)

source

= 400 µA)

sink

= 400 µA)

DW_2B Output Voltage

(12)

source

= 400 µA)

sink

= 400 µA)

CC2

DW2TH

DW2TL

DW2BH

DW2BL

1.05

5.2

1.15

-
-
-
-

1.25

VG
0.3
VG
0.3

Series Pass Power Supply Circuit

SREG1 Control Voltage (I

= 5~60 mA)

(13)

SREG1-Error AMP Input offset voltage

(14)

SREG2 Control Voltage (I

= 6~80 mA)

(13)

SREG2-Error AMP Input offset voltage

(15)

SREG3 Control Voltage (I

= 5~60 mA)

(13)

SREG3-Error AMP Input offset voltage

(16)

SREG2G Output Voltage

(17)

source

= 2.5 µA)

sink

= 2.5 µA)

SREG1

SR1OFST

SREG2

SR2OFST

SREG3

SR3OFST

SREG2GH

SREG2GL

2.7

-13.5

2.7
-17
2.7
-11

5
0

2.8

-
-
-

2.9

24.5

2.9

VG
0.5

V
V

Power Switch On Resistance

CC1

Circuit

CC2

Circuit

VCC1

VCC2

-
-

0.4
0.4

0.6
0.6

VG Power Supply Circuit

= 0~6 mA)

(18)

= 0~6 mA)

(19)

C1L Output Voltage (I

source

= 2.5 mA)

sink

= 2.5 mA)

VGH Voltage (Certified value)

VG_00
VG_10

VO11LH

VO11LL

VGH

5.5
4.6

VB x 0.85

6.0
5.0

-
-
-

6.5
5.4
VB
0.4

10.5

V_STBY Output Voltage for Li_ion (I

= 300 µA)

(20)

LVB

1.75

2.45

Notes

12.

Connect a transistor with gate capacity of 200 pF or smaller to DW_2T and DW_2B

13.

If a capacitor with capacitance of 22µF is connected to SREGO, use a phase compensation capacitor between SREGO and SREGC
when the load is 5 mA (6 mA for SREG2) or lower. The output voltage values shown in the table assume that external resistance is
connected as follows:
SREGI1 = 3.0V to 3.3V, 65.14K between SREGO1 and SREGC1, 34.86K between SREGC1 and GND.
SREGI2 = 3.0V to 3.3V, 54.46K between SREGO2 and SREGC2, 45.54K between SREGC2 and GND.
SREGI3 = 3.0V to 3.3V, 73.84K between SREGO3 and SREGC3, 26.16K between SREGC3 and GND.

14.

Calculated by the right formula for input offset: SR1OFST=(Vref x 0.77) - (SREGO1 ÷ (100k ÷ 34.86k))

15.

Calculated by the right formula for input offset: SR2OFST=(Vref x 1) - (SREGO1 ÷ (100k ÷ 45.54k))

16.

Calculated by the right formula for input offset: SR3OFST=(Vref x 0.58) - (SREGO1 ÷ (100k ÷ 26.16k))

17.

Connect a transistor with gate capacity of 300 pF or smaller to REG2G.

18.

When VGSEL1 is Low and VGSEL2 is Low, I/O=3mA or higher is certified by specification.

19.

When VGSEL1 is High and VGSEL2 is Low, I/O=3mA or higher is certified by specification.

20.

When HVB is 4.2V and the load from V_STBY is 0.5µA or higher.

Table 3. Static Electrical Characteristics (continued)

Characteristics noted under conditions V

= 1.2 V, V

= 2.4 V, V

= 6.0 V, f

CLK

= 176.4 kHz unless otherwise noted. Typical

values noted reflect the approximate parameter means at T

= 27°C under nominal conditions unless otherwise noted.

Characteristic

Symbol

Min

Typ

Max

Unit

This paragraph is boilerplate - you may add to it but, can not change wording. You may change numeric values

Analog Integrated Circuit Device Data
Freescale Semiconductor

18730

STATIC ELECTRICAL CHARACTERISTICS

Reset Circuit

Reset Voltage 1
Reset Voltage 2
Hysteresis Voltage 1 (@RST1)
Hysteresis Voltage 2 (@RST2)
RSTB (V

RSTB

= 2.4 V)

sink

= 2 mA)

CRST (I

sink

= 100 µA)

High Level Threshold Voltage
Low Level Threshold Voltage
CRST Pull-Up Resistance

RST1

RST2

HYRS1

HYRS2

ORSTB1,2

OLRSTB1,2

OLCR1,2

IHCR1,2

ILCR1,2

PUPRC1,2

0.85 x VO1
0.80 x VO2

40
50

0
0
0

1.25
0.75

0.88 x VO1
0.85 x VO2

78
75

-
-
-

1.42
1.00

100

0.91 x VO1
0.90 x VO2

115
100

0.5
0.7

1.65
1.15

150

V
V

mV
mV

µA

V
V
V
V

V_STBY Output Resistance

Output Resistance (VO1)
Output Resistance (VB)

VO1

-
-

200

400

LSWO Output Resistance

Output Resistance

LSWO

Ext_G_ON

Ext_G_ON Output Voltage (I

source

= 100 µA)

sink

= 100 µA)

OHEXTG

OLEXTG

VG x 0.9

-
-

VG x 0.1

Logic Input

"H" Level Input Voltage

(21)

"L" Level Input Voltage

(21)

"H" Level Input Voltage

(22)

"L" Level Input Voltage

(22)

"H" Level Input Voltage

(23)

"L" Level Input Voltage

(23)

"H" Level Input Current

(21)

(23)

"L" Level Input Current

(23)

(24)

Pull Up Resistance

(25)

Pull Down Resistance

(26)

IHVS

ILVS

IHVB

ILVB

PUP

PDW

V_STBY - 0.2

1.5

VB - 0.2

-1
-1

410
330

-
-
-
-
-
-
-
-

590
480

0.2

0.4

0.2

1
1

770
625

V
V
V
V
V
V

µA
µA

K
K

Notes

21.

Applied to WAKEB1 ~ 4 and SEQSEL.

22.

Applied to CLR, SLEEP, CLKIN, DATA, STRB and SCKIN.

23.

Applied to VGSEL1 and 2.

24.

Applied to WAKEB1 ~ 3, CLR, SLEEP, CLKIN, DATA, STRB, SCKIN and SEQSEL.

25.

Applied to WAKEB4.

26.

Applied to CLR, SLEEP, CLKIN, DATA, STRB and SCKIN.

Table 3. Static Electrical Characteristics (continued)

Characteristics noted under conditions V

= 1.2 V, V

= 2.4 V, V

= 6.0 V, f

CLK

= 176.4 kHz unless otherwise noted. Typical

values noted reflect the approximate parameter means at T

= 27°C under nominal conditions unless otherwise noted.

Characteristic

Symbol

Min

Typ

Max

Unit

Analog Integrated Circuit Device Data

Freescale Semiconductor

18730

DYNAMIC ELECTRICAL CHARACTERISTICS

DYNAMIC ELECTRICAL CHARACTERISTICS

Table 4. Dynamic Electrical Characteristics

Characteristics noted under conditions V

= 1.2 V, V

= 2.4 V, V

= 6.0 V, f

CLK

= 176.4 kHz unless otherwise noted. Typical

values noted reflect the approximate parameter means at T

= 27°C under nominal conditions unless otherwise noted.

Characteristic

Symbol

Min

Typ

Max

Unit

OSCILLATOR

Internal Oscillation Frequency

ICK

150

200

250

kHz

MICRO CONTROLLER INTERFACE

Clock Signal Input

(27)

CLK

176.4

kHz

Serial Interface (Refer to Timing Chart below)

DATA Set Up Time
DATA Hold Time
SCKIN Clock Frequency
SCKIN 'H' Pulse Width
SCKIN 'L' Pulse Width
SCKIN Hold Time
STRB Set Up Time
STRB Pulse Width

sck

wckh

wckl

hck

ssb

wsb

20
20

50
50
50
50
50

-
-

6.0

-
-
-
-
-

-
-
-
-
-
-
-
-

nsec
nsec
MHz
nsec
nsec
nsec
nsec
nsec

Notes

27.

Duty 50%.

Analog Integrated Circuit Device Data
Freescale Semiconductor

18730

FUNCTIONAL DIAGRAMS

Twelve bits immediately before start-up of STRB are

always effective. Upon power on, the internal power on reset
works to initialize the registers. Serial data is fetched in the

order of Add_[3], Add_[2], ..., Add_[0], DATA1_[3],
DATA1_[2], ...., DATA2_[0].

Table 5. Serial Interface Functions

Register Name Address

DATA1

DATA2

CLR, SLEEP

1000

CLR

SLEEP

Reserved

Power Mode

0001

PSW1

PSW2

RSTO1B

VCC2

SREG1

SREG2

SREG3

RSTO2B

Clock Select

0010

Ext / Int

Half Freq

RSTB sleep S_Off_VG

VG_Duty[3] VG_Duty[2] VG_Duty[1] VG_Duty[0]

VO1

0011

MSB

VO1 Output Voltage

LSB

S_Off_VO1

VO2

0100

MSB

VO2 Output Voltage

LSB

S_Off_VO2

SREG1

0101

MSB

SREG1 Output Voltage

LSB

Reserved

SREG2

0110

MSB

SREG2 Output Voltage

LSB

SREG3

0111

MSB

SREG3 Output Voltage

LSB

CP Off

EXTG On

Table 6. Block Operation

INPUT

OUTPUT

WAKE(Int)

RSTO1B(Int)

RSTO1B

RSTO2B(Int)

SEQSEL

VO1

VO2

VCC1,2

REG1,2,3

O : Operation, - : Stop, X : Don't care

Table 7. Start-Up Sequence Settings

SEQSEL

CLR/SLEEP

Series Regulators

V_STBY

RSTO2B(Ext)

RSTO2B(Int)

GND

RSTO1B(Ext)

RSTO1B(Int)

Analog Integrated Circuit Device Data

Freescale Semiconductor

18730

FUNCTIONAL DESCRIPTION

INTRODUCTION

FUNCTIONAL DESCRIPTION

INTRODUCTION

The 18730 power management integrated circuit provides

five independent output voltages for the micro controller from
either a single cell Li-Ion or from a single cell Ni-MH or dry
cell. The PMIC includes two DC to DC converters and three
low drop out linear regulators. The output voltage for each of
the five output voltages is set independently through a 3-wire
serial interface. The PMIC has multiple wakeup, sleep, and

reset modes to minimize power consumption for portable
equipment. In single cell Li-Ion applications two DC-DC
converters are configured as buck regulators. In single cell
Ni-MH or dry cell applications, one DC-DC converter is
configured as a boost regulator, and the other as buck-boost
regulator.

FUNCTIONAL TERMINAL DESCRIPTION

CLEAR TERMINAL (CLR)

This Clear input signal makes clear internal latches for

WAKE signal holding. The WAKE control circuit can not
receive another WAKE input until the latch is cleared by this
Clear input.

WAKE SIGNAL TERMINALS (WAKE1B, WAKE2B,
WAKE3B, WAKE4B) ... ACTIVE LOW

Any one WAKE input signal of these four WAKE inputs

awakes this device from sleep mode. The WAKE signals can
be made with external low side mechanical switch and
resistance that is pulled up to VSTB rail.

LOW-SIDE SWITCH OUTPUT TERMINAL (LSWO)

Low-Side switch output that is turned on with `CLR' signal.

It can be used for external key input latches clear.

LOW VOLTAGE BATTERY TERMINAL (LVB)

This input terminal is used for temporarily power supply

while wake up for 1cell Ni-MH battery or 1cell dry cell battery
(= Low Voltage Battery) use. It has to be connected to VB rail.
When Li-Ion battery is used, the terminal has to be open.

HIGH VOLTAGE BATTERY TERMINAL (HVB)

This input terminal is used for temporarily power supply

while wake up for Li-Ion battery (= High Voltage Battery) use.
It has to be connected to the VB rail. When a Ni-MH battery
is used, the terminal has to be connected to ground level.

STANDBY VOLTAGE TERMINAL (V_STBY)

Standby Voltage is made from LVB or HVB that depends

on which battery is used. This voltage is used for internal
logic and analog circuit at standby (sleep) mode temporarily
before `VO1' voltage is established.

VOLTAGE INPUT TERMINALS (VO1, VO2)

This power supply input terminal named `VO1 or VO2' is

for internal logic and analog circuits and for input of `VCC1'
output via power switch. Input for `VCC2' is `VO2IN' terminal.
It is supplied from the output of Channel-1 or Channel-2 DC/
DC converter as `VO1 or VO2.

VOLTAGE OUTPUT TERMINALS (VCC1, VCC2)

Output `VO1' or `VO2' voltage controlled internal power

switch.

POWER INPUT TERMINALS (VI1, VI2)

The power input terminals (VI1, VI2) are drain terminals on

the top side FET of the DC/DC converter switcher. They are
the power input for the buck converter and output for the
boost converter.

SWITCHING TERMINALS (SW1, SW2)

Switching Terminals (SW1, SW2) are the output of the half

bridge and connect to the external inductance.

POWER GROUND TERMINALS (PGND1, PGND2,
PGND3)

Ground level node for DC/DC converter and Charge Pump

portion.

INVERTED RESET OUTPUT TERMINALS (RSTO1B,
RSTO2B)

Reset signal output for external MPU or the something

controller. RSTO1B keeps `Low' level while the VO1 voltage
is less than internal reference voltage. RSTO2B follows to
VO2 voltage.

RESET DELAY CAPACITOR TERMINALS (CRST1,
CSRT2)

The capacitor which is connected to this terminal decide

delay time to negate Reset signal from exceeding the
reference voltage level.

RESET 1 ADJUSTMENT TERMINAL (RST1ADJ)

Used to adjust the reset level with external resistance

which is connected to VO1 for RSTO1B.

DUTY CONTROL TERMINALS (DTC1, DTC2)

Connected external voltage to this terminal via

capacitance can control the duty of DC/DC converter
switching. Use of the terminal for this is not recommended.

Analog Integrated Circuit Device Data
Freescale Semiconductor

18730

FUNCTIONAL DESCRIPTION

FUNCTIONAL TERMINAL DESCRIPTION

REFERENCE FEEDBACK TERMINALS (RF1, RF2)

Output node of internal error amp. for DC/DC converter 1

and 2. For phase compensation use.

INPUT MINUS TERMINALS (INM1, INM2)

Minus input of internal error amp. for DC/DC converter 1

and 2. For phase compensation use.

CHARGE PUMP CAPACITOR TERMINAL (C1L)

In case of use higher voltage than VG externally, connect

capacitance and diodes between VG. The charge pump
structure can output VG + VB - 2 x VF voltage. There is no
meaning for Ni-MH or dry cell battery, because the VB
voltage is almost same as 2 x VF voltage. Recommend to use
for Li-Ion battery use.

GATE VOLTAGE TERMINAL (VG)

Output terminal of boost converter for gate drive voltage.

The output voltage is decided by VGSEL input.

SWITCHING FOR GATE VOLTAGE TERMINAL
(SWG)

Switching terminal for VG boost converter. Connect to

external inductance.

BATTERY VOLTAGE TERMINAL (VB)

Power supply input that connects to Ni-MH or Dry cell or

Li-Ion battery.

VG SELECT TERMINALS (VGSEL1, VGSEL2)

VG output voltage is decided with these two bits input.

VOLTAGE INPUT FOR POWER SWITCH 2
TERMINAL (VO2IN)

Input of VCC2 output via power switch. Connect to VO2

terminal externally.

STEP DOWN FET GATE DRIVE TERMINALS
(DW_2T, DW_2B)

Gate drive output terminals for external FETs to use DC/

DC converter 2 as Buck / Boost converter.

GATE SWITCH TERMINAL (EXT_G_ON)

Gate drive output terminal for external low side switch. It

can be used for power switch turning On/OFF for remote
controller part.

REGULATOR CONTROL TERMINALS (SREGC1,
SREGC2, SREGC3)

Feed back terminal for each series regulators. This

terminal voltage is compared with internal reference voltage.

Input the feed back voltage that divided SREGO voltage by
resistances.

REGULATOR OUTPUT TERMINALS (SREGO1,
SREGO2, SREGO3)

Series regulator output terminals. All output voltages can

be variable with internal DAC via serial I/F.

REGULATOR INPUT TERMINALS (SREGI1,
SREGI2, SREGI3)

Series regulator power input terminals. To be connected to

battery voltage in general.

GROUND TERMINAL (GND)

Ground terminal for logic and analog circuit portion (not

power portion). Recommend to connect to clean ground
which separated with power ground line.

REFERENCE VOLTAGE TERMINAL (VREF)

Output of internal reference voltage. It can be used

externally. Output current capacity is less than 300uA.

DATA INPUT TERMINAL (DATA)

Serial data input terminal. The latest 12 bits before strobe

signal are valid.

STROBE TERMINAL (STRB)

Strobe signal input terminal for serial I/F. It establishes the

input 12bits data to internal control registers.

SERIAL CLOCK TERMINAL (SCKIN)

Clock input terminal for serial I/F. Input data are taken in to

I/F with this clock.

WATCH DOG TIMER TERMINAL (WDT)

Watch dog timer prevent unstable wake up (flips between

wake-up and failure). If there is no `CLR' input after any
WAKEnB input before this WDT is expired, this device move
to `SLEEP' mode to prevent wake failure hanging-up
situation.

SEQUENCE SELECT TERMINAL (SEQSEL)

Select judgement Reset channel for wake-up complete

with this input. If this input level is VSTB voltage, this device
judges the wake-up completion with Reset2 (DC/DC2). If it is
Ground, judge with Reset1 (DC/DC1). See

Table 7, on page

CLOCK INPUT TERMINAL (CLKIN)

Clock input terminal for internal switching part. This device

has a oscillator internally, but can be used this input clock for
internal switching frequency. It is selected by Clock select bit.
See

Table 19, on page 26

Analog Integrated Circuit Device Data
Freescale Semiconductor

18730

FUNCTIONAL DEVICE OPERATION

OPERATIONAL MODES

FUNCTIONAL DEVICE OPERATION

OPERATIONAL MODES

START-UP CONTROL INPUT (SYSTEM CONTROL)

The latch is set at the rising edge of any WAKE1B-4B input

pin, and WAKE(int) goes High. WAKE1~4B inputs consist of
OR logic. At this time, the input pin which went Low keeps
latched until CLR goes High. After the latch is reset by CLR,
WAKE(int) goes Low when SLEEP goes High. The latch is
also cleared and WAKE(int) goes Low when SLEEP goes
High before the latch is cleared by CLR. In this case, CLR
keeps negated while RSTO1B, 2B(Ext) is Low. SLEEP keeps
negated while RSTO1B, 2B(Ext) is Low or CLR is High. The
period of time for which CLR and SLEEP are negated can be
set by the SEQSEL pin. Refer to Truth

Table 5, on page 13

for the correspondence between the SEQSEL pin settings
and negation period.

If SLEEP goes High to place the chip into the standby

mode while any of the WAKEB pins is Low, the chip can be
awakened again. This may happen if, when an WAKEB pin
and LSWO are connected, SLEEP goes High earlier than the
period of time (*1) specified by the external component of the
WAKEB pin.

Also, if the period of time after WAKE(int) goes High until

CLR goes High from Low is longer than the time specified by
WDT, internal sleep will start up to place the chip into the
standby mode.

(*1: It is 30 µsec when a capacitor is not connected as the

external component.)

Figure 6. Start-Up Timing Diagram

STANDBY POWER SUPPLY CIRCUIT

Figure 7. Standby Power Supply Circuit Diagram

CLR

WDT

WAKEB

WAKE(Int)

Time specified by WDT

CLR

LVB

Short-circuit VB and LVB, and connect a Schottky
diode between VB and V_STBY only when using
Ni_mh.

When using Li_ion, leave LVB open, and short-
circuit HVB and VB.

RST1B

RST1B(Int)

VO1

LSWO

V_STBY

HVB

Standby

Power
Supply

Control

Analog Integrated Circuit Device Data

Freescale Semiconductor

18730

FUNCTIONAL DEVICE OPERATION

OPERATIONAL MODES

When RSTO1B(int) is Low, output LVB voltage to V_STBY

terminal. When RSTO1B(int) is High, output VO1 voltage to
V_STBY terminal. When CLR is Low, LSWO is open. When
RSTO1B(int) is High and CLR is High, LSWO output voltage
turns GND. When RSTO1B(int) is Low and RSTO1B is High,
discharge the external capacitor which is connected to

V_STBY. When using Ni_mh, short-circuit VB and LVB to
external components and HVB to GND. When using Li_ion,
short-circuit HVB to VB, and leave LVB open. When using
Ni_MH, the VB voltage is output from V_STBY in Standby
mode. When using Li-Ion, 50% of the VB voltage is output to
V_STBY terminal in Standby Mode.

RESET CIRCUIT

Figure 8. Reset Circuit Block Diagram

When the VO1 or VO2 voltage is higher than the reference

value, RSTO1B or 2B goes High. When RSTO1B(int) is Low
and RSTO1B is High, SLEEP(int) is forced to place the chip
into the standby mode.

Connect a capacitor between RST1ADJ and CRST. The

capacitor is not necessary if a resistor of 330K or less is
inserted between RST1ADJ and VC1 for reset adjustment

Connect the capacitor between RST1ADJ and RSTB as

directed below.

When SEQSEL is Low: Between RST1ADJ and CRST1
When SEQSEL is High: Between RST1ADJ and CRST2
Use a capacitor with approximately half of the

capacitance between CRST and GND

Table 8. HVB and LVB Connection

MODE

HVB

LVB

Li_ion

(28)

open

Ni_mh

GND

(28)

Notes

28.

Externally connect to VB.

Table 9. V_STBY and LSWO Operation

INPUT

OUTPUT

WAKE(Int)

RSTO1B(Int)

CLR

V_STBY

LSWO

VO1

Z : High Impedance, X : Don't care

BANDGAP

REFERENCE

(RSTO1B side only)

RST1B, 2B

Reset

Control

CRST1, 2

RST1ADJ

RSTO1B, 2B(Int)

CRST1, 2

VO1

VO1, 2 VG

Analog Integrated Circuit Device Data
Freescale Semiconductor

18730

FUNCTIONAL DEVICE OPERATION

OPERATIONAL MODES

Figure 9. Reset Timing Diagram

POWER SUPPLY VO1, VO2: NI_MH

The VB voltage rises and is output to VI1. When

RSTO2B(int) is High, the power switch turns ON to output the
VO1 voltage to VCC1. Capacitance value which is connected
to VO1 should be higher than the capacitor connected to
VCC1.

The VB voltage rises or falls and is output to VI2. When

RSTO2B(int) is High, the power switch turns ON to output the
VO2IN voltage to VCC2. If you turn DDC2 OFF using the
register, the power switch 2 also turns OFF. Capacitance
value which is connected to VO2IN should be higher than the
capacitor connected to VCC2.

RST1B(Int)

RST1B

SLEEP(Int)

Table 10. Output Voltage of VO1

Address : 0011

(30)

S_Off_VO1

VO1 [V]

(29)

1.613

1.625

1.638

1.663

1.713

1.813

2.013

2.413

2.425

2.438

2.463

2.513

2.613

2.813

3.200

Notes

29.

Operation is not guaranteed when VO1 input voltage is 1.8 V or lower. By connecting a diode between
VI1 and VO1, VI1 can output voltage higher (with the voltage difference Vf) than VO1.

30.

All combinations of input are not included.

Analog Integrated Circuit Device Data

Freescale Semiconductor

18730

FUNCTIONAL DEVICE OPERATION

OPERATIONAL MODES

POWER SUPPLY VO1, VO2: LI-ION

The VB voltage falls and is output to VO1. When using

Li_ion, duty limit due to DTC1 is not applied to the switch.
When RSTO2B(int) is High, the power switch turns ON to
output the VO1 voltage to VCC1. Capacitance value which is
connected to VO1 should be higher than the capacitor
connected to VCC1.

The VB voltage falls using only the internal transistor and

is output to VO2. When using Li_ion, duty limit due to DTC2
is not applied to the switch, and DW_2T and DW_2B are Low.
When RSTO2B(int) is High, the power switch turns ON to
output the VO2IN voltage to VCC2. If you turn DDC2 OFF
using the register, the power switch 2 also turns OFF.
Capacitance value which is connected to VO2IN should be
higher than the capacitor connected to VCC2.

Table 11. Output Voltage of VO2

Address : 0100

(31)

S_Off_VO2

VO2 [V]

0.805

0.811

0.816

0.827

0.849

0.893

0.980

1.155

1.161

1.166

1.177

1.199

1.243

1.330

1.500

Notes

31.

All combinations of input are not included.

Analog Integrated Circuit Device Data
Freescale Semiconductor

18730

FUNCTIONAL DEVICE OPERATION

OPERATIONAL MODES

SERIES PASS POWER SUPPLY

The series pass outputs the SREGI1 voltage to SREGO1,

the SREGI2 voltage to SREGO2, and the SREGI3 voltage to

SREGO3. If you use MOSFET as the external component in
this case, connect the gate to SREG2G.

Table 12. Output Voltage of SREG1

Address : 0101

(31)

Reserved

SREG1 [V]

(32)

0.865

0.880

0.895

0.926

0.986

1.107

1.349

1.833

1.848

1.863

1.893

1.954

2.075

2.317

2.800

Notes

32.

The SREG1 and 3 output voltages are determined by the combination of external resistances connected to
REGC1 and 3 (65.14K between SREGO1 and REGC1, 34.86K between REGC1 and GND, 73.84K
between SREGO3 and REGC3, and 26.16K between REGC3 and GND).

33.

All combinations of input are not included.

Analog Integrated Circuit Device Data

Freescale Semiconductor

18730

FUNCTIONAL DEVICE OPERATION

OPERATIONAL MODES

Table 13. Output Voltage of SREG2

Address : 0110

(31)

SREG2

[V]

0.011

0.022

0.033

0.055

0.098

0.186

0.361

0.711

1.411

1.422

1.433

1.455

1.498

1.586

1.761

2.111

2.800

Notes

34.

All combinations of input are not included.

Table 14. Output Voltage of SREG3

Address : 0111

(31)

CP Off

EXTG

SREG3

[V]

(35)

2.080

2.091

2.102

2.125

2.170

2.260

2.440

2.451

2.462

2.485

2.530

2.620

2.800

Notes

35.

The SREG1 and 3 output voltages are determined by the combination of external resistances
connected to REGC1 and 3 (65.14K between SREGO1 and REGC1, 34.86K between REGC1
and GND, 73.84K between SREGO3 and REGC3, and 26.16K between REGC3 and GND).

36.

All combinations of input are not included.

Analog Integrated Circuit Device Data
Freescale Semiconductor

18730

FUNCTIONAL DEVICE OPERATION

OPERATIONAL MODES

VG GENERATOR

Figure 10. Circuit when using a Step-Up Converter

When WAKE (int) goes High from Low, the start-up circuit

raises the VB voltage and outputs it to VG, then outputs the
VG voltage when RSTO1B (int) goes High. The charge pump
circuit can be used for both Ni_mh and Li_ion by setting the
necessary registers. The charge pump circuit is disabled by
default.

The VG voltage can be set to 6 V to 4.5 V according to the

combination of VGSEL1 and 2 pin connections. Refer to

Table 16, VG Voltage Settings and VGSEL1 and 2 Pin
Connection

on page

for the VG voltage settings.

When using a charge pump, please refer to

Figure 11

Figure 11. Circuit When Using a Charge Pump

Step-Up

Pre Driver

Start Up

PGND3

VG_select

VG_duty

Step-Up

Pre Driver

Start Up

VGH

CPoff

C1L

PGND3

VG_select

VG_duty

Analog Integrated Circuit Device Data
Freescale Semiconductor

18730

FUNCTIONAL DEVICE OPERATION

LOGIC COMMANDS AND REGISTERS

LOGIC COMMANDS AND REGISTERS

REGISTER MAPPINGS

CLR : CLR Control

1 = CLR is high
0 = CLR is low

SLEEP : SLEEP Control

1 = SLEEP is high
0 = SLEEP is low

Reserved : Freescale defined register *1

1 = Forbidden
0 = Required

Reserved : Freescale defined register *1

1 = Forbidden
0 = Required

Reserved : Freescale defined register *1

1 = Forbidden
0 = Required

Reserved : Freescale defined register *1

1 = Forbidden
0 = Required

Reserved : Freescale defined register *1

1 = Forbidden
0 = Required

Reserved : Freescale defined register *1

1 = Forbidden
0 = Required

Note : Do NOT change Reserved Register from default

value.

*1: Data write to this address (1000) is allowed for the

most significant two bits only. The least significant 6 bits are
only used for the factory test. When writing data, always write
0 to these six bits.

PSW1 : VCC1 Power Switch control

1 = Power Switch on
0 = Power Switch off

PSW2 : VCC2 Power Switch control

1 = Power Switch on
0 = Power Switch off

RSTO1B : RSTO1B Mask *1

1 = RSTO1B mask on
0 = RSTO1B mask off

VO2 : DC/DC Converter Channel 2 output Control *2

1 = DDC2 on
0 = DDC2 off

SREG1 : Series Pass Regulator Channel1 output Control

1 = Regulator on
0 = Regulator off

SREG2 : Series Pass Regulator Channel2 output

Control *3
1 = Regulator off
0 = Regulator on

SREG3 : Series Pass Regulator Channel3 output Control

1 = Regulator on
0 = Regulator off

RSTO2B : RSTO2B Mask *1

1 = RSTO2B mask on
0 = RSTO2B mask off

*1: When switching the output voltage of VO1 (2), write 1

to the RSTO1B (2) Mask bit in advance to fix the rest output
to High for preventing erroneous operation.

*2: When turning DDC2 OFF, set the RSTO2B bit to High

to Mask RSTO2B. If you turn DDC2 OFF, the power switch 2
also turns OFF.

Table 17. CLR and SLEEP Control Register

1000

Data1

Data2

Bit

Name

CLR

SLEEP

Reserved

Default

Table 18. Power Mode Register

0001

Data1

Data2

Bit

Name

PSW1

PSW2

RSTO1B

VCC2

SREG1

SREG2

SREG3

RSTO2B

Default

Analog Integrated Circuit Device Data

Freescale Semiconductor

18730

FUNCTIONAL DEVICE OPERATION

LOGIC COMMANDS AND REGISTERS

Ext / Int : Clock Select control 1

1 = External Clock
0 = Internal Clock

2FS : Clock Select control 2

1 = 2FS on
0 = 2FS off

RSTB Sleep : RSTB Sleep Monitor *1

1 = RSTB SLEEP Monitor off
0 = RSTB SLEEP Monitor on

S_Off_VG : VG Top side transistor off

1 = Synchronous Rectification Off
0 = Synchronous Rectification On

VG_Duty[3] : VG Duty Control MSB

1 = VG Duty[3] is high
0 = VG Duty[3] is low

VG_Duty[2] : VG Duty Control Bit 2

1 = VG Duty[2] is high
0 = VG Duty[2] is low

VG_Duty[1] : VG Duty Control Bit1

1 = VG Duty[1] is high
0 = VG Duty[1] is low

VG_Duty[0] : VG Duty Control LSB

1 = VG Duty[0] is high
0 = VG Duty[0] is low

VG is controlled by PFM method. This register can change

the duty by 16 steps.

Refer to

Table 15, VG Duty Settings

on page

for the

correspondence between the VG Duty maximum values and
register settings.

VO1_V[6] : Reference DAC MSB

1 = VO1_V[6] on
0 = VO1_V[6] off

VO1_V[5] : Reference DAC Bit5

1 = VO1_V[5] on
0 = VO1_V[5] off

VO1_V[4] : Reference DAC Bit4

1 = VO1_V[4] on
0 = VO1_V[4] off

VO1_V[3] : Reference DAC Bit3

1 = VO1_V[3] on
0 = VO1_V[3] off

VO1_V[2] : Reference DAC Bit2

1 = VO1_V[2] on
0 = VO1_V[2] off

VO1_V[1] : Reference DAC Bit1

1 = VO1_V[1] on
0 = VO1_V[1] off

VO1_V[0]: Reference DAC LSB

1 = VO1_V[0] on
0 = VO1_V[0] off

S_Off_VO1 : DDC1 Top side (Ni_mh) / Bottom side

(Li_ion) transistor off
1 = Synchronous Rectification Off
0 = Synchronous Rectification On

Refer to

Table 10, Output Voltage of VO1

on page

for

the correspondence between the output voltage and register
settings.

Table 19. Clock Select Register

0010

Data1

Data2

Bit

Name

Ext/Int

Half Freq

RSTB sleep

S_Off_VG

VG_Duty [3] VG_Duty[2]

VG_Duty[1]

VG_Duty[0]

Default

Table 20. VO1 Output Voltage Register

0011

Data1

Data2

Bit

Name

VO1_V[6]

VO1_V[5]

VO1_V[4]

VO1_V[3]

VO1_V[2]

VO1_V[1]

VO1_V[0]

S_Off_VO1

Default

Analog Integrated Circuit Device Data
Freescale Semiconductor

18730

FUNCTIONAL DEVICE OPERATION

LOGIC COMMANDS AND REGISTERS

VO2_V[6] : Reference DAC MSB

1 = VO2_V[6] on
0 = VO2_V[6] off

VO2_V[5] : Reference DAC Bit5

1 = VO2_V[5] on
0 = VO2_V[5] off

VO2_V[4] : Reference DAC Bit4

1 = VO2_V[4] on
0 = VO2_V[4] off

VO2_V[3] : Reference DAC Bit3

1 = VO2_V[3] on
0 = VO2_V[3] off

VO2_V[2] : Reference DAC Bit2

1 = VO2_V[2] on
0 = VO2_V[2] off

VO2_V[1] : Reference DAC Bit1

1 = VO2_V[1] on
0 = VO2_V[1] off

VO2_V[0]: Reference DAC LSB

1 = VO2_V[0] on
0 = VO2_V[0] off

S_Off_VO2 : DDC2 Top side & DW2B (Ni_mh) / Bottom

side (Li_ion) transistor off
1 = Synchronous Rectification Off
0 = Synchronous Rectification On

Refer to

Table 11, Output Voltage of VO2

on page

for

the correspondence between the output voltage and register
settings.

SREG1_V[6] : Reference DAC MSB

1 = SREG1_V[6] on
0 = SREG1_V[6] off

SREG1_V[5] : Reference DAC Bit5

1 = SREG1_V[5] on
0 = SREG1_V[5] off

SREG1_V[4] : Reference DAC Bit4

1 = SREG1_V[4] on
0 = SREG1_V[4] off

SREG1_V[3] : Reference DAC Bit3

1 = SREG1_V[3] on
0 = SREG1_V[3] off

SREG1_V[2] : Reference DAC Bit2

1 = SREG1_V[2] on
0 = SREG1_V[2] off

SREG1_V[1] : Reference DAC Bit1

1 = SREG1_V[1] on
0 = SREG1_V[1] off

SREG1_V[0]: Reference DAC LSB

1 = SREG1_V[0] on
0 = SREG1_V[0] off

Reserved : Blank register bit (Freescale Pre-Defined

Note : Do NOT change Reserved Register from default

value.

Refer to

Table 12, Output Voltage of SREG1

on page

for the correspondence between the output voltage and
register settings.

Table 21. VO2 Output Voltage Register

0100

Data1

Data2

Bit

Name

VO2_V[6]

VO2_V[5]

VO2_V[4]

VO2_V[3]

VO2_V[2]

VO2_V[1]

VO2_V[0]

S_Off_VO2

Default

Table 22. Regulator1 Output Voltage Register

0101

Data1

Data2

Bit

Name

SREG1_V[6]

SREG1_V[5]

SREG1_V[4]

SREG1_V[3]

SREG1_V[2]

SREG1_V[1]

SREG1_V[0]

Reserved

Default

Analog Integrated Circuit Device Data

Freescale Semiconductor

18730

FUNCTIONAL DEVICE OPERATION

LOGIC COMMANDS AND REGISTERS

SREG2_V[7]: Reference DAC MSB

1 = SREG2_V[7] on
0 = SREG2_V[7] off

SREG2_V[6] : Reference DAC Bit6

1 = SREG2_V[6] on
0 = SREG2_V[6] off

SREG2_V[5] : Reference DAC Bit5

1 = SREG2_V[5] on
0 = SREG2_V[5] off

SREG2_V[4] : Reference DAC Bit4

1 = SREG2_V[4] on
0 = SREG2_V[4] off

SREG2_V[3] : Reference DAC Bit3

1 = SREG2_V[3] on
0 = SREG2_V[3] off

SREG2_V[2] : Reference DAC Bit2

1 = SREG2_V[2] on
0 = SREG2_V[2] off

SREG2_V[1] : Reference DAC Bit1

1 = SREG2_V[1] on
0 = SREG2_V[1] off

SREG2_V[0]: Reference DAC LSB

1 = SREG2_V[0] on
0 = SREG2_V[0] off

Refer to

Table 13, Output Voltage of SREG2

on page

for the correspondence between the output voltage and
register settings.

SREG3_V[5] : Reference DAC MSB

1 = SREG3_V[5] on
0 = SREG3_V[5] off

SREG3_V[4] : Reference DAC Bit4

1 = SREG3_V[4] on
0 = SREG3_V[4] off

SREG3_V[3] : Reference DAC Bit3

1 = SREG3_V[3] on
0 = SREG3_V[3] off

SREG3_V[2] : Reference DAC Bit2

1 = SREG3_V[2] on
0 = SREG3_V[2] off

SREG3_V[1] : Reference DAC Bit1

1 = SREG3_V[1] on
0 = SREG3_V[1] off

SREG3_V[0]: Reference DAC LSB

1 = SREG3_V[0] on
0 = SREG3_V[0] off

CP Off : Charge Pump Control

1 = Charge Pump off
0 = Charge Pump on

EXTG On : EXT_G_ON Control *

1 = EXT_G_ON is low (GND level)
0 = EXT_G_ON is high (VG level)

EXTG On Register is assumed to use Pch FET as external

MOSFET.

If Nch FET will be used, Control logic should be inverted.
Refer to

Table 14, Output Voltage of SREG3

on page

for the correspondence between the output voltage and
register settings.

Table 23. Regulator2 Output Voltage Register

0110

Data1

Data2

Bit

Name

SREG2_V[7]

SREG2_V[6]

SREG2_V[5]

SREG2_V[4]

SREG2_V[3]

SREG2_V[2]

SREG2_V[1]

SREG2_V[0]

Default

Table 24. Regulator3 Output Voltage Register

0111

Data1

Data2

Bit

Name

SREG3_V[5]

SREG3_V[4]

SREG3_V[3]

SREG3_V[2]

SREG3_V[1]

SREG3_V[0]

CP Off

EXTG On

Default

Analog Integrated Circuit Device Data
Freescale Semiconductor

18730

TYPICAL APPLICATIONS

LOGIC COMMANDS AND REGISTERS

TYPICAL APPLICATIONS

Figure 12. MPC18730 Typical Application Diagram (Ni-MH Battery)

EXT_G_ON

VREF

INM1

RF1

VREF

DTC1

VO1

PGND1

VI1

VO1

VCC1

SW2

V_STBY

LVB

HVB

INM2

RF2

VREF

DTC2

VO1

CRST2

PGND2

VI2

VO2

VCC2

VO2IN

DATA

STRB

SREGO1

SREGC1

SREGC2

SREGC3

PGND3

SREGI1

WDT

GND

SEQSEL

C1L

SREGO2

SREGO3

SREGI3

CLR

VO1

BANDGAP

VO1

POWER

SWITCH1

LVB

RSTO1B(Int)

RSTO2B(Int)

Driver

REFERENCE

VO1 VG

Step-UpDown

DC/DC

VMODE

RSTO1B(Int)

VREF

POWER

SWITCH2

REF2

RSTO2B(Int)

Step-UpDown

DC/DC

RSTO2B(Int)

CONTROL

VO1 VB

Series Pass

VO1

VREF

Regulator1

Series Pass

REF3

REF4

REF5

SEQSEL

CLKIN

REF1

REF2

REF3

REF4

REF5

REF DAC

VMODE

Series Pass

Regulator3

Regulator2

CPoff

VG_duty

VG_select

VGSEL1
VGSEL2

VO1

DW_2T

DW_2B

SREGI2

CRST1
or
CRST2

SW1

SWG

EXT gate

CLKIN

CLR

SCKIN

WAKE1B

WAKE2B
WAKE3B
WAKE4B

SREGO3

RSTO2B

RST1ADJ

RSTO1B

LSWO

SLEEP

CRST1

Buffer

SREGO1

SREGO2

SREG2G

Control

Logic

Step-Up

DC/DC

Convertor

Converter

RESET

Block 2

VO1

RESET

Block 1

RSTO2B

RSTO1B(Int)

CH1

Converter

CH2

V_STBY

(Int)

Analog Integrated Circuit Device Data

Freescale Semiconductor

18730

TYPICAL APPLICATIONS

LOGIC COMMANDS AND REGISTERS

Figure 13. MPC18730 Typical Application Diagram (Li-Ion Battery)

EXT_G_ON

VREF

INM1

RF1

DTC1

VO1

PGND1

VI1

VO1

VCC1

SW2

V_STBY

LVB

HVB

INM2

RF2

DTC2

VO1

CRST2

PGND2

VI2

VO2

VCC2

VO2IN

DATA

STRB

SREGO1

SREGC1

SREGC2

SREGC3

PGND3

SREGI1

WDT

GND

SEQSEL

C1L

SREGO2

SREGO3

SREGI3

CLR

VO1

BANDGAP

VO1

POWER

SWITCH1

LVB

RSTO1B(Int)

RSTO2B(Int)

Driver

REFERENCE

VO1 VG

Step-UpDown

DC/DC

VMODE

RSTO1B(Int)

VREF

POWER

SWITCH2

REF2

RSTO2B(Int)

Step-UpDown

DC/DC

RSTO2B(Int)

CONTROL

V_STBY

VO1 VB

Series Pass

VO1

VREF

Regulator1

Series

REF3

REF4

REF5

SEQSEL

CLKIN

REF1

REF2

REF3

REF4

REF5

REF DAC

VMODE

Series Pass

Regulator3

Regulator2

CPoff

VG_duty

VG_select

VGSEL1
VGSEL2

VO1

DW_2T

DW_2B

SREGI2

CRST1
or
CRST2

SW1

SWG

EXT gate

CLKIN

CLR

SCKIN

WAKE1B

WAKE2B
WAKE3B
WAKE4B

SREGO3

RSTO2B

RST1ADJ

RSTO1B

LSWO

SLEEP

CRST1

Buffer

SREGO1

SREGO2

SREG2G

Control

Logic

Step-Up

DC/DC

Convertor

Converter

RESET

Block 2

VO1

RESET

Block 1

RSTO2B

RSTO1B(Int)

CH1

Converter

CH2

VGH

Pass

(Int)

MPC18730
Rev 1.0
10/2005

Information in this document is provided solely to enable system and software
implementers to use Freescale Semiconductor products. There are no express or
implied copyright licenses granted hereunder to design or fabricate any integrated
circuits or integrated circuits based on the information in this document.

Freescale Semiconductor reserves the right to make changes without further notice to
any products herein. Freescale Semiconductor makes no warranty, representation or
guarantee regarding the suitability of its products for any particular purpose, nor does
Freescale Semiconductor assume any liability arising out of the application or use of any
product or circuit, and specifically disclaims any and all liability, including without
limitation consequential or incidental damages. "Typical" parameters that may be
provided in Freescale Semiconductor data sheets and/or specifications can and do vary
in different applications and actual performance may vary over time. All operating
parameters, including "Typicals", must be validated for each customer application by
customer's technical experts. Freescale Semiconductor does not convey any license
under its patent rights nor the rights of others. Freescale Semiconductor products are
not designed, intended, or authorized for use as components in systems intended for
surgical implant into the body, or other applications intended to support or sustain life,
or for any other application in which the failure of the Freescale Semiconductor product
could create a situation where personal injury or death may occur. Should Buyer
purchase or use Freescale Semiconductor products for any such unintended or
unauthorized application, Buyer shall indemnify and hold Freescale Semiconductor and
its officers, employees, subsidiaries, affiliates, and distributors harmless against all
claims, costs, damages, and expenses, and reasonable attorney fees arising out of,
directly or indirectly, any claim of personal injury or death associated with such
unintended or unauthorized use, even if such claim alleges that Freescale
Semiconductor was negligent regarding the design or manufacture of the part.

FreescaleTM and the Freescale logo are trademarks of Freescale Semiconductor, Inc.
All other product or service names are the property of their respective owners.
© Freescale Semiconductor, Inc., 2005. All rights reserved.

How to Reach Us:

Home Page:

www.freescale.com

E-mail:

support@freescale.com

USA/Europe or Locations Not Listed:

Freescale Semiconductor

Technical Information Center, CH370

1300 N. Alma School Road

Chandler, Arizona 85224

+1-800-521-6274 or +1-480-768-2130

support@freescale.com

Europe, Middle East, and Africa:

Freescale Halbleiter Deutschland GmbH

Technical Information Center

Schatzbogen 7

81829 Muenchen, Germany

+44 1296 380 456 (English)

+46 8 52200080 (English)

+49 89 92103 559 (German)

+33 1 69 35 48 48 (French)

support@freescale.com

Japan:

Freescale Semiconductor Japan Ltd.

Headquarters

ARCO Tower 15F

1-8-1, Shimo-Meguro, Meguro-ku,

Tokyo 153-0064

Japan

0120 191014 or +81 3 5437 9125

support.japan@freescale.com

Asia/Pacific:

Freescale Semiconductor Hong Kong Ltd.

Technical Information Center

2 Dai King Street

Tai Po Industrial Estate

Tai Po, N.T., Hong Kong

+800 2666 8080

support.asia@freescale.com

For Literature Requests Only:

Freescale Semiconductor Literature Distribution Center

P.O. Box 5405

Denver, Colorado 80217

1-800-441-2447 or 303-675-2140

Fax: 303-675-2150

LDCForFreescaleSemiconductor@hibbertgroup.com

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: 18730

Document Outline

Ð­Ð»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: 18730

Document Outline

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: 18730
