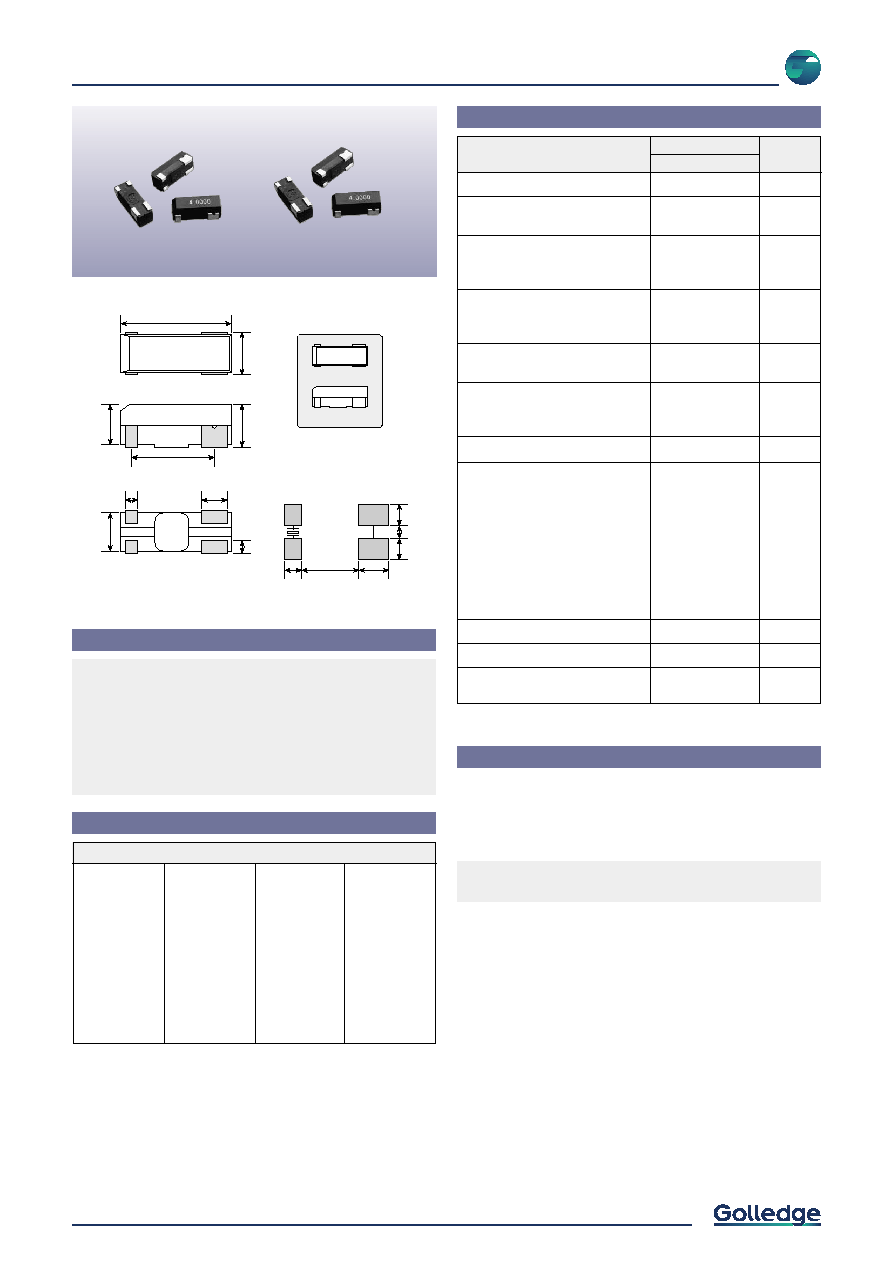

SM Crystal Plastic Encapsulated
86SMX
Tel: +44 1460 256 100
Fax: +44 1460 256 101
E-mail: sales@golledge.com
Web: www.golledge.com
16 Feb 2001
9.40
5.00
(max)
1.60
3.00
1.20
SOLDER PAD LAYOUT
4
3
1
2
2.40
1.60
2.40
2.00
6.70
3.40
TOP VIEW
13.10
(max)
4.40
ACTUAL SIZE
5.00
(max)
4.60
Features
Wide frequency range
Plastic moulded package
AT-strip crystal
Fundamental mode up to 30.0MHz
Standard Frequencies
Product name + option codes (if any) + frequency
+ circuit condition (if non-standard)
eg: 86SMX 16.0MHz
100/100/10/16-F (standard)
86SMX/AB 16.0MHz 30pF
50ppm calibration, 50ppm stability
Option code X (eg 86SMX/X) denotes a custom specification.
Ordering Information
Frequencies in MHz
Option
Codes
86SMX
Product
Parameters
Standard.
Optional - Please specify required code(s) when ordering
Scale 2:1
Specifications
Available on T&R - 1k pcs per reel.
Refer to our website for T&R and soldering details.
Frequency range:
3.5 ~ 90.0MHz
Calibration tolerance:
100ppm
50ppm
A
Temperature stability:
100ppm
50ppm
B
5ppm ~ 50ppm
specify
Operating temperature range:
-10 to +70C
other
specify
Storage temperature range:
-40 to +90C
Circuit condition:
16pF (fund) or SR (3rd OT)
other values
specify
Static capacitance (C
0
):
5pF max
Equivalent series resistance (max):
200
(3.5 ~ 3.9MHz)
150
(4.0 ~ 4.9MHz)
100
(5.0 ~ 5.9MHz)
80
(6.0 ~ 8.9MHz)
60
(9.0 ~ 9.9MHz)
50
(10.0 ~ 12.9MHz)
35
(13.0 ~ 18.9MHz)
25
(19.0 ~ 30.0MHz, fund)
60
(28.0MHz+, 3rd OT)
Ageing:
5ppm max first year
Drive level:
100W max
Soldering conditions:
260C, 10sec max
3.579545
3.686400
4.000000
4.096000
4.433619
4.915200
6.000000
6.144000
6.553600
7.159090
7.372800
7.680000
8.000000
8.192000
9.216000
9.600000
9.830400
10.000000
10.240000
10.245000
11.059200
12.000000
12.288000
13.000000
13.500000
14.318180
14.745600
15.000000
15.360000
16.000000
16.384000
16.588000
17.734475
18.432000
19.200000
19.660800
20.000000
20.945000
22.118400
22.579200
24.000000
24.576000
25.000000
28.322000
29.491200
32.000000
36.000000
40.000000
48.000000
50.000000
66.666000
80.000000
