M O D U L E
Multichannel measurement unit
Peripheral devices for NMOS multichannel detector head
To facilitate multichannel measurement and data analysis, Hamamatsu provides a complete line of NMOS multichannel detector head and
peripheral devices including a data processing unit and interface board for connection to a PC.
C6536, M7089
s Typical connections of NMOS multichannel detector head to peripheral devices
CABLE FOR IMAGE SENSOR
(CONNECTORIZED
AT BOTH ENDS)
A3017
A3017-01
A3017-02
(0.5 m)
(1 m)
(1.5 m)
SIGNAL CABLE
A3020 (1.5 m, 2 CABLES)
(CONNECTORIZED
AT BOTH ENDS)
POWER SUPPLY CABLE
A3018-01 (1.5 m)
OSCILLOSCOPE
DATA PROCESSING UNIT
C6536
A7094-01
A7094
(2.5 m)
(5 m)
INTERFACE BOARD
M7089
IBM-PC COMPATIBLE
COMPUTER
HAMAMATSU
(CONNECTORIZED
AT BOTH ENDS)
C8892
q Data processing unit C6536
C6536 converts video signals from an NMOS linear im-
age sensor into 12-bit digital signals. C6536 is comprised
of a 12-bit A/D converter, memory controller and pulse
generator for image sensor.
The output signal from an image sensor is A/D converted
at high speeds and buffered in the internal memory. By
handshaking the internal controller with an external PC,
the data can be transferred in parallel according to the
PC operating speed.
q Interface board M7089
M7089 is an I/O board specifically designed for interface
with an IBM PC/AT compatible computer. By installing
M7089 into the extension slot of the PC, data can be
easily handled between data processing unit C6536 and
the PC by 12-bit high-speed transfer. This allows analyz-
ing the output of NMOS linear image sensors on the PC
and also controlling the NMOS linear image sensor inte-
gration time from the PC.
KACCC0055E
C
q Cables
Dedicated cables needed to make connections between
the NMOS multichannel detector head and peripheral units
are available.
1
Multichannel measurement unit

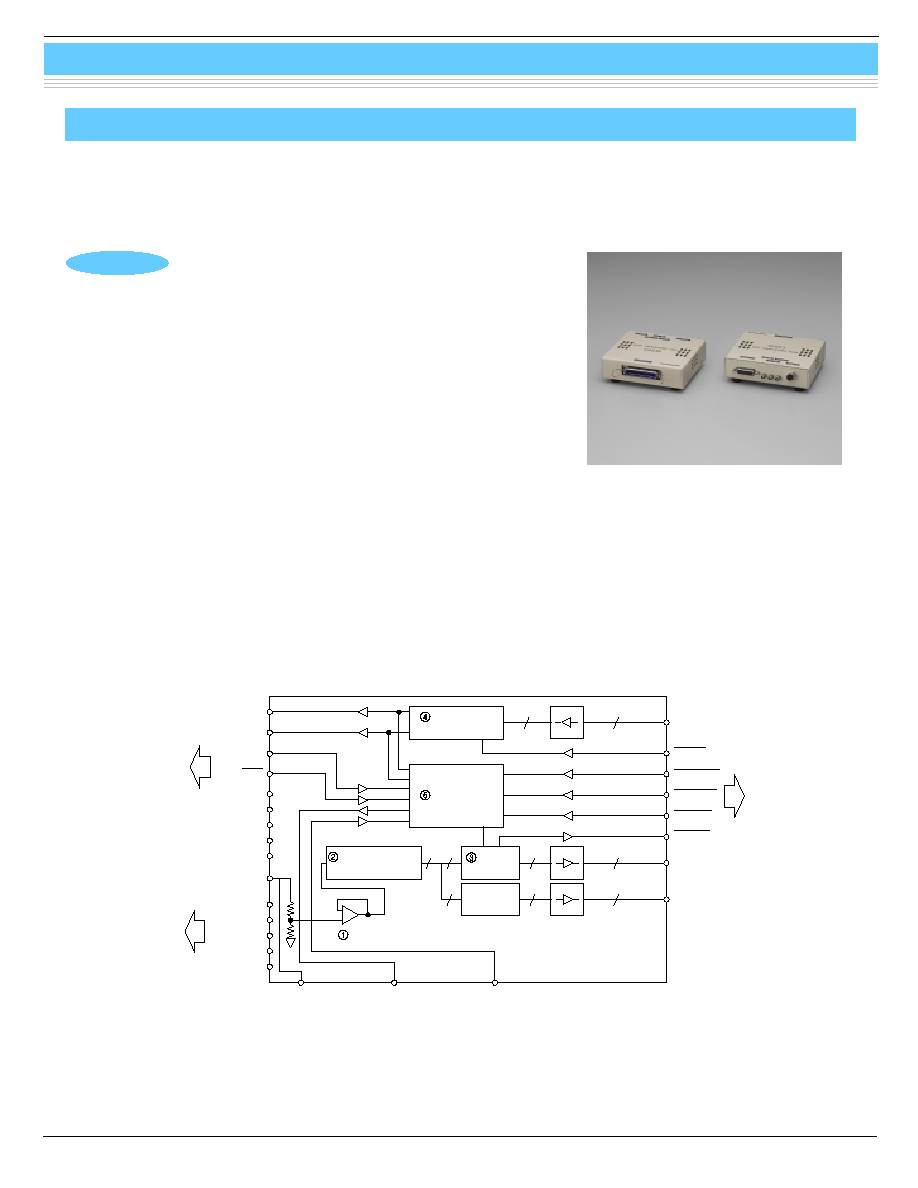

C6536 is a data processing unit designed specifically for Hamamatsu image sensor driver circuits and multichannel detector heads. C6536 is
capable of high-speed signal readout and data processing with high resolution so that the fullest performance and characteristics can be obtained
from various types of image sensors. Even in high-speed measurements at low light levels, C6536 delivers satisfactory performance. The unit is
compact yet has shielding effects against external noise. C6536 is also designed for easy operation and data control.
C6536 consists of a buffer amplifier, 12-bit A/D converter, memory, controller and pulse generator. The A/D converted data is temporarily stored
in the buffer memory and then transferred in parallel to an external PC by handshaking the internal controller with the PC.
Data processing unit
C6536
Features
l High resolution: 12 bits
l High-speed data conversion: 1 MHz Max.
l Lower power consumption
l Built-in buffer memory
l Compact size
START
CLK
Trigger
+5 V (OUT)
+15 V (OUT)
-15 V (OUT)
+5 V (IN)
+15 V (IN)
-15 V (IN)
DT8 TO DT11
DT0 TO DT7
MONITOR
OSC. TRIG
EXT. TRIG
D. GND
A. GND
D. GND
A. GND
DATA VIDEO
8
8
8
8
8
12
4
4
4
BUFFER AMPLIFIER
PULSE
GENERATOR
CONTROLLER
FIFO
MEMORY
FIFO
MEMORY
12-BIT
SAMPLING ADC
EOS
DTRDY
RDCMD
RDCTRL
P-RESET
WRPG
DP0 TO DP7
MULTICHANNEL
DETECTOR HEAD
POWER SUPPLY
INTERFACE
BOARD
-
+
s Configuration
C6536 consists of the following parts.
Buffer amplifier
Sampling ADC
Buffer memory (FIFO)
Pulse generator
Controller
KACCC0142EA
s Block diagram
2
Multichannel measurement unit
s
s
s
s
s Dimensional outline (unit: mm)
s Specifications
Parameter
Value
Scan rate
1 MHz Max.
Data output
12 bits
Data accuracy
11 bits
Buffer memory
1024 words
Output code
Straight binary
+15 V
50 mA Max.
-15 V
30 mA Max.
Input power supply
+5 V
200 mA Max.
Data input range
0 to 10 V
Dimensions
121 (W) 107 (H) 40 (D) mm
Weight
300 g approx.
96.6
107
32
40
121
KACCA0100EA
3
Multichannel measurement unit

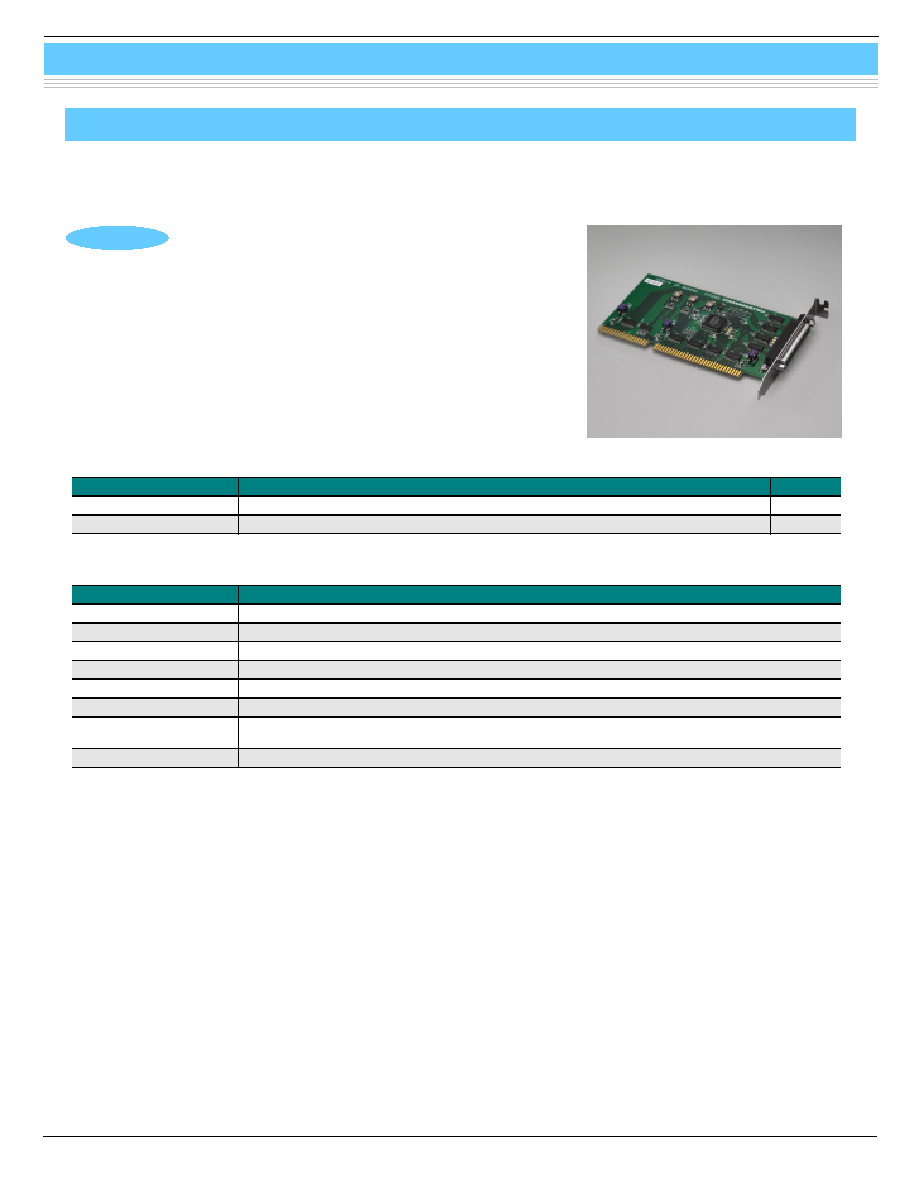

M7089 is an interface board specifically designed for connection to the ISA bus in an IBM PC/AT compatible computer, in order to input or output
the control signals and data signals between the PC and C6536 data processing unit. By handshaking the PC with the internal controller of the
data processing unit, 12-bit (or 16-bit) data signals can be transferred in parallel between them.
The I/O address can be set from 0000H to 0FFFH (factory preset: 0300H) in 4 byte steps by using the DIP switch on the board.
Interface board
M7089
Features
l Works with various IBM-PC compatible computer (ISA bus)
s Absolute maximum ratings
Parameter
Value
Unit
Operating temperature
0 to 50 *
1
C
Storage temperature
-20 to 70 *
1
C
*1: No condensation.
s Specifications
Parameter
Specification
Data bus size
16 bits
I/O address
Top address setting by rotary switch (factory preset: 0300H) *
2
Power supply
+5 V 5 %
Input specifications
TTL level input
Output specifications
TTL driver output
Signal extension distance
5 m approx. (depending on wiring conditions)
Use connector
D-sub 37 pin
XM3B-3722-501F equivalent (made by OMRON, socket type)
Weight
100 g approx.
*2: Do not set in the range between 0000H and 0100H.
