HD66764
176-channel Common Driver for Color Displays
Rev.1.0
September, 2001
Description
The HD66764 is a common-driver LSI for systems with color-liquid-crystal dot-matrix graphic
displays. It incorporates 176 LCD drive circuits and power-supply circuits. An external capacitor is
also needed for the liquid crystal display.
This LSI, when used with the HD66763 384-channel segment driver with on-chip RAM, is suitable for
color displays of cellular phones to a maximum of 128-by-176 dots.
Features
LCD drive circuits
176 outputs
Internal power-supply circuit
Step-up circuit: twice to 12 times, positive-polarity inversion
Bias setting: 1/2 to 1/13, programmable
Contrast adjustment: 128-level programmable volume
Dividing resistors: built-in (controls the bias)
Setting: serial transfer from the HD66763 segment driver
Low power consumption
Power-supply voltage
Vcc = 1.8 to 3.6 V
LCD drive voltage
VLCD-VEE = 10 to 4
4 V (VM standard:
5 to
2 2
V)
Package
TCP and chip
HD66764
3

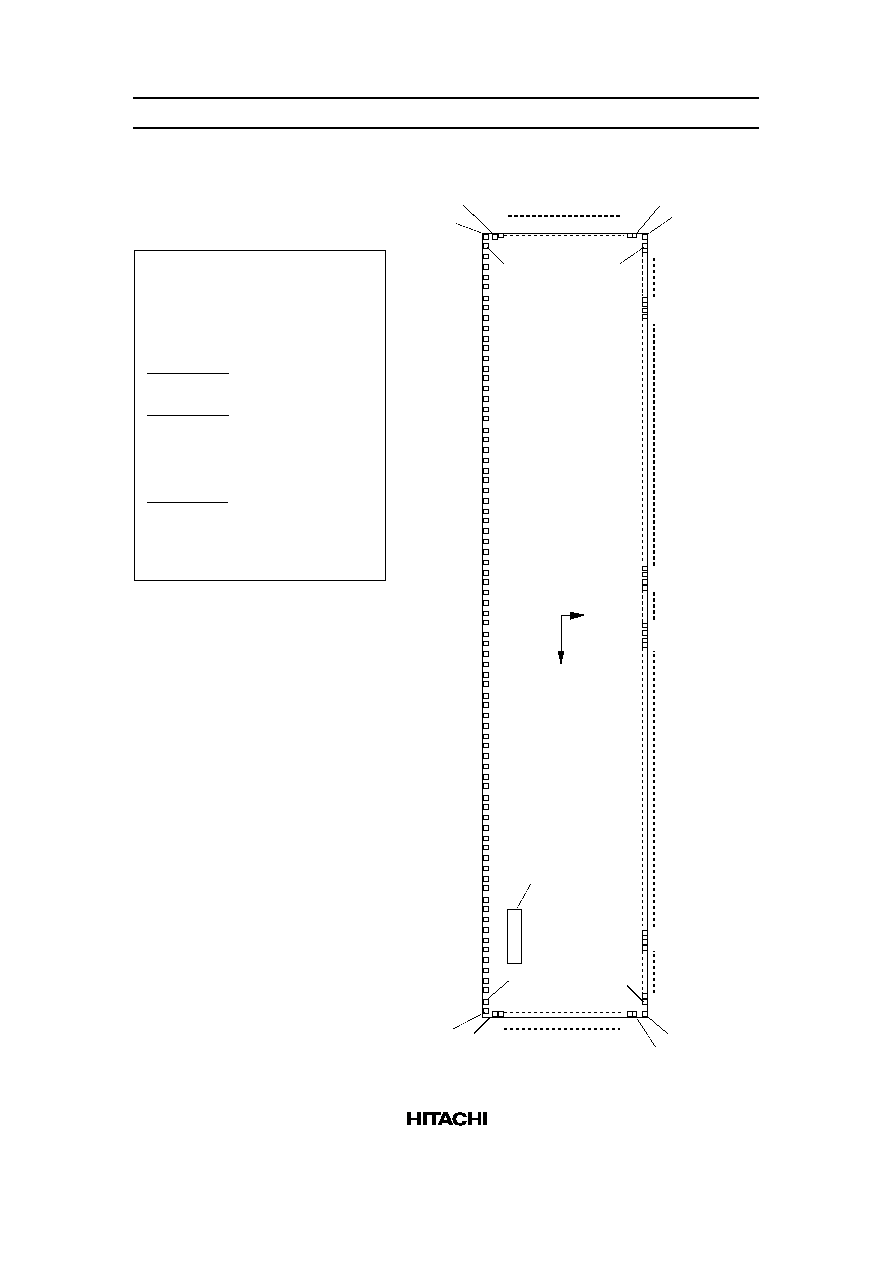

HD66764 PAD arrangement
HD66764
Y
X
DUMMY101
COM1
DYMMY1
DUMMY54
DUMMY61
- Chip size : 10.2mm x 3.3mm
- Chip thickness : 550um (typ.)
- PAD coordinates : PAD center
- Coordinate origin : chip center
- Au bump size (PAD number is shown in the
bracket) :
(1) 80um x 80um
DUMMY1(1) to DUMMY13(77)
DUMMY54(118), DUMMY61(301)
(2) 45um x 80um
COM1(300) to COM16(285)
COM161(134)to COM176(119)
DUMMY14(78) to DUMMY53(117)
DUMMY62(302) to DUMMY101(341)
(
3)35um x 80um
COM17(284) to COM88(213)
DUMMY55(207) to DUMMY60(212)
COM89(206) to COM160(135)
- Au bump height : 15um (typ.)
COM2
COM16
COM15
COM18
COM17
COM161
COM162
COM176
COM175
DUMMY14
DUMMY15
DUMMY52 DUMMY53
COM160
COM159
COM89
COM90
COM88
COM87
DUMMY55
DUMMY56
DUMMY59
DUMMY60
DUMMY2
DUMMY3
DUMMY4
DUMMY5
RESET
DUMMY100
DUMMY63
DUMMY62
CDA
CCL
CCS
DISPTMG
M
FLM
CL1
DCCLK
VSH
VSH
Vcc
Vcc
Vcc
GND
GND
GMD
VM
VM
VM
VCH
VCH
VCH
VLREF
VREG2
VREGH
VEE
VEE
VEE
VCL
VCL
VCL
DUMMY6
CE-
CE+
DUMMY7
DUMMY8
VLCD
VLCD
VLCD
VLOUT2
VLOUT2
C23-
C23+
C22-
C22+
C21-
C21+
VCI2
VCI2
VCI2
VLOUT1
VLOUT1
C12-
C12+
C11-
C11+
VCI1
VCI1
VCIOUT
VCIOUT
VCIOUT
VREG1
VREGL
TEST3
TEST2
RESET
DUMMY9
DUMMY10
DUMMY11
DUMMY12
DUMMY13
No.1
No.2
No.301
No.341
No302
No.118
No.117
No.119
No.76
HD66764
Type code
No.300
No. 78
No. 77
