64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY
ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN
INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS
ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES
RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER
INTELLECTUAL PROPERTY RIGHT. Intel products are not intended for use in medical, life saving, or life sustaining applications.

Intel may make changes to specifications and product descriptions at any time, without notice.

Designers must not rely on the absence or characteristics of any features or instructions marked "reserved" or "undefined." Intel reserves these for
future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them.

The 64-Bit Intel

XeonTM processor MP with up to 8MB L3 cache

may contain design defects or errors known as errata which may cause the product

to deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.

C is a two-wire communications bus/protocol developed by Philips. SMBus is a subset of the I

C bus/protocol and was developed by Intel.

Implementations of the I

C bus/protocol may require licenses from various entities, including Philips Electronics N.V. and North American Philips

Corporation.

Intel, Pentium, Intel Xeon, Intel NetBurst, Intel SpeedStep and the Intel logo are trademarks or registered trademarks of Intel Corporation or its
subsidiaries in the United States and other countries.

*Other names and brands may be claimed as the property of others.

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Contents

Introduction.......................................................................................................................11
1.1

Terminology.........................................................................................................12

1.2

References ..........................................................................................................14

1.3

State of Data .......................................................................................................15

Electrical Specifications....................................................................................................17
2.1

Front Side Bus and GTLREF ..............................................................................17
2.1.1

Front Side Bus Clock and Processor Clocking.......................................18

2.1.2

Front Side Bus Clock Select (BSEL[1:0]) ...............................................19

2.1.3

Phase Lock Loop (PLL) Power and Filter...............................................19

2.2

Voltage Identification (VID)..................................................................................20

2.3

Cache Voltage Identification (CVID)....................................................................23

2.4

Reserved, Unused, and TESTHI Pins.................................................................24

2.5

Mixing Processors ...............................................................................................24

2.6

Front Side Bus Signal Groups.............................................................................25

2.7

GTL+ Asynchronous and AGTL+ Asynchronous Signals ...................................27

2.8

Test Access Port (TAP) Connection....................................................................27

2.9

Maximum Ratings................................................................................................27

2.10

Processor DC Specifications...............................................................................28
2.10.1 Flexible Motherboard (FMB) Guidelines.................................................28
2.10.2 VCC and VCACHE Overshoot Specification..........................................32
2.10.3 Die Voltage Validation ............................................................................33

2.11

AGTL+ Front Side Bus Specifications.................................................................37

2.12

Front Side Bus AC Specifications .......................................................................37

2.13

Processor AC Timing Waveforms .......................................................................42

Front Side Bus Signal Quality Specifications ...................................................................53
3.1

Front Side Bus Signal Quality Specifications and Measurement Guidelines ......53
3.1.1

Ringback Guidelines ..............................................................................53

3.1.2

Overshoot/Undershoot Guidelines .........................................................56

3.1.3

Overshoot/Undershoot Magnitude .........................................................56

3.1.4

Overshoot/Undershoot Pulse Duration...................................................57

3.1.5

Activity Factor.........................................................................................57

3.1.6

Reading Overshoot/Undershoot Specification Tables............................57

3.1.7

Determining if a System Meets Over/Undershoot Specifications...........58

Mechanical Specifications ................................................................................................61
4.1

Package Mechanical Drawing .............................................................................62

4.2

Processor Component Keep-Out Zones .............................................................65

4.3

Package Loading Specifications .........................................................................65

4.4

Package Handling Guidelines .............................................................................66

4.5

Package Insertion Specifications ........................................................................66

4.6

Processor Mass Specifications ...........................................................................66

4.7

Processor Materials.............................................................................................66

4.8

Processor Markings.............................................................................................67

4.9

Processor Pin-Out Coordinates...........................................................................68

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Pin Listing......................................................................................................................... 69
5.1

Processor Pin Assignments ................................................................................ 69
5.1.1

Pin Listing by Pin Name ......................................................................... 69

5.1.2

Pin Listing by Pin Number ...................................................................... 78

Signal Definitions ............................................................................................................. 87
6.1

Signal Definitions ................................................................................................ 87

Thermal Specifications..................................................................................................... 97
7.1

Package Thermal Specifications......................................................................... 97
7.1.1

Thermal Specifications........................................................................... 97

7.1.2

Thermal Metrology ............................................................................... 100

7.2

Processor Thermal Features............................................................................. 100
7.2.1

Thermal Monitor ................................................................................... 100

7.2.2

Thermal Monitor 2 ................................................................................ 101

7.2.3

On-Demand Mode................................................................................ 102

7.2.4

PROCHOT# Signal Pin ........................................................................ 103

7.2.5

FORCEPR# Signal Pin ........................................................................ 103

7.2.6

THERMTRIP# Signal Pin ..................................................................... 103

7.2.7

TCONTROL and Fan Speed Reduction............................................... 103

7.2.8

Thermal Diode...................................................................................... 104

Features ......................................................................................................................... 105
8.1

Power-On Configuration Options ...................................................................... 105

8.2

Clock Control and Low Power States................................................................ 105
8.2.1

Normal State ........................................................................................ 106

8.2.2

HALT or Enhanced Power Down State ................................................ 106

8.2.3

Stop-Grant State .................................................................................. 107

8.2.4

Enhanced HALT Snoop State or HALT Snoop State,

Stop Grant Snoop State ....................................................................... 108

8.3

Enhanced Intel SpeedStep

Technology.......................................................... 108

8.4

System Management Bus (SMBus) Interface ................................................... 109
8.4.1

Processor Information ROM (PIROM).................................................. 110

8.4.2

Scratch EEPROM ................................................................................ 112

8.4.3

PIROM and Scratch EEPROM Supported SMBus Transactions ......... 113

8.4.4

SMBus Thermal Sensor ....................................................................... 113

8.4.5

Thermal Sensor Supported SMBus Transactions ................................ 114

8.4.6

SMBus Thermal Sensor Registers ....................................................... 115

8.4.7

SMBus Thermal Sensor Alert Interrupt ................................................ 118

8.4.8

SMBus Device Addressing................................................................... 118

8.4.9

Managing Data in the PIROM .............................................................. 120

Boxed Processor Specifications..................................................................................... 127
9.1

Introduction ....................................................................................................... 127

9.2

Mechanical Specifications................................................................................. 128
9.2.1

Boxed Processor Heatsink Dimensions ............................................... 128

9.2.2

Boxed Processor Heatsink Weight....................................................... 135

9.2.3

Boxed Processor Retention Mechanism and Heatsink Supports......... 135

9.3

Thermal Specifications...................................................................................... 135
9.3.1

Boxed Processor Cooling Requirements ............................................. 135

9.3.2

Boxed Processor Contents .................................................................. 136

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Debug Tools Specifications............................................................................................137
10.1

Logic Analyzer Interface (LAI) ...........................................................................137
10.1.1 Mechanical Considerations ..................................................................137
10.1.2 Electrical Considerations......................................................................137

Figures

2-1

On-Die Front Side Bus Termination ....................................................................17

2-2

Phase Lock Loop (PLL) Filter Requirements ......................................................20

2-3

Processor Load Current vs. Time........................................................................30

2-4

VCC Static and Transient Tolerance...................................................................32

2-5

VCC and VCACHE Overshoot Example Waveform............................................33

2-6

Electrical Test Circuit...........................................................................................42

2-7

TCK Clock Waveform..........................................................................................43

2-8

Differential Clock Waveform................................................................................43

2-9

Differential Clock Crosspoint Specification..........................................................44

2-10

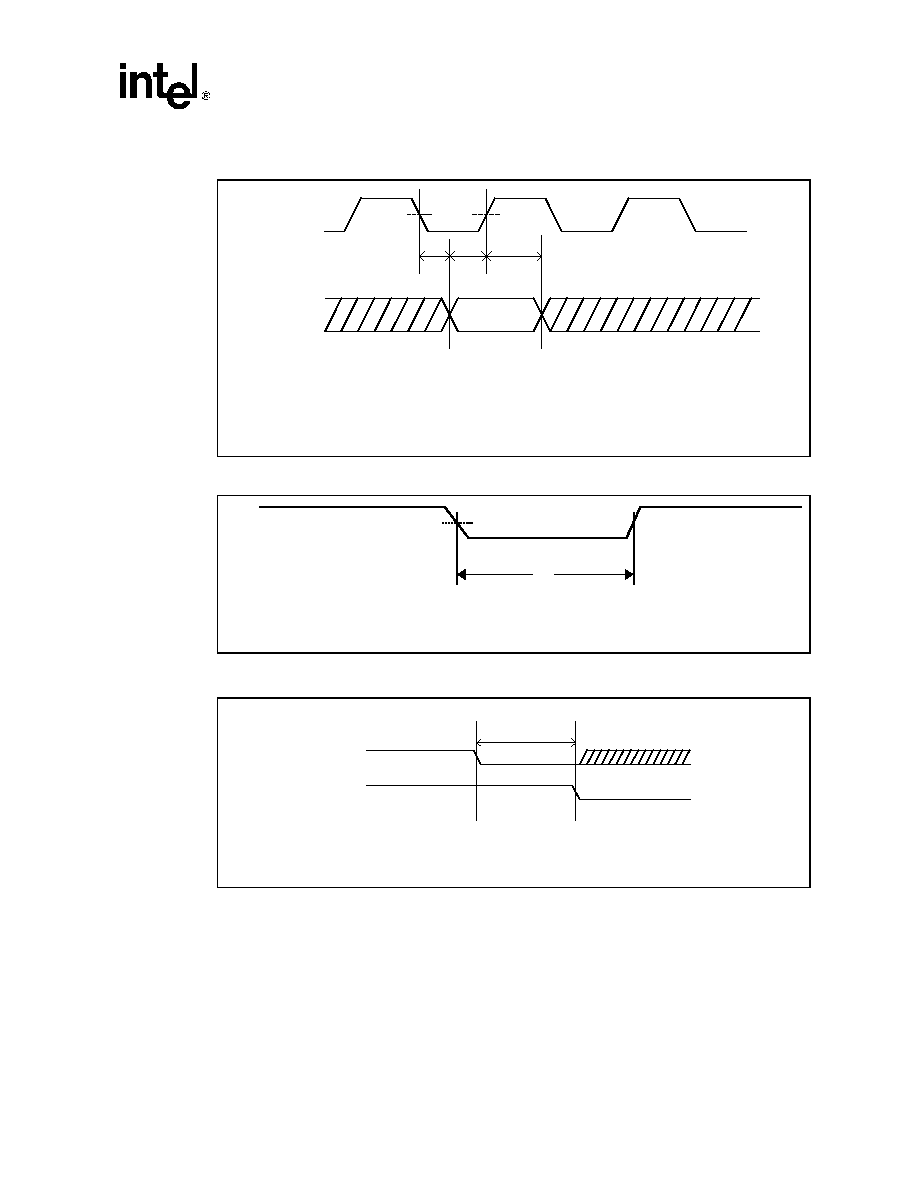

Front Side Bus Common Clock Valid Delay Timing Waveform...........................44

2-11

Source Synchronous 2X (Address) Timing Waveform........................................45

2-12

Source Synchronous 4X (Data) Timing Waveform .............................................46

2-13

TAP Valid Delay Timing Waveform .....................................................................47

2-14

Test Reset (TRST#), Async GTL+ Input, and PROCHOT# Timing Waveform ...47

2-15

THERMTRIP# Power Down Sequence...............................................................47

2-16

SMBus Timing Waveform....................................................................................48

2-17

SMBus Valid Delay Timing Waveform ................................................................48

2-18

Voltage Sequence Timing Requirements............................................................49

2-19

VIDPWRGD Timing Requirements .....................................................................50

2-20

FERR#/PBE# Valid Delay Timing .......................................................................50

2-21

VID Step Timings ................................................................................................51

2-22

VID Step Times and VCC Waveforms ................................................................51

3-1

Low-to-High Front Side Bus Receiver Ringback Tolerance ................................54

3-2

High-to-Low Front Side Bus Receiver Ringback Tolerance ................................54

3-3

Low-to-High Receiver Ringback Tolerance for PWRGOOD and TAP Signals ...55

3-4

High-to-Low Receiver Ringback Tolerance for PWRGOOD and TAP Signals ...56

3-5

Maximum Acceptable Overshoot/Undershoot Waveform ...................................60

4-1

Processor Package Assembly Sketch.................................................................61

4-2

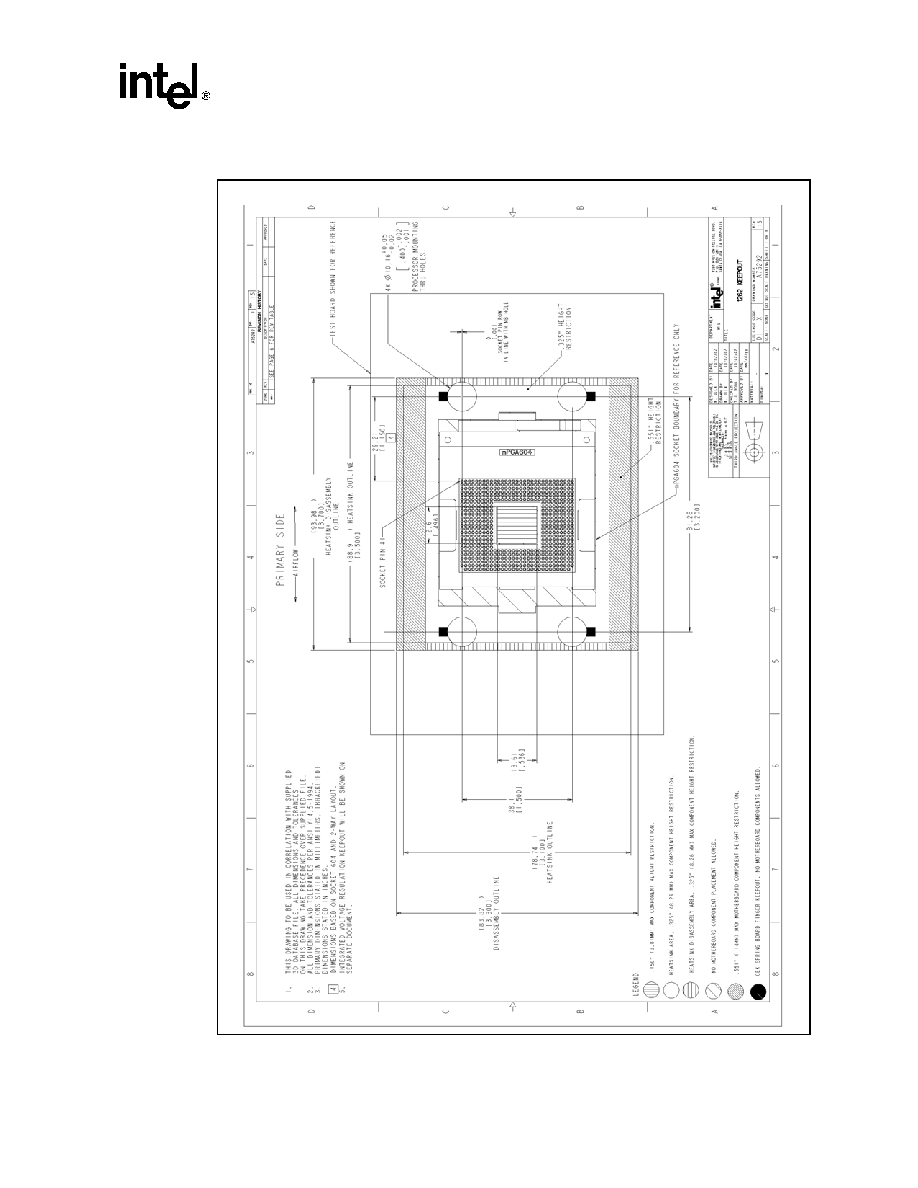

Processor Package Drawing (Sheet 1 of 2) ........................................................63

4-3

Processor Package Drawing (Sheet 2 of 2) ........................................................64

4-4

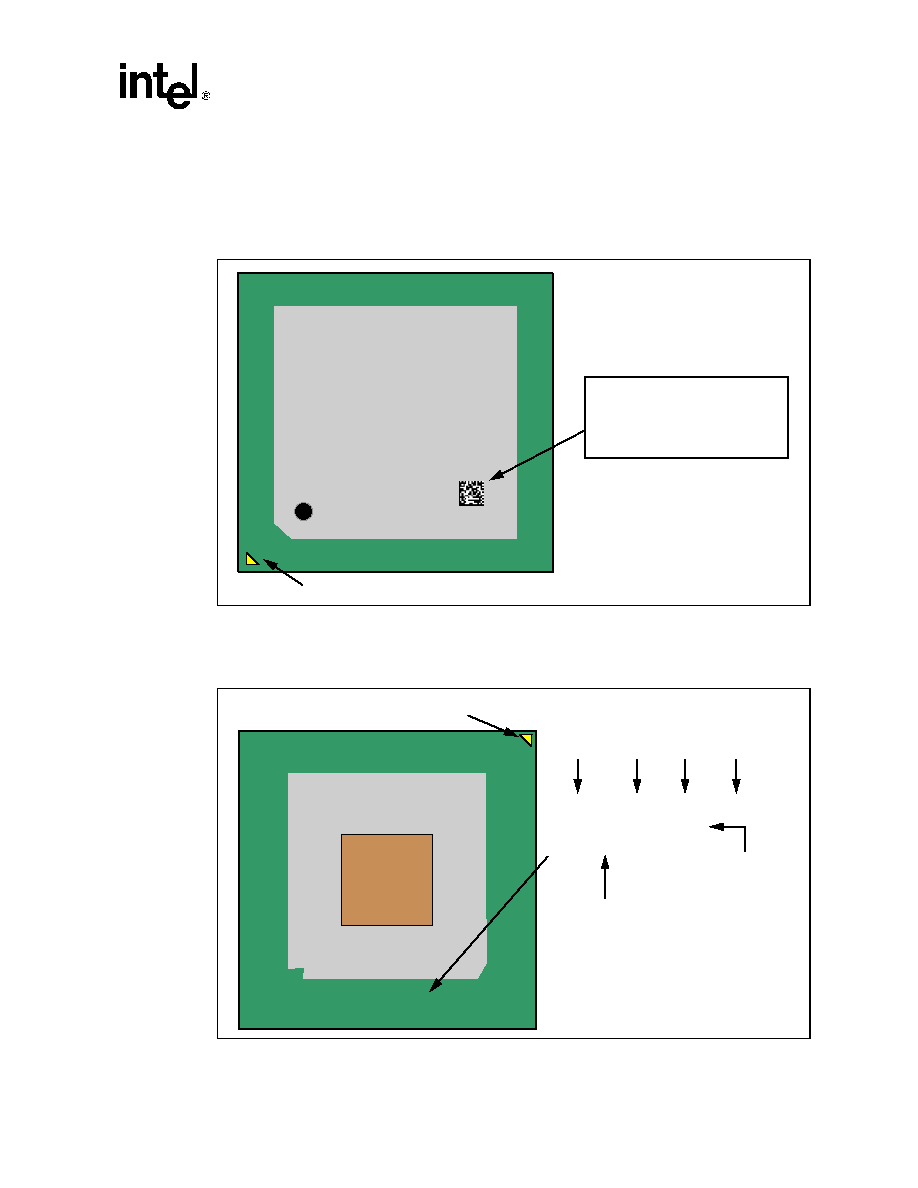

Processor Topside Markings...............................................................................67

4-5

Processor Bottom-Side Markings........................................................................67

4-6

Processor Pin-Out Coordinates, Top View..........................................................68

7-1

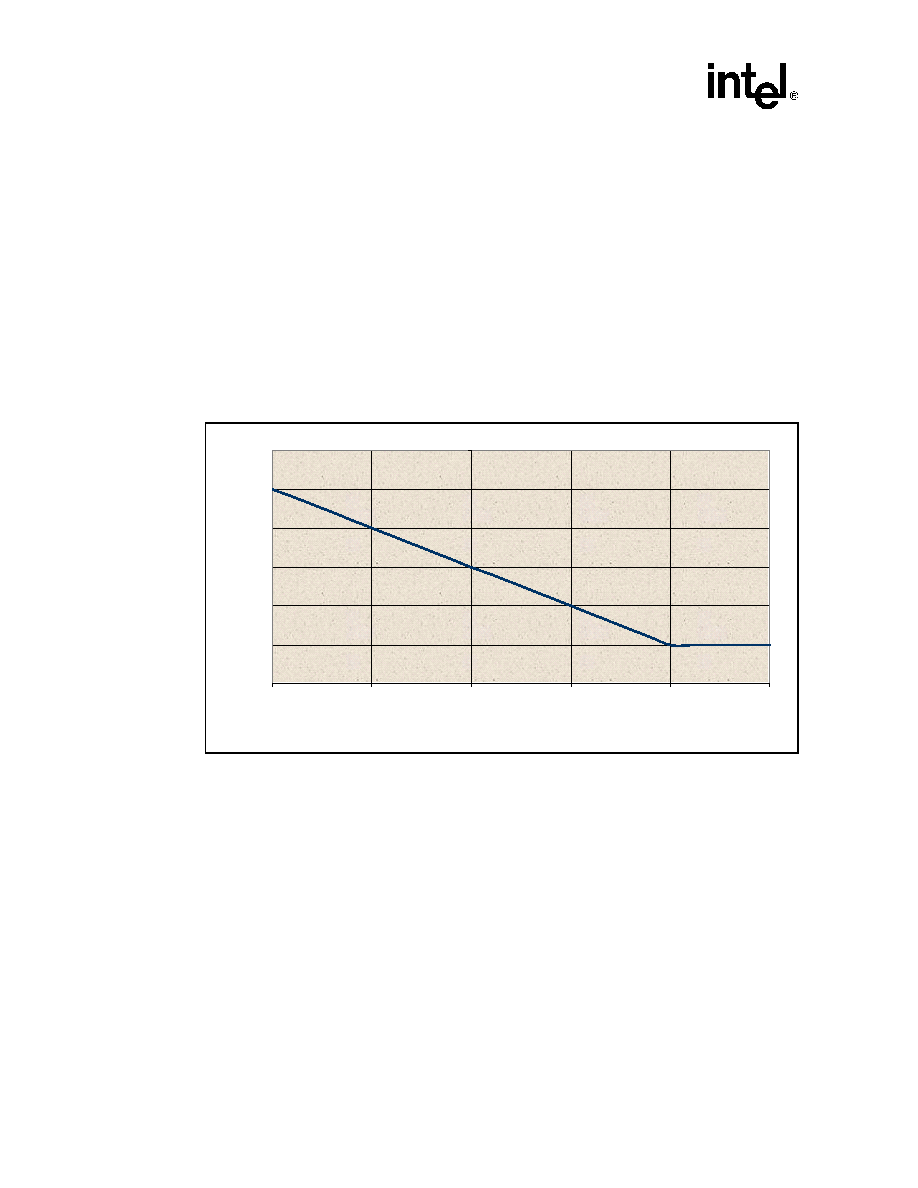

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Thermal Profile ..99

7-2

Case Temperature (TCASE) Measurement Location .......................................100

7-3

Thermal Monitor 2 Frequency and Voltage Ordering ........................................102

8-1

Stop Clock State Machine .................................................................................107

8-2

Logical Schematic of SMBus Circuitry ..............................................................110

9-1

Passive Processor Thermal Solution (3U and larger) .......................................128

9-2

Top Side Board Keep-Out Zones (Part 1) .........................................................129

9-3

Top Side Board Keep-Out Zones (Part 2) .........................................................130

9-4

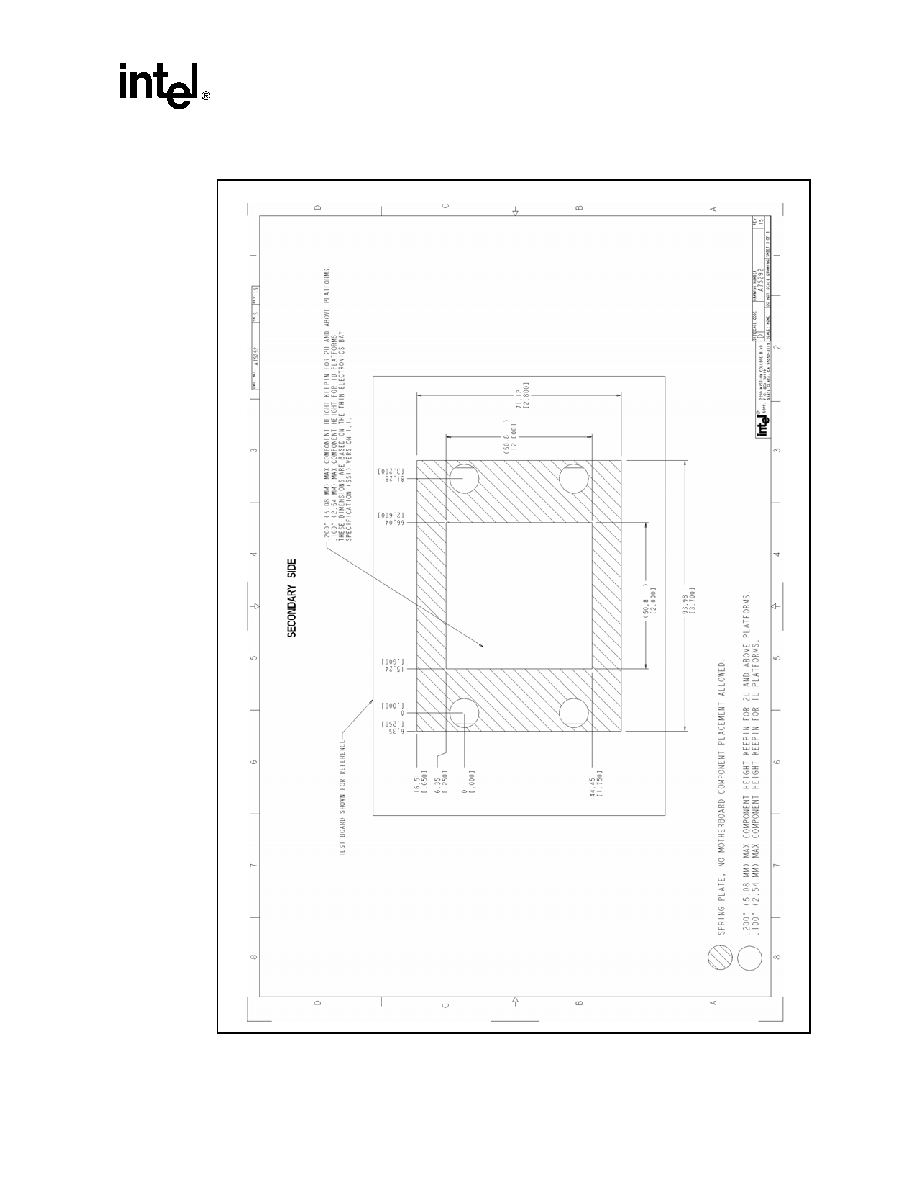

Bottom Side Board Keep-Out Zones.................................................................131

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

9-5

Board Mounting-Hole Keep-Out Zones............................................................. 132

9-6

Thermal Solution Volumetric ............................................................................. 133

9-7

Recommended Processor Layout and Pitch..................................................... 134

Tables

1-1

Features of the 64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache .. 12

2-1

Core Frequency to Front Side Bus Multiplier Configuration................................ 18

2-2

BSEL[1:0] Frequency Table for BCLK[1:0] ......................................................... 19

2-3

Voltage Identification (VID) Definition ................................................................. 22

2-4

Cache Voltage Identification (CVID) Definition ................................................... 23

2-5

Front Side Bus Pin Groups ................................................................................. 25

2-6

Signal Description Table ..................................................................................... 26

2-7

Signal Reference Voltages.................................................................................. 26

2-8

Processor Absolute Maximum Ratings ............................................................... 28

2-9

Voltage and Current Specifications..................................................................... 29

2-10

VCC Static and Transient Tolerance................................................................... 31

2-11

VCC and VCACHE Overshoot Specification....................................................... 32

2-12

Front Side Bus Differential BCLK Specifications................................................. 33

2-13

BSEL[1:0], VID[5:0], and CVID[3:0] DC Specifications ....................................... 34

2-14

VIDPWRGD DC Specifications ........................................................................... 34

2-15

AGTL+ Signal Group DC Specifications ............................................................. 35

2-16

PWRGOOD and TAP Signal Group DC Specifications ...................................... 35

2-17

GTL+ and AGTL+ Asynchronous Signal Group DC Specifications .................... 36

2-18

SMBus Signal Group DC Specifications ............................................................. 36

2-19

AGTL+ Bus Voltage Definitions........................................................................... 37

2-20

Front Side Bus Differential Clock Specifications ................................................. 38

2-21

Front Side Bus Common Clock AC Specifications.............................................. 38

2-22

Front Side Bus Source Synchronous AC Specifications..................................... 38

2-23

Miscellaneous Signals AC Specifications ........................................................... 39

2-24

Front Side Bus AC Specifications (Reset Conditions) ........................................ 40

2-25

TAP Signal Group AC Specifications .................................................................. 40

2-26

VIDPWRGD and Other Voltage Sequence AC Specifications............................ 41

2-27

VID Signal Group AC Timing Specifications ....................................................... 41

2-28

SMBus Signal Group AC Specifications ............................................................. 41

3-1

Ringback Specifications for AGTL+ and GTL+ Asynchronous Signal Groups.... 54

3-2

Ringback Specifications for PWRGOOD and TAP Signal Groups...................... 55

3-3

Source Synchronous (667MHz) AGTL+ Signals Over/Undershoot Tolerance ... 59

3-4

Source Synchronous (333 MHz) AGTL+ Signals Over/Undershoot Tolerance .. 59

3-5

Common Clock (166 MHz) AGTL+ Signals Overshoot/Undershoot Tolerance .. 59

3-6

GTL+ Asynchronous, PWRGOOD, TAP Signals Over/Undershoot Tolerance... 60

4-1

Processor Loading Specifications ....................................................................... 65

4-2

Package Handling Guidelines ............................................................................. 66

4-3

Processor Materials ............................................................................................ 66

5-1

Pin Listing by Pin Name ...................................................................................... 69

5-2

Pin Listing by Pin Number................................................................................... 78

6-1

Signal Definitions ................................................................................................ 87

7-1

Processor Thermal Specifications....................................................................... 98

7-2

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Thermal Profile .. 99

8-1

Power-On Configuration Option Pins ................................................................ 105

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

8-2

Processor Information ROM Format .................................................................110

8-3

Read Byte SMBus Packet .................................................................................113

8-4

Write Byte SMBus Packet .................................................................................113

8-5

Write Byte SMBus Packet .................................................................................114

8-6

Read Byte SMBus Packet .................................................................................114

8-7

Send Byte SMBus Packet .................................................................................114

8-8

Receive Byte SMBus Packet.............................................................................114

8-9

ARA SMBus Packet ..........................................................................................114

8-10

SMBus Thermal Sensor Command Byte Bit Assignments................................115

8-11

Thermal Value Register Encoding.....................................................................116

8-12

SMBus Thermal Sensor Status Register...........................................................117

8-13

SMBus Thermal Sensor Configuration Register ...............................................117

8-14

SMBus Thermal Sensor Conversion Rate Registers ........................................118

8-15

Thermal Sensor SMBus Addressing .................................................................119

8-16

Memory Device SMBus Addressing..................................................................119

8-17

Offset 78h Definitions ........................................................................................124

8-18

128 Byte ROM Checksum Values.....................................................................125

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Product Features

The 64-bit Intel

XeonTM processor MP with up to 8MB L3 cache is designed for high-performance multi-

processor server applications for mid-tier enterprise serving and server consolidation. Based on the Intel NetBurst

microarchitecture and the new Hyper-Threading Technology, it is binary compatible with previous Intel
Architecture (IA-32) processors. The addition of Intel

EM64T provides 64-bit computing and 40-bit addressing

provides up to 1 Terabyte of direct memory addressability. The 64-bit Intel

XeonTM processor MP with 4MB L3

cache is scalable to four processors and beyond in a multiprocessor system providing exceptional performance for
applications running on advanced operating systems such as Microsoft Windows* 2003 Server, and Linux*

operating systems. The 64-bit Intel

XeonTM processor MP with 8MB L3 cache delivers compute power at

unparalleled value and flexibility for internet infrastructure and departmental server applications, including
application servers, databases, and business intelligence. The Intel NetBurst microarchitecture with

Hyper-Threading technology and Intel EM64T deliver outstanding performance and headroom for peak internet

server workloads, resulting in faster response times, support for more users, and improved scalability.

64-bit Processor with Intel

Extended Memory

64 Technology

Available at 2.66, 2.83, 3.00, 3.16, 3.33, and

3.66 GHz
Multi-processing (4 sockets and above) server

support
Binary compatible with applications running on

previous members of the Intel

IA-32

microprocessor line
Intel NetBurst

microarchitecture

Hyper-Threading Technology

-- Hardware support for multi-threaded applications

667 MHz System bus with data-bus Error Correcting

Code (ECC)

-- Dual independent bus architecture supports two

processors per bus segment

-- Bandwidth up to 5.33 GB/second
-- Split Transaction Bus with Modified Enhanced Defer

improves throughput

Rapid Execution Engine: Arithmetic Logic Units

(ALUs) run at twice the processor core frequency
Hyper-Pipelined Technology
Advance Dynamic Execution

-- Very deep out-of-order execution
-- Enhanced branch prediction

Level 1 Execution Trace Cache stores 12 K micro-

ops and removes decoder latency from main

execution loops

-- Includes 16-KB Level 1 data cache

NOTES:

64-bit Intel

XeonTM processors with Intel

EM64T requires a computer system with a processor, chipset, BIOS, OS, device drivers and

applications enabled for Intel EM64T. Processor will not operate (including 32-bit operation) without an Intel EM64T-enabled BIOS. Performance
will vary depending on your hardware and software configurations. Intel EM64T-enabled OS, BIOS, device drivers and applications may not be
available. Check with your vendor for more information.

1MB Advanced Transfer L2 Cache (on-die, full

speed Level 2 cache) with 8-way associativity and

Error Correcting Code (ECC)
4-MB or 8-MB L3 Cache (on-die, full speed Level 3

cache) with 8-way associativity and Error

Correcting Code (ECC)
Enables system support of up to 1024 GB of

physical memory
Streaming SIMD Extensions 2 (SSE2 and SSE3)

-- 144 new instructions for double-precision floating

point operations, media/video streaming, and secure

transactions

Enhanced floating point and multimedia unit for

enhanced video, audio, encryption, and 3D

performance
Power Management capabilities

-- Enhanced Intel Speed-Step

technology

-- System Management mode
-- Multiple low-power states

Advanced System Management Features

-- System Management Bus
-- Processor Information ROM (PIROM)
-- OEM Scratch EEPROM
-- Thermal Monitor, Thermal Monitor 2 (TM2)
-- Machine Check Architecture (MCA)

Execute Disable Bit

when used with operating

systems helps protect against a certain class of

malicious virus attacks.

Execute Disable Bit requires operating system support. See

http://www.intel.com/business/bss/infrastructure/security/xdbit.htm

for more

information on how to implement this feature.

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Introduction

The 64-bit Intel

XeonTM processor MP with up to 8MB L3 cache is a 64-bit multi-processor

capable server processor based on improvements to the Intel

NetBurst

microarchitecture. It

maintains the tradition of compatibility with IA-32 software and includes features found in the
Intel

Xeon

processor such as Hyper Pipelined Technology, a Rapid Execution Engine, and an

Execution Trace Cache. Hyper Pipelined Technology includes a multi-stage pipeline, allowing the

processor to reach much higher core frequencies. The 667 MHz front side bus is a quad-pumped
bus running off a 166 MHz system clock making 5.3 GB per second data transfer rates possible.

The Execution Trace Cache is a level 1 (L1) cache that stores decoded micro-operations, which

removes the decoder from the main execution path, thereby increasing performance. In addition,
the 64-bit Intel

XeonTM processor MP with up to 8MB L3 cache includes the Intel

Extended

Memory 64 Technology, providing additional address capability.

In addition, enhanced thermal and power management capabilities are implemented, including

Thermal Monitor, Thermal Monitor 2 (TM2), and Enhanced Intel SpeedStep

technology. Thermal

Monitor and Thermal Monitor 2 provide efficient and effective cooling in high temperature

situations. Enhanced Intel SpeedStep technology allows trade-offs to be made between

performance and power consumption. This may lower average power consumption (in conjunction
with OS support).

The 64-bit Intel

XeonTM processor MP with up to 8MB L3 cache supports Hyper-Threading

Technology. This feature allows a single, physical processor to function as two logical processors.

While some execution resources such as caches, execution units, and buses are shared, each logical
processor has its own architectural state with its own set of general-purpose registers, control

registers to provide increased system responsiveness in multitasking environments, and headroom

for next generation multi-threaded applications. More information on Hyper-Threading
Technology can be found at http://www.intel.com/technology/hyperthread.

Support for Intel's Execute Disable Bit functionality has been added which can prevent certain

classes of malicious "buffer overflow" attacks when combined with a supporting operating system.

Execute Disable Bit allows the processor to classify areas in memory by where application code
can execute and where it cannot. When a malicious worm attempts to insert code in the buffer, the

processor disables code execution, preventing damage or worm propagation.

Other features within the Intel NetBurst microarchitecture include Advanced Dynamic Execution,
Advanced Transfer Cache, enhanced floating point and multi-media unit, and Streaming SIMD

Extensions 2 (SSE2). The Advanced Dynamic Execution improves speculative execution and

branch prediction internal to the processor. The Advanced Transfer Cache is a 1 MB on-die level 2
(L2) cache with increased bandwidth. The floating point and multi-media units include 128-bit

wide registers and a separate register for data movement. SSE2 instructions provide highly

efficient double-precision floating point, SIMD integer, and memory management operations. In
addition, Streaming SIMD Extensions 3 (SSE3) instructions have been added to further extend the

capabilities of Intel processor technology. Other processor enhancements include core frequency

improvements and microarchitectural improvements.

The 64-bit Intel

XeonTM processor MP with up to 8MB L3 cache supports Intel

Extended

Memory 64 Technology (Intel

EM64T) as an enhancement to Intel's IA-32 architecture. This

enhancement allows the processor to execute operating systems and applications written to take

advantage of the 64-bit extension technology. The processor supports 40-bit addressing, data bus

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Introduction

ECC protection (single-bit error correction with double-bit error detection), and the bus protocol
addition of the Deferred Phase. Further details can be found in the 64-bit Extension Technology

Software Developer's Guide at http://developer.intel.com/technology/64bitextensions/.

The 64-bit Intel

XeonTM processor MP with up to 8MB L3 cache is intended for high performance

multi-processor server systems with support for up to two processors on a 667 MHz front side bus.
The 64-bit Intel

XeonTM processor MP with up to 8MB L3 cache will be available with 4 MB or

8 MB of on-die level 3 (L3) cache. All versions of the processor will include manageability

features. Components of the manageability features include an OEM EEPROM and Processor
Information ROM which are accessed through an SMBus interface and contain information

relevant to the particular processor and system in which it is installed.

The processor is packaged in a 604-pin Flip-Chip Micro Pin Grid Array (FC-mPGA4) package and

utilizes a surface-mount Zero Insertion Force (ZIF) mPGA604 socket.

The processor uses a scalable system bus referred to as the "Front Side Bus" (FSB) in this

document. The FSB utilizes a split-transaction, deferred reply and modified enhanced deferred
phase protocol that improves bandwidth and throughput by reducing the number of cycles needed

to return data from a deferred response. The front side bus uses Source-Synchronous Transfer

(SST) of address and data to improve performance. The processor transfers data four times per bus
clock (4X data transfer rate). Along with the 4X data bus, the address bus can deliver addresses two

times per bus clock and is referred to as a `double-clocked', `double-pumped', or the 2X address

bus. In addition, the Request Phase completes in one clock cycle. Working together, the 4X data
bus and 2X address bus provide a data bus bandwidth of up to 5.3 GB per second. Finally, the front

side bus is also used to deliver interrupts.

1.1

Terminology

A `#' symbol after a signal name refers to an active low signal, indicating that a signal is in the

asserted state when driven to a low level. For example, when RESET# is low (i.e. when RESET# is
asserted), a reset has been requested. Conversely, when NMI is high (i.e. when NMI is asserted), a

nonmaskable interrupt request has occurred. In the case of signals where the name does not imply

an active state but describes part of a binary sequence (such as address or data), the `#' symbol
implies that the signal is inverted. For example, D[3:0] = `HLHL' refers to a hex `A', and D[3:0]# =

`LHLH' also refers to a hex `A' (H= High logic level, L= Low logic level).

"Front side bus" refers to the interface between the processor, system core logic (i.e. the chipset

components), and other bus agents. The front side bus supports multiprocessing and cache
coherency. For this document, "front side bus" is used as the generic term for the processor system

bus.

Commonly used terms are explained here for clarification:

64-bit Intel

XeonTM processor MP with up to 8MB L3 cache -- The entire product,

including processor core substrate and integrated heat spreader (IHS).

Table 1-1. Features of the 64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache

# of

Symmetric

Agents

# of Supported

Symmetric Agents

Per FSB

L2 Advanced

Transfer Cache

Integrated L3

Cache

FSB

Frequency

Processor

1-255

1 - 2

1 MB

4 MB or 8 MB

667 MHz

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Introduction

Enhanced Intel SpeedStep technology -- Enhanced Intel SpeedStep technology is the next
generation implementation of the Geyserville technology which extends power management

capabilities of servers.

FC-mPGA4 -- The processor is available in a Flip-Chip Micro Pin Grid Array 4 package,
consisting of a processor core mounted on a pinned substrate with an integrated heat spreader

(IHS). This packaging technology employs a 1.27 mm [0.05 in] pitch for the substrate pins.

Front Side Bus (FSB) -- The electrical interface that connects the processor to the chipset.
Also referred to as the processor system bus or the system bus. All memory and I/O

transactions as well as interrupt messages pass between the processor and chipset over the

FSB.

Functional Operation -- Refers to the normal operating conditions in which all processor

specifications, including DC, AC, system bus, signal quality, mechanical, and thermal, are

satisfied.

Integrated Heat Spreader (IHS) -- A component of the processor package used to enhance

the thermal performance of the package. Component thermal solutions interface with the

processor at the IHS surface.

mPGA604 -- The processor mates with the system board through this surface mount,

604-pin, zero insertion force (ZIF) socket.

OEM -- Original Equipment Manufacturer.

Processor core -- The processor's execution engine. All AC timing and signal integrity

specifications are to the pads of the processor core.

Processor Information ROM (PIROM) -- A memory device located on the processor and
accessible via the System Management Bus (SMBus) which contains information regarding

the processor's features. This device is shared with the Scratch EEPROM, is programmed

during manufacturing, and is write-protected.

Scratch EEPROM (Electrically Erasable, Programmable Read-Only Memory) -- A

memory device located on the processor and addressable via the SMBus which can be used by

the OEM to store information useful for system management.

SMBus -- System Management Bus. A two-wire interface through which simple system and

power management related devices can communicate with the rest of the system. It is based on
the principals of the operation of the I

C* two-wire serial bus from Phillips Semiconductor.

Note: I

C is a two-wire communications bus/protocol developed by Philips. SMBus is a

subset of the I

C bus/protocol and was developed by Intel. Implementations of the I

bus/protocol or the SMBus bus/protocol may require licenses from various entities,
including Philips Electronics N.V. and North American Philips Corporation.

Storage Conditions -- Refers to a non-operational state. The processor may be installed in a

platform, in a tray, or loose. Processors may be sealed in packaging or exposed to free air.
Under these conditions, processor pins should not be connected to any supply voltages, have

any I/Os biased, or receive any clocks.

Symmetric Agent - A symmetric agent is a processor which shares the same I/O subsystem
and memory array, and runs the same operating system as another processor in a system.

Systems using symmetric agents are known as Symmetric MultiProcessing (SMP) systems.

The 64-bit Intel

XeonTM processor MP with up to 8MB L3 cache should only be used in SMP

systems which have two or fewer symmetric agents per front side bus.

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Introduction

1.2

References

Material and concepts available in the following documents may be beneficial when reading this
document. Some document references in this specification are generic and should be referenced

back to the specific documents listed here.

NOTES:

1. See the Intel

Xeon

Processor Message of the Week for latest document version and order numbers.

Contact your Intel representative to receive the latest revisions of these documents.

2. This collateral is available publicly at http://developer.intel.com.
3. This document is available at http://www.formfactors.org.

Document

Intel Order Number

Notes

AP-485 Intel

Processor Identification and the CPUID Instruction

241618

ATX/ATX12V Power Supply Design Guidelines

Chassis Strength and Stiffness Measurement and Improvement
Guidelines for Direct Chassis Attach Solutions

IA-32 Intel

Architecture and Intel

Extended Memory 64 Technology

Software Developer's Manual Documentation Changes

252046

IA-32 Intel

Architecture Optimization Reference Manual

248966

IA-32 Intel

Architecture Software Developer's Manual

· Volume 1: Basic Architecture
· Volume 2A: Instruction Set Reference, A-M
· Volume 2B: Instruction Set Reference, N-Z
· Volume 3: System Programming Guide

253665
253666
253667
253668

Intel

Extended Memory 64 Technology Software Developer's Manual

· Volume 1
· Volume 2

300834
300835

mPGA604 Socket Design Guidelines

254239

MPS Power Supply: A Server System Infrastructure (SSI) Specification

For Midrange Chassis Power Supplies

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache

Specification Update

289741

64-bit Intel® XeonTM processor MP with up to 8MB L3 Cache
Mechanical Models

64-bit Intel® XeonTM processor MP with up to 8MB L3 Cache Cooling
Solution Mechanical Models

64-bit Intel® XeonTM processor MP with up to 8MB L3 Cache Thermal
Test Vehicle and Cooling Solution Thermal Models

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache

Thermal/Mechanical Design Guide

306749

Prescott New Instructions Software Development Guide

252490

System Management Bus (SMBus) Specification

Voltage Regulator Module (VRM) and Enterprise Voltage Regulator
Down (EVRD) 10.1 Design Guidelines

302732

Voltage Regulator Module (VRM) and Enterprise Voltage Regulator
Down (EVRD) 10.2 Design Guidelines

306760

Voltage Regulator Module (VRM) 10.2L Design Guidelines

306761

VRM 9.1 DC-DC Converter Design Guidelines

306760

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

2.1

Front Side Bus and GTLREF

Most processor front side bus (FSB) signals use Assisted Gunning Transceiver Logic (AGTL+)
signaling technology. This technology provides improved noise margins and reduced ringing

through low voltage swings and controlled edge rates. AGTL+ buffers are open-drain and require

pull-up resistors to provide the high logic level and termination. AGTL+ output buffers differ from
GTL+ buffers with the addition of an active pMOS pull-up transistor to "assist" the pull-up

resistors during the first clock of a low-to-high voltage transition. Platforms implement a

termination voltage level for AGTL+ signals defined as V

. Because platforms implement

separate power planes for each processor, separate V

and V

supplies are necessary. This

configuration allows for improved noise tolerance as processor frequency increases. Speed

enhancements to data and address busses have caused signal integrity considerations and platform
design methods to become even more critical than with previous processor families.

The AGTL+ inputs require a reference voltage (GTLREF) which is used by the receivers to

determine if a signal is a logical 0 or a logical 1. GTLREF must be generated on the motherboard

(see

Table 2-19

for GTLREF specifications). The on-die termination resistors are a selectable

feature and can be enabled or disabled via the ODTEN signal. For end bus agents, on-die

termination resistors are enabled to control reflections on the transmission line. For the middle bus

agent, on-die termination R

resistors must be disabled. Intel chipsets will also provide on-

termination, thus eliminating the need to terminate the bus on the motherboard for most AGTL+

signals. Processor wired-OR signals may also include additional on-die resistors (R

) to further

ensure proper noise margin and signal integrity. R

is not configurable and is always enabled for

these signals. See

Table 2-6

for a list of these signals.

Figure 2-1

illustrates the active on-die termination.

Figure 2-1. On-Die Front Side Bus Termination

End Agent

Signal

Middle Agent

Signal

- On-die termination resistors for AGTL+ signals

- Additional on-die resistance implemented for proper noise margin and

signal integrity (wired-OR signals only)

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

Note: Some AGTL+ signals do not include on-die termination (R

) and must be terminated on the

motherboard. See

Table 2-6

for details regarding these signals.

2.1.1

Front Side Bus Clock and Processor Clocking

BCLK[1:0] directly controls the front side bus interface speed as well as the core frequency of the
processor. The processor core frequency is a multiple of the BCLK[1:0] frequency. The processor

bus ratio multiplier will be set at its default ratio during manufacturing. The default setting

generates the maximum speed for the processor. It is possible to override this setting using
software. Refer to the Processor BIOS Writers Guide for details. This will permit operation at a

speed lower than the processor's tested frequency.

The processor core frequency is configured during reset by using values stored internally during

manufacturing. The stored values set the highest bus fraction at which the particular processor can
operate. If lower speeds are desired, the appropriate bus ratio multiplier can be configured by

driving the A[21:16]# pins at reset. For details of operation at core frequencies lower than the

maximum rated processor speed, refer to the Processor BIOS Writers Guide.

The bus ratio multipliers supported are shown in

Table 2-1

. Other combinations will not be

validated or supported by Intel. For a given processor, only the ratios which result in a core

frequency equal to or less than the frequency marked on the processor are supported.

NOTES:

1. Individual processors operate only at or below the frequency marked on the package.
2. Listed frequencies are not necessarily committed production frequencies.
3. For valid core frequencies of the processor, refer to the Processor Specification Update.
4. As described in

Section 1.1

, "H" refers to a high logic level (i.e. signal asserted) and "L" refers to a low logic

level (i.e. signal deasserted).

The processor uses a differential clocking implementation.

Table 2-1. Core Frequency to Front Side Bus Multiplier Configuration

Core

Frequency

to Front Side

Bus

Multiplier

Core

Frequency

A21#

A20#

A19#

A18#

A17#

A16#

1/16

2.66 GHz

1/17

2.83 GHz

1/18

3.00 GHz

1/19

3.16 GHz

1/20

3.33 GHz

1/22

3.66 GHz

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

2.1.2

Front Side Bus Clock Select (BSEL[1:0])

The BSEL[1:0] signals are used to select the frequency of the processor input clock (BCLK[1:0]).

Table 2-2

defines the possible combinations of the signals and the frequency associated with each

combination. The required frequency is determined by the processor, chipset, and clock
synthesizer. All processors must operate at the same front side bus frequency.

The processor operates at a 667 MHz front side bus frequency (selected by a 166 MHz BCLK[1:0]

frequency). Individual processors operate at the front side bus frequency specified by BSEL[1:0].

For more information about these pins, refer to

Section 6.1

2.1.3

Phase Lock Loop (PLL) Power and Filter

CCA

, V

CCIOPLL

, and V

CCA_CACHE

are power sources required by the PLL clock generators on

the processor. These are analog PLLs and they require low noise power supplies for minimum

jitter. These supplies must be low pass filtered from V

The AC low-pass requirements, with input at V

, are as follows:

< 0.2 dB gain in pass band

< 0.5 dB attenuation in pass band < 1 Hz

> 34 dB attenuation from 1 MHz to 66 MHz

> 28 dB attenuation from 66 MHz to core frequency

The filter requirements are illustrated in

Figure 2-2

Table 2-2. BSEL[1:0] Frequency Table for BCLK[1:0]

BSEL1

BSEL0

Function

RESERVED

166 MHz

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

NOTES:

1. Diagram not to scale.
2. No specification for frequencies beyond f

core

(core frequency).

3. f

peak

, if existent, should be less than 0.05MHz.

4. f

core

represents the maximum core frequency supported by the platform.

2.2

Voltage Identification (VID)

The VID[5:0] pins supply the encodings that determine the voltage to be supplied by the V

(the

core voltage for the processor) voltage regulator. The VID specification for the processor is defined

by the Voltage Regulator Module (VRM) and Enterprise Voltage Regulator-Down (EVRD) 10.1

Design Guidelines, the Voltage Regulator Module (VRM) and Enterprise Voltage Regulator-Down
(EVRD) 10.2 Design Guidelines, and the Voltage Regulator Module (VRM) 10.2L Design

Guidelines. Please refer to these documents for all VRM and VRD design issues. The voltage set

by the VID signals is the maximum V

voltage allowed by the processor. VID signals are open

drain outputs, which must be pulled up to V

. Please refer to

Table 2-13

for the DC specifications

for these signals. A minimum V

voltage is provided in

Table 2-9

and changes with frequency.

This allows processors running at a higher frequency to have a relaxed minimum V

voltage

specification. The specifications have been set such that one voltage regulator can work with all

supported frequencies.

Figure 2-2. Phase Lock Loop (PLL) Filter Requirements

0 dB

-28 dB

-34 dB

0.2 dB

forbidden

zone

-0.5 dB

forbidden

zone

1 MHz

66 MHz

fcore

fpeak

1 Hz

passband

high frequency

band

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

Individual processor VID values may be calibrated during manufacturing such that two devices at
the same core speed may have different default VID settings. Furthermore, any processor, even

those on the same processor front side bus, can drive different VID settings during normal

operation.

The processor uses six voltage identification pins, VID[5:0], to support automatic selection of
power supply voltages.

Table 2-3

specifies the voltage level corresponding to the state of VID[5:0].

A `1' in this table refers to a high voltage level and a `0' refers to a low voltage level. If the

processor socket is empty (i.e. VID[5:0] = x11111), or the voltage regulation circuit cannot supply
the voltage that is requested, the processor's voltage regulator must disable itself.

The processor provides the ability to operate while transitioning to an adjacent VID and its

associated processor core voltage (V

). This will represent a DC shift in the load line. It should be

noted that a low-to-high or high-to-low voltage state change may result in as many VID transitions
as necessary to reach the target core voltage. Transitions above the specified VID are not

permitted.

Table 2-9

includes VID step sizes and DC shift ranges. Minimum and maximum

voltages must be maintained as shown in

Table 2-10

and

Figure 2-4

The VRM or VRD utilized must be capable of regulating its output to the value defined by the new
VID. DC specifications for VID transitions are included in

Table 2-9

and

Table 2-10

Power source characteristics must be guaranteed to be stable whenever the supply to the voltage

regulator is stable.

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

Table 2-3.

Voltage Identification (VID) Definition

VID5

VID4

VID3

VID2

VID1

VID0

VID (V)

VID5

VID4

VID3

VID2

VID1

VID0

VID (V)

0.8375

1.2125

0.8500

1.2250

0.8625

1.2375

0.8750

1.2500

0.8875

1.2625

0.9000

1.2750

0.9125

1.2875

0.9250

1.3000

0.9375

1.3125

0.9500

1.3250

0.9625

1.3375

0.9750

1.3500

0.9875

1.3625

1.0000

1.3750

1.0125

1.3875

1.0250

1.4000

1.0375

1.4125

1.0500

1.4250

1.0625

1.4375

1.0750

1.4500

1.0875

1.4625

VRM off

1.4750

VRM off

1.4875

1.1000

1.5000

1.1125

1.5125

1.1250

1.5250

1.1375

1.5375

1.1500

1.5500

1.1625

1.5625

1.1750

1.5750

1.1875

1.5875

1.2000

1.6000

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

2.3

Cache Voltage Identification (CVID)

The CVID[3:0] pins supply the encodings that determine the voltage to be supplied by the V

CACHE

(the L3 cache voltage for the processor) voltage regulator. The CVID specification for the
processor is defined by the VRM 9.1 DC-DC Converter Design Guidelines, Voltage Regulator

Module (VRM) and Enterprise Voltage Regulator-Down (EVRD) 10.1 Design Guidelines, Voltage

Regulator Module (VRM) and Enterprise Voltage Regulator-Down (EVRD) 10.2 Design
Guidelines, and Voltage Regulator Module (VRM)10.2L Design Guidelines. The voltage set by the

CVID pins is the maximum V

CACHE

voltage allowed by the processor. A minimum V

CACHE

voltage is provided in

Table 2-9

Processors with the same front side bus frequency, internal cache sizes, and stepping will have
consistent CVID values.

The processor uses four voltage identification pins (CVID[3:0]) to support automatic selection of

power supply voltages.

Table 2-4

specifies the voltage level corresponding to the state of

CVID[3:0]. A `1' in this table refers to a high voltage level and a `0' refers to a low voltage level. If
the processor socket is empty, or the voltage regulation circuit cannot supply the voltage that is

requested, the processor's voltage regulator must disable itself.

NOTE: The voltage regulator will have a fifth VID input and, for VRM 10.2-compliant regulators, a sixth VID

input as well. The extra input(s) should be tied to a high voltage on the motherboard for correct
operation.

Table 2-4. Cache Voltage Identification (CVID) Definition

CVID3

CVID2

CVID1

CVID0

CVID (V)

Off

1.100

1.125

1.150

1.175

1.200

1.225

1.250

1.275

1.300

1.325

1.350

1.375

1.400

1.425

1.450

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

2.4

Reserved, Unused, and TESTHI Pins

All RESERVED pins must be left unconnected. Connection of these pins to V

, V

, or to any

other signal (including each other) can result in component malfunction or incompatibility with
future processors. See

Section 5

for a pin listing for the processor and the location of all

RESERVED pins.

For reliable operation, always terminate unused inputs or bidirectional signals to their respective

deasserted states. On-die termination has been included on the processor to allow signals to be
terminated within the processor silicon. Most unused AGTL+ inputs may be left as no-connects

since AGTL+ termination is provided on the processor silicon. See

Table 2-6

for details on AGTL+

signals that do not include on-die termination. Unused active-high inputs should be connected
through a resistor to ground (V

). Unused outputs may be left unconnected. However, this may

interfere with some TAP functions, complicate debug probing, and prevent boundary scan testing.

A resistor must be used when tying bidirectional signals to power or ground. When tying any signal
to power or ground, a resistor will also allow for system testability. For unused AGTL+ input or I/O

signals, use pull-up resistors of the same value as the on-die termination resistors (R

). See

Table 2-15

Most TAP signals, GTL+ asynchronous inputs, and GTL+ asynchronous outputs do not include on-
die termination (see

Table 2-6

for those signals which do not have on-die termination). Inputs and

used outputs must be terminated on the system board. Unused outputs may be terminated on the

system board or left connected. Note that leaving unused outputs unterminated may interfere with
some TAP functions, complicate debug probing, and prevent boundary scan testing.

The TESTHI pins should be tied to V

using a matched resistor, where a matched resistor has a

resistance value within ±20% of the impedance of the board transmission line traces. For example,

if the trace impedance is 50 W, then a value between 40 W and 60 W is required.

The TESTHI pins may use individual pull-up resistors or be grouped together as detailed below.
Please note that utilization of boundary scan test will not be functional if pins are connected

together. A matched resistor should be used for each group:

TESTHI[3:0]

TESTHI[6:5]

TESTHI4 -- cannot be grouped with other TESTHI signals

2.5

Mixing Processors

Intel supports and validates multi-processor configurations in which all processors operate with the
same front side bus frequency and internal cache sizes. Intel does not support or validate operation

of processors with different cache sizes. Mixing different processor steppings but the same model

(as per the CPUID instruction) is supported. Details on CPUID are provided in the Processor BIOS
Writers Guide document and the AP-485 Intel

Processor Identification and the CPUID

Instruction application note.

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

2.6

Front Side Bus Signal Groups

The front side bus signals are grouped by buffer type as listed in

Table 2-5

. The buffer type

indicates which AC and DC specifications apply to the signals. AGTL+ input signals have
differential input buffers that use GTLREF as a reference level. In this document, the term "AGTL+

Input" refers to the AGTL+ input group as well as the AGTL+ I/O group when receiving. Similarly,

"AGTL+ Output" refers to the AGTL+ output group as well as the AGTL+ I/O group when driving.
AGTL+ asynchronous outputs can become active anytime and include an active pMOS pull-up

transistor to assist during the first clock of a low-to-high voltage transition.

Implementing a source synchronous data bus requires specifying two sets of timing parameters.

One set is for common clock signals which are dependent upon the rising edge of BCLK0 (ADS#,
HIT#, HITM#, etc.). The second set is for the source synchronous signals that are relative to their

respective strobe lines (data and address) as well as the rising edge of BCLK0. Asynchronous

signals are present (A20M#, IGNNE#, etc.) and can become active at any time during the clock
cycle.

Table 2-5

identifies signals as common clock, source synchronous, and asynchronous.

Table 2-5. Front Side Bus Pin Groups (Sheet 1 of 2)

Signal Group

Type

Signals

AGTL+ Common Clock Input

Synchronous to BCLK[1:0]

BPRI#, BR[3:1]#, DEFER#, ID[7:0]#, IDS#,
OOD#, RESET#, RS[2:0]#, RSP#, TRDY#

AGTL+ Common Clock I/O

Synchronous to BCLK[1:0]

ADS#, AP[1:0]#, BINIT#, BNR#, BPM[5:0]#,
BR0#, DBSY#, DP[3:0]#, DRDY#, HIT#,
HITM#, LOCK#, MCERR#

AGTL+ Source Synchronous
I/O

Synchronous to associated
strobe

AGTL+ Strobe Input/Output

Synchronous to BCLK[1:0]

ADSTB[1:0]#, DSTBP[3:0]#, DSTBN[3:0]#

AGTL+ Asynchronous Output

Asynchronous

FERR#/PBE#, IERR#, PROCHOT#

GTL+ Asynchronous Input

Asynchronous

A20M#, FORCEPR#, IGNNE#, INIT#, LINT0/
INTR, LINT1/NMI, SMI#, STPCLK#

GTL+ Asynchronous Output

Asynchronous

THERMTRIP#

TAP Input

Synchronous to TCK

TCK, TDI, TMS

TAP Input

Asynchronous

TRST#

TAP Output

Synchronous to TCK

TDO

Signals

Associated Strobe

REQ[4:0]#,
A[37:36,16:3]#

ADSTB0#

A[39:38,35:17]#

ADSTB1#

D[15:0]#, DEP[1:0]#,

DBI0#

DSTBP0#, DSTBN0#

D[31:16]#, DEP[3:2]#,

DBI1#

DSTBP1#, DSTBN1#

D[47:32]#, DEP[5:4]#,

DBI2#

DSTBP2#, DSTBN2#

D[63:48]#, DEP[7:6]#,

DBI3#

DSTBP3#, DSTBN3#

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

NOTES:

1. Refer to

Section 6.1

for signal descriptions.

NOTES:

1. Signals not included in the "Signals with R

" list require termination on the baseboard. Please refer to

Table 2-5

for the signal type and

Table 2-13

Table 2-18

for the corresponding DC specifications.

2. The BOOT_SELECT pin is not terminated to R

. It has a 500-5000

internal pullup.

The ODTEN signals enables or disables R

. Those signals affected by ODTEN still present R

termination to the signal's pin when the processor is placed in tri-state mode.

Furthermore, the following signals are not affected when the processor is placed in tri-state mode:
BSEL[1:0], CVID[3:0], SKTOCC#, SM_ALERT#, SM_CLK, SM_DAT, SM_EP_A[2:0],

SM_TS_A[1:0], SM_WP, TEST_BUS, TESTHI[6:0], VID[5:0], and VTTEN.

NOTES:

1. These signals also have hysteresis added to the reference voltage. See

Table 2-16

for more information.

Front Side Bus Clock Input

Clock

BCLK[1:0]

SMBus

Synchronous to SM_CLK

SM_ALERT#, SM_CLK, SM_DAT,
SM_EP_A[2:0], SM_TS_A[1:0], SM_WP

Power/Other

BOOT_SELECT, BSEL[1:0], COMP0,
CVID[3:0], GTLREF[3:0], ODTEN,
PWRGOOD, RESERVED, SKTOCC#,
SLEW_CTRL, SM_VCC, TEST_BUS,
TESTHI[6:0], V

CACHE

, V

CCA

CCA_CACHE

, V

CC_CACHE_SENSE

, V

CCIOPLL

CCPLL

, V

CCSENSE

, VID[5:0], VIDPWRGD,

, V

SSA

, V

SSA_CACHE

, V

SS_CACHE_SENSE

SSSENSE

, V

, VTTEN

Table 2-5. Front Side Bus Pin Groups (Sheet 2 of 2)

Signal Group

Type

Signals

Table 2-6. Signal Description Table

Signals with R

A[39:3]#, ADS#, ADSTB[1:0]#, AP[1:0]#, BINIT#, BNR#, BOOT_SELECT

, BPRI#, D[63:0]#, DBI[3:0]#,

DBSY#, DEFER#, DEP[7:0]#, DP[3:0]#, DRDY#, DSTBN[3:0]#, DSTBP[3:0]#, HIT#, HITM#, ID[7:0]#, IDS#,
LOCK#, MCERR#, OOD#, REQ[4:0]#, RS[2:0]#, RSP#, TRDY#

Signals with R

BINIT#, BNR#, HIT#, HITM#, MCERR#

Table 2-7. Signal Reference Voltages

GTLREF

/ 2

A20M#, A[39:3]#, ADS#, ADSTB[1:0]#, AP[1:0]#,
BINIT#, BNR#, BPM[5:0]#, BPRI#, BR[3:0]#,
D[63:0]#, DBI[3:0]#, DBSY#, DEFER#, DEP[7:0]#,
DP[3:0]#, DRDY#, DSTBN[3:0]#, DSTBP[3:0]#,
FORCEPR#, HIT#, HITM#, ID[7:0]#, IDS#, IGNNE#,
INIT#, LINT0/INTR, LINT1/NMI, LOCK#, MCERR#,
ODTEN, OOD#, REQ[4:0]#, RESET#, RS[2:0]#,
RSP#, SMI#, STPCLK#, TRDY#

BOOT_SELECT, PWRGOOD

, TCK

, TDI

, TMS

TRST#

, VIDPWRGD

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

2.7

GTL+ Asynchronous and AGTL+ Asynchronous

Signals

The processor does not utilize CMOS voltage levels on any signals that connect to the processor
silicon. As a result, inputs signals such as A20M#, FORCEPR#, IGNNE#, INIT#, LINT0/INTR,

LINT1/NMI, SMI#, and STPCLK# utilize GTL buffers. Legacy output THERMTRIP# utilizes a

GTL+ output buffer. All of these asynchronous signals follow the same DC requirements as GTL+
signals; however, the outputs are not driven high (during the logical 0-to-1 transition) by the

processor. FERR#/PBE#, IERR#, and PROCHOT# have now been defined as AGTL+

asynchronous signals as they include an active pMOS device. GTL+ asynchronous and AGTL+
asynchronous signals do not have setup or hold time specifications in relation to BCLK[1:0].

However, all of the GTL+ asynchronous and AGTL+ asynchronous signals are required to be

asserted/deasserted for at least six BCLKs in order for the processor to recognize the proper signal
state, except during power-on configuration (see

Table 2-24

for the proper specifications at

RESET). See

Table 2-17

and

Table 2-23

for the DC and AC specifications for the GTL+

asynchronous and AGTL+ asynchronous signal groups.

2.8

Test Access Port (TAP) Connection

Due to the voltage levels supported by other components in the TAP logic, Intel recommends that
the processor(s) be first in the TAP chain, followed by any other components within the system.

Use of a translation buffer to connect to the rest of the chain is recommended unless one of the

other components is capable of accepting an input of the appropriate voltage. Similar
considerations must be made for TCK, TMS, TRST#, TDI, and TDO. Two copies of each signal

may be required, each driving a different voltage level.

2.9

Maximum Ratings

Table 2-8

specifies absolute maximum and minimum ratings. Within functional operation limits,

functionality and long-term reliability can be expected.

At conditions outside functional operation condition limits, but within absolute maximum and

minimum ratings, neither functionality nor long-term reliability can be expected. If a device is

returned to conditions within functional operation limits after having been subjected to conditions
outside these limits, but within the absolute maximum and minimum ratings, the device may be

functional, but with its lifetime degraded depending on exposure to conditions exceeding the

functional operation condition limits.

At conditions exceeding absolute maximum and minimum ratings, neither functionality nor long-
term reliability can be expected. Moreover, if a device is subjected to these conditions for any

length of time then, when returned to conditions within the functional operating condition limits, it

will either not function, or its reliability will be severely degraded.

Although the processor contains protective circuitry to resist damage from static electric discharge,
precautions should always be taken to avoid high static voltages or electric fields.

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

NOTES:

1. For functional operation, all processor electrical, signal quality, mechanical, and thermal specifications must

be satisfied.

2. Overshoot and undershoot voltage guidelines for input, output, and I/O signals are outlined in

Section 3

Excessive overshoot or undershoot on any signal will likely result in permanent damage to the processor.

3. Storage temperature is applicable to storage conditions only. In this scenario, the processor must not receive

a clock, and no pins can be connected to a voltage bias. Storage within these limits will not affect the long-
term reliability of the device. For functional operation, please refer to the processor case temperature
specifications.

4. This rating applies to the processor and does not include any packaging or trays.

2.10

Processor DC Specifications

The following notes apply:

The processor DC specifications in this section are defined at the processor core silicon and

not at the package pins unless noted otherwise.

The notes associated with each parameter are part of the specification for that parameter.

Unless otherwise noted, all specifications in the tables apply to all frequencies and cache sizes.

Unless otherwise noted, all the specifications in the tables are based on estimates and
simulations. These specifications will be updated with characterized data from silicon

measurements at a later date.

See

Section 6

for the pin signal definitions. Most of the signals on the processor front side bus are

in the AGTL+ signal group. The DC specifications for these signals are listed in

Table 2-15

Table 2-9

through

Table 2-18

list the DC specifications for the processor and are valid only while

meeting specifications for case temperature, clock frequency, and input voltages.

2.10.1

Flexible Motherboard (FMB) Guidelines

The FMB guidelines are estimates of the maximum values that the processor will have over certain

time periods. The values are only estimates as actual specifications for future processors may

differ. The processor may or may not have specifications equal to the FMB value in the foreseeable
future. System designers should meet the FMB values to ensure that their systems will be

compatible with future releases of the processor.

Table 2-8. Processor Absolute Maximum Ratings

Symbol

Parameter

Min

Max

Unit

Notes

1,2

Processor core supply voltage with
respect to V

-0.3

1.55

CACHE

Processor L3 cache voltage with
respect to V

-0.3

1.55

Front side bus termination voltage
with respect to V

-0.3

1.55

CASE

Processor case temperature

See

Section 7

See

Section 7

°C

STORAGE

Processor storage temperature

-40

°C

3, 4

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

NOTES:

1. These voltages and frequencies are targets only. A variable voltage source should exist on systems in the event that a different

voltage is required. See

Section 2.2

and

Table 2-3

for more information.

2. The voltage specification requirements are measured across the V

CCSENSE

and V

SSSENSE

pins using an oscilloscope set to a

100 MHz bandwidth and probes that are 1.5 pF maximum capacitance and 1 M

minimum impedance at the processor socket.

The maximum length of ground wire on the probe should be less than 5 mm. Ensure external noise from the system is not
coupled into the scope probe.

3. Refer to

Table 2-10

for the minimum, typical, and maximum V

allowed for a given current. The processor should not be

subjected to any V

and I

combination wherein V

exceeds V

CC_MAX

for a given current.

4. Moreover, V

should never exceed the VID voltage. Failure to adhere to this specification can shorten the processor lifetime.

5. V

CC_MIN

and V

CC_MAX

are defined at the frequency's associated I

CC_MAX

on the V

load line.

6. The current specified is also for the HALT State.
7. FMB is the Flexible Motherboard guideline. These guidelines are for estimation purposes only. See

Section 2.10.1

for further

details on FMB guidelines.

8. The maximum instantaneous current the processor will draw while the thermal control circuit (TCC) is active as indicated by the

assertion of PROCHOT# is the same as the maximum I

for the processor.

9. The core and cache portions of Stop-Grant current is specified at V

and V

CACHE

max.

10.I

CC_MAX

is specified at the relative V

CC_MAX

point on the V

load line.

Table 2-9.

Voltage and Current Specifications

Symbol

Parameter

Core

Freq

Min

Typ

Max

VID

Unit

Notes

for processor core

FMB

Refer to

Table 2-10

1.3875

1,2,3,

4,5,7

VID Transition

VID step size during
transition

All freq.

12.5

Total allowable DC load line
shift from VID steps

All freq.

450

CACHE

for processor L3 cache

All freq.

1.125

CVID

1.275

FSB termination voltage
(DC specification)

All freq.

1.176

1.20

1.224

11,12,

FSB termination voltage
(AC specification)

All freq.

1.140

1.20

1.260

11,12,

13,14

SM_VCC

SMBus supply voltage

All freq.

3.135

3.300

3.465

for processor core

FMB

7,10

CC_TDC

Thermal Design Current
(TDC)

FMB

CACHE

for processor L3 cache

All freq

FSB termination current,
post power good

All freq.

11,15,21

FSB mid-agent current,
post power good

All freq.

1.3

11,16,21

SM_VCC

for SMBus supply

All freq.

100

122.5

SGnt_CORE

Stop-Grant Core

All freq.

6,9

SGnt_CACHE

Stop-Grant Cache

All freq.

6,9

TCC

TCC active

All freq.

CC VCCA

for PLL pin

All freq.

CC VCCIOPLL

for I/O PLL pin

All freq.

VCCA_CACHE

for L3 cache PLL pin

All freq.

CC GTLREF

per GTLREF pin

All freq.

200

µA

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

11.These parameters are based on design characterization and are not tested.

12.V

must be provided via a separate voltage source and must not be connected to V

13.These specifications are measured at the package pin.
14.Baseboard bandwidth is limited to 20 MHz.
15.This specification refers to a single processor with R

enabled.

16.This specification refers to a single processor with R

disabled.

17.The voltage specification requirements are measured across the V

CC_CACHE_SENSE

and V

SS_CACHE_SENSE

pins at the socket

with a 100 MHz bandwidth oscilloscope, 1.5 pF maximum probe capacitance, and 1 M

minimum impedance. The maximum

length of ground wire on the probe should be less than 5 mm. Ensure external noise from the system is not coupled into the
scope probe.

18.This specification represents the V

reduction due to each VID transition. See

Section 2.2

19.This specification refers to the total reduction of the load line due to VID transitions below the specified VID.
20.I

CC_TDC

is the sustained (DC equivalent) current that the processor is capable of drawing indefinitely and should be used for the

voltage regulator temperature assessment. The voltage regulator is responsible for monitoring its temperature and asserting the
necessary signal to inform the processor of a thermal excursion. The processor is capable of drawing I

CC_TDC

indefinitely. Refer

Figure 2-3

for further details on the average processor current draw over various time durations. This parameter is based on

design characterization and is not tested.

21.I

may draw up to 5A prior to power good assertion.

NOTES:

1. Processor or voltage regulator thermal protection circuitry should not trip for load currents greater than

CC_TDC

2. Not 100% tested. Specified by design characterization.

Figure 2-3. Processor Load Current vs. Time

125

130

135

140

145

150

155

0.01

0.1

100

1000

Time Duration (s)

ain

e
d

r
r
ent

(

)

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

NOTES:

1. The V

CC_MIN

and V

CC_MAX

load lines represent static and transient limits.

2. This table is intended to aid in reading discrete points on

Figure 2-4

3. The load lines specify voltage limits at the die measured at the V

CCSENSE

and V

SSSENSE

pins. Voltage

regulation feedback for voltage regulator circuits must be taken from processor V

and V

pins.

Table 2-10. V

Static and Transient Tolerance

CC [A]

CC_MAX

[V]

CC_TYP

[V]

CC_MIN

[V]

Notes

VID - 0.000

VID - 0.020

VID - 0.040

1,2,3

VID - 0.006

VID - 0.026

VID - 0.046

1,2,3

VID - 0.013

VID - 0.033

VID - 0.053

1,2,3

VID - 0.019

VID - 0.039

VID - 0.059

1,2,3

VID - 0.025

VID - 0.045

VID - 0.065

1,2,3

VID - 0.031

VID - 0.051

VID - 0.071

1,2,3

VID - 0.038

VID - 0.058

VID - 0.078

1,2,3

VID - 0.044

VID - 0.064

VID - 0.084

1,2,3

VID - 0.050

VID - 0.070

VID - 0.090

1,2,3

VID - 0.056

VID - 0.076

VID - 0.096

1,2,3

VID - 0.063

VID - 0.083

VID - 0.103

1,2,3

VID - 0.069

VID - 0.089

VID - 0.109

1,2,3

VID - 0.075

VID - 0.095

VID - 0.115

1,2,3

VID - 0.081

VID - 0.101

VID - 0.121

1,2,3

VID - 0.087

VID - 0.108

VID - 0.128

1,2,3

VID - 0.094

VID - 0.114

VID - 0.134

1,2,3

VID - 0.100

VID - 0.120

VID - 0.140

1,2,3

VID - 0.106

VID - 0.126

VID - 0.146

1,2,3

VID - 0.113

VID - 0.133

VID - 0.153

1,2,3

VID - 0.119

VID - 0.139

VID - 0.159

1,2,3

100

VID - 0.125

VID - 0.145

VID - 0.165

1,2,3

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

NOTES:

1. The V

CC_MIN

and V

CC_MAX

load lines represent static and transient limits.

2. Refer to

Table 2-9

for processor VID information for V

3. The load lines specify voltage limits at the die measured at the V

CCSENSE

and V

SSSENSE

pins. Voltage

regulation feedback for voltage regulator circuits must also be taken from processor V

CCSENSE

and

SSSENSE

pins.

2.10.2

and V

CACHE

Overshoot Specification

The processor can tolerate short transient overshoot events where V

exceeds the VID voltage or

where V

CACHE

exceeds the CVID voltage when transitioning from a high-to-low current load

condition. This overshoot cannot exceed VID + V

OS_MAX,

or CVID + V

OS_MAX

. (V

OS_MAX

is the

maximum allowable overshoot above VID or CVID). These specifications apply to the processor

die voltage as measured across the V

CCSENSE

and V

SSSENSE

pins for Vcc, and V

CC_CACHE_SENSE

and V

SS_CACHE_SENSE

pins for CVID.

Figure 2-4. V

Static and Transient Tolerance

VID - 0.000

VID - 0.020

VID - 0.040

VID - 0.060

VID - 0.080

VID - 0.100

VID - 0.120

VID - 0.140

VID - 0.160

VID - 0.180

Icc [A]

c [

]

Maximum

Typical

Minimum

Table 2-11. V

and V

CACHE

Overshoot Specification

Symbol

Parameter

Min

Max

Units

Figure

Notes

OS_MAX

Magnitude of V

overshoot

above VID or V

CACHE

overshoot above CVID

0.025

2-5

OS_MAX

Time duration of V

overshoot above VID or
V

CACHE

overshoot above CVID

2-5

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

2.10.3

Die Voltage Validation

Overshoot events from application testing on the processor must meet the specifications in

Table 2-11

when measured across the V

CCSENSE

and V

SSSENSE

pins. Overshoot events that are

< 10 ns in duration may be ignored. These measurements of processor die level overshoot should
be taken with a 100 MHz bandwidth limited oscilloscope.

NOTES:

1. Crossing voltage is defined as the instantaneous voltage value when the rising edge of BCLK0 is equal to the

falling edge of BCLK1.

2. V

Havg

is the statistical average of the V

measured by the oscilloscope.

3. Overshoot is defined as the absolute value of the maximum voltage.

Figure 2-5. V

and V

CACHE

Overshoot Example Waveform

Overshoot Waveform

VID/CVID Reference

Time

l
t
a
g

: Peak maximum

overshoot identified
during validation

(OS time above

VID or CVID): Time
from initial VID or
CVID crossing to final
crossing of VID or
CVID

Table 2-12. Front Side Bus Differential BCLK Specifications

Symbol

Parameter

Min

Typ

Max

Unit

Figure

Notes

Input Low Voltage

-0.150

0.000

N/A

2-8

Input High Voltage

0.660

0.700

0.850

2-8

CROSS(abs)

Absolute Crossing

Point

0.250

N/A

0.550

2-8,

2-9

1,7

CROSS(rel)

Relative Crossing

Point

0.250 + 0.5*

Havg

- 0.700)

N/A

0.550 + 0.5*

Havg

- 0.700)

2-8,

2-9

2,7,8

CROSS

Range of Crossing

Point

N/A

0.140

2-8,

2-9

Overshoot

N/A

+ 0.300

2-8

Undershoot

- 0.300

N/A

2-8

RBM

Ringback Margin

0.200

N/A

2-8

Threshold Margin

CROSS

-0.100

CROSS

+0.100

2-8

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

4. Undershoot is defined as the absolute value of the minimum voltage.
5. Ringback Margin is defined as the absolute voltage difference between the maximum Rising Edge Ringback

and the maximum Falling Edge Ringback.

6. Threshold Region is defined as a region entered around the crossing point voltage in which the differential

receiver switches. It includes input threshold hysteresis.

7. The crossing point must meet the absolute and relative crossing point specifications simultaneously.
8. V

Havg

can be measured directly using "Vtop" on Agilent scopes and "High" on Tektronix scopes.

NOTES:

1. These parameters are not tested and are based on design simulations.
2. Leakage to V

with pin held at 2.5V.

3. Represents the maximum allowable termination voltage.

Table 2-13. BSEL[1:0], VID[5:0], and CVID[3:0] DC Specifications

Symbol

Parameter

Max

Unit

Notes

Buffer On Resistance

Max Pin Current

Output Leakage Current

200

µA

TOL

Voltage Tolerance

3.3 * 1.05

Table 2-14. VIDPWRGD DC Specifications

Symbol

Parameter

Min

Max

Unit

Figure

Notes

Input Low Voltage

0.0

0.30

2-19

Input High Voltage

0.90

2-19

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

NOTES:

1. V

is defined as the voltage level at a receiving agent that will be interpreted as a logical low value.

2. V

is defined as the voltage level at a receiving agent that will be interpreted as a logical high value.

3. V

and V

may experience excursions above V

. However, input signal drivers must comply with the signal

quality specifications in

Section 3

4. Refer to Processor Signal Integrity Models for I/V characteristics.
5. The V

referred to in these specifications refers to the instantaneous V

6. Leakage to V

with pin held at V

TT.

7. The maximum output current is based on maximum current handling capability of the buffer and is not

specified into the test load.

8. Leakage to V

with pin held at 300 mV.

NOTES:

1. All outputs are open drain.
2. TAP signal group must meet system signal quality specification in

Section 3

3. Refer to the Processor Signal Integrity Models for I/V characteristics.
4. The V

referred to in these specifications refers to instantaneous V

5. The maximum output current is based on maximum current handling capability of the buffer and is not

specified into the test load.

6. V

HYS

represents the amount of hysteresis, nominally centered about 0.5 * V

for all TAP inputs.

Table 2-15. AGTL+ Signal Group DC Specifications

Symbol

Parameter

Min

Max

Unit

Notes

Input Low Voltage

0.0

GTLREF - (0.10 * V

)

1,5

Input High Voltage

GTLREF + (0.10 * V

)

2,3,5

Output High Voltage

0.90 * V

3,5

Output Low Current

N/A

(0.50 * Rtt_min + R

_min

|| R

)

Input Leakage Current

N/A

200

µA

Output Leakage Current

N/A

200

µA

Buffer On Resistance

Table 2-16. PWRGOOD and TAP Signal Group DC Specifications

Symbol

Parameter

Min

Max

Unit

Notes

HYS

Input Hysteresis

200

350

T+

Input Low to High

Threshold Voltage

0.5 * (V

+ V

HYS_MIN

)

0.5 * (V

+ V

HYS_MAX

)

T-

Input High to Low

Threshold Voltage

0.5 * (V

- V

HYS_MAX

)

0.5 * (V

- V

HYS_MIN

)

Output High Voltage

N/A

2,4

Output Low Current

Input Leakage Current

±200

µA

Output Leakage Current

±200

µA

Buffer On Resistance

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

NOTES:

1. All outputs are open-drain.
2. V

is defined as the voltage range at a receiving agent that will be interpreted as a logical low value.

3. V

is defined as the voltage range at a receiving agent that will be interpreted as a logical high value.

4. V

and V

may experience excursions above V

. However, input signal drivers must comply with the signal

quality specifications in

Section 3

5. Refer to the Processor Signal Integrity Models for I/V characteristics.
6. The V

referred to in these specifications refers to instantaneous V

7. The maximum output current is based on maximum current handling capability of the buffer and is not

specified into the test load.

8. Leakage to V

with pin held at V

9. Leakage to V

with pin held at 300 mV.

NOTES:

1. These parameters are based on design characterization and are not tested.
2. All DC specifications for the SMBus signal group are measured at the processor pins.
3. Platform designers may need this value to calculate the maximum loading of the SMBus and to determine

maximum rise and fall times for SMBus signals.

Table 2-17. GTL+ and AGTL+ Asynchronous Signal Group DC Specifications

Symbol

Parameter

Min

Max

Unit

Notes

Input Low Voltage

GTLREF - (10% * V

)

Input High Voltage

GTLREF + (10% * V

)

3,4,6

Output High Voltage

1,4,6

Output Low Current

Input Leakage Current

N/A

200

µA

Output Leakage Current

200

µA

Buffer On Resistance

Table 2-18. SMBus Signal Group DC Specifications

Symbol

Parameter

Min

Max

Unit

Notes

1,2

Input Low Voltage

-0.30

0.30 * SM_VCC

Input High Voltage

0.70 * SM_VCC

3.465

Output Low Voltage

0.400

Output Low Current

N/A

3.0

Input Leakage Current

N/A

µA

Output Leakage Current

N/A

µA

SMB

SMBus Pin Capacitance

15.0

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

2.11

AGTL+ Front Side Bus Specifications

Termination resistors are not required for most AGTL+ signals because they are integrated into the

processor silicon.

Valid high and low levels are determined by the input buffers which compare a signal's voltage
with a reference voltage called GTLREF.

Table 2-19

lists the GTLREF specifications. GTLREF should be generated on the system board

using high-precision voltage divider circuits.

NOTES:

1. The tolerances for this specification have been stated generically to enable system designers to calculate the

minimum values across the range of V

2. GTLREF is generated from V

on the baseboard by a voltage divider of 1% resistors.

3. R

is the on-die termination resistance measured at V

of the AGTL+ output driver.

4. R

is the on-die termination resistance for improved noise margin and signal integrity.

5. The COMP0 resistor is provided by the baseboard with 1% resistors.
6. The V

referred to in these specifications refers to instantaneous V

7. The SLEW_CTRL resistor is provided by the baseboard with 1% resistors.

2.12

Front Side Bus AC Specifications

The processor front side bus timings specified in this section are defined at the processor core

silicon and are thus not measurable at the processor pins.

See

Section 6

for processor pin signal definitions.

Table 2-20

through

Table 2-27

list the AC specifications associated with the processor front side

bus.

All AGTL+ timings are referenced to GTLREF for both `0' and `1' logic levels unless otherwise

specified.

Table 2-19. AGTL+ Bus Voltage Definitions

Symbol

Parameter

Min

Typ

Max

Units

Notes

GTLREF

Bus Reference
Voltage

0.98 * (0.63 * V

)

0.63 * V

1.02 * (0.63 * V

)

1,2,6

Termination
Resistance
(pull-up)

40.5

49.5

Termination
Resistance
(pull-down)

360

450

540

COMP0

COMP Resistance

49.4

49.9

50.4

SLEW_CTRL

SLEW_CTRL
Resistance

49.4

49.9

50.4

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

NOTES:

1. Unless otherwise noted, all specifications in this table apply to all processor core frequencies based on a

166 MHz BCLK[1:0].

2. The period specified here is the average period. A given period may vary from this specification as governed

by the period stability specification (T2). Min period specification is based on -300 PPM deviation from a 6 ns
period. Max period specification is based on the summation of +300 PPM deviation from a 6 ns period and a
+0.5% maximum variance due to spread spectrum clocking.

3. For the clock jitter specification, refer to the applicable clock driver design specification.
4. In this context, period stability is defined as the worst case timing difference between successive crossover

voltages. In other words, the largest absolute difference between adjacent clock periods must be less than
the period stability.

5. Rise and fall times are measured single-ended between 245 mV and 455 mV of the clock swing.

NOTES:

1. These parameters are based on design characterization and are not tested.
2. All common clock AC timings for AGTL+ signals are referenced to the Crossing Voltage (V

CROSS

) of the

BCLK[1:0] at rising edge of BCLK0. All common clock AGTL+ signal timings are referenced at GTLREF at the
processor core.

3. Valid delay timings for these signals are specified into the test circuit described in

Figure 2-6

and with

GTLREF at 0.63

± 2%.

4. Specification is for a minimum swing defined between V

IL_MAX

to V

IH_MIN

. This assumes an edge rate of

0.9 V/ns to 1.2 V/ns.

5. RESET# can be asserted (active) asynchronously, but must be deasserted synchronously.
6. This should be measured after V

and BCLK[1:0] become stable.

7. Maximum specification applies only while PWRGOOD is asserted.

Table 2-20. Front Side Bus Differential Clock Specifications

T# Parameter

Min

Nom

Max

Unit

Figure

Notes

FSB Clock Frequency

165.78

166.72

MHz

T1: BCLK[1:0] Period

5.9982

6.0320

2-8

T2: BCLK[1:0] Period Stability

175

3,4

T3: BCLK[1:0] Rise Time

175

700

T4: BCLK[1:0] Fall Time

175

700

Table 2-21. Front Side Bus Common Clock AC Specifications

T# Parameter

Min

Max

Unit

Figure

Notes

1, 2

T10: Common Clock Output Valid Delay

-0.125

1.470

2-10

T11: Common Clock Input Setup Time

0.810

N/A

2-10

T12: Common Clock Input Hold Time

0.355

N/A

2-10

T13: RESET# Pulse Width

1.00

10.00

2-18

5,6,7

Table 2-22. Front Side Bus Source Synchronous AC Specifications (Sheet 1 of 2)

T# Parameter

Min

Typ

Max

Unit

Figure

Notes

1,2,3

T20: Source Sync. Output Valid Delay
(first data/address only)

-0.150

1.400

2-11,2-12

T21: T

VBD

Source Sync. Data Output

Valid Before Data Strobe

0.400

2-12

4,7

T22: T

VAD

Source Sync. Data Output

Valid After Data Strobe

0.400

2-12

4,8

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

NOTES:

1. Not 100% tested. These parameters are based on design characterization.
2. All source synchronous AC timings are referenced to their associated strobe at GTLREF. Source

synchronous data signals are referenced to the falling edge of their associated data strobe. Source
synchronous address signals are referenced to the rising and falling edge of their associated address strobe.
All source synchronous AGTL+ signal timings are referenced at GTLREF at the processor core.

3. Unless otherwise noted, these specifications apply to both data and address timings.
4. Valid delay timings for these signals are specified into the test circuit described in

Figure 2-6

and with

GTLREF at 0.63 * V

± 2%.

5. Specification is for a minimum swing defined between V

IL_MAX

to V

IH_MIN

. AC timings are specified as GTLREF

± (0.06 * V

). This assumes an edge rate of 0.9 V/ns to 1.2 V/ns.

6. All source synchronous signals must meet the specified setup time to BCLK as well as the setup time to each

respective strobe.

7. This specification represents the minimum time the data or address will be valid before its strobe.
8. This specification represents the minimum time the data or address will be valid after its strobe.
9. The rising edge of ADSTB# must come approximately 1/2 BCLK period after the falling edge of ADSTB#.

10.For this timing parameter, n = 1, 2, and 3 for the second, third, and last data strobes respectively.

11.The second data strobe (falling edge of DSTBn#) must come approximately 1/4 BCLK period after the first

falling edge of DSTBp#. The third data strobe (falling edge of DSTBp#) must come approximately 1/2 BCLK
period after the first falling edge of DSTBp#. The last data strobe (falling edge of DSTBn#) must come
approximately 3/4 BCLK period after the first falling edge of DSTBp#.

12.This specification applies only to DSTBN[3:0]# and is measured to the second falling edge of the strobe.

T23: T

VBA

Source Sync. Address

Output Valid Before Address Strobe

1.120

2-11

4,7

T24: T

VAA

Source Sync. Address

Output Valid After Address Strobe

1.120

2-11

4,8

T25: T

SUSS

Source Sync. Input Setup

Time to Strobe

0.100

2-11,2-12

T26: T

HSS

Source Sync. Input Hold

Time to Strobe

0.100

2-11,2-12

T27: T

SUCC

Source Sync. Input Setup

Time to BCLK[1:0]

0.910

2-11,2-12

T29: T

FASS

First Address Strobe to

Second Address Strobe

1/2

BCLKs

2-11

T30: T

FDSS

: First Data Strobe to

Subsequent Strobes

n/4

BCLKs

2-12

10,11

T31: Data Strobe `n' (DSTBN#) Output
Valid Delay

5.100

6.650

2-12

T32: Address Strobe Output Valid
Delay

1.350

2.900

2-11

Table 2-22. Front Side Bus Source Synchronous AC Specifications (Sheet 2 of 2)

T# Parameter

Min

Typ

Max

Unit

Figure

Notes

1,2,3

Table 2-23. Miscellaneous Signals AC Specifications (Sheet 1 of 2)

T# Parameter

Min

Max

Unit

Figure

Notes

1,2,5

T35: GTL+ asynchronous and AGTL+

asynchronous input pulse width

BCLKs

T36: PWRGOOD to RESET# deassertion time

2-18

T37: BCLK valid before PWRGOOD active

BCLKs

2-18

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

NOTES:

1. All AC timings for the GTL+ asynchronous signals are referenced to the BCLK0 rising edge at Crossing

Voltage (V

CROSS

). All GTL+ asynchronous signal timings are referenced at GTLREF. PWRGOOD is

referenced to the BCLK0 rising edge at 0.5 * V

2. These signals may be driven asynchronously.
3. Refer to the PWRGOOD definition for more details regarding the behavior of the signal.
4. Length of assertion for PROCHOT# does not equal TCC activation time. Time is required after the assertion

or deassertion of PROCHOT# for the processor to enable or disable the TCC. Additionally, time is allocated
after the assertion or deassertion of PROCHOT# for the processor to complete current instruction execution.
This specification applies to the PROCHOT# signal when asserted by the processor and the FORCEPR#
signal when asserted by the system.

5. Refer to

Section 8.2

for additional timing requirements for entering and leaving low power states.

6. Intel recommends the V

power supply also be removed upon assertion of THERMTRIP#.

7. A minimum pulse width of 500us is recommended when FORCEPR# is asserted by the system.

NOTES:

1. Before the clock that de-asserts RESET#
2. After the clock that de-asserts RESET#.

NOTES:

1. Not 100% tested. These parameters are based on design characterization.
2. This specification is based on the capabilities of the ITP-XDP debug port tool, not on processor silicon.
3. Referenced to the rising edge of TCK.

4. Referenced to the falling edge of TCK.

5. TRST# must be held asserted for 2 TCK periods to be guaranteed that it is recognized by the processor.

T38: PROCHOT#, FORCEPR# pulse width

500

µs

2-14

T39: THERMTRIP# assertion until V

and

CACHE

removal

500

2-15

T40: FERR# valid delay from STPCLK#

deassertion

BCLKs

2-20

T41: V

to PWRGOOD assertion time

500

2-18

Table 2-23. Miscellaneous Signals AC Specifications (Sheet 2 of 2)

T# Parameter

Min

Max

Unit

Figure

Notes

1,2,5

Table 2-24. Front Side Bus AC Specifications (Reset Conditions)

T# Parameter

Min

Max

Unit

Figure

Notes

T47: Reset Configuration Signals (A[21:16]#)

Setup Time

T45: Reset Configuration Signals (A[39:22]#,

A[15:3]#, BR[3:0]#, INIT#, SMI#) Setup Time

BCLKs

2-18

T46: Reset Configuration Signals (A[39:3]#,

BR[3:0]#, INIT#, SMI#) Hold Time

BCLKs

2-18

Table 2-25. TAP Signal Group AC Specifications

T# Parameter

Min

Max

Unit

Figure

Notes

1,7

T55: TCK Period

13.3

2-7

T61: TDI, TMS Setup Time

1.5

2-13

3,6

T62: TDI, TMS Hold Time

3.0

2-13

3,6

T63: TDO Clock to Output Delay

0.5

10.0

2-13

T64: TRST# Assert Time

TCK

2-14

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

6. Specification for a minimum swing defined between TAP V

T-

to V

T+

. This assumes a minimum edge rate of

0.5 V/ns.

7. It is recommended that TMS be asserted while TRST# is being deasserted.

NOTES:

1. Rise time is measured between 10% and 90% points on the waveform.
2. Specification refers to the time between VIDPWRGD = V

- 20% and VIDPWRGD = V

3. V

CACHE

to V

delay time is measured from (0.5 * CVID) to (0.5 * VID).

Table 2-26. VIDPWRGD and Other Voltage Sequence AC Specifications

T# Parameter

Min

Max

Unit

Figure

Notes

T70: VIDPWRGD rise time

150

2-19

T71: V

to VIDPWRGD delay time

2-19

T72: V

to VIDPWRGD deassertion time

2-19

T73: VIDPWRGD to V

CACHE

delay time

2-18

T74: V

CACHE

to V

delay time

2-18

Table 2-27. VID Signal Group AC Timing Specifications

T# Parameter

Min

Max

Unit

Figure

Notes

T80: VID Step Time

µs

2-21

2-22

T81: VID Dwell Time

µs

2-21

2-22

T82: VID Down Transition to Valid V

(min)

µs

2-21

T82: VID Up Transition to Valid V

(min)

µs

2-21

T82: VID Down Transition to Valid V

(max)

µs

2-22

T82: VID Up Transition to Valid V

(max)

µs

2-22

Table 2-28. SMBus Signal Group AC Specifications

T# Parameter

Min

Max

Unit

Figure

Notes

1,2

T90: SM_CLK Frequency

100

KHz

T91: SM_CLK Period

100

µs

T92: SM_CLK High Time

4.0

N/A

µs

2-16

T93: SM_CLK Low Time

4.7

N/A

µs

2-16

T94: SMBus Rise Time

0.02

1.0

µs

2-16

T95: SMBus Fall Time

0.02

0.3

µs

2-16

T96: SMBus Output Valid Delay

0.1

4.5

µs

2-17

T97: SMBus Input Setup Time

250

N/A

2-16

T98: SMBus Input Hold Time

300

N/A

2-16

T99: Bus Free Time

4.7

N/A

µs

2-16

3,5

T100: Hold Time after Repeated Start

Condition

4.0

N/A

µs

2-16

T101: Repeated Start Condition Setup

Time

4.7

N/A

µs

2-16

T102: Stop Condition Setup Time

4.0

N/A

µs

2-16

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

NOTES:

1. These parameters are based on design characterization and are not tested.
2. All AC timings for the SMBus signals are referenced at V

IL_MAX

or V

IL_MIN

and measured at the processor

pins. Refer to

Figure 2-16

3. Minimum time allowed between request cycles.
4. Rise time is measured from (V

IL_MAX

- 0.15V) to (V

IH_MIN

+ 0.15V). Fall time is measured from

(0.9 * SM_VCC) to (V

IL_MAX

- 0.15V). DC parameters are specified in

Table 2-18

5. Following a write transaction, an internal write cycle time of 10ms must be allowed before starting the next

transaction

2.13

Processor AC Timing Waveforms

The following figures are used in conjunction with the AC timing tables (

Table 2-21

through

Table 2-28

Note: For

Figure 2-7

through

Figure 2-19

, the following apply:

1. All common clock AC timings for AGTL+ signals are referenced to the Crossing Voltage

CROSS

) of the BCLK[1:0] at rising edge of BCLK0. All common clock AGTL+ signal

timings are referenced at GTLREF at the processor core.

2. All source synchronous AC timings for AGTL+ signals are referenced to their associated

strobe (address or data) at GTLREF. Source synchronous data signals are referenced to the

falling edge of their associated data strobe. Source synchronous address signals are referenced
to the rising and falling edge of their associated address strobe. All source synchronous

AGTL+ signal timings are referenced at GTLREF at the processor silicon.

3. All AC timings for AGTL+ strobe signals are referenced to BCLK[1:0] at V

CROSS

. All AGTL+

strobe signal timings are referenced at GTLREF at the processor silicon.

4. All AC timings for the TAP signals are referenced to the TCK at 0.5 * V

at the processor

pins. All TAP signal timings (TMS, TDI, etc.) are referenced at 0.5 * V

at the processor

pins.

5. All AC timings for the SMBus signals are referenced to the SM_CLK at 0.5 * SM_VCC

at the

processor pins. All SMBus signal timings (SM_DAT, SM_CLK, etc.) are referenced at
V

IL_MAX

or V

IL_MIN

at the processor pins.

Figure 2-6. Electrical Test Circuit

45 ohms, 156 ps/in, 550 mils

L = 2.4nH
C = 1.2pF

LOAD

= 50 ohms

AC Timings specified at this point

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Electrical Specifications

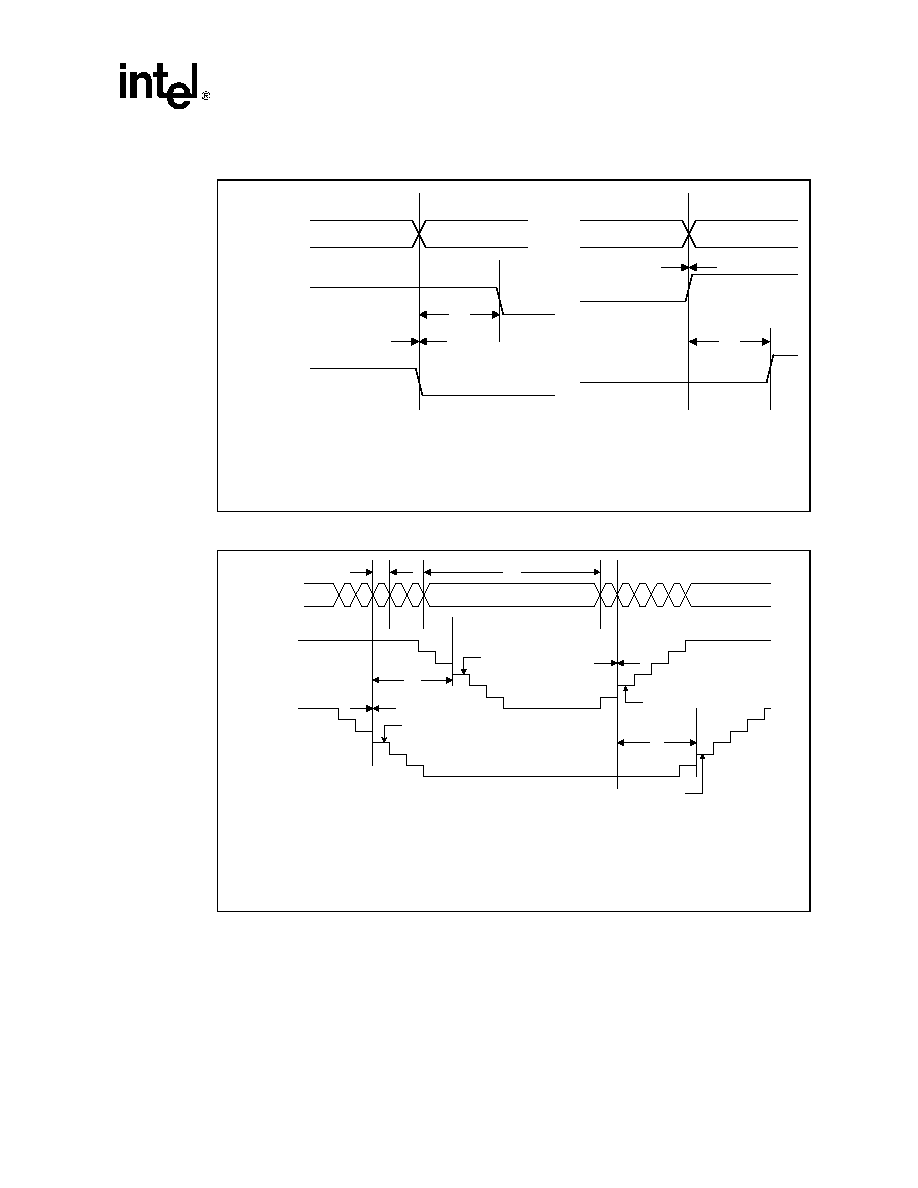

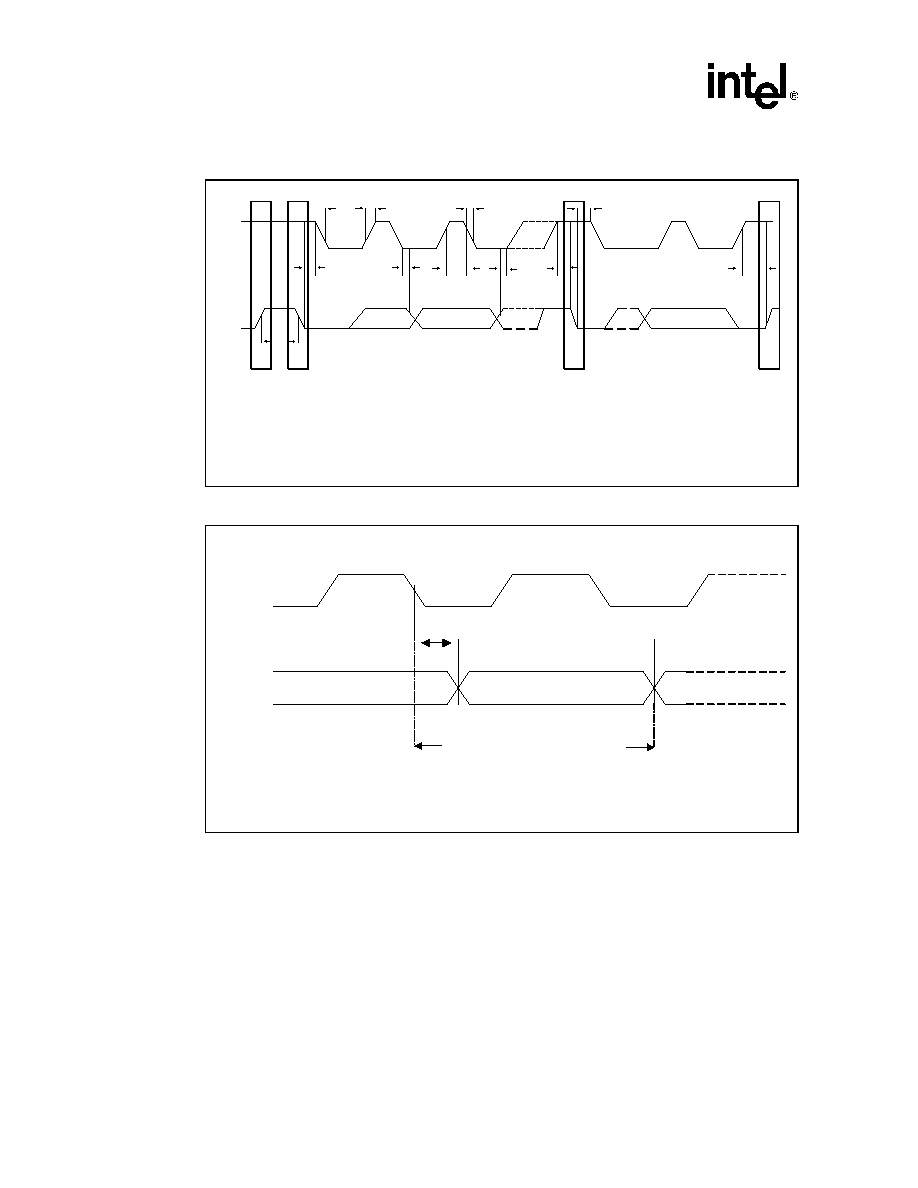

Figure 2-21. VID Step Timings

Figure 2-22. VID Step Times and V

Waveforms

VID

n-1

m+1

...

Ta = T84: VID Down to Valid V

(max)

Tb = T82: VID Down to Valid V

(min)

Tc = T85: VID Up to Valid V

(max)

Td = T83: VID Up to Valid V

(min)

(max)

(min)

VID

(max)

(min)

n-6 = VID

TM2

(max,n-3)

(min,n-3)

(max,n-4)

(min,n-4)

Ta = T80: VID Step Time
Tb = T81: Thermal Monitor 2 Dwell Time
Tc = T84: VID Down to Valid V

(max)

Td = T82: VID Down to Valid V

(min)

Te = T85: VID Up to Valid V

(max)

Tf = T83: VID Up to Valid V

(min)

Note: This waveform illustrates an example of an Intel Thermal

Monitor 2 transition or an Intel Enhanced SpeedStep transition

that is

six

VID steps down from the current state and

six

steps

back up. Any arbitrary up or down transition can be generalized

from this waveform.

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Front Side Bus Signal Quality
Specifications

Source synchronous data transfer requires the clean reception of data signals and their associated

strobes. Ringing below receiver thresholds, non-monotonic signal edges, and excessive voltage
swings will adversely affect system timings. Ringback and signal non-monotonicity cannot be

tolerated since these phenomena may inadvertently advance receiver state machines. Excessive

signal swings (overshoot and undershoot) are detrimental to silicon gate oxide integrity, and can
cause device failure if absolute voltage limits are exceeded. Overshoot and undershoot can also

cause timing degradation due to the build up of inter-symbol interference (ISI) effects. For these

reasons, it is crucial that the designer work towards a solution that provides acceptable signal
quality across all systematic variations encountered in volume manufacturing.

This section documents signal quality metrics used to derive topology and routing guidelines

through simulation. All specifications are specified at the processor core (pad measurements).

Specifications for signal quality are for measurements at the processor core only and are only

observable through simulation. The same is true for all front side bus AC timing specifications in

Section 2.12

. Therefore, proper simulation of the processor front side bus is the only way to

verify proper timing and signal quality

3.1

Front Side Bus Signal Quality Specifications and

Measurement Guidelines

3.1.1

Ringback Guidelines

Many scenarios have been simulated to generate a set of AGTL+ layout guidelines.

Table 3-1

provides the signal quality specifications for the AGTL+ and GTL+ asynchronous signal

groups.

Table 3-2

demonstrates the signal quality specification for the TAP signal group. These

specifications are for use in simulating signal quality at the processor pads.

Maximum allowable overshoot and undershoot specifications for a given duration of time are
detailed in

Table 3-3

through

Section 3-6

. front side bus ringback tolerance for AGTL+ and GTL+

asynchronous signal groups are shown in

Figure 3-1

(low-to-high transitions) and

Figure 3-2

(high-to-low transitions).

The TAP signal group includes hysteresis on the input buffers and thus has relaxed ringback
requirements when compared to the other buffer types.

Figure 3-3

shows the front side bus

ringback tolerance for low-to-high transitions and

Figure 3-4

for high-to-low transitions. The

hysteresis values Vt+ and Vt- can be found in

Table 2-16

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Front Side Bus Signal Quality Specifications

NOTES:

1. All signal integrity specifications are measured at the processor core (pads).
2. Unless otherwise noted, all specifications in this table apply to all processor frequencies.
3. Specifications are for the edge rate of 1.8- 2.2V/ns.
4. All values specified by design characterization.
5. Please see

Section 3.1.3

for maximum allowable overshoot.

6. The total ringback tolerance is 6% of V

(0.06 * V

). This consists of 4% AC and 2% DC components.

Ringback between GTLREF + (0.06 * V

) and GTLREF - (0.06 * V

) is not supported.

Table 3-1. Ringback Specifications for AGTL+ and GTL+ Asynchronous Signal Groups

Signal Group

Transition

Maximum Ringback

(with Input Diodes Present)

Unit

Figure

Notes

AGTL+, Async GTL+

Low

High

GTLREF + (0.06 * V

)

3-1

1,2,3,4,5,6

AGTL+, Async GTL+

High

Low

GTLREF - (0.06 * V

)

3-2

1,2,3,4,5,6

Figure 3-1. Low-to-High Front Side Bus Receiver Ringback Tolerance

GTLREF

Noise Margin

+ 6% * V

6% * V

Figure 3-2. High-to-Low Front Side Bus Receiver Ringback Tolerance

GTLREF

Noise Margin

+ 6% * V

- 6% * V

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Front Side Bus Signal Quality Specifications

3.1.2

Overshoot/Undershoot Guidelines

Overshoot (or undershoot) is the absolute value of the maximum voltage above or below V

. The

overshoot/undershoot specifications limit transitions beyond V

or V

due to the fast signal edge

rates. The processor can be damaged by single and/or repeated overshoot or undershoot events on
any input, output, or I/O buffer if the charge is large enough (i.e., if the over/undershoot is great

enough). Determining the impact of an overshoot/undershoot condition requires knowledge of the

magnitude, the pulse duration, and the activity factor (AF). Permanent damage to the processor is
the likely result of excessive overshoot/undershoot.

When performing simulations to determine the impact of overshoot and undershoot effects, ESD

diodes must be properly characterized. ESD protection diodes do not act as voltage clamps and will
not provide overshoot or undershoot protection. ESD diodes modeled within Intel signal integrity

models do not clamp undershoot or overshoot and will yield correct simulation results. If other

signal integrity models are being used to characterize the processor front side bus, care must be
taken to ensure that ESD models do not clamp extreme voltage levels. Intel signal integrity models

also contain I/O capacitance characterization. Therefore, removing the ESD diodes from a signal

integrity model will impact results and may yield excessive overshoot/undershoot.

3.1.3

Overshoot/Undershoot Magnitude

Magnitude describes the maximum potential difference between a signal and its voltage reference

level. For the processor, both are referenced to V

. It is important to note that overshoot and

undershoot conditions are separate and their impact must be determined independently.

The pulse magnitude, duration, and activity factor must all be used to determine if the overshoot/

undershoot pulse is within specifications.

Figure 3-4. High-to-Low Receiver Ringback Tolerance for PWRGOOD and TAP Signals

0.5 * V

Vt+ (min)

Vt- (max)

Vss

Vt- (min)

Threshold Region to switch

receiver to a logic 0.

Allowable Ringback

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Front Side Bus Signal Quality Specifications

3.1.4

Overshoot/Undershoot Pulse Duration

Pulse duration describes the total amount of time that an overshoot/undershoot event exceeds the

overshoot/undershoot reference voltage. The total time could encompass several oscillations above

the reference voltage. Multiple overshoot/undershoot pulses within a single overshoot/undershoot
event may need to be measured to determine the total pulse duration.

Note: Oscillations below the reference voltage cannot be subtracted from the total overshoot/undershoot

pulse duration.

3.1.5

Activity Factor

Activity Factor (AF) describes the frequency of overshoot (or undershoot) occurrence relative to a

clock. Since the highest frequency of assertion of any common clock signal is every other clock, an

AF = 1 indicates that the specific overshoot (or undershoot) waveform occurs every other clock
cycle. Thus, an AF = 0.01 indicates that the specific overshoot (or undershoot) waveform occurs

one time in every 200 clock cycles.

For source synchronous signals (address, data, and associated strobes), the activity factor is in

reference to the strobe edge. The highest frequency of assertion of any source synchronous signal is
every active edge of its associated strobe. So, an AF = 1 indicates that the specific overshoot (or

undershoot) waveform occurs every strobe cycle.

The specifications provided in

Table 3-3

through

Table 3-6

show the maximum pulse duration

allowed for a given overshoot/undershoot magnitude at a specific activity factor. Each table entry is
independent of all others (meaning that the pulse duration reflects the existence of overshoot/

undershoot events of that magnitude ONLY). A platform with an overshoot/undershoot that just

meets the pulse duration for a specific magnitude where the AF < 1 means that there can be no
other overshoot/undershoot events, even of lesser magnitude (note that if AF = 1, then the event

occurs at all times and no other events can occur).

Note 1: Activity factor for common clock AGTL+ signals is referenced to BCLK[1:0] frequency.

Note 2: Activity factor for source synchronous (2x) signals is referenced to ADSTB[1:0]#.

Note 3: Activity factor for source synchronous (4x) signals is referenced to DSTBP[3:0]# and
DSTBN[3:0]#.

3.1.6

Reading Overshoot/Undershoot Specification Tables

The overshoot/undershoot specification for the processor is not a simple single value. Instead,
many factors are needed to determine what the over/undershoot specification is. In addition to the

magnitude of the overshoot, the following parameters must also be known: the width of the

overshoot and the activity factor (AF). To determine the allowed overshoot for a particular
overshoot event, the following must be done:

1. Determine the signal group that particular signal falls into. For AGTL+ signals operating in

the 4x source synchronous domain, use

Table 3-3

. For AGTL+ signals operating in the 2x

source synchronous domain, use

Table 3-4

. If the signal is an AGTL+ signal operating in the

common clock domain, use

Table 3-5

. Finally, all other signals are referenced in

Table 3-6

2. Determine the magnitude of the overshoot or the undershoot (relative to V

3. Determine the activity factor (how often does this overshoot occurs).

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Front Side Bus Signal Quality Specifications

4. Next, from the appropriate specification table, determine the maximum pulse duration (in

nanoseconds) allowed.

5. Compare the specified maximum pulse duration to the signal being measured. If the pulse

duration measured is less than the pulse duration shown in the table, then the signal meets the
specifications.

Undershoot events must be analyzed separately from overshoot events as they are mutually

exclusive.

3.1.7

Determining if a System Meets Over/Undershoot

Specifications

The overshoot/undershoot specifications listed in the following tables specify the allowable

overshoot/undershoot for a single overshoot/undershoot event. Most systems will have multiple

overshoot and/or undershoot events that each have their own set of parameters (duration, AF and
magnitude). While each overshoot on its own may meet the overshoot specification, evaluate the

cumulative overshoot of every cycle. A guideline to ensure a system passes the overshoot and

undershoot specifications is shown below. Results from simulation may also be evaluated by
utilizing the appropriate Processor Overshoot Checker Tool through the use of time-voltage data

files.

1. If only one overshoot/undershoot event magnitude occurs, ensure it meets the over/undershoot

specifications in the following tables OR

2. If multiple overshoots and/or multiple undershoots occur, measure the worst case pulse

duration for each magnitude and compare the results against the AF = 1 specifications. If all of
these worst case overshoot or undershoot events meet the specifications (measured time <

specifications) in the table (where AF=1), then the system passes.

Note: The following notes apply to

Table 3-3

through

Table 3-6

1. Absolute Maximum Overshoot is measured referenced to V

. Pulse Duration of overshoot is

measured relative to V

2. Absolute Maximum Undershoot and Pulse Duration of undershoot is measured relative to

3. Ringback below V

cannot be subtracted from overshoots/undershoots.

4. Lesser undershoot does not allocate longer or larger overshoot.

5. OEM's are strongly encouraged to follow Intel layout recommendations.

6. All values specified by design characterization.

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Front Side Bus Signal Quality Specifications

NOTES:

1. These specifications are measured at the processor pad.
2. Assumes a BCLK period of 6 ns.
3. AF is referenced to associated source synchronous strobes

NOTES:

1. These specifications are measured at the processor pad.
2. BCLK period is 6 ns.
3. AF is referenced to associated source synchronous strobe.

NOTES:

1. These specifications are measured at the processor pad.
2. BCLK period is 6 ns.
3. AF is referenced to BCLK[1:0]

Table 3-3. Source Synchronous (667MHz) AGTL+ Signals Over/Undershoot Tolerance

Absolute Maximum

Overshoot (V)

Absolute Maximum

Undershoot (V)

Pulse Duration (ns)

AF = 1

Pulse Duration (ns)

AF = 0.1

1.55

-0.35

0.2

1.50

-0.30

0.7

1.45

-0.25

0.1

1.5

1.40

-0.20

0.5

1.5

1.35

-0.15

1.3

1.5

1.30

-0.10

1.5

Table 3-4. Source Synchronous (333 MHz) AGTL+ Signals Over/Undershoot Tolerance

Absolute Maximum

Overshoot (V)

Absolute Maximum

Undershoot (V)

Pulse Duration (ns)

AF = 1

Pulse Duration (ns)

AF = 0.1

1.55

-0.35

0.6

1.50

-0.30

0.1

1.9

1.45

-0.25

0.5

3.0

1.40

-0.20

1.3

3.0

1.35

-0.15

3.0

1.30

-0.10

3.0

Table 3-5. Common Clock (166 MHz) AGTL+ Signals Overshoot/Undershoot Tolerance

Absolute Maximum

Overshoot (V)

Absolute Maximum

Undershoot (V)

Pulse Duration (ns)

AF = 1

Pulse Duration (ns)

AF = 0.1

1.55

-0.35

0.1

1.1

1.50

-0.30

0.3

3.2

1.45

-0.25

0.8

6.0

1.40

-0.20

2.3

6.0

1.35

-0.15

6.0

1.30

-0.10

6.0

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Mechanical Specifications

The 64-bit Intel

XeonTM processor MP with up to 8MB L3 cache is packaged in a Flip-Chip

Micro Pin Grid Array 4 (FC-mPGA4) package that interfaces with the motherboard via a

mPGA604 socket. The package consists of a processor core mounted on a substrate pin-carrier. An
integrated heat spreader (IHS) is attached to the package substrate and core and serves as the

mating surface for processor component thermal solutions, such as a heatsink.

Figure 4-1

shows a

sketch of the processor package components and how they are assembled together.

The package components shown in

Figure 4-1

include the following:

1. Integrated Heat Spreader (IHS)
2. Processor die
3. FC-mPGA4 package
4. Pin-side capacitors
5. Package pin

Note: This drawing is not to scale and is for reference only. The mPGA604 socket is not shown.

Figure 4-1. Processor Package Assembly Sketch

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Mechanical Specifications

4.2

Processor Component Keep-Out Zones

The processor may contain components on the substrate that define component keep-out zone

requirements. A thermal and mechanical solution design must not intrude into the required keep-
out zones. Decoupling capacitors are typically mounted to either the topside or pin-side of the

package substrate. See

Figure 4-2

and

Figure 4-3

for keepout zones.

4.3

Package Loading Specifications

Table 4-1

provides dynamic and static load specifications for the processor package. These

mechanical load limits should not be exceeded during heatsink assembly, shipping conditions, or
standard use condition. Also, any mechanical system or component testing should not exceed the

maximum limits. The processor package substrate should not be used as a mechanical reference or

load-bearing surface for thermal and mechanical solutions. The minimum loading specification
must be maintained by any thermal and mechanical solution.

NOTES:

1. These specifications apply to uniform compressive loading in a direction perpendicular to the IHS top

surface.

2. This is the minimum and maximum static force that can be applied by the heatsink and retention solution to

maintain the heatsink and processor interface.

3. These parameters are based on limited testing for design characterization. Loading limits are for the package

only and do not include the limits of the processor socket.

4. This specification applies for thermal retention solutions that allow baseboard deflection.
5. This specification applies either for thermal retention solutions that prevent baseboard deflection or for the

Intel enabled reference solution.

6. Dynamic loading is defined as an 11 ms duration average load superimposed on the static load requirement.
7. Experimentally validated test condition used a heatsink mass of 1 lbm (~0.45 kg) with 100 G acceleration

measured at heatsink mass. The dynamic portion of this specification in the product application can have
flexibility in specific values, but the ultimate product of mass times acceleration should not exceed this
validated dynamic load (1 lbm x 100 G = 100 lb).

8. Transient loading is defined as a 2 second duration peak load superimposed on the static load requirement,

representative of loads experienced by the package during heatsink installation.

Table 4-1. Processor Loading Specifications

Parameter

Minimum

Maximum

Unit

Notes

Static Compressive

Load

44
10

222

lbf

1, 2, 3, 4

44
10

288

lbf

1, 2, 3, 5

Dynamic

Compressive Load

222 N + 0.45 kg * 100 G

50 lbf (static) + 1 lbm * 100 G

lbf

1, 3, 4, 6, 7

288 N + 0.45 kg * 100 G

65 lbf (static) + 1 lbm * 100 G

lbf

1, 3, 5, 6, 7

Transient

445
100

lbf

1, 3, 8

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Mechanical Specifications

4.4

Package Handling Guidelines

Table 4-2

includes a list of guidelines on package handling in terms of recommended maximum

loading on the processor IHS relative to a fixed substrate. These package handling loads may be
experienced during heatsink removal

NOTES:

1. A shear load is defined as a load applied to the IHS in a direction parallel to the IHS top surface.
2. A tensile load is defined as a pulling load applied to the IHS in the direction normal to the IHS surface.
3. A torque load is defined as a twisting load applied to the IHS in an axis of rotation normal to the IHS top

surface.

4. These guidelines are based on limited testing for design characterization and incidental applications (one

time only).

5. Handling guidelines are for the package only and do not include the limits of the processor socket.

4.5

Package Insertion Specifications

The processor can be inserted into and removed from a mPGA604 socket 15 times. The socket
should meet the mPGA604 requirements detailed in the mPGA604 Socket Design Guidelines.

4.6

Processor Mass Specifications

The typical mass of the processor is 34 g [1.20 oz]. This mass [weight] includes all the components

that are included in the package.

4.7

Processor Materials

Table 4-3

lists some of the package components and associated materials.

Table 4-2. Package Handling Guidelines

Parameter

Maximum Recommended

Notes

Shear

356 N [80 lbf]

1, 4, 5

Tensile

156 N [35 lbf]

2, 4, 5

Torque

8 N-m [70 lbf-in]

3, 4, 5

Table 4-3. Processor Materials

Component

Material

Integrated Heat Spreader (IHS)

Nickel Plated Copper

Substrate

Fiber-Reinforced Resin

Substrate Pins

Gold Plated Copper

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Pin Listing

5.1

Processor Pin Assignments

Section 2.6

contains the front side bus signal groups for the processor (see

Table 2-5

). This section

provides a sorted pin list in

Table 5-1

and

Table 5-2

Table 5-1

is a listing of all processor pins

ordered alphabetically by pin name.

Table 5-2

is a listing of all processor pins ordered by pin

number.

5.1.1

Pin Listing by Pin Name

Table 5-1. Pin Listing by Pin Name

Pin Name

Pin No.

Signal Buffer

Type

Direction

A3#

A22

Source Sync

Input/Output

A4#

A20

Source Sync

Input/Output

A5#

B18

Source Sync

Input/Output

A6#

C18

Source Sync

Input/Output

A7#

A19

Source Sync

Input/Output

A8#

C17

Source Sync

Input/Output

A9#

D17

Source Sync

Input/Output

A10#

A13

Source Sync

Input/Output

A11#

B16

Source Sync

Input/Output

A12#

B14

Source Sync

Input/Output

A13#

B13

Source Sync

Input/Output

A14#

A12

Source Sync

Input/Output

A15#

C15

Source Sync

Input/Output

A16#

C14

Source Sync

Input/Output

A17#

D16

Source Sync

Input/Output

A18#

D15

Source Sync

Input/Output

A19#

F15

Source Sync

Input/Output

A20#

A10

Source Sync

Input/Output

A21#

B10

Source Sync

Input/Output

A22#

B11

Source Sync

Input/Output

A23#

C12

Source Sync

Input/Output

A24#

E14

Source Sync

Input/Output

A25#

D13

Source Sync

Input/Output

A26#

Source Sync

Input/Output

A27#

Source Sync

Input/Output

A28#

E13

Source Sync

Input/Output

A29#

D12

Source Sync

Input/Output

A30#

C11

Source Sync

Input/Output

A31#

Source Sync

Input/Output

A32#

Source Sync

Input/Output

A33#

Source Sync

Input/Output

A34#

Source Sync

Input/Output

A35#

Source Sync

Source
Sync

A36#

F16

Source Sync

Source
Sync

A37#

F22

Source Sync

Source
Sync

A38#

Source Sync

Source
Sync

A39#

C16

Source Sync

Source
Sync

A20M#

F27

Async GTL+

Input

ADS#

D19

Common Clk

Input/Output

ADSTB0#

F17

Source Sync

Input/Output

ADSTB1#

F14

Source Sync

Input/Output

AP0#

E10

Common Clk

Input/Output

AP1#

Common Clk

Input/Output

BCLK0

FSB Clk

Input

BCLK1

FSB Clk

Input

BINIT#

F11

Common Clk

Input/Output

BNR#

F20

Common Clk

Input/Output

Table 5-1. Pin Listing by Pin Name (cont'd)

Pin Name

Pin No.

Signal Buffer

Type

Direction

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Pin Listing

BOOT_SELECT

Power/Other

Input

BPM0#

Common Clk

Input/Output

BPM1#

Common Clk

Input/Output

BPM2#

Common Clk

Input/Output

BPM3#

Common Clk

Input/Output

BPM4#

Common Clk

Input/Output

BPM5#

Common Clk

Input/Output

BPRI#

D23

Common Clk

Input

BR0#

D20

Common Clk

Input/Output

BR1#

F12

Common Clk

Input

BR2#

E11

Common Clk

Input

BR3#

D10

Common Clk

Input

BSEL0

AA3

Power/Other

Output

BSEL1

AB3

Power/Other

Output

COMP0

AD16

Power/Other

Input

CVID0

Power/Other

Output

CVID1

Power/Other

Output

CVID2

Power/Other

Output

CVID3

Power/Other

Output

D0#

Y26

Source Sync

Input/Output

D1#

AA27

Source Sync

Input/Output

D2#

Y24

Source Sync

Input/Output

D3#

AA25

Source Sync

Input/Output

D4#

AD27

Source Sync

Input/Output

D5#

Y23

Source Sync

Input/Output

D6#

AA24

Source Sync

Input/Output

D7#

AB26

Source Sync

Input/Output

D8#

AB25

Source Sync

Input/Output

D9#

AB23

Source Sync

Input/Output

D10#

AA22

Source Sync

Input/Output

D11#

AA21

Source Sync

Input/Output

D12#

AB20

Source Sync

Input/Output

D13#

AB22

Source Sync

Input/Output

D14#

AB19

Source Sync

Input/Output

D15#

AA19

Source Sync

Input/Output

D16#

AE26

Source Sync

Input/Output

D17#

AC26

Source Sync

Input/Output

Table 5-1. Pin Listing by Pin Name (cont'd)

Pin Name

Pin No.

Signal Buffer

Type

Direction

D18#

AD25

Source Sync

Input/Output

D19#

AE25

Source Sync

Input/Output

D20#

AC24

Source Sync

Input/Output

D21#

AD24

Source Sync

Input/Output

D22#

AE23

Source Sync

Input/Output

D23#

AC23

Source Sync

Input/Output

D24#

AA18

Source Sync

Input/Output

D25#

AC20

Source Sync

Input/Output

D26#

AC21

Source Sync

Input/Output

D27#

AE22

Source Sync

Input/Output

D28#

AE20

Source Sync

Input/Output

D29#

AD21

Source Sync

Input/Output

D30#

AD19

Source Sync

Input/Output

D31#

AB17

Source Sync

Input/Output

D32#

AB16

Source Sync

Input/Output

D33#

AA16

Source Sync

Input/Output

D34#

AC17

Source Sync

Input/Output

D35#

AE13

Source Sync

Input/Output

D36#

AD18

Source Sync

Input/Output

D37#

AB15

Source Sync

Input/Output

D38#

AD13

Source Sync

Input/Output

D39#

AD14

Source Sync

Input/Output

D40#

AD11

Source Sync

Input/Output

D41#

AC12

Source Sync

Input/Output

D42#

AE10

Source Sync

Input/Output

D43#

AC11

Source Sync

Input/Output

D44#

AE9

Source Sync

Input/Output

D45#

AD10

Source Sync

Input/Output

D46#

AD8

Source Sync

Input/Output

D47#

AC9

Source Sync

Input/Output

D48#

AA13

Source Sync

Input/Output

D49#

AA14

Source Sync

Input/Output

D50#

AC14

Source Sync

Input/Output

D51#

AB12

Source Sync

Input/Output

D52#

AB13

Source Sync

Input/Output

D53#

AA11

Source Sync

Input/Output

D54#

AA10

Source Sync

Input/Output

Table 5-1. Pin Listing by Pin Name (cont'd)

Pin Name

Pin No.

Signal Buffer

Type

Direction

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Pin Listing

D55#

AB10

Source Sync

Input/Output

D56#

AC8

Source Sync

Input/Output

D57#

AD7

Source Sync

Input/Output

D58#

AE7

Source Sync

Input/Output

D59#

AC6

Source Sync

Input/Output

D60#

AC5

Source Sync

Input/Output

D61#

AA8

Source Sync

Input/Output

D62#

Source Sync

Input/Output

D63#

AB6

Source Sync

Input/Output

DBI0#

AC27

Source Sync

Input/Output

DBI1#

AD22

Source Sync

Input/Output

DBI2#

AE12

Source Sync

Input/Output

DBI3#

AB9

Source Sync

Input/Output

DBSY#

F18

Common Clk

Input/Output

DEFER#

C23

Common Clk

Input

DEP0#

AD31

Source Sync

Input/Output

DEP1#

AD30

Source Sync

Input/Output

DEP2#

AE16

Source Sync

Input/Output

DEP3#

AE15

Source Sync

Input/Output

DEP4#

AE8

Source Sync

Input/Output

DEP5#

AD6

Source Sync

Input/Output

DEP6#

AC4

Source Sync

Input/Output

DEP7#

AA4

Source Sync

Input/Output

DP0#

AC18

Common Clk

Input/Output

DP1#

AE19

Common Clk

Input/Output

DP2#

AC15

Common Clk

Input/Output

DP3#

AE17

Common Clk

Input/Output

DRDY#

E18

Common Clk

Input/Output

DSTBN0#

Y21

Source Sync

Input/Output

DSTBN1#

Y18

Source Sync

Input/Output

DSTBN2#

Y15

Source Sync

Input/Output

DSTBN3#

Y12

Source Sync

Input/Output

DSTBP0#

Y20

Source Sync

Input/Output

DSTBP1#

Y17

Source Sync

Input/Output

DSTBP2#

Y14

Source Sync

Input/Output

DSTBP3#

Y11

Source Sync

Input/Output

FERR#/PBE#

E27

Async GTL+

Output

Table 5-1. Pin Listing by Pin Name (cont'd)

Pin Name

Pin No.

Signal Buffer

Type

Direction

FORCEPR#

A15

Power/Other

Input

GTLREF0

W23

Power/Other

Input

GTLREF1

Power/Other

Input

GTLREF2

F23

Power/Other

Input

GTLREF3

Power/Other

Input

HIT#

E22

Common Clk

Input/Output

HITM#

A23

Common Clk

Input/Output

ID0#

A26

Common Clk

Input

ID1#

B26

Common Clk

Input

ID2#

D25

Common Clk

Input

ID3#

D27

Common Clk

Input

ID4#

C28

Common Clk

Input

ID5#

B29

Common Clk

Input

ID6#

B30

Common Clk

Input

ID7#

A30

Common Clk

Input

IDS#

A28

Common Clk

Input

IERR#

Async GTL+

Output

IGNNE#

C26

Async GTL+

Input

INIT#

Async GTL+

Input

LINT0/INTR

B24

Async GTL+

Input

LINT1/NMI

G23

Async GTL+

Input

LOCK#

A17

Common Clk

Input/Output

MCERR#

Common Clk

Input/Output

ODTEN

Power/Other

Input

OOD#

D29

Common Clk

Input

PROCHOT#

B25

Async GTL+

Output

PWRGOOD

AB7

Async GTL+

Input

REQ0#

B19

Source Sync

Input/Output

REQ1#

B21

Source Sync

Input/Output

REQ2#

C21

Source Sync

Input/Output

REQ3#

C20

Source Sync

Input/Output

REQ4#

B22

Source Sync

Input/Output

Reserved

A31

Reserved

E16

Reserved

Y27

Table 5-1. Pin Listing by Pin Name (cont'd)

Pin Name

Pin No.

Signal Buffer

Type

Direction

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Pin Listing

Reserved

Y28

Reserved

AC1

Reserved

AE4

Reserved

AE30

RESET#

Common Clk

Input

RS0#

E21

Common Clk

Input

RS1#

D22

Common Clk

Input

RS2#

F21

Common Clk

Input

RSP#

Common Clk

Input

SKTOCC#

Power/Other

Output

SLEW_CTRL

AC30

Power/Other

Input

SM_ALERT#

AD28

SMBus

Output

SM_CLK

AC28

SMBus

Input

SM_DAT

AC29

SMBus

Input/Output

SM_EP_A0

AA29

SMBus

Input

SM_EP_A1

AB29

SMBus

Input

SM_EP_A2

AB28

SMBus

Input

SM_TS1_A0

AA28

SMBus

Input

SM_TS1_A1

Y29

SMBus

Input

SM_VCC

AE28

Power/Other

SM_VCC

AE29

Power/Other

SM_WP

AD29

SMBus

Input

SMI#

C27

Async GTL+

Input

STPCLK#

Async GTL+

Input

TCK

E24

TAP

Input

TDI

C24

TAP

Input

TDO

E25

TAP

Output

TEST_BUS

A16

Power/Other

Input

TESTHI0

Power/Other

Input

TESTHI1

Power/Other

Input

TESTHI2

Power/Other

Input

TESTHI3

Power/Other

Input

TESTHI4

AA7

Power/Other

Input

TESTHI5

AD5

Power/Other

Input

TESTHI6

AE5

Power/Other

Input

THERMTRIP

F26

Async GTL+

Output

TMS

A25

TAP

Input

Table 5-1. Pin Listing by Pin Name (cont'd)

Pin Name

Pin No.

Signal Buffer

Type

Direction

TRDY#

E19

Common Clk

Input

TRST#

F24

TAP

Input

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

A14

Power/Other

A18

Power/Other

A24

Power/Other

Table 5-1. Pin Listing by Pin Name (cont'd)

Pin Name

Pin No.

Signal Buffer

Type

Direction

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Pin Listing

B20

Power/Other

C22

Power/Other

C30

Power/Other

D14

Power/Other

D18

Power/Other

D24

Power/Other

D31

Power/Other

E20

Power/Other

E26

Power/Other

E28

Power/Other

E30

Power/Other

F29

Power/Other

F31

Power/Other

G24

Power/Other

G26

Power/Other

G28

Power/Other

G30

Power/Other

H23

Power/Other

H25

Power/Other

H27

Power/Other

H29

Power/Other

H31

Power/Other

J24

Power/Other

J26

Power/Other

Table 5-1. Pin Listing by Pin Name (cont'd)

Pin Name

Pin No.

Signal Buffer

Type

Direction

J28

Power/Other

J30

Power/Other

K23

Power/Other

K25

Power/Other

K27

Power/Other

K29

Power/Other

K31

Power/Other

L24

Power/Other

L26

Power/Other

L28

Power/Other

L30

Power/Other

M23

Power/Other

M25

Power/Other

M27

Power/Other

M29

Power/Other

M31

Power/Other

N23

Power/Other

N25

Power/Other

N27

Power/Other

N29

Power/Other

N31

Power/Other

P24

Power/Other

P26

Power/Other

P28

Power/Other

P30

Power/Other

R23

Power/Other

R25

Power/Other

R27

Power/Other

R29

Power/Other

Table 5-1. Pin Listing by Pin Name (cont'd)

Pin Name

Pin No.

Signal Buffer

Type

Direction

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Pin Listing

R31

Power/Other

T24

Power/Other

T26

Power/Other

T28

Power/Other

T30

Power/Other

U23

Power/Other

U25

Power/Other

U27

Power/Other

U29

Power/Other

U31

Power/Other

V24

Power/Other

V26

Power/Other

V28

Power/Other

V30

Power/Other

W25

Power/Other

W27

Power/Other

W29

Power/Other

W31

Power/Other

Y16

Power/Other

Y22

Power/Other

Y30

Power/Other

AA1

Power/Other

AA6

Power/Other

AA20

Power/Other

AA26

Power/Other

AA31

Power/Other

AB2

Power/Other

Table 5-1. Pin Listing by Pin Name (cont'd)

Pin Name

Pin No.

Signal Buffer

Type

Direction

AB8

Power/Other

AB14

Power/Other

AB18

Power/Other

AB24

Power/Other

AB30

Power/Other

AC3

Power/Other

AC16

Power/Other

AC22

Power/Other

AC31

Power/Other

AD2

Power/Other

AD20

Power/Other

AD26

Power/Other

AE14

Power/Other

AE18

Power/Other

AE24

Power/Other

CCA

AB4

Power/Other

Input

CCA_CACHE

AE3

Power/Other

Input

CC_CACHE_SENSE

B31

Power/Other

Output

CCIOPLL

AD4

Power/Other

Input

CCPLL

AD1

Power/Other

Input

CCSENSE

B27

Power/Other

Output

VID0

Power/Other

Output

VID1

Power/Other

Output

VID2

Power/Other

Output

VID3

Power/Other

Output

VID4

Power/Other

Output

VID5

Power/Other

Output

VIDPWRGD

Power/Other

Input

Power/Other

A11

Power/Other

A21

Power/Other

A27

Power/Other

A29

Power/Other

B15

Power/Other

B17

Power/Other

Table 5-1. Pin Listing by Pin Name (cont'd)

Pin Name

Pin No.

Signal Buffer

Type

Direction

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Pin Listing

B23

Power/Other

B28

Power/Other

C13

Power/Other

C19

Power/Other

C25

Power/Other

C29

Power/Other

D11

Power/Other

D21

Power/Other

D28

Power/Other

D30

Power/Other

E15

Power/Other

E17

Power/Other

E23

Power/Other

E29

Power/Other

E31

Power/Other

F13

Power/Other

F19

Power/Other

F25

Power/Other

F28

Power/Other

F30

Power/Other

G25

Power/Other

G27

Power/Other

G29

Power/Other

G31

Power/Other

Table 5-1. Pin Listing by Pin Name (cont'd)

Pin Name

Pin No.

Signal Buffer

Type

Direction

Power/Other

H24

Power/Other

H26

Power/Other

H28

Power/Other

H30

Power/Other

J23

Power/Other

J25

Power/Other

J27

Power/Other

J29

Power/Other

J31

Power/Other

K24

Power/Other

K26

Power/Other

K28

Power/Other

K30

Power/Other

L23

Power/Other

L25

Power/Other

L27

Power/Other

L29

Power/Other

L31

Power/Other

Table 5-1. Pin Listing by Pin Name (cont'd)

Pin Name

Pin No.

Signal Buffer

Type

Direction

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Pin Listing

M24

Power/Other

M26

Power/Other

M28

Power/Other

M30

Power/Other

N24

Power/Other

N26

Power/Other

N28

Power/Other

N30

Power/Other

P23

Power/Other

P25

Power/Other

P27

Power/Other

P29

Power/Other

P31

Power/Other

R24

Power/Other

R26

Power/Other

R28

Power/Other

R30

Power/Other

T23

Power/Other

T25

Power/Other

Table 5-1. Pin Listing by Pin Name (cont'd)

Pin Name

Pin No.

Signal Buffer

Type

Direction

T27

Power/Other

T29

Power/Other

T31

Power/Other

U24

Power/Other

U26

Power/Other

U28

Power/Other

U30

Power/Other

V23

Power/Other

V25

Power/Other

V27

Power/Other

V29

Power/Other

V31

Power/Other

W24

Power/Other

W26

Power/Other

W28

Power/Other

W30

Power/Other

Y13

Power/Other

Y19

Power/Other

Y25

Power/Other

Y31

Power/Other

AA2

Power/Other

AA9

Power/Other

Table 5-1. Pin Listing by Pin Name (cont'd)

Pin Name

Pin No.

Signal Buffer

Type

Direction

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Pin Listing

NOTES:

1. In systems utilizing the 64-bit Intel

XeonTM processor MP

with up to 8MB L3 cache, the system designer must pull-up
these signals to the processor V

AA15

Power/Other

AA17

Power/Other

AA23

Power/Other

AA30

Power/Other

AB1

Power/Other

AB5

Power/Other

AB11

Power/Other

AB21

Power/Other

AB27

Power/Other

AB31

Power/Other

AC2

Power/Other

AC7

Power/Other

AC13

Power/Other

AC19

Power/Other

AC25

Power/Other

AD3

Power/Other

AD9

Power/Other

AD15

Power/Other

AD17

Power/Other

AD23

Power/Other

AE6

Power/Other

AE11

Power/Other

AE21

Power/Other

AE27

Power/Other

Table 5-1. Pin Listing by Pin Name (cont'd)

Pin Name

Pin No.

Signal Buffer

Type

Direction

SSA

AA5

Power/Other

Input

SSA_CACHE

AE2

Power/Other

Input

SS_CACHE_SENSE

C31

Power/Other

Output

SSSENSE

D26

Power/Other

Output

Power/Other

B12

Power/Other

C10

Power/Other

E12

Power/Other

F10

Power/Other

Y10

Power/Other

AA12

Power/Other

AC10

Power/Other

AD12

Power/Other

VTTEN

Power/Other

Output

Table 5-1. Pin Listing by Pin Name (cont'd)

Pin Name

Pin No.

Signal Buffer

Type

Direction

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Pin Listing

5.1.2

Pin Listing by Pin Number

Table 5-2. Pin Listing by Pin Number

Pin No.

Pin Name

Signal

Buffer Type

Direction

VID5

Power/Other

Output

CVID3

Power/Other

Output

SKTOCC#

Power/Other

Output

Power/Other

A32#

Source Sync Input/Output

A33#

Source Sync Input/Output

Power/Other

A26#

Source Sync Input/Output

A10

A20#

Source Sync Input/Output

A11

Power/Other

A12

A14#

Source Sync Input/Output

A13

A10#

Source Sync Input/Output

A14

Power/Other

A15

FORCEPR#

Power/Other

Input

A16

TEST_BUS

Power/Other

Input

A17

LOCK#

Common
Clk

Input/Output

A18

Power/Other

A19

A7#

Source Sync Input/Output

A20

A4#

Source Sync Input/Output

A21

Power/Other

A22

A3#

Source Sync Input/Output

A23

HITM#

Common
Clk

Input/Output

A24

Power/Other

A25

TMS

TAP

Input

A26

ID0#

Common
Clk

Input

A27

Power/Other

A28

IDS#

Common
Clk

Input

A29

Power/Other

A30

ID7#

Common
Clk

Input

A31

Reserved

VIDPWRGD

Power/Other

Input

Power/Other

VID4

Power/Other

Output

CACHE

Power/Other

ODTEN

Power/Other

Input

A38#

Source Sync Input/Output

A31#

Source Sync Input/Output

A27#

Source Sync Input/Output

Power/Other

B10

A21#

Source Sync Input/Output

B11

A22#

Source Sync Input/Output

B12

Power/Other

B13

A13#

Source Sync Input/Output

B14

A12#

Source Sync Input/Output

B15

Power/Other

B16

A11#

Source Sync Input/Output

B17

Power/Other

B18

A5#

Source Sync Input/Output

B19

REQ0#

Common
Clk

Input/Output

B20

Power/Other

B21

REQ1#

Common
Clk

Input/Output

B22

REQ4#

Common
Clk

Input/Output

B23

Power/Other

B24

LINT0/INTR

Async GTL+

Input

B25

PROCHOT#

Power/Other

Output

B26

ID1#

Common
Clk

Input

B27

CCSENSE

Power/Other

Output

B28

Power/Other

B29

ID5#

Common
Clk

Input

B30

ID6#

Common
Clk

Input

B31

CC_CACHE_SENSE

Power/Other

Reserved

CVID2

Power/Other

Output

Table 5-2. Pin Listing by Pin Number (cont'd)

Pin No.

Pin Name

Signal

Buffer Type

Direction

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Pin Listing

VID3

Power/Other

Output

Power/Other

RSP#

Common

Clk

Input

Power/Other

A35#

Source Sync Input/Output

A34#

Source Sync Input/Output

C10

Power/Other

C11

A30#

Source Sync Input/Output

C12

A23#

Source Sync Input/Output

C13

Power/Other

C14

A16#

Source Sync Input/Output

C15

A15#

Source Sync Input/Output

C16

A39#

Source Sync Input/Output

C17

A8#

Source Sync Input/Output

C18

A6#

Source Sync Input/Output

C19

Power/Other

C20

REQ3#

Common
Clk

Input/Output

C21

REQ2#

Common
Clk

Input/Output

C22

Power/Other

C23

DEFER#

Common
Clk

Input

C24

TDI

TAP

Input

C25

Power/Other

Input

C26

IGNNE#

Async GTL+

Input

C27

SMI#

Async GTL+

Input

C28

ID4#

Common
Clk

Input

C29

Power/Other

C30

Power/Other

C31

SS_CACHE_SENSE

Power/Other

CVID1

Power/Other

Output

Power/Other

VID2

Power/Other

Output

STPCLK#

Async GTL+

Input

Power/Other

INIT#

Async GTL+

Input

Table 5-2. Pin Listing by Pin Number (cont'd)

Pin No.

Pin Name

Signal

Buffer Type

Direction

MCERR#

Common
Clk

Input/Output

Power/Other

AP1#

Common
Clk

Input/Output

D10

BR3#

Common
Clk

Input

D11

Power/Other

D12

A29#

Source Sync Input/Output

D13

A25#

Source Sync Input/Output

D14

Power/Other

D15

A18#

Source Sync Input/Output

D16

A17#

Source Sync Input/Output

D17

A9#

Source Sync Input/Output

D18

Power/Other

D19

ADS#

Common
Clk

Input/Output

D20

BR0#

Common
Clk

Input/Output

D21

Power/Other

D22

RS1#

Common
Clk

Input

D23

BPRI#

Common
Clk

Input

D24

Power/Other

D25

ID2#

Common
Clk

Input

D26

SSSENSE

Power/Other

Output

D27

ID3#

Common
Clk

Input

D28

Power/Other

D29

OOD#

Common
Clk

Input

D30

Power/Other

D31

Power/Other

VTTEN

Power/Other

Output

CVID0

Power/Other

Output

VID1

Power/Other

Output

BPM5#

Common
Clk

Input/Output

IERR#

Common
Clk

Output

Table 5-2. Pin Listing by Pin Number (cont'd)

Pin No.

Pin Name

Signal

Buffer Type

Direction

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Pin Listing

Power/Other

BPM2#

Common
Clk

Input/Output

BPM4#

Common
Clk

Input/Output

Power/Other

E10

AP0#

Common
Clk

Input/Output

E11

BR2#

Common
Clk

Input

E12

Power/Other

E13

A28#

Source Sync Input/Output

E14

A24#

Source Sync Input/Output

E15

Power/Other

E16

Reserved

E17

Power/Other

E18

DRDY#

Common
Clk

Input/Output

E19

TRDY#

Common
Clk

Input

E20

Power/Other

E21

RS0#

Common
Clk

Input

E22

HIT#

Common
Clk

Input/Output

E23

Power/Other

E24

TCK

TAP

Input

E25

TDO

TAP

Output

E26

Power/Other

E27

FERR#/PBE#

Async GTL+

Output

E28

Power/Other

E29

Power/Other

E30

Power/Other

E31

Power/Other

VID0

Power/Other

Output

Power/Other

BPM3#

Common
Clk

Input/Output

Table 5-2. Pin Listing by Pin Number (cont'd)

Pin No.

Pin Name

Signal

Buffer Type

Direction

BPM0#

Common
Clk

Input/Output

Power/Other

BPM1#

Common
Clk

Input/Output

GTLREF3

Power/Other

Input

F10

Power/Other

F11

BINIT#

Common
Clk

Input/Output

F12

BR1#

Common
Clk

Input

F13

Power/Other

F14

ADSTB1#

Source Sync Input/Output

F15

A19#

Source Sync Input/Output

F16

A36#

Source Sync Input/Output

F17

ADSTB0#

Source Sync Input/Output

F18

DBSY#

Common
Clk

Input/Output

F19

Power/Other

F20

BNR#

Common
Clk

Input/Output

F21

RS2#

Common
Clk

Input

F22

A37#

Source Sync Input/Output

F23

GTLREF2

Power/Other

Input

F24

TRST#

TAP

Input

F25

Power/Other

F26

THERMTRIP#

Async GTL+

Output

F27

A20M#

Async GTL+

Input

F28

Power/Other

F29

Power/Other

F30

Power/Other

F31

Power/Other

BOOT_SELECT

Power/Other

Input

Table 5-2. Pin Listing by Pin Number (cont'd)

Pin No.

Pin Name

Signal

Buffer Type

Direction

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Pin Listing

Power/Other

G23

LINT1/NMI

Async GTL+

Input

G24

Power/Other

G25

Power/Other

G26

Power/Other

G27

Power/Other

G28

Power/Other

G29

Power/Other

G30

Power/Other

G31

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

H23

Power/Other

H24

Power/Other

H25

Power/Other

H26

Power/Other

H27

Power/Other

H28

Power/Other

H29

Power/Other

H30

Power/Other

H31

Power/Other

Table 5-2. Pin Listing by Pin Number (cont'd)

Pin No.

Pin Name

Signal

Buffer Type

Direction

Power/Other

J23

Power/Other

J24

Power/Other

J25

Power/Other

J26

Power/Other

J27

Power/Other

J28

Power/Other

J29

Power/Other

J30

Power/Other

J31

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

K23

Power/Other

K24

Power/Other

K25

Power/Other

K26

Power/Other

K27

Power/Other

K28

Power/Other

K29

Power/Other

K30

Power/Other

K31

Power/Other

Table 5-2. Pin Listing by Pin Number (cont'd)

Pin No.

Pin Name

Signal

Buffer Type

Direction

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Pin Listing

L23

Power/Other

L24

Power/Other

L25

Power/Other

L26

Power/Other

L27

Power/Other

L28

Power/Other

L29

Power/Other

L30

Power/Other

L31

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

M23

Power/Other

M24

Power/Other

M25

Power/Other

M26

Power/Other

M27

Power/Other

M28

Power/Other

M29

Power/Other

M30

Power/Other

M31

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

N23

Power/Other

Table 5-2. Pin Listing by Pin Number (cont'd)

Pin No.

Pin Name

Signal

Buffer Type

Direction

N24

Power/Other

N25

Power/Other

N26

Power/Other

N27

Power/Other

N28

Power/Other

N29

Power/Other

N30

Power/Other

N31

Power/Other

P23

Power/Other

P24

Power/Other

P25

Power/Other

P26

Power/Other

P27

Power/Other

P28

Power/Other

P29

Power/Other

P30

Power/Other

P31

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

R23

Power/Other

R24

Power/Other

Table 5-2. Pin Listing by Pin Number (cont'd)

Pin No.

Pin Name

Signal

Buffer Type

Direction

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Pin Listing

R25

Power/Other

R26

Power/Other

R27

Power/Other

R28

Power/Other

R29

Power/Other

R30

Power/Other

R31

Power/Other

T23

Power/Other

T24

Power/Other

T25

Power/Other

T26

Power/Other

T27

Power/Other

T28

Power/Other

T29

Power/Other

T30

Power/Other

T31

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

CACHE

Power/Other

U23

Power/Other

U24

Power/Other

U25

Power/Other

Table 5-2. Pin Listing by Pin Number (cont'd)

Pin No.

Pin Name

Signal

Buffer Type

Direction

U26

Power/Other

U27

Power/Other

U28

Power/Other

U29

Power/Other

U30

Power/Other

U31

Power/Other

V23

Power/Other

V24

Power/Other

V25

Power/Other

V26

Power/Other

V27

Power/Other

V28

Power/Other

V29

Power/Other

V30

Power/Other

V31

Power/Other

Reserved

Power/Other

BCLK1

FSB Clk

Input

TESTHI0

Power/Other

Input

TESTHI1

Power/Other

Input

TESTHI2

Power/Other

Input

GTLREF1

Power/Other

Input

W23

GTLREF0

Power/Other

Input

W24

Power/Other

W25

Power/Other

W26

Power/Other

Table 5-2. Pin Listing by Pin Number (cont'd)

Pin No.

Pin Name

Signal

Buffer Type

Direction

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Pin Listing

W27

Power/Other

W28

Power/Other

W29

Power/Other

W30

Power/Other

W31

Power/Other

BCLK0

FSB Clk

Input

Power/Other

TESTHI3

Power/Other

Input

Power/Other

RESET#

Common
Clk

Input

D62#

Source Sync Input/Output

Y10

Power/Other

Y11

DSTBP3#

Source Sync Input/Output

Y12

DSTBN3#

Source Sync Input/Output

Y13

Power/Other

Y14

DSTBP2#

Source Sync Input/Output

Y15

DSTBN2#

Source Sync Input/Output

Y16

Power/Other

Y17

DSTBP1#

Source Sync Input/Output

Y18

DSTBN1#

Source Sync Input/Output

Y19

Power/Other

Y20

DSTBP0#

Source Sync Input/Output

Y21

DSTBN0#

Source Sync Input/Output

Y22

Power/Other

Y23

D5#

Source Sync Input/Output

Y24

D2#

Source Sync Input/Output

Y25

Power/Other

Y26

D0#

Source Sync Input/Output

Y27

Reserved

Y28

Reserved

Y29

SM_TS1_A1

SMBus

Input

Y30

Power/Other

Y31

Power/Other

Table 5-2. Pin Listing by Pin Number (cont'd)

Pin No.

Pin Name

Signal

Buffer Type

Direction

AA1

Power/Other

AA2

Power/Other

AA3

BSEL0

Power/Other

Output

AA4

DEP7#

Source Sync Input/Output

AA5

SSA

Power/Other

Input

AA6

Power/Other

AA7

TESTHI4

Power/Other

Input

AA8

D61#

Source Sync Input/Output

AA9

Power/Other

AA10

D54#

Source Sync Input/Output

AA11

D53#

Source Sync Input/Output

AA12

Power/Other

AA13

D48#

Source Sync Input/Output

AA14

D49#

Source Sync Input/Output

AA15

Power/Other

AA16

D33#

Source Sync Input/Output

AA17

Power/Other

AA18

D24#

Source Sync Input/Output

AA19

D15#

Source Sync Input/Output

AA20

Power/Other

AA21

D11#

Source Sync Input/Output

AA22

D10#

Source Sync Input/Output

AA23

Power/Other

AA24

D6#

Source Sync Input/Output

AA25

D3#

Source Sync Input/Output

AA26

Power/Other

AA27

D1#

Source Sync Input/Output

AA28

SM_TS1_A0

SMBus

Input

AA29

SM_EP_A0

SMBus

Input

AA30

Power/Other

AA31

Power/Other

AB1

Power/Other

AB2

Power/Other

AB3

BSEL1

Power/Other

Output

AB4

CCA

Power/Other

Input

AB5

Power/Other

AB6

D63#

Source Sync Input/Output

Table 5-2. Pin Listing by Pin Number (cont'd)

Pin No.

Pin Name

Signal

Buffer Type

Direction

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Pin Listing

AB7

PWRGOOD

Async GTL+

Input

AB8

Power/Other

AB9

DBI3#

Source Sync Input/Output

AB10

D55#

Source Sync Input/Output

AB11

Power/Other

AB12

D51#

Source Sync Input/Output

AB13

D52#

Source Sync Input/Output

AB14

Power/Other

AB15

D37#

Source Sync Input/Output

AB16

D32#

Source Sync Input/Output

AB17

D31#

Source Sync Input/Output

AB18

Power/Other

AB19

D14#

Source Sync Input/Output

AB20

D12#

Source Sync Input/Output

AB21

Power/Other

AB22

D13#

Source Sync Input/Output

AB23

D9#

Source Sync Input/Output

AB24

Power/Other

AB25

D8#

Source Sync Input/Output

AB26

D7#

Source Sync Input/Output

AB27

Power/Other

AB28

SM_EP_A2

SMBus

Input

AB29

SM_EP_A1

SMBus

Input

AB30

Power/Other

AB31

Power/Other

AC1

Reserved

AC2

Power/Other

AC3

Power/Other

AC4

DEP6#

Source Sync Input/Output

AC5

D60#

Source Sync Input/Output

AC6

D59#

Source Sync Input/Output

AC7

Power/Other

AC8

D56#

Source Sync Input/Output

AC9

D47#

Source Sync Input/Output

AC10

Power/Other

AC11

D43#

Source Sync Input/Output

AC12

D41#

Source Sync Input/Output

Table 5-2. Pin Listing by Pin Number (cont'd)

Pin No.

Pin Name

Signal

Buffer Type

Direction

AC13

Power/Other

AC14

D50#

Source Sync Input/Output

AC15

DP2#

Common
Clk

Input/Output

AC16

Power/Other

AC17

D34#

Source Sync Input/Output

AC18

DP0#

Common
Clk

Input/Output

AC19

Power/Other

AC20

D25#

Source Sync Input/Output

AC21

D26#

Source Sync Input/Output

AC22

Power/Other

AC23

D23#

Source Sync Input/Output

AC24

D20#

Source Sync Input/Output

AC25

Power/Other

AC26

D17#

Source Sync Input/Output

AC27

DBI0#

Source Sync Input/Output

AC28

SM_CLK

SMBus

Input

AC29

SM_DAT

SMBus

Output

AC30

SLEW_CTRL

Power/Other

Input

AC31

Power/Other

AD1

CCPLL

Power/Other

Input

AD2

Power/Other

AD3

Power/Other

AD4

CCIOPLL

Power/Other

Input

AD5

TESTHI5

Power/Other

Input

AD6

DEP5#

Source Sync Input/Output

AD7

D57#

Source Sync Input/Output

AD8

D46#

Source Sync Input/Output

AD9

Power/Other

AD10

D45#

Source Sync Input/Output

AD11

D40#

Source Sync Input/Output

AD12

Power/Other

AD13

D38#

Source Sync Input/Output

AD14

D39#

Source Sync Input/Output

AD15

Power/Other

AD16

COMP0

Power/Other

Input

AD17

Power/Other

Table 5-2. Pin Listing by Pin Number (cont'd)

Pin No.

Pin Name

Signal

Buffer Type

Direction

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Pin Listing

NOTES:

1. In systems utilizing the 64-bit Intel

XeonTM processor MP

with up to 8MB L3 cache, the system designer must pull-up
these signals to the processor V

AD18

D36#

Source Sync Input/Output

AD19

D30#

Source Sync Input/Output

AD20

Power/Other

AD21

D29#

Source Sync Input/Output

AD22

DBI1#

Source Sync Input/Output

AD23

Power/Other

AD24

D21#

Source Sync Input/Output

AD25

D18#

Source Sync Input/Output

AD26

Power/Other

AD27

D4#

Source Sync Input/Output

AD28

SM_ALERT#

SMBus

Output

AD29

SM_WP

SMBus

Input

AD30

DEP1#

Source Sync Input/Output

AD31

DEP0#

Source Sync Input/Output

AE2

SSA_CACHE

Power/Other

Input

AE3

CCA_CACHE

Power/Other

Input

AE4

Reserved

AE5

TESTHI6

Power/Other

Input

AE6

Power/Other

AE7

D58#

Source Sync Input/Output

AE8

DEP4#

Source Sync Input/Output

AE9

D44#

Source Sync Input/Output

AE10

D42#

Source Sync Input/Output

AE11

Power/Other

Table 5-2. Pin Listing by Pin Number (cont'd)

Pin No.

Pin Name

Signal

Buffer Type

Direction

AE12

DBI2#

Source Sync Input/Output

AE13

D35#

Source Sync Input/Output

AE14

Power/Other

AE15

DEP3#

Source Sync Input/Output

AE16

DEP2#

Source Sync Input/Output

AE17

DP3#

Common
Clk

Input/Output

AE18

Power/Other

AE19

DP1#

Common
Clk

Input/Output

AE20

D28#

Source Sync Input/Output

AE21

Power/Other

AE22

D27#

Source Sync Input/Output

AE23

D22#

Source Sync Input/Output

AE24

Power/Other

AE25

D19#

Source Sync Input/Output

AE26

D16#

Source Sync Input/Output

AE27

Power/Other

AE28

SM_VCC

Power/Other

AE29

SM_VCC

Power/Other

AE30

Reserved

Table 5-2. Pin Listing by Pin Number (cont'd)

Pin No.

Pin Name

Signal

Buffer Type

Direction

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Signal Definitions

6.1

Signal Definitions

Table 6-1. Signal Definitions (Sheet 1 of 9)

Name

Type

Description

A[39:3]#

I/O

A[39:3]# (Address) define a 2

-byte physical memory address space. In sub-

phase 1 of the address phase, these pins transmit the address of a transaction.
In sub-phase 2, these pins transmit transaction type information. These signals
must connect the appropriate pins of all agents on the processor front side bus.
A[39:3]# are protected by parity signals AP[1:0]#. A[39:3]# are source
synchronous signals and are latched into the receiving buffers by
ADSTB[1:0]#.
On the active-to-inactive transition of RESET#, the processors sample a subset
of the A[39:3]# pins to determine their power-on configuration. See

Section 8.1

A20M#

If A20M# (Address-20 Mask) is asserted, the processor masks physical
address bit 20 (A20#) before looking up a line in any internal cache and before
driving a read/write transaction on the bus. Asserting A20M# emulates the
8086 processor's address wrap-around at the 1-Mbyte boundary. Assertion of
A20M# is only supported in real mode.
A20M# is an asynchronous signal. However, to ensure recognition of this signal
following an I/O write instruction, it must be valid 6 clks before the I/O write's
response.

ADS#

I/O

ADS# (Address Strobe) is asserted to indicate the validity of the transaction
address on the A[39:3]# and transaction request type on REQ[4:0]# pins. All
bus agents observe the ADS# activation to begin parity checking, protocol
checking, address decode, internal snoop, or deferred reply ID match
operations associated with the new transaction. This signal must connect the
appropriate pins on all processor front side bus agents.

ADSTB[1:0]#

I/O

Address strobes are used to latch A[39:3]# and REQ[4:0]# on their rising and
falling edge.

AP[1:0]#

I/O

AP[1:0]# (Address Parity) are driven by the requestor one common clock after
ADS#, A[39:3]#, REQ[4:0]# are driven. A correct parity signal is electrically high
if an even number of covered signals are electrically low and electrically low if
an odd number of covered signals are electrically low. This allows parity to be
electrically high when all the covered signals are electrically high. AP[1:0]#
should connect the appropriate pins of all processor front side bus agents. The
following table defines the coverage for these signals.

BCLK[1:0]

The differential bus clock pair BCLK[1:0] determines the bus frequency. All
processor front side bus agents must receive these signals to drive their
outputs and latch their inputs.
All external timing parameters are specified with respect to the rising edge of
BCLK0 crossing the falling edge of BCLK1.

Request Signals

Subphase 1

Subphase 2

A[39:24]#

AP0#

AP1#

A[23:3]#

AP1#

AP0#

REQ[4:0]#

AP1#

AP0#

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Signal Definitions

BINIT#

I/O

BINIT# (Bus Initialization) may be observed and driven by all processor front
side bus agents. If used, BINIT# must connect the appropriate pins of all such
agents. If the BINIT# driver is enabled, BINIT# is asserted to signal any bus
condition that prevents reliable future operation.
If BINIT# observation is enabled during power-on configuration (see

Section 8.1

) and BINIT# is sampled asserted, symmetric agents reset their bus

LOCK# activity and bus request arbitration state machines. The bus agents

do not

reset their I/O Queue (IOQ) and transaction tracking state machines

upon observation of BINIT# assertion. Once the BINIT# assertion has been
observed, the bus agents will re-arbitrate for the front side bus and attempt
completion of their bus queue and IOQ entries.
If BINIT# observation is enabled during power on configuration, a central agent
may handle an assertion of BINIT# as appropriate to the error handling
architecture of the system.

BNR#

I/O

BNR# (Block Next Request) is used to assert a bus stall by any bus agent who
is unable to accept new bus transactions. During a bus stall, the current bus
owner cannot issue any new transactions.
Since multiple agents might need to request a bus stall at the same time, BNR#
is a wire-OR signal which must connect the appropriate pins of all processor
system bus agents. In order to avoid wire-OR glitches associated with
simultaneous edge transitions driven by multiple drivers, BNR# is activated on
specific clock edges and sampled on specific clock edges.

BOOT_
SELECT

The BOOT_SELECT input informs the processor whether the platform
supports the processor. Incompatible platform designs will have this input
connected to V

. Thus, this pin is essentially an electrical key to prevent the

processor from running in a system that is not designed for it. For platforms that
are designed to support the 64-bit Intel

XeonTM processor MP with up to 8MB

L3 cache, this pin should be a no-connect.

BPM[5:0]#

I/O

BPM[5:0]# (Breakpoint Monitor) are breakpoint and performance monitor
signals. They are outputs from the processor which indicate the status of
breakpoints and programmable counters used for monitoring processor
performance. BPM[5:0]# should connect the appropriate pins of all processor
front side bus agents.
BPM4# provides PRDY# (Probe Ready) functionality for the TAP port. PRDY#
is a processor output used by debug tools to determine processor debug
readiness.
BPM5# provides PREQ# (Probe Request) functionality for the TAP port.
PREQ# is a processor input and is used by debug tools to request debug
operation of the processors.
BPM[5:4]# must be bussed to all bus agents.

BPRI#

BPRI# (Bus Priority Request) is used to arbitrate for ownership of the
processor front side bus. It must connect the appropriate pins of all processor
front side bus agents. Observing BPRI# active (as asserted by the priority
agent) causes all other agents to stop issuing new requests, unless such
requests are part of an ongoing locked operation. The priority agent keeps
BPRI# asserted until its requests are issued, then releases the bus by
deasserting BPRI#.

Table 6-1. Signal Definitions (Sheet 2 of 9)

Name

Type

Description

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Signal Definitions

BR0#
BR[3:1]#

I/O

BR[3:0]# (Bus Request) drive the BREQ[3:0]# signals in the system. The
BREQ[3:0]# signals are interconnected in a rotating manner to individual
processor pins. The tables below give the rotating interconnect between the
processor and bus signals for 3-load configurations.

During power-on configuration, the central agent must assert the BR0# bus
signal. All symmetric agents sample their BR[3:0]# pins on the active-to-
inactive transition of RESET#. The pin which the agent samples asserted
determines its agent ID.

BSEL[1:0]

These output signals are used to select the front side bus frequency. The
frequency is determined by the processor(s), chipset, and frequency
synthesizer capabilities. All front side bus agents must operate at the same
frequency. Individual processors will only operate at their specified front side
bus frequency.
See

Table 2-2

for output values.

COMP0

COMP0 must be terminated to V

on the baseboard using precision resistors.

This input configures the AGTL+ drivers of the processor. Refer to

Table 2-19

CVID[3:0]

CVID[3:0] (Cache Voltage ID) pins are used to support automatic selection of
V

CACHE

. These are open drain signals that are driven by the processor and

must be pulled to no more than 3.3 V (+5% tolerance) with a resistor.
Conversely, the V

CACHE

VR output must be disabled prior to the voltage supply

for these pins becoming invalid. The CVID pins are needed to support
processor voltage specification variations. See

Table 2-4

for definitions of these

pins. The V

CACHE

VR must supply the voltage that is requested by these pins,

or disable itself.

D[63:0]#

I/O

D[63:0]# (Data) are the data signals. These signals provide a 64-bit data path
between the processor front side bus agents, and must connect the appropriate
pins on all such agents. The data driver asserts DRDY# to indicate a valid data
transfer.
D[63:0]# are quad-pumped signals, and will thus be driven four times in a
common clock period. D[63:0]# are latched off the falling edge of both
DSTBP[3:0]# and DSTBN[3:0]#. Each group of 16 data signals correspond to a
pair of one DSTBP# and one DSTBN#. The following table shows the grouping
of data signals to strobes and DBI#.
Furthermore, the DBI# pins determine the polarity of the data signals. Each
group of 16 data signals corresponds to one DBI# signal. When the DBI# signal
is active, the corresponding data group is inverted and therefore sampled
active high.

DBI[3:0]#

I/O

DBI[3:0]# are source synchronous and indicate the polarity of the D[63:0]# and
DEP[7:0]# signals. The DBI[3:0]# signals are activated when the data on the
data bus is inverted. If more than half the data bits, within an 18-bit group
(including ECC bits), would have been asserted electrically low, the bus agent
may invert the data bus and corresponding ECC signals for that particular sub-
phase for that 18-bit group.

Table 6-1. Signal Definitions (Sheet 3 of 9)

Name

Type

Description

BR[1:0]# Signals Rotating Interconnect, 3-Load Configuration

BR2# and BR3# must not be utilized in 3-load configurations. However, they
must still be terminated.

Bus Signal

Agent 0 Pins Agent 1 Pins

BREQ0#

BR0#

BR1#

BREQ1#

BR1#

BR0#

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Signal Definitions

DBSY#

I/O

DBSY# (Data Bus Busy) is asserted by the agent responsible for driving data
on the processor front side bus to indicate that the data bus is in use. The data
bus is released after DBSY# is deasserted. This signal must connect the
appropriate pins on all processor front side bus agents.

DEFER#

DEFER# is asserted by an agent to indicate that a transaction cannot be
guaranteed in-order completion. Assertion of DEFER# is normally the
responsibility of the addressed memory or I/O agent. This signal must connect
the appropriate pins of all processor front side bus agents.

DEP[7:0]#

I/O

The DEP[7:0]# (data bus ECC protection) signals provide optional ECC
protection for the data bus. They are driven by the agent responsible for driving
D[63:0]#, and, if ECC is implemented, must connect the appropriate pins of all
bus agents which use them.
Furthermore, the DBI# pins determine the polarity of the ECC signals. Each
pair of 2 ECC signals corresponds to one DBI# signal. When the DBI# signal is
active, the corresponding ECC pair is inverted and therefore sampled active
high.

DP[3:0]#

I/O

DP[3:0]# (Data Parity) provide optional parity protection for the data bus. They
are driven by the agent responsible for driving D[63:0]#, and, if parity is
implemented, must connect the appropriate pins of all bus agents which use
them.

DRDY#

I/O

DRDY# (Data Ready) is asserted by the data driver on each data transfer,
indicating valid data on the data bus. In a multi-common clock data transfer,
DRDY# may be deasserted to insert idle clocks. This signal must connect the
appropriate pins of all processor front side bus agents.

DSTBN[3:0]#

I/O

Data strobe used to latch in D[63:0]#, DEP[7:0]# and DBI[3:0]#.

DSTBP[3:0]#

I/O

Data strobe used to latch in D[63:0]#, DEP[7:0]# and DBI[3:0]#.

FERR#/PBE#

FERR#/PBE# (floating-point error/pending break event) is a multiplexed signal
and its meaning is qualified by STPCLK#. When STPCLK# is not asserted,
FERR#/PBE# indicates a floating-point error and will be asserted when the
processor detects an unmasked floating-point error. When STPCLK# is not
asserted, FERR#/PBE# is similar to the ERROR# signal on the Intel 387
coprocessor, and is included for compatibility with systems using MS-DOS*-
type floating-point error reporting. When STPCLK# is asserted, an assertion of
FERR#/PBE# indicates that the processor has a pending break event waiting
for service. The assertion of FERR#/PBE# indicates that the processor should
be returned to the Normal state. For additional information on the pending
break event functionality, including the identification of support of the feature
and enable/disable information, refer to Volume 3 of the

IA-32 Intel®

Architecture Software Developer's Manual

and the

AP-485

Intel® Processor

Identification and the CPUID Instruction

application note.

FORCEPR#

This input can be used to force activation of the Thermal Control Circuit.

GTLREF[3:0]

GTLREF determines the signal reference level for AGTL+ input pins. GTLREF
is used by the AGTL+ receivers to determine if a signal is an electrical 0 or an
electrical 1. Please refer to

Table 2-19

for further details.

HIT#
HITM#

I/O
I/O

HIT# (Snoop Hit) and HITM# (Hit Modified) convey transaction snoop operation
results. Any front side bus agent may assert both HIT# and HITM# together to
indicate that it requires a snoop stall, which can be continued by reasserting
HIT# and HITM# together, every other common clock.
Since multiple agents may deliver snoop results at the same time, HIT# and
HITM# are wire-OR signals which must connect the appropriate pins of all
processor front side bus agents. In order to avoid wire-OR glitches associated
with simultaneous edge transitions driven by multiple drivers, HIT# and HITM#
are activated on specific clock edges and sampled on specific clock edges.

Table 6-1. Signal Definitions (Sheet 4 of 9)

Name

Type

Description

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Signal Definitions

ID[7:0]#

ID[7:0]# are the Transaction ID signals. They are driven during the Deferred
Phase by the deferring agent.

IDS#

IDS# is the ID Strobe signal. It is asserted to begin the Deferred Phase.

IERR#

IERR# (Internal Error) is asserted by a processor as the result of an internal
error. Assertion of IERR# is usually accompanied by a SHUTDOWN
transaction on the processor front side bus. This transaction may optionally be
converted to an external error signal (e.g., NMI) by system core logic. The
processor will keep IERR# asserted until the assertion of RESET#.

IGNNE#

IGNNE# (Ignore Numeric Error) is asserted to force the processor to ignore a
numeric error and continue to execute noncontrol floating-point instructions. If
IGNNE# is deasserted, the processor generates an exception on a noncontrol
floating-point instruction if a previous floating-point instruction caused an error.
IGNNE# has no effect when the NE bit in control register 0 (CR0) is set.
IGNNE# is an asynchronous signal. However, to ensure recognition of this
signal following an I/O write instruction, it must be valid a 6 clks before the I/O
write's response.

INIT#

INIT# (Initialization), when asserted, resets integer registers inside all
processors without affecting their internal caches or floating-point registers.
Each processor then begins execution at the power-on Reset vector configured
during power-on configuration. The processor continues to handle snoop
requests during INIT# assertion. INIT# is an asynchronous signal and must
connect the appropriate pins of all processor front side bus agents.
If INIT# is sampled active on the active to inactive transition of RESET#, then
the processor executes its Built-in Self-Test (BIST).

LINT0/INTR
LINT1/NMI

LINT[1:0] (Local APIC Interrupt) must connect the appropriate pins of all front
side bus agents. When the APIC functionality is disabled, the LINT0 signal
becomes INTR, a maskable interrupt request signal, and LINT1 becomes NMI,
a nonmaskable interrupt. INTR and NMI are backward compatible with the
signals of those names on the Pentium

processor. Both signals are

asynchronous.
These signals must be software configured via BIOS programming of the APIC
register space to be used either as NMI/INTR or LINT[1:0]. Because the APIC
is enabled by default after Reset, operation of these pins as LINT[1:0] is the
default configuration.

LOCK#

I/O

LOCK# indicates to the system that a set of transactions must occur atomically.
This signal must connect the appropriate pins of all processor front side bus
agents. For a locked sequence of transactions, LOCK# is asserted from the
beginning of the first transaction to the end of the last transaction.
When the priority agent asserts BPRI# to arbitrate for ownership of the
processor front side bus, it will wait until it observes LOCK# deasserted. This
enables symmetric agents to retain ownership of the processor front side bus
throughout the bus locked operation and ensure the atomicity of lock.

Table 6-1. Signal Definitions (Sheet 5 of 9)

Name

Type

Description

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Signal Definitions

MCERR#

I/O

MCERR# (Machine Check Error) is asserted to indicate an unrecoverable error
or a bus protocol violation. It may be driven by all processor front side bus
agents.
MCERR# assertion conditions are configurable at a system level. Assertion
options are defined as follows:

· Enabled or disabled.
· Asserted, if configured, for internal errors along with IERR#.
· Asserted, if configured, by the request initiator of a bus transaction after it

observes an error.

· Asserted by any bus agent when it observes an error in a bus transaction.

For more details regarding machine check architecture, refer to the

IA-32 Intel®

Software Developer's Manual, Volume 3: System Programming Guide

Since multiple agents may drive this signal at the same time, MCERR# is a
wired-OR signal which must connect the appropriate pins of all processor front
side bus agents. In order to avoid wire-OR glitches associated with
simultaneous edge transitions driven by multiple drivers, MCERR# is activated
on specific clock edges and sampled on specific clock edges.

ODTEN

ODTEN (On-die termination enable) should be connected to V

through a

resistor to enable on-die termination for end bus agents. For middle bus
agents, pull this signal down via a resistor to ground to disable on-die
termination. Whenever ODTEN is high, on-die termination will be active,
regardless of other states of the bus.

OOD#

OOD# allows data delivery to occur subsequent to IDS# assertion during the
Deferred Phase.

PROCHOT#

The assertion of PROCHOT# (processor hot) indicates that the processor die
temperature has reached its thermal limit. See

Section 7.2.4

for more details.

PWRGOOD

PWRGOOD (Power Good) is an input. The processor requires this signal to be
a clean indication that all processor clocks and power supplies are stable and
within their specifications. "Clean" implies that the signal will remain low
(capable of sinking leakage current), without glitches, from the time that the
power supplies are turned on until they come within specification. The signal
must then transition monotonically to a high state.

Figure 2-18

illustrates the

relationship of PWRGOOD to the RESET# signal. PWRGOOD can be driven
inactive at any time, but clocks and power must again be stable before a
subsequent rising edge of PWRGOOD. It must also meet the minimum pulse
width specification in

Table 2-21

, and be followed by a 1 ms active RESET#

pulse.
The PWRGOOD signal must be supplied to the processor. This signal is used
to protect internal circuits against voltage sequencing issues. It should be
driven high throughout boundary scan operation.

REQ[4:0]#

I/O

REQ[4:0]# (Request Command) must connect the appropriate pins of all
processor front side bus agents. They are asserted by the current bus owner to
define the currently active transaction type. These signals are source
synchronous to ADSTB[1:0]#. Refer to the AP[1:0]# signal description for
details on parity checking of these signals.

RESET#

Asserting the RESET# signal resets all processors to known states and
invalidates their internal caches without writing back any of their contents. For a
power-on Reset, RESET# must stay active for at least 1 ms after V

and

BCLK have reached their specified levels. On observing active RESET#, all
front side bus agents will deassert their outputs within two clocks. RESET#
must not be kept asserted for more than 10 ms.
A number of bus signals are sampled at the active-to-inactive transition of
RESET# for power-on configuration. These configuration options are described
in

Section 8.1

Table 6-1. Signal Definitions (Sheet 6 of 9)

Name

Type

Description

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Signal Definitions

RS[2:0]#

RS[2:0]# (Response Status) are driven by the response agent (the agent
responsible for completion of the current transaction), and must connect to the
appropriate pins of all processor front side bus agents.

RSP#

RSP# (Response Parity) is driven by the response agent (the agent
responsible for completion of the current transaction) during assertion of
RS[2:0]#, the signals for which RSP# provides parity protection. It must
connect to the appropriate pins of all processor front side bus agents.
A correct parity signal is electrically high if an even number of covered signals
are electrically low and electrically low if an odd number of covered signals are
electrically low. If RS[2:0]# are all electrically high, RSP# is also electrically
high, since this indicates it is not being driven by any agent guaranteeing
correct parity.

SKTOCC#

SKTOCC# (Socket occupied) will be pulled to ground by the processor to
indicate that the processor is present. There is no connection to the processor
silicon for this signal.

SLEW_CTRL

SLEW_CTRL must be terminated to V

on the baseboard using precision

resistors. This input configures the slew rate of the AGTL+ drivers. Refer to

Table 2-19

for implementation details.

SM_ALERT#

SM_ALERT# (SMBus Alert) is an asynchronous interrupt line associated with
the SMBus Thermal Sensor device. It is an open-drain output and the
processor includes a 10k

pull-up resistor to SM_VCC for this signal. For more

information on the usage of the SM_ALERT# pin, see

Section 8.4.7

SM_CLK

I/O

The SM_CLK (SMBus Clock) signal is an input clock to the system
management logic which is required for operation of the system management
features of the processor. This clock is driven by the SMBus controller and is
asynchronous to other clocks in the processor.The processor includes a 10 k

pull-up resistor to SM_VCC for this signal.

SM_DAT

I/O

The SM_DAT (SMBus Data) signal is the data signal for the SMBus. This signal
provides the single-bit mechanism for transferring data between SMBus
devices. The processor includes a 10k

pull-up resistor to SM_VCC for this

signal.

SM_EP_A[2:0]

The SM_EP_A (EEPROM Select Address) pins are decoded on the SMBus in
conjunction with the upper address bits in order to maintain unique addresses
on the SMBus in a system with multiple processors. To set an SM_EP_A line
high, a pull-up resistor should be used that is no larger than 1 k

The

processor includes a 10 k

pull-down resistor to V

for each of these signals.

For more information on the usage of these pins, see

Section 8.4.8

SM_TS_A[1:0]

The SM_TS_A (Thermal Sensor Select Address) pins are decoded on the
SMBus in conjunction with the upper address bits in order to maintain unique
addresses on the SMBus in a system with multiple processors.
The device's addressing, as implemented, includes a Hi-Z state for both
address pins. The use of the Hi-Z state is achieved by leaving the input floating
(unconnected).
For more information on the usage of these pins, see

Section 8.4.8

SM_VCC

SM_VCC provides power to the SMBus components on the processor
package.

SM_WP

WP (Write Protect) can be used to write protect the Scratch EEPROM. The
Scratch EEPROM is write-protected when this input is pulled high to SM_VCC.
The processor includes a 10 k

pull-down resistor to V

for this signal.

Table 6-1. Signal Definitions (Sheet 7 of 9)

Name

Type

Description

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Signal Definitions

SMI#

SMI# (System Management Interrupt) is asserted asynchronously by system
logic. On accepting a System Management Interrupt, processors save the
current state and enter System Management Mode (SMM). An SMI
Acknowledge transaction is issued, and the processor begins program
execution from the SMM handler.
It is required that SMI# assertion be observed 8 BCLKs before the Response
Status (RS[2:0]#) is observed by the processor.
If SMI# is asserted during the deassertion of RESET#, the processor will tri-
state its outputs.

STPCLK#

STPCLK# (Stop Clock), when asserted, causes processors to enter a low
power Stop-Grant state. The processor issues a Stop-Grant Acknowledge
transaction, and stops providing internal clock signals to all processor core
units except the front side bus and APIC units. The processor continues to
snoop bus transactions and service interrupts while in Stop-Grant state. When
STPCLK# is deasserted, the processor restarts its internal clock to all units and
resumes execution. The assertion of STPCLK# has no effect on the bus clock;
STPCLK# is an asynchronous input.

TCK

TCK (Test Clock) provides the clock input for the processor Test Access Port.

TDI

TDI (Test Data In) transfers serial test data into the processor. TDI provides the
serial input needed for JTAG specification support.

TDO

TDO (Test Data Out) transfers serial test data out of the processor. TDO
provides the serial output needed for JTAG specification support.

TEST_BUS

Must be connected to all other processor TEST_BUS signals in the system.

TESTHI[6:0]

TESTHI[6:0] must be connected to a V

power source through a resistor for

proper processor operation. See

Section 2.4

for more details.

THERMTRIP#

Assertion of THERMTRIP# (Thermal Trip) indicates the processor junction
temperature has reached a temperature beyond which permanent silicon
damage may occur. THERMTRIP# (Thermal Trip) will activate at a temperature
that is approximately 20°C above the maximum case temperature (T

Measurement of the temperature is accomplished through an internal thermal
sensor. Upon assertion of THERMTRIP#, the processor will shut off its internal
clocks (thus halting program execution) in an attempt to reduce the processor
junction temperature. To protect the processor its core voltage (V

) must be

removed following the assertion of THERMTRIP#. See

Figure 2-15

and

Table 2-23

for the appropriate power down sequence and timing requirements.

Driving of the THERMTRIP# signals is enabled within 10 µs of the assertion of
PWRGOOD and is disabled on de-assertion of PWRGOOD. Once activated,
THERMTRIP# remains latched until PWRGOOD is de-asserted. While the de-
assertion of the PWRGOOD signal will de-assert THERMTRIP#, if the
processor's junction temperature remains at or above the trip level,
THERMTRIP# will again be asserted within 10 µs of the assertion of
PWRGOOD. Thermtrip should not be sampled until 10 µs after PWRGOOD
assertion at the processor.

TMS

TMS (Test Mode Select) is a JTAG specification support signal used by debug
tools.

TRDY#

TRDY# (Target Ready) is asserted by the target (chipset) to indicate that it is
ready to receive a write or implicit writeback data transfer. TRDY# must
connect the appropriate pins of all front side bus agents.

TRST#

TRST# (Test Reset) resets the Test Access Port (TAP) logic. TRST# must be
driven electrically low during power on Reset.

CACHE

provides power to the L3 cache on the processor.

provides power to the core logic of the processor.

Table 6-1. Signal Definitions (Sheet 8 of 9)

Name

Type

Description

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Signal Definitions

CCA

provides isolated power for the analog portion of the internal PLL's. Use a

discrete RLC filter to provide clean power.

CCA_CACHE

provides isolated power for the L3 cache PLL. Use a discrete RLC

filter to provide clean power.

CC_CACHE_SENSE

SS_CACHE_SENSE

CC_CACHE_SENSE

and V

SS_CACHE_SENSE

provide isolated, low impedance

connections to the processor cache voltage (V

CACHE

) and ground (V

). They

can be used to sense or measure voltage or ground near the silicon with little
noise.

CCIOPLL

provides isolated power for digital portion of the internal PLL's.

CCPLL

The on-die PLL filter solution will not be implemented on this platform. The

CCPLL

input should be left unconnected.

CCSENSE

SSSENSE

CCSENSE

and V

SSSENSE

provide isolated, low impedance connections to the

processor core voltage (V

) and ground (V

). These signals must be con-

nected to the voltage regulator feedback signals, which ensure the output volt-

age (i.e. processor voltage) remains within specification.

VID[5:0]

VID[5:0] (Voltage ID) pins are used to support automatic selection of V

These are open drain signals that are driven by the processor and must be
pulled to no more than 3.3 V (+5% tolerance) with a resistor. Conversely, the
V

VR output must be disabled prior to the voltage supply for these pins

becoming invalid. The VID pins are needed to support processor voltage
specification variations. See

Table 2-3

for definitions of these pins. The V

must supply the voltage that is requested by these pins, or disable itself.

VIDPWRGD

The processor requires this input to determine that the supply voltage for
BSEL[1:0], VID[5:0], and CVID[3:0] is stable and within specification.

is the ground plane for the processor.

SSA

provides an isolated,

internal

ground for internal PLL's. Do not connect

directly to ground. This pin is to be connected to V

CCA

and V

CCIOPLL

through a

discrete filter circuit.

SSA_CACHE

provides an isolated,

internal

ground for the L3 cache PLL. Do

not connect directly to ground.

is the front side bus termination voltage.

VTTEN

VTTEN can be used as an output enable for the V

regulator. VTTEN is used

as an electrical key to prevent processors with mechanically-equivalent pinouts
from accidentally booting in a 64-bit Intel

XeonTM processor MP with up to

8MB L3 cache platform. Since VTTEN is an open circuit on the processor
package, VTTEN must be pulled up on the motherboard.

Table 6-1. Signal Definitions (Sheet 9 of 9)

Name

Type

Description

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Thermal Specifications

7.1

Package Thermal Specifications

The 64-bit Intel

XeonTM processor MP with up to 8MB L3 cache requires a thermal solution to

maintain temperatures within operating limits. Any attempt to operate the processor outside these

operating limits may result in permanent damage to the processor and potentially other components

within the system. As processor technology changes, thermal management becomes increasingly
crucial when building computer systems. Maintaining the proper thermal environment is key to

reliable, long-term system operation.

A complete solution includes both component and system level thermal management features.

Component level thermal solutions can include active or passive heatsinks attached to the
processor Integrated Heat Spreader (IHS). Typical system level thermal solutions may consist of

system fans combined with ducting and venting.

For more information on designing a component level thermal solution, refer to the Processor

Thermal/Mechanical Design Guidelines.

Note: The boxed processor will ship with a component thermal solution. Refer to

Section 9

for details on

the boxed processor.

7.1.1

Thermal Specifications

To allow the optimal operation and long-term reliability of Intel processor-based systems, the
processor must remain within the minimum and maximum case temperature (T

CASE

) specifications

as defined by the applicable thermal profile (see

Table 7-1

and

Figure 7-1

). Thermal solutions not

designed to provide this level of thermal capability may affect the long-term reliability of the
processor and system.

The 64-bit Intel

XeonTM processor MP with up to 8MB L3 cache introduces a new methodology

for managing processor temperatures which is intended to support acoustic noise reduction through
fan speed control and assure processor reliability. Selection of the appropriate fan speed will be

based on the temperature reported by the processor's Thermal Diode. If the diode temperature is

greater than or equal to Tcontrol (see

Section 7.2.7

), then the processor case temperature must

remain at or below the temperature as specified by the thermal profile (see

Figure 7-1

). If the diode

temperature is less than Tcontrol, then the case temperature is permitted to exceed the thermal

profile, but the diode temperature must remain at or below Tcontrol. Systems that implement fan
speed control must be designed to take these conditions into account. Systems that do not alter the

fan speed only need to guarantee the case temperature meets the thermal profile specifications.

The processor thermal profile ensures adherence to Intel reliability requirements. The thermal

profile is representative of a volumetrically unconstrained thermal solution (i.e. industry enabled
2U+ heat sink). In this scenario, it is expected that the Thermal Control Circuit (TCC) would only

be activated for very brief periods of time when running the most power intensive applications.

The upper point of the thermal profile consists of the Thermal Design Power (TDP) defined in

Table 7-1

and the associated T

CASE

value. The lower point of the thermal profile consists of x =

CONTROL_BASE

and y = T

CASE_MAX

@ P

CONTROL_BASE

. Pcontrol is defined as the processor

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Thermal Specifications

power at which T

CASE

, calculated from the thermal profile, corresponds to the lowest possible

value of Tcontrol. This point is associated with the Tcontrol value (see

Section 7.2.7

). However,

because Tcontrol represents a diode temperature, it is necessary to define the associated case

temperature. This is T

CASE_MAX

@ P

CONTROL_BASE

. Please see

Section 7.2.7

and the Processor

Thermal/Mechanical Design Guidelines for proper usage of the Tcontrol specification.

The case temperature is defined at the geometric top center of the processor IHS. Analysis

indicates that real applications are unlikely to cause the processor to consume maximum power

dissipation for sustained time periods. Intel recommends that complete thermal solution designs
target the TDP indicated in

Table 7-1

, instead of the maximum processor power consumption. The

Thermal Monitor feature is intended to help protect the processor in the event that an application

exceeds the TDP recommendation for a sustained time period. For more details on this feature,
refer to

Section 7.2

. To ensure maximum flexibility for future requirements, systems should be

designed to the Flexible Motherboard (FMB) guidelines, even if a processor with a lower thermal

dissipation is currently planned. Thermal Monitor or Thermal Monitor 2 feature must be
enabled for the processor to remain within specification.

NOTE:

1. Thermal Design Power (TDP) should be used for processor thermal solution design targets. The TDP is not

the maximum power that the processor can dissipate. TDP is measured at maximum T

CASE

2. FMB, or Flexible Motherboard, guidelines provide a design target for meeting future thermal requirements.

See

Section 2.10.1

for further information on FMB.

3. Maximum Power is the maximum thermal power that can be dissipated by the processor through the

integrated heat spreader. Maximum Power is measured at maximum T

CASE

Table 7-1. Processor Thermal Specifications

Core Frequency

Maximum

Power

(W)

Thermal Design

Power

(W)

Minimum

CASE

(°C)

Maximum

CASE

(°C)

Notes

Launch - FMB1

136

129

See

Figure 7-1

and

Table 7-2

1,2

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Thermal Specifications

NOTE:

Refer to the Processor Thermal/Mechanical Design Guidelines for system and environmental
implementation details.

Figure 7-1. 64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Thermal Profile

100

110

120

130

Power [W]

r
at

ure [

]

TDP

CONTROL_BASE

64-bit Intel® XeonTM processor MP with

up to 8MB L3 cache Thermal Profile

y = 0.217 * x + 45

CASE_MAX

@ TDP

Table 7-2. 64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Thermal Profile

Power [W]

CASE_MAX [°C]

Power [W]

TCASE_MAX [°C]

PCONTROL_BASE = 23

100

105

110

115

120

125

129

100

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Thermal Specifications

7.1.2

Thermal Metrology

The maximum and minimum case temperatures (T

CASE

) specified in

Table 7-1

are measured at the

geometric top center of the processor integrated heat spreader (IHS).

Figure 7-2

illustrates the

location where T

CASE

temperature measurements should be made. For detailed guidelines on

temperature measurement methodology, refer to the Processor Thermal/Mechanical Design

Guidelines.

7.2

Processor Thermal Features

7.2.1

Thermal Monitor

The Thermal Monitor feature helps control the processor temperature by activating the Thermal

Control Circuit (TCC) when the processor silicon reaches its maximum operating temperature. The
TCC reduces processor power consumption as needed by modulating (starting and stopping) the

internal processor core clocks. The Thermal Monitor (or Thermal Monitor 2) must be enabled for

the processor to be operating within specifications. The temperature at which Thermal Monitor
activates the thermal control circuit is not user configurable and is not software visible. Bus traffic

is snooped in the normal manner, and interrupt requests are latched (and serviced during the time

that the clocks are on) while the TCC is active.

When the Thermal Monitor is enabled and a high temperature situation exists (i.e. TCC is active),
the clocks will be modulated by alternately turning the clocks off and on at a duty cycle specific to

the processor (typically 30-50%). Clocks will not be off for more than 3 microseconds when the

TCC is active. Cycle times are processor speed dependent and will decrease as processor core
frequencies increase. A small amount of hysteresis has been included to prevent rapid active/

Figure 7-2. Case Temperature (T

CASE

) Measurement Location

Measure T

CASE

at this point

(geometric center of IHS)

Thermal grease should cover

entire area of IHS

Measure from edge of IHS

53.34 mm FC-mPGA4 Package

19.2 mm [0.756 in]

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

101

Thermal Specifications

inactive transitions of the TCC when the processor temperature is near its maximum operating
temperature. Once the temperature has dropped below the maximum operating temperature and the

hysteresis timer has expired, the TCC goes inactive and clock modulation ceases.

With a thermal solution designed to meet the thermal profile, it is anticipated that the TCC would

only be activated for very short periods of time when running the most power intensive
applications. The processor performance impact due to these brief periods of TCC activation is

expected to be so minor that it would be immeasurable. A thermal solution that is significantly

under-designed may not be capable of cooling the processor even when the TCC is active
continuously.

The duty cycle for the TCC, when activated by the Thermal Monitor, is factory configured and

cannot be modified. The Thermal Monitor does not require any additional hardware, software

drivers, or interrupt handling routines.

7.2.2

Thermal Monitor 2

The processor also supports an additional power reduction capability known as Thermal Monitor 2

(TM2). This mechanism provides an efficient means for limiting the processor temperature by
reducing the power consumption within the processor. The Thermal Monitor (or Thermal Monitor

2) feature must be enabled for the processor to be operating within specifications.

When Thermal Monitor 2 is enabled and a high temperature situation is detected, the Thermal

Control Circuit (TCC) will be activated. The TCC causes the processor to adjust its operating
frequency (via the bus multiplier) and input voltage (via the VID signals). This combination of

reduced frequency and VID results in a decrease to the processor power consumption.

A processor enabled for Thermal Monitor 2 includes two operating points, each consisting of a

specific operating frequency and voltage. The first operating point represents the normal operating
condition for the processor. Under this condition, the core-frequency-to-system-bus multiplier

utilized by the processor is that contained in the IA32_FLEX_BRVID_SEL MSR and the VID is

that specified in

Table 2-9

. These parameters represent normal system operation.

The second point consists of both a lower operating frequency and voltage. When the TCC is
activated, the processor automatically transitions to the new frequency. This transition occurs very

rapidly (on the order of 5 microseconds). During the frequency transition, the processor is unable
to service any bus requests, and consequently, all bus traffic is blocked. Edge-triggered interrupts

will be latched and kept pending until the processor resumes operation at the new frequency.

Once the new operating frequency is engaged, the processor will transition to the new core

operating voltage by issuing a new VID code to the voltage regulator. The voltage regulator must
support dynamic VID steps in order to support Thermal Monitor 2. During the voltage change, it

will be necessary to transition through multiple VID codes to reach the target operating voltage.

Each step will be one VID table entry (see

Table 2-9

). The processor continues to execute

instructions during the voltage transition. Operation at the lower voltage reduces the power

consumption of the processor.

A small amount of hysteresis has been included to prevent rapid active/inactive transitions of the

TCC when the processor temperature is near its maximum operating temperature. Once the
temperature has dropped below the maximum operating temperature, and the hysteresis timer has

expired, the operating frequency and voltage transition back to the normal system operating point.

Transition of the VID code will occur first, in order to ensure proper operation once the processor
reaches its normal operating frequency. Refer to

Figure 7-3

for an illustration of this ordering.

102

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Thermal Specifications

The PROCHOT# signal is asserted when a high temperature situation is detected, regardless of

whether Thermal Monitor or Thermal Monitor 2 is enabled.

If a processor has its Thermal Control Circuit activated via a Thermal Monitor 2 event, and an

Enhanced Intel SpeedStep

technology transition to a higher target frequency (through the

applicable MSR write) is attempted, this frequency transition will be delayed until the TCC is

deactivated and the TM2 event is complete.

7.2.3

On-Demand Mode

The processor provides an auxiliary mechanism that allows system software to force the processor

to reduce its power consumption. This mechanism is referred to as "On-Demand" mode and is

distinct from the Thermal Monitor and Thermal Monitor 2 features. On-Demand mode is intended
as a means to reduce system level power consumption. Systems must not rely on software usage of

this mechanism to limit the processor temperature.

If bit 4 of the IA_32_CLOCK_MODULATION MSR is written to a `1', the processor will

immediately reduce its power consumption via modulation (starting and stopping) of the internal
core clock, independent of the processor temperature. When using On-Demand mode, the duty

cycle of the clock modulation is programmable via bits 3:1 of the same

IA_32_CLOCK_MODULATION MSR. In On-Demand mode, the duty cycle can be programmed
from 12.5% on / 87.5% off to 87.5% on / 12.5% off in 12.5% increments. On-Demand mode may

be used in conjunction with the Thermal Monitor or Thermal Monitor 2. If Thermal Monitor is

enabled and the system tries to enable On-Demand mode at the same time the TCC is engaged, the
factory configured duty cycle of the TCC will override the duty cycle selected by the On-Demand

mode.

Figure 7-3. Thermal Monitor 2 Frequency and Voltage Ordering

Time

T(hysteresis)

Vcc

TM2

NOM

TM2

MAX

TM2

Frequency

Temperature

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

103

Thermal Specifications

7.2.4

PROCHOT# Signal Pin

An external signal, PROCHOT# (processor hot), is asserted when the processor die temperature

has reached its factory configured trip point. If the Thermal Monitor is enabled (note that the

Thermal Monitor must be enabled for the processor to be operating within specification), the TCC
will be active when PROCHOT# is asserted. The processor can be configured to generate an

interrupt upon the assertion or de-assertion of PROCHOT#. Refer to the Intel Architecture

Software Developer's Manual and the Processor BIOS Writers Guide for specific register and
programming details.

PROCHOT# is designed to assert at or a few degrees higher than maximum T

CASE

(as specified by

the thermal profile) when dissipating TDP power, and cannot be interpreted as an indication of

processor case temperature. This temperature delta accounts for processor package, lifetime, and
manufacturing variations and attempts to ensure the Thermal Control Circuit is not activated below

maximum T

CASE

when dissipating TDP power. There is no defined or fixed correlation between

the PROCHOT# trip temperature, the case temperature, or the thermal diode temperature. Thermal
solutions must be designed to the processor specifications and cannot be adjusted based on

experimental measurements of T

CASE

, PROCHOT#, or Tdiode on random processor samples.

7.2.5

FORCEPR# Signal Pin

The FORCEPR# (force power reduction) input can be used by the platform to force the processor

to activate the TCC. If the Thermal Monitor is enabled, the TCC will be activated upon the

assertion of the FORCEPR# signal. The TCC will remain active until the system deasserts
FORCEPR#. FORCEPR# is an asynchronous input. FORCEPR# can be used to thermally protect

other system components. To use the voltage regulator (VR) as an example, when the FORCEPR#

pin is asserted, the TCC in the processor will activate, reducing the current consumption of the
processor and the corresponding temperature of the VR.

It should be noted that assertion of FORCEPR# does not automatically assert PROCHOT#. As

mentioned previously, the PROCHOT# signal is asserted when a high temperature situation is

detected. A minimum pulse width of 500 microseconds is recommended when FORCEPR# is
asserted by the system. Sustained activation of the FORCEPR# pin may cause noticeable platform

performance degradation.

7.2.6

THERMTRIP# Signal Pin

Regardless of whether or not Thermal Monitor or Thermal Monitor 2 is enabled, in the event of a

catastrophic cooling failure, the processor will automatically shut down when the silicon has
reached an elevated temperature (refer to the THERMTRIP# definition in

Table 6-1

). At this point,

the system bus signal THERMTRIP# will go active and stay active as described in

Table 6-1

THERMTRIP# activation is independent of processor activity and does not generate any bus
cycles. If THERMTRIP# is asserted, processor core voltage (V

) and cache voltage (V

CACHE

)

must be removed within the timeframe defined in

Table 2-23

and

Figure 2-15

. Intel also

recommends removal of V

7.2.7

CONTROL

and Fan Speed Reduction

CONTROL

is a temperature specification based on a temperature reading from the thermal sensor.

The value for T

CONTROL

will be calibrated in manufacturing and configured for each processor.

The T

CONTROL

temperature for a given processor can be obtained by reading the

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

105

Features

8.1

Power-On Configuration Options

Several configuration options can be set by hardware. The processor samples its hardware
configuration at reset, on the active-to-inactive transition of RESET#. For specifications on these

options, refer to

Table 8-1

The sampled information configures the processor for subsequent operation. These configuration

options can only be changed by another reset. All resets configure the processor. For reset
purposes, the processor does not distinguish between a "warm" reset and a "power-on" reset.

NOTE:

1. Asserting this signal during RESET# selects the corresponding option.
2. Address pins not identified in this table as configuration options should not be asserted during RESET#.

8.2

Clock Control and Low Power States

The processor allows the use of HALT and Stop-Grant states to reduce power consumption by

stopping the clock to internal sections of the processor, depending on each particular state. See

Figure 8-1

for a visual representation of the processor low power states.

The processor adds support for Enhanced HALT power down state. Refer to

Figure 8-1

and the

following sections.

The Stop-Grant state requires chipset and BIOS support on multiprocessor systems. In a

multiprocessor system, all the STPCLK# signals are bussed together, thus all processors are
affected in unison. The Hyper-Threading Technology feature adds the conditions that all logical

processors share the same STPCLK# signal internally. When the STPCLK# signal is asserted, the

Table 8-1. Power-On Configuration Option Pins

Configuration Option

Pin

1,2

Output tri state

SMI#

A[39]# for Arb ID 3 (middle agent)

A[36]# for Arb ID 0 (end agent)

Execute BIST (Built-In Self Test)

INIT# or A[3]#

In Order Queue de-pipelining (set IOQ depth to 1)

A[7]#

Disable MCERR# observation

A[9]#

Disable BINIT# observation

A[10]#

APIC cluster ID

A[12:11]#

Disable bus parking

A[15]#

Core Frequency-to-Front Side Bus Multiplier

A[21:16]#

Symmetric agent arbitration ID

BR[1:0]#

Disable Hyper-Threading Technology
(HT Technology)

A[31]#

106

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Features

processor enters the Stop-Grant state, issuing a Stop-Grant Special Bus Cycle (SBC) for each
processor or logical processor. The chipset needs to account for a variable number of processors

asserting the Stop-Grant SBC on the bus before allowing the processor to be transitioned into one

of the lower processor power states. Refer to the applicable chipset specification for more
information.

8.2.1

Normal State

This is the normal operating state for the processor.

8.2.2

HALT or Enhanced Power Down State

The Enhanced HALT power down state is configured and enabled via the BIOS. If the Enhanced

HALT state is not enabled, the default power down state entered will be HALT. Refer to the section
below for details on HALT and Enhanced HALT states.

8.2.2.1

HALT Power Down State

HALT is a low power state entered when all logical processors have executed the HALT or
MWAIT instruction. When one of the logical processors executes the HALT or MWAIT

instruction, that logical processor is halted; however, the other processor continues normal

operation. The processor transitions to the Normal state upon the occurrence of SMI#, BINIT#,
INIT#, LINT[1:0] (NMI, INTR), or an interrupt delivered over the front side bus. RESET# causes

the processor to immediately initialize itself.

The return from a System Management Interrupt (SMI) handler can be to either Normal Mode or

the HALT Power Down state. See the IA-32 Intel

Architecture Software Developer's Manual,

Volume 3: System Programming Guide for more information.

The system can generate a STPCLK# while the processor is in the HALT Power Down state. When

the system deasserts the STPCLK# interrupt, the processor returns execution to the HALT state.

While in HALT Power Down state, the processor processes bus snoops and interrupts.

8.2.2.2

Enhanced HALT Power Down State

Enhanced HALT state is a low power state entered when all logical processors have executed the

HALT or MWAIT instructions and Enhanced HALT state has been enabled via the BIOS. When
one of the logical processors executes the HALT instruction, that logical processor is halted;

however, the other processor continues normal operation. The Enhanced HALT state is generally a

lower power state than the Stop Grant state.

The processor automatically transitions to a lower core frequency and voltage operating point
before entering the Enhanced HALT state. Note that the processor FSB frequency is not altered;

only the internal core frequency is changed. When entering the low power state, the processor first

switches to the lower bus ratio and then transitions to the lower VID.

While in the Enhanced HALT state, the processor processes bus snoops.

The processor exits the Enhanced HALT state when a break event occurs. When the processor exits
the Enhanced HALT state, it first transitions the VID to the original value and then changes the bus

ratio back to the original value.

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

107

Features

8.2.3

Stop-Grant State

When the STPCLK# pin is asserted, the Stop-Grant state of the processor is entered 20 bus clocks
after the response phase of the processor-issued Stop Grant Acknowledge special bus cycle. Both

logical processors must be in the Stop-Grant state before the deassertion of STPCLK#.

Since the AGTL+ signal pins receive power from the front side bus, these pins should not be driven

(allowing the level to return to V

) for minimum power drawn by the termination resistors in this

state. In addition, all other input pins on the front side bus should be driven to the inactive state.

BINIT# is not serviced while the processor is in Stop-Grant state. The event is latched and can be

serviced by software upon exit from the Stop-Grant state.

RESET# causes the processor to immediately initialize itself, but the processor will stay in Stop-
Grant state. A transition back to the Normal state occurs with the deassertion of the STPCLK#

signal.

A transition to the Grant Snoop state occurs when the processor detects a snoop on the front side

bus (see

Section 8.2.4

Figure 8-1. Stop Clock State Machine

Enhanced HALT or HALT State

BCLK running
Snoops and interrupts allowed

Normal State

Normal execution

Enhanced HALT Snoop or HALT
Snoop State

BCLK running
Service snoops to caches

Stop Grant State

BCLK running
Snoops and interrupts allowed

Snoop

Event

Occurs

Snoop

Event

Serviced

INIT#, BINIT#, INTR, NMI, SMI#,
RESET#, FSB interrupts

STPCLK#
Asserted

STPCLK#
De-asserted

rte

-a

Snoop Event Occurs

Snoop Event Serviced

HALT or MWAIT Instruction and
HALT Bus Cycle Generated

Stop Grant Snoop State

BCLK running
Service snoops to caches

108

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Features

While in the Stop-Grant state, SMI#, INIT#, BINIT# and LINT[1:0] are latched by the processor,
and only serviced when the processor returns to the Normal state. Only one occurrence of each

event is recognized upon return to the Normal state.

While in Stop-Grant state, the processor processes snoops on the front side bus and latches

interrupts delivered on the front side bus.

The PBE# signal can be driven when the processor is in Stop-Grant state. PBE# is asserted if there
is any pending interrupt latched within the processor. Pending interrupts that are blocked by the

EFLAGS.IF bit being clear still cause assertion of PBE#. Assertion of PBE# indicates to system

logic that it should return the processor to the Normal state.

8.2.4

Enhanced HALT Snoop State or HALT Snoop State,

Stop Grant Snoop State

The Enhanced HALT Snoop state is used in conjunction with the Enhanced HALT state. If

Enhanced HALT state is not enabled in the BIOS, the default Snoop state entered will be the HALT
Snoop state. Refer to the sections below for details on HALT Snoop state, Grant Snoop state and

Enhanced HALT Snoop state.

8.2.4.1

HALT Snoop State, Stop Grant Snoop State

The processor responds to snoop or interrupt transactions on the front side bus while in Stop-Grant

state or in HALT Power Down state. During a snoop or interrupt transaction, the processor enters

the HALT/Grant Snoop state. The processor stays in this state until the snoop on the front side bus
has been serviced (whether by the processor or another agent on the front side bus) or the interrupt

has been latched. After the snoop is serviced or the interrupt is latched, the processor will return to

the Stop-Grant state or HALT Power Down state, as appropriate.

8.2.4.2

Enhanced HALT Snoop State

The Enhanced HALT Snoop state is the default Snoop state when the Enhanced HALT state is

enabled via the BIOS. The processor remains in the lower bus ratio and VID operating point of the
Enhanced HALT state.

While in the Enhanced HALT Snoop state, snoops and interrupt transactions are handled the same

way as in the HALT Snoop state. After the snoop is serviced or the interrupt is latched, the
processor returns to the Enhanced HALT state.

8.3

Enhanced Intel SpeedStep

Technology

Enhanced Intel SpeedStep technology enables the processor to switch between multiple frequency

and voltage points, which may result in platform power savings. In order to support this

technology, the system must support dynamic VID transitions. Switching between voltage/
frequency states is software controlled.

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

109

Features

Note: Not all processors are capable of supporting Enhanced Intel SpeedStep technology. More details on

which processor frequencies will support this feature will be provided in future releases of the

Specification Update.

Enhanced Intel SpeedStep technology is a technology that creates processor performance states

(P-states). P-states are power consumption and capability states within the Normal state. Enhanced
Intel SpeedStep technology enables real-time dynamic switching between frequency and voltage

points. It alters the performance of the processor by changing the bus to core frequency ratio and

voltage. This allows the processor to run at different core frequencies and voltages to best serve the
performance and power requirements of the processor and system. Note that the front side bus is

not altered; only the internal core frequency is changed. In order to run at reduced power

consumption, the voltage is altered in step with the bus ratio.

The following are key features of Enhanced Intel SpeedStep technology:

Multiple voltage/frequency operating points provide optimal performance at reduced power

consumption.

Voltage/frequency selection is software controlled by writing to processor MSR's (Model
Specific Registers), thus eliminating chipset dependency.

-- If the target frequency is higher than the current frequency, V

is incremented in steps

(+12.5 mV) by placing a new value on the VID signals and the processor shifts to the new
frequency. Note that the top frequency for the processor can not be exceeded.

-- If the target frequency is lower than the current frequency, the processor shifts to the new

frequency and V

is then decremented in steps (-12.5 mV) by changing the target VID

through the VID signals.

8.4

System Management Bus (SMBus) Interface

The processor package includes an SMBus interface which allows access to a memory component

with two sections (referred to as the Processor Information ROM and the Scratch EEPROM) and a

thermal sensor on the substrate. The SMBus thermal sensor may be used to read the thermal diode
mentioned in

Section 7.2.8

. These devices and their features are described below.

The SMBus thermal sensor and its associated thermal diode are not related to and are completely

independent of the precision, on-die temperature sensor and thermal control circuit (TCC) of the
Thermal Monitor or Thermal Monitor 2 features discussed in

Section 7.2.1

The processor SMBus implementation uses the clock and data signals of the System Management

Bus (SMBus) Specification. It does not implement the SMBSUS# signal.

For platforms which do not implement any of the SMBus features found on the processor, all of the

SMBus connections, except SM_VCC, to the socket pins may be left unconnected (SM_ALERT#,
SM_CLK, SM_DAT, SM_EP_A[2:0], SM_TS_A[1:0], SM_WP)

110

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Features

NOTE:

Actual implementation may vary. This figure is provided to offer a general understanding of the
architecture. All SMBus pull-up and pull-down resistors are 10 k

and located on the processor.

8.4.1

Processor Information ROM (PIROM)

The lower half (128 bytes) of the SMBus memory component is an electrically programmed read-
only memory with information about the processor. This information is permanently write-

protected.

Table 8-2

shows the data fields and formats provided in the Processor Information ROM

(PIROM).

Figure 8-2. Logical Schematic of SMBus Circuitry

SM_EP_A1

Processor

Information

ROM

and

Scratch

EEPROM

(1 Kbit each)

Thermal

Sensor

SM_EP_A0

SM_EP_A2

SM_TS_A0

SM_TS_A1

SM_VCC

CLK

DATA

VCC

VSS

STDBY#

ALERT#

SM_CLK

SM_DAT

SM_ALERT#

SM_WP

Table 8-2. Processor Information ROM Format (Sheet 1 of 3)

Offset/Section

# of

Bits

Function

Notes

Header:

00h

Data Format Revision

Two 4-bit hex digits

01 - 02h

EEPROM Size

Size in bytes (MSB first)

03h

Processor Data Address

Byte pointer, 00h if not present

04h

Processor Core Data
Address

Byte pointer, 00h if not present

05h

L3 Cache Data Address

Byte pointer, 00h if not present

06h

Package Data Address

Byte pointer, 00h if not present

07h

Part Number Data Address

Byte pointer, 00h if not present

08h

Thermal Reference Data
Address

Byte pointer, 00h if not present

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

111

Features

09h

Feature Data Address

Byte pointer, 00h if not present

0Ah

Other Data Address

Byte pointer, 00h if not present

0Bh

Reserved

0Dh

Checksum

1 byte checksum

Processor Data:

0E - 13h

S-spec/QDF Number

Six 8-bit ASCII characters

14h

6
2

Reserved
Sample/Production

Reserved (most significant bits)
00b = Sample only, 01-11b = Production

15h

Checksum

1 byte checksum

Processor Core

Data:

16 - 17h

Processor Core Type

From CPUID

Processor Core Family

From CPUID

Processor Core Model

From CPUID

Processor Core Stepping

From CPUID

Reserved

Reserved for future use

18 - 19h

Reserved

Reserved for future use

1A - 1Bh

Front Side Bus Speed

16-bit binary number (in MHz)

1Ch

2
6

Multiprocessor Support
Reserved

00b = UP,01b = DP,10b = RSVD,11b = MP
Reserved

1D - 1Eh

Maximum Core Frequency

16-bit binary number (in MHz)

1F - 20h

Processor Core VID

requested by VID outputs in mV

21 - 22h

Core Voltage, Minimum

Minimum processor DC V

spec in mV

23h

CASE

Maximum

Maximum case temperature spec in °C

24h

Checksum

1 byte checksum

Cache Data:

25 - 26h

Reserved

Reserved for future use

27 - 28h

L2 Cache Size

16-bit binary number (in KB)

29 - 2Ah

L3 Cache Size

16-bit binary number (in KB)

2B - 2Ch

Processor Cache VID

CACHE

requested by CVID outputs in mV

2D - 2Eh

Cache Voltage, Minimum

Minimum processor DC V

CACHE

spec in mV

2F - 30h

Reserved

31h

Checksum

1 byte checksum

Package Data:

32 - 35h

Package Revision

Four 8-bit ASCII characters

36h

Reserved

Reserved for future use

37h

Checksum

1 byte checksum

Table 8-2. Processor Information ROM Format (Sheet 2 of 3)

Offset/Section

# of

Bits

Function

Notes

112

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Features

8.4.2

Scratch EEPROM

Also available in the memory component on the processor SMBus is an EEPROM which may be

used for other data at the system or processor vendor's discretion. The data in this EEPROM, once
programmed, can be write-protected by asserting the active-high SM_WP signal. This signal has a

weak pull-down (10 kW) to allow the EEPROM to be programmed in systems with no

implementation of this signal. The Scratch EEPROM resides in the upper half of the memory
component (addresses 80 - FFh). The lower half comprises the Processor Information ROM

(addresses 00 - 7Fh), which is permanently write-protected by Intel.

Part Number Data:

38 - 3Eh

Processor Part Number

Seven 8-bit ASCII characters

3F - 4Ch

112

Reserved

4D - 54h

Processor Electronic
Signature

64-bit identification number

55 - 6Eh

208

Reserved

6Fh

Checksum

1 byte checksum

Thermal Ref. Data:

70h

Reserved

71 - 72h

Reserved

73h

Reserved

Feature Data:

74 - 77h

Processor Core Feature
Flags

From CPUID function 1, EDX contents

78h

Processor Feature Flags

[7] = Reserved
[6] = Serial Signature
[5] = Electronic Signature Present
[4] = Thermal Sense Device Present
[3] = Reserved
[2] = OEM EEPROM Present
[1] = Core VID Present
[0] = L3 Cache Present

79-7Bh

Additional Processor
Feature Flags

All bits Reserved

7Ch

Reserved

7Dh

Checksum

1 byte checksum

Other Data:

7E - 7Fh

Reserved

Table 8-2. Processor Information ROM Format (Sheet 3 of 3)

Offset/Section

# of

Bits

Function

Notes

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

113

Features

8.4.3

PIROM and Scratch EEPROM Supported SMBus

Transactions

The Processor Information ROM (PIROM) responds to two SMBus packet types: Read Byte and

Write Byte. However, since the PIROM is write-protected, it will acknowledge a Write Byte

command but ignore the data. The Scratch EEPROM responds to Read Byte and Write Byte
commands.

Table 8-3

diagrams the Read Byte command.

Table 8-4

diagrams the Write Byte

command. Following a write cycle to the scratch ROM, software must allow a minimum of 10 ms

before accessing either ROM of the processor.

In the tables, `S' represents the SMBus start bit, `P' represents a stop bit, `R' represents a read bit,
`W' represents a write bit, `A' represents an acknowledge (ACK), and `///' represents a negative

acknowledge (NACK). The shaded bits are transmitted by the Processor Information ROM or

Scratch EEPROM, and the bits that aren't shaded are transmitted by the SMBus host controller. In
the tables, the data addresses indicate 8 bits. The SMBus host controller should transmit 8 bits with

the most significant bit indicating which section of the EEPROM is to be addressed: the Processor

Information ROM (MSB = 0) or the Scratch EEPROM (MSB = 1).

8.4.4

SMBus Thermal Sensor

The processor's SMBus thermal sensor provides a means of acquiring thermal data from the

processor. The thermal sensor is composed of control logic, SMBus interface logic, a precision
analog-to-digital converter, and a precision current source. The sensor drives a small current

through the p-n junction of a thermal diode located on the processor core. The forward bias voltage
generated across the thermal diode is sensed and the precision A/D converter derives a single byte

of thermal reference data, or a "thermal byte reading." The nominal precision of the least

significant bit of a thermal byte is 1° Celsius.

The processor incorporates the SMBus thermal sensor onto the processor package. Upper and
lower thermal reference thresholds can be individually programmed for the SMBus thermal sensor.

Comparator circuits sample the register where the single byte of thermal data (thermal byte

reading) is stored. These circuits compare the single-byte result against programmable threshold
bytes. If enabled, the alert signal on the processor SMBus (SM_ALERT#) will be asserted when

the sensor detects that either threshold is reached or crossed. Analysis of SMBus thermal sensor

data may be useful in detecting changes in the system environment that may require attention.

The processor SMBus thermal sensor may be used to monitor long term temperature trends, but
can not be used to manage the short term temperature of the processor or predict the activation of

the thermal control circuit. As mentioned earlier, the processor's high thermal ramp rates make this

infeasible. Refer to the thermal design guidelines listed in

Section 1.2

for more details.

Table 8-3. Read Byte SMBus Packet

Slave

Address

Write

Command

Code

Slave

Address

Read

Data

///

7-bits

8-bits

7-bits

8-bits

Table 8-4. Write Byte SMBus Packet

Slave Address

Write

Command Code

Data

7-bits

8-bits

114

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Features

The SMBus thermal sensor feature in the processor cannot be used to measure T

CASE

. The T

CASE

specification in

Section 7

must be met regardless of the reading of the processor's thermal sensor in

order to ensure adequate cooling for the entire processor. The SMBus thermal sensor feature is only

available while V

and SM_VCC are at valid levels and the processor is not in a low-power state.

8.4.5

Thermal Sensor Supported SMBus Transactions

The thermal sensor responds to five of the SMBus packet types: Write Byte, Read Byte, Send Byte,

Receive Byte, and Alert Response Address (ARA). The Send Byte packet can be used for sending
one-shot commands. The Receive Byte packet accesses the register commanded by the last Read

Byte packet and can be used to continuously read from a register. If a Receive Byte packet was

preceded by a Write Byte or send Byte packet more recently than a Read Byte packet, then the
behavior is undefined.

Table 8-5

through

Table 8-9

diagram the five packet types. In these figures,

`S' represents the SMBus start bit, `P' represents a stop bit, `Ack' represents an acknowledge, and

`///' represents a negative acknowledge (NACK). The shaded bits are transmitted by the thermal
sensor, and the bits that aren't shaded are transmitted by the SMBus host controller.

Table 8-10

shows the encoding of the command byte.

NOTE:

1. This is an 8-bit field. The device which sent the alert will respond to the ARA Packet with its address in the

seven most significant bits. The least significant bit is undefined and may return as a `1' or `0'. See

Section 8.4.8

for details on the Thermal Sensor Device addressing.

Table 8-5. Write Byte SMBus Packet

Slave Address

Write

Ack

Command Code

Ack

Data

Ack

7-bits

8-bits

Table 8-6. Read Byte SMBus Packet

Slave

Address

Write

Ack

Command

Code

Ack

Slave

Address

Read

Ack

Data

///

7-bits

8-bits

7-bits

bits

Table 8-7. Send Byte SMBus Packet

Slave Address

Write

Ack

Command Code

Ack

7-bits

8-bits

Table 8-8. Receive Byte SMBus Packet

Slave Address

Read

Ack

Data

///

7-bits

8-bits

Table 8-9. ARA SMBus Packet

ARA

Read

Ack

Address

///

0001 100

Device Address

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

115

Features

2. The shaded bits are transmitted by the thermal sensor, and the bits that aren't shaded are transmitted by the

SMBus host controller.

All of the commands in

Table 8-10

are for reading or writing registers in the SMBus thermal

sensor, except the one-shot command (OSHT) register. The one-shot command forces the

immediate start of a new conversion cycle. If a conversion is in progress when the one-shot
command is received, then the command is ignored. If the thermal sensor is in stand-by mode when

the one-shot command is received, a conversion is performed and the sensor returns to stand-by
mode. The one-shot command is not supported when the thermal sensor is in auto-convert mode.

Note: Writing to a read-command register or reading from a write-command register will produce invalid

results.

The default command after reset is to a reserved value (00h). After reset, Receive Byte SMBus

packets will return invalid data until another command is sent to the thermal sensor.

8.4.6

SMBus Thermal Sensor Registers

8.4.6.1

Thermal Value Registers

Once the SMBus thermal sensor reads the processor thermal diode, it performs an analog to digital

conversion and stores the results in the Thermal Reference Register (TRR). The supported range is
+127 to 0 decimal and is expressed as an eight-bit number representing temperature in degrees

Table 8-10. SMBus Thermal Sensor Command Byte Bit Assignments

Register

Command

Reset State

Function

RESERVED

00h

RESERVED

Reserved for future use

TRR

01h

0000 0000

Read processor core thermal diode

02h

N/A

Read status byte (flags, busy signal)

03h

00XX XXXX

Read configuration byte

RCR

04h

0000 0010

Read conversion rate byte

RESERVED

05h

RESERVED

Reserved for future use

RESERVED

06h

RESERVED

Reserved for future use

RRHL

07h

0111 1111

Read processor core thermal diode T

HIGH

limit

RRLL

08h

1100 1001

Read processor core thermal diode T

LOW

limit

09h

N/A

Write configuration byte

WCR

0Ah

N/A

Write conversion rate byte

RESERVED

0Bh

RESERVED

Reserved for future use

RESERVED

0Ch

RESERVED

Reserved for future use

WRHL

0Dh

N/A

Write processor core thermal diode T

HIGH

limit

WRLL

0Eh

N/A

Write processor core thermal diode T

LOW

limit

OSHT

0Fh

N/A

One shot command (use send byte packet)

RESERVED

10h FFh

N/A

Reserved for future use

116

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Features

Celsius. This eight-bit value consists of seven bits of data and a sign bit (MSB) where the sign is
always positive (sign = 0) and is shown in

Table 8-11

. The values shown are also used to program

the Thermal Limit Registers.

The values of these registers should be treated as saturating values. Values above 127 are

represented at 127 decimal, and values of zero and below may be represented as 0 to -127 decimal.
If the device returns a value where the sign bit is set (1) and the data is 000_0000 through

111_1110, the temperature should be interpreted as 0° Celsius.

8.4.6.2

Thermal Limit Registers

The SMBus thermal sensor has four Thermal Limit Registers:

RRHL -- used to read the high limit

RRLL -- used to read for the low limit

WRHL -- used to write the high limit

WRLL -- used to write the low limit

These registers allow the user to define high and low limits for the processor core thermal diode

reading. The encoding for these registers is the same as for the TRR shown in

Table 8-11

. If the

processor thermal diode reading equals or exceeds one of these limits, then the alarm bit (RHIGH

or RLOW) in the Thermal Sensor Status Register is triggered.

8.4.6.3

Status Register

The Status Register shown in

Table 8-12

indicates which, if any, thermal value thresholds for the

processor core thermal diode have been exceeded. It also indicates whether a conversion is in

progress or an open circuit has been detected in the processor core thermal diode connection. Once
set, alarm bits stay set until they are cleared by a Status Register read. A successful read to the

Status Register will clear any alarm bits that may have been set (unless the alarm condition

persists). If the SM_ALERT# signal is enabled via the Thermal Sensor Configuration Register and
a thermal diode threshold is exceeded, an alert will be sent to the platform via the SM_ALERT#

signal.

This register is read by accessing the RS Command Register.

Table 8-11. Thermal Value Register Encoding

Temperature

(°C)

Register Value

(binary)

+127

0 111 1111

+126

0 111 1110

+100

0 110 0100

+50

0 011 0010

+25

0 001 1001

0 000 0001

0 000 0000

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

117

Features

8.4.6.4

Configuration Register

The Configuration Register controls the operating mode (stand-by vs. auto-convert) of the SMBus

thermal sensor.

Table 8-13

shows the format of the Configuration Register. If the RUN/STOP bit is

set (high) then the thermal sensor immediately stops converting and enters stand-by mode. The

thermal sensor will still perform analog to digital conversions in stand-by mode when it receives a

one-shot command. If the RUN/STOP bit is clear (low), then the thermal sensor enters auto-
conversion mode.

This register is accessed by using the thermal sensor Command Register. The RC command

Table 8-10

Table 8-12. SMBus Thermal Sensor Status Register

Bit

Name

Reset State

Function

7 (MSB)

BUSY

N/A

If set, indicates that the device's analog to digital
converter is busy.

RESERVED

Reserved for future use

RESERVED

Reserved for future use

RHIGH

If set, indicates the processor core thermal diode
high temperature alarm has activated.

RLOW

If set, indicates the processor core thermal diode
low temperature alarm has activated.

OPEN

If set, indicates an open fault in the connection to
the processor core diode.

RESERVED

Reserved for future use.

0 (LSB)

RESERVED

Reserved for future use.

Table 8-13. SMBus Thermal Sensor Configuration Register

Bit

Name

Reset State

Function

7 (MSB)

MASK

Mask SM_ALERT# bit. Clear the bit to allow
interrupts via SM_ALERT# and allow the thermal
sensor to respond to the ARA command when
an alarm is active. Set the bit to disable interrupt
mode. The bit is not used to clear the state of the
SM_ALERT# output. An ARA command may not
be recognized if the mask is enabled.

RUN/STOP

Stand-by mode control bit. If set, the device
immediately stops converting, and enters stand-
by mode. If cleared, the device converts in either
one-shot mode or automatically updates on a
timed basis.

5:0

RESERVED

Reserved for future use.

118

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Features

8.4.6.5

Conversion Rate Registers

The contents of the Conversion Rate Registers determine the nominal rate at which analog-to-

digital conversions happen when the SMBus thermal sensor is in auto-convert mode. There are two

Conversion Rate Registers: RCR for reading the conversion rate value; and WCR for writing the
value.

Table 8-14

shows the mapping between Conversion Rate Register values and the conversion

rate. As indicated in

Table 8-10

, the Conversion Rate Register is set to its default state of 02h

(0.25 Hz nominally) when the thermal sensor is powered up.

There is a ±30% error tolerance

between the conversion rate indicated in the conversion rate register and the actual conversion rate.

8.4.7

SMBus Thermal Sensor Alert Interrupt

The SMBus thermal sensor located on the processor includes the ability to interrupt the SMBus

when a fault condition exists. The fault conditions consist of:

1. a processor thermal diode value measurement that exceeds a user-defined high or low

threshold programmed into the Command Register; or

2. disconnection of the processor thermal diode from the thermal sensor.

The interrupt can be enabled and disabled via the thermal sensor Configuration Register and is
delivered to the system board via the SM_ALERT# open drain output. Once latched, the

SM_ALERT# should only be cleared by reading the Alert Response byte from the Alert Response

Address of the thermal sensor. The Alert Response Address is a special slave address shown in

Table 8-9

. The SM_ALERT# will be cleared once the SMBus master device reads the slave ARA

unless the fault condition persists. Reading the Status Register or setting the mask bit within the

Configuration Register does not clear the interrupt.

8.4.8

SMBus Device Addressing

Of the addresses broadcast across the SMBus, the memory component claims those of the form

"1010XXXZb". The "XXX" bits are defined by pull-up and pull-down resistors on the system
baseboard. These address pins are pulled down weakly (10 kW) on the processor substrate to

ensure that the memory components are in a known state in systems which do not support the

SMBus (or only support a partial implementation). The "Z" bit is the read/write bit for the serial
bus transaction.

Table 8-14. SMBus Thermal Sensor Conversion Rate Registers

Register Value

Conversion Rate (Hz)

00h

0.0625

01h

0.125

02h

0.25

03h

0.5

04h

1.0

05h

2.0

06h

4.0

07h

8.0

08h to FFh

Reserved for future use

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

119

Features

The thermal sensor internally decodes one of three upper address patterns from the bus of the form
"0011XXXZb", "1001XXXZb", or "0101XXXZb". The device's addressing, as implemented, uses

the SM_TS_A[1:0] pins in either the HI, LO, or Hi-Z state. Therefore, the thermal sensor supports

nine unique addresses. To set either pin for the Hi-Z state, the pin must be left floating. As before,
the "Z" bit is the read/write bit for the serial transaction.

Note that addresses of the form "0000XXXXb" are Reserved and should not be generated by an

SMBus master. The thermal sensor samples and latches the SM_TS_A[1:0] signals at power-up

and at the starting point of every conversion. System designers should ensure that these signals are
at valid V

, V

, or floating input levels prior to or while the thermal sensor's SM_VCC supply

powers up. This should be done by pulling the pins to SM_VCC or V

via a 1 kW or smaller

resistor, or leaving the pins floating to achieve the Hi-Z state. If the system designer wants to drive
the SM_TS_A[1:0] pins with logic, the designer must still ensure that the pins are at valid input

levels prior to or while the SM_VCC supply ramps up. The system designer must also ensure that

their particular implementation does not add excessive capacitance to the address inputs. Excess
capacitance at the address inputs may cause address recognition problems.

Figure 8-2

shows a logical diagram of the pin connections.

Table 8-15

and

Table 8-16

describe the

address pin connections and how they affect the addressing of the devices.

NOTES:

1. Upper address bits are decoded in conjunction with the device select pins.
2. A tri-state or "Z" state on this pin is achieved by leaving this pin unconnected.

Note: System management software must be aware of the processor dependent addresses for the thermal

sensor.

Table 8-15. Thermal Sensor SMBus Addressing

Address (Hex)

Upper

Address

Device Select

8-bit Address Word on Serial Bus

SM_TS_A1

SM_TS_A0

b[7:0]

3Xh

0011

0
0
0

0011000Xb
0011001Xb
0011010Xb

5Xh

0101

0101001Xb
0101010Xb

0101011Xb

9Xh

1001

1
1
1

1001100Xb
1001101Xb

1001110Xb

Table 8-16. Memory Device SMBus Addressing (Sheet 1 of 2)

Address

(Hex)

Upper

Address

Device Select

R/W

bits 7-4

SM_EP_A2

bit 3

SM_EP_A1

bit 2

SM_EP_A0

bit 1

bit 0

A0h/A1h

1010

A2h/A3h

1010

A4h/A5h

1010

120

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Features

NOTE:

1. This addressing scheme will support up to 8 processors on a single SMBus.

8.4.9

Managing Data in the PIROM

The PIROM consists of the following sections:

Header

Processor Data

Processor Core Data

Cache Data

Package Data

Part Number Data

Thermal Reference Data

Feature Data

Other Data

Details on each of these sections are described below.

Note: Reserved fields or bits SHOULD be programmed to zeros. However, OEMs should not rely on this

model.

8.4.9.1

Header

To maintain backward compatibility, the Header defines the starting address for each subsequent
section of the PIROM. Software should check for the offset before reading data from a particular

section of the ROM.

Example: Code looking for the cache data of a processor would read offset 05h to find a value of

25h. 25h is the first address within the 'Cache Data' section of the PIROM.

The Header also includes the data format revision at offset 0h and the EEPROM size (formatted in
hex bytes) at offset 01-02h. The data format revision is used whenever fields within the PIROM are

redefined. Normally the revision would begin at a value of 1. If a field, or bit assignment within a

field, is changed such that software needs to discern between the old and new definition, then the
data format revision field should be incremented.

A6h/A7h

1010

A8h/A9h

1010

AAh/ABh

1010

ACh/ADh

1010

AEh/AFh

1010

Table 8-16. Memory Device SMBus Addressing (Sheet 2 of 2)

Address

(Hex)

Upper

Address

Device Select

R/W

bits 7-4

SM_EP_A2

bit 3

SM_EP_A1

bit 2

SM_EP_A0

bit 1

bit 0

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

121

Features

The EEPROM size provides the size of the PIROM in hex bytes. The PIROM is 128 bytes; thus,
offset 01 - 02h would be programmed to 80h.

8.4.9.2

Processor Data

This section contains two pieces of data:

The S-spec/QDF of the part in ASCII format

(1) 2-bit field to declare if the part is a pre-production sample or a production unit

The S-spec/QDF field is six ASCII characters wide and is programmed with the same S-spec/QDF

value as marked on the processor. If the value is less than six characters in length, leading spaces
(20h) are programmed in this field.

Example: A processor with a QDF mark of QEU5 contains the following in field 0E-13h: 20, 20,

51, 45, 55, 35h. This data consists of two blanks at 0Eh and 0Fh followed by the ASCII codes for

QEU5 in locations 10 - 13h.

Offset 14h contains the sample/production field, which is a two-bit field and is LSB aligned. All Q-
spec material will use a value of 00b. All S-spec material will use a value of 01b. All other values

are reserved.

Example: A processor with a Qxxx mark (engineering sample) will have offset 14h set to 00b. A

processor with an Sxxxx mark (production unit) will use 01b at offset 14h.

8.4.9.3

Processor Core Data

This section contains core silicon-related data.

8.4.9.3.1 CPUID

The CPUID field is a copy of the results in EAX[13:0] from Function 1 of the CPUID instruction.

Note: The field is not aligned on a byte boundary since the first two bits of the offset are reserved. Thus,

the data must be shifted right by two in order to obtain the same results.

Example: The CPUID of a C-0 stepping 64-bit Intel

XeonTM processor MP with up to 8MB L3

cache is 0F41h. The value programmed into offset 16 - 17h of the PIROM is 3D04h.

Note: The first two bits of the PIROM are reserved, as highlighted in the example below.

CPUID instruction results

0000

1111

0100

0001 (0F41h)

PIROM content

0011

1101

0000

0100 (3D04h)

8.4.9.3.2 Front Side Bus Frequency

Offset 1A - 1Bh provides front side bus frequency information. Systems may need to read this

offset to decide if all installed processors support the same front side bus speed. Because the Intel
NetBurst

microarchitecture bus is described as a 4X data bus, the frequency given in this field is

currently 667 MHz. The data provided is the speed, rounded to a whole number, and reflected in

hex.

122

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Features

Example: The processor supports a 667 MHz front side bus. Therefore, offset 1A - 1Bh has a value
of 029Bh.

8.4.9.3.3 Multi-Processor Support

Offset 1Ch has 2 bits defined for representing the supported number of physical processors on the

bus. These two bits are MSB aligned where 00b equates to single-processor operation, 01b is a

dual-processor operation, and 11b represents multi-processor operation. Normally, only values of
01 and 11b are used. The remaining six bits in this field are reserved for the future use.

8.4.9.3.4 Maximum Core Frequency

Offset 1D - 1Eh provides the maximum core frequency for the processor. The frequency should

equate to the markings on the processor and/or the QDF/S-spec speed even if the parts are not

limited or locked to the intended speed. Format of this field is in MHz, rounded to a whole number,
and encoded in hex format.

Example: A 3.00 GHz processor will have a value of 0BB8h, which equates to 3000 decimal.

8.4.9.3.5 Core Voltage

There are two areas defined in the PIROM for the core voltages associated with the processor.

Offset 1F - 20h is the Processor Core VID (Voltage Identification) field and contains the voltage

requested via the VID pins. In the case of the 64-bit Intel

XeonTM processor MP with up to 8MB

L3 cache, this is 1.3875 V. This field, rounded to the next thousandth, is in mV and is reflected in

hex. This data is also in

Table 2-9

. Some systems read this offset to determine if all processors

support the same default VID setting.

Minimum core voltage is reflected in offset 21 - 22h. This field is in mV and reflected in hex. The
minimum V

reflected in this field is the minimum allowable voltage assuming the FMB

maximum current draw.

Note: The minimum core voltage value in offset 21 - 22h is a single value that assumes the FMB

maximum current draw. Refer to

Table 2-10

for the minimum core voltage specifications based on

actual real-time current draw.

Example: The specifications for a 64-bit Intel

XeonTM processor MP with up to 8MB L3 cache at

FMB are 1.3875 V VID and 1.229 V minimum voltage. Offset 1F - 20h would contain 056Ch
(1388 decimal) and offset 21 - 22h would contain 04D2h (1234 decimal).

8.4.9.3.6 T

CASE

Maximum

The last field within Processor Core Data is the T

CASE

Maximum field. The field reflects

temperature in degrees Celsius in hex format. This data can be found in the

Table 7-1

. The thermal

specifications are specified at the case (IHS).

8.4.9.4

Cache Data

This section contains cache-related data.

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

123

Features

8.4.9.4.7 L2/L3 Cache Size

Offset 27 - 28h is the L2 cache size field. The field reflects the size of the level two cache in

kilobytes. Offset 29 - 3Ah is the L3 cache size field and also reflects size in kilobytes. Both fields
are in hex format.

Example: The 64-bit Intel

XeonTM processor MP with up to 8MB L3 cache has a 1 MB

(1024 KB) L2 cache and either 4 MB (4096 KB) or 8 MB (8192 KB) L3 cache. Thus, offset 27 -

28h will contain 0400h, and offset 29 - 2Ah will contain 1000h (for 4 MB) or 2000h (for 8 MB).

8.4.9.4.8 Cache Voltage

There are two areas defined in the PIROM for the L3 cache voltages associated with the processor.
Offset 2B - 2Ch is the Processor Cache VID (Cache Voltage Identification), or CVID, field and

contains the voltage requested via the CVID pins. In the case of the 64-bit Intel

XeonTM processor

MP with up to 8MB L3 cache, this is 1.275 V. This field is in mV and is reflected in hex. This data
is also in

Table 2-9

. Some systems read this offset to determine if all processors support the same

default CVID setting.

Minimum L3 cache voltage specifications are reflected in offset 2D - 2Eh. This field is in mV and

reflected in hex. This data is also in

Table 2-9

. For processors that follow a load line DC

specification, the minimum V

CACHE

reflected in this field should reflect the minimum allowable

voltage at maximum current.

Example: The specifications for a 64-bit Intel

XeonTM processor MP with up to 8MB L3 cache

are 1.275 V CVID and 1.125 V minimum voltage (at maximum current). Offset 2B - 2Ch would
contain 04FBh (1275 decimal) and offset 2D - 2Eh would contain 0465h (1125 decimal).

8.4.9.5

Package Data

This section describes the package revision location at offset 32 - 35h. This field tracks the highest
level revision. It is provided in ASCII format of four characters (8 bits x 4 characters = 32 bits).

The package is documented as 1.0, 2.0, etc. Because this only consumes three ASCII characters, a

leading space is provided in the data field.

Example: The C-0 stepping of the 64-bit Intel

XeonTM processor MP with up to 8MB L3 cache

utilizes revision 1.0 of the FC-mPGA package. Thus, at offset 32-35h, the data is a space followed

by 1.0. In hex, this would be 20, 31, 2E, 30.

8.4.9.6

Part Number Data

This section provides traceability. There are 208 available bytes in this section for future use.

8.4.9.6.9 Processor Part Number

Offset 38 - 3Eh contains seven ASCII characters reflecting the Intel part number for the processor.

This information is typically marked on the outside of the processor. If the part number is less than
7 characters, a leading space is inserted into the value. The part number should match the

information found in the marking specification found in

Section 4

Example: A processor with a part number of 80546KF will have data found at offset 38 - 3Eh is

38, 30, 35, 34, 36, 4B, 46.

124

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

Features

8.4.9.6.10 Processor Electronic Signature

Offset 4D - 54h contains a 64-bit identification number. Intel does not guarantee that each

processor will have a unique value in this field.

8.4.9.7

Feature Data

This section provides information on key features that the platform may need to understand

without powering on the processor.

8.4.9.7.11 Processor Core Feature Flags

Offset 74 - 77h contains a copy of results in EDX[31:0] from Function 1 of the CPUID instruction.
These details provide instruction and feature support by product family. A decode of these bits is

found in the AP-485 Intel

Processor Identification and CPUID Instruction application note.

8.4.9.7.12 Processor Feature Flags

Offset 78h provides additional feature information from the processor. This field is defined as

follows

8.4.9.7.13 Additional Processor Feature Flags

All bits of this field are reserved at this time. The field resides at offset 79 - 7Bh.

8.4.9.8

Other Data

Addresses 7E - 7F are listed as reserved.

Table 8-17. Offset 78h Definitions

Bit

Definition

Reserved

Serial signature (set if there is a serial signature at offset 4D - 54h)

Electronic signature present (set if there is a electronic signature at 4D - 54h)

Thermal Sense Device present (set if an SMBus thermal sensor on package)

Reserved

OEM EEPROM present (set if there is a scratch ROM at offset 80 - FFh)

Core VID present (set if there is a VID provided by the processor)

L3 Cache present (set if there is a level 3 cache on the processor)

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

127

Boxed Processor Specifications

9.1

Introduction

The 64-bit Intel

XeonTM processor MP with up to 8MB L3 cache processor may also be offered as

an Intel boxed processor. Intel boxed processors are intended for system integrators who build

systems from components available through distribution channels. The boxed thermal solution is

still under development and subject to change. This section is meant to provide some insight into
the current direction of the thermal solution. Future revisions may have solutions that differ from

those discussed here.

The current thermal solution plan for the boxed 64-bit Intel

XeonTM processor MP with up to

8MB L3 cache processor is to include an unattached passive heatsink. This solution is currently
targeted at chassis which are 3U and above in height.

This section documents baseboard and platform requirements for the thermal solution, supplied

with the boxed 64-bit Intel

XeonTM processor MP with up to 8MB L3 cache processor. This

section is particularly important to companies that design and manufacture baseboards, chassis and
complete systems.

Figure 9-1

shows the conceptual drawing of the boxed processor thermal

solution.

Drawings in this section reflect only the specifications on the Intel boxed processor product. These

dimensions should not be used as a generic keep-out zone for all cooling solutions. It is the system
designer's responsibility to consider their proprietary cooling solution when designing to the

required keep-out zone on their system platform and chassis.

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

135

Boxed Processor Specifications

9.2.2

Boxed Processor Heatsink Weight

The boxed processor heatsink weight is approximately 530 grams. See

Section 4

of this document

for details on the processor weight.

9.2.3

Boxed Processor Retention Mechanism and Heatsink

Supports

Baseboards and chassis's designed for use by system integrators should include holes that are in

proper alignment with each other to support the boxed processor. See

Figure 9-7

for example of

processor pitch and layout.

Figure 9-1

illustrates the new retention solution. This is designed to extend air-cooling capability

through the use of larger heatsinks with minimal airflow blockage and minimal bypass. These

retention mechanisms can allow the use of much heavier heatsink masses compared to legacy

solution limitations by using a load path attached to the chassis pan. The cooling solution spring
(

Figure 9-1

labeled as "CEK SPRING") on the under side of the baseboard provides the necessary

compressive load for the thermal interface material. The baseboard is intended to be isolated such

that the dynamic loads from the heatsink are transferred to the chassis pan via the heatsink screws
and heatsink standoffs. This reduces the risk of package pullout and solder joint failures in a shock

and vibe situation.

The assembly requires larger diameter holes to compensate for the cooling solution spring

embosses. See

Figure 9-2

and

Figure 9-3

for processor mounting through holes.

9.3

Thermal Specifications

This section describes the cooling requirements of the heatsink solution utilized by the boxed
processor.

9.3.1

Boxed Processor Cooling Requirements

The boxed processor will be cooled by forcing ducted chassis fan airflow through the passive heat

sink solution. Meeting the processor's temperature specifications is a function of the thermal

design of the entire system, and ultimately the responsibility of the system integrator. The
processor temperature specification is found in

Section 7

of this document. For the boxed

processor passive heatsink to operate properly, chassis air movement devices are required.

Necessary airflow and associated flow impedance is 29 cfm at 0.10" H

In addition, the processor pitch should be 3.25 inches, or slightly more, when placed in side by side
orientation.

Figure 9-7

illustrates the side by side orientation and pitch. Note that the heatsinks are

interleaved to reduce air bypass.

It is also recommended that the ambient air temperature outside of the chassis be kept at or below

C. The air passing directly over the processor heatsink should not be preheated by other system

components (such as another processor), and should be kept at or below 40

C. Again, meeting the

processor's temperature specification is the responsibility of the system integrator.

64-bit Intel

XeonTM Processor MP with up to 8MB L3 Cache Datasheet

137

Debug Tools Specifications

10.1

Logic Analyzer Interface (LAI)

Intel is working with two logic analyzer vendors to provide logic analyzer interfaces (LAIs) for use
in debugging systems. Tektronix and Agilent should be contacted to get specific information about

their logic analyzer interfaces. The following information is general in nature. Specific information

must be obtained from the logic analyzer vendor.

Due to the complexity of multiprocessor systems, the LAI is critical in providing the ability to
probe and capture front side bus signals. There are two sets of considerations to keep in mind when

designing systems that can make use of an LAI: mechanical and electrical.

10.1.1

Mechanical Considerations

The LAI is installed between the processor socket and the processor. The LAI pins plug into the

socket, while the processor pins plug into a socket on the LAI. Cabling that is part of the LAI

egresses the system to allow an electrical connection between the processor and a logic analyzer.
The maximum volume occupied by the LAI, known as the keepout volume, as well as the cable

egress restrictions, should be obtained from the logic analyzer vendor. System designers must

make sure that the keepout volume remains unobstructed inside the system. Note that it is possible
that the keepout volume reserved for the LAI may differ from the space normally occupied by the

processor heatsink. If this is the case, the logic analyzer vendor will provide a cooling solution as

part of the LAI.

10.1.2

Electrical Considerations

The LAI will also affect the electrical performance of the front side bus; therefore, it is critical to

obtain electrical load models from each of the logic analyzer vendors to be able to run system level
simulations to prove that their tool will work in the system. Contact the logic analyzer vendor for

electrical specifications and load models for the LAI solution they provide.
